Model Whirlpool KDRP463LSS04 36`` KITCHENAID FREE STANDING RANGE DUAL FUEL W/GR – Common Parts &amp; Diagrams

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

Harness, Wire (Ignitor 42``) WPL 4456628 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI81024A5 Contact Us For Availability

1

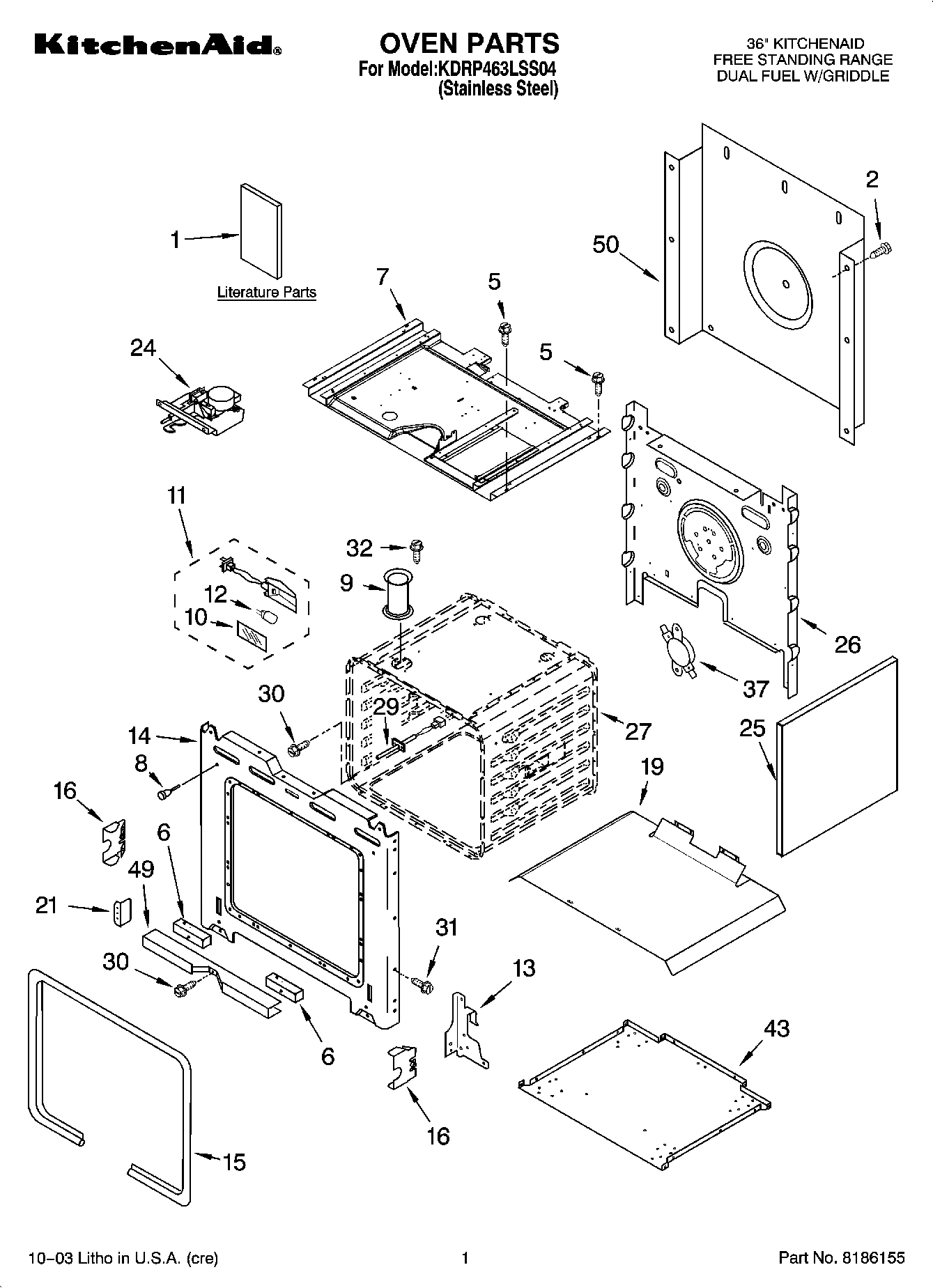

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $34.33

1

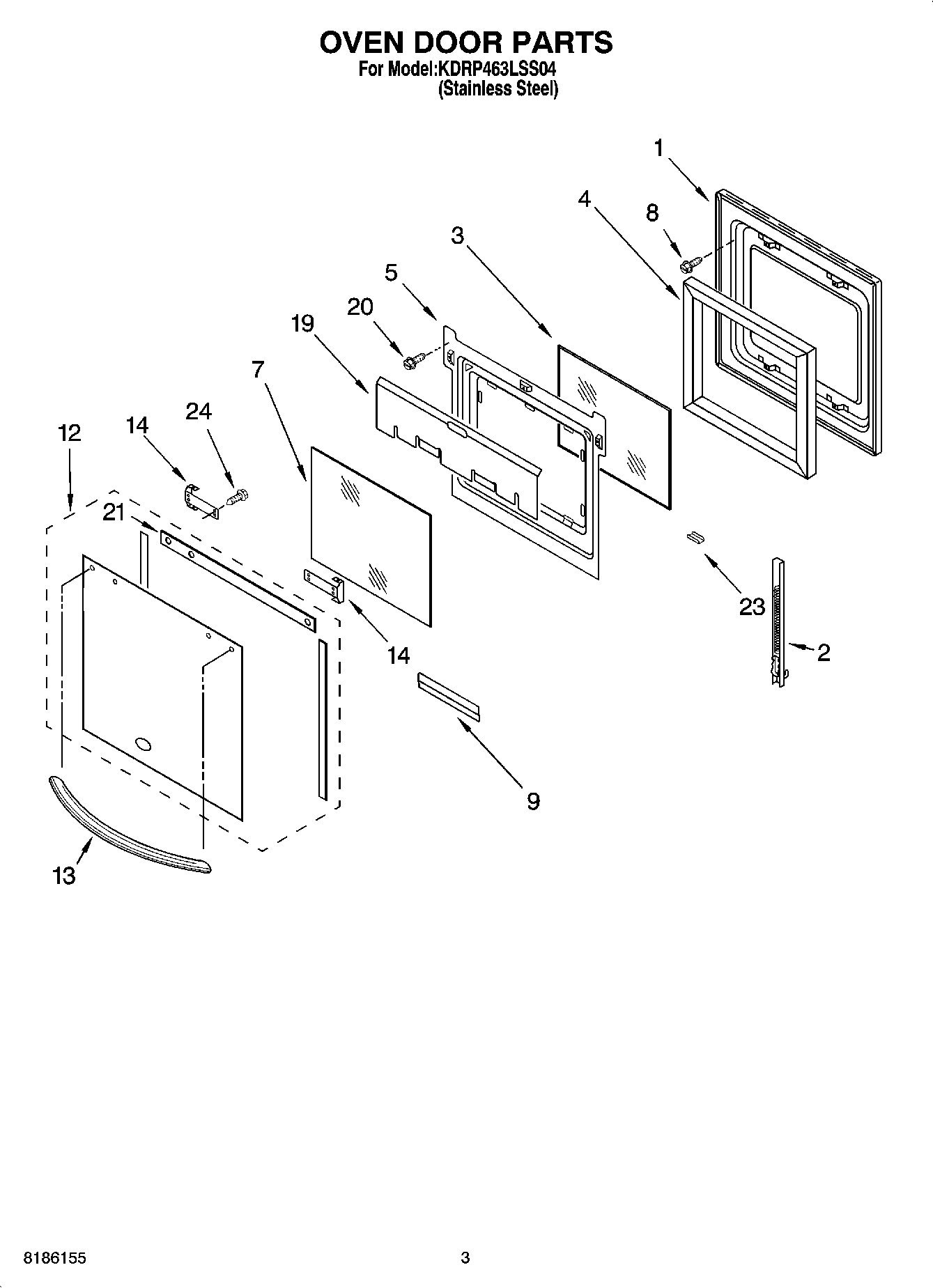

Door Liner WPL 8300152 Contact Us For Availability

1

Tubing, Gas Burner - RF WPL 8300231 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4456556 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8301169 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8301170 Contact Us For Availability

1

Literature Parts (Conversion Instructions) WPL LIT8301171 Contact Us For Availability

1

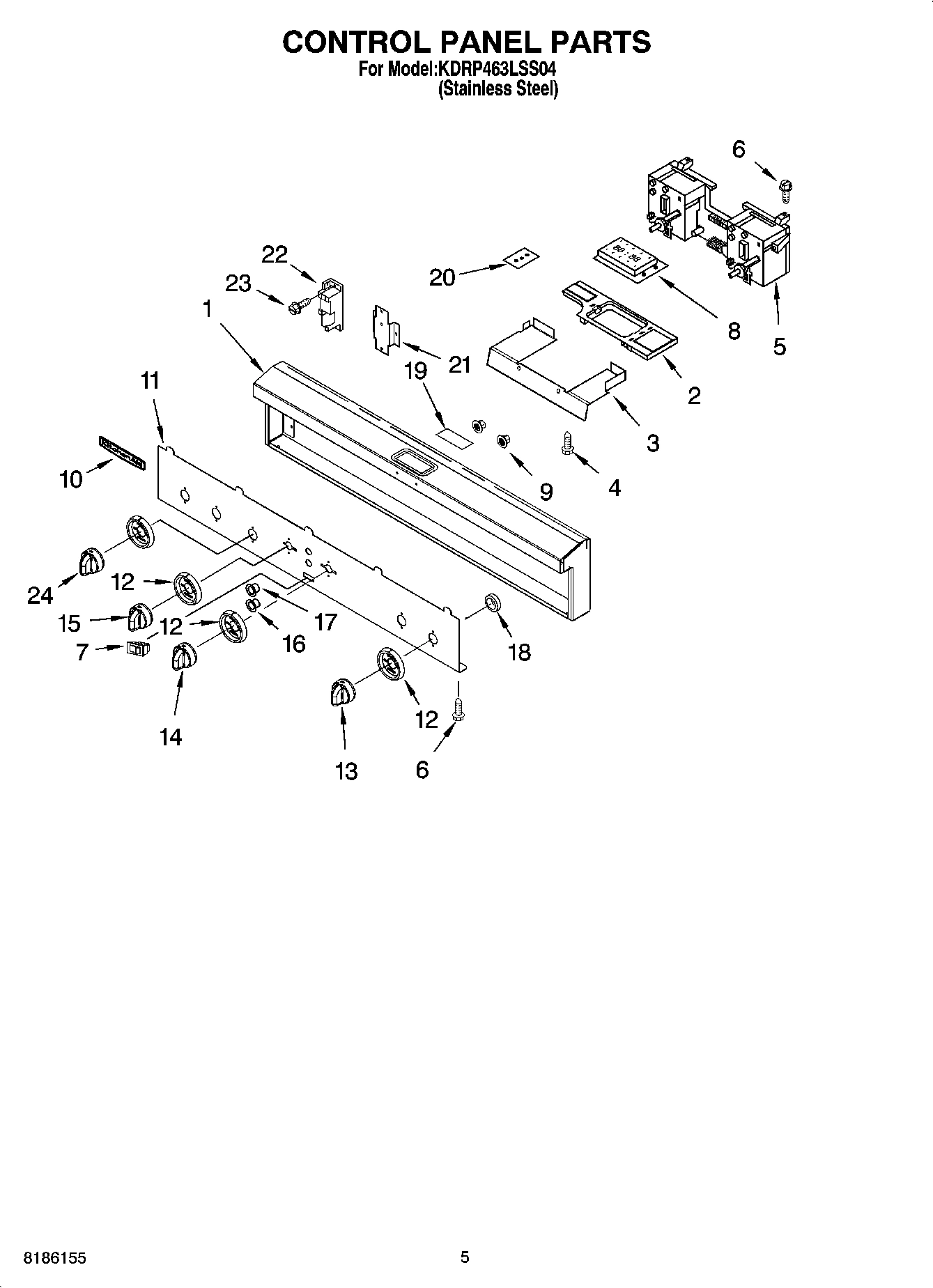

Panel, Control WPL 8300208 Contact Us For Availability

2

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $52.49

2

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $41.60

2

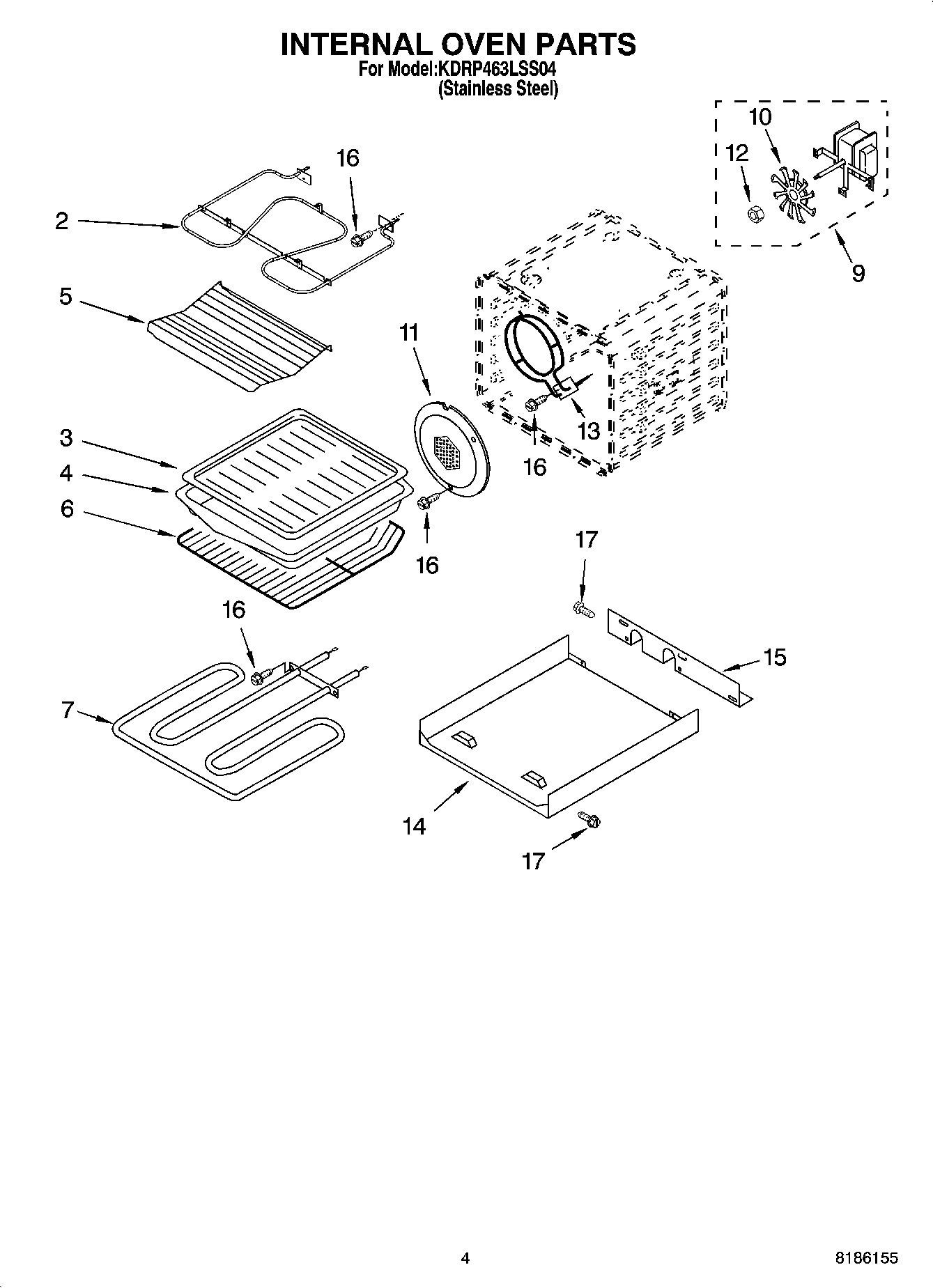

Element, Broil WPL 4456105 Contact Us For Availability

2

Tubing, Gas Burner - RR WPL 8300230 Contact Us For Availability

2

Bracket, Display WPL 4453000 Contact Us For Availability

2

Backsplash WPL 4454960 Contact Us For Availability

3

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

3

WP4449259 Whirlpool Glass Window In Stock WPL WP4449259 $83.40

3

Tube, Manifold to Regulator WPL 8300156 Contact Us For Availability

3

Bracket, Display Mounting WPL 8300805 Contact Us For Availability

3

Support, Backsplash WPL 8284712 Contact Us For Availability

4

98005642 Whirlpool Clip Backorder WPL 98005642 $30.25

4

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

4

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

4

Insulation, Door WPL 8300797 Contact Us For Availability

5

Screw WPL 4449746 Contact Us For Availability

5

Tubing, Gas Burner - LF WPL 8300187 Contact Us For Availability

5

Retainer, Glass WPL 8300190 Contact Us For Availability

5

Control, Zodiac WPL 8300203 Contact Us For Availability

5

Grate, Burner WPL 4454963 Contact Us For Availability

6

WPW10132940 Whirlpool Dishwasher Screw In Stock WPL WPW10132940 $3.13

6

Tubing, Gas Burner - LR WPL 8300188 Contact Us For Availability

6

Spacer, Foam WPL 4452260 Contact Us For Availability

6

Trim, Island WPL 8284851 Contact Us For Availability

7

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

7

WP4449263 Whirlpool Inner Door Glass Backorder WPL WP4449263 $84.67

7

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

7

WP4452842 Whirlpool Light Switch Backorder WPL WP4452842 $37.24

7

Manifold WPL 8301045 Contact Us For Availability

7

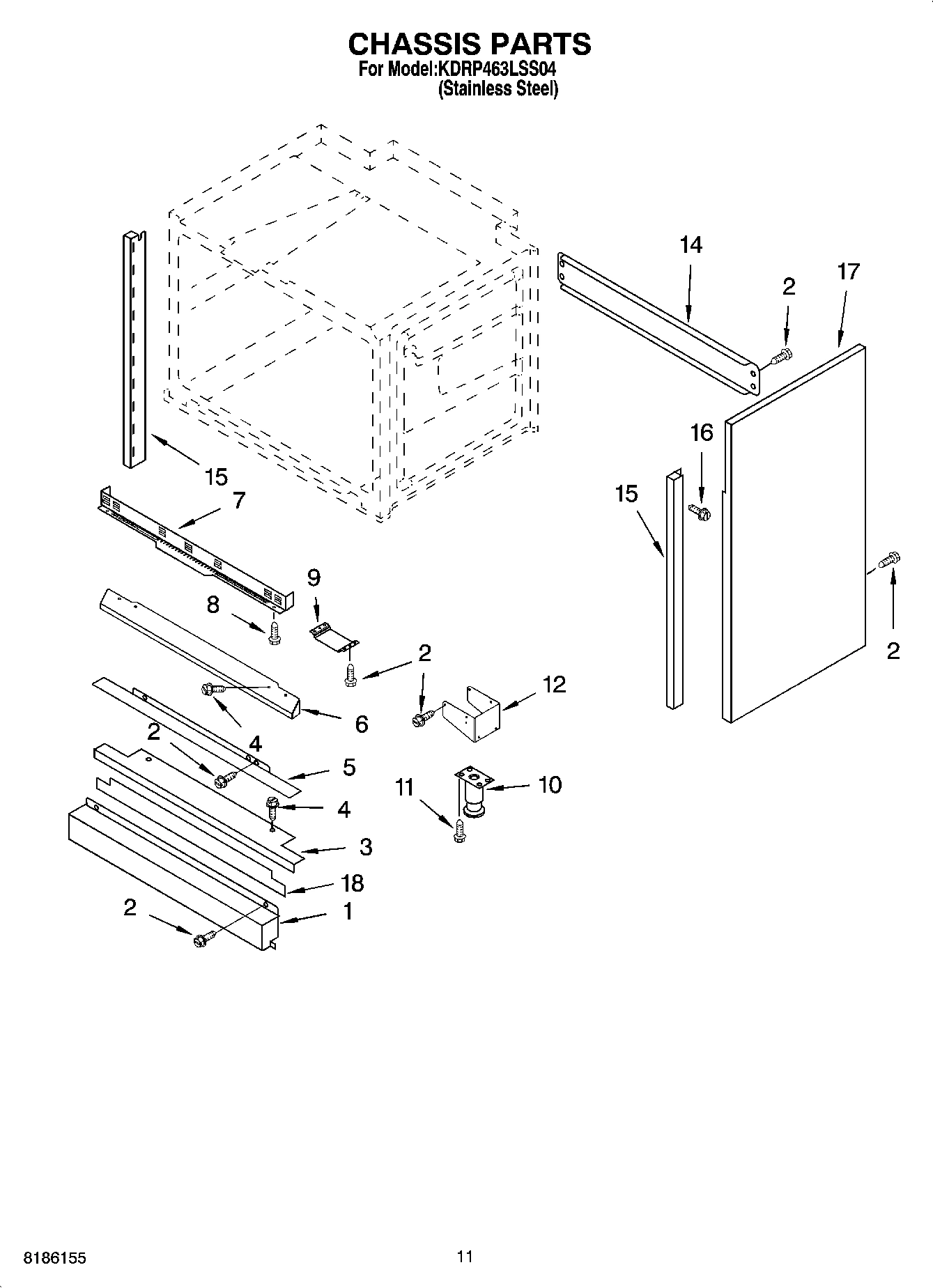

Top, Chassis WPL 8301469 Contact Us For Availability

7

Cover, Burner Spud WPL 8285038 Contact Us For Availability

8

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WP4452999 Whirlpool Display Assembly Backorder WPL WP4452999 $116.66

8

Valve, Burner (Turbo) WPL 3192157 Contact Us For Availability

8

Support, Control Panel WPL 8301056 Contact Us For Availability

9

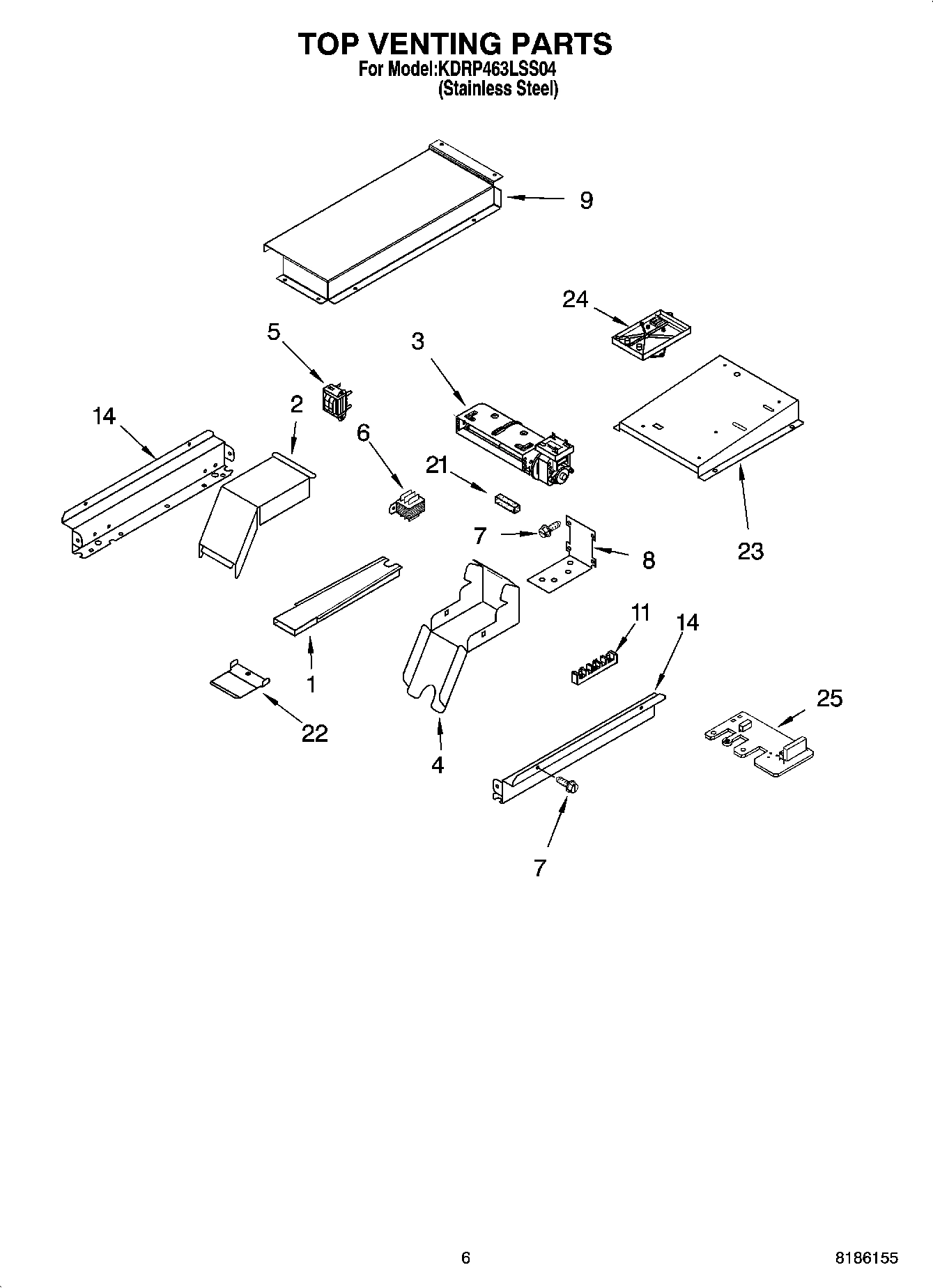

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $40.00

9

WP2004333 Whirlpool Refrigerator Nut Backorder WPL WP2004333 $4.59

9

Motor Convection WPL 4451583 Contact Us For Availability

9

Retainer, Glass WPL 4451668 Contact Us For Availability

9

Bolt, Valve WPL 3185829 Contact Us For Availability

9

Cover, Control Panel WPL 8301041 Contact Us For Availability

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $30.25

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $28.29

Lens, Light WPL 4452163 Contact Us For Availability

Burner Switch & Harness Assembly WPL 4456554 Contact Us For Availability

Nameplate WPL 2005292 Contact Us For Availability

4449748 Whirlpool Oven Screw Backorder WPL 4449748 $7.01

WP4448972 Whirlpool Oven Light In Stock WPL WP4448972 $50.93

WP9759091 Whirlpool Regulator Backorder WPL WP9759091 $128.39

Face, Control Panel WPL 8301490 Contact Us For Availability

WP4452164 Whirlpool 12V 5W Halogen Light Bulb In Stock WPL WP4452164 $49.89

Nut WPL 4452227 Contact Us For Availability

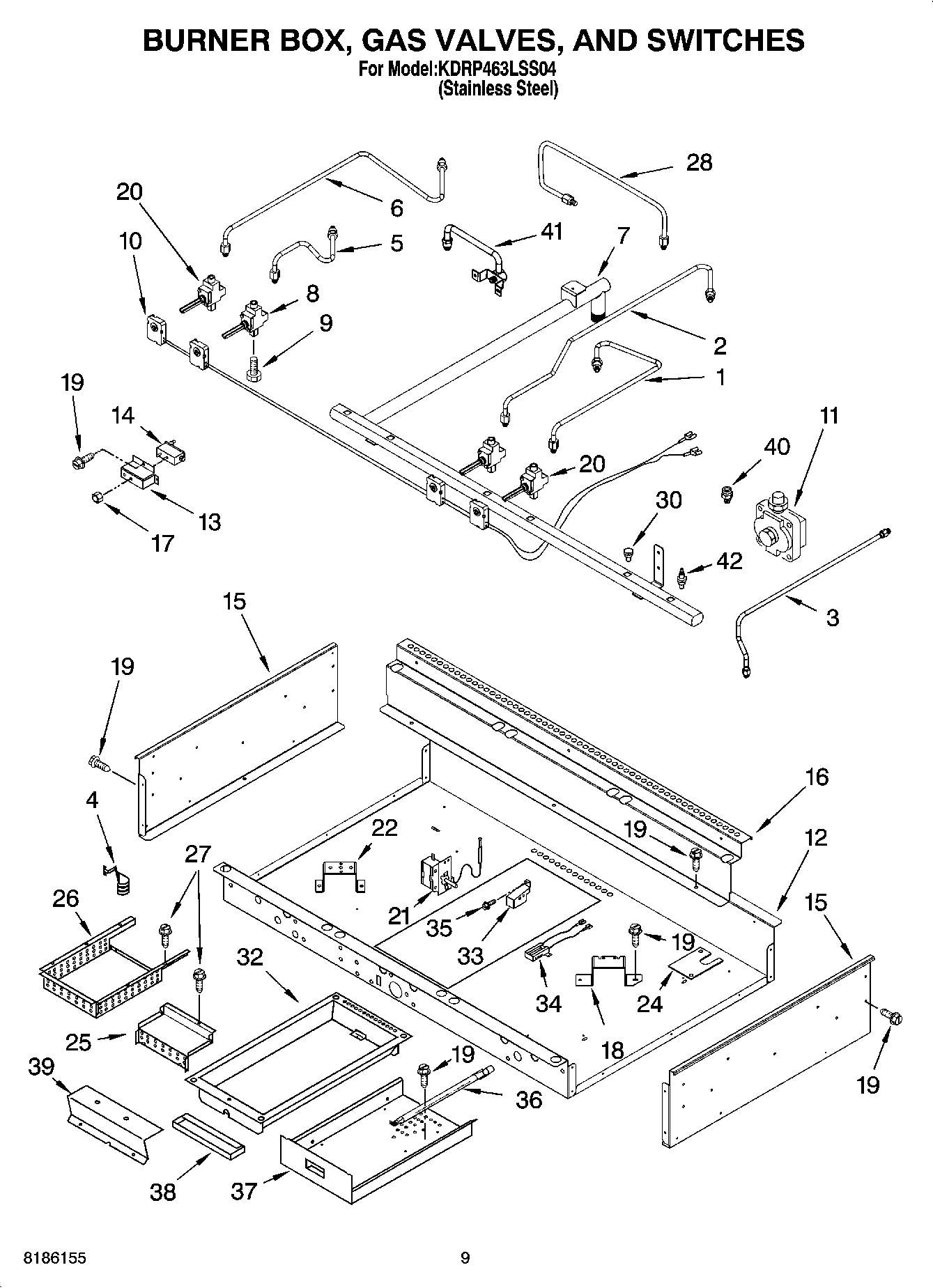

Burner Box WPL 4457090 Contact Us For Availability

Assy, Door Glass WPL 8300172 Contact Us For Availability

Bezel, Knob WPL 4455192 Contact Us For Availability

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $27.49

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $133.70

WPW10078400 Whirlpool Knob Assembly In Stock WPL WPW10078400 $3.70

Cap, Burner (14K (2)) WPL 4455243 Contact Us For Availability

Bracket, Griddle Valve WPL 8301705 Contact Us For Availability

Door Handle WPL 4455852 Contact Us For Availability

4455115 Whirlpool Range Knob Backorder WPL 4455115 $13.83

4455803 Whirlpool Oven Bracket Backorder WPL 4455803 $12.39

Bracket, Handle (Left Hand) WPL 4455804 Contact Us For Availability

Valve, Griddle WPL 8301058 Contact Us For Availability

Tray, Hidden Bake WPL 8300799 Contact Us For Availability

Frame, Front WPL 8300150 Contact Us For Availability

4455141 Whirlpool Range Knob In Stock WPL 4455141 $11.09

W11676901 Whirlpool Range Gasket Backorder WPL W11676901 $26.72

WPW10155786 Whirlpool Range Surface Burner Or In Stock WPL WPW10155786 $53.24

Cover, Access WPL 8300800 Contact Us For Availability

Side, Burner Box (Left Hand) WPL 8285606 Contact Us For Availability

Side, Burner Box (Right Hand) WPL 8285607 Contact Us For Availability

Holder, Orifice Includes Orifice (Auxi) WPL 4456920 Contact Us For Availability

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

Support, Rear WPL 4456962 Contact Us For Availability

Button, Cancel WPL 4452998 Contact Us For Availability

Support Rail (R.H.& L.H.) WPL 4454974 Contact Us For Availability

17

WP4452997 Whirlpool PB Switch In Stock WPL WP4452997 $53.03

17

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

18

Bracket, Burner WPL 3192811 Contact Us For Availability

18

Spacer Ring WPL 4455719 Contact Us For Availability

18

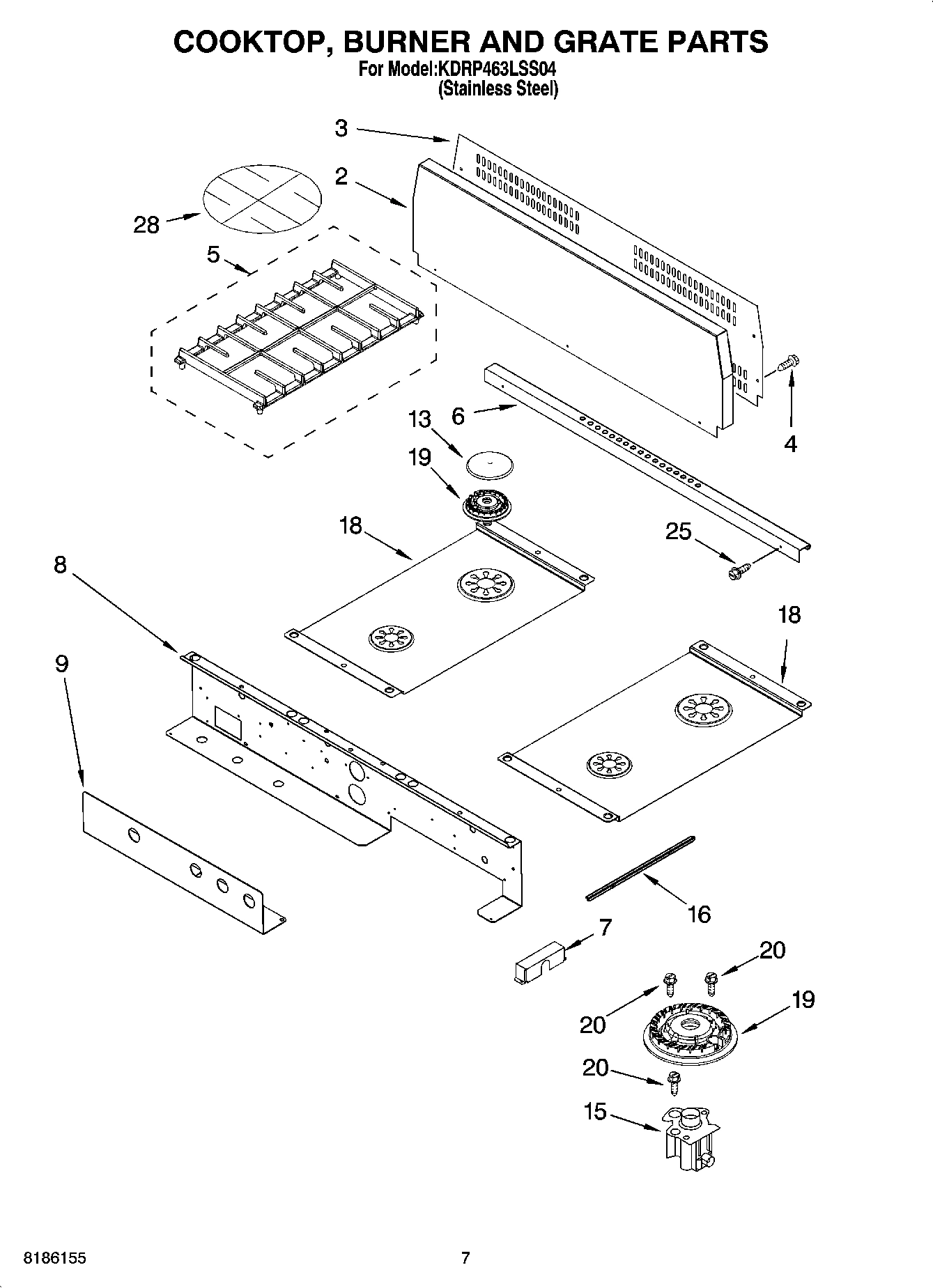

Cooktop, Black WPL 4456964 Contact Us For Availability

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $35.85

Burner Head 14K (Turbo (2)) WPL 4455849 Contact Us For Availability

Support, Insulation WPL 8300184 Contact Us For Availability

Shield, Heat WPL 8301089 Contact Us For Availability

Glass, Display WPL 4455806 Contact Us For Availability

W10491984 Whirlpool Switch Seal Backorder WPL W10491984 $5.00

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

Valve, Burner Auxillary Shelf WPL 3191292 Contact Us For Availability

Griddle, T-Stat WPL 8284765 Contact Us For Availability

Bracket, Support WPL 4455510 Contact Us For Availability

Seal, Door Top WPL 8300153 Contact Us For Availability

Bracket, Spark Module WPL 8285005 Contact Us For Availability

22

WPW10110491 Whirlpool Spark Module In Stock WPL WPW10110491 $112.05

22

Bracket, T-Stat WPL 8301067 Contact Us For Availability

23

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

23

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

23

Retainer, Clip WPL 4451432 Contact Us For Availability

8284743 Whirlpool Knob Backorder WPL 8284743 $52.19

Control, Zodiac WPL 8300795 Contact Us For Availability

Cover, Panel WPL 4455922 Contact Us For Availability

Latch, Motorized WPL 8302156 Contact Us For Availability

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $56.73

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP4451985 Whirlpool Noise Filter Board In Stock WPL WP4451985 $58.95

Screw (4) WPL 3400080 Contact Us For Availability

Box, Rear Lower WPL 8301042 Contact Us For Availability

26

Box, Front Lower WPL 8301059 Contact Us For Availability

26

Back, Chassis WPL 8300193 Contact Us For Availability

27

Liner, Oven (Not serviceable) WPL ARI81025A1 Contact Us For Availability

28

Plate, Simmer WPL 4455109 Contact Us For Availability

28

Tube, Griddle WPL 8301040 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

30

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

30

Plug, Manifold WPL 8284796 Contact Us For Availability

31

Screw, 8-18 x 3/8 WPL 4449040 Contact Us For Availability

32

Module, Griddle WPL 8284759 Contact Us For Availability

33

Bracket, Ignitor WPL 8284800 Contact Us For Availability

34

Ignitor, Griddle WPL 8284941 Contact Us For Availability

35

3400855 Whirlpool Oven Screw Backorder WPL 3400855 $4.39

36

Log Burner, Griddle WPL 8285051 Contact Us For Availability

37

WP8300802 Whirlpool Thermostat In Stock WPL WP8300802 $81.16

37

Enclosure, Griddle WPL 8285056 Contact Us For Availability

38

Tray, Drip WPL 8285569 Contact Us For Availability

39

Bracket WPL 8284811 Contact Us For Availability

40

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $45.57

40

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $72.36

41

Assy, Outlet Tube WPL 4456500 Contact Us For Availability

42

Plug, Manifold (open) WPL 8284804 Contact Us For Availability

43

Base, Chassis WPL 8300965 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $51.94

Insulation, Wrap WPL 8300158 Contact Us For Availability

Insulation, Back WPL 8300159 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED INSULATION WPL ARI81026A4 Contact Us For Availability
