Model Whirlpool KDDA27TRS01 INGREDIENT CENTER – Common Parts & Diagrams

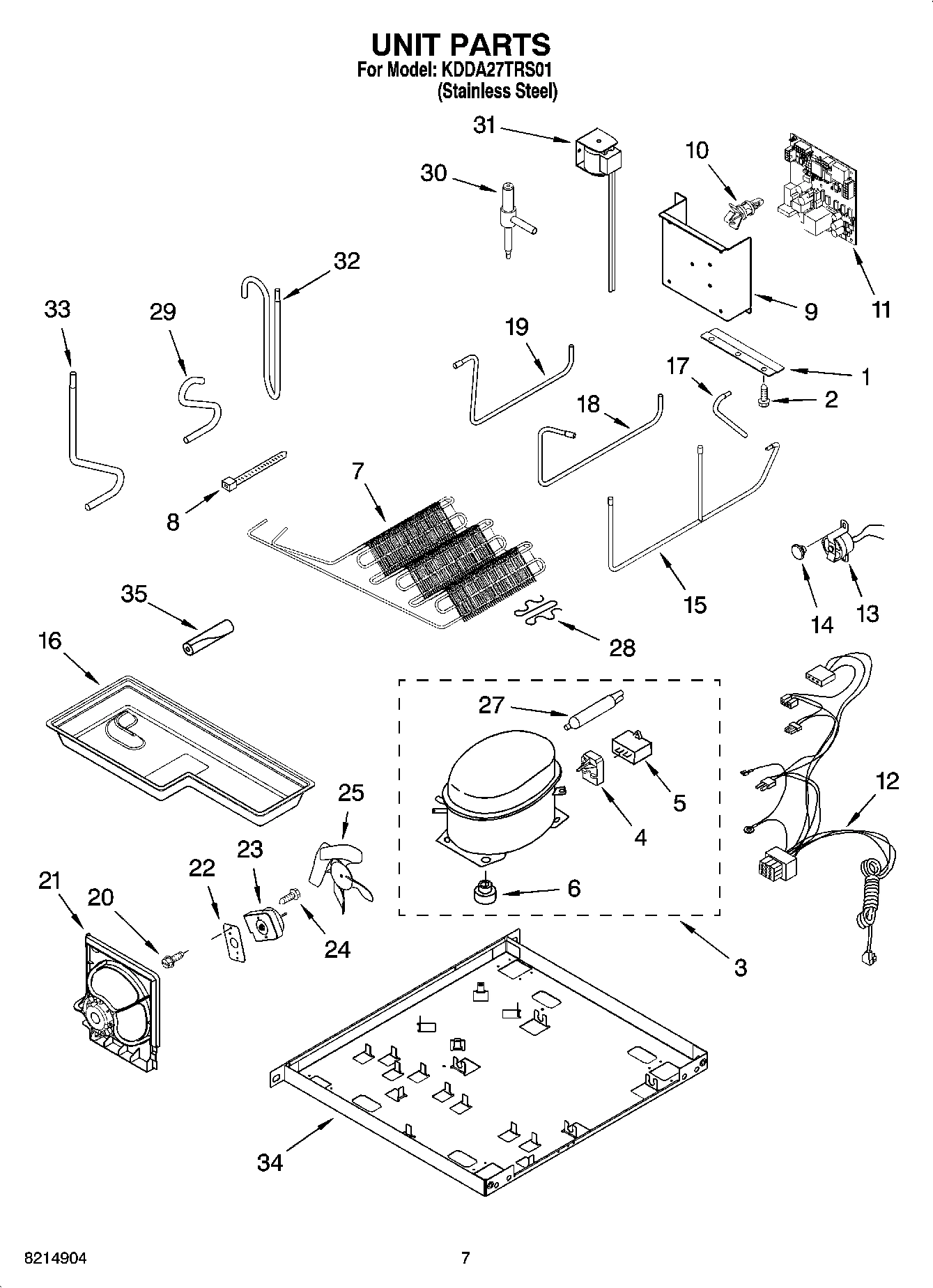

04 - UNIT PARTS

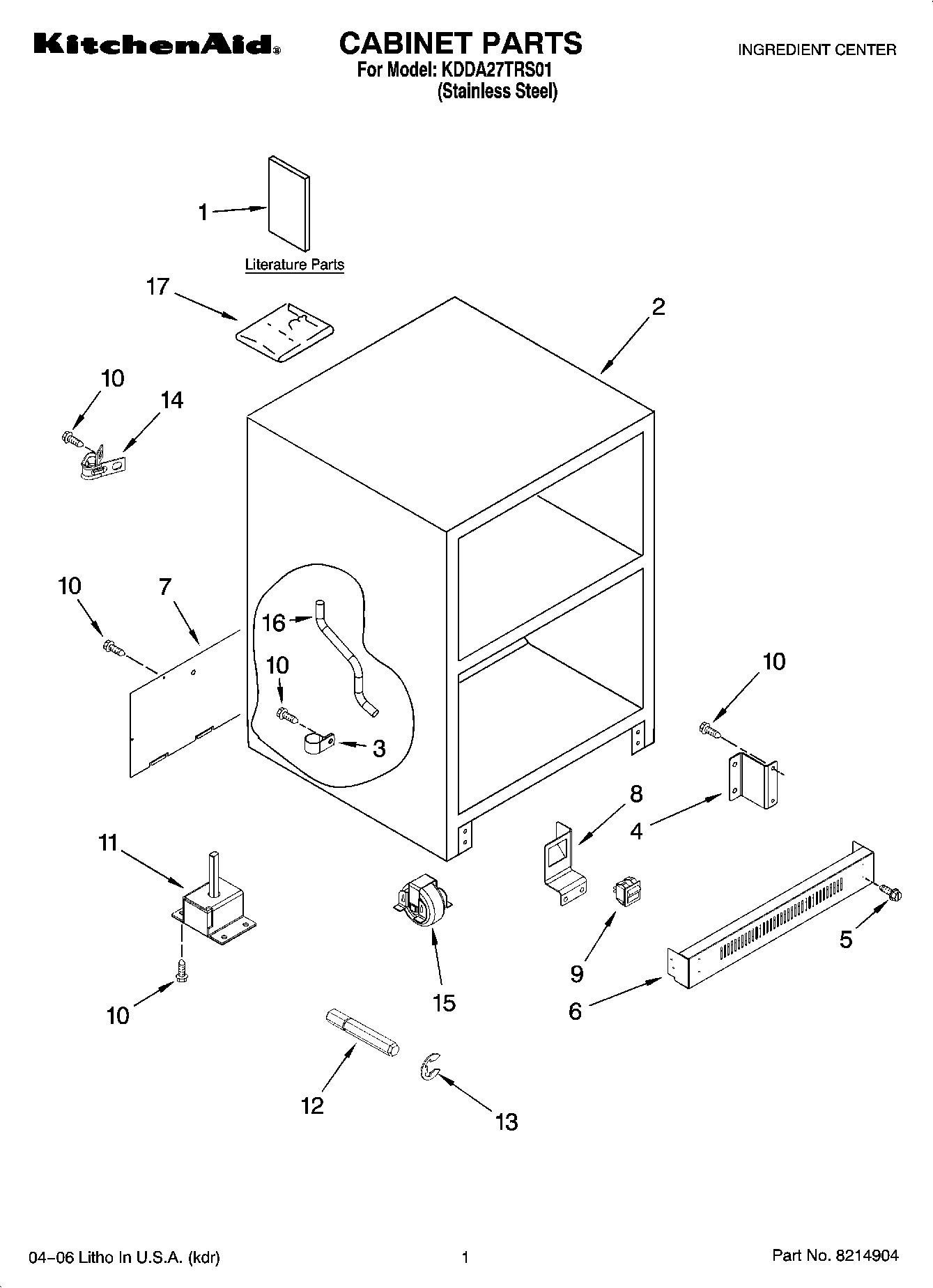

01 - CABINET PARTS
02 - LINER PARTS
03 - DRAWER PARTS
Common parts from model Whirlpool KDDA27TRS01 INGREDIENT CENTER
1
Use & Care Guide WPL 2258024 Contact Us For Availability
1
Energy Guide WPL 2258067 Contact Us For Availability
1
Temperature Guide WPL 2258088 Contact Us For Availability
1
Service & Wiring Sheet WPL 2258105 Contact Us For Availability
1
Installation Instructions WPL 2258277 Contact Us For Availability
1
Switch, Rocker (2) WPL 2257999 Contact Us For Availability
1
Drawer, Upper WPL 2257847 Contact Us For Availability
2
Evaporator (2) WPL 2257814 Contact Us For Availability
2
Harness, Wiring (Drawer) WPL 2310007 Contact Us For Availability
2
Cabinet (Not A Servicable Part) WPL ARI80850A8 Contact Us For Availability
3
Clamp, Drain Tube WPL 2258085 Contact Us For Availability
3
Rivet, Plastic WPL 2258135 Contact Us For Availability
4
Start-Device Combination WPL 2258026 Contact Us For Availability
4
Bracket, Grille WPL 2258201 Contact Us For Availability
4
Thermistor (Evaporator) WPL 2258075 Contact Us For Availability
4
Light Assembly WPL 2258025 Contact Us For Availability
5
Clip, Thermistor (Evaporator) WPL 2257639 Contact Us For Availability
5
Drawer Front (Upper) WPL 2257948 Contact Us For Availability
6
Control, Electronic WPL 2304086 Contact Us For Availability
6
GRILLE WPL 2257846 Contact Us For Availability
6
Cover, Evaporator (Upper) WPL 2258295 Contact Us For Availability
7
CONDENSER WPL 2257869 Contact Us For Availability
7
Cover, Unit WPL 2257885 Contact Us For Availability
8
Bracket, Switch WPL 2257923 Contact Us For Availability
8
Cover, Evaporator (Lower) WPL 2258314 Contact Us For Availability
8
Gasket, Upper Drawer WPL 2258015 Contact Us For Availability
9
Evaporator Fan WPL 2258310 Contact Us For Availability
9
Skin, Door (Upper) WPL 2258205 Contact Us For Availability
10
Drawer, Lower WPL 2257848 Contact Us For Availability
11
Gasket, Lower Drawer WPL 2258016 Contact Us For Availability
12
Rod, Leveler (Rear (2)) WPL 2257892 Contact Us For Availability
12
Rod, Leveler (Front (2)) WPL 2257893 Contact Us For Availability
12
Drawer Front (Lower) WPL 2257949 Contact Us For Availability
13
Clip, Thermistor (2) WPL 2209204 Contact Us For Availability
13
Bi-Metal WPL 2258137 Contact Us For Availability
13
Skin, Door (Lower) WPL 2258206 Contact Us For Availability
14
Screw WPL 3400067 Contact Us For Availability
15
Slide, Drawer (Left (2)) WPL 2257882 Contact Us For Availability
15
Slide, Drawer (Right (2)) WPL 2257883 Contact Us For Availability
15
Wire, Ground WPL 2310033 Contact Us For Availability
16
Tube, Drain WPL 2257916 Contact Us For Availability
16
Plate, Backing WPL 9744437 Contact Us For Availability
17
Kit, Mounting (4 brackets & 16 screws) WPL 2258203 Contact Us For Availability
17
Tube, Capillary to Evaporator WPL 2257914 Contact Us For Availability
17
HANDLE WPL 8557792 Contact Us For Availability
18
Mat, Upper Drawer WPL 2257937 Contact Us For Availability
19
Mat, Lower Drawer WPL 2258134 Contact Us For Availability
20
Basket (2) WPL 2258000 Contact Us For Availability
21
OVERLAY WPL 2258032 Contact Us For Availability
22
Plate, Motor WPL 2301979 Contact Us For Availability
22
DIVIDER WPL 2258131 Contact Us For Availability
23
Nameplate WPL 2217214B Contact Us For Availability
24
Cover, Connector WPL 2258173 Contact Us For Availability
27
Drier WPL 2257904 Contact Us For Availability
29
Tube, Discharge WPL 2257919 Contact Us For Availability
32
Tube, Heat Loop to Drier WPL 2258070 Contact Us For Availability
33
Tube, Condenser to Heat Loop WPL 2258071 Contact Us For Availability
34
Baseplate WPL 2257876 Contact Us For Availability
35
REFRIGERANT CHARGE 3.25 oz. (R-134A) WPL ARI80851A6 Contact Us For Availability
× ![]()
