Model Electrolux KD860GDK4 RANGE – Common Parts & Diagrams

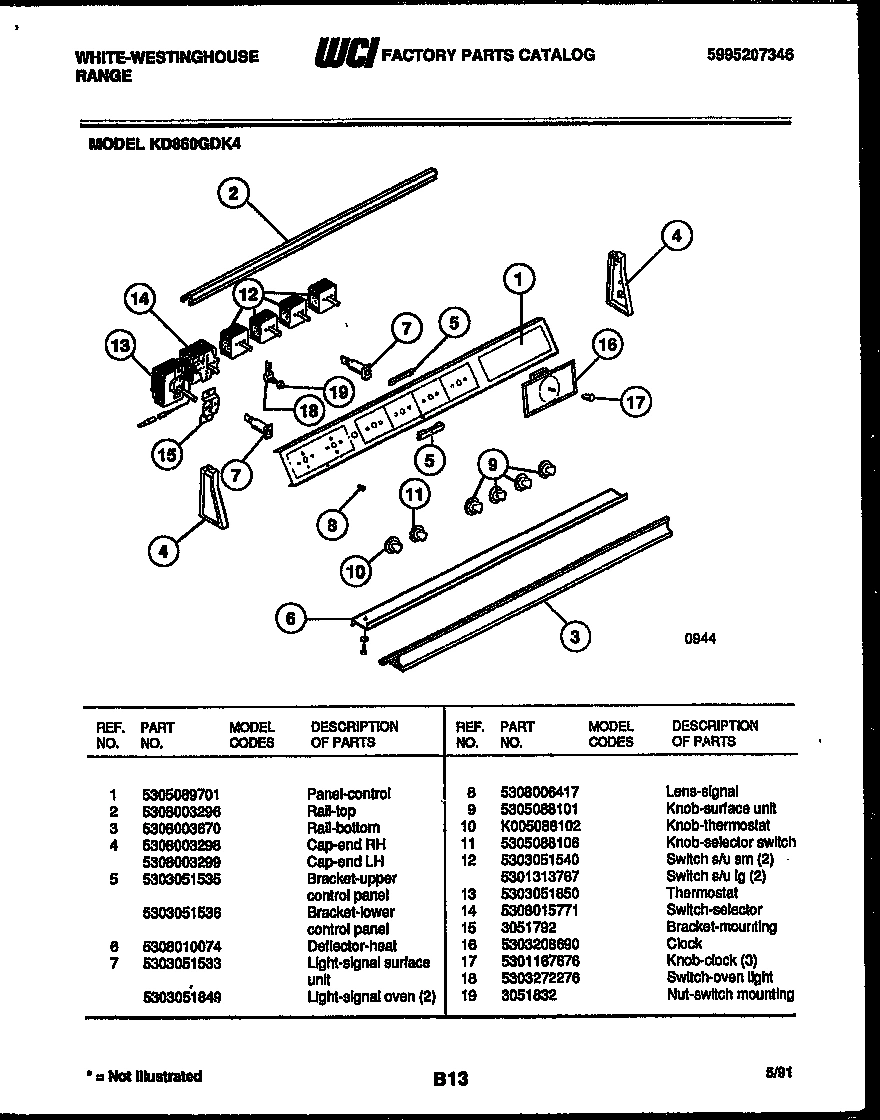

02 - CONTROL PANEL

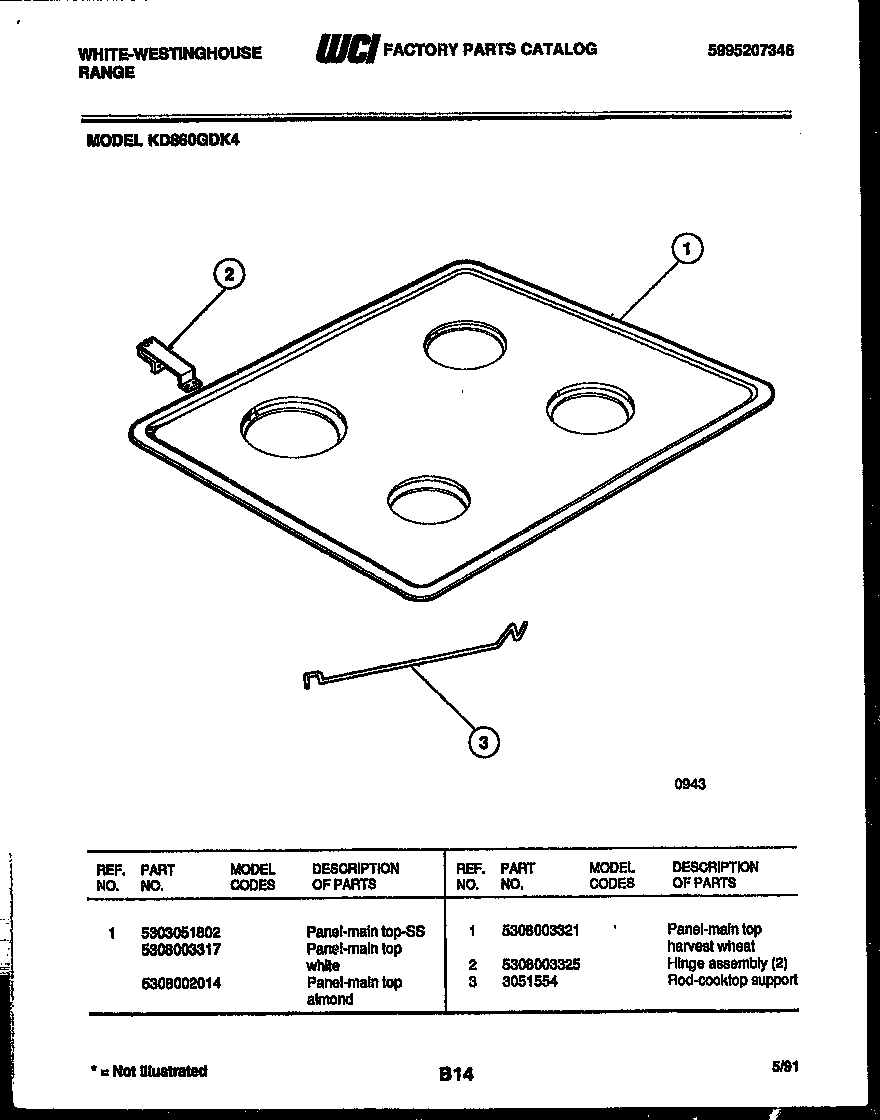

03 - COOKTOP PARTS

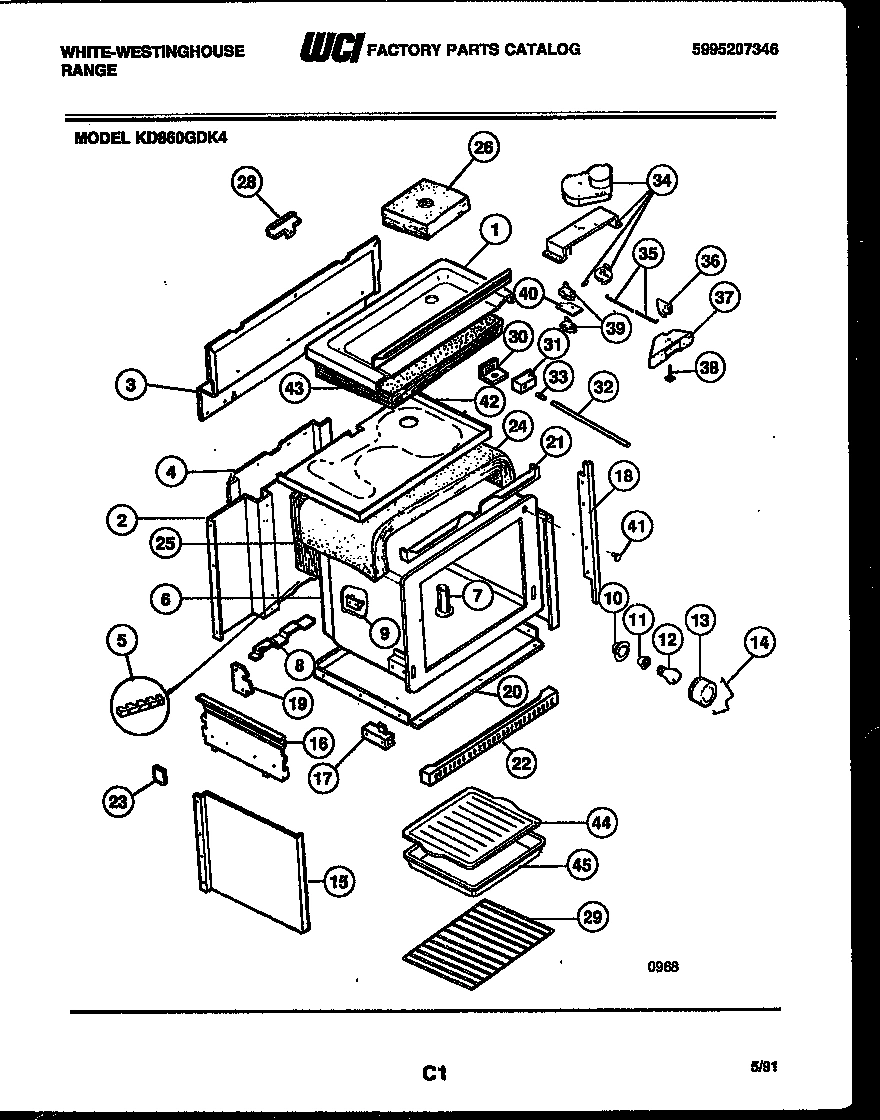

04 - BODY PARTS

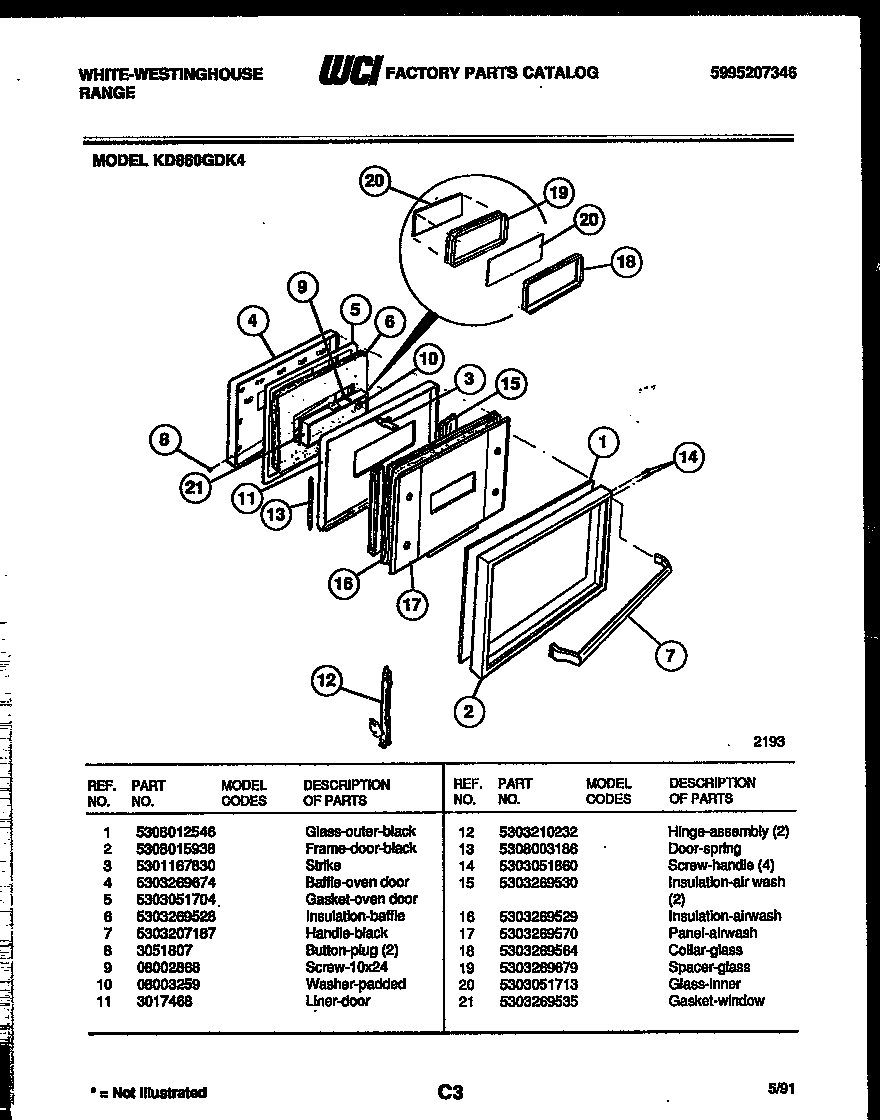

05 - DOOR PARTS
06 - BROILER PARTS
Common parts from model Electrolux KD860GDK4 RANGE
*46911
WCI 191S021P28 WCI 191S021P28 Contact Us For Availability
*46911
WCI 3203578 WCI 3203578 Contact Us For Availability
*46911
PLUG BUTTON (2) WCI 3204825 Contact Us For Availability
1
PANEL-MAIN TOP-SS WCI 5303051802 Contact Us For Availability
1
WCI 5308002014 WCI 5308002014 Contact Us For Availability
1
WCI 5308003317 WCI 5308003317 Contact Us For Availability
1
WCI 5308003321 WCI 5308003321 Contact Us For Availability
1
WCI 5303051553 WCI 5303051553 Contact Us For Availability
1
GLASS, OUTER, BLACK WCI 5308012546 Contact Us For Availability
2
HINGE ASSEMBLY (2) WCI 5308003325 Contact Us For Availability
2
WCI 5303274091 WCI 5303274091 Contact Us For Availability
2
FRAME-DOOR-BLACK WCI 5308015938 Contact Us For Availability
3
ROD, COOKTOP SUPPORT WCI 3051554 Contact Us For Availability
3
WCI 5308008689 WCI 5308008689 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
4
WCI 3204650 WCI 3204650 Contact Us For Availability
4
WCI 5303269674 WCI 5303269674 Contact Us For Availability
5
WCI 5303051704 WCI 5303051704 Contact Us For Availability
6
WCI 3204607 WCI 3204607 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
6
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
7
LIGHT-SIGNAL SURFACE UNIT WCI 5303051533 Contact Us For Availability
7
TUBE-VENT ASSEMBLY WCI 3051773 Contact Us For Availability
7
HANDLE - BLACK WCI 5303207187 Contact Us For Availability
7
WCI 3017801 WCI 3017801 Contact Us For Availability
8
LENS-SIGNAL WCI 5308006417 Contact Us For Availability
8
WCI 3203574 WCI 3203574 Contact Us For Availability
8
WCI 3051807 WCI 3051807 Contact Us For Availability
9
WCI 08002868 WCI 08002868 Contact Us For Availability
9
WCI 5305088101 WCI 5305088101 Contact Us For Availability
9
BRACKET-THERM BULB WCI 3051552 Contact Us For Availability
10
WCI K005088102 WCI K005088102 Contact Us For Availability
10
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
10
WASHER-PADDED WCI 08003259 Contact Us For Availability
11
WCI 5305088106 WCI 5305088106 Contact Us For Availability
11
LINER, DOOR WCI 3017468 Contact Us For Availability
12
HINGE-ASSEMBLY (2) WCI 5303210232 Contact Us For Availability
13
WCI 5303051850 WCI 5303051850 Contact Us For Availability
13
DOOR, SPRING WCI 5308003186 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
14
WCI 5308015771 WCI 5308015771 Contact Us For Availability
14
RETAINER-LENS WCI 5303205904 Contact Us For Availability
15
WCI 3051792 WCI 3051792 Contact Us For Availability
15
WCI 08012226 WCI 08012226 Contact Us For Availability
15
WCI 5303269530 WCI 5303269530 Contact Us For Availability
16
WCI 5303208690 WCI 5303208690 Contact Us For Availability
16
WCI 5308015935 WCI 5308015935 Contact Us For Availability
16
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
17
KNOB, CLOCK (3) WCI 5301167676 Contact Us For Availability
17
BRACKET, SUPPORT, RH (2) WCI 3051527 Contact Us For Availability
17
WCI 5303269570 WCI 5303269570 Contact Us For Availability
17A
BRACKET, SUPPORT, LH (2) WCI 3051528 Contact Us For Availability
18
WCI 5303272276 WCI 5303272276 Contact Us For Availability
18
WCI 08003334 WCI 08003334 Contact Us For Availability
18
WCI 5303269564 WCI 5303269564 Contact Us For Availability
19
NUT SWITCH MOUNTING WCI 3051832 Contact Us For Availability
19
WCI 5303051532 WCI 5303051532 Contact Us For Availability
19
WCI 5303269679 WCI 5303269679 Contact Us For Availability
20
RETAINER, INSULATION, BOTTOM WCI 3204634 Contact Us For Availability
20
WCI 5303051713 WCI 5303051713 Contact Us For Availability
21
WCI 08008686 WCI 08008686 Contact Us For Availability
21
WCI 5303269535 WCI 5303269535 Contact Us For Availability
22
GRILLE-BOTTOM WCI 5308012249 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
WCI 08013680 WCI 08013680 Contact Us For Availability
25
WCI 5303051630 WCI 5303051630 Contact Us For Availability
26
WCI 3051523 WCI 3051523 Contact Us For Availability
28
BRACKET-HINGE SUPT WCI 3051800 Contact Us For Availability
29A
WCI 08014219 WCI 08014219 Contact Us For Availability
30
BRACKET, DOOR SWITCH WCI 3051643 Contact Us For Availability
31
WCI 5308003081 WCI 5308003081 Contact Us For Availability
32
PUSH ROD-SWITCH WCI 3051645 Contact Us For Availability
33
WCI 08007444 WCI 08007444 Contact Us For Availability
34
WCI 5308015743 WCI 5308015743 Contact Us For Availability
35
WCI 3051649 WCI 3051649 Contact Us For Availability
36
LATCH-DOOR WCI 3051648 Contact Us For Availability
37
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
38
AXLE WCI 5308012004 Contact Us For Availability
39
SWITCH-DOOR LATCH UPPER WCI 5301167190 Contact Us For Availability
39A
SWITCH-DOOR LATCH LOWER WCI 5303051740 Contact Us For Availability
40
INSULATION-DOOR LATCH (2) WCI 08003090 Contact Us For Availability
41
WCI 3204817 WCI 3204817 Contact Us For Availability
42
WCI 3051782 WCI 3051782 Contact Us For Availability
43
WCI 3051788 WCI 3051788 Contact Us For Availability
44
GRILLE-BROILER WCI 5303131356 Contact Us For Availability
45
PAN-BROILER WCI 5303013568 Contact Us For Availability
× ![]()
