Model Whirlpool KCGC500JSS00 COOKTOP, GAS, COMMERCIAL-STYLE, 30 INCH – Common Parts & Diagrams

Common parts from model Whirlpool KCGC500JSS00 COOKTOP, GAS, COMMERCIAL-STYLE, 30 INCH

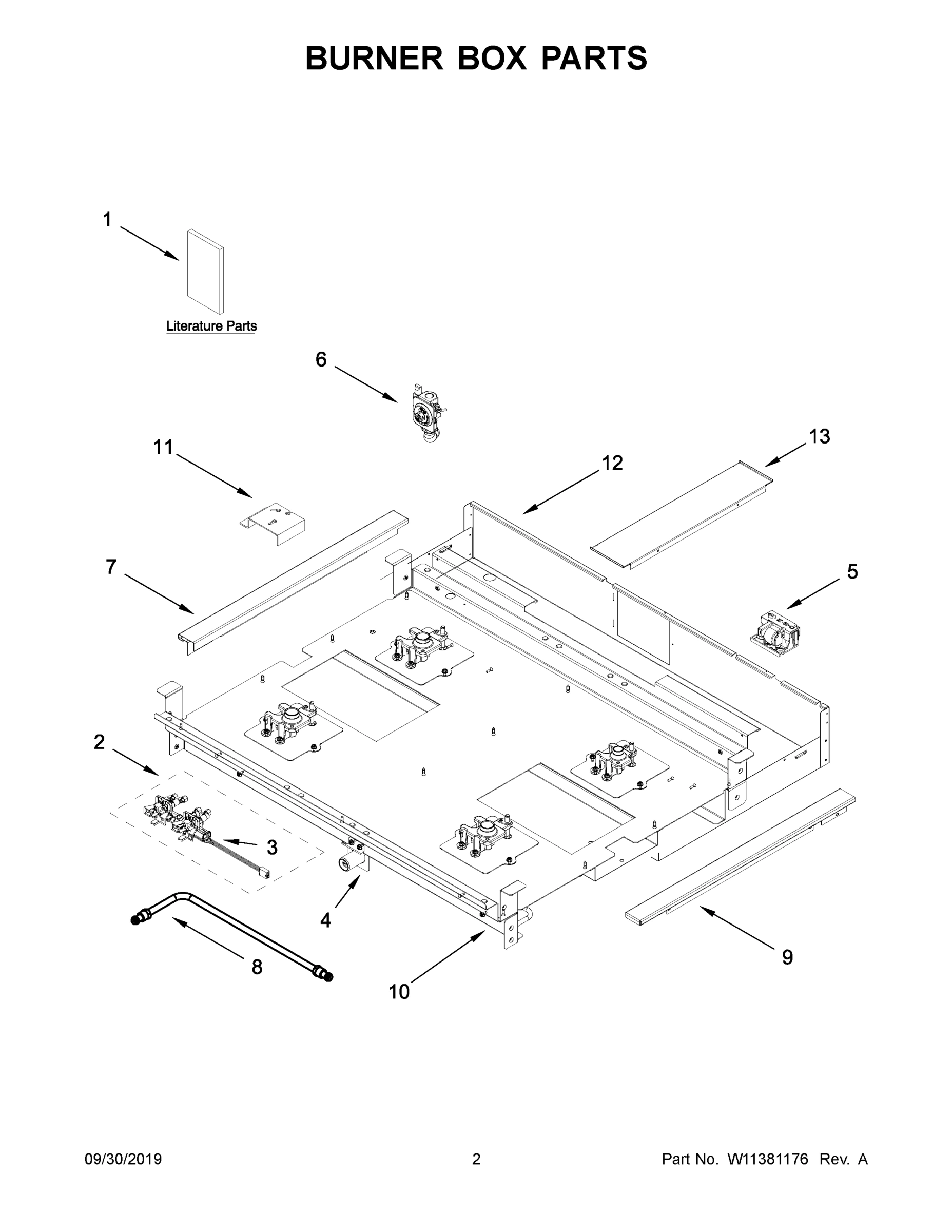

02 - BURNER BOX PARTS

Print

• This Diagram
• All Diagrams

1

PANEL, CONSOLE WPL W10878401 Contact Us For Availability

View on Model

2

W11337062 Whirlpool Orifice Holder In Stock WPL W11337062 View Details $41.61

View on Model

2A

W11378585 Whirlpool Range Orifice Holder Backorder WPL W11378585 View Details $41.61

View on Model

2B

W11381273 Whirlpool Holder Orifice Backorder WPL W11381273 View Details $41.61

View on Model

3

W11643164 Whirlpool Orifice Spud Backorder WPL W11643164 View Details $36.33

View on Model

3A

W11672510 Whirlpool Spud Orifice Backorder WPL W11672510 View Details $36.29

View on Model

3B

W11661909 Whirlpool Range Orifice Spud Backorder WPL W11661909 View Details $36.29

View on Model

3C

W10892438 Whirlpool Orifice Spud Backorder WPL W10892438 View Details $39.25

View on Model

4

W11580024 Whirlpool Surface Igniter In Stock WPL W11580024 View Details $7.61

View on Model

4A

W11628654 Whirlpool Surface Igniter Backorder WPL W11628654 View Details $19.62

View on Model

5

W11380124 Whirlpool Burner Grate In Stock WPL W11380124 View Details $99.69

View on Model

6

W11380128 Whirlpool Burner Grate Backorder WPL W11380128 View Details $99.69

View on Model

7

W11643628 Whirlpool Screw In Stock WPL W11643628 View Details $9.59

View on Model

7A

W11678580 Whirlpool Screw In Stock WPL W11678580 View Details $8.11

View on Model

8

W11380561 Whirlpool Knob Backorder WPL W11380561 View Details $43.37

View on Model

8

TUBE, MANIFOLD SUPPLY (LEFT) WPL W10892070 Contact Us For Availability

View on Model

8A

TUBE, MANIFOLD SUPPLY (RIGHT) WPL W10892072 Contact Us For Availability

View on Model

9

W11339741 Whirlpool Trim Backorder WPL W11339741 View Details $90.81

View on Model

9

W11380562 Whirlpool Knob Assembly Backorder WPL W11380562 View Details $43.37

View on Model

10

TRIM-TOP Backorder WPL W11355759 View Details $92.47

View on Model

11

BRKT-MNTG Backorder WPL 8285790 View Details $30.98

View on Model

11

W11380145 Whirlpool Knob Bezel Backorder WPL W11380145 View Details $33.65

View on Model

12

W11380146 Whirlpool Knob Bezel Backorder WPL W11380146 View Details $33.65

View on Model

13

COOKTOP Backorder WPL W11121361 View Details $171.65

View on Model

13

W11380174 Whirlpool Burner Cap Backorder WPL W11380174 View Details $66.75

View on Model

14

W11344539 Whirlpool Burner Head In Stock WPL W11344539 View Details $45.88

View on Model

14A

W11344742 Whirlpool Burner Head In Stock WPL W11344742 View Details $48.64

View on Model

14B

W11344746 Whirlpool Burner Head Backorder WPL W11344746 View Details $48.64

View on Model

15

SCREW WPL 7101P42660 Contact Us For Availability

View on Model

16

W11344755 Whirlpool Cooktop Backorder WPL W11344755 View Details $63.10

View on Model

16A

W11380180 Whirlpool Cooktop Backorder WPL W11380180 View Details $171.65

View on Model

17

W10271524 Whirlpool Trim Top Backorder WPL W10271524 View Details $88.85

View on Model

18

W11380566 Whirlpool Burner Grate Backorder WPL W11380566 View Details $123.76

View on Model

19

W11674763 Whirlpool Screw Backorder WPL W11674763 View Details $8.11

View on Model

20

SCREW WPL 7101P33860 Contact Us For Availability

View on Model

21

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 View Details $22.77

View on Model

22

W11550692 Whirlpool Bumper In Stock WPL W11550692 View Details $6.73

View on Model

NI

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 View Details $72.40

View on Model

NI

W10160195 Whirlpool Cover Backorder WPL W10160195 View Details $160.20

View on Model

NI

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 View Details $26.08

View on Model

NI

W10285449 Whirlpool Backsplash Backorder WPL W10285449 View Details $484.00

View on Model

NI

W10624584 Whirlpool Power Cord Backorder WPL W10624584 View Details $74.77

View on Model

NI

W11038934 Whirlpool Wire Harness Backorder WPL W11038934 View Details $70.03

View on Model

NI

HARNS-WIRE Backorder WPL W11200328 View Details $70.03

View on Model

NI

W11502161 Whirlpool Conversion Kit In Stock WPL W11502161 View Details $26.15

View on Model

NI

ACCESSORY PARTS, CLEANER, COOKTOP WPL 31464 Contact Us For Availability

View on Model

NI

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability

View on Model

NI

ACCESSORY PARTS, KIT, HIGH ALTITUDE WPL W11238043 Contact Us For Availability

View on Model

×
