Model Whirlpool KBNU367VSS00 36`` BUILT-IN GRILL – Common Parts & Diagrams

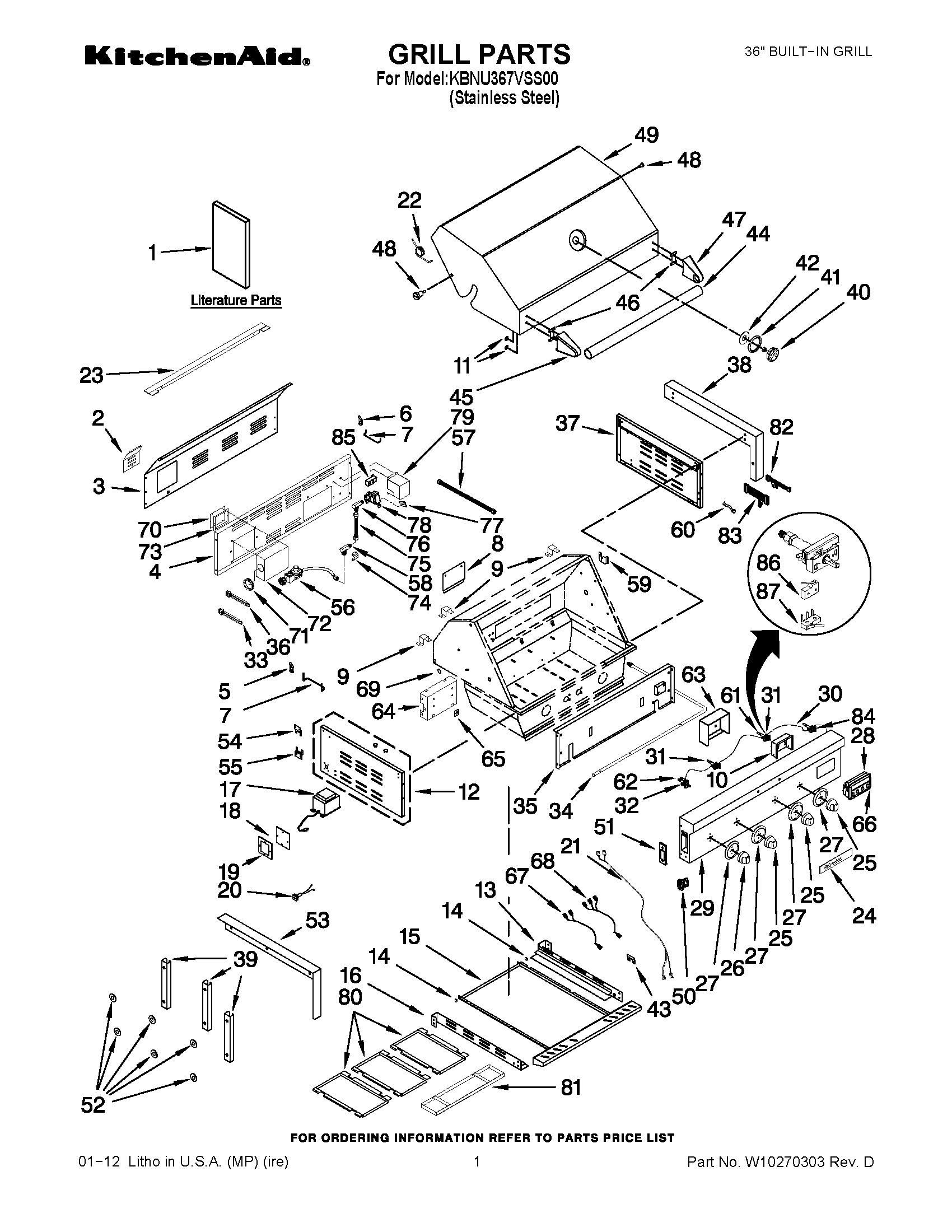

01 - GRILL PARTS

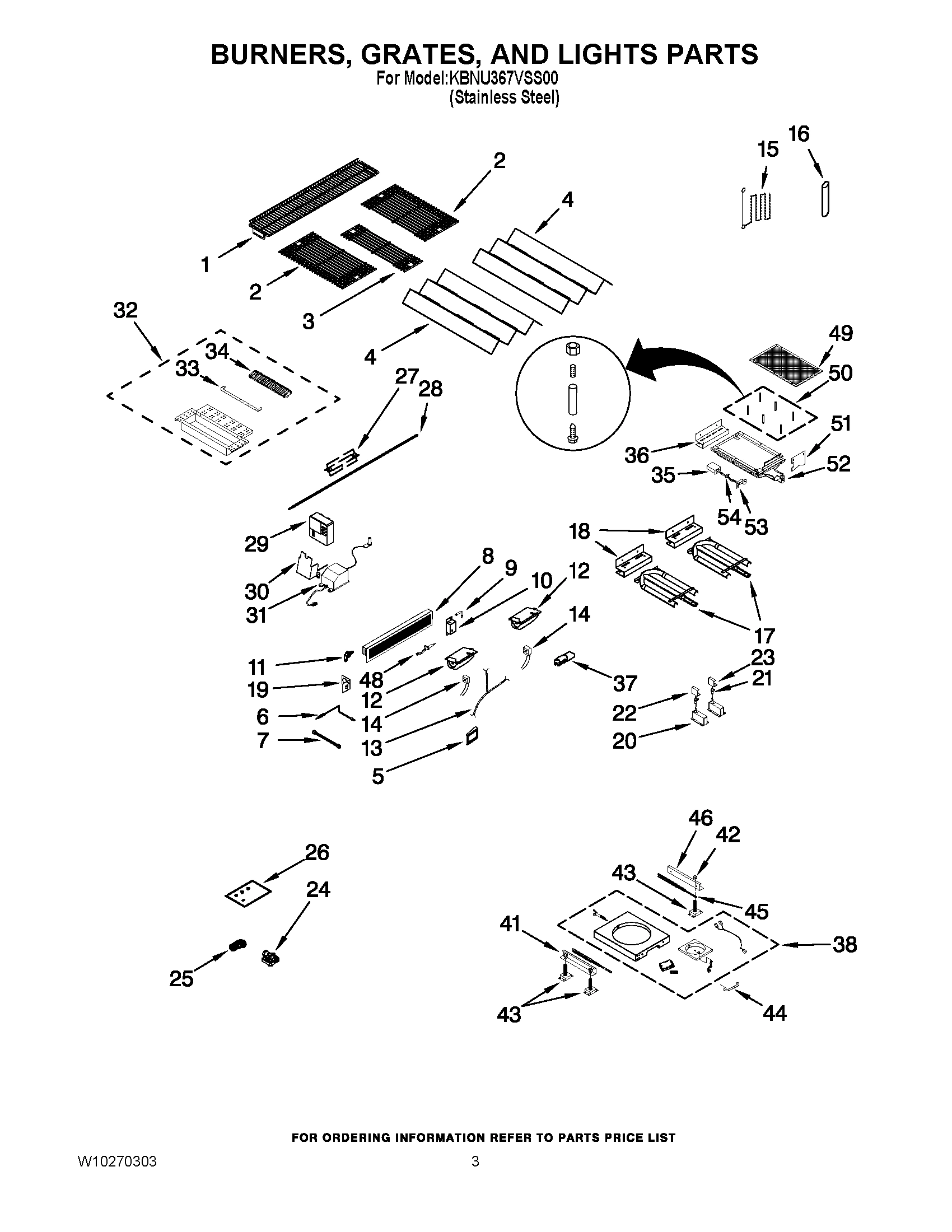

02 - BURNERS, GRATES, AND LIGHTS PARTS
03 - OPTIONAL PARTS
Common parts from model Whirlpool KBNU367VSS00 36`` BUILT-IN GRILL
1
Rack, Warming WPL W10133859 Contact Us For Availability
2
RACK, LARGE WPL W10244174 Contact Us For Availability
3
RACK, SMALL WPL W10244176 Contact Us For Availability
4
PLATE, SEAR WPL W10244180 Contact Us For Availability
5
HOUSING, LAMP WPL W10134808 Contact Us For Availability
6
Thermocouple, Rear Burner WPL W10128622 Contact Us For Availability
7
Flex Tube, Rear Burner WPL W10128623 Contact Us For Availability
8
Burner, Rear WPL W10133864 Contact Us For Availability
9
Bracket, Rear Thermocouple WPL W10134805 Contact Us For Availability
10
Cover, Rear Thermocouple WPL W10128626 Contact Us For Availability
11
ORIFICE, REAR BURNER WPL W10246966 Contact Us For Availability
12
Light, Grill WPL W10140242 Contact Us For Availability
13
HARNESS, WIRE LIGHTS WPL W10133866 Contact Us For Availability
14
Socket, Light WPL W10128631 Contact Us For Availability
15
Rod, Lighting WPL W10128704 Contact Us For Availability
16
Bag, Lighting Rod WPL W10128703 Contact Us For Availability
17
Burner, Main WPL W10128775 Contact Us For Availability
18
BRACKET,MAIN BRNR WPL W10244202 Contact Us For Availability
19
BRACKET, IGNITER REAR BURNER WPL W10244185 Contact Us For Availability
20
BRACKET, IGNITER FRONT BURNERS WPL W10244197 Contact Us For Availability
21
IGNITER, HOT SURFACE WPL W10247024 Contact Us For Availability
22
COLLECTOR,GAS LEFT WPL W10244196 Contact Us For Availability
23
COLLECTOR, GAS RIGHT WPL W10244198 Contact Us For Availability
25
CONNECTOR, NG WPL W10140747 Contact Us For Availability
26
KIT, ORIFICE NG WPL W10247038 Contact Us For Availability
27
FORK, SPIT WPL W10247150 Contact Us For Availability
28
ROD, SPIT WPL W10247180 Contact Us For Availability
30
BRACKET, MOTOR WPL W10247113 Contact Us For Availability
32
BOX, SMOKER WPL W10244190 Contact Us For Availability
33
WIRE, LOAD CELL WPL W10247096 Contact Us For Availability
33
HANDLE, SMOKER WPL W10134791 Contact Us For Availability
34
GRATE, SMOKER WPL W10134790 Contact Us For Availability
35
COLLECTOR, GAS SEAR BURNER WPL W10244200 Contact Us For Availability
36
BRACKET, SEAR BURNER WPL W10244201 Contact Us For Availability
40
Thermometer WPL W10128777 Contact Us For Availability
41
Bezel, Thermometer WPL W10128779 Contact Us For Availability
41
BRACKET, LEFT WPL W10247137 Contact Us For Availability
42
WASHER, FLAT WPL W10140257 Contact Us For Availability
42
BRACKET, FIXING WPL W10247138 Contact Us For Availability
43
STOP, BATTERY BOX WPL W10246882 Contact Us For Availability
43
NUT, ADJUSTABLE WPL W10247139 Contact Us For Availability
44
Handle, Hood WPL W10133877 Contact Us For Availability
44
HANDLE, TRAY WPL W10247140 Contact Us For Availability
45
Endcap, Handle (Left) WPL W10128785 Contact Us For Availability
45
SLIDE, TRAY WPL W10247141 Contact Us For Availability
46
Spacer, Handle WPL W10128786 Contact Us For Availability
46
BRACKET, RIGHT WPL W10247142 Contact Us For Availability
47
Endcap, Handle (Right) WPL W10128787 Contact Us For Availability
48
Hinge, Lid WPL W10128788 Contact Us For Availability
48
IGNITOR, HOT SURFACE WPL W10298673 Contact Us For Availability
49
SCREEN, SEAR WPL W10294369 Contact Us For Availability
49
HOOD WPL W10247015 Contact Us For Availability
50
ROD, KIT WPL W10303326 Contact Us For Availability
50
BOX, BATTERY WPL W10246880 Contact Us For Availability
51
COVER, BATTERY BOX WPL W10246879 Contact Us For Availability
51
PANEL, FIXING WPL W10247018 Contact Us For Availability
52
WASHER WPL W10132698 Contact Us For Availability
53
Flange (LF) WPL W10132696 Contact Us For Availability
53
BRACKET, IGNITER SEAR BURNER WPL W10244199 Contact Us For Availability
54
IGNITER, HOT SURFACE WPL W10134797 Contact Us For Availability
54
Brkt, Trnsfrmr (Top) WPL W10132694 Contact Us For Availability
55
Brkt, Trnsfrmr (Btm) WPL W10132695 Contact Us For Availability
56
REGULATOR (LP) WPL W10247100 Contact Us For Availability
57
FLEX TUBE, MANIFOLD WPL W10244195 Contact Us For Availability
58
CONNECTOR (BRASS) WPL W10247104 Contact Us For Availability
59
BRACKET, SPIT WPL W10247106 Contact Us For Availability
61
VA WPL W10244950 Contact Us For Availability
62
WPL W10244952 WPL W10244952 Contact Us For Availability
63
WPL W10244956 WPL W10244956 Contact Us For Availability
64
WPL W10247145 WPL W10247145 Contact Us For Availability
65
WPL W10247146 WPL W10247146 Contact Us For Availability
66
WPL W10244946 WPL W10244946 Contact Us For Availability
68
WPL W10247127 WPL W10247127 Contact Us For Availability
69
WPL W10247110 WPL W10247110 Contact Us For Availability
70
WPL W10247095 WPL W10247095 Contact Us For Availability
71
WPL W10246877 WPL W10246877 Contact Us For Availability
72
WPL W10247101 WPL W10247101 Contact Us For Availability
73
WPL W10247102 WPL W10247102 Contact Us For Availability
74
WPL W10247103 WPL W10247103 Contact Us For Availability
75
WPL W10247105 WPL W10247105 Contact Us For Availability
76
WPL W10244333 WPL W10244333 Contact Us For Availability
77
WPL W10244337 WPL W10244337 Contact Us For Availability
79
WPL W10244336 WPL W10244336 Contact Us For Availability
80
WPL W10244963 WPL W10244963 Contact Us For Availability
81
WPL W10244964 WPL W10244964 Contact Us For Availability
85
WPL NP WPL NP Contact Us For Availability
NI
Conv. Kit (NG-LP) WPL W10118099 Contact Us For Availability
NI
COVER, GRILL WPL 8212705 Contact Us For Availability
NI
CONV.KIT(LP-NG) WPL W10118098 Contact Us For Availability
NI
Smoker Box WPL KBDU271TSS Contact Us For Availability
NI
36`` Rotiss. Kit WPL KFKU361TSS Contact Us For Availability
NI
ALTITUDE 2K-5K LP WPL W10118101 Contact Us For Availability
NI
ALTITUDE 5K-8K LP WPL W10118102 Contact Us For Availability
NI
ALTITUDE 8K-10K LP WPL W10118104 Contact Us For Availability
NI
ALTITUDE 2K-5K NG WPL W10118105 Contact Us For Availability
NI
ALTITUDE 5K-8K NG WPL W10118106 Contact Us For Availability
NI
ALTITUDE 8K-10K NG WPL W10118107 Contact Us For Availability
× ![]()
