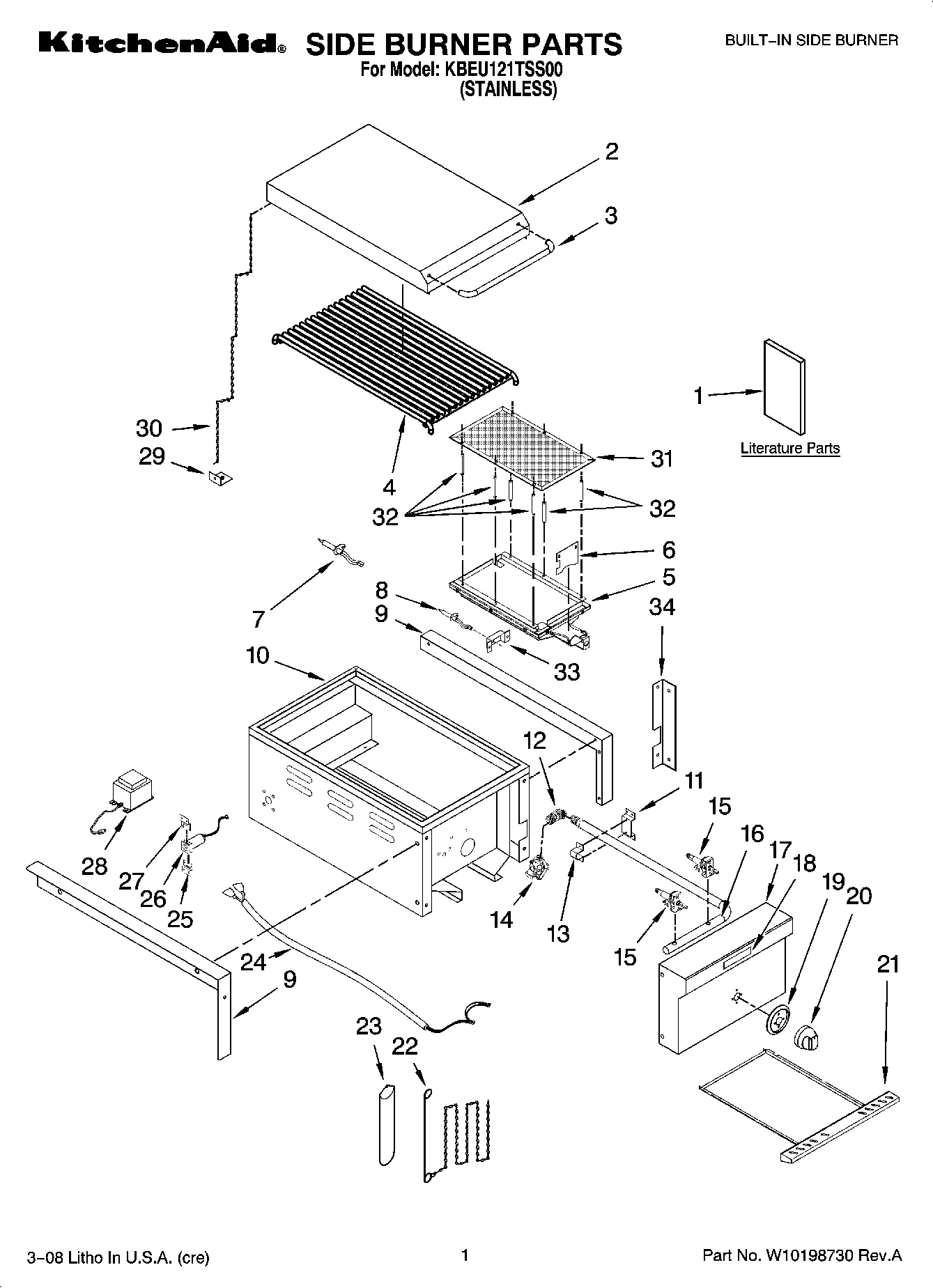

Model Whirlpool KBEU121TSS00 BUILT-IN SIDE BURNER – Common Parts & Diagrams

4
Grate, Burner
Grate, Burner WPL W10137073 Contact Us For Availability
View on Model
6
Panel, Burner
Panel, Burner WPL W10137070 Contact Us For Availability
View on Model
7
Ignitor, Gas Coll.
Ignitor, Gas Coll. WPL W10134826 Contact Us For Availability
View on Model
8
Ignitor, Surface
Ignitor, Surface WPL W10198798 Contact Us For Availability
View on Model
9
Flange (Right)
Flange (Right) WPL W10198800 Contact Us For Availability
View on Model
9
Flange (Left)
Flange (Left) WPL W10198810 Contact Us For Availability
View on Model
10
Box, Burner
Box, Burner WPL W10198812 Contact Us For Availability
View on Model
11
Base, Manifold
Base, Manifold WPL W10128749 Contact Us For Availability
View on Model
12
Connector (Brass)
Connector (Brass) WPL W10128748 Contact Us For Availability
View on Model
13
Fitting, Manifold
Fitting, Manifold WPL W10128747 Contact Us For Availability
View on Model
14
Regulator (NG)
Regulator (NG) WPL W10140748 Contact Us For Availability
View on Model
16
Manifold
Manifold WPL W10198806 Contact Us For Availability
View on Model
17
Panel, Control
Panel, Control WPL W10198805 Contact Us For Availability
View on Model
18
Nameplate
Nameplate WPL W10128751 Contact Us For Availability
View on Model
19
Bezel, Knob
Bezel, Knob WPL W10140753 Contact Us For Availability
View on Model
20
KNOB
KNOB WPL W10141176 Contact Us For Availability
View on Model
21
Drip Tray Assy
Drip Tray Assy WPL W10198808 Contact Us For Availability
View on Model
22
Rod, Lighting
Rod, Lighting WPL W10198809 Contact Us For Availability
View on Model
23
Bag, Ltg rod
Bag, Ltg rod WPL W10128703 Contact Us For Availability
View on Model
24
Harness, Wire
Harness, Wire WPL W10141183 Contact Us For Availability
View on Model
25
Bracket, Trnsfrmr (Bottom)
Bracket, Trnsfrmr (Bottom) WPL W10132695 Contact Us For Availability
View on Model
26
Outlet, Trnsfrmr
Outlet, Trnsfrmr WPL W10198814 Contact Us For Availability
View on Model
27
Bracket, Transfrmr (Top)
Bracket, Transfrmr (Top) WPL W10132694 Contact Us For Availability
View on Model
28
TRANSFORMER
TRANSFORMER WPL W10281396 Contact Us For Availability
View on Model
29
Stator, Chain
Stator, Chain WPL W10137088 Contact Us For Availability
View on Model
30
CHAIN
CHAIN WPL W10137089 Contact Us For Availability
View on Model
31
Screen
Screen WPL W10137068 Contact Us For Availability
View on Model
32
Rod, Connecting
Rod, Connecting WPL W10198797 Contact Us For Availability
View on Model
33
Bracket, Sear Ign.
Bracket, Sear Ign. WPL W10134798 Contact Us For Availability
View on Model
34
Control Panel Trim (Left)
Control Panel Trim (Left) WPL W10198801 Contact Us For Availability
View on Model
34
Control Panel Trim (Right)
Control Panel Trim (Right) WPL W10198803 Contact Us For Availability
