Model Electrolux KB969LM0 RANGE – Common Parts & Diagrams

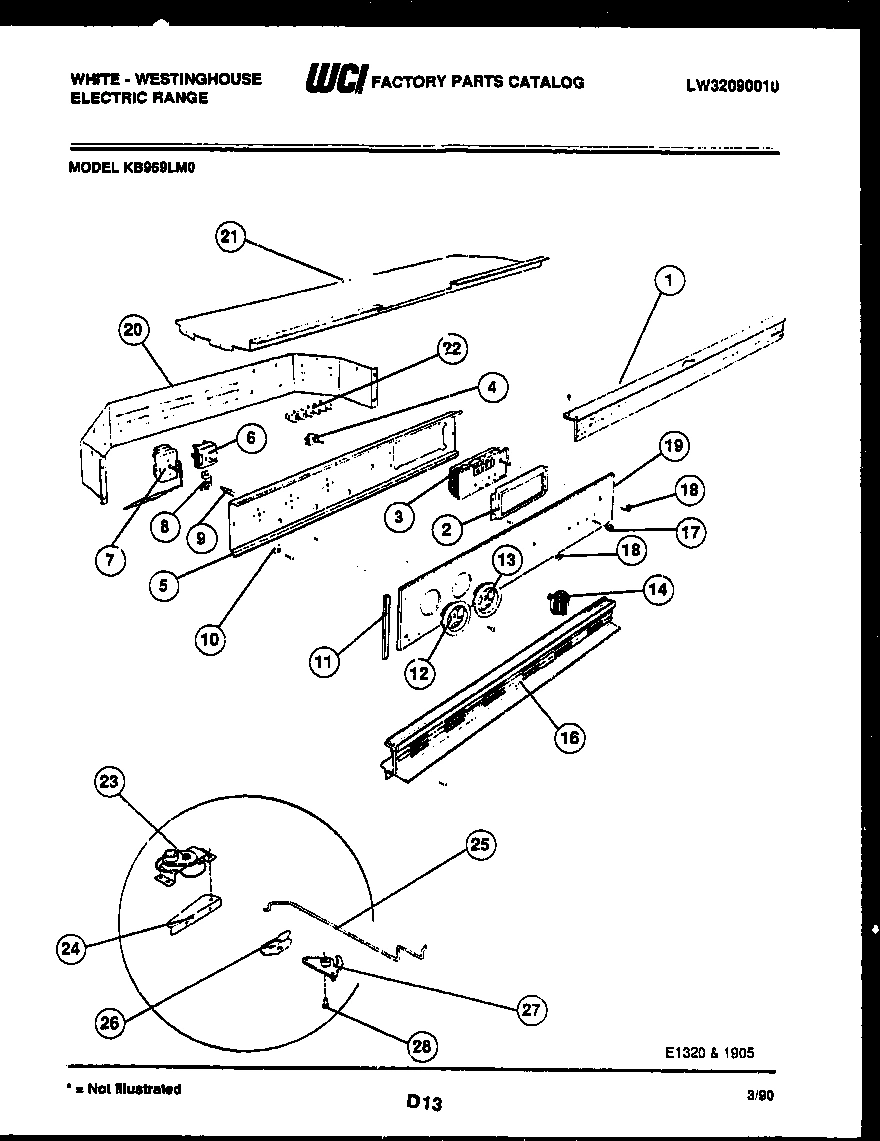

02 - CONTROL PANEL

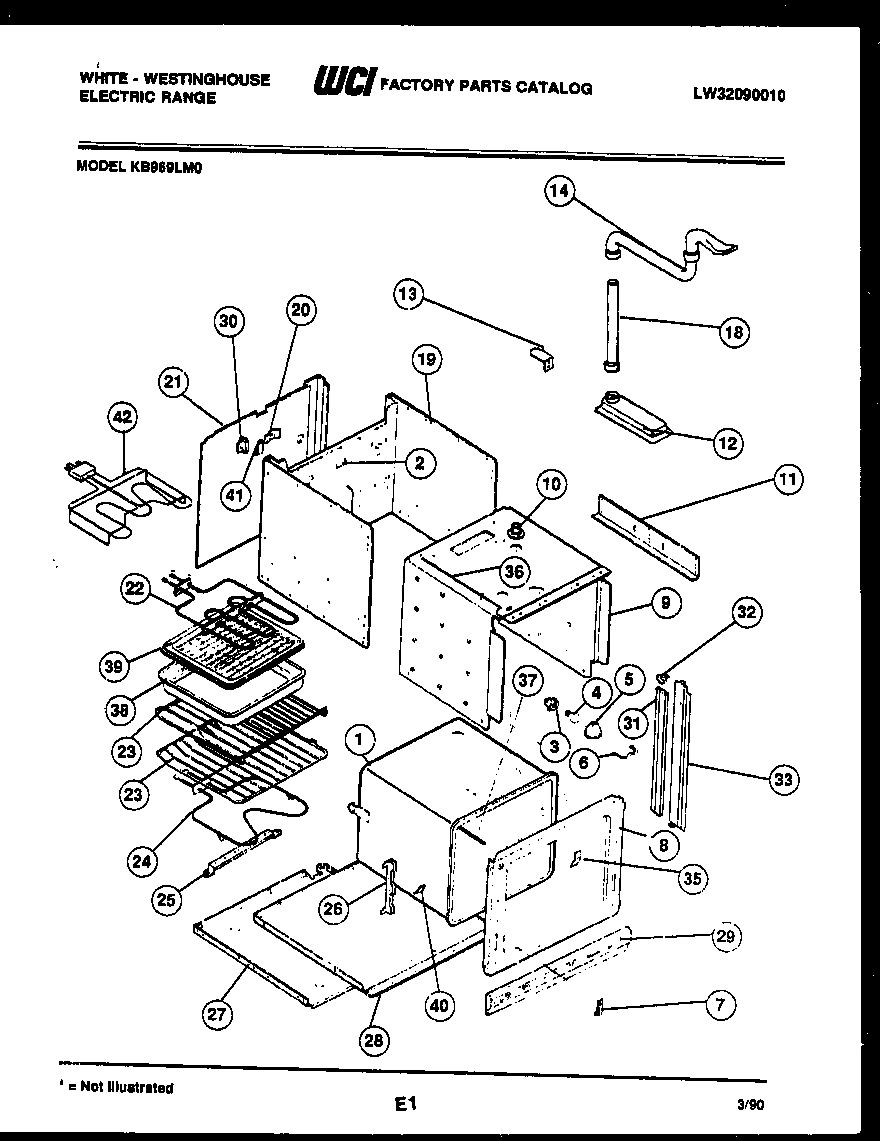

03 - LOWER BODY PARTS

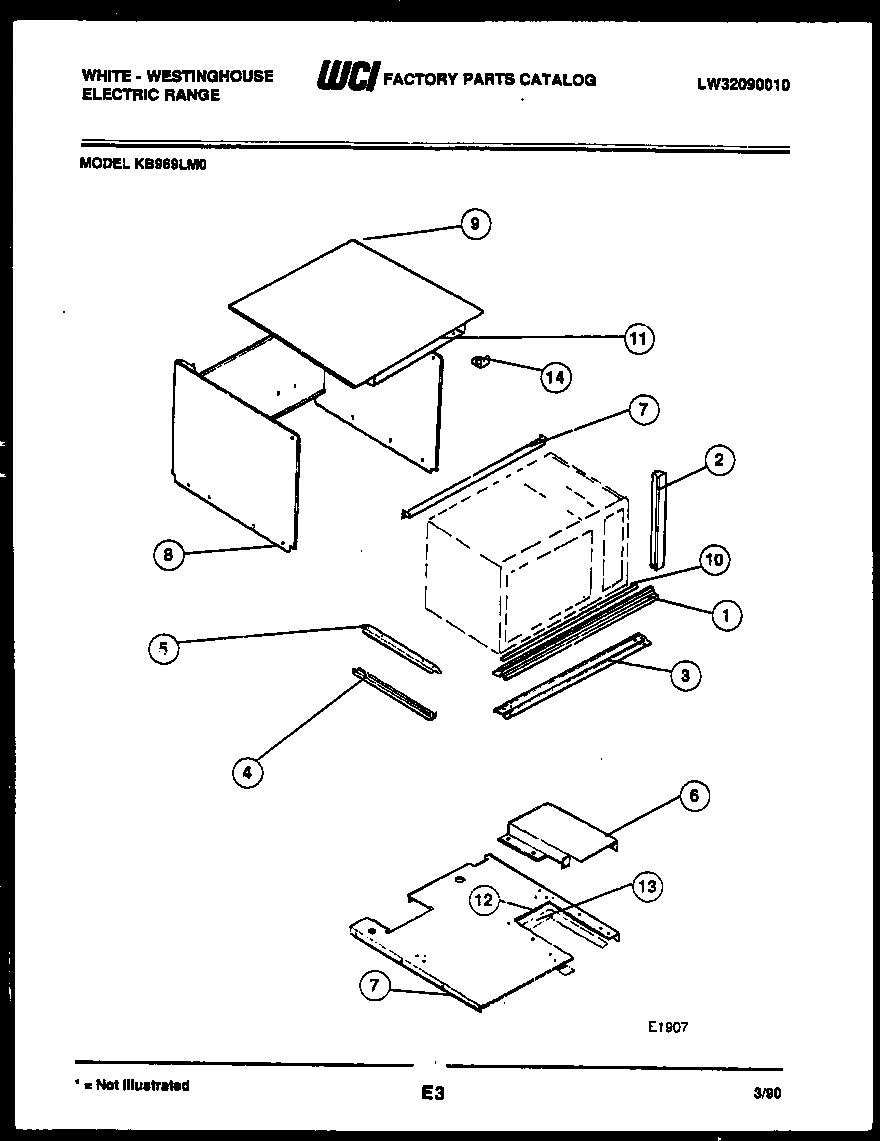

04 - WRAPPER AND INSTALLATION PARTS

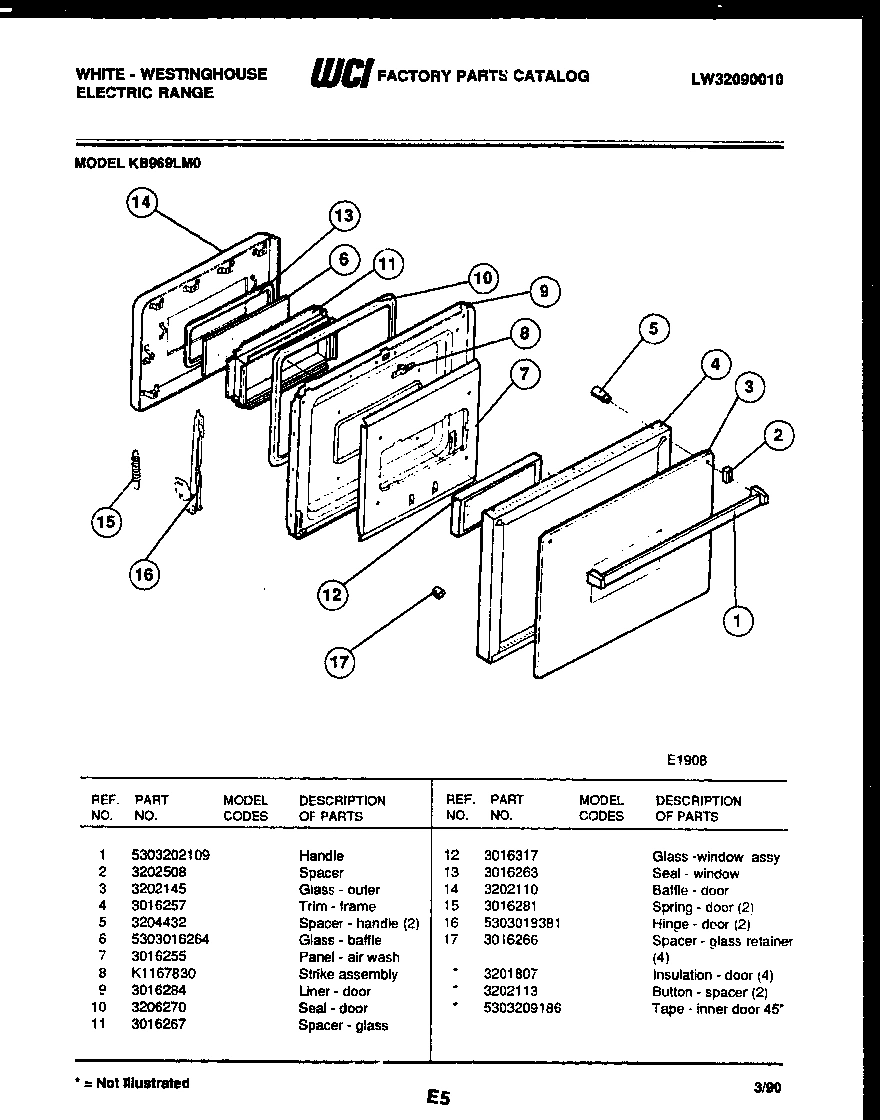

05 - LOWER OVEN DOOR PARTS

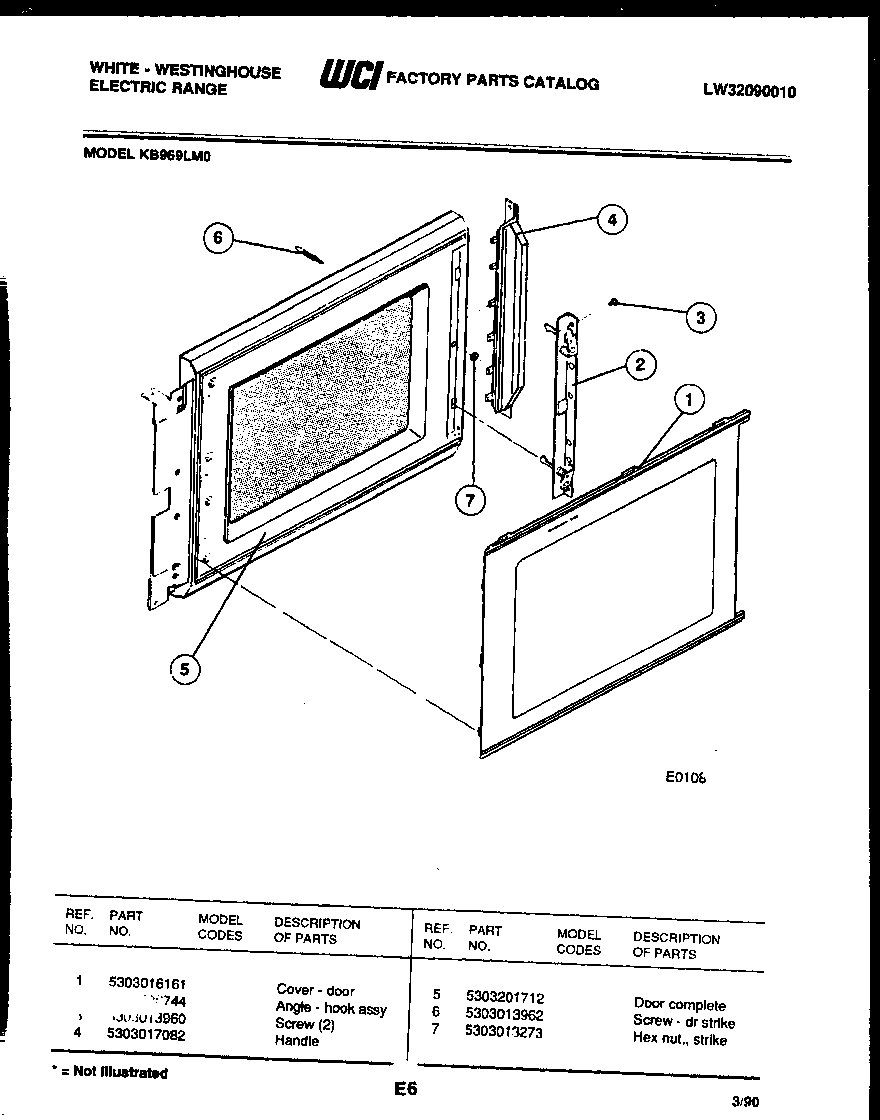

06 - UPPER OVEN DOOR PARTS

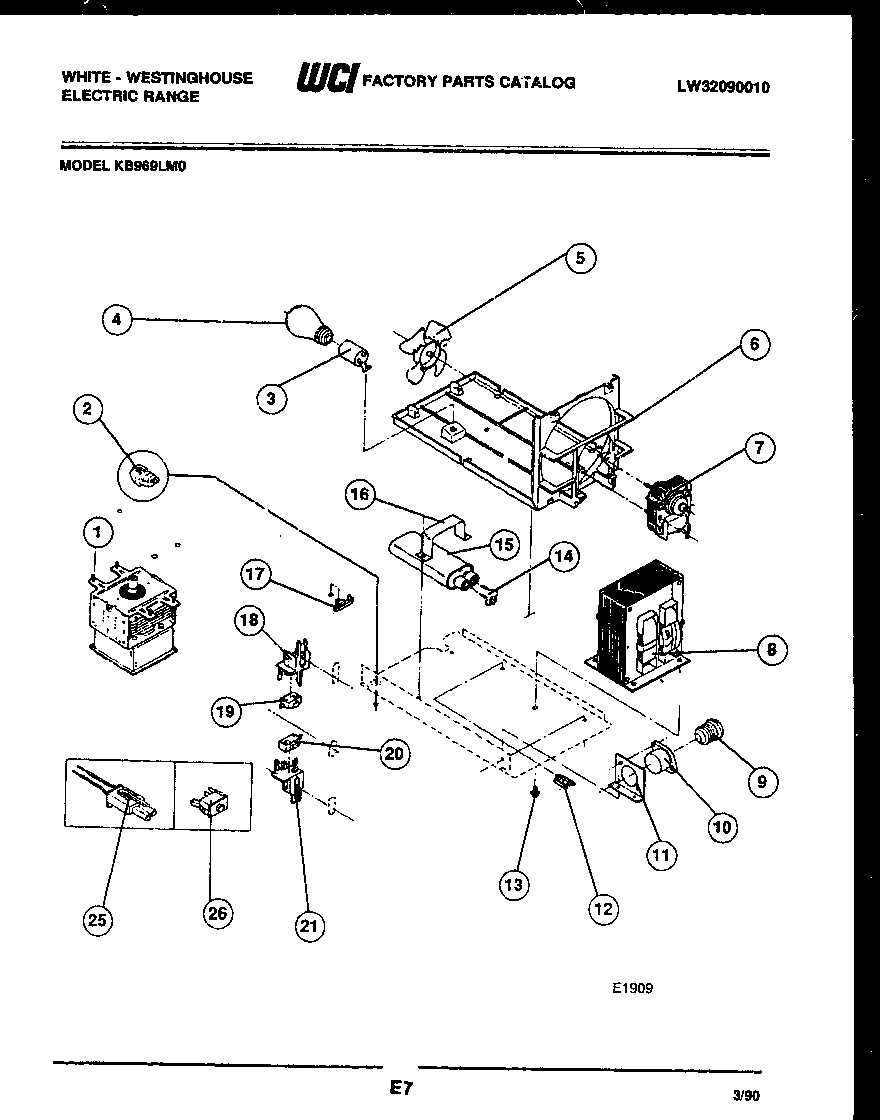

07 - POWER CONTROL

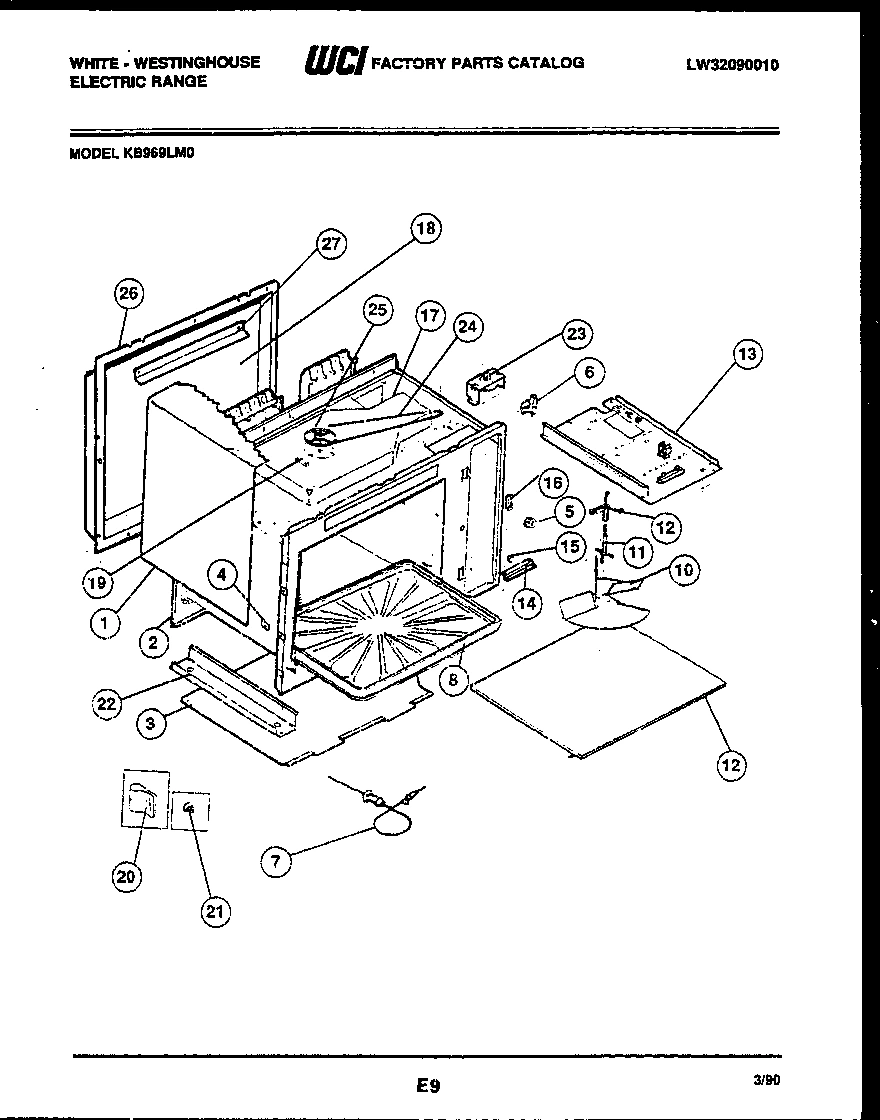

08 - UPPER BODY PARTS

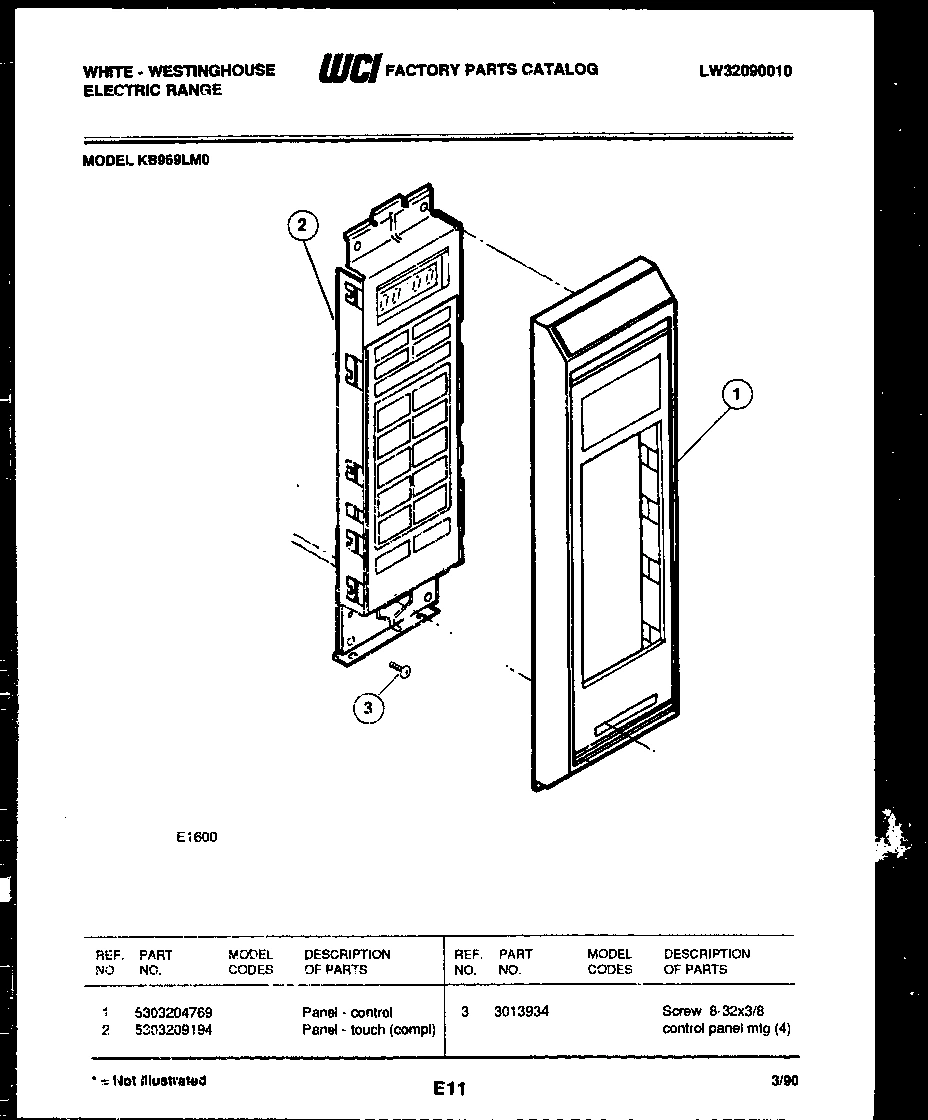

09 - CONTROL PANEL
Common parts from model Electrolux KB969LM0 RANGE
*27826
WCI 3016297 WCI 3016297 Contact Us For Availability
*27829
WCI 3201807 WCI 3201807 Contact Us For Availability
*27829
WCI 3202113 WCI 3202113 Contact Us For Availability
*27829
TAPE-INNER DOOR 45`` WCI 5303209186 Contact Us For Availability
*27835
HARNESS-POWER SUPPLY WCI 5303206756 Contact Us For Availability
*27835
WCI 5303206757 WCI 5303206757 Contact Us For Availability
*27840
SHIELD - OVEN LT WCI 5303011685 Contact Us For Availability
*27840
PLUG BUTTON (BROWNER) WCI 5303013626 Contact Us For Availability
*27840
WCI 5303091565 WCI 5303091565 Contact Us For Availability
*27840
PLUG BUTTON (RACK) WCI 5308037664 Contact Us For Availability
1
WCI 5303209182 WCI 5303209182 Contact Us For Availability
1
TRIM-CENTER VENT WCI 5303206739 Contact Us For Availability
1
WCI 5303202109 WCI 5303202109 Contact Us For Availability
1
WCI 5303016161 WCI 5303016161 Contact Us For Availability
1
WCI 5303206781 WCI 5303206781 Contact Us For Availability
1
WCI 5303209159 WCI 5303209159 Contact Us For Availability
1
WCI 5303204769 WCI 5303204769 Contact Us For Availability
2
WCI 08014575 WCI 08014575 Contact Us For Availability
2
SPACER WCI 3202508 Contact Us For Availability
2
WCI 5303206744 WCI 5303206744 Contact Us For Availability
2
GROMMET WIRE WCI 3091558 Contact Us For Availability
2
WCI 5303209194 WCI 5303209194 Contact Us For Availability
3
WCI 3202089 WCI 3202089 Contact Us For Availability
3
WCI 3019065 WCI 3019065 Contact Us For Availability
3
WCI 3202145 WCI 3202145 Contact Us For Availability
3
SCREW (2) WCI 5303013960 Contact Us For Availability
3
SOCKET-OVEN LIGHT WCI 5303091197 Contact Us For Availability
3
WCI 3014060 WCI 3014060 Contact Us For Availability
3
SCREW-8-32 X 3/8 CONTROL PANEL MTG (4) WCI 3013934 Contact Us For Availability
4
WCI 5303209286 WCI 5303209286 Contact Us For Availability
4
WCI 3019060 WCI 3019060 Contact Us For Availability
4
WCI 3016257 WCI 3016257 Contact Us For Availability
4
WCI 5303017082 WCI 5303017082 Contact Us For Availability
4
WCI 5308037902 WCI 5308037902 Contact Us For Availability
5
PLATE-INST MTG WCI 3202146 Contact Us For Availability
5
WCI 3019079 WCI 3019079 Contact Us For Availability
5
SPACER-HANDLE (2) WCI 3204432 Contact Us For Availability
5
WCI 5303201712 WCI 5303201712 Contact Us For Availability
5
WCI 5303203192 WCI 5303203192 Contact Us For Availability
5
NUT-RECEPT MTG WCI 5303013283 Contact Us For Availability
6
WCI 5305328201 WCI 5305328201 Contact Us For Availability
6
WCI 3016244 WCI 3016244 Contact Us For Availability
6
WCI 3019062 WCI 3019062 Contact Us For Availability
6
WCI 5303016264 WCI 5303016264 Contact Us For Availability
6
SCREW-DR STRIKE WCI 5303013962 Contact Us For Availability
6
DUCT - AIR (FOAM) WCI 5303012194 Contact Us For Availability
6
WCI 5303013702 WCI 5303013702 Contact Us For Availability
7
WCI 5303206499 WCI 5303206499 Contact Us For Availability
7
WCI 3019063 WCI 3019063 Contact Us For Availability
7
WCI 3019068 WCI 3019068 Contact Us For Availability
7
WCI 3016255 WCI 3016255 Contact Us For Availability
7
MOTOR-FAN WCI 5308037636 Contact Us For Availability
7
WCI 5303011684 WCI 5303011684 Contact Us For Availability
7A
SCRW 6-32 X 1-1/8 PH. TR. SEMS (NON-ILLUSTRAT WCI 5308014502 Contact Us For Availability
7B
NUT-6-32 MTR MTG (2) (NON-ILLUSTRATED) WCI 5303013273 Contact Us For Availability
8
BRACKET-THERMOSTAT WCI 3202099 Contact Us For Availability
8
WCI 3202076 WCI 3202076 Contact Us For Availability
8
WCI 3019067 WCI 3019067 Contact Us For Availability
8
STRIKE-ASSEMBLY WCI K1167830 Contact Us For Availability
8
WCI 5308037626 WCI 5308037626 Contact Us For Availability
8
WCI 5303011698 WCI 5303011698 Contact Us For Availability
9
WCI 3015355 WCI 3015355 Contact Us For Availability
9
WCI 3016272 WCI 3016272 Contact Us For Availability
9
WCI 5303206777 WCI 5303206777 Contact Us For Availability
9
WCI 3016284 WCI 3016284 Contact Us For Availability
9
WCI 5308012055 WCI 5308012055 Contact Us For Availability
9
WCI 5303200554 WCI 5303200554 Contact Us For Availability
9A
WCI 3202092 WCI 3202092 Contact Us For Availability
10
WCI 3202093 WCI 3202093 Contact Us For Availability
10
TUBE-OVEN VENT WCI 3205683 Contact Us For Availability
10
WCI 5303206778 WCI 5303206778 Contact Us For Availability
10
WCI 3206270 WCI 3206270 Contact Us For Availability
10
WCI 5303200606 WCI 5303200606 Contact Us For Availability
10
WCI 5303012284 WCI 5303012284 Contact Us For Availability
11
TRIM-CONT. PANEL GLASS (2) WCI 3202094 Contact Us For Availability
11
SUPPORT - HEIGHT ADJ WCI 3016278 Contact Us For Availability
11
WCI 5303206787 WCI 5303206787 Contact Us For Availability
11
SPACER-GLASS WCI 3016267 Contact Us For Availability
11
WCI 5308008973 WCI 5308008973 Contact Us For Availability
11
WCI 5303202875 WCI 5303202875 Contact Us For Availability
12
EXCUTCHEON - THERM. WCI 5303202095 Contact Us For Availability
12
WCI 3016324 WCI 3016324 Contact Us For Availability
12
WCI 3019058 WCI 3019058 Contact Us For Availability
12
GLASS - WINDOW ASSY WCI 3016317 Contact Us For Availability
12
FASTNR-WIRE CLIP (3) WCI 5308037677 Contact Us For Availability
12
WCI 5303011826 WCI 5303011826 Contact Us For Availability
13
EXCUTCHEON - SEL. SW. WCI 5303202096 Contact Us For Availability
13
WCI 3016326 WCI 3016326 Contact Us For Availability
13
WCI 3019057 WCI 3019057 Contact Us For Availability
13
WCI 3016263 WCI 3016263 Contact Us For Availability
13
SCREW, TRANSFORMER (4) WCI 5303013944 Contact Us For Availability
13
WCI 5303018904 WCI 5303018904 Contact Us For Availability
14
WCI 5303202098 WCI 5303202098 Contact Us For Availability
14
WCI 5303206735 WCI 5303206735 Contact Us For Availability
14
WCI 5303206786 WCI 5303206786 Contact Us For Availability
14
WCI 3202110 WCI 3202110 Contact Us For Availability
14
DIODE HIGH VOLTAGE WCI 5303091303 Contact Us For Availability
14
BRACKET-CONTROL-MOUNTING-LOWER WCI 5303011555 Contact Us For Availability
15
WCI 5303016305 WCI 5303016305 Contact Us For Availability
15
SPRING-DOOR (2) WCI 3016281 Contact Us For Availability
15
CAPACITOR - HIGH WCI 5303011660 Contact Us For Availability
15
WCI 5308037644 WCI 5308037644 Contact Us For Availability
16
TRIM - CENT. VENT WCI 5303202101 Contact Us For Availability
16
WCI 5303018381 WCI 5303018381 Contact Us For Availability
16
RETAINER-CAPACITOR MTG WCI 5303013773 Contact Us For Availability
16
BEZEL-LATCH (2) WCI 5303200551 Contact Us For Availability
17
BUTTON-CLOCK WCI 3016293 Contact Us For Availability
17
WCI 3016266 WCI 3016266 Contact Us For Availability
17
WCI 5303091280 WCI 5303091280 Contact Us For Availability
17
DUCT-AIR (FOAM) WCI 5303011667 Contact Us For Availability
18
WCI 5303016292 WCI 5303016292 Contact Us For Availability
18
WCI 3019056 WCI 3019056 Contact Us For Availability
18
COVER-LT ACCESS WCI 3091338 Contact Us For Availability
19
GLASS - CONST. PANEL WCI 3202257 Contact Us For Availability
19
WCI 3016275 WCI 3016275 Contact Us For Availability
19
SPACER - WRAPPER WCI 5308014510 Contact Us For Availability
20
WCI 5303206742 WCI 5303206742 Contact Us For Availability
20
WCI 5303203636 WCI 5303203636 Contact Us For Availability
20
FASTNR-WRAPPER CLIP (2) WCI 5303012322 Contact Us For Availability
21
COVER - CONT HOUSING WCI 3016309 Contact Us For Availability
21
WCI 3019061 WCI 3019061 Contact Us For Availability
21
BRACKET-SWITCH (LOWER) WCI 5303011556 Contact Us For Availability
21
PLUG-BUTTON TRAY (2) WCI 5308037665 Contact Us For Availability
22
WCI 5303011773 WCI 5303011773 Contact Us For Availability
22A
WCI 5308037640 WCI 5308037640 Contact Us For Availability
22B
LABEL-COOK GUIDE (NON-ILLUSTRATED) WCI 5303018849 Contact Us For Availability
22C
WASHER STIRRER (NON-ILLUSTRATED) WCI 5303014620 Contact Us For Availability
23
MOTOR-LATCH ASSY WCI 5303016242 Contact Us For Availability
23
WCI 5303206759 WCI 5303206759 Contact Us For Availability
23A
RACK - OFFSET WCI 3202078 Contact Us For Availability
24
BELT-STIRRER WCI 5303011495 Contact Us For Availability
24
BASE MOTOR MTG WCI 3016276 Contact Us For Availability
25
ROD-LOCK MECH WCI 3016241 Contact Us For Availability
25
WCI 3016248 WCI 3016248 Contact Us For Availability
25
WCI 5303206755 WCI 5303206755 Contact Us For Availability
25
PULLEY-STIRRER WCI 5303013647 Contact Us For Availability
26
SWITCH-MONITOR WCI 5303201602 Contact Us For Availability
26
WCI 3019074 WCI 3019074 Contact Us For Availability
26
WCI 3201631 WCI 3201631 Contact Us For Availability
26
WCI 5303203692 WCI 5303203692 Contact Us For Availability
27
LATCH, DOOR WCI 3202387 Contact Us For Availability
27
WCI 3016277 WCI 3016277 Contact Us For Availability
27
ANGLE-AIR BAFFLE WCI 3091058 Contact Us For Availability
28
WCI 5308012004 WCI 5308012004 Contact Us For Availability
28
SHIELD-INSUL BASE WCI 3016273 Contact Us For Availability
29
WCI 5303016283 WCI 5303016283 Contact Us For Availability
30
SWITCH SP. BRL. - LIGHT WCI 3202081 Contact Us For Availability
31
WCI 3019050 WCI 3019050 Contact Us For Availability
31A
WCI 3019049 WCI 3019049 Contact Us For Availability
32A
TRIM - CAP - RH WCI 3016307 Contact Us For Availability
33
WCI 5303209177 WCI 5303209177 Contact Us For Availability
35
WCI 3202082 WCI 3202082 Contact Us For Availability
35A
WCI 3019048 WCI 3019048 Contact Us For Availability
35B
INSULATION - BACK (NON-ILLUSTRATED) WCI 3016274 Contact Us For Availability
35C
WCI 5300009126 WCI 5300009126 Contact Us For Availability
36
WCI 3202077 WCI 3202077 Contact Us For Availability
38
WCI 3205539 WCI 3205539 Contact Us For Availability
39
INSERT-BROILER WCI 3205234 Contact Us For Availability
40
WCI 3201632 WCI 3201632 Contact Us For Availability
41
BRACKET-SW MTG WCI 3202384 Contact Us For Availability
42
WCI 5303203079 WCI 5303203079 Contact Us For Availability
× ![]()
