Model Electrolux KB563LM0 WALL OVEN – Common Parts & Diagrams

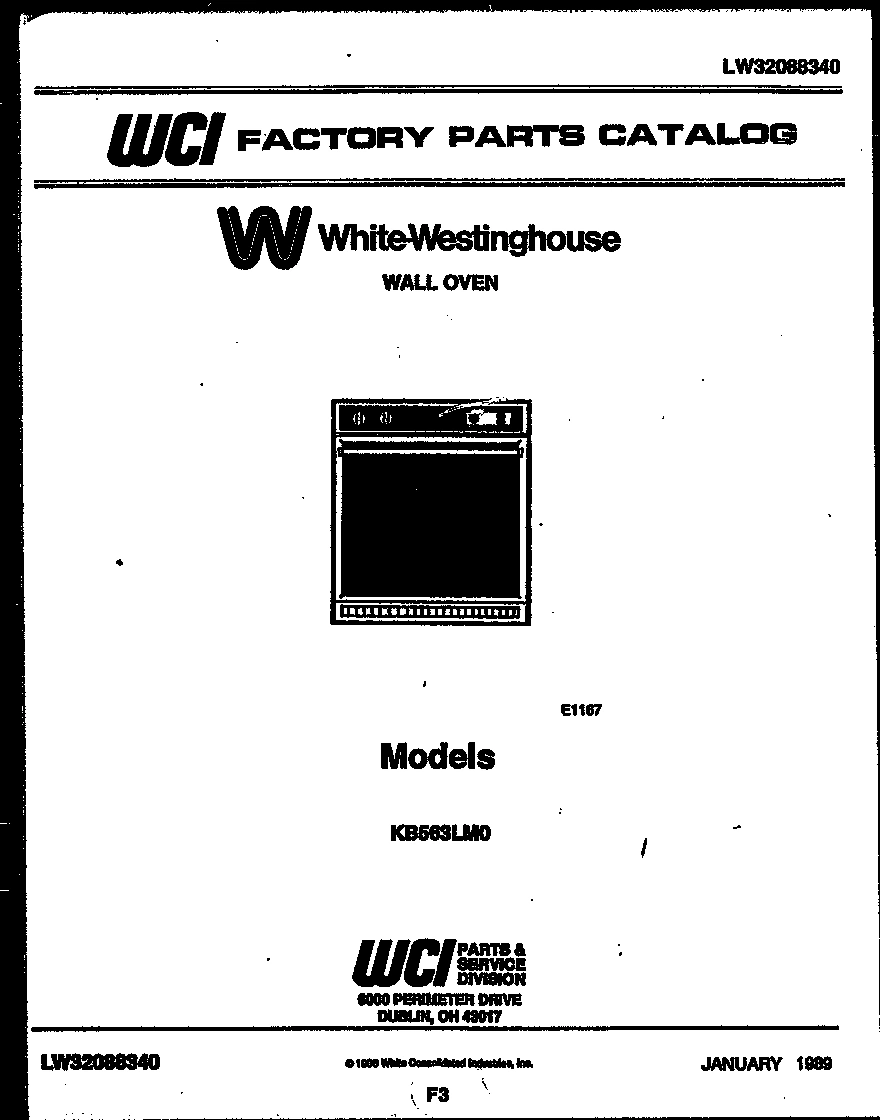

01 - COVER

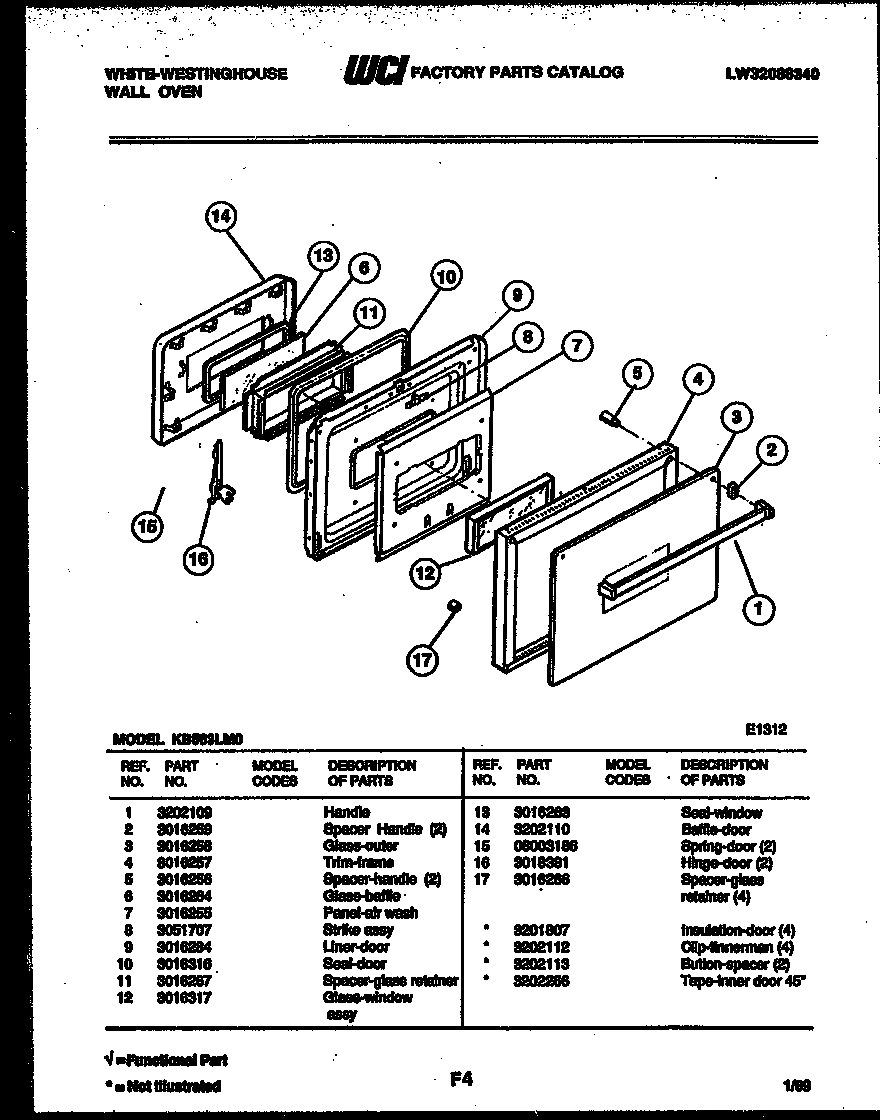

02 - DOOR PARTS

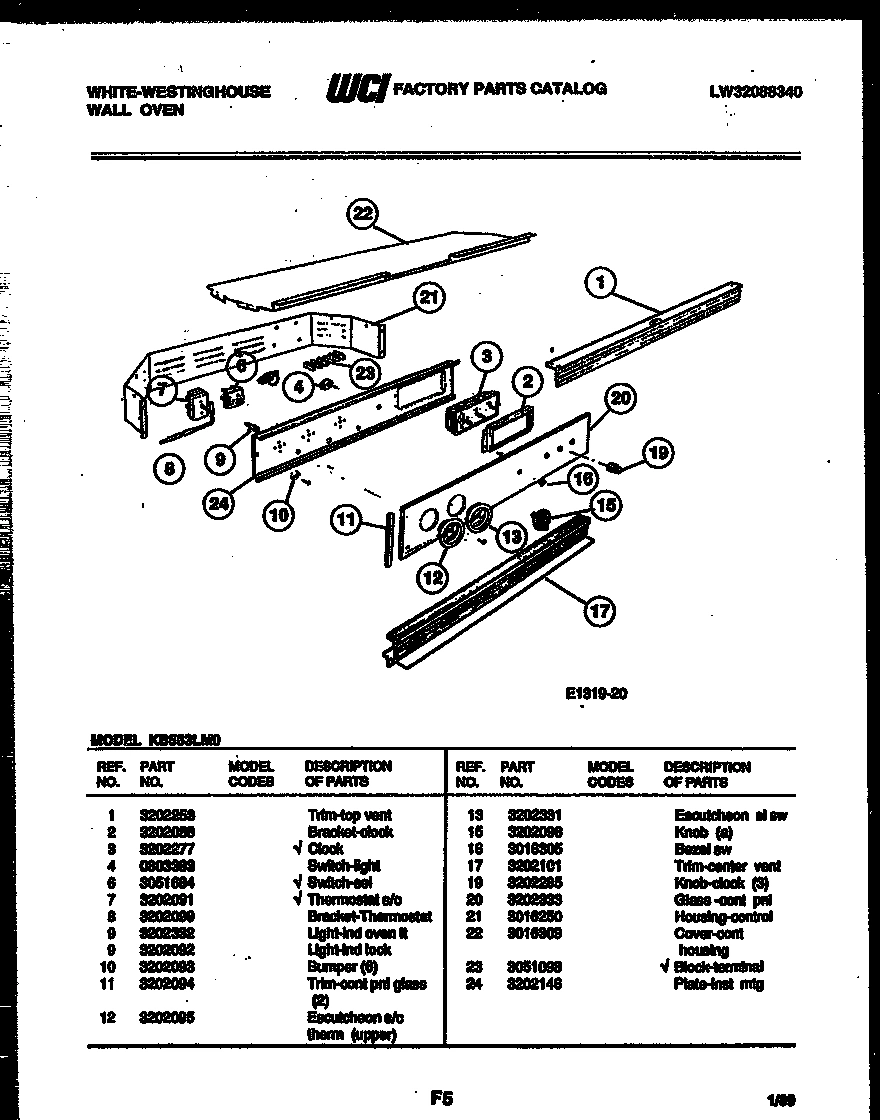

03 - CONTROL PANEL

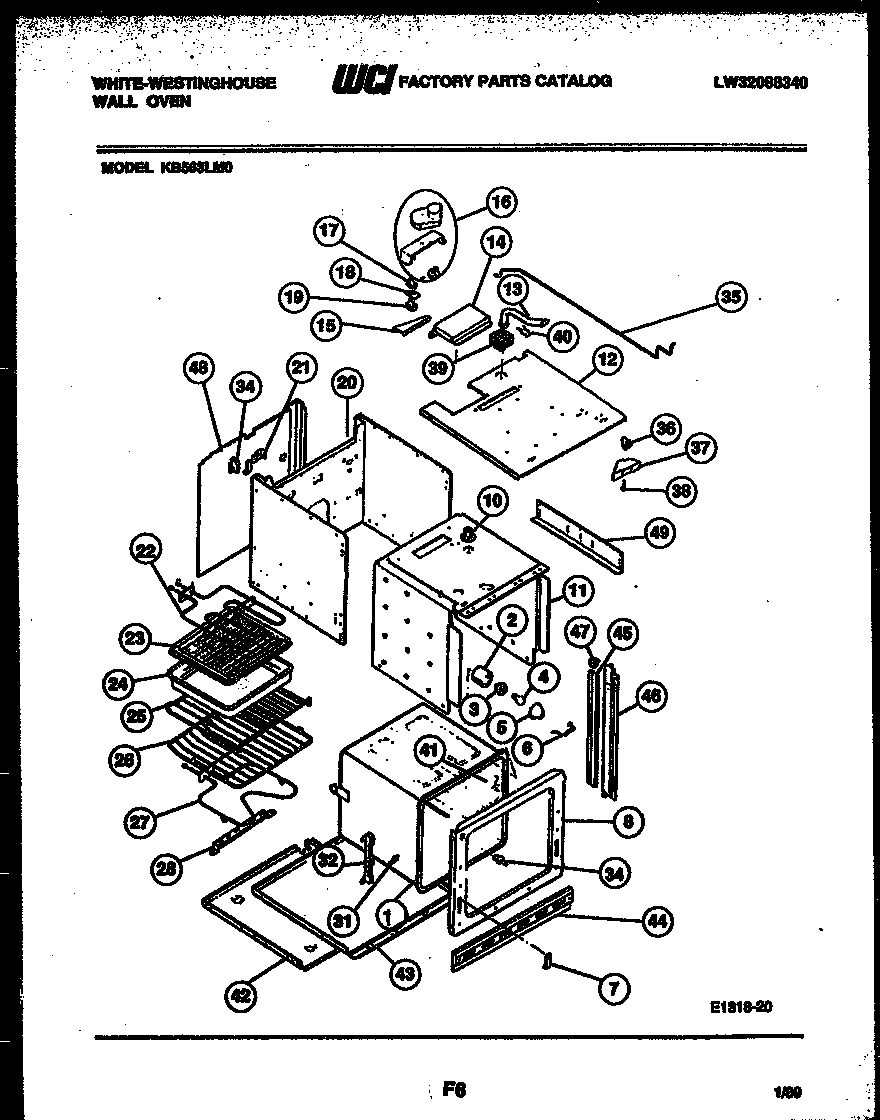

04 - BODY PARTS
Common parts from model Electrolux KB563LM0 WALL OVEN
*23998
WCI 3201807 WCI 3201807 Contact Us For Availability
*24000
WCI 3202112 WCI 3202112 Contact Us For Availability
*24000
WCI 3202113 WCI 3202113 Contact Us For Availability
*24002
TAPE - INNER DOOR 45`` WCI 3202266 Contact Us For Availability
1
WCI 3202109 WCI 3202109 Contact Us For Availability
1
WCI 3202253 WCI 3202253 Contact Us For Availability
1
WCI 3016269 WCI 3016269 Contact Us For Availability
2
WCI 3016259 WCI 3016259 Contact Us For Availability
2
WCI 3202088 WCI 3202088 Contact Us For Availability
2
TUBE-OV LT WCI 3016243 Contact Us For Availability
3
WCI 3016258 WCI 3016258 Contact Us For Availability
3
WCI 3202277 WCI 3202277 Contact Us For Availability
4
WCI 3016257 WCI 3016257 Contact Us For Availability
4
WCI 0803383 WCI 0803383 Contact Us For Availability
5
SPACER-HANDLE (2) WCI 3016256 Contact Us For Availability
6
WCI 3016264 WCI 3016264 Contact Us For Availability
6
SWITCH-SEL WCI 3051684 Contact Us For Availability
6
WCI 3016244 WCI 3016244 Contact Us For Availability
7
WCI 3016255 WCI 3016255 Contact Us For Availability
7
THERMOSTAT S/C WCI 3202091 Contact Us For Availability
7
WCI 3019063 WCI 3019063 Contact Us For Availability
8
STRIKE ASSY WCI 3051707 Contact Us For Availability
8
BRACKET-THERMOSTAT WCI 3202099 Contact Us For Availability
8
WCI 3019070 WCI 3019070 Contact Us For Availability
9
WCI 3016284 WCI 3016284 Contact Us For Availability
9
WCI 3202092 WCI 3202092 Contact Us For Availability
9
LIGHT-IND OVEN LT WCI 3202332 Contact Us For Availability
10
WCI 3016316 WCI 3016316 Contact Us For Availability
10
WCI 3202093 WCI 3202093 Contact Us For Availability
10
VENT TUBE ASSY WCI 3016245 Contact Us For Availability
11
WCI 3016267 WCI 3016267 Contact Us For Availability
11
TRIM-CONT.PNL GLASS (2) WCI 3202094 Contact Us For Availability
11
WCI 3016272 WCI 3016272 Contact Us For Availability
12
GLASS - WINDOW ASSY WCI 3016317 Contact Us For Availability
12
ESCUTCHEON S/C THERM. (UPPER) WCI 3202095 Contact Us For Availability
12
WCI 3202247 WCI 3202247 Contact Us For Availability
13
WCI 3016263 WCI 3016263 Contact Us For Availability
13
ESCUTCHEON SL SW WCI 3202331 Contact Us For Availability
13
WCI 3016301 WCI 3016301 Contact Us For Availability
14
WCI 3202110 WCI 3202110 Contact Us For Availability
14
WCI 3016296 WCI 3016296 Contact Us For Availability
15
WCI 08003186 WCI 08003186 Contact Us For Availability
15
KNOB (A) WCI 3202098 Contact Us For Availability
15
BRACKET-MOTOR MTG WCI 3016276 Contact Us For Availability
16
WCI 3018381 WCI 3018381 Contact Us For Availability
16
BEZEL-SW. WCI 3016305 Contact Us For Availability
16
MOTOR-LATCH ASSY WCI 3016242 Contact Us For Availability
17
WCI 3016266 WCI 3016266 Contact Us For Availability
17
WCI 3202101 WCI 3202101 Contact Us For Availability
17
WCI 3202114 WCI 3202114 Contact Us For Availability
18
WCI 3051861 WCI 3051861 Contact Us For Availability
19
WCI 3202285 WCI 3202285 Contact Us For Availability
19
WCI 08006582 WCI 08006582 Contact Us For Availability
20
WCI 3202333 WCI 3202333 Contact Us For Availability
20
WCI 3016275 WCI 3016275 Contact Us For Availability
21
WCI 3016250 WCI 3016250 Contact Us For Availability
21
WCI 3016281 WCI 3016281 Contact Us For Availability
22
COVER - CONT HOUSING WCI 3016309 Contact Us For Availability
23
WCI 3019066 WCI 3019066 Contact Us For Availability
24
PLATE-INST MTG WCI 3202146 Contact Us For Availability
24
WCI 3018808 WCI 3018808 Contact Us For Availability
28
WCI 3016248 WCI 3016248 Contact Us For Availability
31
WCI 3201632 WCI 3201632 Contact Us For Availability
32
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
35
WCI 3016241 WCI 3016241 Contact Us For Availability
36
WCI 3051648 WCI 3051648 Contact Us For Availability
37
WCI 3019069 WCI 3019069 Contact Us For Availability
38
WCI 08012004 WCI 08012004 Contact Us For Availability
39
WCI 3016302 WCI 3016302 Contact Us For Availability
40
CLIP-INSUL RETAINER WCI 3016303 Contact Us For Availability
41
WCI 3202082 WCI 3202082 Contact Us For Availability
42
WRAPPER-OUTER WCI 3016277 Contact Us For Availability
43
WCI 3016273 WCI 3016273 Contact Us For Availability
44
WCI 3016283 WCI 3016283 Contact Us For Availability
45
TRIM-SIDE-INNER-RH WCI 3016279 Contact Us For Availability
45
TRIM, SIDE, INNER, LH WCI 3016280 Contact Us For Availability
46
WCI 3202275 WCI 3202275 Contact Us For Availability
47
WCI 3016307 WCI 3016307 Contact Us For Availability
47A
WCI 3019048 WCI 3019048 Contact Us For Availability
47B
INSULATION - BACK (NON-ILLUSTRATED) WCI 3016274 Contact Us For Availability
47C
CLIP-CAPILLARY (4) (NON-ILLUSTRATED) WCI 3131060 Contact Us For Availability
49
SUPPORT - HEIGHT ADJ WCI 3016278 Contact Us For Availability
× ![]()
