Model Whirlpool K9TREFFWBL00 REFRIGERATOR – Common Parts & Diagrams

1

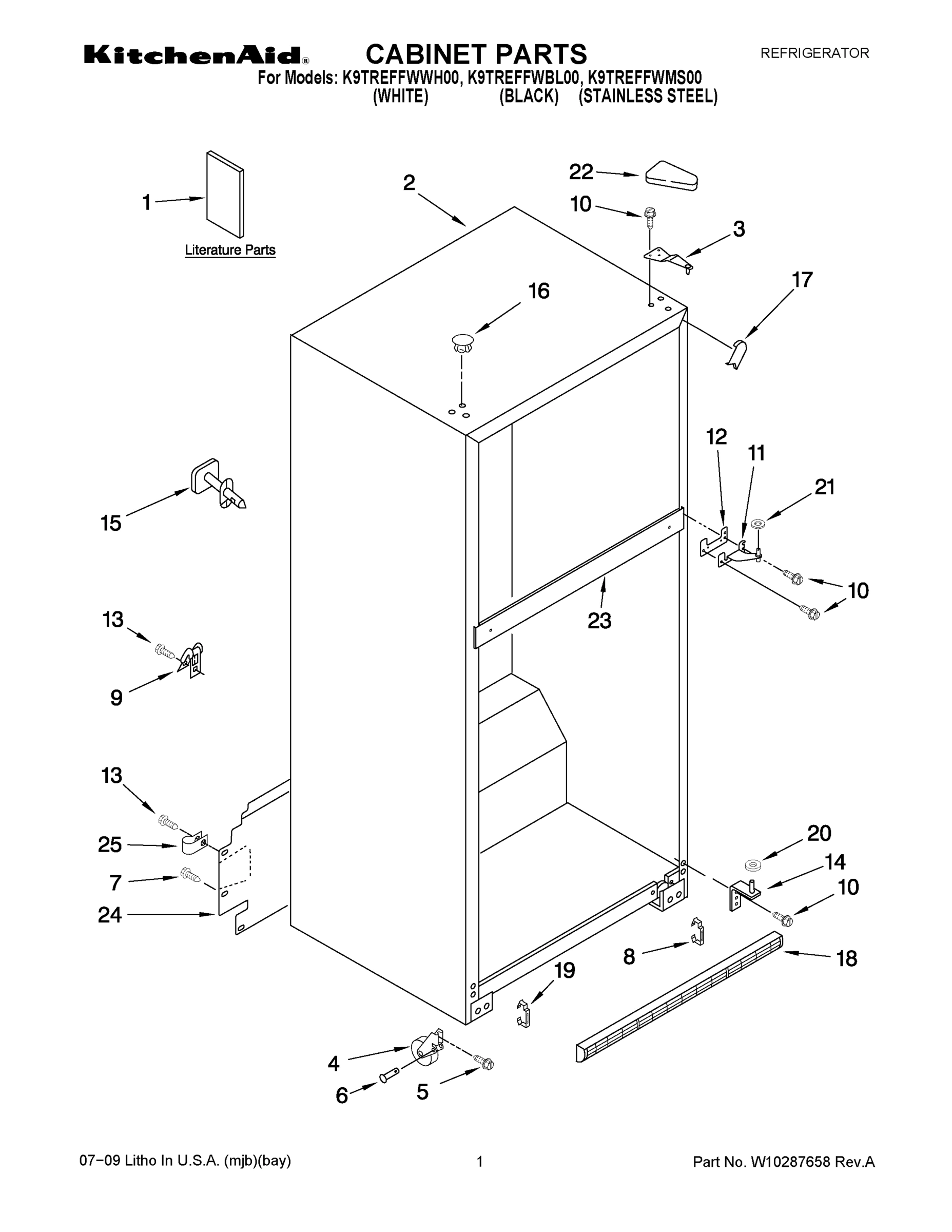

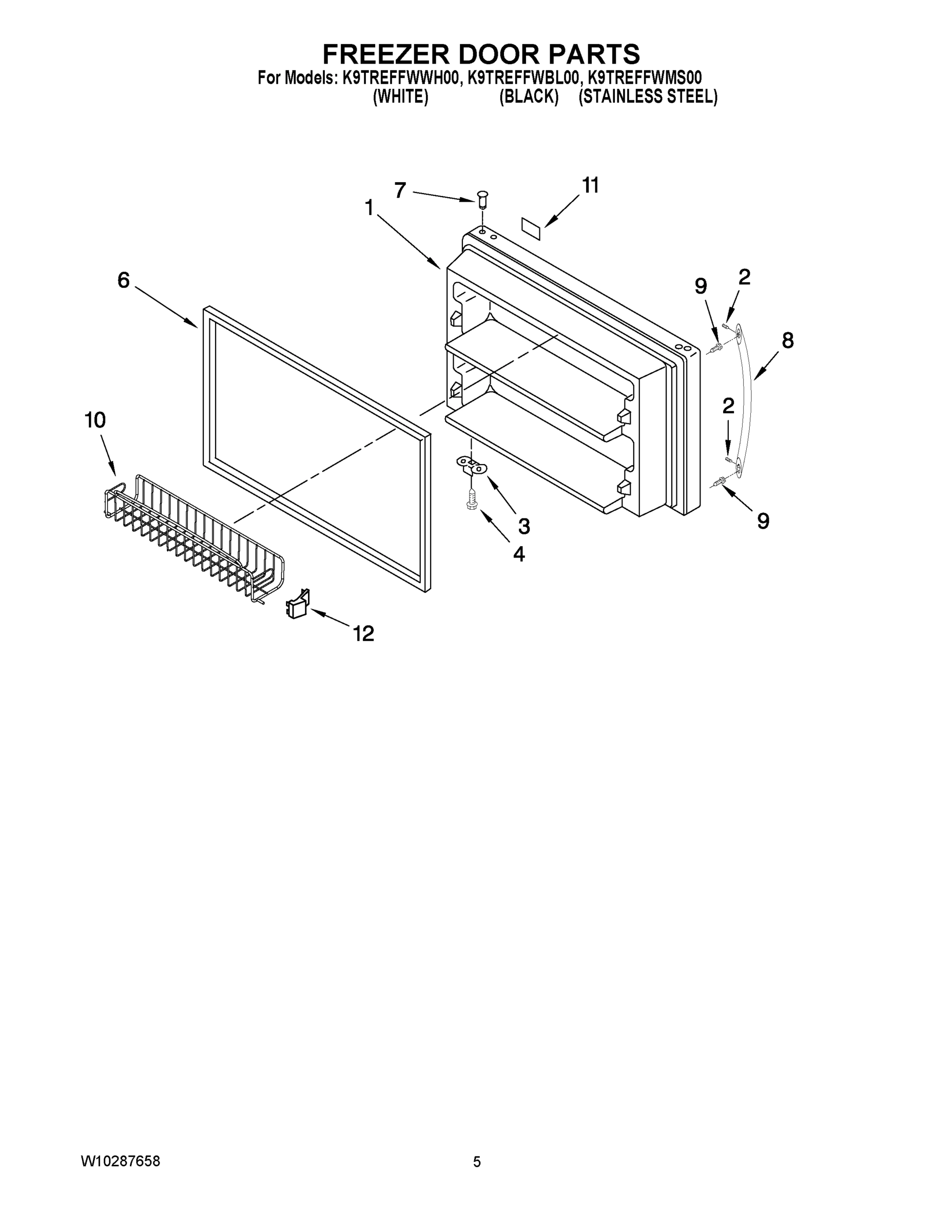

FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (WHITE)
FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (WHITE) WPL W10279778 Contact Us For Availability
View on Model
1
FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (BLACK)
FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (BLACK) WPL W10279779 Contact Us For Availability
View on Model
1
FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLE
FREEZER DOOR (INCLUDES ILLUS. 6 & 7) (STAINLE WPL W10279784 Contact Us For Availability
View on Model
1

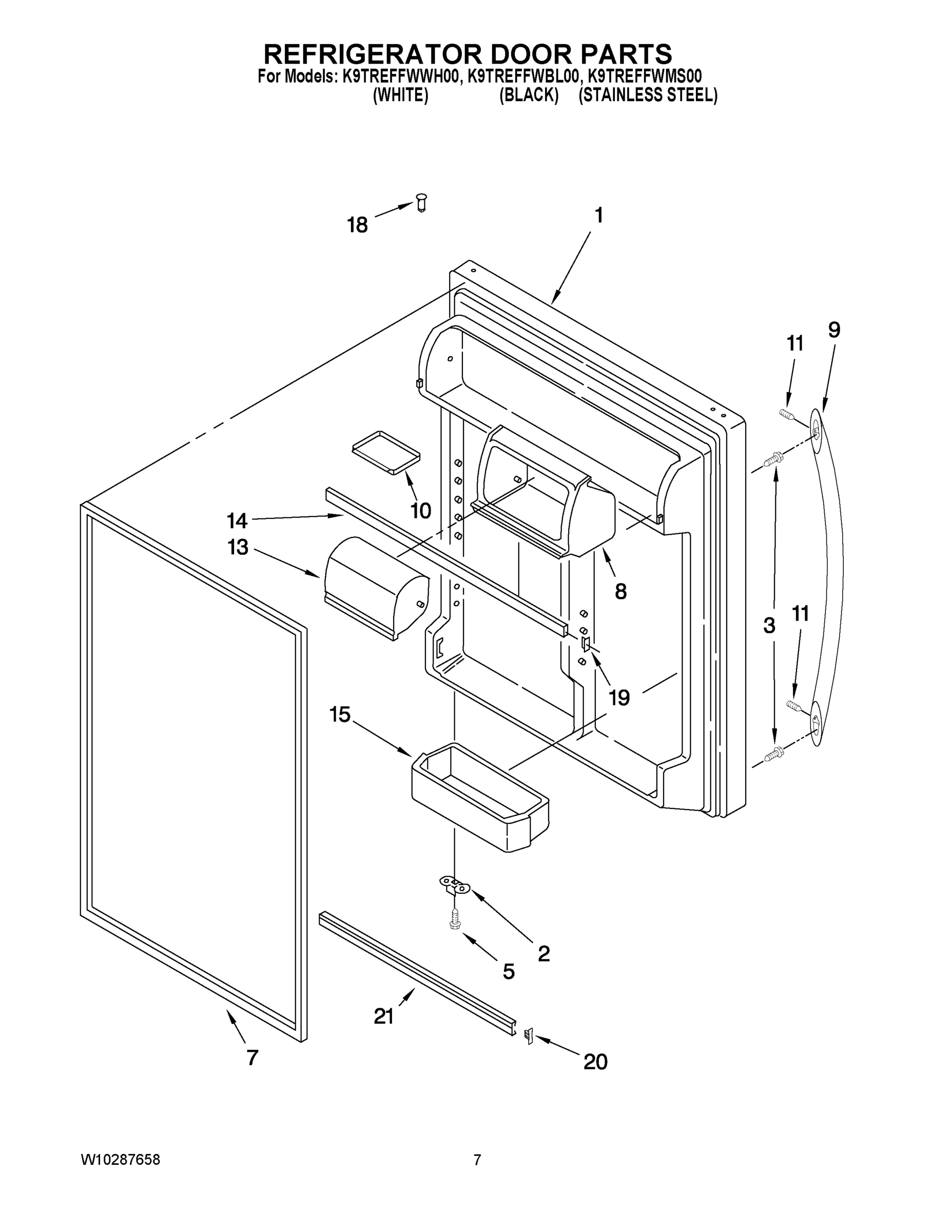

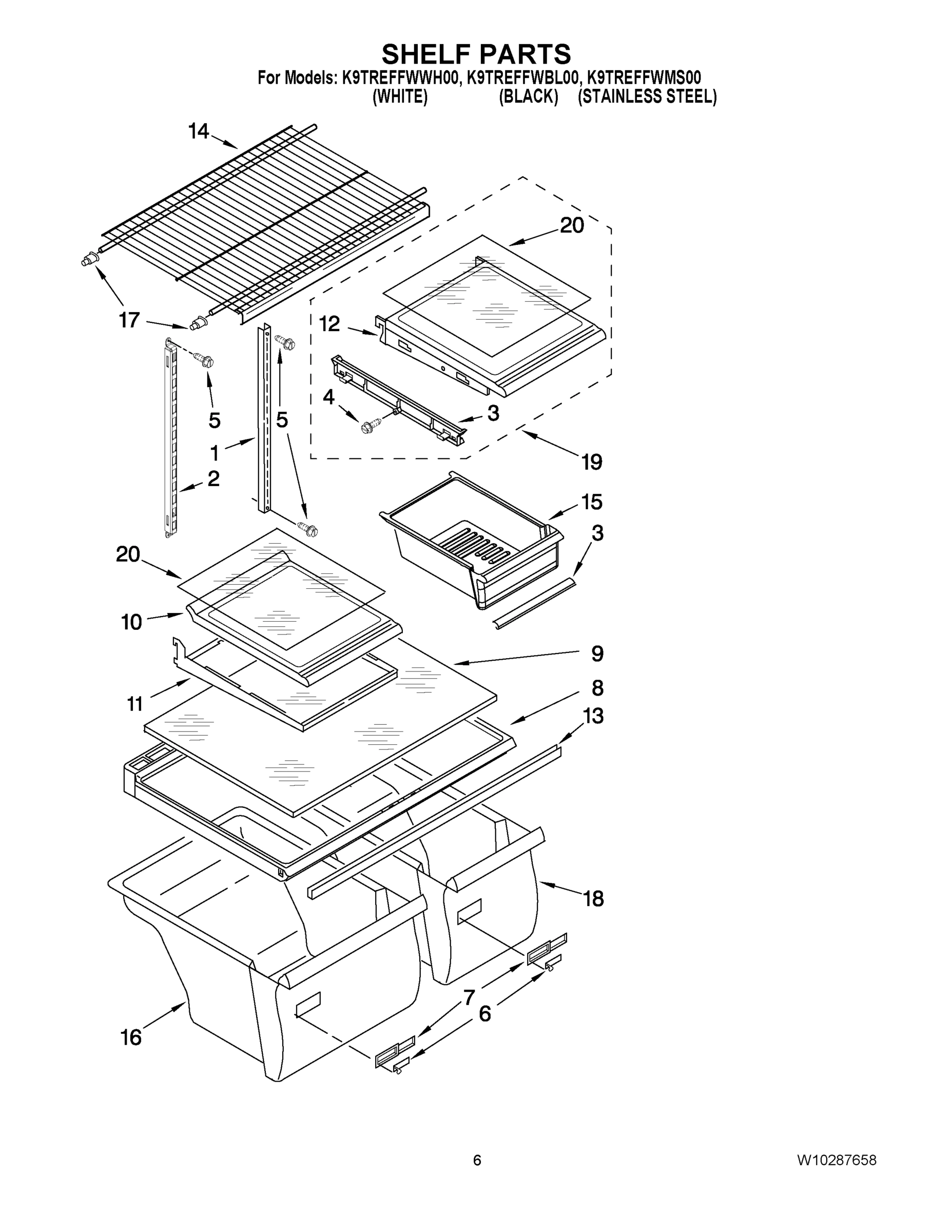

Shelf, Ladder (2)
Shelf, Ladder (2) WPL 2210522 Contact Us For Availability
View on Model
2
Shelf, Ladder Center
Shelf, Ladder Center WPL 2300520 Contact Us For Availability
View on Model
3
Slide Pan
Slide Pan WPL 2214892 Contact Us For Availability
View on Model
8
HANDLE, DOOR (INCLUDES ILLUS. 2) (WHITE)
HANDLE, DOOR (INCLUDES ILLUS. 2) (WHITE) WPL W10274654 Contact Us For Availability
View on Model
8
HANDLE, DOOR (INCLUDES ILLUS. 2) (BLACK)
HANDLE, DOOR (INCLUDES ILLUS. 2) (BLACK) WPL W10274655 Contact Us For Availability
View on Model
8
HANDLE, DOOR (INCLUDES ILLUS. 2) (ARCH GRIP)
HANDLE, DOOR (INCLUDES ILLUS. 2) (ARCH GRIP) WPL W10274656 Contact Us For Availability
View on Model
10
Tray, Door
Tray, Door WPL 2159302 Contact Us For Availability
View on Model
10
Door Basket- FC
Door Basket- FC WPL 2300797 Contact Us For Availability
View on Model
10
SHELF, SPILLGAURD
SHELF, SPILLGAURD WPL 2225713 Contact Us For Availability
View on Model
11
Nameplate (Grey)
Nameplate (Grey) WPL W10046610 Contact Us For Availability
View on Model
11
SET SCREW
SET SCREW WPL W10278738 Contact Us For Availability
View on Model
11
Frame Assembly, Shelf
Frame Assembly, Shelf WPL 2225696 Contact Us For Availability
View on Model
12
END CAP-BSKT.(LH)
END CAP-BSKT.(LH) WPL 2300798 Contact Us For Availability
View on Model
12
END CAP-BSKT.(RH)
END CAP-BSKT.(RH) WPL 2300799 Contact Us For Availability
View on Model
12
FRAME ASSEMBLY, MEAT SHELF
FRAME ASSEMBLY, MEAT SHELF WPL 2214908 Contact Us For Availability
View on Model
14
Cover, Inlet Tube
Cover, Inlet Tube WPL 2205003 Contact Us For Availability
View on Model
14
Shelf, Freezer
Shelf, Freezer WPL 2189453 Contact Us For Availability
View on Model
16
Cover, Evaporator
Cover, Evaporator WPL 2320191 Contact Us For Availability
View on Model
18
GRILLE (INCLUDES ITEMS 8 & 19) (BLACK)
GRILLE (INCLUDES ITEMS 8 & 19) (BLACK) WPL 2254388 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Clip, Grille (Left Side)
Clip, Grille (Left Side) WPL 2189356 Contact Us For Availability
View on Model
19
PLUG, TRIM (2)
PLUG, TRIM (2) WPL 2177340 Contact Us For Availability
View on Model
19
SHELF ASSY
SHELF ASSY WPL 2214910 Contact Us For Availability
View on Model
20
Shelf, Glass
Shelf, Glass WPL 2214912 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
23
Support Block
Support Block WPL 2201184 Contact Us For Availability
View on Model
24
Cover, Unit
Cover, Unit WPL 2254578 Contact Us For Availability
View on Model
29
BRACKET, FAN MOTOR
BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability
View on Model
34
Knob, Damper
Knob, Damper WPL 2302536 Contact Us For Availability
View on Model
39
HOUSING BASE FLOOR ASSEMBLY PULLOUT FZR.FLOOR
HOUSING BASE FLOOR ASSEMBLY PULLOUT FZR.FLOOR WPL 2300417 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
NI
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH
TORX SCREW WRENCH WPL 1117510 Contact Us For Availability
