Model Whirlpool K2TLEFFWMS01 REFRIGERATOR – Common Parts & Diagrams
03 - FREEZER DOOR PARTS
06 - UNIT PARTS
07 - OPTIONAL PARTS

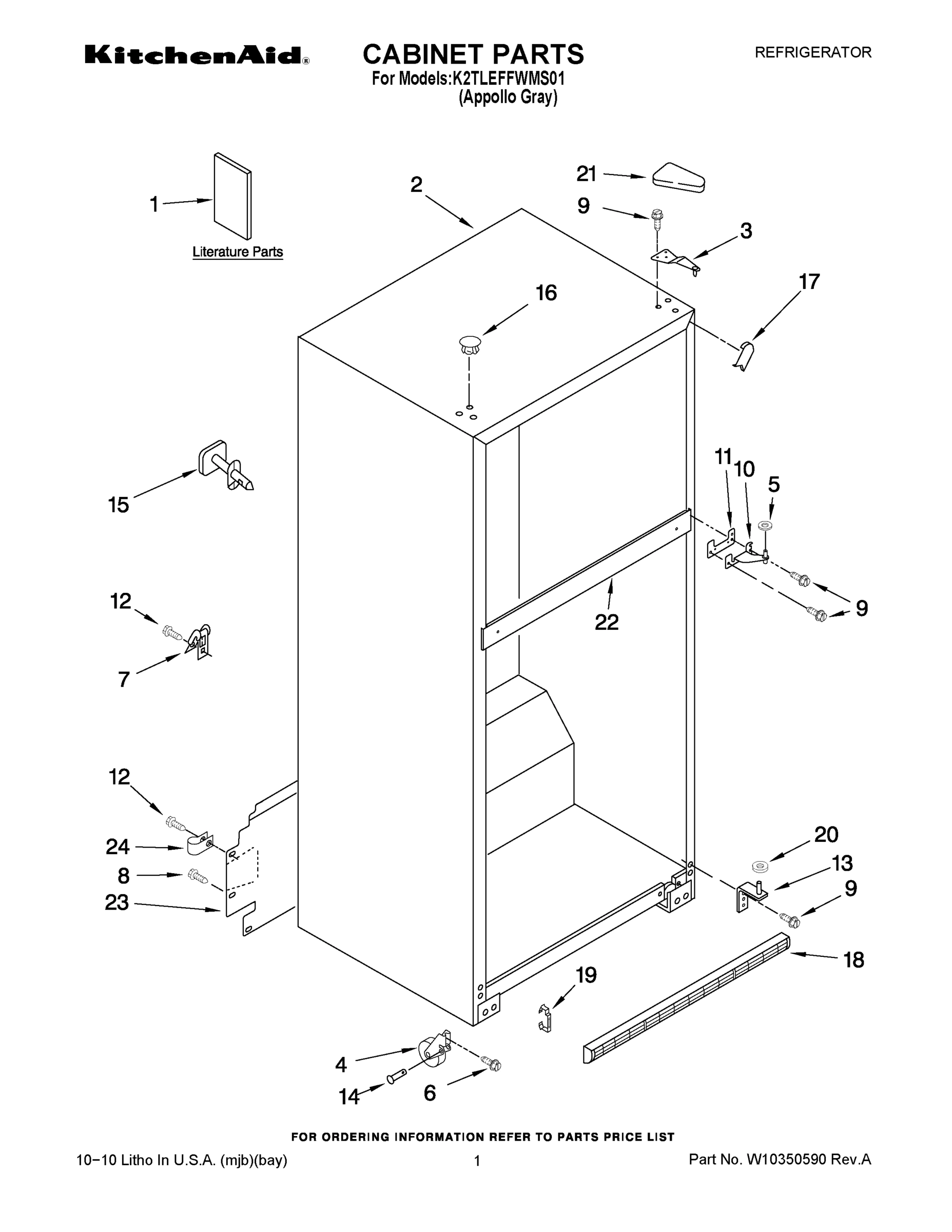

01 - CABINET PARTS

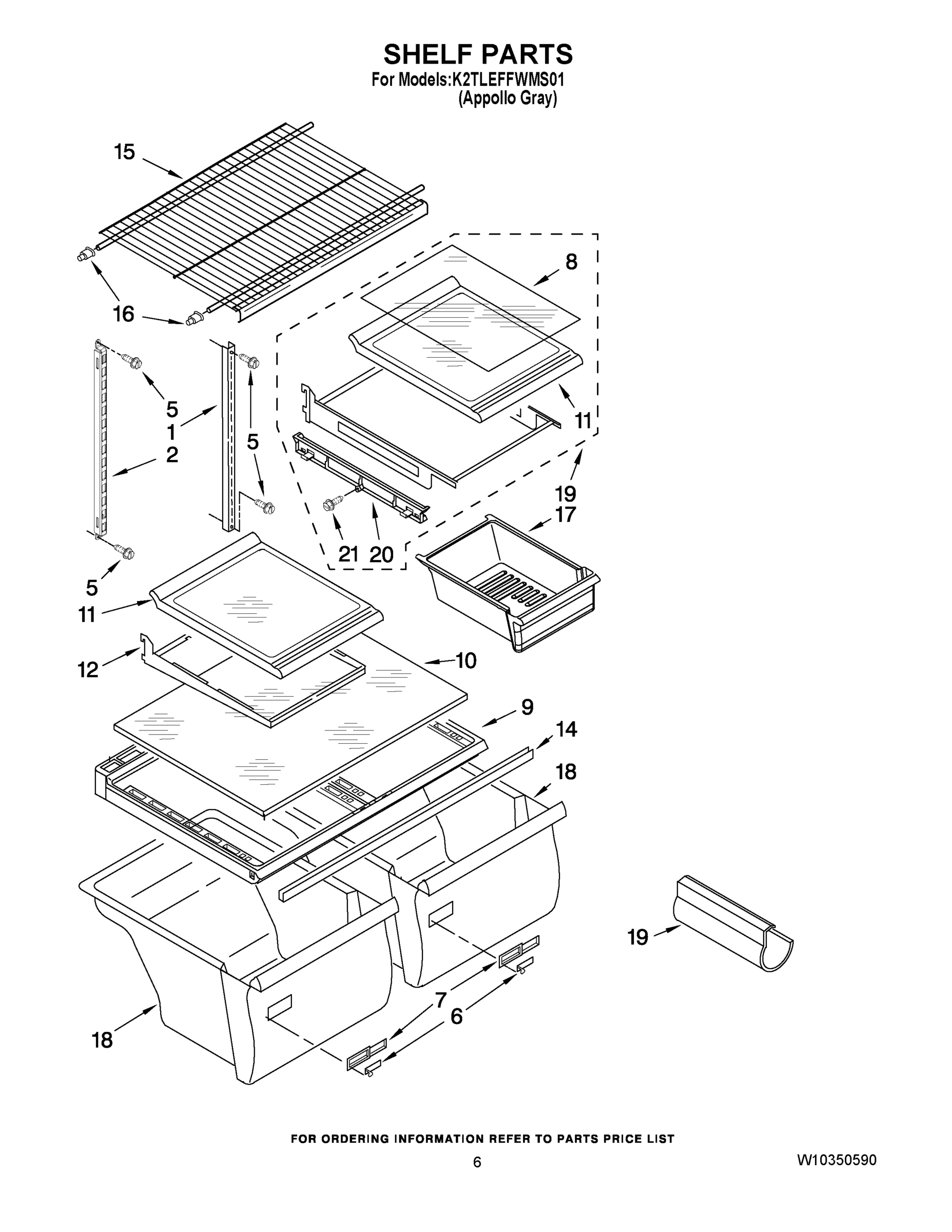

04 - SHELF PARTS

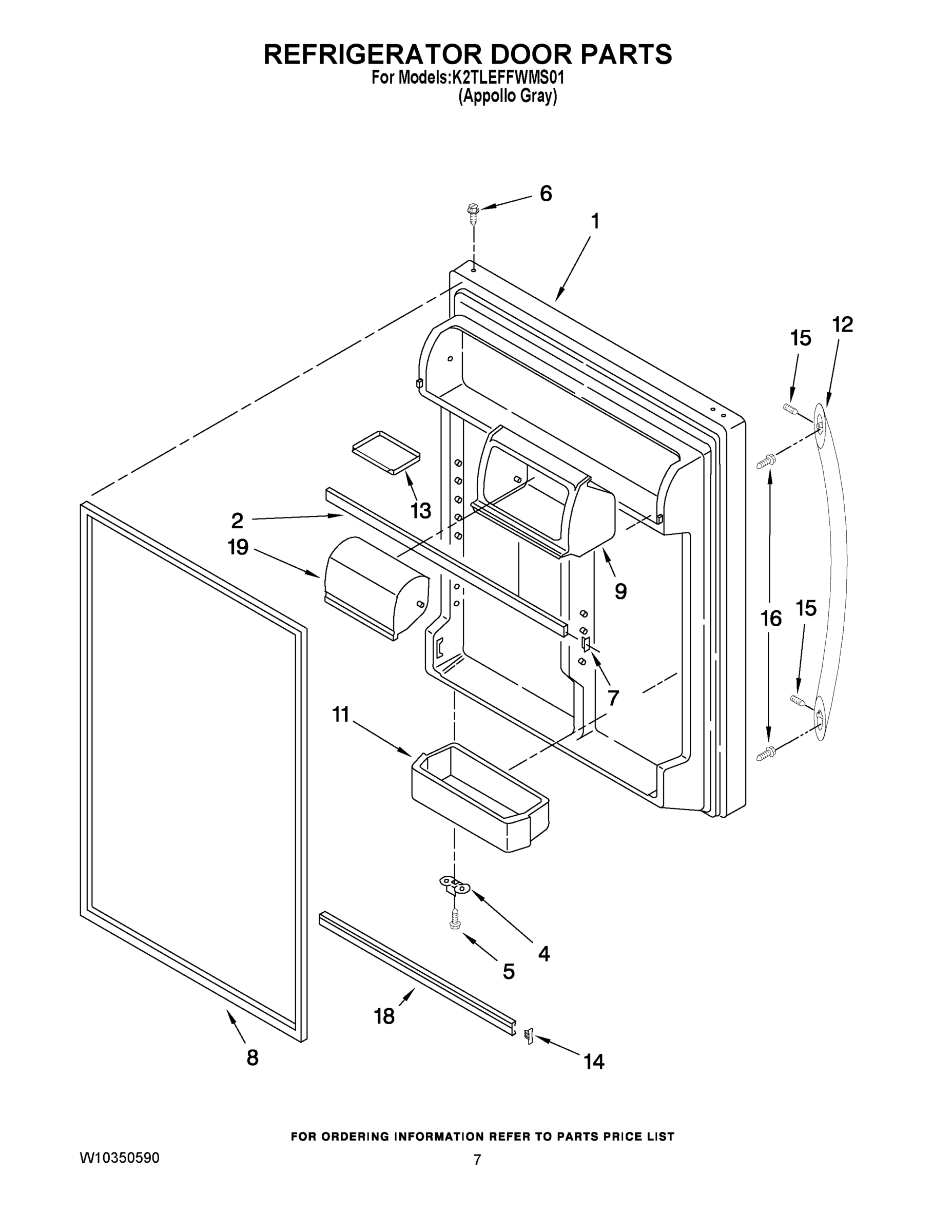

05 - REFRIGERATOR DOOR PARTS

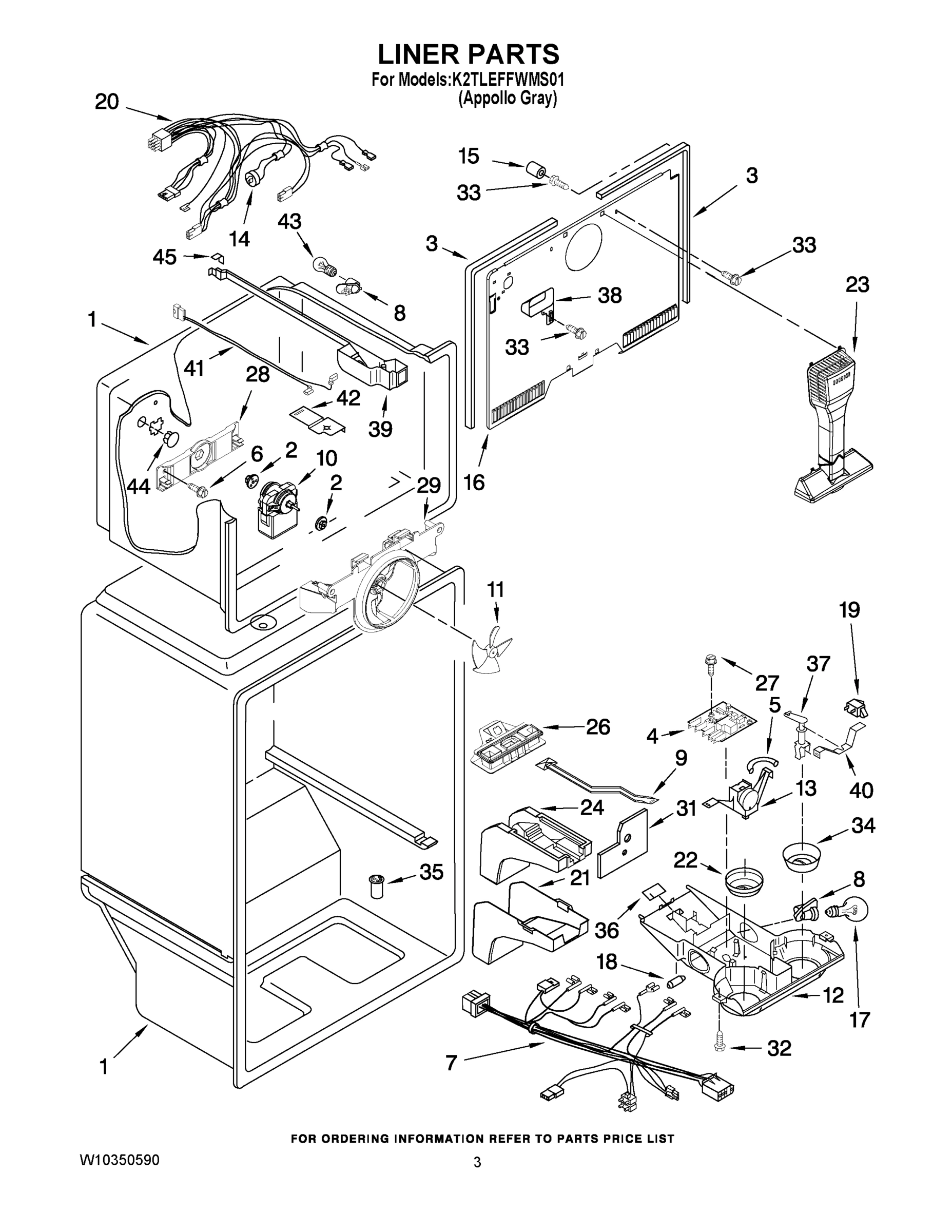

02 - LINER PARTS
Common parts from model Whirlpool K2TLEFFWMS01 REFRIGERATOR
2
Trim, Door Shelf WPL 2159306 Contact Us For Availability
5
EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability
6
Slide, Humidity Control WPL 2176222 Contact Us For Availability
7
Drain Pan WPL 2254295 Contact Us For Availability
11
NAMEPLATE WPL W10046610 Contact Us For Availability
13
Thermostat Assembly (Includes Illus. 5 & 18) WPL 2200859 Contact Us For Availability
15
Shelf, Freezer WPL 2189454 Contact Us For Availability
16
Cup, Shelf Mtg. WPL 2163762 Contact Us For Availability
16
Cover, Evaporator WPL 2320193 Contact Us For Availability
18
GRILLE (INCLUDES ILLUS. 19) WPL 2254530 Contact Us For Availability
19
Compartment Door WPL 2218109 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability
19
SHELF ASSY WPL 2214911 Contact Us For Availability
20
WIRE ASSEMBLY, FREEZER COMPARTMENT (INCLUDES WPL W10129803 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
22
Support Block WPL 2201185 Contact Us For Availability
23
Cover, Unit WPL 2254576 Contact Us For Availability
26
AIR SEPARATOR ASSEMBLY WPL 2204690 Contact Us For Availability
28
BRACKET EVAP. FAN, REAR WPL 2254454 Contact Us For Availability
29
BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability
34
Knob, Damper WPL 2302536 Contact Us For Availability
38
Cover, Inlet Tube WPL 2205003 Contact Us For Availability
39
Housing Base WPL 2300418 Contact Us For Availability
40
TUBE, PROCESS WPL W10274306 Contact Us For Availability
40
BRACKET, WPL 2163810 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
45
GASKET, REAR DAMPER KNOB WPL 2166284 Contact Us For Availability
NI
Customer Touch-Up Material (Brush Touch-Up Ki WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI WPL 72032 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI WPL 4392899 Contact Us For Availability
NI
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (ENAMEL, BISQUE (1 WPL 4392901 Contact Us For Availability
NI
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
NI
Touch-Up, White Porcelain (2 Oz.) WPL 511873 Contact Us For Availability
NI
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
NI
KIT, INSULATION (2 PCS.) 3`` X 24 `` X 48 WPL 876370 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
NI
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
NI
REFINISHING MATERIAL, KIT, TERMINAL CONNECTOR WPL 833938 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 WPL 350942 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN WPL 799344 Contact Us For Availability
NI
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
