Model GE JVM6172DF1WW Microwave Or Advantium – Common Parts & Diagrams
DOOR PARTS
CONTROL PARTS
OVEN CAVITY PARTS
Common parts from model GE JVM6172DF1WW Microwave Or Advantium
4
SOCKET LAMP GEN WB08X10016 Contact Us For Availability
5
LAMP-INCANDESCENT GEN WB36X10003 Contact Us For Availability
6
BRACKET LAMP GEN WB02X11265 Contact Us For Availability
7
GLASS COOKTOP LAMP GEN WB36X10071 Contact Us For Availability
12
THERMO SWTCH GEN WB27X709 Contact Us For Availability
13
TCO - BOTTOM GEN WB21X10162 Contact Us For Availability
15
TRANS-H.V GEN WB20X10043 Contact Us For Availability
18
MOTOR,FAN GEN WB26X10265 Contact Us For Availability
19
BLADE-FAN GEN WB26X10254 Contact Us For Availability
20
SPRING-BLADE GEN WB09X10042 Contact Us For Availability
33
BLADE-STIRRER GEN WB06X10812 Contact Us For Availability
34
HOLDER-STIRRER GEN WB06X10813 Contact Us For Availability
35
COVER-STIRRER GEN WB06X10814 Contact Us For Availability
37
RACK HOLDER GEN WB06X10946 Contact Us For Availability
38
COVER-MGT GEN WB06X10822 Contact Us For Availability
39
COUPLER GEN WB06X10815 Contact Us For Availability
40
TURNTABLE, MOTOR GEN WB26X10233 Contact Us For Availability
45
LEVER-S/W GEN WB06X10128 Contact Us For Availability
46
TCO CAVITY GEN WB27X11094 Contact Us For Availability
47
CAPACITOR- MOTOR GEN WB27X10170 Contact Us For Availability
49
CAPACITOR 2100V/0.91 MIC GEN WB27X10011 Contact Us For Availability
53
THERMOSTAT W/BRKT GEN WB20X10061 Contact Us For Availability
54
TCO - MAGNETRON GEN WB27X11095 Contact Us For Availability
56
MAGNETRON ASM GEN WB27X11079 Contact Us For Availability
59
POWER CORD ASM GEN WB18X10442 Contact Us For Availability
60
MOTOR-VENTILATION GEN WB26X20405 Contact Us For Availability
62
NUT TOP MOUNTING GEN WB01X10071 Contact Us For Availability
63
ASM HOOD DAMPER GEN WB06X10920 Contact Us For Availability
66
GUIDE ROLLER, TT GEN WB06X10818 Contact Us For Availability
67
TRAY COOKING GEN WB49X10224 Contact Us For Availability
68
RACK-WIRE GEN WB48X10070 Contact Us For Availability
69
FILTER, CHARCOAL GEN WB02X11536 Contact Us For Availability
71
HARDWARE ASM GEN WB06X10889 Contact Us For Availability
77
VENT GRILLE, WW GEN WB07X11418 Contact Us For Availability

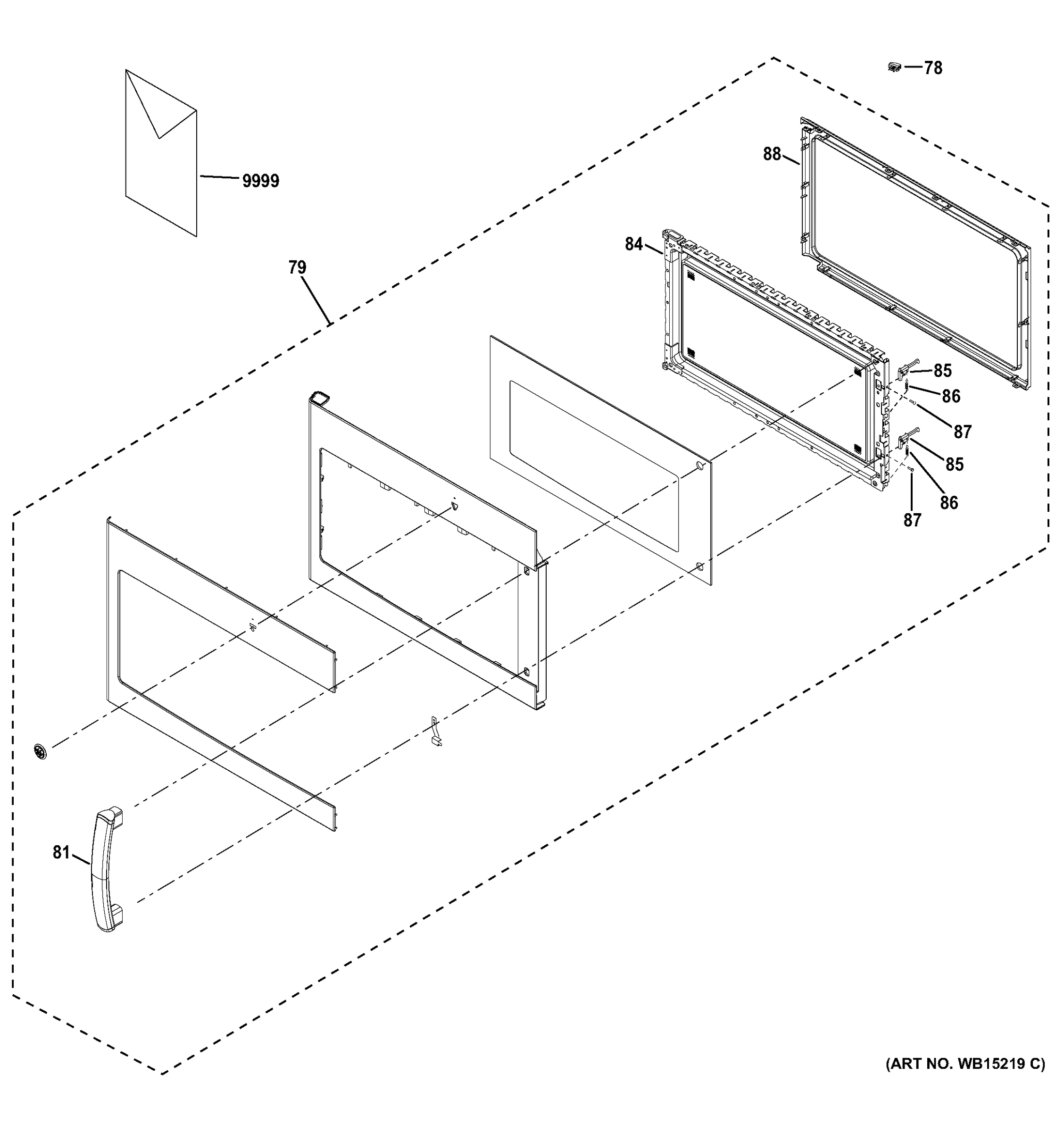

79
DOOR ASM, WW GEN WB56X11024 Contact Us For Availability
81
HANDLE ASM, WW GEN WB15X10280 Contact Us For Availability
84
ASM DOOR E GEN WB55X10862 Contact Us For Availability
86
SPRING-KEY GEN WB05X10006 Contact Us For Availability

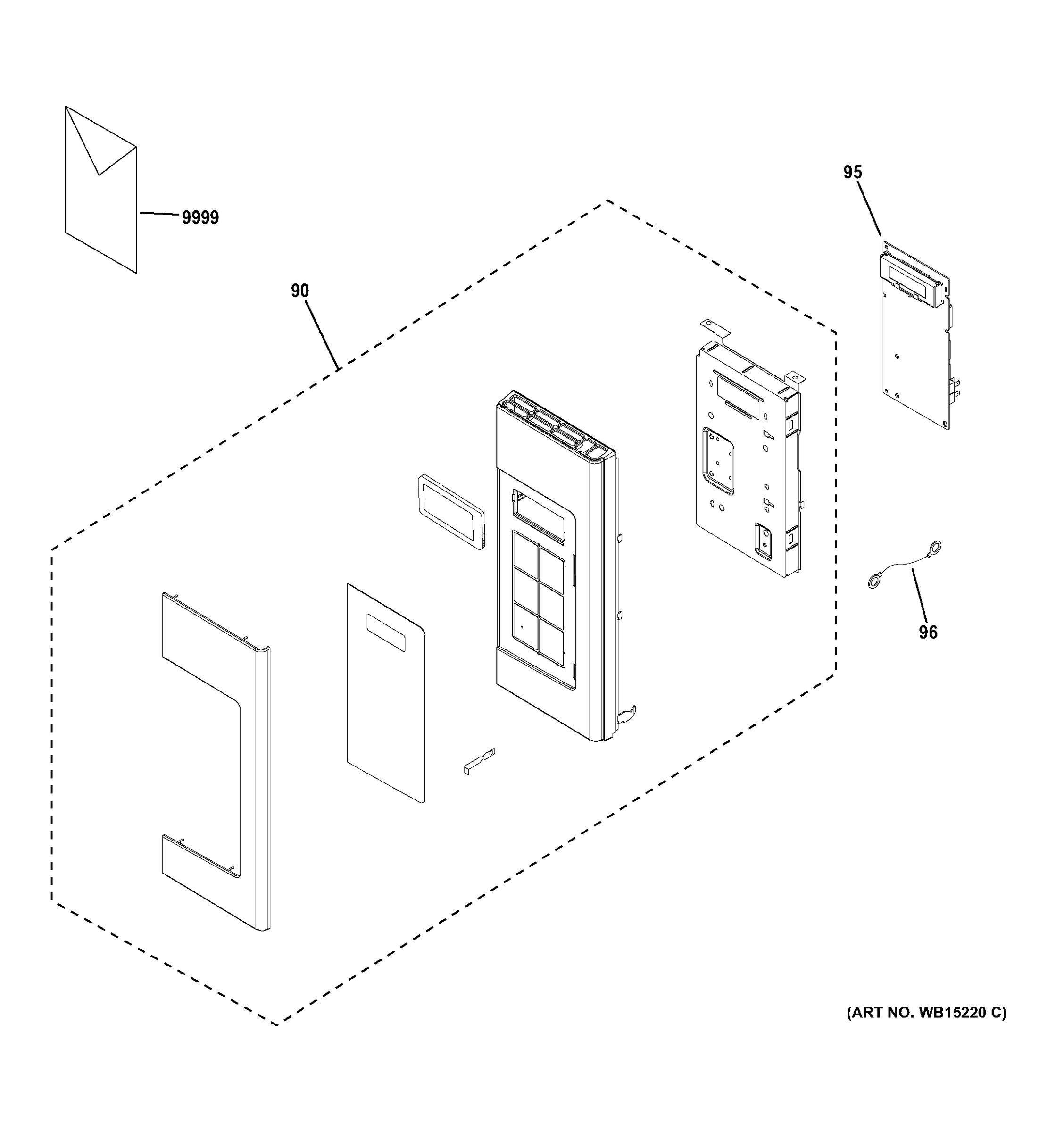

90
CONTROL PANEL ASM, WW GEN WB56X20532 Contact Us For Availability
95
PCB MAIN ASM GEN WB27X20531 Contact Us For Availability
96
WIRE GND PCB GEN WB18X10122 Contact Us For Availability
100
WIRE RACK SPACER GEN WB02X24085 Contact Us For Availability
× ![]()
