Model GE JVM131G02 Microwave Or Advantium – Common Parts & Diagrams

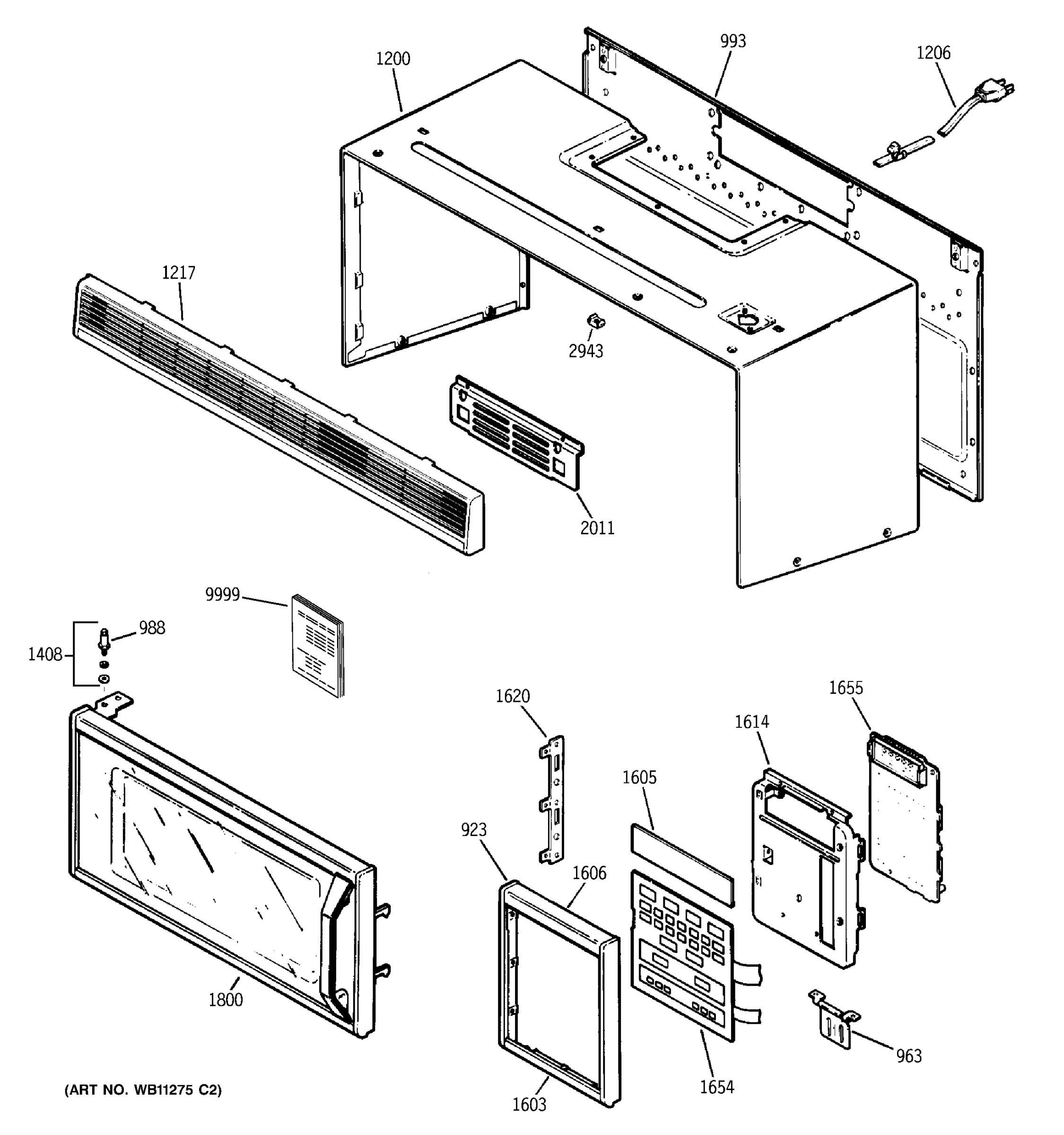

DOOR & CABINET

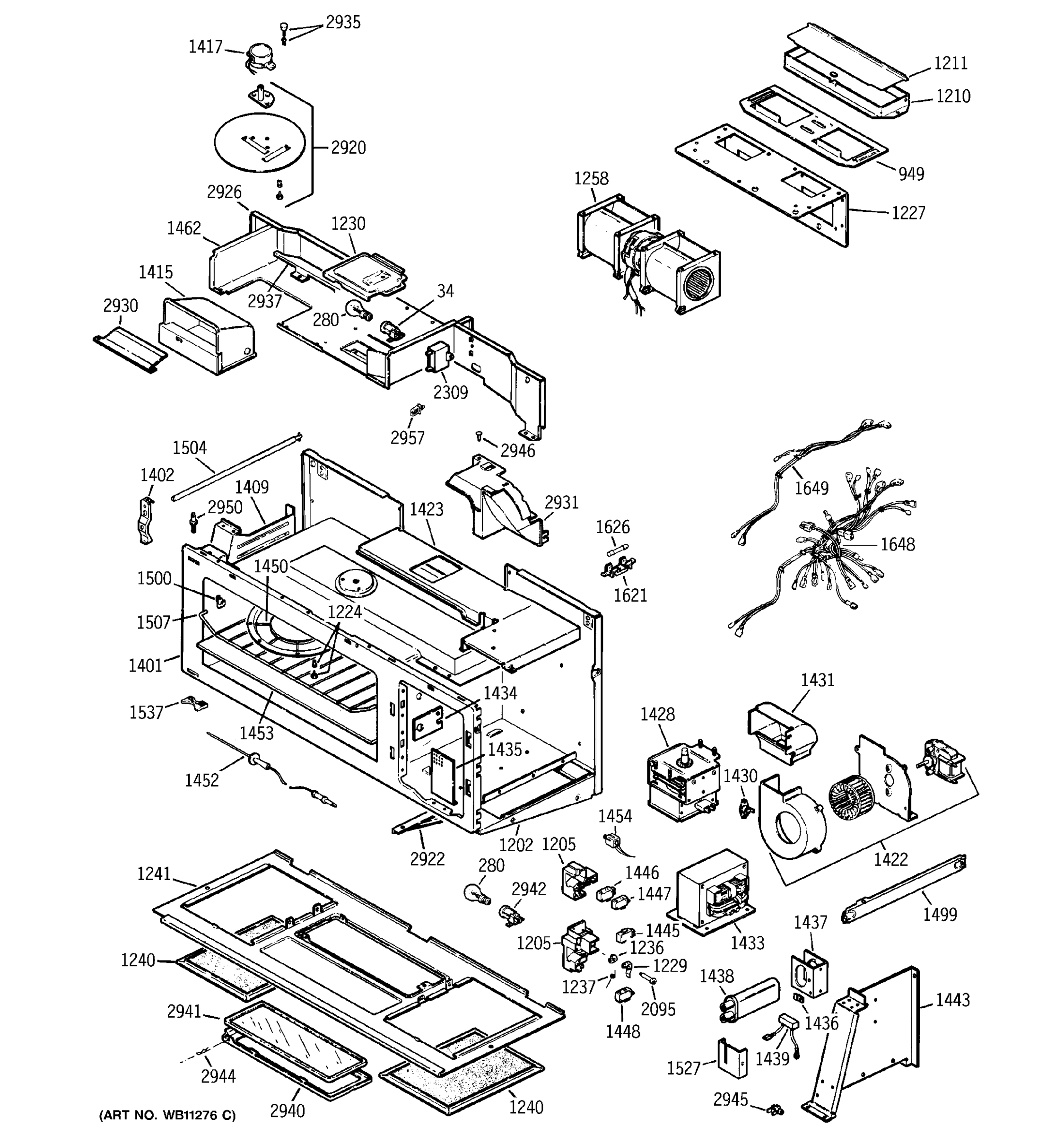

INTERNAL PARTS
Common parts from model GE JVM131G02 Microwave Or Advantium
34
GEN WB08X0287 GEN WB08X0287 Contact Us For Availability
949
BRACKET-ADJUSTABLE GEN WB02X4597 Contact Us For Availability
963
GEN WB14X0124 GEN WB14X0124 Contact Us For Availability
988
BOLT GEN WB01X0715 Contact Us For Availability
993
GEN WB56X1946 GEN WB56X1946 Contact Us For Availability
1200
GEN WB56X1936 GEN WB56X1936 Contact Us For Availability
1202
GEN WB56X1938 GEN WB56X1938 Contact Us For Availability
1205
LATCH BODY-LOWER GEN WB02X4890 Contact Us For Availability
1205
GEN WB02X9324 GEN WB02X9324 Contact Us For Availability
1206
POWER SUPPLY CORD GEN WB18X0345 Contact Us For Availability
1210
HOOD DAMPER GEN WB02X4227 Contact Us For Availability
1211
DAMPER DOOR GEN WB02X4230 Contact Us For Availability
1217
GRILLE ASSEMBLY GEN WB07X1368 Contact Us For Availability
1224
GEN WB01X0718 GEN WB01X0718 Contact Us For Availability
1227
BRACKET-MOTOR GEN WB02X4231 Contact Us For Availability
1229
GEN WB02X4261 GEN WB02X4261 Contact Us For Availability
1230
GEN WB08X0285 GEN WB08X0285 Contact Us For Availability
1236
GEN WB02X4260 GEN WB02X4260 Contact Us For Availability
1237
GEN WB09X0199 GEN WB09X0199 Contact Us For Availability
1240
FILTER-AIR-BOTTOM GEN WB02X4263 Contact Us For Availability
1240
FILTER-CHARCOAL GEN WB02X4267 Contact Us For Availability
1241
GEN WB56X1933 GEN WB56X1933 Contact Us For Availability
1258
MOTOR-FAN GEN WB26X0109 Contact Us For Availability
1401
CAVITY & FRAME ASSEMBLY GEN NOT AVAIL Contact Us For Availability
1402
GUIDE-SHAFT-MOUNTING GEN WB02X4238 Contact Us For Availability
1408
GEN WB01X0838 GEN WB01X0838 Contact Us For Availability
1409
DUCT-SIDE-LEFT GEN WB02X4240 Contact Us For Availability
1415
DUCT-EXHAUST GEN WB02X4244 Contact Us For Availability
1417
MOTOR-STIRRER GEN WB26X0073 Contact Us For Availability
1422
MOTOR-BLOWER GEN WB26X0074 Contact Us For Availability
1423
SUPPORT-MOTOR GEN WB02X4243 Contact Us For Availability
1430
GEN WB21X0486 GEN WB21X0486 Contact Us For Availability
1431
GEN WB02X9333 GEN WB02X9333 Contact Us For Availability
1433
GEN WB27X0462 GEN WB27X0462 Contact Us For Availability
1434
GEN WB02X9335 GEN WB02X9335 Contact Us For Availability
1435
BARRIER-HV TRANSFORMER GEN WB02X4247 Contact Us For Availability
1436
FASTENER-HV CAPACITOR GEN WB01X0720 Contact Us For Availability
1437
GEN WB02X9331 GEN WB02X9331 Contact Us For Availability
1438
CAPACITOR-HV GEN WB27X0285 Contact Us For Availability
1443
DUCT-SIDE-RIGHT GEN WB02X4239 Contact Us For Availability
1445
SWITCH-MONITOR GEN WB24X0328 Contact Us For Availability
1446
GEN WB24X0427 GEN WB24X0427 Contact Us For Availability
1450
GEN WB02X9332 GEN WB02X9332 Contact Us For Availability
1452
GEN WB20X0079 GEN WB20X0079 Contact Us For Availability
1453
GEN WB49X0635 GEN WB49X0635 Contact Us For Availability
1454
GEN WB08X0288 GEN WB08X0288 Contact Us For Availability
1462
GEN WB02X9326 GEN WB02X9326 Contact Us For Availability
1499
GEN WB02X4257 GEN WB02X4257 Contact Us For Availability
1500
GEN WB06X10140 GEN WB06X10140 Contact Us For Availability
1504
GEN WB02X9321 GEN WB02X9321 Contact Us For Availability
1507
RACK-OVEN GEN WB48X0214 Contact Us For Availability
1527
BARRIER-CAPACITOR GEN WB02X4594 Contact Us For Availability
1537
CLIP-BOTTOM GEN WB01X0719 Contact Us For Availability
1603
TRIM-CONTROL PANEL-LOWER GEN WB07X1422 Contact Us For Availability
1605
GEN WB36X0676 GEN WB36X0676 Contact Us For Availability
1606
TRIM-CONTROL PANEL-UPPER GEN WB07X1421 Contact Us For Availability
1614
GEN WB02X9320 GEN WB02X9320 Contact Us For Availability
1620
BRACKET-FRONT PANEL GEN WB02X4264 Contact Us For Availability
1621
FUSE HOLDER GEN WB02X4627 Contact Us For Availability
1648
GEN WB02X9323 GEN WB02X9323 Contact Us For Availability
1648
GEN WB18X0341 GEN WB18X0341 Contact Us For Availability
1649
GEN WB18X0344 GEN WB18X0344 Contact Us For Availability
1654
GEN WB27X0455 GEN WB27X0455 Contact Us For Availability
1655
GEN WB27X0451 GEN WB27X0451 Contact Us For Availability
1800
DOOR ASSEMBLY GEN WB55X0512 Contact Us For Availability
2011
BARRIER-FRONT GEN WB02X4266 Contact Us For Availability
2095
GEN WB01X0721 GEN WB01X0721 Contact Us For Availability
2309
CAPACITOR GEN WB27X0282 Contact Us For Availability
2920
GEN WB02X9355 GEN WB02X9355 Contact Us For Availability
2922
GEN WB02X9322 GEN WB02X9322 Contact Us For Availability
2926
GEN WB02X9325 GEN WB02X9325 Contact Us For Availability
2930
GEN WB02X9359 GEN WB02X9359 Contact Us For Availability
2931
GEN WB02X9328 GEN WB02X9328 Contact Us For Availability
2935
GEN WB02X9338 GEN WB02X9338 Contact Us For Availability
2937
GEN WB02X9356 GEN WB02X9356 Contact Us For Availability
2940
GEN WB36X0765 GEN WB36X0765 Contact Us For Availability
2941
GEN WB02X9334 GEN WB02X9334 Contact Us For Availability
2942
SOCKET LAMP GEN WB08X0275 Contact Us For Availability
2943
NUT ASSEMBLY GEN WB01X0799 Contact Us For Availability
2944
PIN WIRE GEN WB02X9357 Contact Us For Availability
2945
THERMOSTAT GEN WB21X0393 Contact Us For Availability
2946
CLIP GEN WB02X7572 Contact Us For Availability
2950
GEN WB02X9358 GEN WB02X9358 Contact Us For Availability
2957
GEN WB02X9330 GEN WB02X9330 Contact Us For Availability
9999
GEN 49-4883 GEN 49-4883 Contact Us For Availability
× ![]()
