Model GE JTD5000SN3SS – Common Parts & Diagrams
CONTROL PANEL
UPPER DOOR

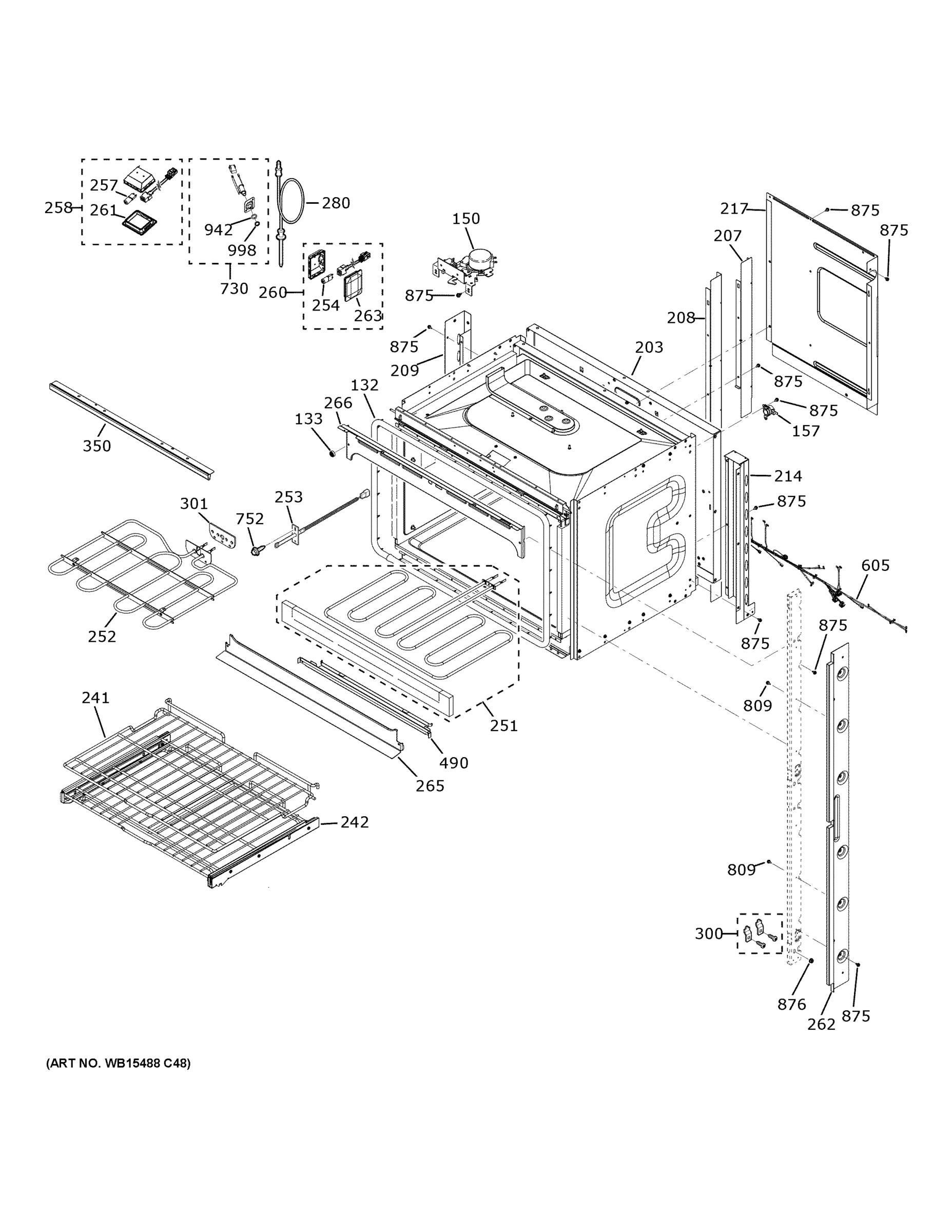

UPPER OVEN

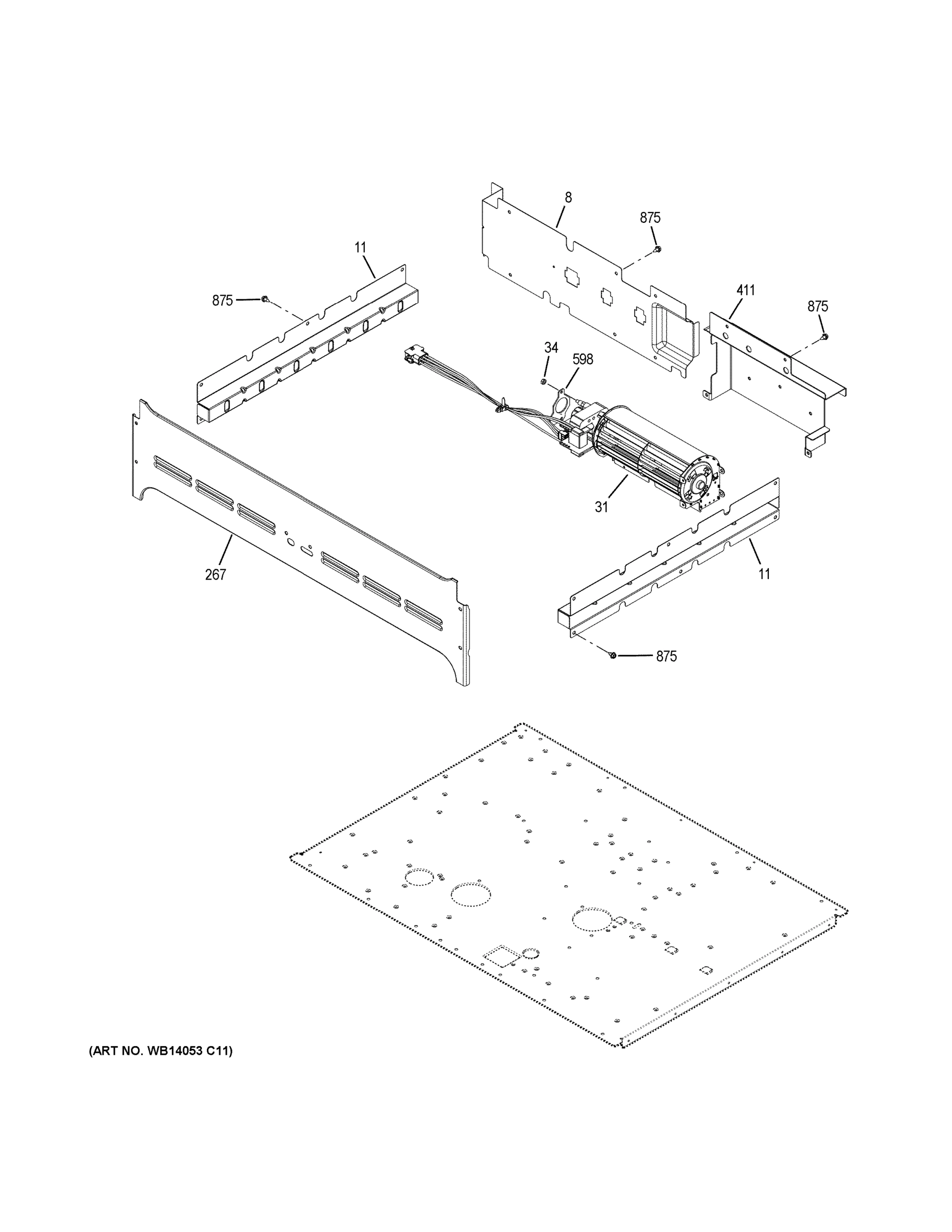

CENTER SPACER

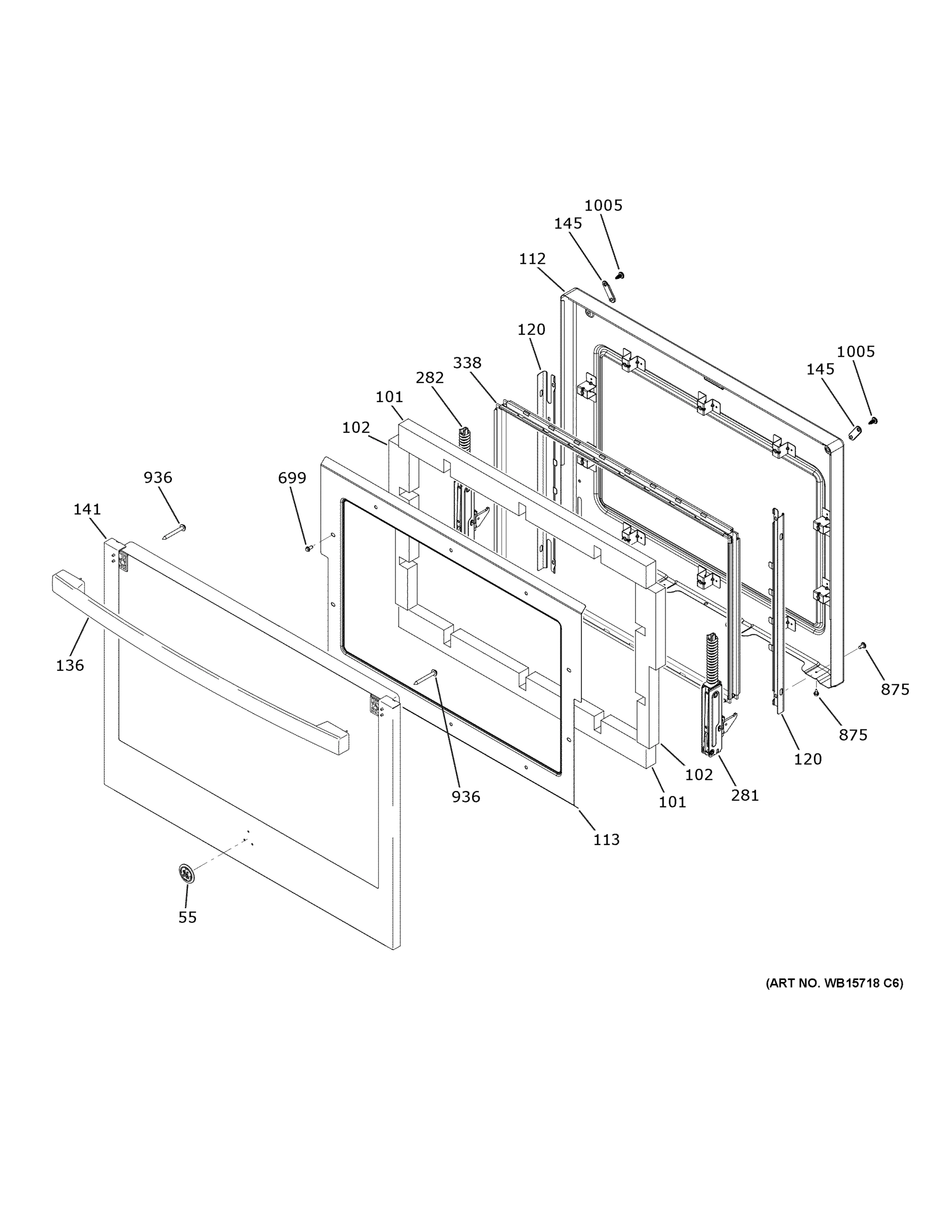

LOWER DOOR

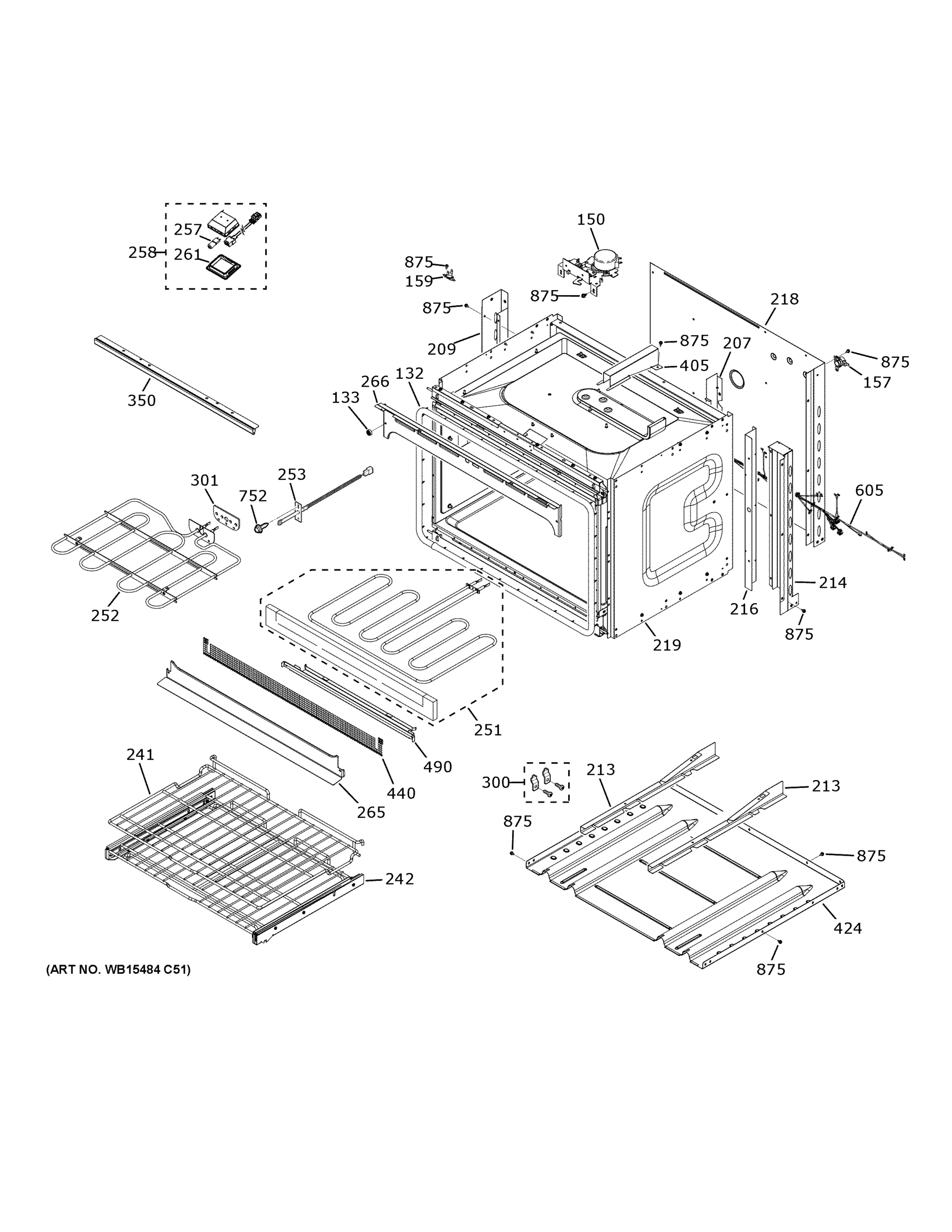

LOWER OVEN

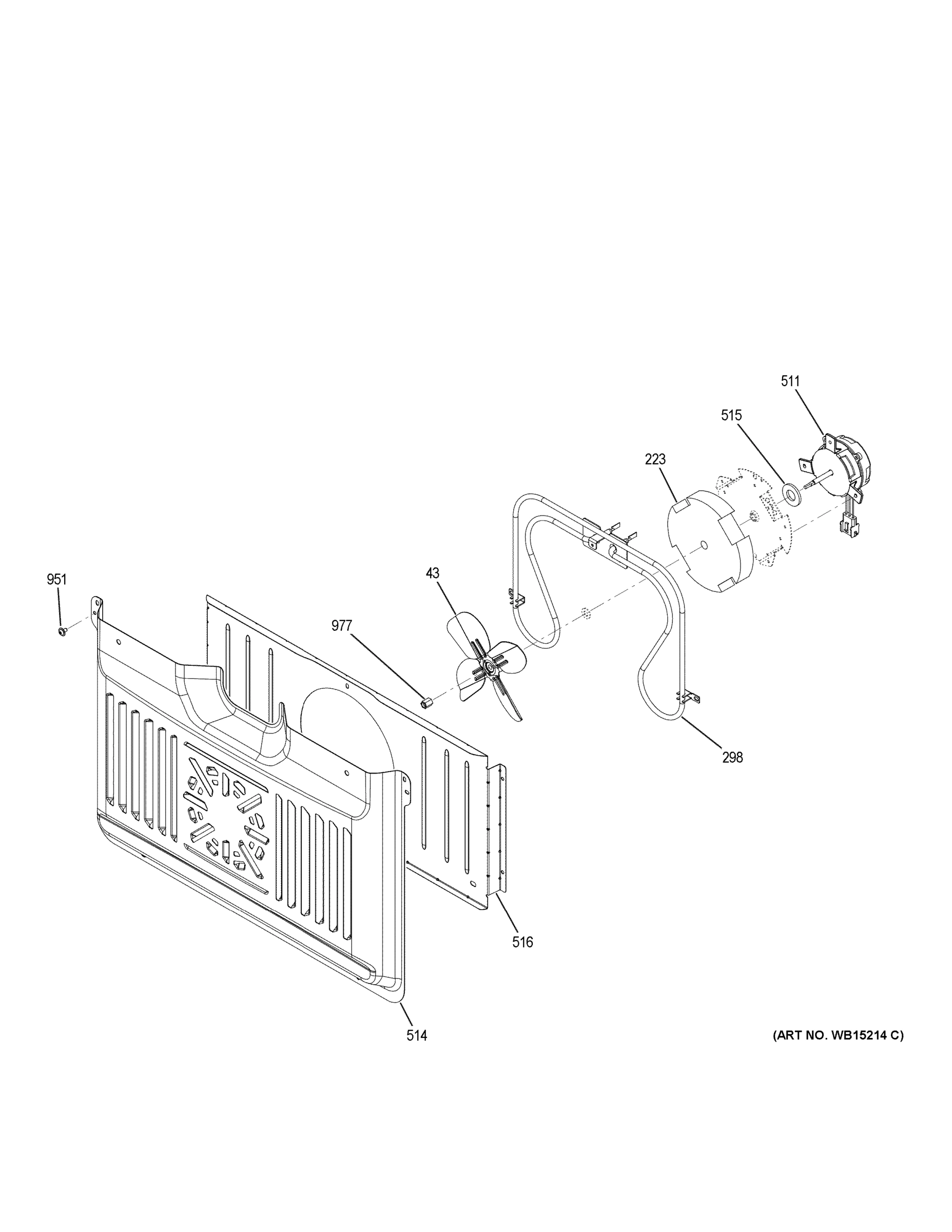

CONVECTION FAN

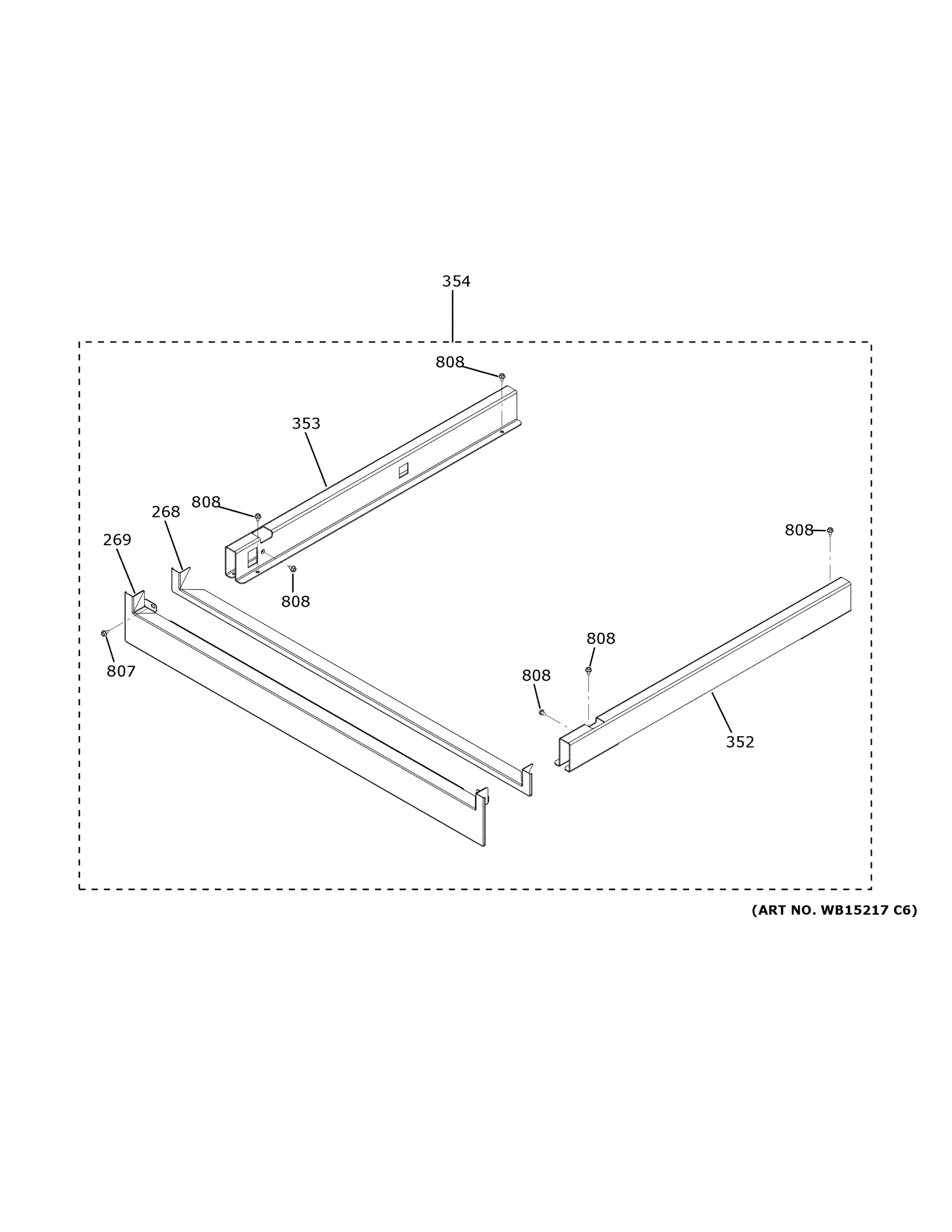

PEDESTAL
Common parts from model GE JTD5000SN3SS
13
JUMPER GEN WB18X30704 Contact Us For Availability
31
COOLING FAN LOWER GEN WB26X35089 Contact Us For Availability
32
FAN BLOWER GEN WB26X31060 Contact Us For Availability
55
BADGE ASM GEN WB02X29479 Contact Us For Availability
101
INSULATION DR TOP GEN WB35X21737 Contact Us For Availability
112
OVEN DOOR LINER ASM GEN WB63X32569 Contact Us For Availability
132
OVEN DOOR GASKET GEN WB35X32825 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
145
DOOR LINER PLUG GEN WB02X32816 Contact Us For Availability
150
LATCH ASM GEN WB10X28391 Contact Us For Availability
208
DIVIDER AIR DOUBLE OVEN GEN WB34T10140 Contact Us For Availability
217
COVER - UPPER REAR DUCT GEN WB34T10136 Contact Us For Availability
241
OVEN RACK GEN WB48X31582 Contact Us For Availability
242
SLIDING OVEN RACK ASM GEN WB48X38086 Contact Us For Availability
251
HIDDEN BAKE ELEMENT KIT GEN WB44X21667 Contact Us For Availability
254
LAMP HALOGEN BULB G9 GEN WB25T10101 Contact Us For Availability
258
HALOGEN LAMP ASM GEN WB25X31221 Contact Us For Availability
261
OVEN LIGHT LENS GEN WB34X31317 Contact Us For Availability
265
TRIM VENT LWR GEN WB07X21783 Contact Us For Availability
266
UPPER VENT TRIM GEN WB07X32831 Contact Us For Availability
268
BOTTOM TRIM GEN WB07X32832 Contact Us For Availability
269
BOTTOM TRIM ASM GEN WB07X33039 Contact Us For Availability
270
RELAY BOARD AND FRAME ASM GEN WB27X33083 Contact Us For Availability
281
HINGE DOOR RT GEN WB10X35065 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X27480 Contact Us For Availability
352
CHANNEL PEDESTAL RIGHT GEN WB37T10028 Contact Us For Availability
353
CHANNEL PEDESTAL LEFT GEN WB37T10029 Contact Us For Availability
354
PEDESTAL ASM GEN WB63X33040 Contact Us For Availability
402
COVER TOP LEFT EDGE GEN WB44T10126 Contact Us For Availability
416
COVER HOUSING FRT GEN WB34X28390 Contact Us For Availability
490
COVER HIDDEN BAKE GEN WB55T10197 Contact Us For Availability
516
DUCT CONVECTION FAN GEN WB37T10022 Contact Us For Availability
598
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
600
OPTIONAL 6 FT CONDUIT GEN WB18T10580 Contact Us For Availability
601
UI COM AND RJ45 HARNESS GEN WB18X32871 Contact Us For Availability
730
MEAT PROBE AND HARNESS GEN WB18X23585 Contact Us For Availability
815
SCR 8-18 AB TRT20NBS 5/8 GEN WB01X21650 Contact Us For Availability
936
SCREW 10-32 HEX 1 3/4 IN GEN WB01T10132 Contact Us For Availability
951
SCREW 8-18 T20 3/8 IN GEN WB01T10134 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
