GE JTD5000DV1BB Electric Range

13

WB18X30704 GE Jumper Backorder GEN WB18X30704 $5.20

View on Model

31

WB26X35089 GE Oven Lower Cooling Fan In Stock GEN WB26X35089 $83.62

View on Model

32

WB26X31060 GE Oven Blower Fan In Stock GEN WB26X31060 $64.13

View on Model

43

WB02T10598 GE Oven Convection Fan Blade Backorder GEN WB02T10598 $25.67

View on Model

55

WB02X29637 GE Oven Badge Assembly Backorder GEN WB02X29637 $5.20

View on Model

101

INSULATION DR TOP GEN WB35X21737 Contact Us For Availability

View on Model

112

WB63X32569 GE Oven Assembly Door Liner Backorder GEN WB63X32569 $84.20

View on Model

120

WB34X46746 GE Liner Support Backorder GEN WB34X46746 $4.58

View on Model

132

WB35X32825 GE Oven Door Gasket Backorder GEN WB35X32825 $25.00

View on Model

133

WB03T10341 GE Oven Door Bumper Backorder GEN WB03T10341 $5.22

View on Model

145

WB02X32816 GE Oven Door Liner Plug Backorder GEN WB02X32816 $5.20

View on Model

150

WB10X28391 GE Oven Door Latch In Stock GEN WB10X28391 $41.10

View on Model

157

WB24X46906 GE High Limit Switch In Stock GEN WB24X46906 $90.50

View on Model

159

WB24X46907 GE High Limit Switch In Stock GEN WB24X46907 $4.58

View on Model

208

WB34T10140 GE Oven Double Divider Air Backorder GEN WB34T10140 $63.86

View on Model

217

WB34T10136 GE Upper Rear Duct Cover Backorder GEN WB34T10136 $44.58

View on Model

223

WB35T10259 GE Convection Fan Insulation Backorder GEN WB35T10259 $7.30

View on Model

241

WB48X31582 GE Oven Rack Backorder GEN WB48X31582 $49.87

View on Model

251

Backorder GEN WB44X48678 $34.40

View on Model

252

WB44X48686 GE Broil Element Backorder GEN WB44X48686 $35.50

View on Model

253

WB21X10165 GE Oven Sensor In Stock GEN WB21X10165 $13.83

View on Model

254

WB25T10101 GE Oven Halogen Lamp Bulb G9 Backorder GEN WB25T10101 $9.99

View on Model

257

WB25T10102 GE Oven Top-Mounted Halogen Bulb G In Stock GEN WB25T10102 $9.99

View on Model

258

WB25X31221 GE Oven Halogen Lamp Assembly Backorder GEN WB25X31221 $24.98

View on Model

261

WB34X31317 GE Oven Light Lens Backorder GEN WB34X31317 $6.48

View on Model

265

WB07X21783 GE Oven Lower Vent Trim Backorder GEN WB07X21783 $43.24

View on Model

266

WB07X32831 GE Upper Trim Vent Backorder GEN WB07X32831 $19.95

View on Model

268

WB07T10761 GE Oven Bottom Trim Small Cabinet Backorder GEN WB07T10761 $49.01

View on Model

269

WB07T10788 GE Oven Bottom Trim Cabinet Backorder GEN WB07T10788 $51.11

View on Model

270

WB27X33083 GE Oven Relay Board and Frame Asse Backorder GEN WB27X33083 $75.15

View on Model

280

WB20T10024 GE Oven Thermistor Probe In Stock GEN WB20T10024 $44.01

View on Model

281

GE APPLIANCES WB10X35065 HINGE DOOR RT Backorder GEN WB10X35065 $18.06

View on Model

298

WB44X48668 GE Convection Element Backorder GEN WB44X48668 $24.71

View on Model

300

WB49X21652 GE Oven Hinge Bracket Assembly Backorder GEN WB49X21652 $17.29

View on Model

301

WB35X21972 GE Broil Element Gasket Backorder GEN WB35X21972 $5.20

View on Model

338

WB56X27480 GE Assembly Window Pack In Stock GEN WB56X27480 $177.23

View on Model

350

TRIM BROIL ELEMENT (BK) Backorder GEN WB07T10787 $10.96

View on Model

352

WB37T10028 GE Oven Right Channel Pedestal Backorder GEN WB37T10028 $37.28

View on Model

353

WB37T10029 GE Oven Left Channel Pedestal Backorder GEN WB37T10029 $40.94

View on Model

354

WB63X25756 GE Oven Pedestal Assembly Backorder GEN WB63X25756 $125.22

View on Model

402

WB44T10126 GE Oven Top Left Edge Cover Backorder GEN WB44T10126 $17.49

View on Model

405

WB34T10160 GE Lower Air Channel Backorder GEN WB34T10160 $15.37

View on Model

416

WB34X28390 GE Oven Front Cover Housing Backorder GEN WB34X28390 $32.87

View on Model

424

WB56X43352 GE Air Duct Bottom Cover Backorder GEN WB56X43352 $38.25

View on Model

440

SCREEN SUPPORT GEN WB34X43346 Contact Us For Availability

View on Model

490

WB55T10197 GE Oven Hidden Bake Cover Backorder GEN WB55T10197 $69.87

View on Model

511

WB26X23813 GE Oven Convection Motor Backorder GEN WB26X23813 $70.50

View on Model

514

WB37T10021 GE Convection Fan Cover Backorder GEN WB37T10021 $51.88

View on Model

515

WB01T10079 GE Range Gasket Backorder GEN WB01T10079 $5.20

View on Model

516

WB37T10022 GE Convection Fan Duct Backorder GEN WB37T10022 $16.91

View on Model

598

WB27X28659 GE Oven Sensor Board In Stock GEN WB27X28659 $19.53

View on Model

599

WB27T11463 GE Oven Fan Sensor Board In Stock GEN WB27T11463 $42.94

View on Model

600

WB18T10580 GE Oven 6 FT Optional Conduit Backorder GEN WB18T10580 $190.13

View on Model

601

WB18X32871 GE Oven UI COM and RJ45 Harness Backorder GEN WB18X32871 $64.62

View on Model

605

WB49X35794 GE Double Oven Main Harness Backorder GEN WB49X35794 $132.70

View on Model

730

WB18X23585 GE Oven Meat Probe and Harness Backorder GEN WB18X23585 $48.04

View on Model

752

WB01X21742 GE Screw Backorder GEN WB01X21742 $5.20

View on Model

801

WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2 Backorder GEN WD02X10129 $5.20

View on Model

807

WB1K5165 GE Oven Black Screw Backorder GEN WB1K5165 $5.20

View on Model

808

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $5.20

View on Model

815

WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8 Backorder GEN WB01X21650 $5.20

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.20

View on Model

936

WB01T10132 GE Oven Hex Screw 10-32 1 3/4" In Stock GEN WB01T10132 $5.20

View on Model

951

SCREW 8-18 T20 3/8 IN Backorder GEN WB01T10134 $5.20

View on Model

977

WB02X35585 GE Hex Nut Backorder GEN WB02X35585 $5.20

View on Model

999

WB02T10303 GE Cleaner Lubricant Backorder GEN WB02T10303 $36.12

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.20

View on Model

All Categories

Brands

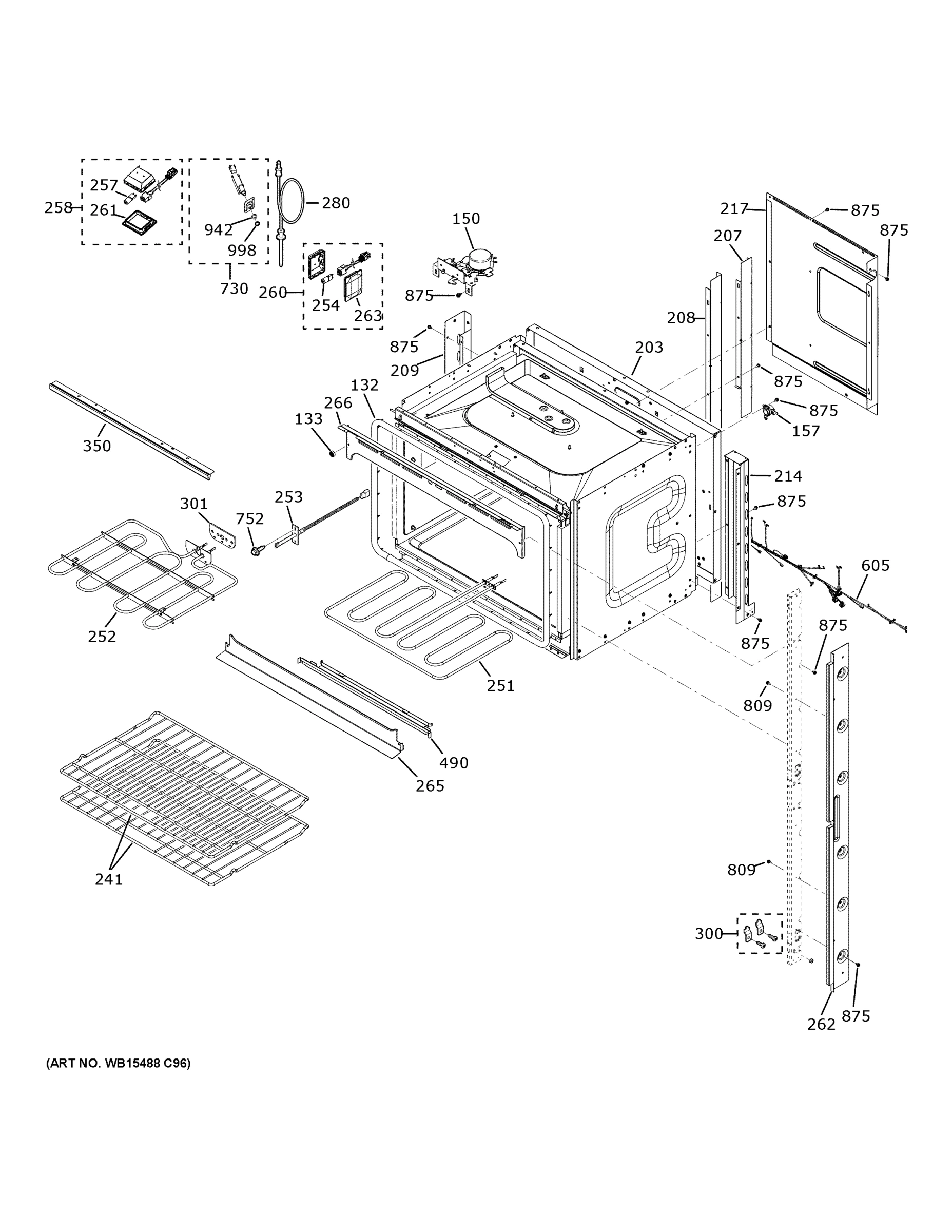

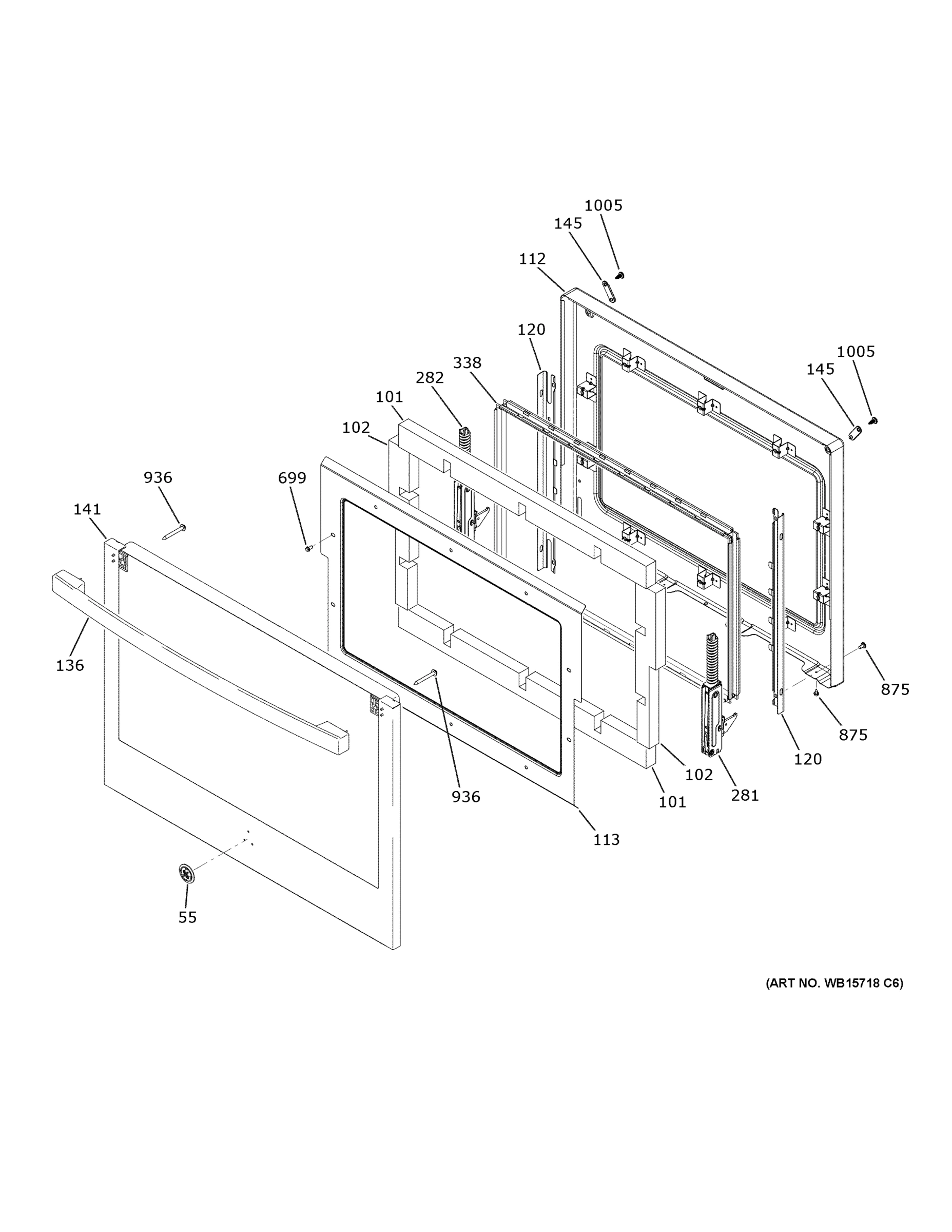

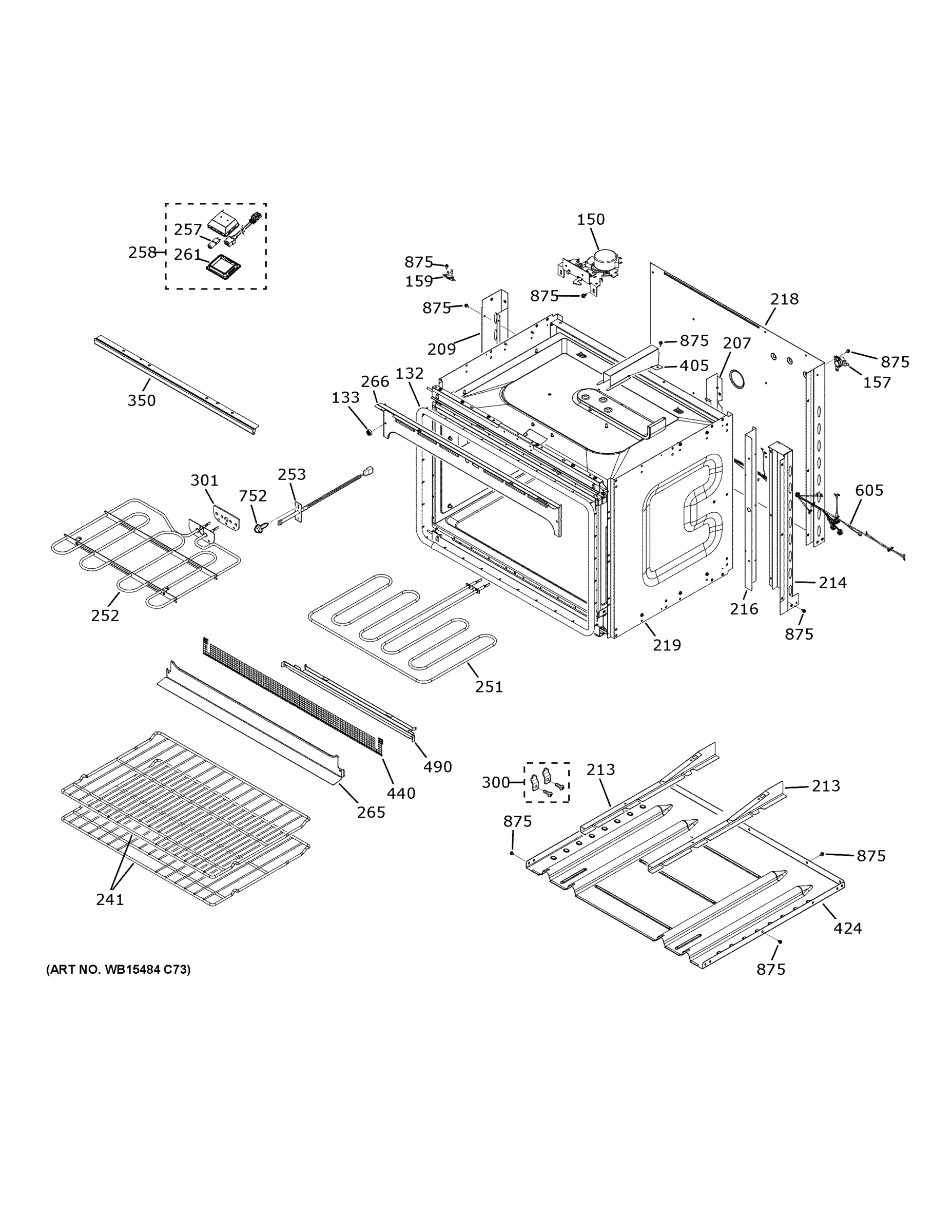

Model GE JTD5000DV1BB Electric Range – Common Parts & Diagrams
