Model Whirlpool JT051CAE2511 ICE CUBE MAKER – Common Parts & Diagrams
01 - CABINET, DOOR AND LINER, LIT/OPTIONAL
02 - EVAPORATOR, GRID AND PUMP

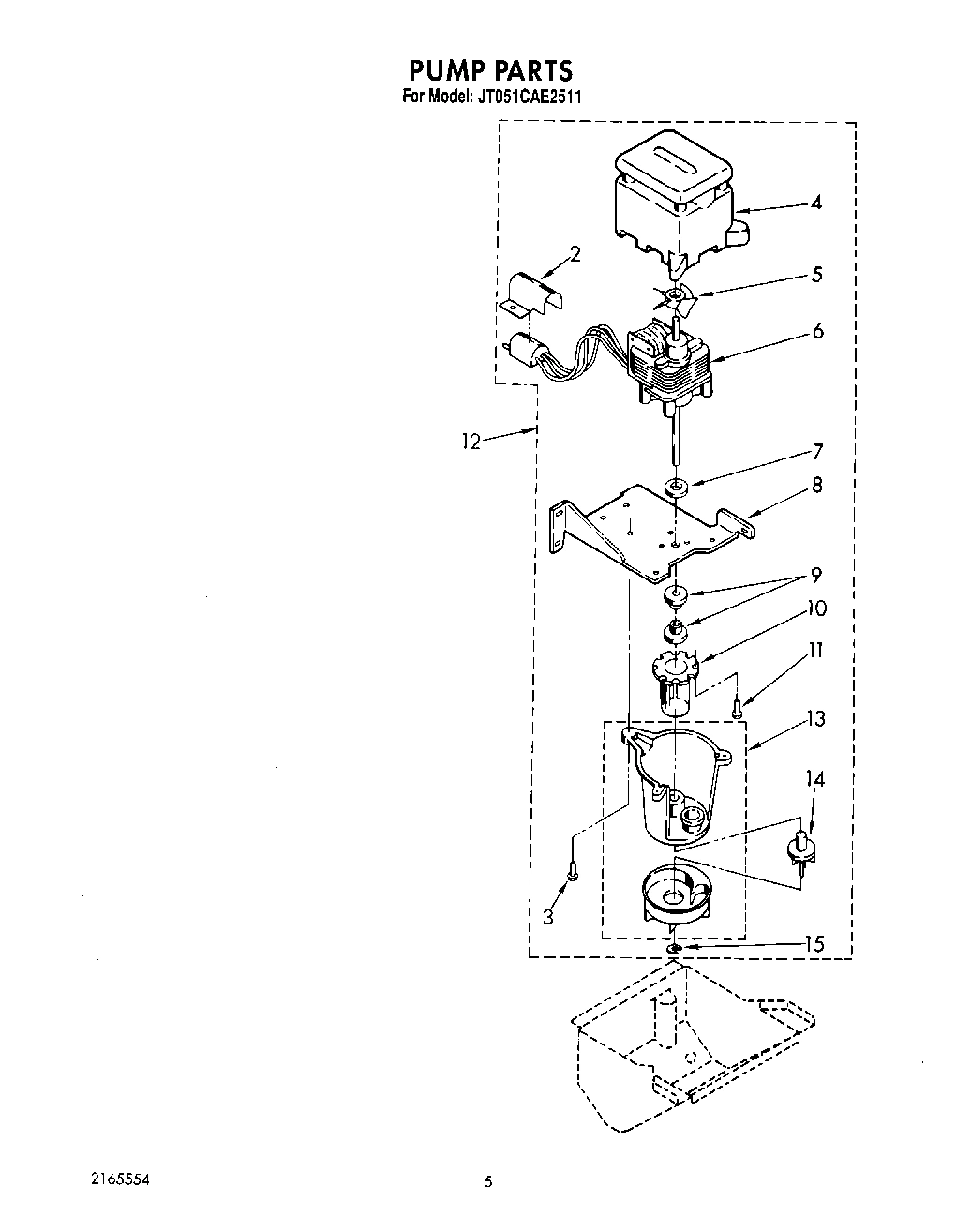

03 - PUMP

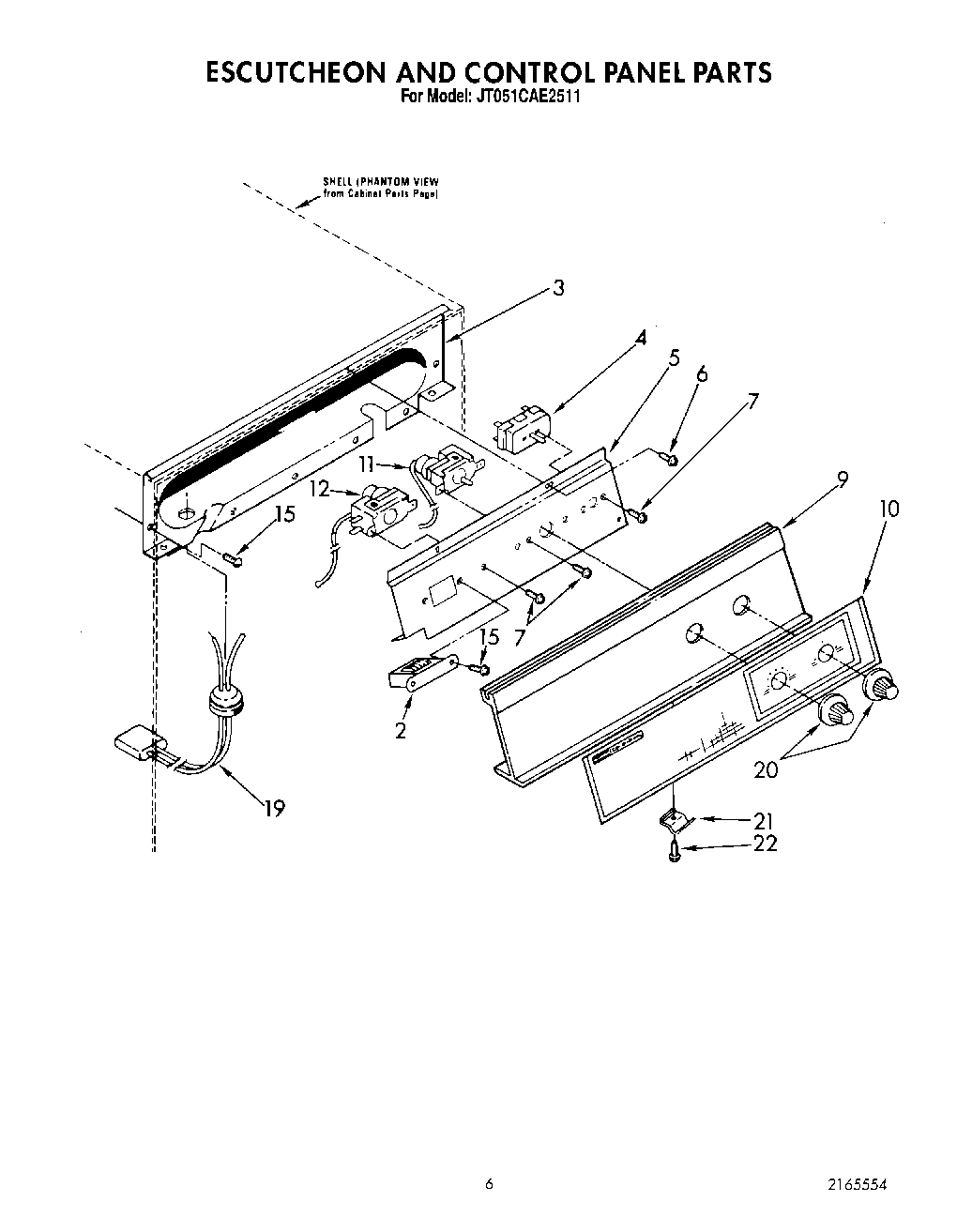

04 - ESCUTCHEON AND CONTROL PANEL

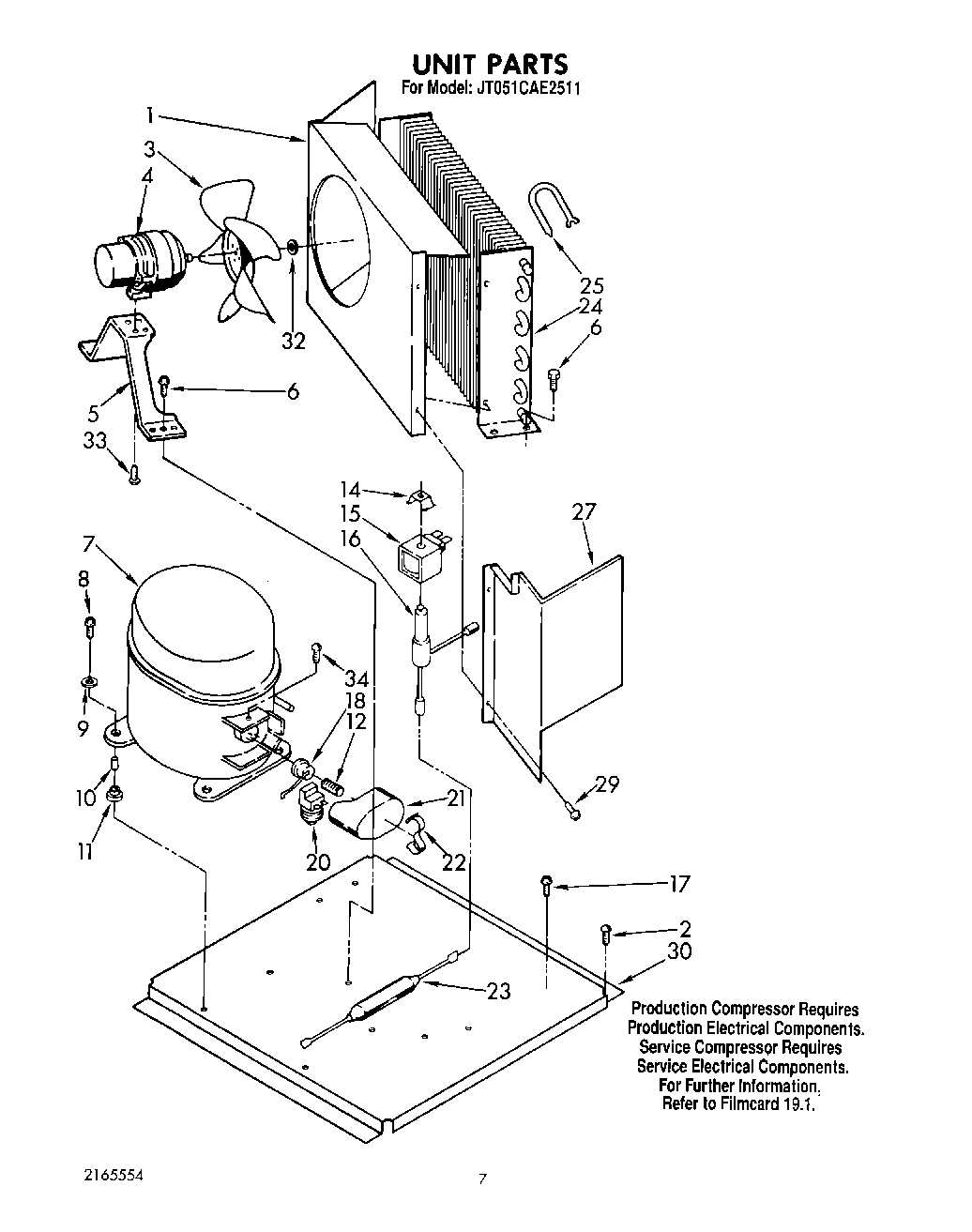

05 - UNIT

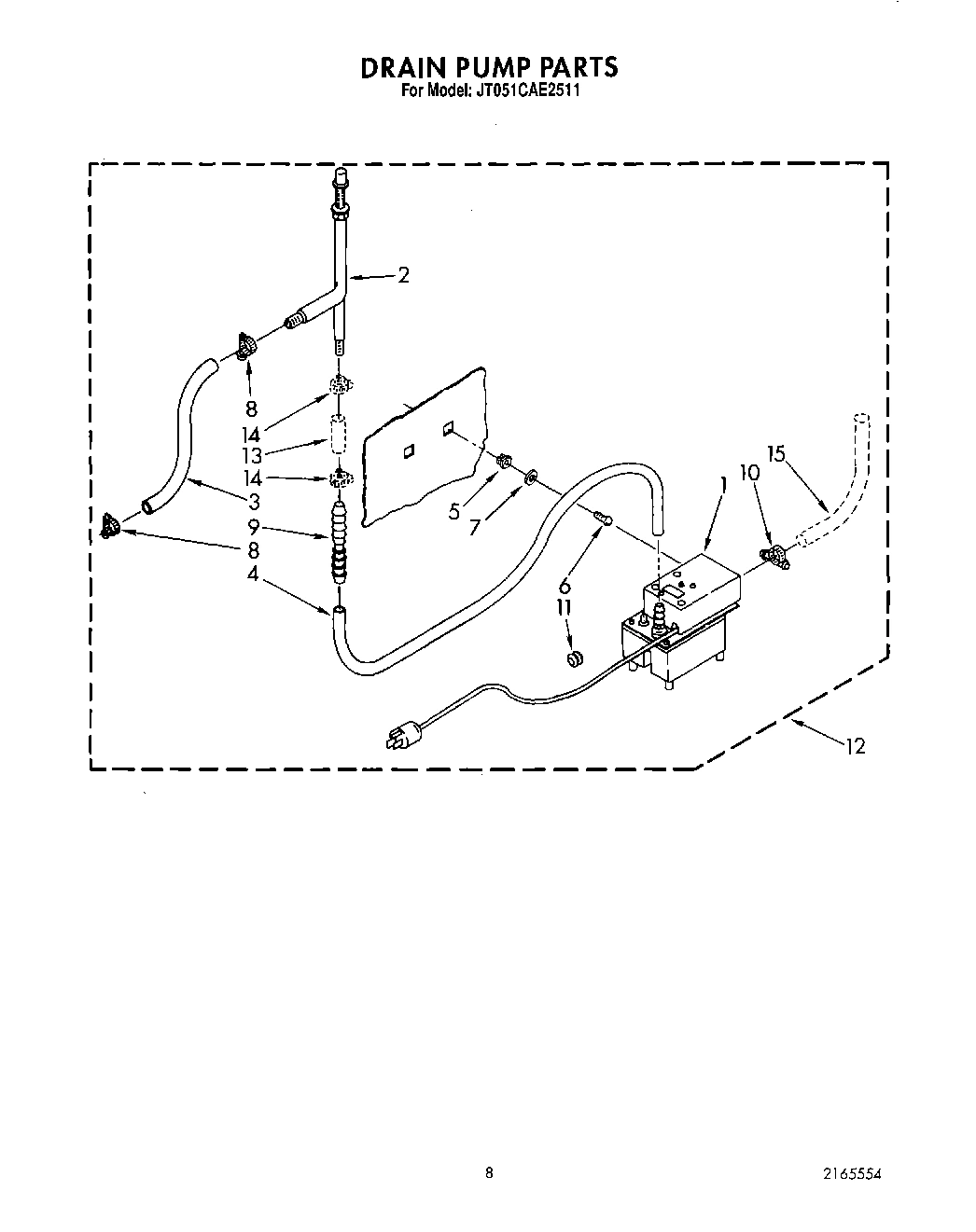

06 - DRAIN PUMP
Common parts from model Whirlpool JT051CAE2511 ICE CUBE MAKER
1
Valve, Complete Water WPL 759294 Contact Us For Availability
1
WPL 757955 WPL 757955 Contact Us For Availability
1
WPL 758913 WPL 758913 Contact Us For Availability
2
Screw, WPL 680811 Contact Us For Availability
2
WPL 585856 WPL 585856 Contact Us For Availability
2
WPL 756124 WPL 756124 Contact Us For Availability
2
WPL 758309 WPL 758309 Contact Us For Availability
3
WPL 758597 WPL 758597 Contact Us For Availability
3
WPL 681391 WPL 681391 Contact Us For Availability
3
WPL 756664 WPL 756664 Contact Us For Availability
3
WPL 770966 WPL 770966 Contact Us For Availability
4
WPL 585813 WPL 585813 Contact Us For Availability
4
WPL 583155 WPL 583155 Contact Us For Availability
4
WPL 593139 WPL 593139 Contact Us For Availability
4
WPL 593821 WPL 593821 Contact Us For Availability
4
WPL 758915 WPL 758915 Contact Us For Availability
5
Grommet, Mtg (2) WPL 596807 Contact Us For Availability
5
WPL 758028 WPL 758028 Contact Us For Availability
5
WPL 587096 WPL 587096 Contact Us For Availability
5
WPL 756341 WPL 756341 Contact Us For Availability
5
WPL 560817 WPL 560817 Contact Us For Availability
6
Pin, Cutter Wire (17) WPL 587111 Contact Us For Availability
6
WPL 1127835 WPL 1127835 Contact Us For Availability
6
Screw, 1/4-20 x 1/2 (6) WPL 681305 Contact Us For Availability
7
WPL 583424 WPL 583424 Contact Us For Availability
7
WPL 598180 WPL 598180 Contact Us For Availability
7
WPL 486713 WPL 486713 Contact Us For Availability
8
WPL 756122 WPL 756122 Contact Us For Availability
8
WPL 680233 WPL 680233 Contact Us For Availability
8
WPL 596572 WPL 596572 Contact Us For Availability
9
Screw, 8-32 x 5/8 (6) WPL 681459 Contact Us For Availability
9
WPL 596016 WPL 596016 Contact Us For Availability
9
Escutcheon WPL 758728 Contact Us For Availability
9
WPL 595230 WPL 595230 Contact Us For Availability
9
WPL 758918 WPL 758918 Contact Us For Availability
10
Washer (2) WPL 758492 Contact Us For Availability
10
WPL 756564 WPL 756564 Contact Us For Availability
10
WPL 593229 WPL 593229 Contact Us For Availability
10
WPL 2165567 WPL 2165567 Contact Us For Availability
10
WPL 585564 WPL 585564 Contact Us For Availability
11
WPL 759308 WPL 759308 Contact Us For Availability
11
WPL 759213 WPL 759213 Contact Us For Availability
11
WPL 596355 WPL 596355 Contact Us For Availability
11
WPL 758919 WPL 758919 Contact Us For Availability
12
WPL 759309 WPL 759309 Contact Us For Availability
12
WPL 756350 WPL 756350 Contact Us For Availability
12
Pump, Water (Complete) WPL 757413 Contact Us For Availability
12
WPL 549086 WPL 549086 Contact Us For Availability
12
Pump, Condensate Drain (Complete Kit) WPL 758840 Contact Us For Availability
13
WPL 758169 WPL 758169 Contact Us For Availability
13
Hose, 5/8 x 4`` (Connector To Air Gap) WPL 593577 Contact Us For Availability
13
WPL 585853 WPL 585853 Contact Us For Availability
13
Pump WPL 583518 Contact Us For Availability
14
Clamp, Hose (2) WPL 596023 Contact Us For Availability
14
WPL 569513 WPL 569513 Contact Us For Availability
14
WPL 564234 WPL 564234 Contact Us For Availability
15
Gasket WPL 758921 Contact Us For Availability
15
WPL 759109 WPL 759109 Contact Us For Availability
15
WPL 681301 WPL 681301 Contact Us For Availability
15
Screw, WPL 681036 Contact Us For Availability
15
WPL 593639 WPL 593639 Contact Us For Availability
15
Hose, 1/2 I.D. x 12`` (Bin To Pump) WPL 593369 Contact Us For Availability
16
WPL 596037 WPL 596037 Contact Us For Availability
16
WPL 598086 WPL 598086 Contact Us For Availability
17
Insulator (2 Strips of 10) WPL 758910 Contact Us For Availability
18
Washer, Plastic 1/4 WPL 681613 Contact Us For Availability
18
Insulator (2 Strips of 9) WPL 758909 Contact Us For Availability
18
WPL 598196 WPL 598196 Contact Us For Availability
19
Nut WPL 681542 Contact Us For Availability
19
Plug, Grid WPL 587639 Contact Us For Availability
19
WPL 757464 WPL 757464 Contact Us For Availability
20
WPL 587662 WPL 587662 Contact Us For Availability
20
Knob WPL 758725 Contact Us For Availability
20
WPL 598195 WPL 598195 Contact Us For Availability
21
WPL 758220 WPL 758220 Contact Us For Availability
21
Nut, Wing WPL 681676 Contact Us For Availability
21
WPL 759007 WPL 759007 Contact Us For Availability
21
Case, Relay WPL 560849 Contact Us For Availability
22
WPL 593183 WPL 593183 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 680964 Contact Us For Availability
22
Cover Strap WPL 549342 Contact Us For Availability
23
WPL 596812 WPL 596812 Contact Us For Availability
24
WPL 756662 WPL 756662 Contact Us For Availability
24
WPL 756299 WPL 756299 Contact Us For Availability
25
Panel, Exterior WPL 755364 Contact Us For Availability
25
WPL 756298 WPL 756298 Contact Us For Availability
26
Panel, Outer WPL 758720 Contact Us For Availability
26
WPL 681611 WPL 681611 Contact Us For Availability
27
WPL 758811 WPL 758811 Contact Us For Availability
28
WPL 759200 WPL 759200 Contact Us For Availability
30
Pin, Cutter Wire (4) WPL 587112 Contact Us For Availability
30
WPL 758810 WPL 758810 Contact Us For Availability
31
WPL 756313 WPL 756313 Contact Us For Availability
32
Insulation WPL 756891 Contact Us For Availability
32
Conical Washer 1/4-20 Hex WPL 681650 Contact Us For Availability
33
Clip (19) WPL 759197 Contact Us For Availability
33
Screw WPL 489199 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 680930 Contact Us For Availability
34
Screw (Compressor Ground) WPL 681187 Contact Us For Availability
35
WPL 596715 WPL 596715 Contact Us For Availability
36
WPL 758713 WPL 758713 Contact Us For Availability
37
WPL 758754 WPL 758754 Contact Us For Availability
37
WPL 681245 WPL 681245 Contact Us For Availability
38
WPL 681196 WPL 681196 Contact Us For Availability
38
Adapter WPL 2165477 Contact Us For Availability
39
WPL 587503 WPL 587503 Contact Us For Availability
40
Screw WPL 486214 Contact Us For Availability
40
WPL 587504 WPL 587504 Contact Us For Availability
41
WPL 681333 WPL 681333 Contact Us For Availability
41
WPL 593171 WPL 593171 Contact Us For Availability
42
Lockwasher (3) WPL 668347 Contact Us For Availability
42
Thumbscrew, 10-32 x 5/8 WPL 681534 Contact Us For Availability
43
Terminal, Connector WPL 938329 Contact Us For Availability
43
WPL 756659 WPL 756659 Contact Us For Availability
44
Thumbscrew, 10 x 1/2 WPL 681419 Contact Us For Availability
44
WPL 758716 WPL 758716 Contact Us For Availability
45
Stopper, Water Pan WPL 759043 Contact Us For Availability
46
Nut, 1/4 Hex (3) WPL 680637 Contact Us For Availability
47
Grill, Front WPL 758769 Contact Us For Availability
48
Panel, Filler WPL 758770 Contact Us For Availability
49
WPL 758771 WPL 758771 Contact Us For Availability
50
WPL 573468 WPL 573468 Contact Us For Availability
51
WPL 755677 WPL 755677 Contact Us For Availability
52
Support, Front WPL 758718 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
WPL 206925 WPL 206925 Contact Us For Availability
53
WPL 758406 WPL 758406 Contact Us For Availability
53
WPL 758518 WPL 758518 Contact Us For Availability
53
WPL 758844 WPL 758844 Contact Us For Availability
53
WPL 799351 WPL 799351 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
