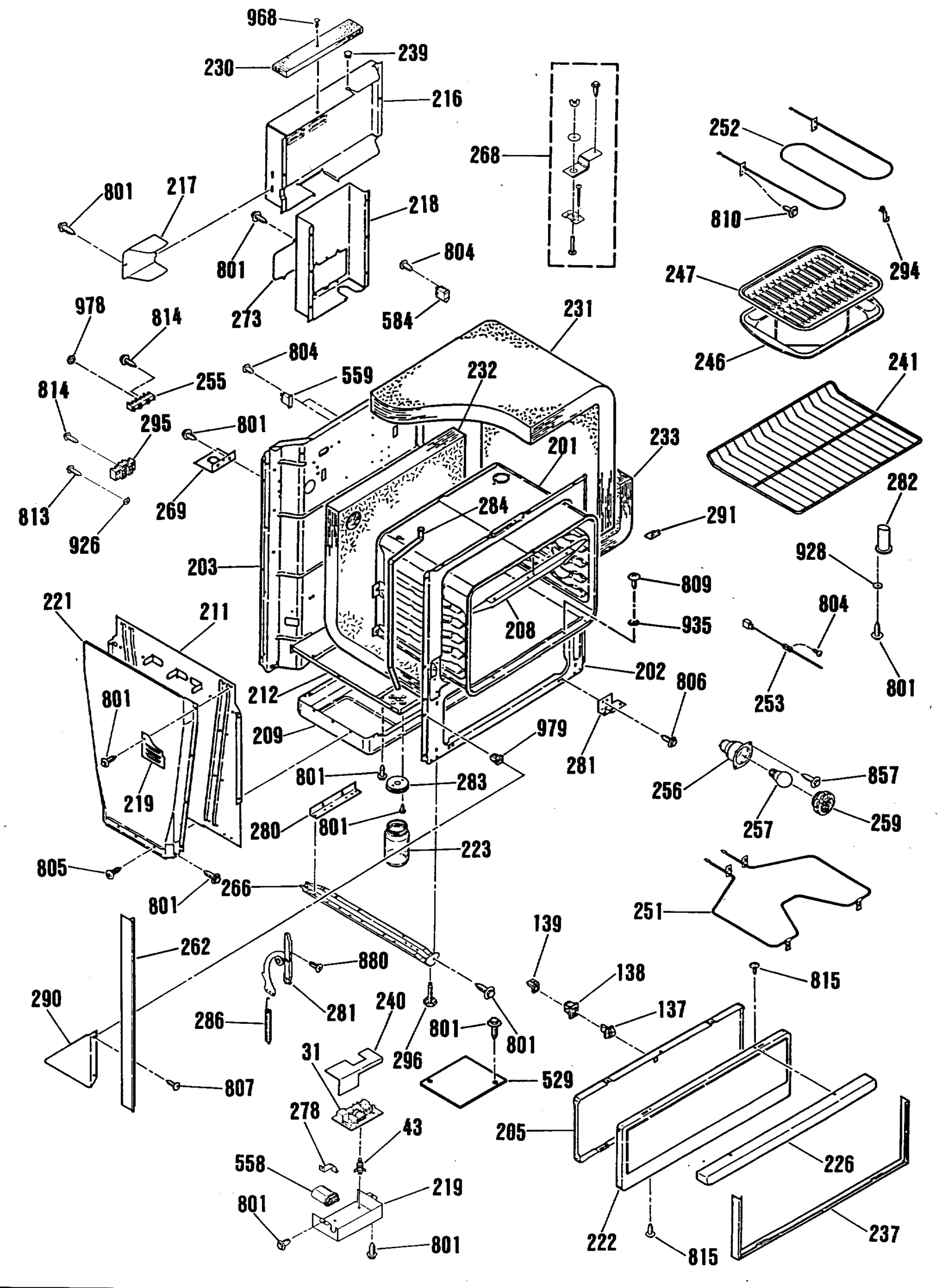

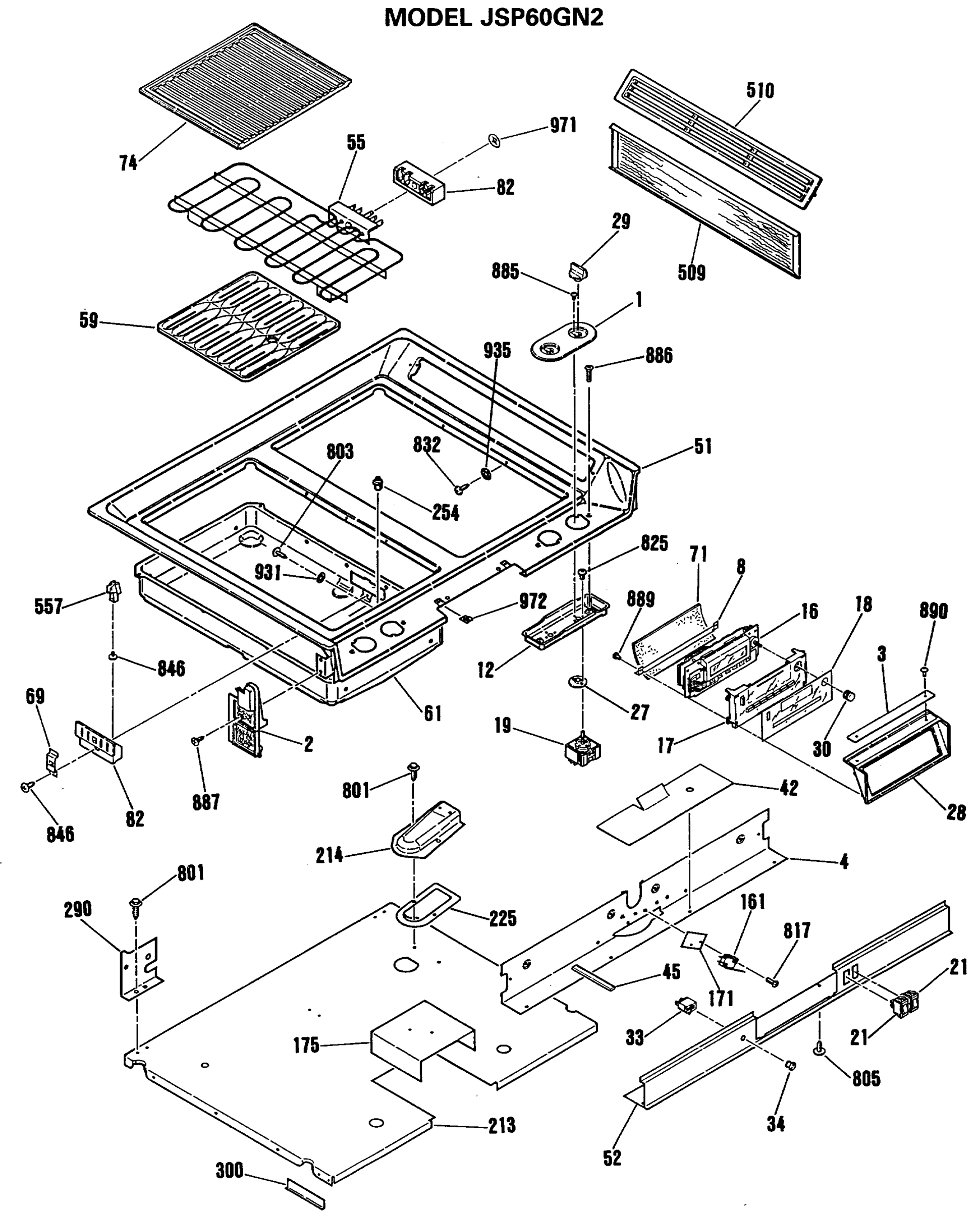

Model GE JSP60GN2 Electric Range – Common Parts & Diagrams
0
1
2
3
4
Common parts from model GE JSP60GN2 Electric Range
1
GEN WB23M0020 GEN WB23M0020 Contact Us For Availability
2
GEN WB36M0032 GEN WB36M0032 Contact Us For Availability
2
GEN WB36M0033 GEN WB36M0033 Contact Us For Availability
3
GEN WB27M0014 GEN WB27M0014 Contact Us For Availability
4
CONTROL BACK GEN WB37K5010 Contact Us For Availability
8
CLOCK LENS STIFFENER GEN WB02X9884 Contact Us For Availability
12
GEN WB23K5033 GEN WB23K5033 Contact Us For Availability
16
GEN WB27K5052 GEN WB27K5052 Contact Us For Availability
17
CLOCK LENS ASM GEN WB36X0800 Contact Us For Availability
18
GEN WB02X9664 GEN WB02X9664 Contact Us For Availability
21
GEN WB24M0008 GEN WB24M0008 Contact Us For Availability
21
GEN WB24M0009 GEN WB24M0009 Contact Us For Availability
28
GEN WB27M0012 GEN WB27M0012 Contact Us For Availability
29
GEN WB03M0024 GEN WB03M0024 Contact Us For Availability
30
GEN WB03K5065 GEN WB03K5065 Contact Us For Availability
33
INDICATOR LIGHT-CLEAN GEN WB25M0012 Contact Us For Availability
34
GEN WB25M0009 GEN WB25M0009 Contact Us For Availability
42
GEN WB35M0010 GEN WB35M0010 Contact Us For Availability
43
PCB SPACER GEN WB02X9657 Contact Us For Availability
45
GEN WB02M0051 GEN WB02M0051 Contact Us For Availability
46
GEN WB27X0611 GEN WB27X0611 Contact Us For Availability
51
GEN WB62M0020 GEN WB62M0020 Contact Us For Availability
52
GEN WB36M0034 GEN WB36M0034 Contact Us For Availability
55
GEN WB30K5023 GEN WB30K5023 Contact Us For Availability
59
GEN WB31M0021 GEN WB31M0021 Contact Us For Availability
61
GEN WB64M0012 GEN WB64M0012 Contact Us For Availability
61
GEN WB64M0013 GEN WB64M0013 Contact Us For Availability
69
GEN WB02M0060 GEN WB02M0060 Contact Us For Availability
71
GEN WB35K5045 GEN WB35K5045 Contact Us For Availability
74
GEN WB31M0022 GEN WB31M0022 Contact Us For Availability
82
GEN WB08K5037 GEN WB08K5037 Contact Us For Availability
82
GEN WB08K5038 GEN WB08K5038 Contact Us For Availability
102
OV DOOR INSULATION GEN WB02X9144 Contact Us For Availability
111
GEN WB55M0010 GEN WB55M0010 Contact Us For Availability
112
GEN WB56K5026 GEN WB56K5026 Contact Us For Availability
113
GEN WB02M0056 GEN WB02M0056 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
GLASS MTG PLATE GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5180 GEN WB57K5180 Contact Us For Availability
122
OV DR INTERMEDIATE GLASS GEN WB56X1906 Contact Us For Availability
123
OV DR CENTER GLASS GEN WB56X1907 Contact Us For Availability
124
OV DR INNER GLASS GEN WB57M0001 Contact Us For Availability
130
GEN WB02K5150 GEN WB02K5150 Contact Us For Availability
133
WASHER GEN WB01X1159 Contact Us For Availability
136
GEN WB15K5024 GEN WB15K5024 Contact Us For Availability
137
GEN WB14M0003 GEN WB14M0003 Contact Us For Availability
138
GEN WB02M0053 GEN WB02M0053 Contact Us For Availability
139
GEN WB02M0052 GEN WB02M0052 Contact Us For Availability
140
GEN WB56M0013 GEN WB56M0013 Contact Us For Availability
143
DOOR HANDLE SPACER-BLK GEN WB02K5151 Contact Us For Availability
151
GEN WB10X0268 GEN WB10X0268 Contact Us For Availability
151
GEN WB01X0268 GEN WB01X0268 Contact Us For Availability
161
GEN WB24X0436 GEN WB24X0436 Contact Us For Availability
166
LATCH MTG BOX GEN WB58M0002 Contact Us For Availability
171
GEN WB35K5053 GEN WB35K5053 Contact Us For Availability
175
GEN WB34M0026 GEN WB34M0026 Contact Us For Availability
186
GEN WB34M0032 GEN WB34M0032 Contact Us For Availability
187
GEN WB34M0033 GEN WB34M0033 Contact Us For Availability
191
GEN WB15M0006 GEN WB15M0006 Contact Us For Availability
192
LOCK KNOB GEN WB03X0782 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK HANDEL SPRING GEN WB09X0251 Contact Us For Availability
201
GEN WB63M0040 GEN WB63M0040 Contact Us For Availability
202
FRONT FRAME ASM GEN WB63M0049 Contact Us For Availability
203
GEN WB63M0050 GEN WB63M0050 Contact Us For Availability
205
GEN WB55M0007 GEN WB55M0007 Contact Us For Availability
208
GEN WB34M0031 GEN WB34M0031 Contact Us For Availability
209
GEN WB63M0051 GEN WB63M0051 Contact Us For Availability
211
SIDE INSULATION RETAINER GEN WB02M0050 Contact Us For Availability
212
INSULATION RETAINER-BTM GEN WB02M0068 Contact Us For Availability
213
INSULATION RETAINER-TOP GEN WB02M0067 Contact Us For Availability
214
GEN WB38M0011 GEN WB38M0011 Contact Us For Availability
216
REAR WIRE COVER UPPER GEN WB34M0028 Contact Us For Availability
217
GEN WB34M0027 GEN WB34M0027 Contact Us For Availability
218
WIRE COVER REAR GEN WB34M0023 Contact Us For Availability
219
GEN WB24K5109 GEN WB24K5109 Contact Us For Availability
219
GEN WB34K5108 GEN WB34K5108 Contact Us For Availability
219
GEN WB34M0030 GEN WB34M0030 Contact Us For Availability
221
GEN WB63K5165 GEN WB63K5165 Contact Us For Availability
222
GEN WB56M0011 GEN WB56M0011 Contact Us For Availability
223
GEN WB06M0002 GEN WB06M0002 Contact Us For Availability
225
GEN WB32M0014 GEN WB32M0014 Contact Us For Availability
226
GEN WB15M0008 GEN WB15M0008 Contact Us For Availability
230
GEN WB35K5046 GEN WB35K5046 Contact Us For Availability
231
INSULATON TOP & SIDES GEN WB35M0009 Contact Us For Availability
232
INSULATION BACK & BTM GEN WB35M0005 Contact Us For Availability
233
INSULATION TOP & SIDES GEN WB02X9430 Contact Us For Availability
237
LOWER FRONT PNL FRAME GEN WB56M0012 Contact Us For Availability
239
GEN WB03M0023 GEN WB03M0023 Contact Us For Availability
240
GEN WB34M0029 GEN WB34M0029 Contact Us For Availability
241
GEN WB48X0210 GEN WB48X0210 Contact Us For Availability
254
GEN WB06M0004 GEN WB06M0004 Contact Us For Availability
255
GEN WB17X0215 GEN WB17X0215 Contact Us For Availability
256
OV LAMP HOLDER GEN WB08M0003 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
259
OVEN LIGHT LENS GEN WB25M0010 Contact Us For Availability
262
GEN WB07M0013 GEN WB07M0013 Contact Us For Availability
262
GEN WB07M0014 GEN WB07M0014 Contact Us For Availability
266
BASE W/LEVELERS GEN WB02M0033 Contact Us For Availability
268
GEN WB02M0069 GEN WB02M0069 Contact Us For Availability
269
SERVICE RANGE MTG PLATE GEN WB02X9427 Contact Us For Availability
273
GEN WB34M0024 GEN WB34M0024 Contact Us For Availability
278
GEN WB02M0066 GEN WB02M0066 Contact Us For Availability
280
GEN WB02M0064 GEN WB02M0064 Contact Us For Availability
281
GEN WB14M0002 GEN WB14M0002 Contact Us For Availability
282
GEN WB38M0012 GEN WB38M0012 Contact Us For Availability
283
JAR LID GEN WB06M0005 Contact Us For Availability
284
GEN WB06M0003 GEN WB06M0003 Contact Us For Availability
286
OV DR SPRING GEN WB09M0004 Contact Us For Availability
290
GEN WB02M0057 GEN WB02M0057 Contact Us For Availability
290
GEN WB02M0058 GEN WB02M0058 Contact Us For Availability
290
GEN WB02M0062 GEN WB02M0062 Contact Us For Availability
290
GEN WB02M0063 GEN WB02M0063 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
296
SCREW-LEVELING GEN WB01M0018 Contact Us For Availability
300
GEN WB02M0049 GEN WB02M0049 Contact Us For Availability
501
GEN WB32M0015 GEN WB32M0015 Contact Us For Availability
502
GEN WB26M0002 GEN WB26M0002 Contact Us For Availability
503
GEN WB26M0006 GEN WB26M0006 Contact Us For Availability
504
GEN WB18M0082 GEN WB18M0082 Contact Us For Availability
505
GEN WB01M0034 GEN WB01M0034 Contact Us For Availability
507
GEN WB02M0061 GEN WB02M0061 Contact Us For Availability
508
GEN WB02M0065 GEN WB02M0065 Contact Us For Availability
509
GEN WB26M0004 GEN WB26M0004 Contact Us For Availability
510
GEN WB31M0023 GEN WB31M0023 Contact Us For Availability
511
GEN WB26K5032 GEN WB26K5032 Contact Us For Availability
529
GEN WB35K5038 GEN WB35K5038 Contact Us For Availability
557
GEN WB17M0008 GEN WB17M0008 Contact Us For Availability
558
GEN WB17M0010 GEN WB17M0010 Contact Us For Availability
559
GEN WB21X5254 GEN WB21X5254 Contact Us For Availability
584
GEN WB27K5050 GEN WB27K5050 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
817
GEN WB01X1346 GEN WB01X1346 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
825
GEN WB01M0002 GEN WB01M0002 Contact Us For Availability
846
SCREW GEN WB01X1169 Contact Us For Availability
857
GEN WB01X1324 GEN WB01X1324 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
881
SCREW GEN WB01X1271 Contact Us For Availability
885
GEN WB01M0032 GEN WB01M0032 Contact Us For Availability
886
GEN WB01M0031 GEN WB01M0031 Contact Us For Availability
887
GEN WB01M0026 GEN WB01M0026 Contact Us For Availability
926
GEN WB01X1260 GEN WB01X1260 Contact Us For Availability
928
GEN WB01X1310 GEN WB01X1310 Contact Us For Availability
931
GEN WB01M0029 GEN WB01M0029 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
968
GEN WB02X9393 GEN WB02X9393 Contact Us For Availability
971
GEN WB01M0033 GEN WB01M0033 Contact Us For Availability
972
SPEED NUT GEN WB01K5070 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
999
GEN 31-0919 GEN 31-0919 Contact Us For Availability
999
INSTALLATION INSTRUCTION GEN 31-1123 Contact Us For Availability
999
GEN 31-13004 GEN 31-13004 Contact Us For Availability
999
GEN 49-8070 GEN 49-8070 Contact Us For Availability
999
GEN WB03M0025 GEN WB03M0025 Contact Us For Availability
999
GEN WB18K5235 GEN WB18K5235 Contact Us For Availability
999
GEN WB18K5285 GEN WB18K5285 Contact Us For Availability
999
GEN WB18K5286 GEN WB18K5286 Contact Us For Availability
999
GEN WB18K5287 GEN WB18K5287 Contact Us For Availability
999
GEN WB18K5288 GEN WB18K5288 Contact Us For Availability
999
GEN WB18M0075 GEN WB18M0075 Contact Us For Availability
× ![]()
