Model GE JSC26GT1BG – Common Parts & Diagrams

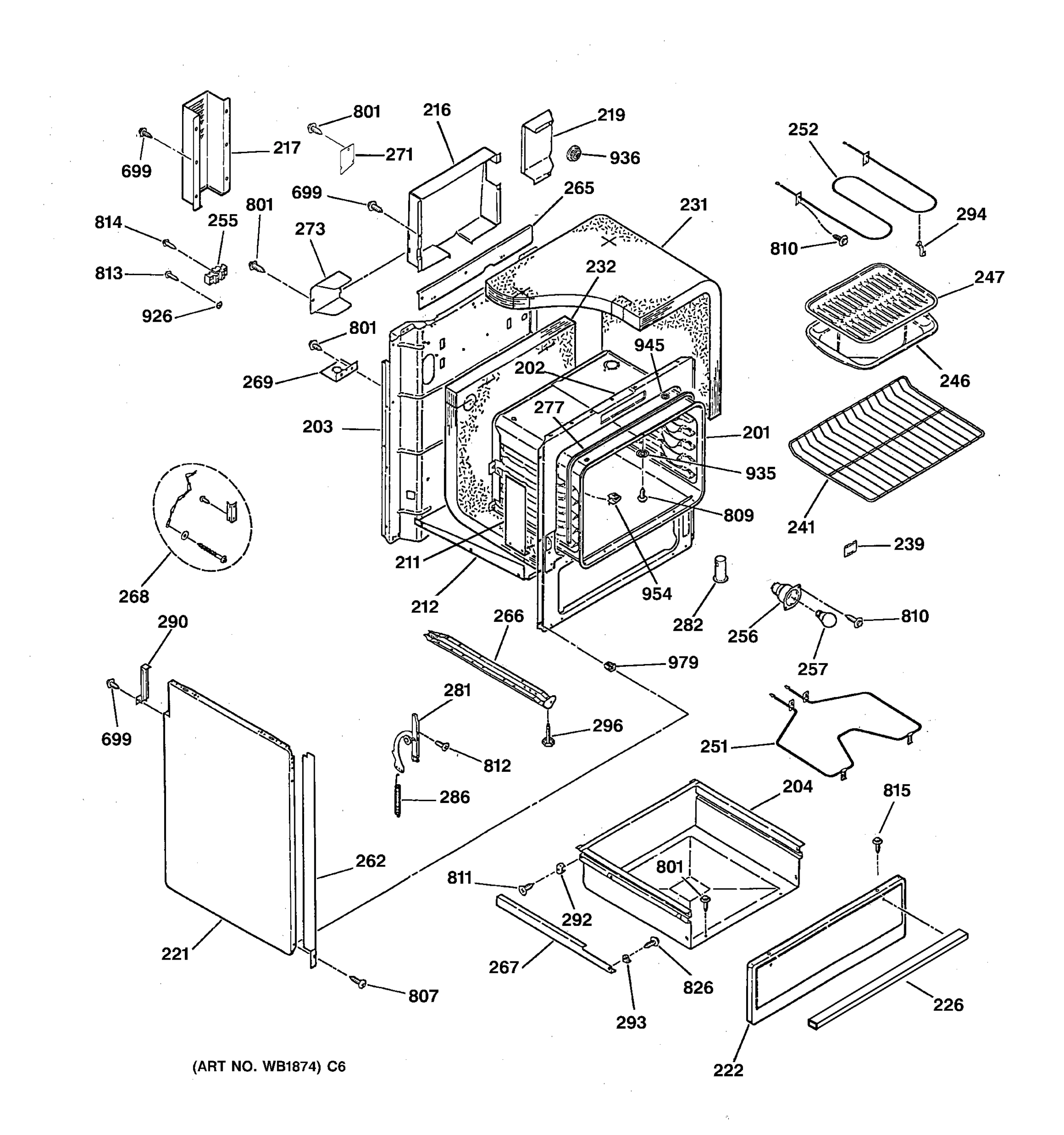

BODY PARTS

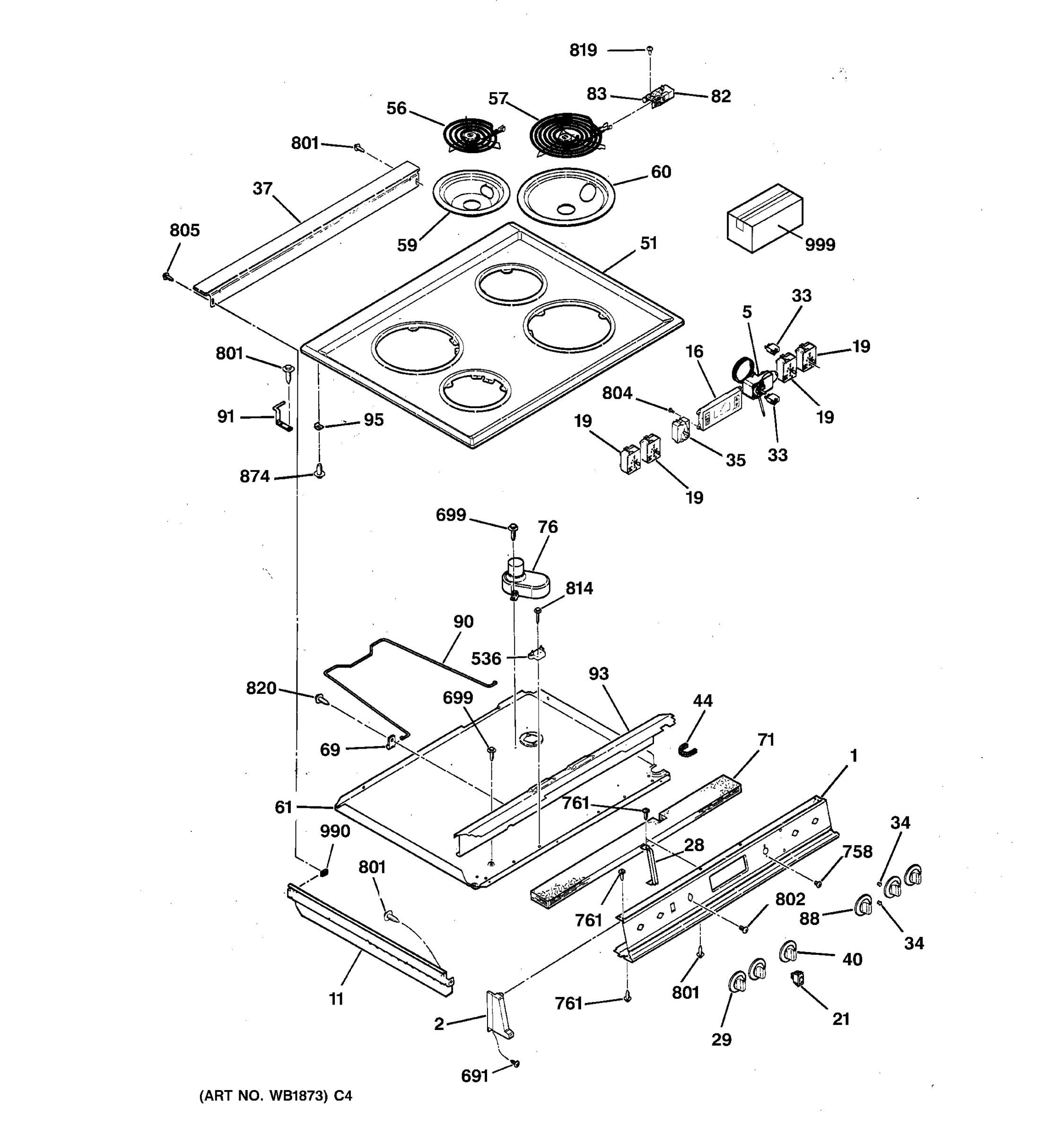

CONTROL PANEL & COOKTOP
DOOR
Common parts from model GE JSC26GT1BG
1
GEN WB36K5460 GEN WB36K5460 Contact Us For Availability
2
END CAP-RT-BLK GEN WB36K5379 Contact Us For Availability
2
GEN WB36K5378 GEN WB36K5378 Contact Us For Availability
5
GEN WB20K5016 GEN WB20K5016 Contact Us For Availability
11
SIDE EXTENSION GEN WB64K5038 Contact Us For Availability
16
GEN WB27K5173 GEN WB27K5173 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
28
GEN WB02K5333 GEN WB02K5333 Contact Us For Availability
29
GEN WB03M0026 GEN WB03M0026 Contact Us For Availability
35
GEN WB24K5040 GEN WB24K5040 Contact Us For Availability
37
GEN WB36K5577 GEN WB36K5577 Contact Us For Availability
40
GEN WB03K5030 GEN WB03K5030 Contact Us For Availability
44
GROMMET STRIP GEN WB02X9725 Contact Us For Availability
51
MAINTOP ELEC S/I GEN WB62K5042 Contact Us For Availability
60
GEN WB31M0015 GEN WB31M0015 Contact Us For Availability
61
GEN WB64K5037 GEN WB64K5037 Contact Us For Availability
71
GEN WB35K5034 GEN WB35K5034 Contact Us For Availability
76
GEN WB38K5027 GEN WB38K5027 Contact Us For Availability
76
GEN WB38K5046 GEN WB38K5046 Contact Us For Availability
83
GEN WB01K5128 GEN WB01K5128 Contact Us For Availability
88
GEN WB03K5029 GEN WB03K5029 Contact Us For Availability
90
GEN WB02M0084 GEN WB02M0084 Contact Us For Availability
91
GEN WB14X0109 GEN WB14X0109 Contact Us For Availability
91
GEN WB14X0110 GEN WB14X0110 Contact Us For Availability
93
GEN WB34K5106 GEN WB34K5106 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
GEN WB55M0008 GEN WB55M0008 Contact Us For Availability
113
INSULATION RETAINER GEN WB56X1910 Contact Us For Availability
121
GEN WB57K5235 GEN WB57K5235 Contact Us For Availability
123
OVEN DOOR GLASS-LOWER GEN WB57K5038 Contact Us For Availability
140
GEN WB56K5130 GEN WB56K5130 Contact Us For Availability
140
GEN WB56K5144 GEN WB56K5144 Contact Us For Availability
147
GEN WB02K5312 GEN WB02K5312 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
217
UPPER WIRE COVER GEN WB34K5093 Contact Us For Availability
221
GEN WB63K5192 GEN WB63K5192 Contact Us For Availability
221
GEN WB63K5195 GEN WB63K5195 Contact Us For Availability
221
BODY SIDE-LT-SMOOTH GEN WB63M0024 Contact Us For Availability
221
BODY SIDE-RT-SMOOTH GEN WB63M0058 Contact Us For Availability
222
GEN WB56K5022 GEN WB56K5022 Contact Us For Availability
226
LOWER FRONT PANEL HANDLE GEN WB15M0008 Contact Us For Availability
231
INSULATION TOP &SIDES GEN WB35M0022 Contact Us For Availability
232
INSULATION-OV BTM/BACK GEN WB35K5029 Contact Us For Availability
232
INSULATION-BACK BTM GEN WB35K5113 Contact Us For Availability
241
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
256
GEN WB08K5042 GEN WB08K5042 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5297 GEN WB07K5297 Contact Us For Availability
262
GEN WB07K5298 GEN WB07K5298 Contact Us For Availability
265
GEN WB34K5141 GEN WB34K5141 Contact Us For Availability
266
GEN WB02K5334 GEN WB02K5334 Contact Us For Availability
267
GEN WB56M0003 GEN WB56M0003 Contact Us For Availability
269
SERVICE RANGE MTG PLATE GEN WB02X9427 Contact Us For Availability
271
GEN W02X9749 GEN W02X9749 Contact Us For Availability
273
GEN WB34M0027 GEN WB34M0027 Contact Us For Availability
277
GEN WB32K5051 GEN WB32K5051 Contact Us For Availability
282
GEN WB38K5016 GEN WB38K5016 Contact Us For Availability
286
GEN WB09X0267 GEN WB09X0267 Contact Us For Availability
290
GEN WB63M0021 GEN WB63M0021 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
536
GEN WB11K5022 GEN WB11K5022 Contact Us For Availability
802
GEN WB01K5123 GEN WB01K5123 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
874
GEN WB01X1162 GEN WB01X1162 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
936
GEN WB02M0021 GEN WB02M0021 Contact Us For Availability
954
THERMOSTAT BULB RET CLIP GEN WB02X9105 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
990
GEN WB01X1432 GEN WB01X1432 Contact Us For Availability
999
INSTALLATION INSTRUCTION GEN 31-0992 Contact Us For Availability
999
GEN 31-10070 GEN 31-10070 Contact Us For Availability
999
GEN 31-13114 GEN 31-13114 Contact Us For Availability
999
GEN 49-8522 GEN 49-8522 Contact Us For Availability
999
GEN SR10106 GEN SR10106 Contact Us For Availability
999
MAIN WIRE HARNESS GEN WB18K5371 Contact Us For Availability
999
GEN WB18K5621 GEN WB18K5621 Contact Us For Availability
× ![]()
