Model GE JS760DL5WW – Common Parts & Diagrams

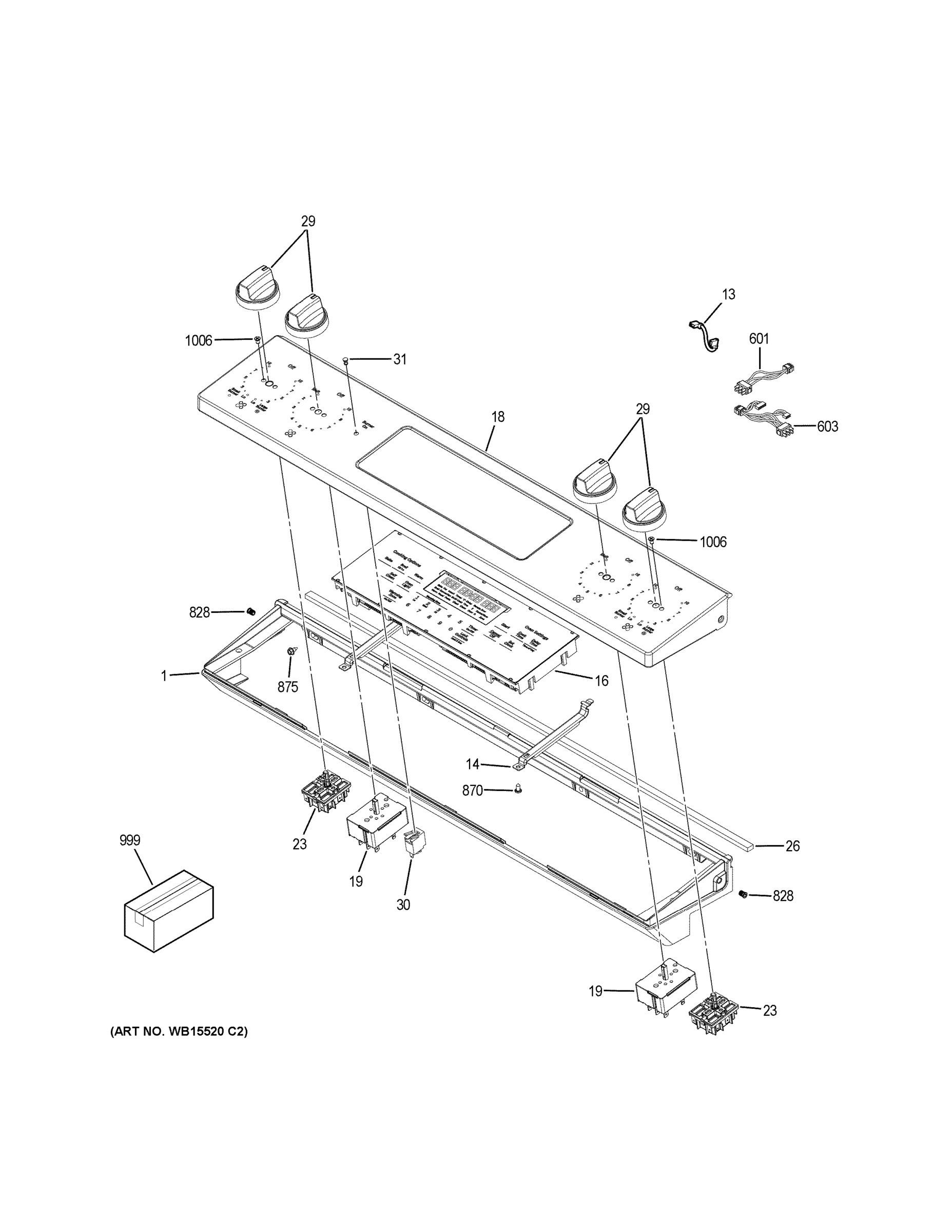

CONTROL PANEL

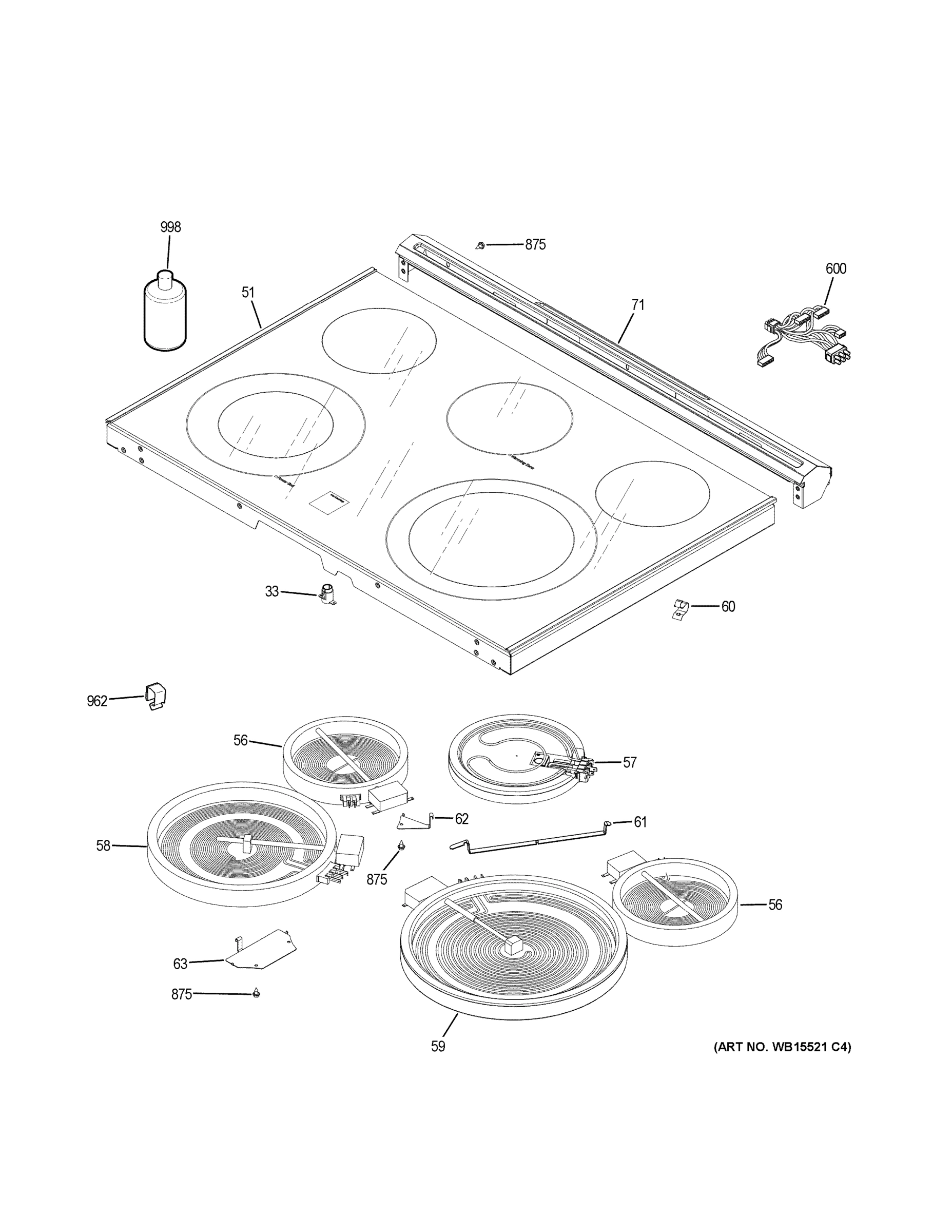

COOKTOP

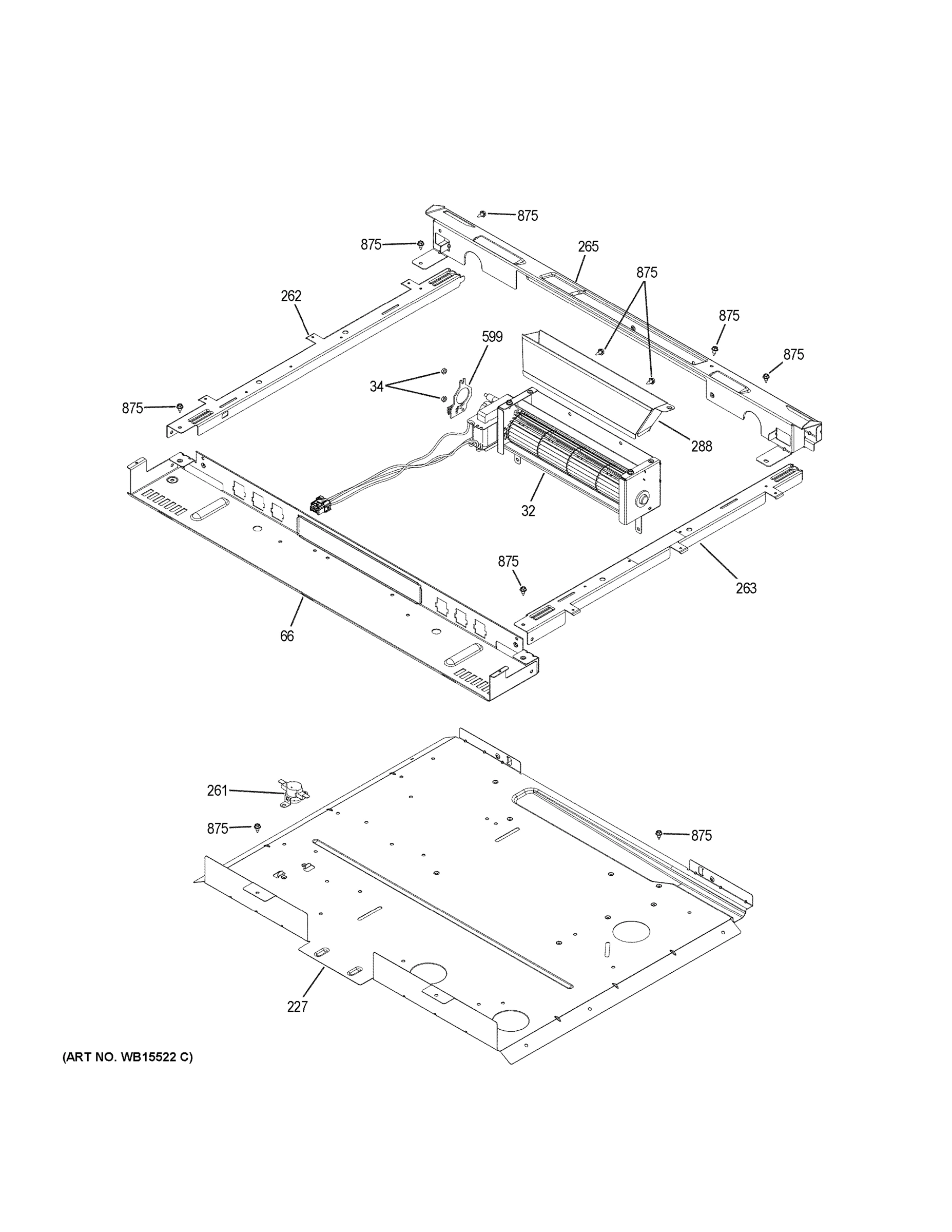

COOLING FAN

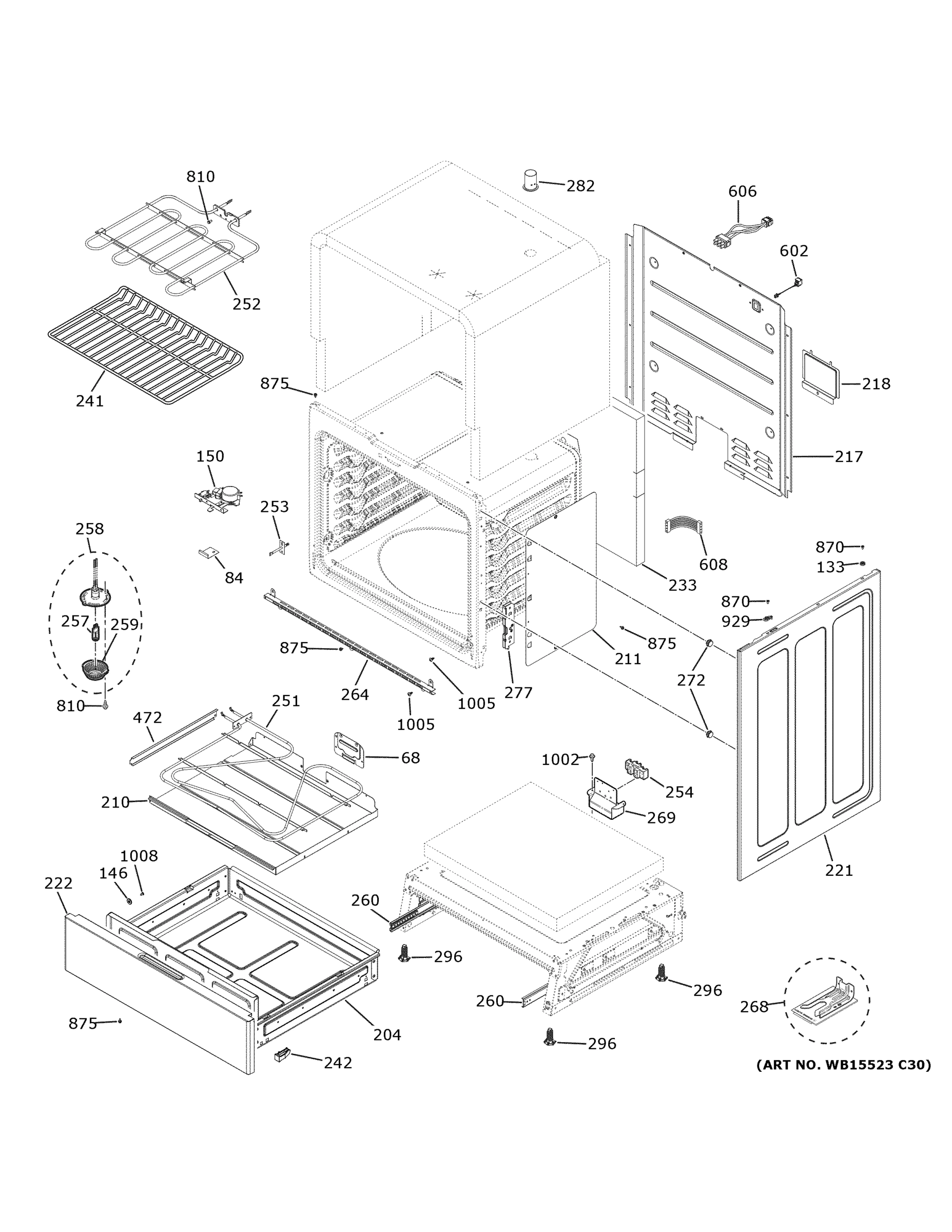

BODY PARTS

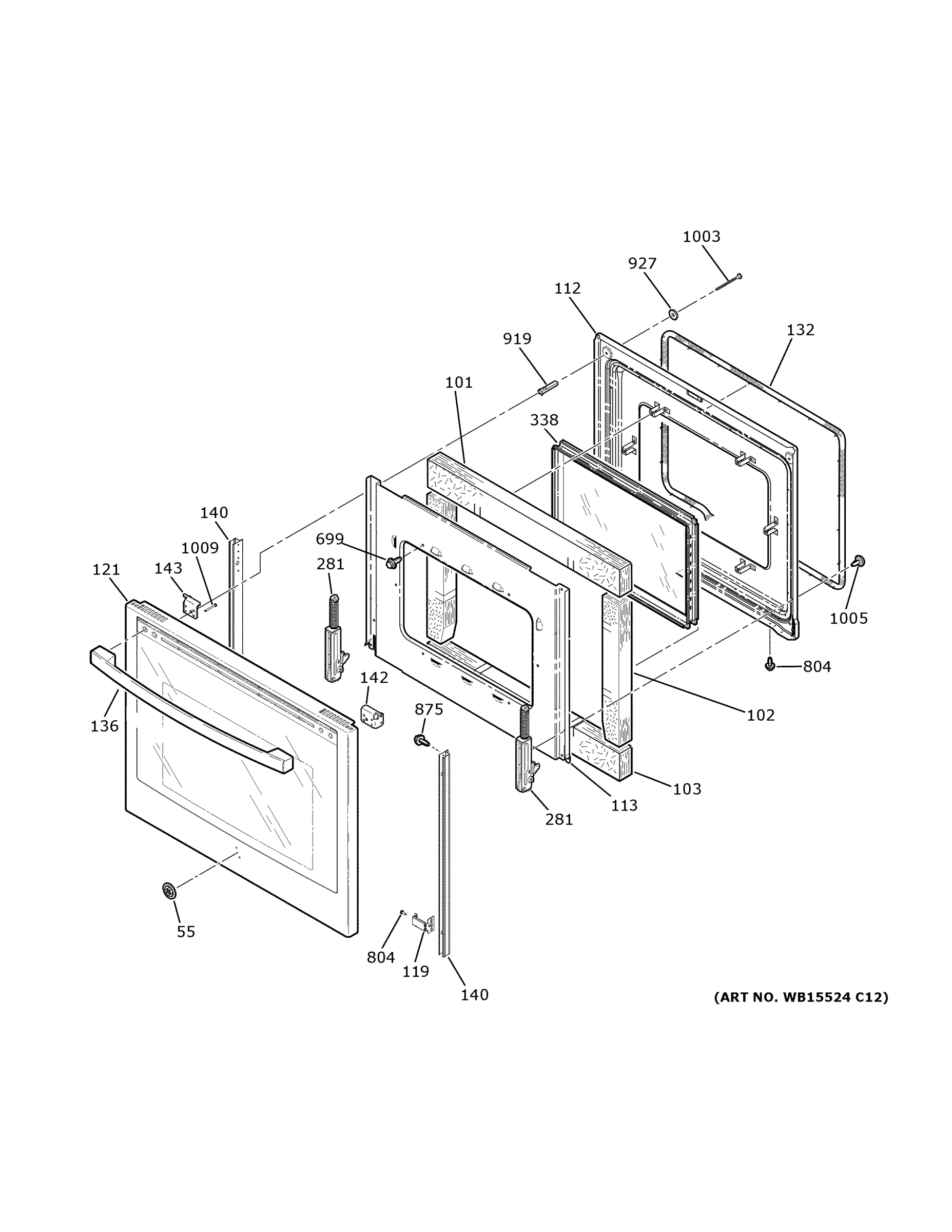

DOOR

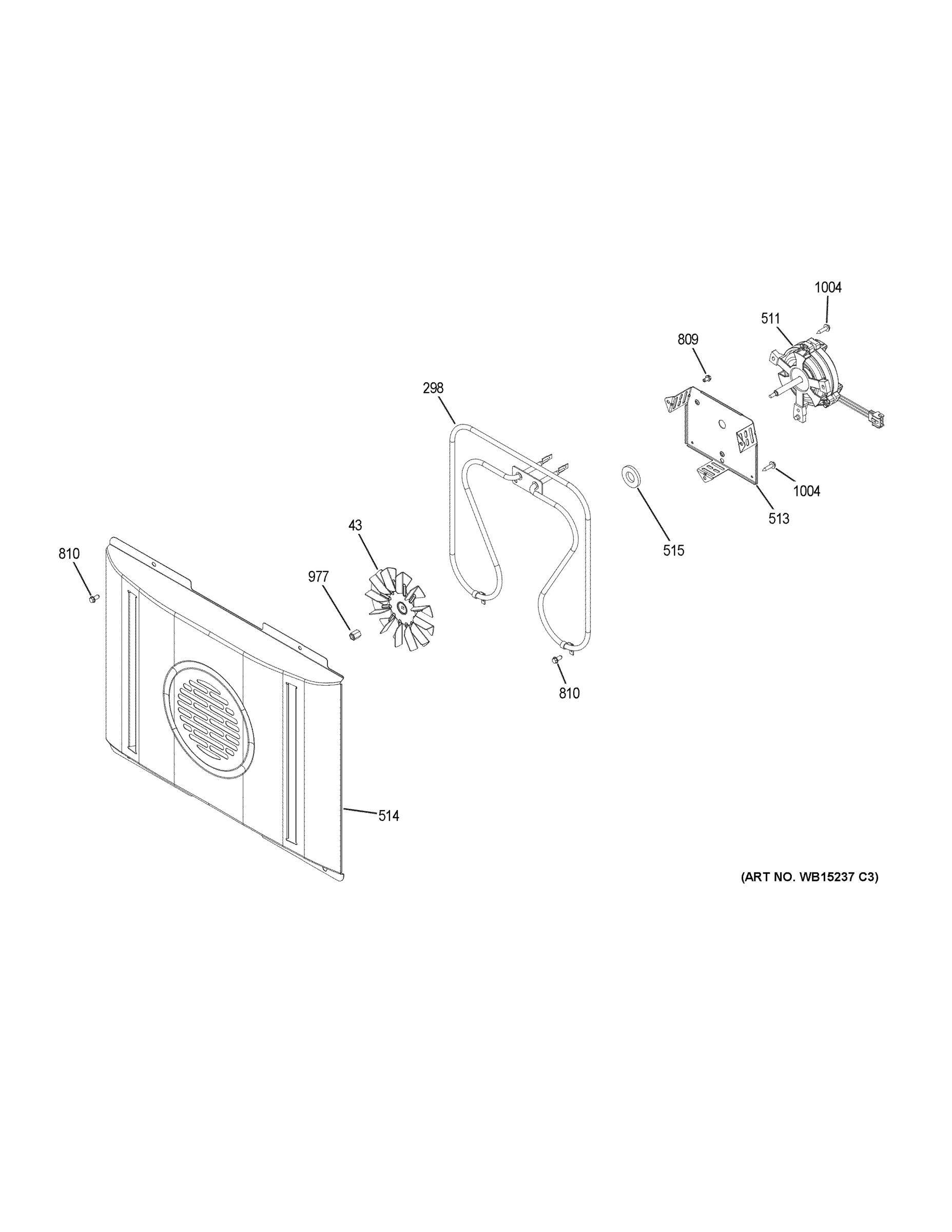

CONVECTION FAN
Common parts from model GE JS760DL5WW
13
JUMPER GEN WB18X30704 Contact Us For Availability
14
CONTROL BRACKET GEN WB34X29472 Contact Us For Availability
18
CONTROL PANEL OVERLAY ASM GEN WB07X30060 Contact Us For Availability
19
CONTROL INFINITE SWITCH GEN WB24T10011 Contact Us For Availability
23
SWITCH INFINITE CONTROL GEN WB24X25013 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB35X29473 Contact Us For Availability
30
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
31
LENS GEN WB25X24023 Contact Us For Availability
32
COOLING FAN ASM GEN WB26X29468 Contact Us For Availability
43
HUB BLADE ASM GEN WB02X26501 Contact Us For Availability
55
BADGE ASM GEN WB02X29479 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT WARMER LOW PRF GEN WB30T10154 Contact Us For Availability
58
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
59
ELEMENT HALIANT 12 IN GEN WB30T10130 Contact Us For Availability
101
INSULATION DOOR GEN WB35T10134 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10135 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
112
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
132
OVEN DOOR GASKET GEN WB35X30048 Contact Us For Availability
140
FRAME DOOR SIDE (WH) GEN WB56T10290 Contact Us For Availability
150
LATCH ASM GEN WB10X29077 Contact Us For Availability
204
DRAWER BODY AND SLIDES ASM GEN WB63X29476 Contact Us For Availability
217
MAIN WIRE COVER GEN WB34X29069 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10560 Contact Us For Availability
221
SIDE PANEL WH GEN WB56X28884 Contact Us For Availability
241
RACK OVEN GEN WB48T10083 Contact Us For Availability
242
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
253
SENSOR ASM GEN WB21X22134 Contact Us For Availability
260
SLIDE AND BEARING ASM GEN WB63X29477 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
281
HINGE DOOR GEN WB10T10070 Contact Us For Availability
288
COOLING FAN DUCT GEN WB34X29483 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
511
CONVECTION MOTOR GEN WB26X29157 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
599
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
600
MAINTOP HARNESS WIRE GEN WB18X30732 Contact Us For Availability
606
TEMPERATURE SENSOR HARNESS GEN WB18X32702 Contact Us For Availability
828
INSERT PLUG GEN WB01X29474 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
962
CLIP CABLE GEN WB02X25982 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCR 10-32 CA TRT15 3.06 GEN WB02X24268 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
1009
SCR 10-32 TR3 PNT 1.41 S GEN WB01T10137 Contact Us For Availability
× ![]()
