Model Whirlpool JRSD279KW REFRIGERATOR – Common Parts & Diagrams

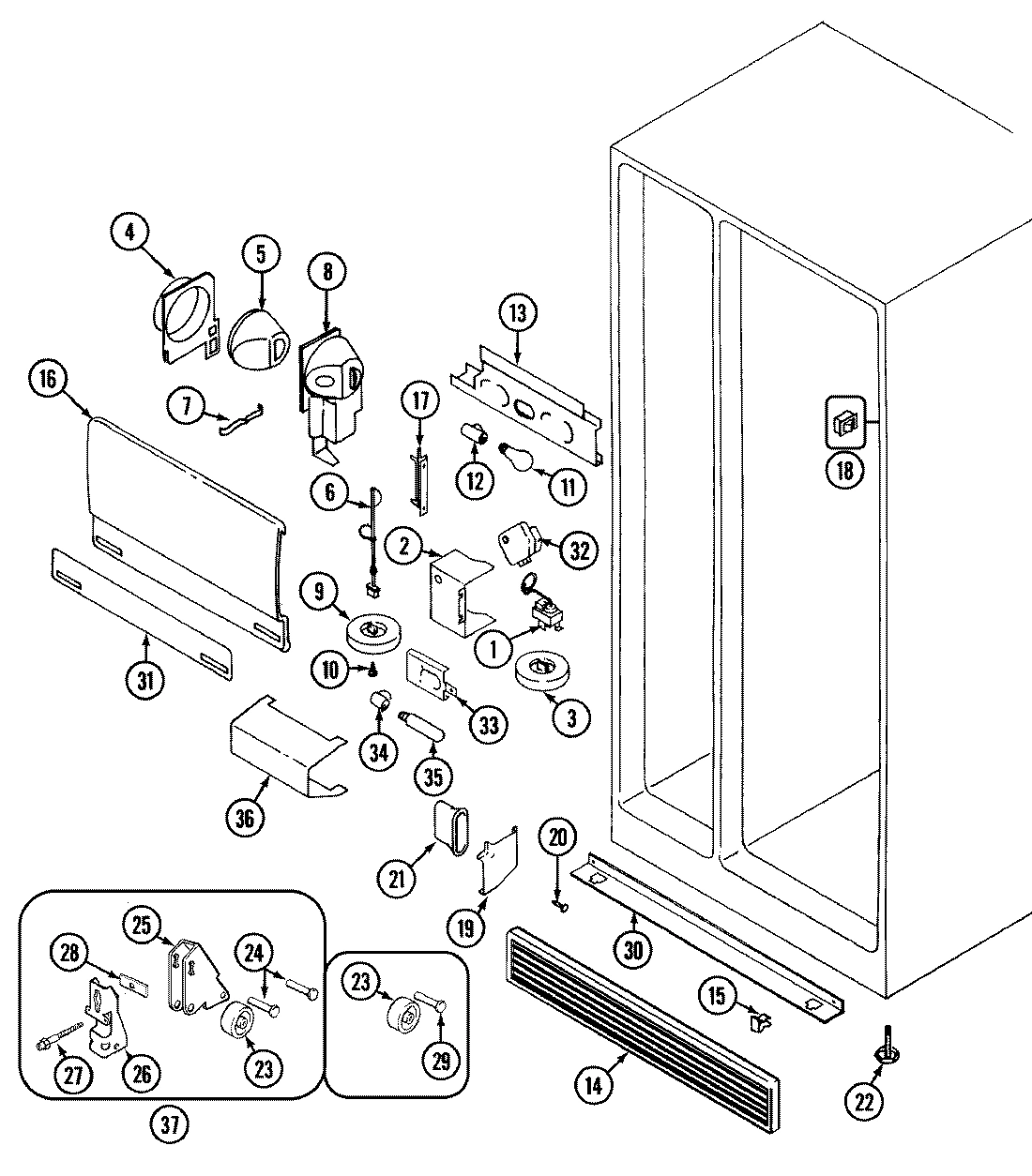

04 - FRESH FOOD COMPARTMENT

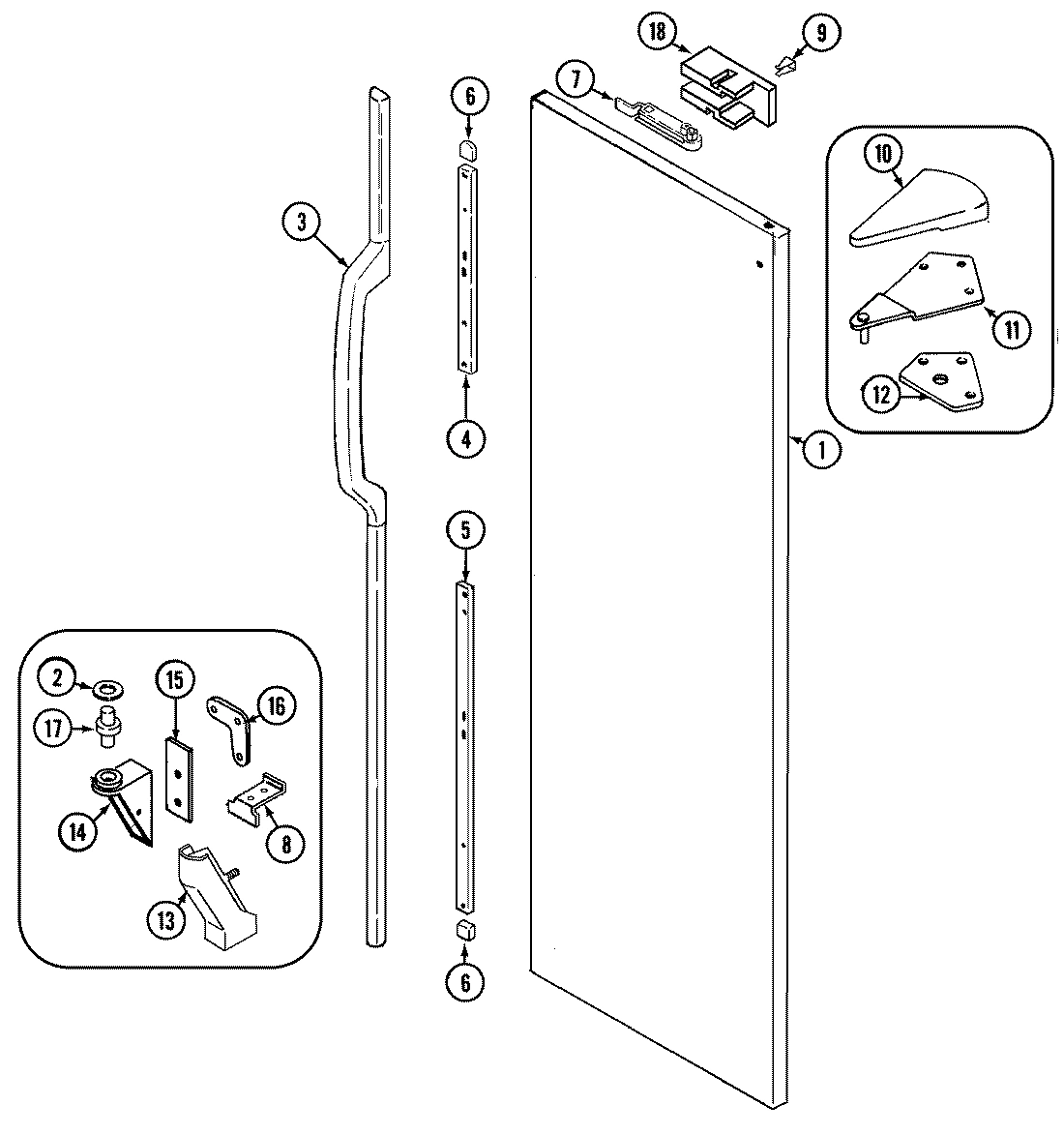

06 - FRESH FOOD OUTER DOOR

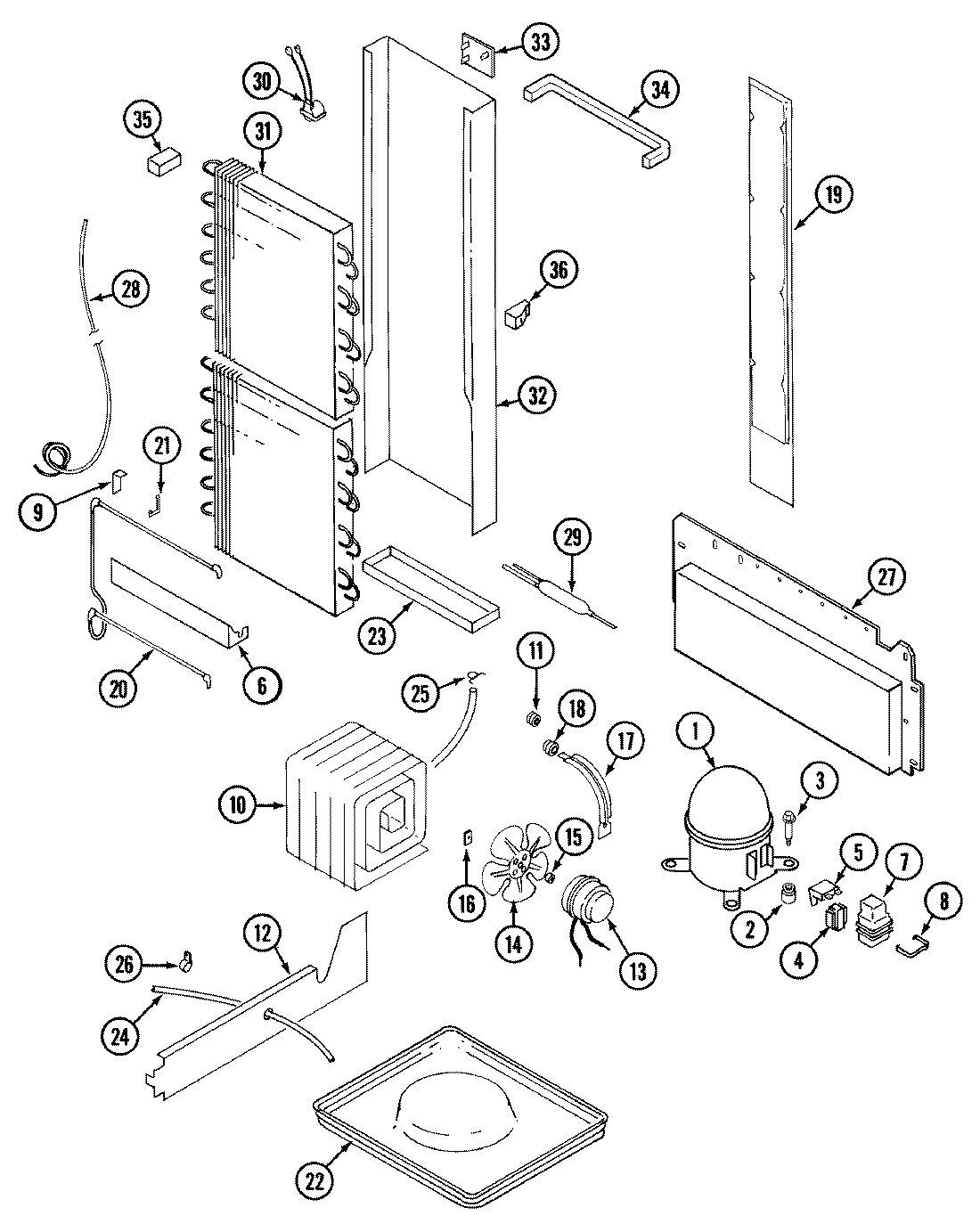

11 - UNIT COMPARTMENT & SYSTEM

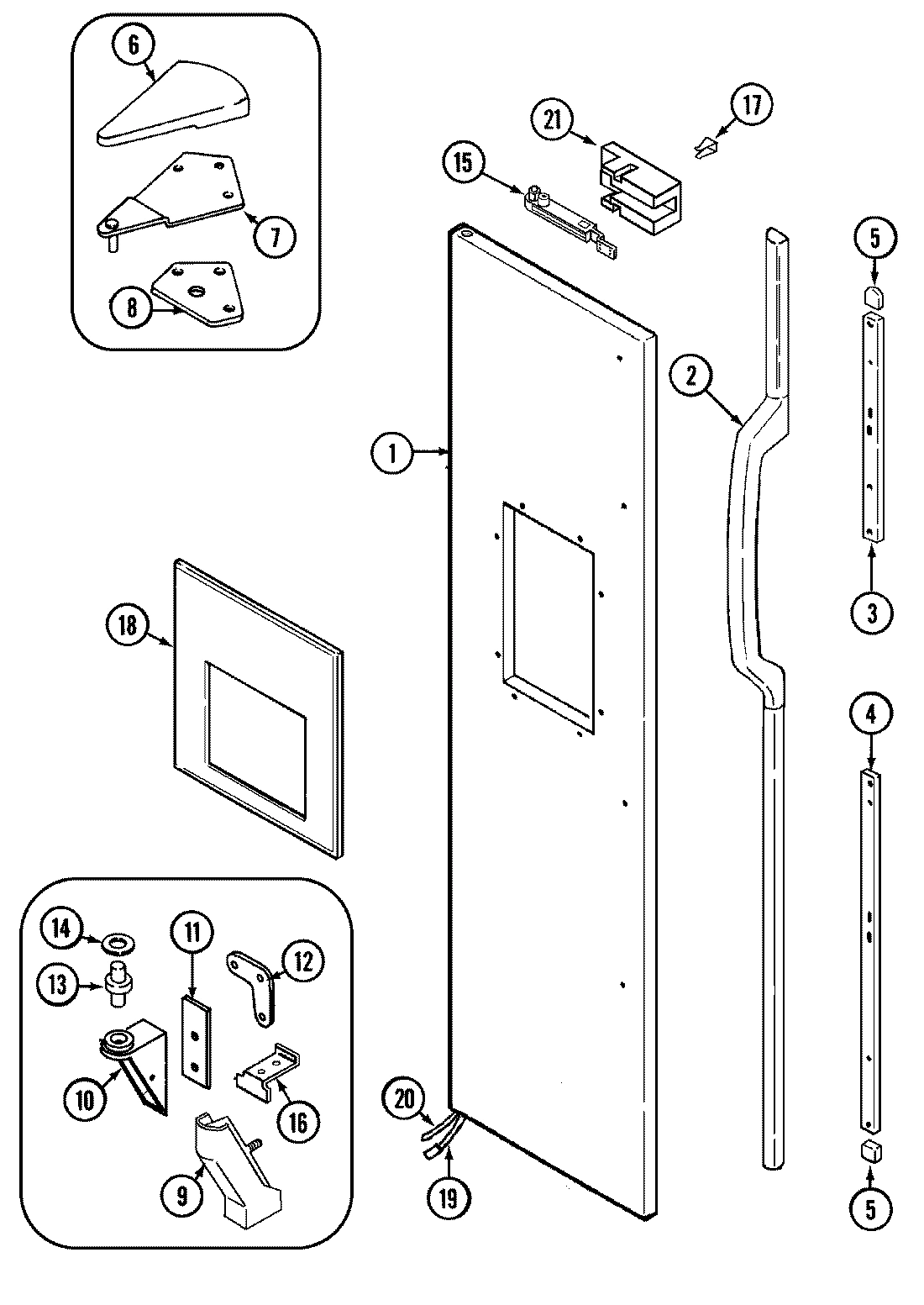

03 - FREEZER OUTER DOOR

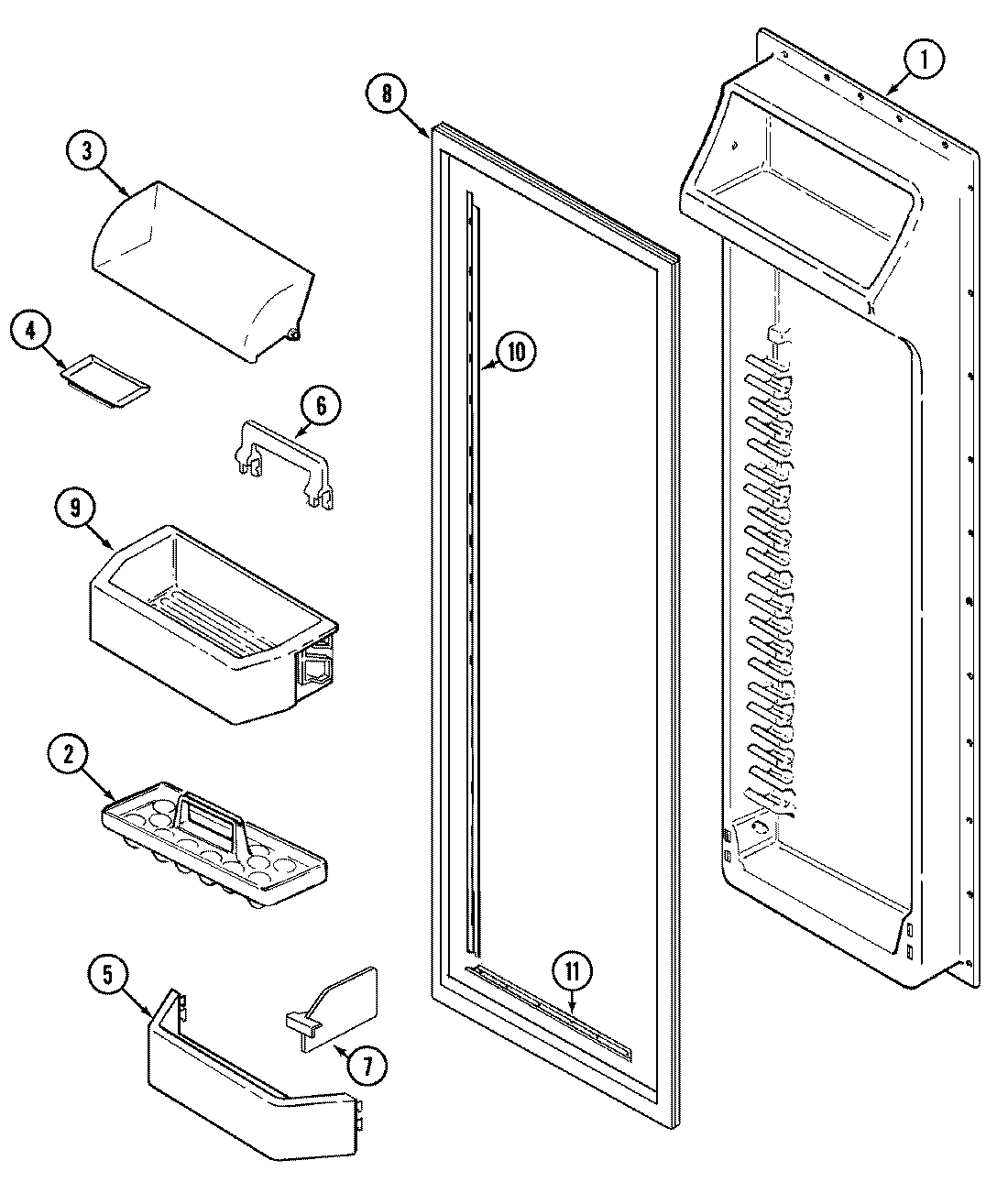

05 - FRESH FOOD INNER DOOR
08 - ICE CRUSHER & BIN

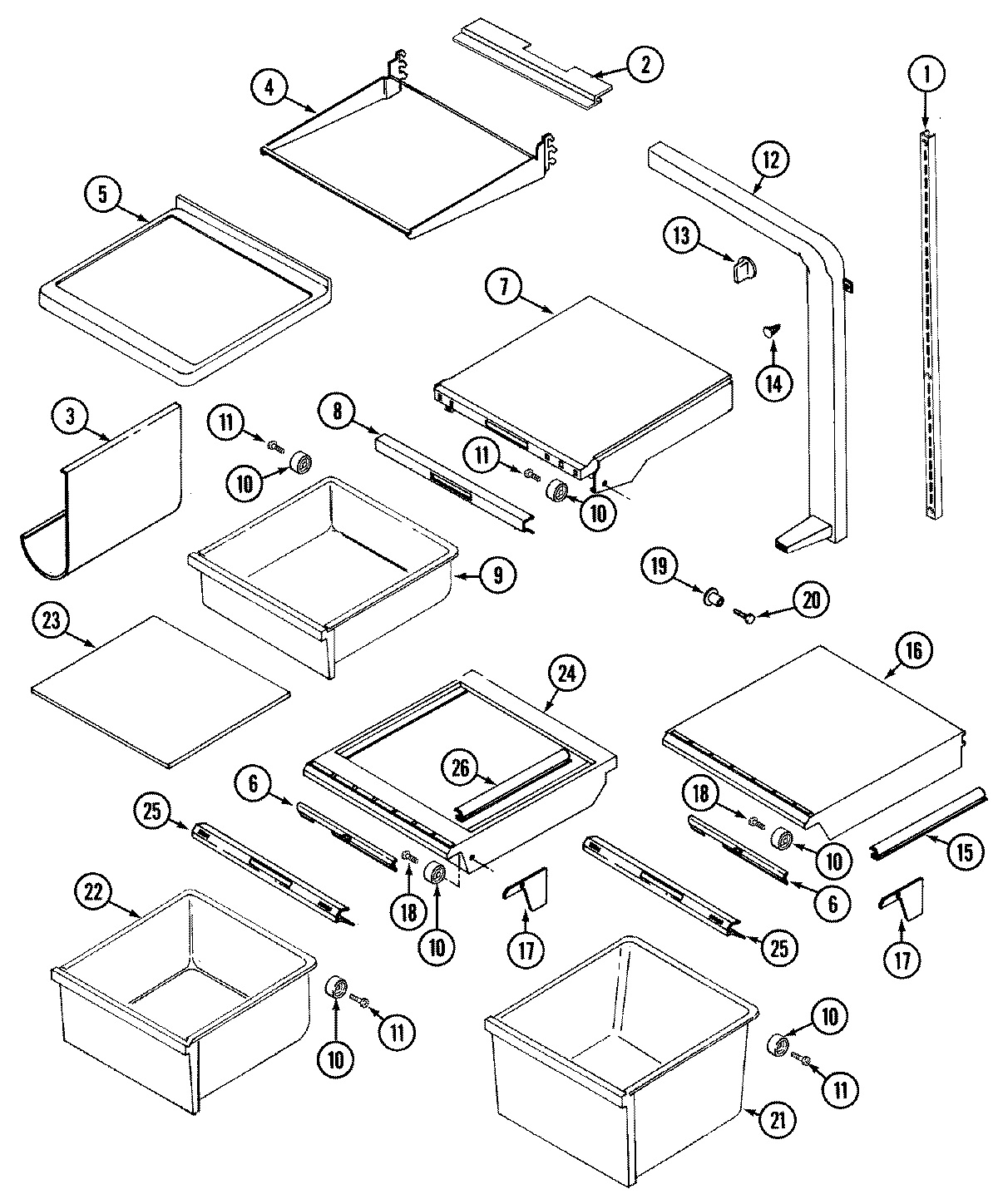

10 - SHELVES & ACCESSORIES

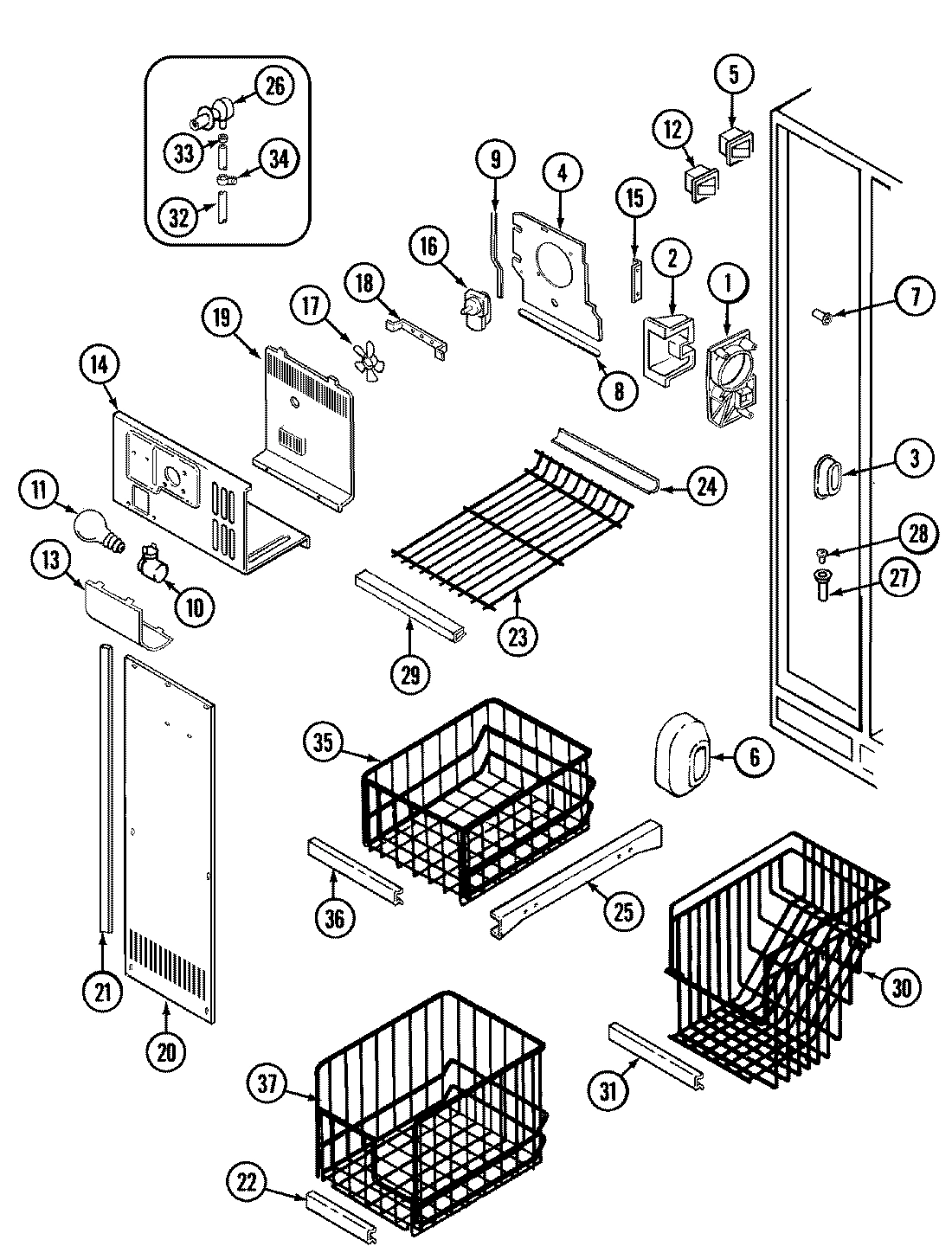

01 - FREEZER COMPARTMENT

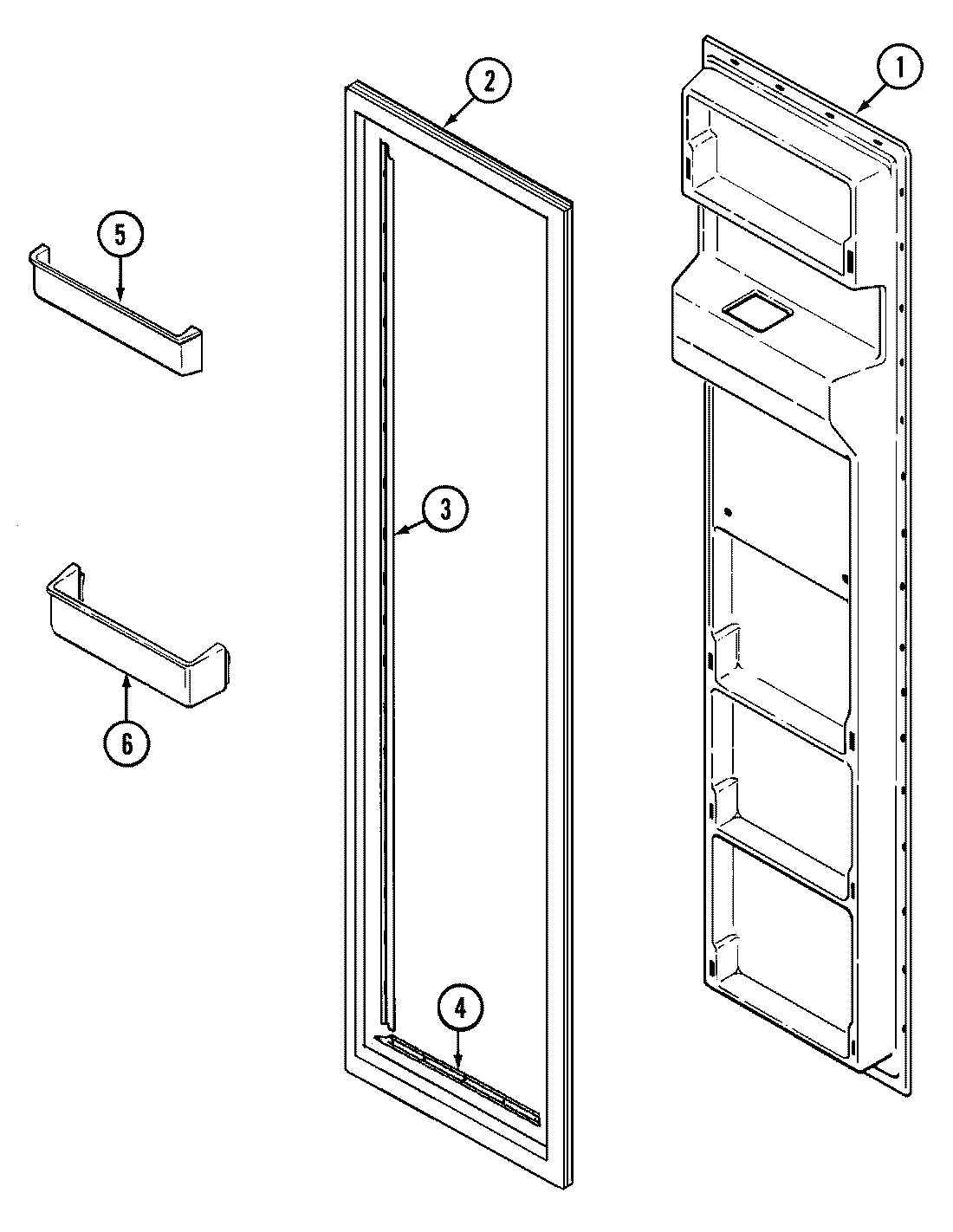

02 - FREEZER INNER DOOR
09 - ICE MAKER

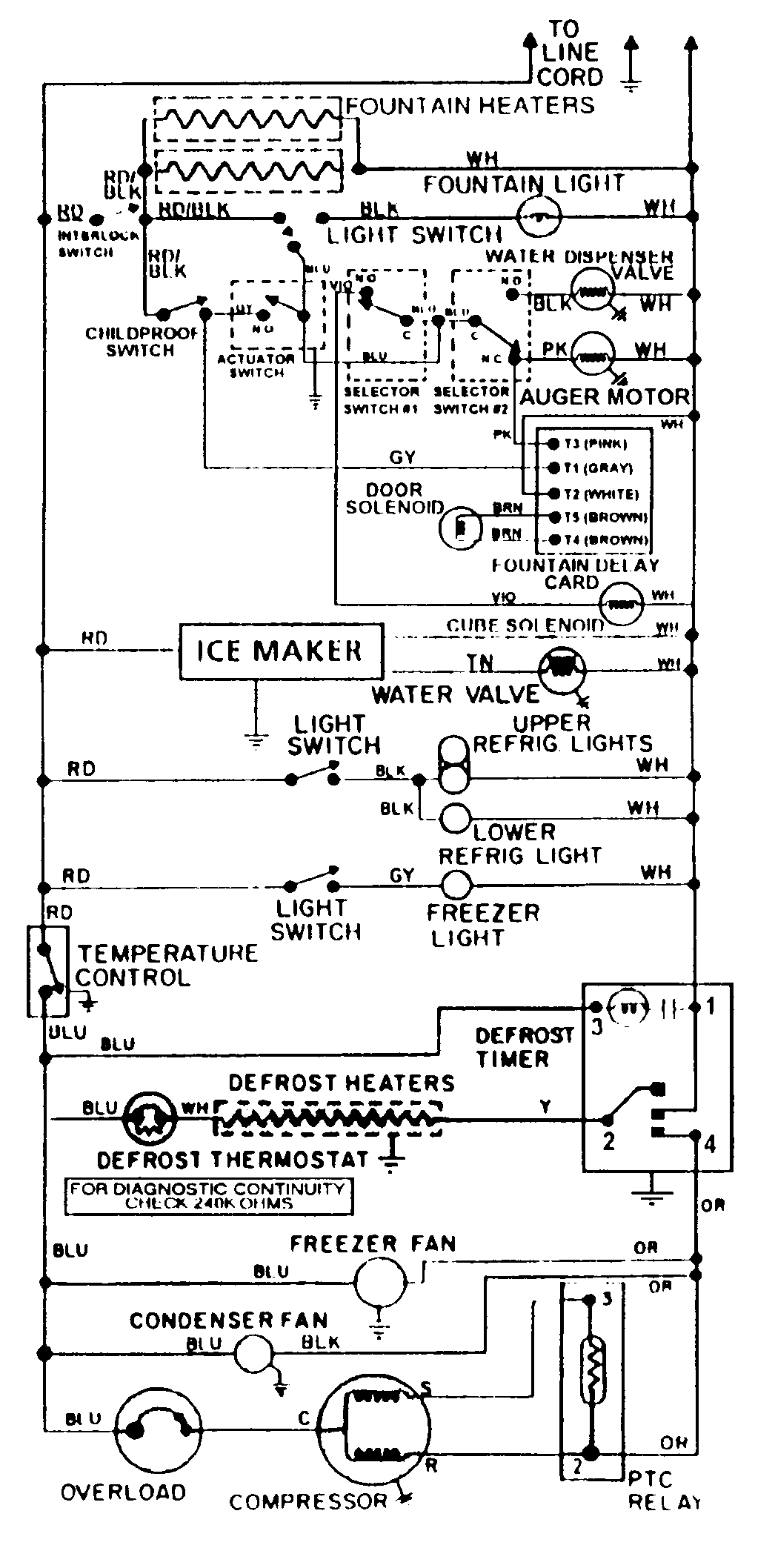

12 - WIRING INFORMATION

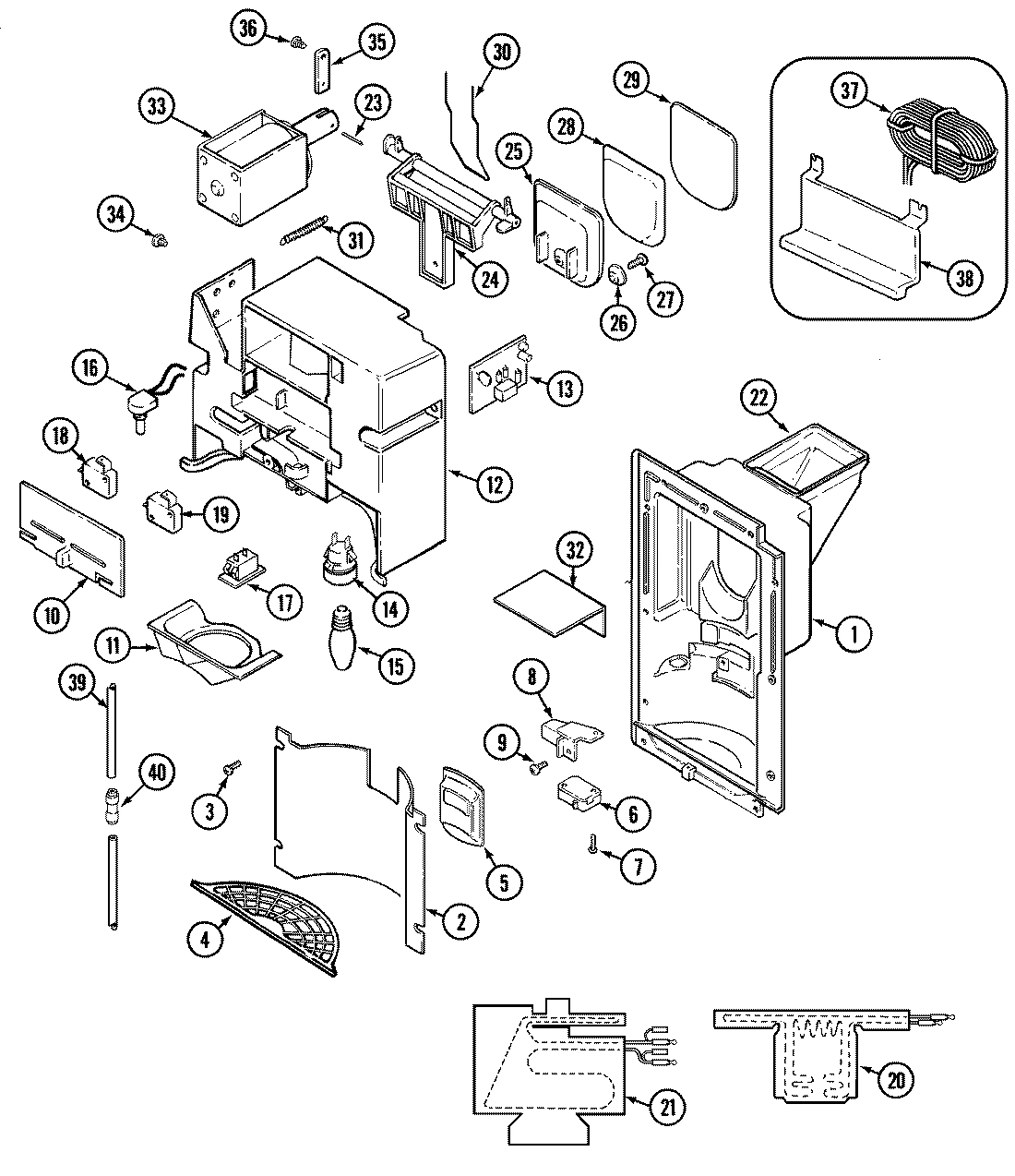

07 - ICE & WATER DISPENSER
Common parts from model Whirlpool JRSD279KW REFRIGERATOR
1
SCREW WPL 4000171 Contact Us For Availability
1
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
1
PANEL, F.F. DOOR (WHT) WPL 723486WW Contact Us For Availability
1
KIT, COMPRESSOR (230V) R134A WPL 12001171 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 61001546 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 72341106WW Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61001270 Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61001271 Contact Us For Availability
1
SCREW WPL 652755 Contact Us For Availability
1
LINER, F.F. DOOR WPL 702231 Contact Us For Availability
1
BIN, ICE WPL 702201 Contact Us For Availability
1
SCREW WPL 40003728 Contact Us For Availability
1
RAIL, SHELF SUPPORT WPL 673111 Contact Us For Availability
1
ORIFICE, FRZ. CONTROL (OUTLET) WPL 673521 Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61001272 Contact Us For Availability
1
INSULATION, LINER SUPPORT WPL 61001273 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 702221 Contact Us For Availability
1
SCREW WPL 4000311 Contact Us For Availability
1
MODULE, ICE MAKER 220V-60HZ WPL Y06100049 Contact Us For Availability
1
KIT, FOUNTAIN ASSY. WPL 12000057 Contact Us For Availability
1
INSULATION FOUNTAIN WPL 698401 Contact Us For Availability
1
INSULATION, BONNET TOP WPL 698412 Contact Us For Availability
1
INSULATION, FTN. BACK WPL 702351 Contact Us For Availability
2
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
2
KIT, HANDLE ASSY. (WHT) WPL 12000039 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
TRAY, EGG WPL 600661 Contact Us For Availability
2
FRONT, ICE BIN WPL 6987524 Contact Us For Availability
2
BAFFLE, MEAT SHELF WPL 703332 Contact Us For Availability
2
SHIELD, AIR DIRECTIONAL WPL 673531 Contact Us For Availability
2
GASKET, FRZ. DOOR WPL 700242 Contact Us For Availability
2
COVER, ICE MAKER WPL 61001239 Contact Us For Availability
2
LINER, FOUNTAIN WPL 696862 Contact Us For Availability
3
KNOB, TEMPERATURE CONTROL WPL 671453 Contact Us For Availability
3
TRIM, HANDLE EXT. (UPPER) WPL 695863 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
DOOR, DAIRY WPL 702154 Contact Us For Availability
3
RETAINER, GASKET WPL 699921 Contact Us For Availability
3
DOOR, ICE ACCESS WPL 61001678 Contact Us For Availability
3
HOLDER, WINE BOTTLE WPL 61001622 Contact Us For Availability
3
RETAINER, AIR RETURN WPL 700341 Contact Us For Availability
3
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
3
SCREW WPL 951061 Contact Us For Availability
3
SCREW WPL 6527581 Contact Us For Availability
4
ORIFICE, FRZ. CONTROL (INLET) WPL 61001230 Contact Us For Availability
4
GASKET, ORIFICE WPL 61001670 Contact Us For Availability
4
TRIM, HANDLE EXT. (LOWER) WPL 695864 Contact Us For Availability
4
RELAY, START WPL 688575 Contact Us For Availability
4
TRAY, BUTTER WPL 299362 Contact Us For Availability
4
BUMPER, DOOR WPL 282726 Contact Us For Availability
4
FRAME, SHELF WPL 703102 Contact Us For Availability
4
FRAME, MEAT SHELF WPL 703104 Contact Us For Availability
4
COVER, COIL UPPER WPL 672976 Contact Us For Availability
4
RETAINER, GASKET WPL 699924 Contact Us For Availability
4
SCREW WPL 4010181 Contact Us For Availability
4
VALVE, WATER (230V) WPL 61001022 Contact Us For Availability
4
GRILL,FOUNTAIN WPL 672231 Contact Us For Availability
5
INSULATION, HOUSING WPL 587671 Contact Us For Availability
5
SEAL, KNOCK OUT WPL 703411 Contact Us For Availability
5
END CAP, HANDLE WPL 695901 Contact Us For Availability
5
OVERLOAD WPL 61001080 Contact Us For Availability
5
FRONT, PICK OFF WPL 7020913 Contact Us For Availability
5
HOUSING, CRUSHER WPL 697561 Contact Us For Availability
5
SHELF, SLIDE WPL 703074 Contact Us For Availability
5
SWITCH, INTERLOCK WPL 680582 Contact Us For Availability
5
FRONT, PICK OFF WPL 7020914 Contact Us For Availability
5
TUBE, WATER ENTRY WPL 676661 Contact Us For Availability
5
PAD, ACTUATOR WPL 696822 Contact Us For Availability
6
DAMPER, FRZ. CONTROL WPL 676092 Contact Us For Availability
6
COVER, UPPER HINGE (WHT) WPL 701214 Contact Us For Availability
6
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
6
RETAINER, BOTTLE WPL 702191 Contact Us For Availability
6
RING, SNAP WPL 697041 Contact Us For Availability
6
SLIDE, CONTROL WPL 674912 Contact Us For Availability
6
INSULATION, AIR RETURN WPL 678371 Contact Us For Availability
6
FRONT, PICK OFF WPL 7020915 Contact Us For Availability
6
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
7
SPRING, BAFFLE WPL 526481 Contact Us For Availability
7
HINGE UPPER WPL 5370926 Contact Us For Availability
7
SCREW, UPPER HINGE WPL 6527586 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
7
ORGANIZER, SHELF WPL 702181 Contact Us For Availability
7
WASHER, RETAINER WPL 697031 Contact Us For Availability
7
SUPPORT, MEAT PAN WPL 6764913 Contact Us For Availability
7
CUP, SHELF WPL 674661 Contact Us For Availability
7
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
8
SCREW WPL 4150171 Contact Us For Availability
8
HOUSING, FRZ. CONTROL WPL 673541 Contact Us For Availability
8
D-SEAL, HOUSING WPL 703391 Contact Us For Availability
8
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
GASKET, F.F. DOOR (WHT) WPL 700244 Contact Us For Availability
8
DOOR, ICE CRUSHER WPL 697181 Contact Us For Availability
8
TRIM, MEAT PAN SUPPORT WPL 702811 Contact Us For Availability
8
SEAL WPL 689466 Contact Us For Availability
8
BRACKET, ACTUATOR SWITCH WPL 700441 Contact Us For Availability
9
KNOB, FREEZER CONTROL WPL 671454 Contact Us For Availability
9
COVER, LOWER HINGE (WHT) WPL 61001611 Contact Us For Availability
9
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
9
SCREW WPL 6527556 Contact Us For Availability
9
SHELF, PICK OFF WPL 7020912 Contact Us For Availability
9
RING, DRIVE WPL 700272 Contact Us For Availability
9
PAN, MEAT WPL 699286 Contact Us For Availability
9
SEAL WPL 6632520 Contact Us For Availability
10
THRMST-FIX WPL 696818 Contact Us For Availability
10
SCREW WPL 4000011 Contact Us For Availability
10
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
10
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
10
SCREW WPL 4140011 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
10
CONDENSER WPL 649981 Contact Us For Availability
10
HINGE, LOWER WPL 61001629 Contact Us For Availability
10
MOTOR, AUGER WPL 61001495 Contact Us For Availability
10
WIRE HARNESS, AUGER MOTOR WPL 701221 Contact Us For Availability
10
ROLLER WPL 674232 Contact Us For Availability
10
SCREW WPL 6527574 Contact Us For Availability
11
BULB, LIGHT (40W-230V) WPL 240821 Contact Us For Availability
11
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
11
RETAINER, GASKET WPL 699922 Contact Us For Availability
11
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
11
SCREW WPL 652756 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
GUARD, CHIP WPL 700232 Contact Us For Availability
12
SOCKET, LIGHT WPL 298131 Contact Us For Availability
12
SWITCH, LIGHT WPL 669871 Contact Us For Availability
12
SCREW WPL 6527559 Contact Us For Availability
12
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 61001533 Contact Us For Availability
12
ROD, CRUSHER CONTROL WPL 697142 Contact Us For Availability
12
TUNNEL, AIR (MEAT) WPL 686903 Contact Us For Availability
12
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
12
BRACKET, FOUNTAIN WPL 703245 Contact Us For Availability
13
HOUSING, LIGHT SOCKET & WIRES WPL 677512 Contact Us For Availability
13
MOTOR, CONDENSER FAN WPL 61001208 Contact Us For Availability
13
SCREW WPL 6527533 Contact Us For Availability
13
PIN, HINGE WPL 700601 Contact Us For Availability
13
BRACKET, CONTROL ROD WPL 697161 Contact Us For Availability
13
KNOB, AIR TUNNEL WPL 687552 Contact Us For Availability
13
SHIELD, LIGHT WPL 672921 Contact Us For Availability
13
THERMOSTAT WPL 950921 Contact Us For Availability
13
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
13
BOARD, PC WPL 61001559 Contact Us For Availability
14
KICKPLATE (WHT) WPL 689819 Contact Us For Availability
14
HINGE, LOWER WPL 61001587 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 699582 Contact Us For Availability
14
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
14
SPRING, CONTROL ROD WPL 697171 Contact Us For Availability
14
SCREW WPL 40001531 Contact Us For Availability
14
BOX, AUGER MOTOR WPL 697241 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
SOCKET, LIGHT (W/NUT) WPL 701192 Contact Us For Availability
15
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
15
CLOSER, DOOR WPL 692581 Contact Us For Availability
15
WASHER, FAN BLADE WPL 61001686 Contact Us For Availability
15
AUGER WPL 697072 Contact Us For Availability
15
SEAL WPL 697791 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
BULB, LIGHT WPL 631794 Contact Us For Availability
16
SHIELD, LIGHT WPL 671135 Contact Us For Availability
16
STOP, DOOR WPL 61001269 Contact Us For Availability
16
SCREW WPL 6527548 Contact Us For Availability
16
CONE, ICE DEFLECTOR WPL 696991 Contact Us For Availability
16
SHELF, CRISPER (LOWER) WPL 678926 Contact Us For Availability
16
SCREW WPL 4030671 Contact Us For Availability
16
MOTOR, FAN WPL 692982 Contact Us For Availability
16
WIRE HARNESS, FREEZER WPL 701801 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
SWITCH, LIGHT (W/NUT) WPL 6983210 Contact Us For Availability
17
SUPPORT, LIGHT SHIELD WPL 671251 Contact Us For Availability
17
BRACKET, CLOSER WPL 692611 Contact Us For Availability
17
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 61001414 Contact Us For Availability
17
WASHER, CONE STOP WPL 696981 Contact Us For Availability
17
SCREW WPL 6527528 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
17
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
17
BLADE, EVAPORATOR FAN WPL 521204 Contact Us For Availability
17
SWITCH, SAFETY WPL 699041 Contact Us For Availability
18
SCREW WPL 41400435 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
ESCUTCHEON (WHT) WPL 61001458 Contact Us For Availability
18
IMPELLER WPL 700361 Contact Us For Availability
18
SCREW WPL 6527534 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
18
SCREW WPL 998645 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
19
COVER, AIR RETURN WPL 699821 Contact Us For Availability
19
SCREW WPL 40001736 Contact Us For Availability
19
WIRE HARNESS, MAIN (W/PW CORD) WPL 61001706 Contact Us For Availability
19
COVER, BACK WIRE WPL 670941 Contact Us For Availability
19
WIRE HARNESS, DOOR WPL 698041 Contact Us For Availability
19
PLATE, DRIVE WPL 697551 Contact Us For Availability
19
SUPPORT, CRISPER SHELF WPL 677641 Contact Us For Availability
19
SHIELD, FAN WPL 61001025 Contact Us For Availability
19
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
19
SCREW, BRACKET WPL 951081 Contact Us For Availability
19
SCREW WPL 41504135 Contact Us For Availability
19
SWITCH WPL 554403 Contact Us For Availability
20
HEATER, DEFROST WPL 61001174 Contact Us For Availability
20
PLATE, IMPELLER WPL 697011 Contact Us For Availability
20
COVER, COIL LOWER WPL 697251 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700762 Contact Us For Availability
20
HEATER, FOUNTAIN (UPPER) WPL 697962 Contact Us For Availability
21
TUNNEL, AIR RETURN WPL 676841 Contact Us For Availability
21
INSULATION, CLOSER (FRT.) WPL 61001721 Contact Us For Availability
21
INSULATION, CLOSER (BACK) WPL 61001722 Contact Us For Availability
21
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
21
NUT, AUGER WPL 697091 Contact Us For Availability
21
PAN, CRISPER (LOWER) WPL 699282 Contact Us For Availability
21
CLIP WPL 693141 Contact Us For Availability
21
HEATER, FOUNTAIN (LOWER) WPL 698421 Contact Us For Availability
22
LEG, LEVELING WPL 686642 Contact Us For Availability
22
CAP, LEVELING LEG WPL 698101 Contact Us For Availability
22
PAN, DRAIN WPL 682361 Contact Us For Availability
22
BLADE, CRUSHER WPL 697061 Contact Us For Availability
22
PAN, CRISPER (UPPER) WPL 699287 Contact Us For Availability
22
TRIM, PIZZA BASKET WPL 7013523 Contact Us For Availability
22
SEAL, ICE CHUTE WPL 5207727 Contact Us For Availability
23
WHEEL WPL 698121 Contact Us For Availability
23
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
BLADE, CRUSHER WPL 697021 Contact Us For Availability
23
GLASS, CRISPER SHELF WPL 674898 Contact Us For Availability
23
SHELF, WIRE WPL 671788 Contact Us For Availability
23
PIN, SPRING WPL 672913 Contact Us For Availability
24
PIN, WHEEL WPL 649651 Contact Us For Availability
24
HOSE, DRAIN WPL 2691125 Contact Us For Availability
24
BLADE, CRUSHER WPL 697022 Contact Us For Availability
24
SHELF, CRISPER (UPPER) WPL 678914 Contact Us For Availability
24
TRIM, SHELF (REAR) WPL 701361 Contact Us For Availability
24
STRIKE, ICE DOOR WPL 696757 Contact Us For Availability
25
SCREW WPL 652751 Contact Us For Availability
25
BRACKET, WHEEL WPL 678062 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
25
BLADE, CRUSHER WPL 697023 Contact Us For Availability
25
TRIM, CRISPER SHELF WPL 703372 Contact Us For Availability
25
GLIDE, BASKET WPL 695191 Contact Us For Availability
25
DOOR, ICE WPL 689572 Contact Us For Availability
26
FACEPLATE, BRACKET WPL 702301 Contact Us For Availability
26
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
26
LOCK, FIXED BLADE WPL 697081 Contact Us For Availability
26
SEAL, CRISPER WPL 697792 Contact Us For Availability
26
GROMMET WPL 692191 Contact Us For Availability
26
RETAINER WPL 685661 Contact Us For Availability
27
SCREW, WHEEL ADJUSTMENT WPL 61001126 Contact Us For Availability
27
SCREW WPL 61001485 Contact Us For Availability
27
COVER, UNIT COMPARTMENT WPL 704603 Contact Us For Availability
27
PIN, BLADE LOCK WPL 697051 Contact Us For Availability
27
TUBE, DRAIN WPL 2652711 Contact Us For Availability
27
SCREW WPL 40511635 Contact Us For Availability
28
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
28
SLEEVE WPL 2608823 Contact Us For Availability
28
HEAT EXCHANGER WPL 61001039 Contact Us For Availability
28
BEARING, SPACER WPL 696971 Contact Us For Availability
28
GROMMET WPL 525261 Contact Us For Availability
28
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
29
PIN, WHEEL (REAR) WPL 649653 Contact Us For Availability
29
DRIER WPL 139001 Contact Us For Availability
29
SPACER, CRUSHER BLADE WPL 696961 Contact Us For Availability
29
TRIM, SHELF WPL 7013519 Contact Us For Availability
29
SEAL, ICE DOOR WPL 698671 Contact Us For Availability
30
RAIL, HORIZONTAL SUPPORT WPL 61001032 Contact Us For Availability
30
SCREW WPL 6527542 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208537 Contact Us For Availability
30
SPACER, BLADE WPL 696962 Contact Us For Availability
30
BASKET, FRZ WIRE WPL 693502 Contact Us For Availability
30
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
31
INSERT, LIGHT SHIELD WPL 674767 Contact Us For Availability
31
EVAPORATOR WPL 5255122 Contact Us For Availability
31
PIN, ICE DOOR WPL 679061 Contact Us For Availability
31
TRIM, LOWER BASKET WPL 7013527 Contact Us For Availability
31
SPRING, EXTENSION WPL 673391 Contact Us For Availability
32
FUNNEL-KIT WPL 675792 Contact Us For Availability
32
SCREW WPL 4050071 Contact Us For Availability
32
TIMER, DEFROST WPL 661284 Contact Us For Availability
32
HOUSING, EVAPORATOR WPL 688342 Contact Us For Availability
32
SCREW WPL 406026103 Contact Us For Availability
32
SOLENOID WPL 697302 Contact Us For Availability
32
FOIL, FOUNTAIN FRONT WPL 5380838 Contact Us For Availability
33
BASE, LIGHT (MEAT) WPL 672431 Contact Us For Availability
33
BOARD, TERMINAL WPL 558781 Contact Us For Availability
33
YOKE ASSY. WPL 7235350 Contact Us For Availability
33
SOLENOID WPL 678835 Contact Us For Availability
34
SEAL WPL 6632518 Contact Us For Availability
34
GUIDE, YOKE WPL 697151 Contact Us For Availability
34
CLAMP, FEEDER TUBE WPL 231978 Contact Us For Availability
34
SCREW WPL 4060331 Contact Us For Availability
35
BULB, LIGHT (MEAT) WPL 201747 Contact Us For Availability
35
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
35
BASKET, FRZ WIRE WPL 693482 Contact Us For Availability
35
LINK, SOLENOID WPL 696881 Contact Us For Availability
36
SHIELD, LIGHT WPL 672421 Contact Us For Availability
36
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
36
SCREW WPL 40002636 Contact Us For Availability
36
RAIL, ICE BIN WPL 697102 Contact Us For Availability
36
TRIM, UPPER BASKET WPL 7013526 Contact Us For Availability
36
SCREW WPL 41501335 Contact Us For Availability
37
WHEEL ASSY. WPL 61001108 Contact Us For Availability
37
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
37
SCREW WPL 4000221 Contact Us For Availability
37
BASKET, PIZZA WPL 693492 Contact Us For Availability
37
COIL, WATER WPL 676161 Contact Us For Availability
38
SCREW WPL 40001536 Contact Us For Availability
38
COVER, WATER COIL WPL 688371 Contact Us For Availability
39
TUBING, COIL TO FOUNTAIN WPL 6718729 Contact Us For Availability
39
TUBING, VALVE TO COIL WPL 671875 Contact Us For Availability
40
UNION, REDUCING (5/16``-3/8``) WPL 61001266 Contact Us For Availability
41
NUT, WIRE WPL 271165 Contact Us For Availability
42
WIRE HARNESS, FOUNTAIN WPL 695912 Contact Us For Availability
42
WIRE HARNESS, FOUNTAIN WPL 699022 Contact Us For Availability
42
WIRE HARNESS, FOUNTAIN WPL 699034 Contact Us For Availability
42
WIRE HARNESS, FOUNTAIN WPL 704462 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001860 Contact Us For Availability
× ![]()
Login and Registration Form
