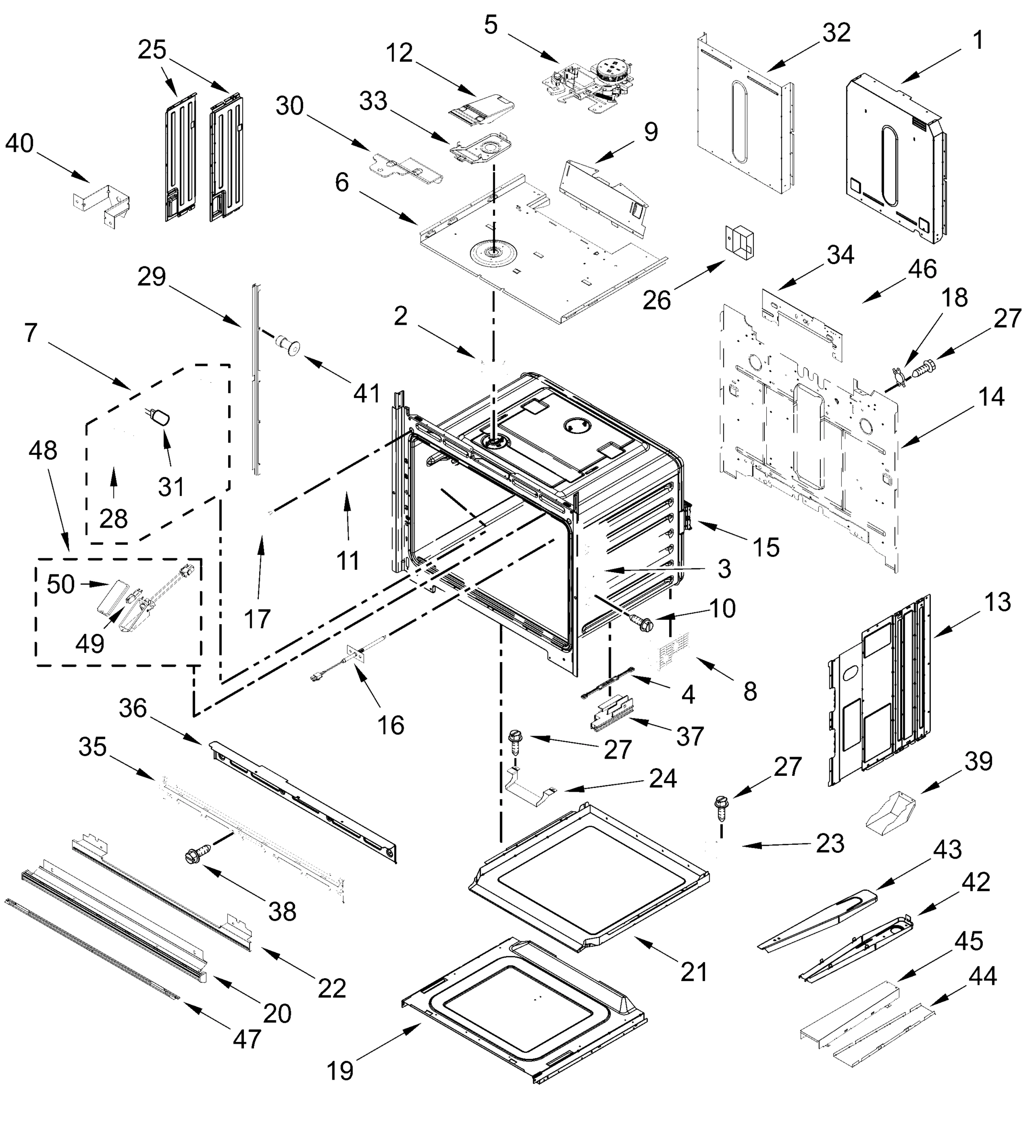

Model Whirlpool JOEDC730RL00 – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10655464 Whirlpool Bracket Backorder WPL W10655464 $14.22

W10803140 Whirlpool Nut Backorder WPL W10803140 $8.20

W11235461 Whirlpool Rail Mounting Backorder WPL W11235461 $44.65

INSULATION Backorder WPL W11244449 $31.11

W11369884 Whirlpool Oven Heat Deflector In Stock WPL W11369884 $46.67

W11570325 Whirlpool Trim In Stock WPL W11570325 $106.80

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $27.45

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $31.55

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

Insulation, Wrap WPL W11188284 Contact Us For Availability

Hinge, Door (Right) WPL W11646801 Contact Us For Availability

PAINT, TOUCH-UP (1/2 oz.) WPL ARICEE9DD10D6E137089B7191A71E7507C2 Contact Us For Availability

ADHESIVE WPL ARI0A5A46DE4BEBA2BC280800A3F3CAEA56 Contact Us For Availability

ACCESSORIES WPL ARI0B79C54BE7B3B29B3F337973815F9356 Contact Us For Availability

1

W11165250 Whirlpool Rear Cover Backorder WPL W11165250 $52.01

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $46.65

1

W11600213 Whirlpool Oven Door Glass Backorder WPL W11600213 $268.42

2

W10650497 Whirlpool Spacer Backorder WPL W10650497 $9.08

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.76

2

W11242906 Whirlpool Oven Rack Backorder WPL W11242906 $131.83

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $69.50

3

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $31.55

3

Outer Door Assembly (Stainless, Includes Hing WPL W11646799 Contact Us For Availability

4

W11320231 Whirlpool Dishwasher Nameplate Backorder WPL W11320231 $56.80

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $6.24

4

Screw WPL 7101P43460 Contact Us For Availability

5

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $10.41

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $29.77

5

Screw WPL 7101P42660 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $17.00

6

W10351295 Whirlpool Bumper Assembly Backorder WPL W10351295 $10.76

6

TOP-CABNT Backorder WPL W11168071 $41.83

6

Hinge, Door (Left) WPL W11646800 Contact Us For Availability

7

W11292252 Whirlpool Oven Light Backorder WPL W11292252 $35.81

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $58.52

7

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $3.33

8

W11255349 Whirlpool Fan Motor Backorder WPL W11255349 $213.58

8

W11342060 Whirlpool Door Handle Backorder WPL W11342060 $192.37

8

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $64.16

9

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

9

W11602610 Whirlpool Oven Glass Door In Stock WPL W11602610 $221.60

10

W11301887 Whirlpool Convection Fan Backorder WPL W11301887 $120.93

10

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

10

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

11

W11098805 Whirlpool Element Backorder WPL W11098805 $127.36

11

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $24.47

11

W11692454 Whirlpool Gasket Backorder WPL W11692454 $55.37

12

W10853277 Whirlpool Shield Backorder WPL W10853277 $32.54

12

COVR-EXHST Backorder WPL W11256424 $19.71

12

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $24.47

13

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $45.33

13

W11598121 Whirlpool Top-Cabnt Backorder WPL W11598121 $29.81

13

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $5.44

14

Backorder WPL W10588737 $41.82

14

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

14

Back, Chassis (Not Serviced) WPL ARICB6C68D1C295DC58D5B4CADE19064E44 Contact Us For Availability

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $41.07

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

Cover, 30 In Top Back WPL W11706417 Contact Us For Availability

Liner, Oven (Not Serviceable) WPL ARIF1DCB018B2324CAD9D04009CD738647B Contact Us For Availability

W11705878 Whirlpool Vent Trim Backorder WPL W11705878 $145.46

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

Guard, Wire WPL W11691737 Contact Us For Availability

Probe, Sensor WPL W11685697 Contact Us For Availability

17

W10663735 Whirlpool Element Backorder WPL W10663735 $116.36

17

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

17

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

18

W11256305 Whirlpool Oven Rack In Stock WPL W11256305 $215.65

18

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $76.71

19

W10443110 Whirlpool Screw Backorder WPL W10443110 $5.38

19

W11598115 Whirlpool Access Cover Backorder WPL W11598115 $49.01

19

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

20

W11313747 Whirlpool Convention Baffle Backorder WPL W11313747 $79.88

20

Bottom Vent Assembly (Stainless) WPL W11658601 Contact Us For Availability

21

SCREW Backorder WPL W10739592 $6.28

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $49.01

22

W11714646 Whirlpool Trim Assembly Backorder WPL W11714646 $32.65

22

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

23

SUPPORT Backorder WPL W11135135 $19.95

24

Spacer, Bottom Chassis Duct WPL W11135125 Contact Us For Availability

25

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $27.45

26

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $33.75

28

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $61.34

29

W11235460 Whirlpool Mounting Rail Backorder WPL W11235460 $44.65

30

Bracket, Top Front WPL W11342780 Contact Us For Availability

31

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $57.37

32

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $52.01

33

TUBE-VENT Backorder WPL W11256423 $20.39

34

BRKT-SUPRT Backorder WPL W11186652 $24.47

35

W11235482 Whirlpool Exhaust Vent Backorder WPL W11235482 $52.26

36

W11715951 Whirlpool Vent Trim Backorder WPL W11715951 $37.53

37

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

38

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $3.33

39

Deflector, Lower Back Exhaust WPL W11256432 Contact Us For Availability

40

Hat Bracket, Vent WPL W11344645 Contact Us For Availability

41

Rivet (Black) WPL W11696855 Contact Us For Availability

42

TUBE-VENT Backorder WPL W11256420 $20.39

43

Cover, Top Back Exhaust WPL W11256421 Contact Us For Availability

44

Base, Lower Back Exhaust WPL W11256430 Contact Us For Availability

45

Cover, Lower Back Exhaust WPL W11256431 Contact Us For Availability

46

Foam, U-Bracket WPL W11211345 Contact Us For Availability

47

W11551866 Whirlpool Heater Deflector Backorder WPL W11551866 $16.01

48

W11325525 Whirlpool Oven Light Backorder WPL W11325525 $52.80

49

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.94

50

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80
