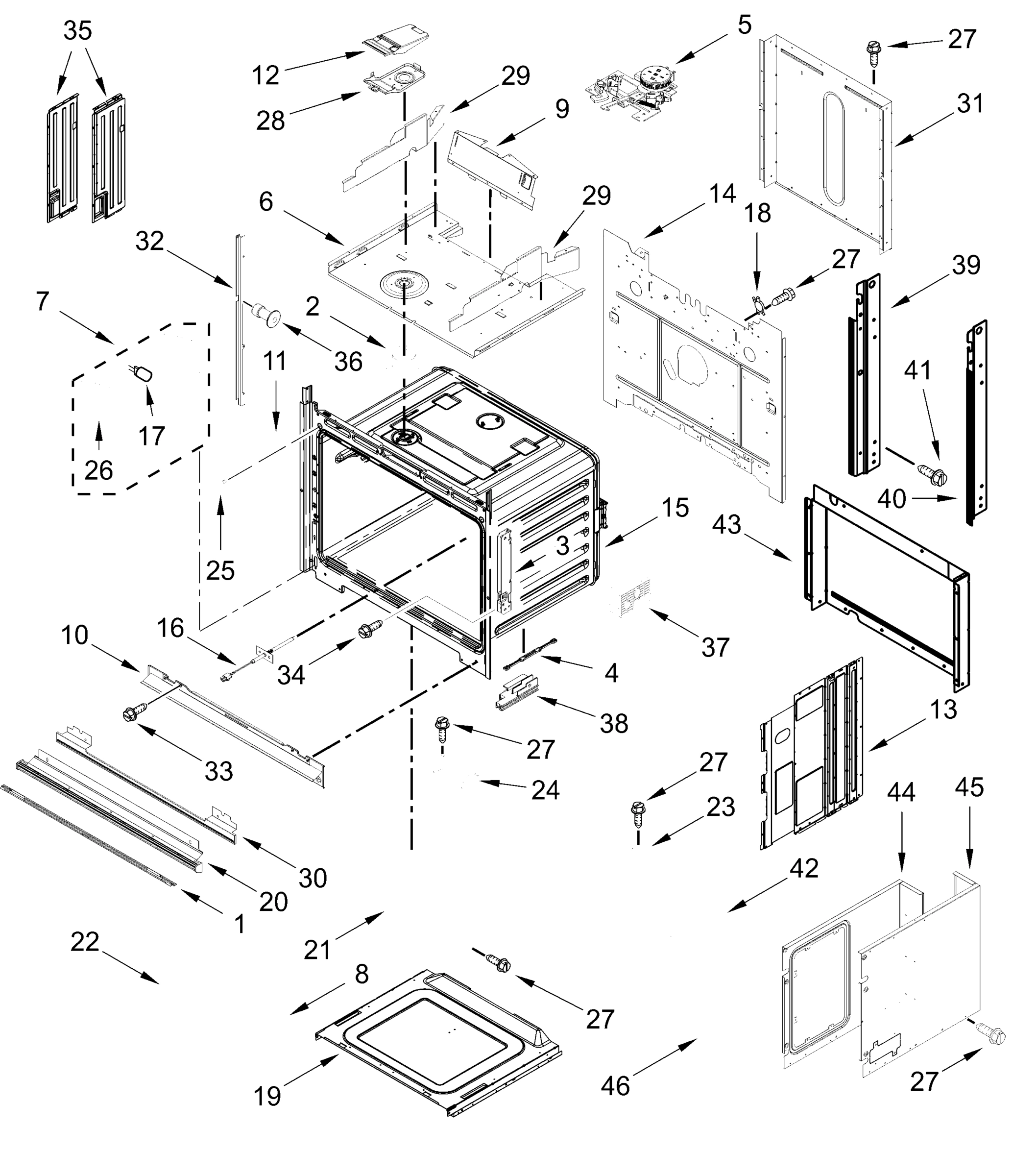

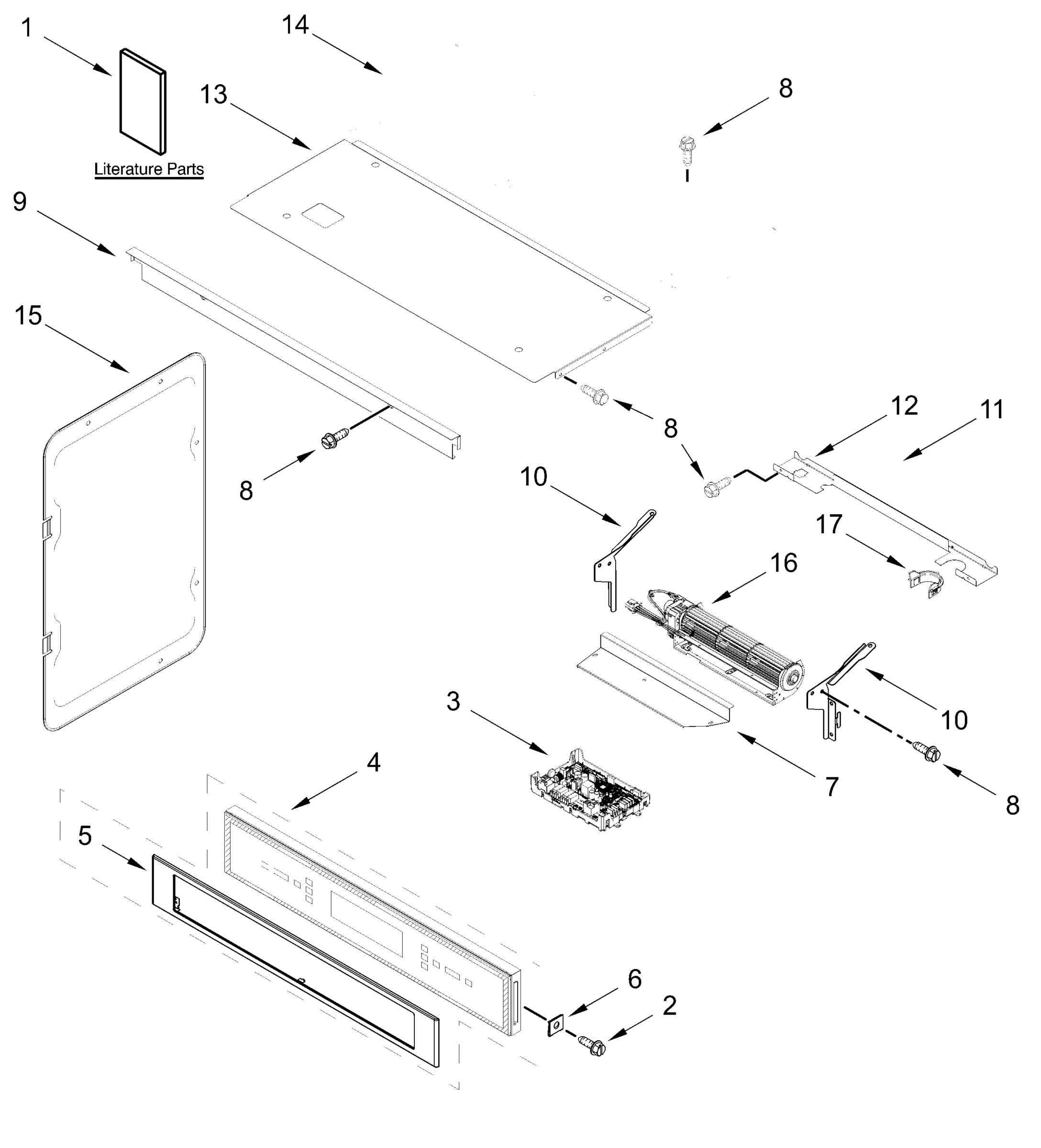

Model Whirlpool JOECC530RL00 – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W11369884 Whirlpool Oven Heat Deflector In Stock WPL W11369884 $46.67

W11570325 Whirlpool Trim In Stock WPL W11570325 $106.80

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $31.55

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

INSULATION (NOT ILLUSTRATED) WPL ARIC3896A09BBAECADB12C59FB914B3A715 Contact Us For Availability

Insulation, Wrap WPL W11188284 Contact Us For Availability

Insulation, Cavity WPL W11234758 Contact Us For Availability

PAINT, TOUCH-UP (1/2 oz.) WPL ARICEE9DD10D6E137089B7191A71E7507C2 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) WPL ARID101524930C2097021EE1F717E47B926 Contact Us For Availability

ADHESIVE WPL ARI0A5A46DE4BEBA2BC280800A3F3CAEA56 Contact Us For Availability

ACCESSORIES WPL ARI0B79C54BE7B3B29B3F337973815F9356 Contact Us For Availability

1

8304588BL Whirlpool Button Plug Backorder WPL 8304588BL $10.76

1

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $55.73

1

W11551866 Whirlpool Heater Deflector Backorder WPL W11551866 $16.01

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $46.65

1

W11600213 Whirlpool Oven Door Glass Backorder WPL W11600213 $268.42

1

Backorder WPL W11754874-includeCORE $182.81

2

W10359769 Whirlpool Microwave Door Gasket Backorder WPL W10359769 $8.18

2

W10486208 Whirlpool Microwave Trim Backorder WPL W10486208 $34.64

2

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $49.66

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.76

2

W11242906 Whirlpool Oven Rack Backorder WPL W11242906 $131.83

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $69.50

3

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $13.98

3

W11684570 Whirlpool Microwave Inner Door In Stock WPL W11684570 $276.30

3

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $31.55

3

Outer Door Assembly (Stainless, Includes Hing WPL W11691768 Contact Us For Availability

3

. Trim, Side (Right) WPL 461967017481 Contact Us For Availability

4

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $43.41

4

W11320231 Whirlpool Dishwasher Nameplate Backorder WPL W11320231 $56.80

4

W11334716 Whirlpool Door Trim Backorder WPL W11334716 $22.77

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $6.24

4

Screw WPL 7101P43460 Contact Us For Availability

4

Screw WPL 7101P33860 Contact Us For Availability

5

W10650497 Whirlpool Spacer Backorder WPL W10650497 $9.08

5

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $9.02

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $29.77

5

Screw WPL 7101P42660 Contact Us For Availability

5

Screw (Black) WPL W11707001 Contact Us For Availability

5

Filter, Noise WPL W11755010 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $17.00

6

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $64.54

6

TOP-CABNT Backorder WPL W11168071 $41.83

6

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $78.66

6

Hinge, Door (Left) WPL W11693140 Contact Us For Availability

6

Outer Door Assembly (Stainless) WPL W11693514 Contact Us For Availability

7

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $6.70

7

W11292252 Whirlpool Oven Light Backorder WPL W11292252 $35.81

7

W11342060 Whirlpool Door Handle Backorder WPL W11342060 $192.37

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $58.52

7

Backorder WPL W11755098 $34.77

7

Hinge, Door (Right) WPL W11693141 Contact Us For Availability

8

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

8

W10283021 Whirlpool Support Backorder WPL W10283021 $28.26

8

W11218702 Whirlpool Microwave Handle Panel Backorder WPL W11218702 $60.58

8

W11256305 Whirlpool Oven Rack In Stock WPL W11256305 $215.65

8

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $10.41

8

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $3.33

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $64.16

9

W11175831 Whirlpool Microwave Rack Backorder WPL W11175831 $15.99

9

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $59.35

9

W11602610 Whirlpool Oven Glass Door In Stock WPL W11602610 $221.60

9

W11617227 Whirlpool Fan Motor In Stock WPL W11617227 $93.03

W10815868 Whirlpool Cookware Assembly Backorder WPL W10815868 $41.36

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $55.82

W11578959 Whirlpool Magnetron In Stock WPL W11578959 $71.24

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

Backorder WPL W11743956 $70.64

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $24.47

W11692454 Whirlpool Gasket Backorder WPL W11692454 $55.37

WPW10387651 Whirlpool Microwave Element In Stock WPL WPW10387651 $152.39

Light Module, LED WPL W11692431 Contact Us For Availability

W10521808 Whirlpool Baffle Convect Backorder WPL W10521808 $121.61

COVR-EXHST Backorder WPL W11256424 $19.71

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $24.47

Lens Assy, LED WPL W11692409 Contact Us For Availability

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $45.33

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $41.07

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $5.44

W11724411 Whirlpool Support In Stock WPL W11724411 $33.75

Tray, Electronic WPL W11645761 Contact Us For Availability

461967754821 Whirlpool Microwave Magnetic Duc Backorder WPL 461967754821 $37.77

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.51

Back, Chassis WPL W11223327 Contact Us For Availability

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

Liner, Oven (Not Serviceable) WPL ARIF1DCB018B2324CAD9D04009CD738647B Contact Us For Availability

Baffle, Bow Tie WPL W11192519 Contact Us For Availability

W11214928 Whirlpool Microwave Interlock Backorder WPL W11214928 $13.49

W11705878 Whirlpool Vent Trim Backorder WPL W11705878 $145.46

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

Probe, Sensor WPL W11685697 Contact Us For Availability

Backorder WPL W10588737 $41.82

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $57.37

Probe, Temperature WPL W11692542 Contact Us For Availability

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

W11678579 Whirlpool Element Backorder WPL W11678579 $44.05

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $76.71

Housing, Lower Inverter WPL W11591018 Contact Us For Availability

W10443110 Whirlpool Screw Backorder WPL W10443110 $5.38

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

W11598115 Whirlpool Access Cover Backorder WPL W11598115 $49.01

Housing, Upper Inverter WPL W11591019 Contact Us For Availability

20

SCREW Backorder WPL W10739592 $6.28

20

W11578578 Whirlpool Microwave Wire Harness In Stock WPL W11578578 $66.48

20

Bottom Vent Assembly (Stainless) WPL W11658601 Contact Us For Availability

21

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $49.01

21

W11598121 Whirlpool Top-Cabnt Backorder WPL W11598121 $29.81

22

W10283020 Whirlpool Support Backorder WPL W10283020 $28.26

22

Cover, Convect Plate WPL W11398057 Contact Us For Availability

22

Hinge, Door WPL W11681074 Contact Us For Availability

23

461967825601 Whirlpool Screw Backorder WPL 461967825601 $9.13

23

SUPPORT Backorder WPL W11135135 $19.95

23

Plate, Convect Motor WPL W11251715 Contact Us For Availability

24

W11578579 Whirlpool Inverter In Stock WPL W11578579 $99.63

24

Spacer, Bottom Chassis Duct WPL W11135125 Contact Us For Availability

24

Insulation, Convect Motor WPL W11251716 Contact Us For Availability

25

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

25

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

26

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $5.12

26

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $61.34

28

TUBE-VENT Backorder WPL W11256423 $20.39

28

W11700292 Whirlpool Spring Backorder WPL W11700292 $28.11

29

W11684510 Whirlpool Support In Stock WPL W11684510 $5.38

29

Deflector, Chassis (Left) WPL W11186391 Contact Us For Availability

30

W11607070 Whirlpool Arm Backorder WPL W11607070 $10.23

30

W11714646 Whirlpool Trim Assembly Backorder WPL W11714646 $32.65

31

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $52.01

31

Sensor, Humidity WPL W11647874 Contact Us For Availability

32

W11235457 Whirlpool Trim Backorder WPL W11235457 $29.54

32

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $45.68

33

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $17.68

33

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $3.33

34

W11512064 Whirlpool Microwave Fan In Stock WPL W11512064 $63.89

34

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

35

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $27.45

35

WPW10493735 Whirlpool Microwave Heater Backorder WPL WPW10493735 $47.16

36

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $37.95

36

Rivet (Black) WPL W11696855 Contact Us For Availability

37

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

37

Thermostat, Magnetron WPL W11692611 Contact Us For Availability

38

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $29.26

38

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

39

W11627410 Whirlpool Mounting Rail Backorder WPL W11627410 $21.36

39

W11690594 Whirlpool Screw Backorder WPL W11690594 $8.11

40

W11627411 Whirlpool Mounting Rail Backorder WPL W11627411 $21.36

40

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

41

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

41

Screw (Black) WPL 7101P63360 Contact Us For Availability

42

W10283024 Whirlpool Mounting Bracket Backorder WPL W10283024 $27.52

43

W11171004 Whirlpool Rear Cover Backorder WPL W11171004 $52.01

44

Side, Combo Chassis (Left) WPL W11717606 Contact Us For Availability

45

Side, Combo Chassis (Right) WPL W11244451 Contact Us For Availability

46

W10283022 Whirlpool Support Backorder WPL W10283022 $27.52
