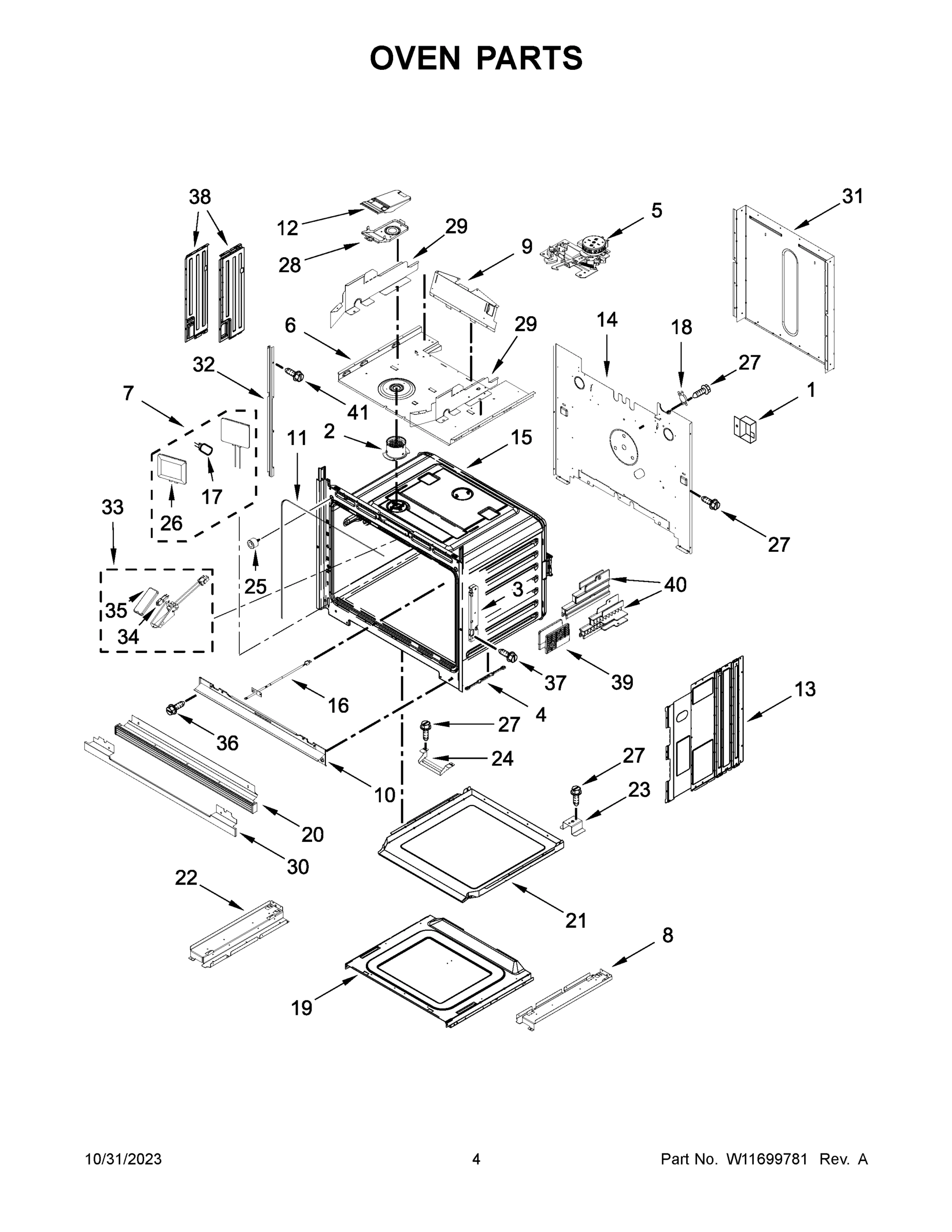

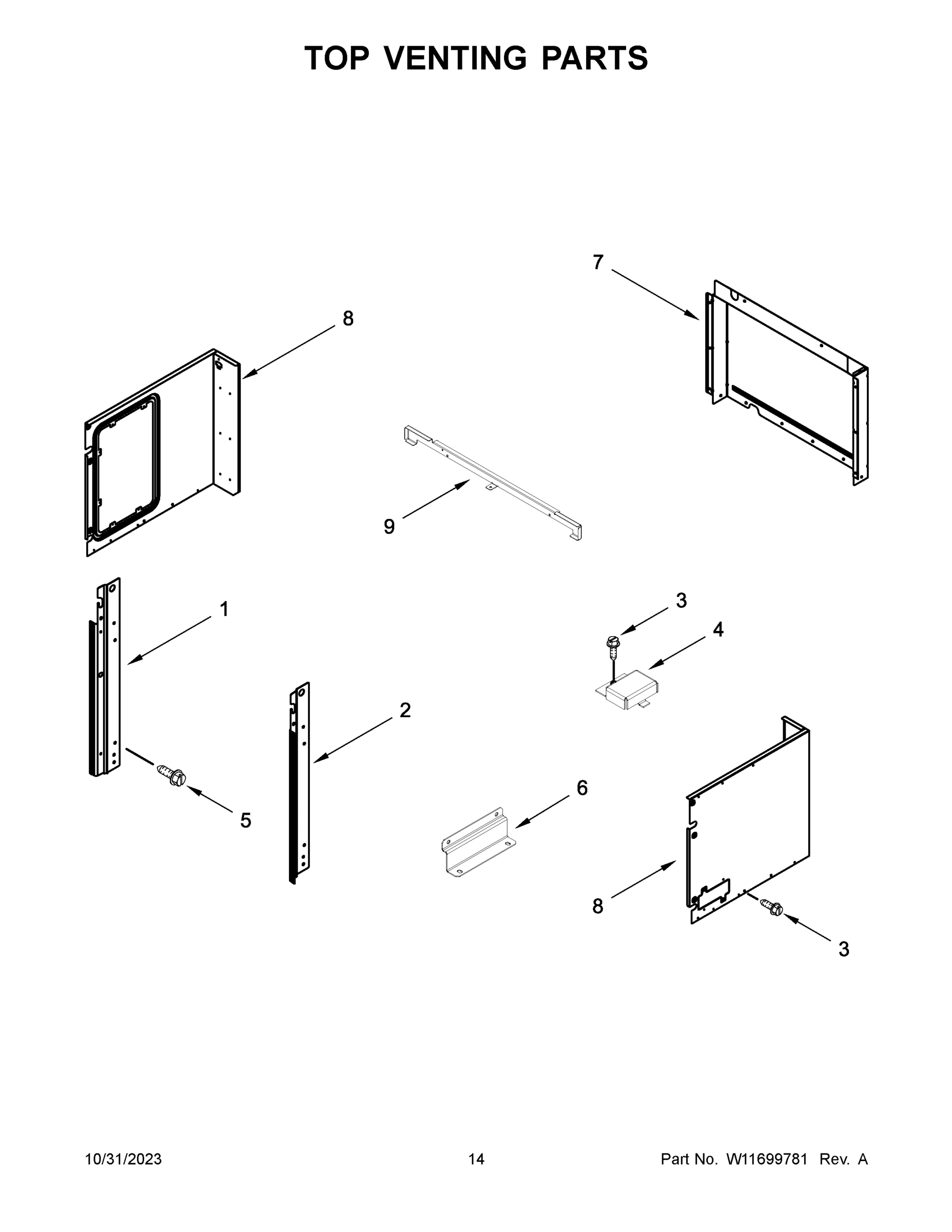

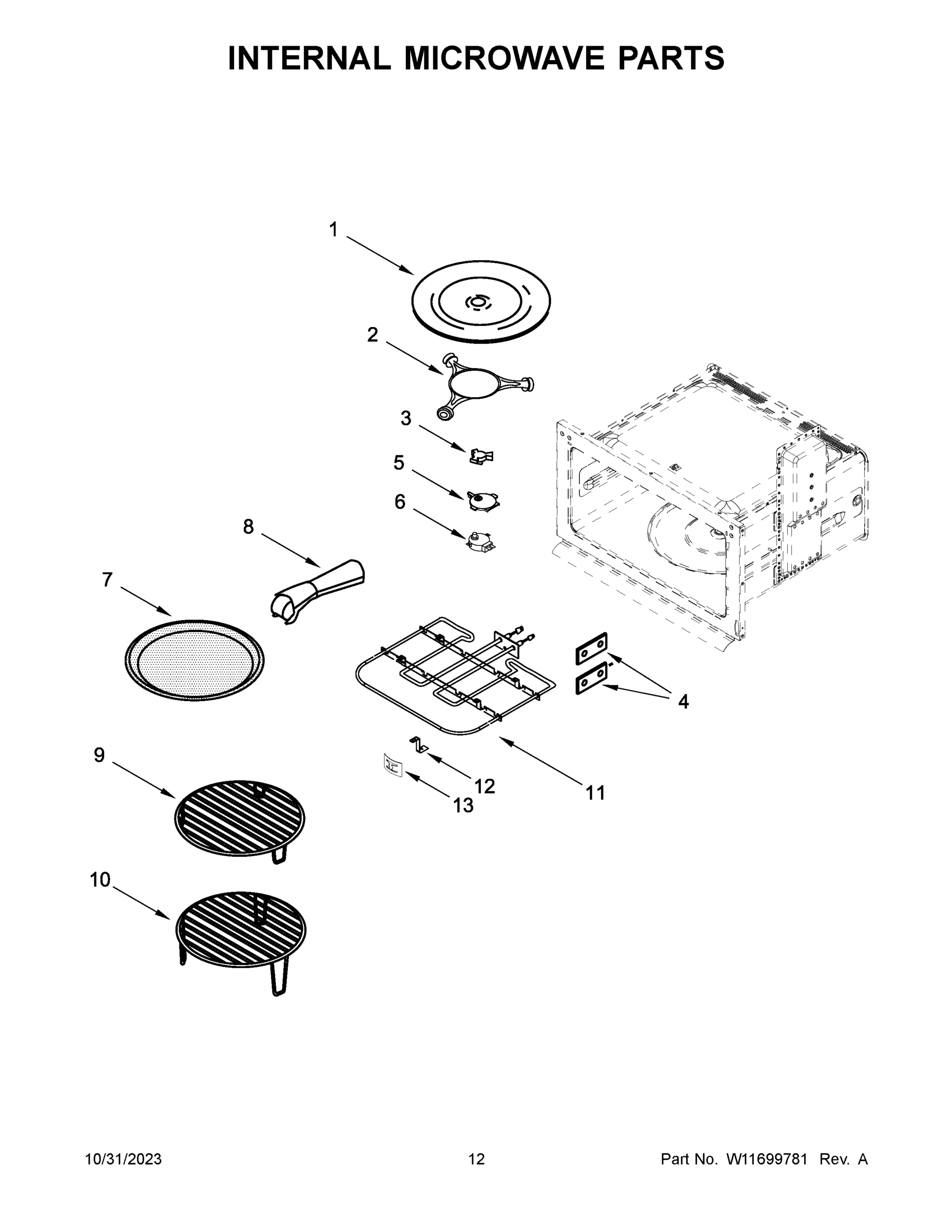

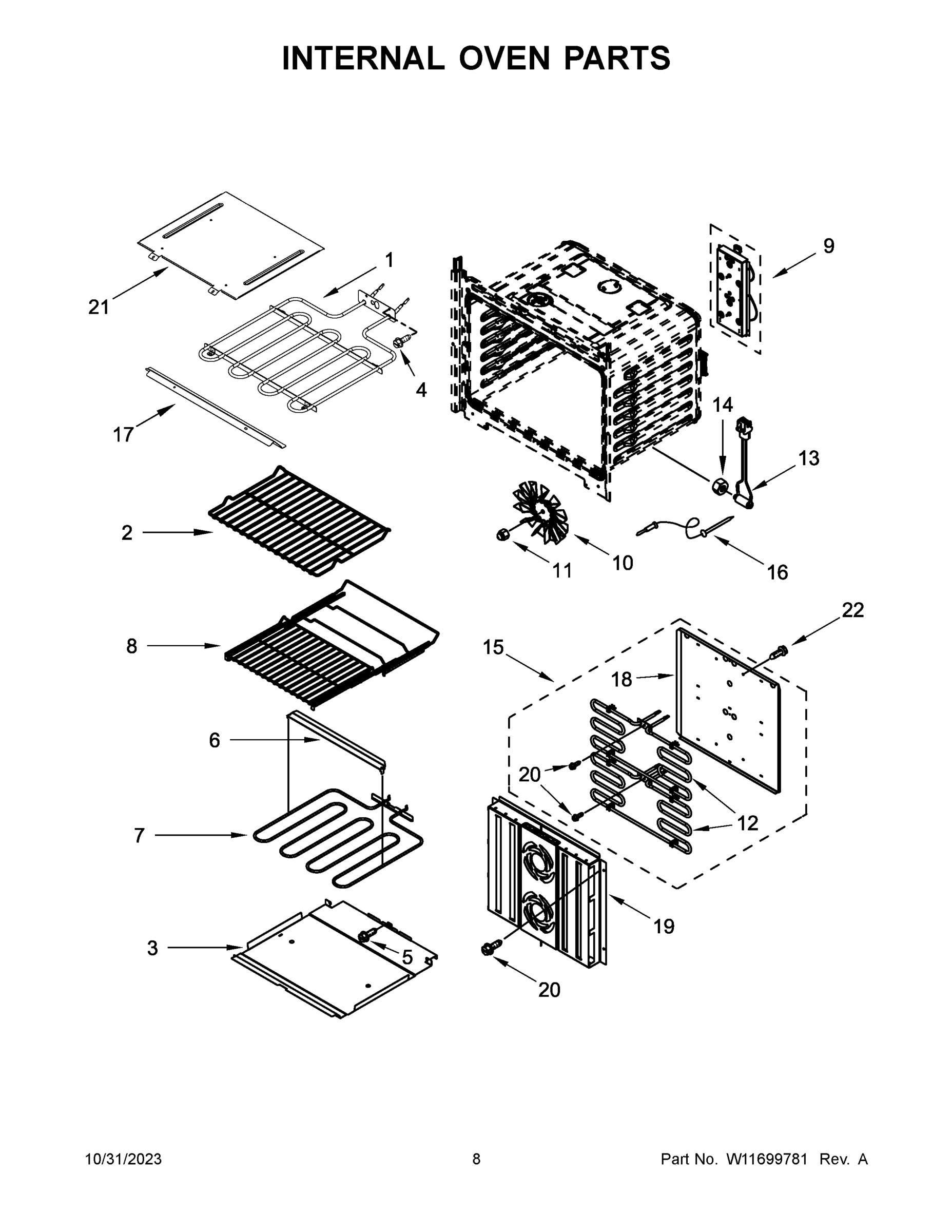

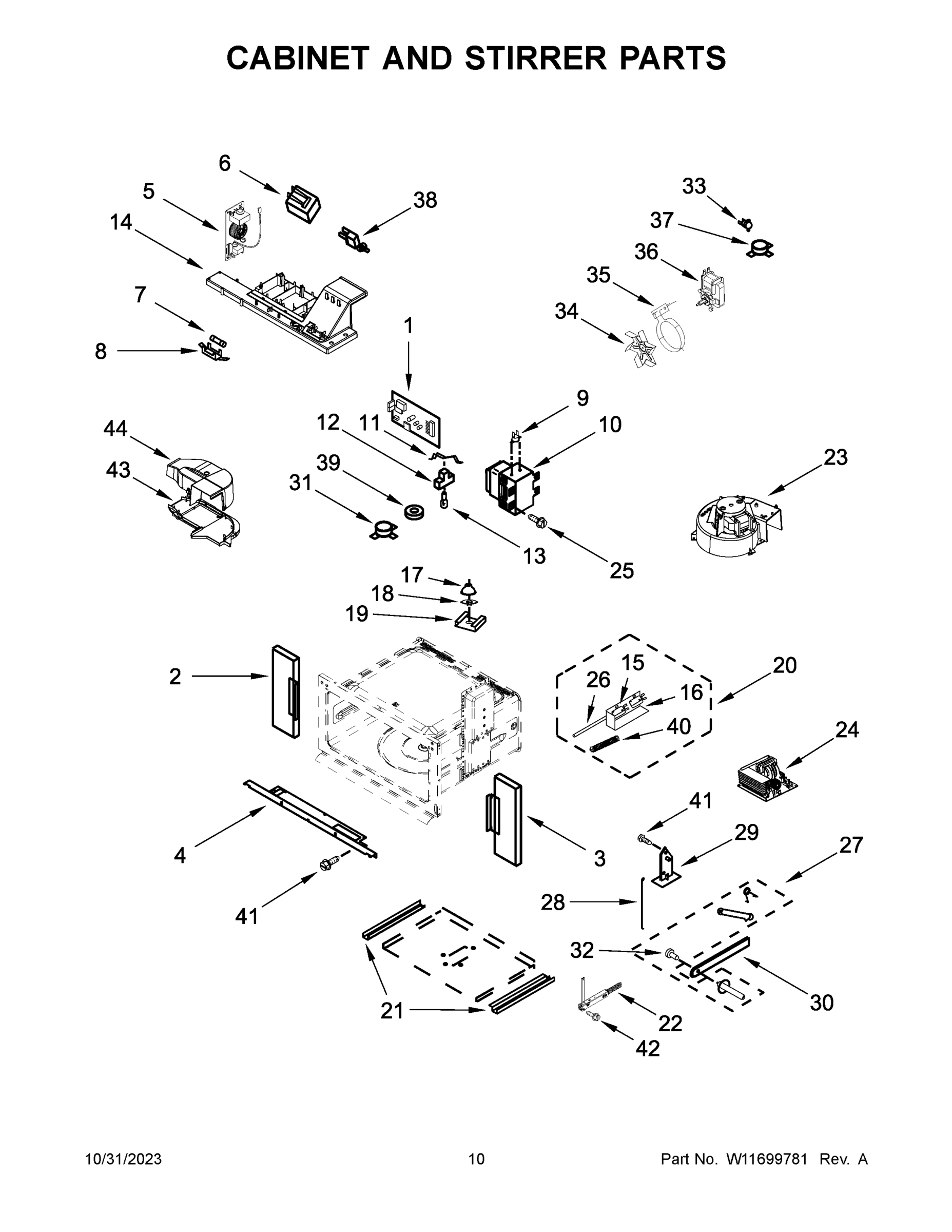

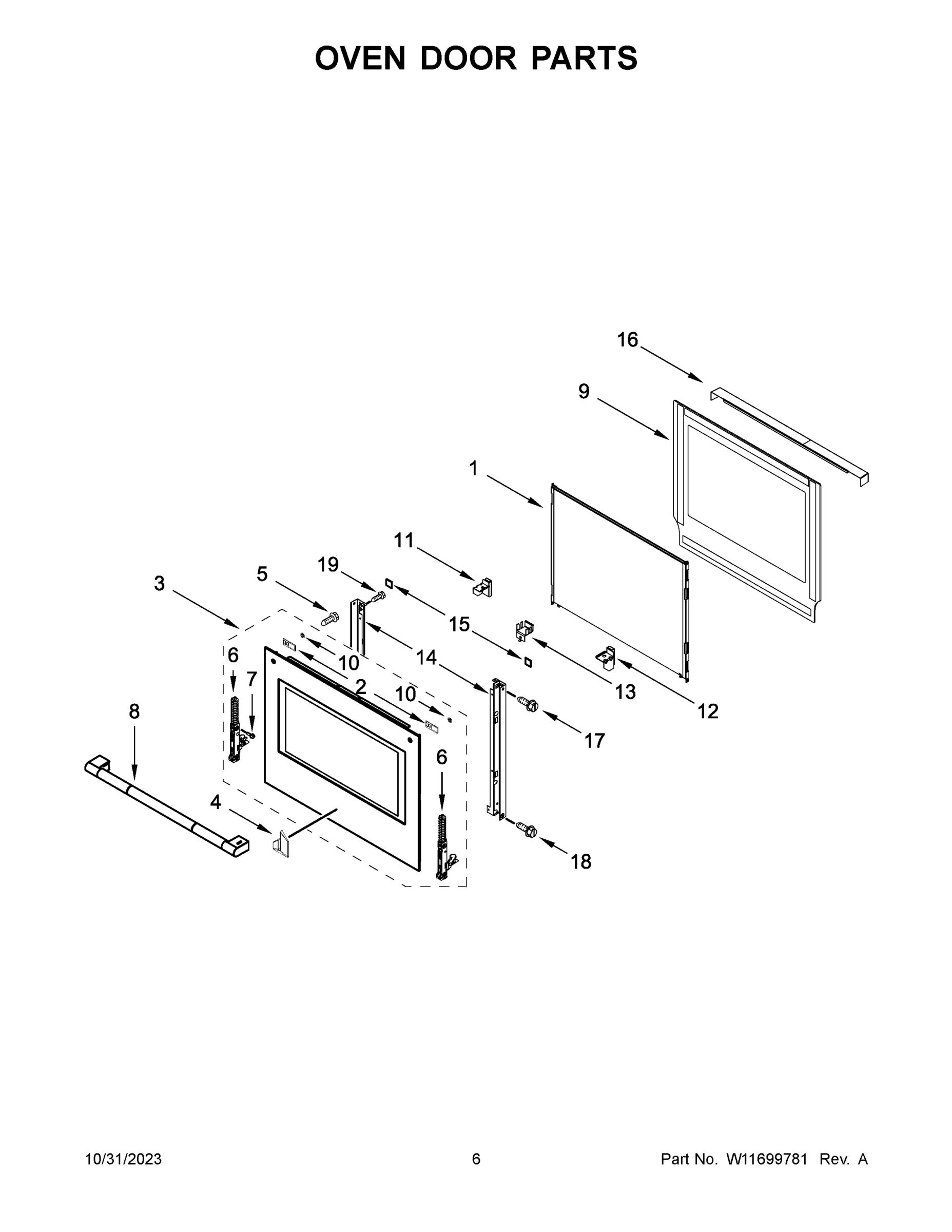

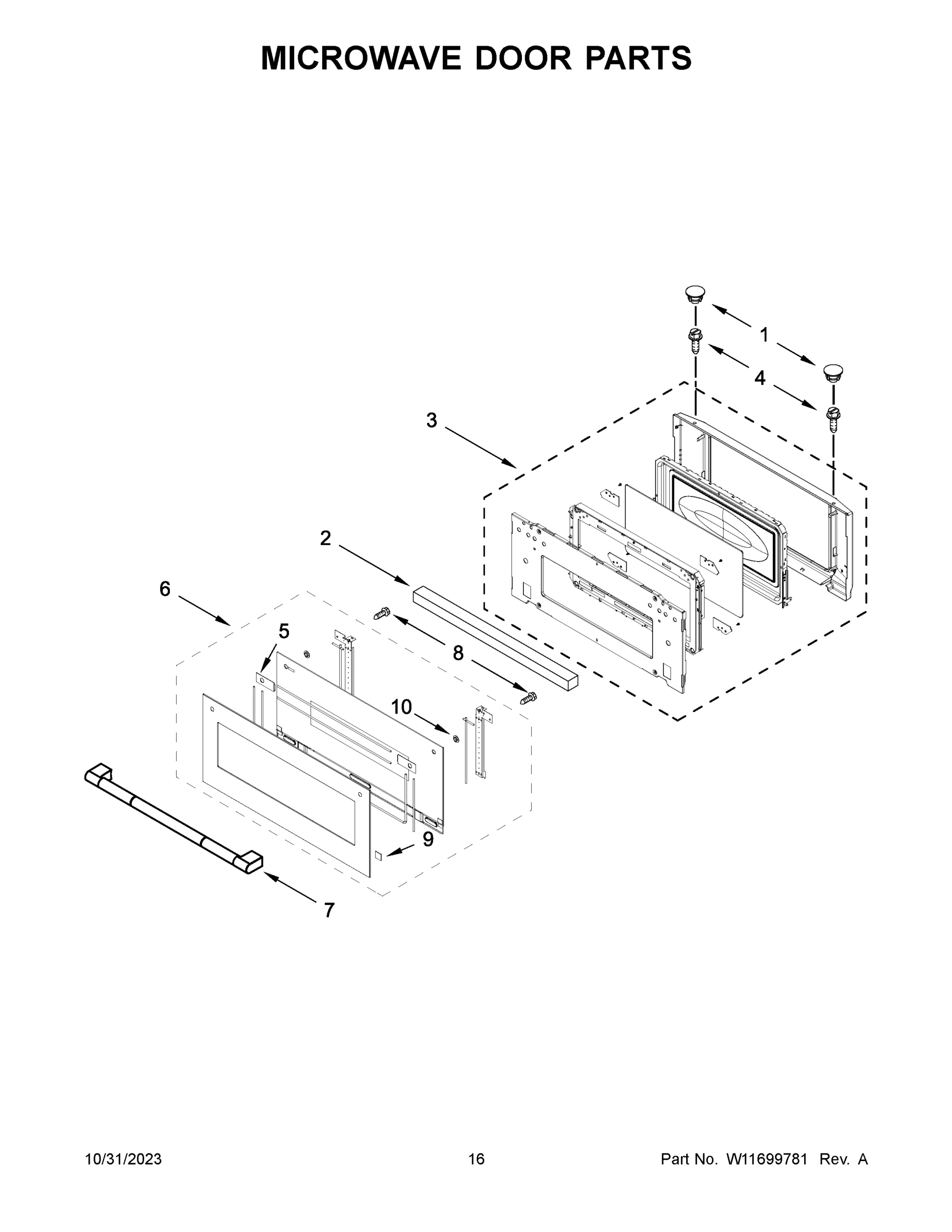

Model Whirlpool JMW3430LL03 WALL OVEN, ELECTRIC, MICRO COMBO – Common Parts &amp; Diagrams

1

W11325784 Whirlpool Microwave Electronic Cont In Stock WPL W11325784 $122.93

1

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $55.73

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $46.65

1

W11600213 Whirlpool Oven Door Glass Backorder WPL W11600213 $268.42

1

W11627410 Whirlpool Mounting Rail Backorder WPL W11627410 $21.36

2

W10359769 Whirlpool Microwave Door Gasket Backorder WPL W10359769 $8.18

2

W10486208 Whirlpool Microwave Trim Backorder WPL W10486208 $34.64

2

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $49.66

2

W11123146 Whirlpool Speaker Backorder WPL W11123146 $31.29

2

W11242906 Whirlpool Oven Rack Backorder WPL W11242906 $131.83

2

W11627411 Whirlpool Mounting Rail Backorder WPL W11627411 $21.36

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $69.50

3

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $13.98

3

W11602609 Whirlpool Door Glass Assembly In Stock WPL W11602609 $570.96

3

W11684570 Whirlpool Microwave Inner Door In Stock WPL W11684570 $276.30

3

SCREW WPL 7101P42660 Contact Us For Availability

3

TRIM, SIDE (RIGHT) WPL 461967017481 Contact Us For Availability

4

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $33.75

4

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $43.41

4

W11320231 Whirlpool Dishwasher Nameplate Backorder WPL W11320231 $56.80

4

W11334716 Whirlpool Door Trim Backorder WPL W11334716 $22.77

4

SCREW WPL 7101P43460 Contact Us For Availability

4

SCREW WPL 7101P33860 Contact Us For Availability

5

W10650497 Whirlpool Spacer Backorder WPL W10650497 $9.08

5

W11578573 Whirlpool Filter Backorder WPL W11578573 $41.05

5

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $9.02

5

SCREW (BLACK) WPL 7101P63360 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $17.00

6

W10283024 Whirlpool Mounting Bracket Backorder WPL W10283024 $27.52

6

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $64.54

6

W11111221 Whirlpool Oven Door Hinge Backorder WPL W11111221 $79.55

6

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $131.11

6

W11602618 Whirlpool Door Glass In Stock WPL W11602618 $395.49

6A

W11111222 Whirlpool Oven Door Hinge In Stock WPL W11111222 $57.65

7

W11171004 Whirlpool Rear Cover Backorder WPL W11171004 $52.01

7

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $6.70

7

W11342060 Whirlpool Door Handle Backorder WPL W11342060 $192.37

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $58.52

7

Backorder WPL W11755098 $34.77

7

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $3.33

7

WPW10260060-includeCORE Whirlpool WPW10260060 Backorder WPL WPW10260060-includeCORE $192.71

8

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

8

W11218702 Whirlpool Microwave Handle Panel Backorder WPL W11218702 $60.58

8

W11256305 Whirlpool Oven Rack In Stock WPL W11256305 $215.65

8

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $10.41

8

SIDE, COMBO CHASSIS (LEFT) WPL W11171909 Contact Us For Availability

8A

SIDE, COMBO CHASSIS (RIGHT) WPL W11171919 Contact Us For Availability

9

W10283022 Whirlpool Support Backorder WPL W10283022 $27.52

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $64.16

9

W11175831 Whirlpool Microwave Rack Backorder WPL W11175831 $15.99

9

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $59.35

9

W11255349 Whirlpool Fan Motor Backorder WPL W11255349 $213.58

9

W11602610 Whirlpool Oven Glass Door In Stock WPL W11602610 $221.60

W10748280 Whirlpool Microwave Rack Backorder WPL W10748280 $44.94

W11301887 Whirlpool Convection Fan Backorder WPL W11301887 $120.93

W11578959 Whirlpool Magnetron In Stock WPL W11578959 $71.24

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $38.50

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $24.47

WPW10387651 Whirlpool Microwave Element In Stock WPL WPW10387651 $152.39

11A

W10803140 Whirlpool Nut Backorder WPL W10803140 $8.20

12

W10663735 Whirlpool Element Backorder WPL W10663735 $116.36

12

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $24.47

12

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $28.40

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.85

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $41.07

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $5.44

W11724411 Whirlpool Support In Stock WPL W11724411 $33.75

14

461967754821 Whirlpool Microwave Magnetic Duc Backorder WPL 461967754821 $37.77

14

W11231343 Whirlpool Lock Nut In Stock WPL W11231343 $9.59

14

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

14A

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

15

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $32.67

15

W11098805 Whirlpool Element Backorder WPL W11098805 $127.36

15

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

16

W11214928 Whirlpool Microwave Interlock Backorder WPL W11214928 $13.49

16

W11705878 Whirlpool Vent Trim Backorder WPL W11705878 $145.46

16

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $34.44

Backorder WPL W10588737 $41.82

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $57.37

W10566973 Whirlpool Wire Harness In Stock WPL W10566973 $31.46

W10853277 Whirlpool Shield Backorder WPL W10853277 $32.54

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $39.07

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $76.71

19

W10443110 Whirlpool Screw Backorder WPL W10443110 $5.38

19

W11313747 Whirlpool Convention Baffle Backorder WPL W11313747 $79.88

19

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

20

W10575307 Whirlpool Wire Harness Backorder WPL W10575307 $72.82

20

W11578578 Whirlpool Microwave Wire Harness In Stock WPL W11578578 $66.48

20

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

21

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

21

W10668510 Whirlpool Housing Backorder WPL W10668510 $42.51

21

W11598121 Whirlpool Top-Cabnt Backorder WPL W11598121 $29.81

22

W10283020 Whirlpool Support Backorder WPL W10283020 $28.26

22

SCREW Backorder WPL W10739592 $6.28

22

HINGE-DOOR Backorder WPL W11750429 $34.02

23

SUPPORT Backorder WPL W11135135 $19.95

23

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $78.66

24

W11578579 Whirlpool Inverter In Stock WPL W11578579 $99.63

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

25

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

25

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

26

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $5.12

26

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $61.34

28

TUBE-VENT Backorder WPL W11256423 $20.39

28

W11700292 Whirlpool Spring Backorder WPL W11700292 $28.11

29

W11684510 Whirlpool Support In Stock WPL W11684510 $5.38

29

DEFLECTOR, CHASSIS (LEFT) WPL W11186391 Contact Us For Availability

29A

DEFLCTR-VT Backorder WPL W11186398 $19.65

30

W11598135 Whirlpool Trim In Stock WPL W11598135 $35.94

30

W11607070 Whirlpool Arm Backorder WPL W11607070 $10.23

31

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $52.01

31

W11699906 Whirlpool Sensor In Stock WPL W11699906 $53.62

32

W11235457 Whirlpool Trim Backorder WPL W11235457 $29.54

32

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $45.68

32A

W11235458 Whirlpool Trim Backorder WPL W11235458 $29.54

33

W11325525 Whirlpool Oven Light Backorder WPL W11325525 $52.80

33

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $17.68

34

W11512064 Whirlpool Microwave Fan In Stock WPL W11512064 $63.89

34

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.94

35

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

35

WPW10493735 Whirlpool Microwave Heater Backorder WPL WPW10493735 $47.16

36

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $37.95

36

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $3.33

37

W11208292 Whirlpool Microwave Sensor Backorder WPL W11208292 $62.86

37

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

38

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $29.26

38

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $27.45

38A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $27.45

39

W10769147 Whirlpool Microwave Foam Seal Backorder WPL W10769147 $14.44

39

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

40

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

40

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

40A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

41

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

41

W11602623 Whirlpool Screw Backorder WPL W11602623 $9.59

42

W11690594 Whirlpool Screw Backorder WPL W11690594 $8.11

43

HOUSING, LOWER INVERTER WPL W11591018 Contact Us For Availability

44

HOUSING, UPPER INVERTER WPL W11591019 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

INSULATION Backorder WPL W11244449 $31.11

W11369884 Whirlpool Oven Heat Deflector In Stock WPL W11369884 $46.67

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $25.71

INSULATION, WRAP WPL W11188284 Contact Us For Availability
