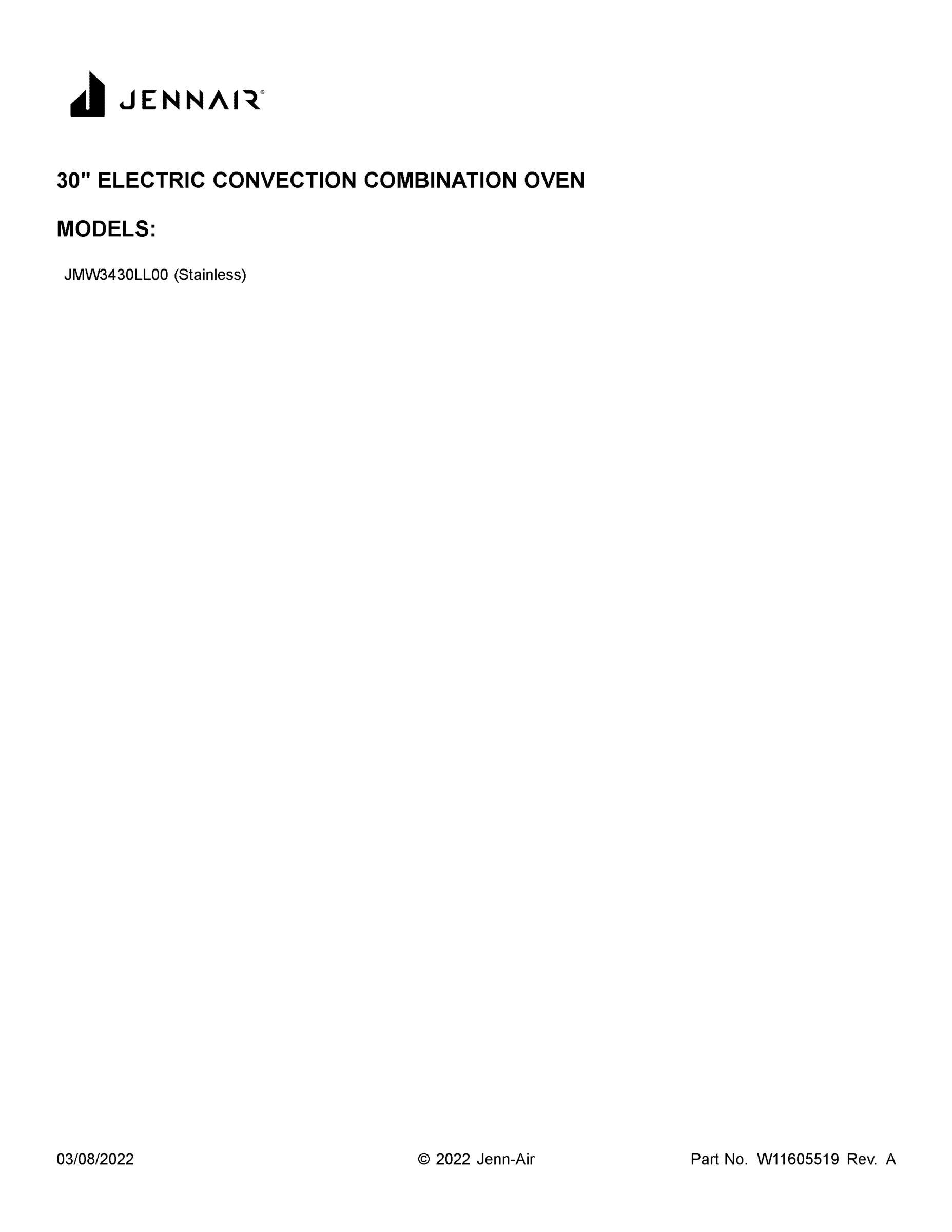

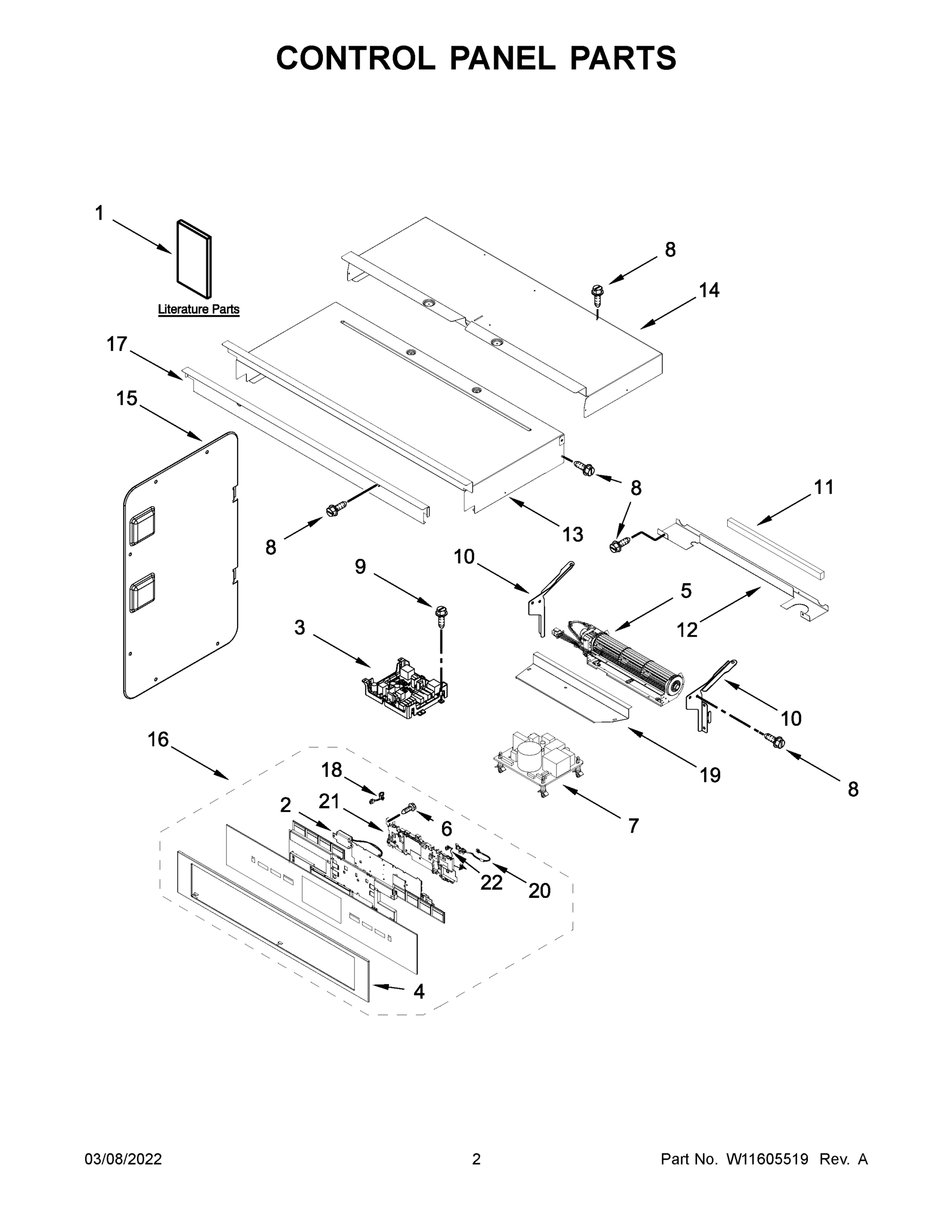

Model Whirlpool JMW3430LL00 WALL OVEN, ELECTRIC, MICRO COMBO, 30 INCH – Common Parts &amp; Diagrams

1

W11325784 Whirlpool Microwave Electronic Cont In Stock WPL W11325784 $122.13

1

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $44.43

1

W11600213 Whirlpool Oven Door Glass Backorder WPL W11600213 $267.63

1

SCREW WPL 7101P06060 Contact Us For Availability

2

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

2

W10359769 Whirlpool Microwave Door Gasket In Stock WPL W10359769 $8.18

2

W10486208 Whirlpool Microwave Trim Backorder WPL W10486208 $34.64

2

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $37.66

2

W11123146 Whirlpool Speaker Backorder WPL W11123146 $29.81

2

W11242906 Whirlpool Oven Rack Backorder WPL W11242906 $131.83

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $12.65

3

W11602609 Whirlpool Door Glass Assembly In Stock WPL W11602609 $570.17

3

W11684570 Whirlpool Microwave Inner Door In Stock WPL W11684570 $275.51

3

SCREW WPL 7101P42660 Contact Us For Availability

3

TRIM, SIDE (RIGHT) WPL 461967017481 Contact Us For Availability

4

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

4

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $32.79

4

W11320231 Whirlpool Dishwasher Nameplate Backorder WPL W11320231 $54.70

4

W11334716 Whirlpool Door Trim Backorder WPL W11334716 $22.77

4

SCREW WPL 7101P43460 Contact Us For Availability

4

SCREW WPL 7101P33860 Contact Us For Availability

5

W10650497 Whirlpool Spacer Backorder WPL W10650497 $9.08

5

W11578573 Whirlpool Filter Backorder WPL W11578573 $39.09

5

W11627411 Whirlpool Mounting Rail Backorder WPL W11627411 $20.33

5

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $8.20

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $63.73

6

W11111221 Whirlpool Oven Door Hinge Backorder WPL W11111221 $75.77

6

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

6

W11602618 Whirlpool Door Glass In Stock WPL W11602618 $394.70

6

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

6A

W11111222 Whirlpool Oven Door Hinge Backorder WPL W11111222 $54.90

7

W11171004 Whirlpool Rear Cover Backorder WPL W11171004 $49.54

7

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $5.87

7

W11342060 Whirlpool Door Handle Backorder WPL W11342060 $192.37

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7

Backorder WPL W11755098 $34.77

7

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

8

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

8

W11218702 Whirlpool Microwave Handle Panel Backorder WPL W11218702 $60.58

8

W11256305 Whirlpool Oven Rack In Stock WPL W11256305 $214.86

8

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $9.59

8

SIDE, COMBO CHASSIS (LEFT) WPL W11171909 Contact Us For Availability

8A

SIDE, COMBO CHASSIS (RIGHT) WPL W11244451 Contact Us For Availability

9

W10283022 Whirlpool Support Backorder WPL W10283022 $26.21

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11175831 Whirlpool Microwave Rack In Stock WPL W11175831 $15.23

9

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $55.75

9

W11255349 Whirlpool Fan Motor Backorder WPL W11255349 $214.98

9

W11602610 Whirlpool Oven Glass Door In Stock WPL W11602610 $221.60

W10748280 Whirlpool Microwave Rack Backorder WPL W10748280 $42.80

W11301887 Whirlpool Convection Fan Backorder WPL W11301887 $120.93

W11578959 Whirlpool Magnetron In Stock WPL W11578959 $70.43

W11627410 Whirlpool Mounting Rail Backorder WPL W11627410 $20.33

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

W10283024 Whirlpool Mounting Bracket Backorder WPL W10283024 $26.21

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $23.30

WPW10387651 Whirlpool Microwave Element Backorder WPL WPW10387651 $152.39

11A

W10803140 Whirlpool Nut Backorder WPL W10803140 $8.20

W10663735 Whirlpool Element Backorder WPL W10663735 $110.82

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $23.30

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $27.05

SCREW WPL 7101P65360 Contact Us For Availability

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.03

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $39.11

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $4.61

W11724411 Whirlpool Support In Stock WPL W11724411 $21.74

14

461967754821 Whirlpool Microwave Magnetic Duc Backorder WPL 461967754821 $35.98

14

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

14

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

14A

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

15

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

15

W11098805 Whirlpool Element Backorder WPL W11098805 $121.29

15

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

16

W11214928 Whirlpool Microwave Interlock Backorder WPL W11214928 $12.66

16

W11705878 Whirlpool Vent Trim Backorder WPL W11705878 $138.54

16

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

17

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

17

Backorder WPL W10588737 $39.82

17

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

W10566973 Whirlpool Wire Harness Backorder WPL W10566973 $29.96

W10853277 Whirlpool Shield Backorder WPL W10853277 $30.98

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

19

W11313747 Whirlpool Convention Baffle Backorder WPL W11313747 $76.07

19

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

20

W10575307 Whirlpool Wire Harness Backorder WPL W10575307 $69.34

20

W11578578 Whirlpool Microwave Wire Harness In Stock WPL W11578578 $62.54

20

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

21

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

21

W10668510 Whirlpool Housing Backorder WPL W10668510 $40.48

21

TOP-CABNT Backorder WPL W11598121 $28.38

22

W11675306 Whirlpool Door Hinge Backorder WPL W11675306 $40.33

22

SCREW WPL W10739592 Contact Us For Availability

23

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $74.14

24

W11578579 Whirlpool Inverter In Stock WPL W11578579 $120.04

25

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

26

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.30

26

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

28

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

29

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

30

W11607070 Whirlpool Arm Backorder WPL W11607070 $10.23

31

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $49.54

31

W11699906 Whirlpool Sensor In Stock WPL W11699906 $50.29

32

W11235457 Whirlpool Trim Backorder WPL W11235457 $29.54

32

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $42.71

32A

W11235458 Whirlpool Trim Backorder WPL W11235458 $29.54

33

W11325525 Whirlpool Oven Light Backorder WPL W11325525 $50.29

33

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

34

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

34

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

35

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

35

WPW10493735 Whirlpool Microwave Heater Backorder WPL WPW10493735 $44.91

36

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $36.14

36

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

37

W11208292 Whirlpool Microwave Sensor In Stock WPL W11208292 $59.10

37

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

38

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

38

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $26.15

38A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $26.15

39

W10769147 Whirlpool Microwave Foam Seal Backorder WPL W10769147 $14.44

39

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

40

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

40

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

40A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

41

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

42

W11690594 Whirlpool Screw Backorder WPL W11690594 $8.11

43

HOUSING, LOWER INVERTER WPL W11504613 Contact Us For Availability

44

HOUSING, UPPER INVERTER WPL W11504615 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8205262RB Whirlpool Refrigerator Crusher Blad Backorder WPL 8205262RB $28.58

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11356977 Whirlpool Wire Harness Backorder WPL W11356977 $39.64

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

INSULATION, WRAP WPL W11188284 Contact Us For Availability

INSULATION, TOP BACK WPL W11244449 Contact Us For Availability
