Model Maytag JMW3430DS01 WALL OVEN, ELECTRIC, MICROWAVE COMBO, BUILT-IN – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

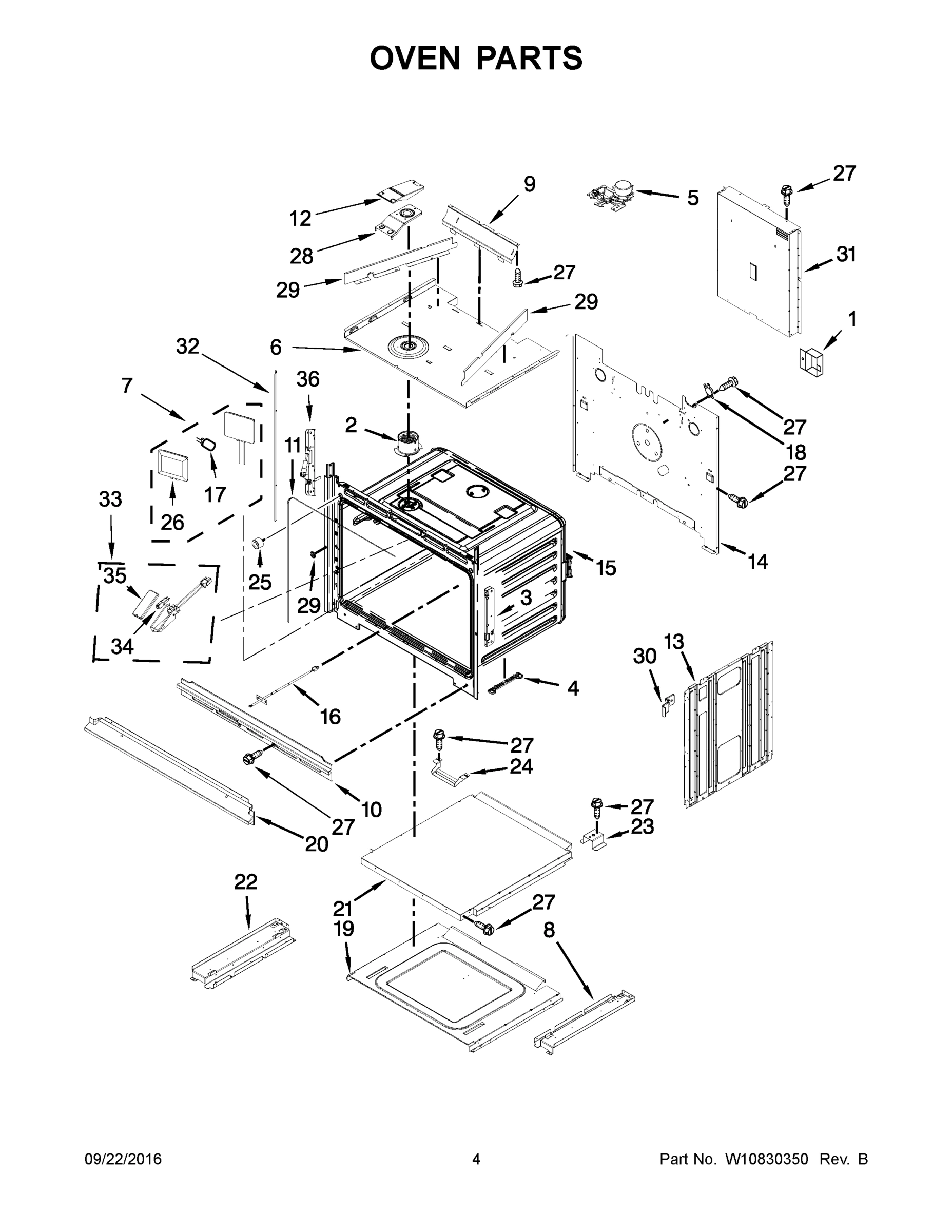

03 - OVEN PARTS

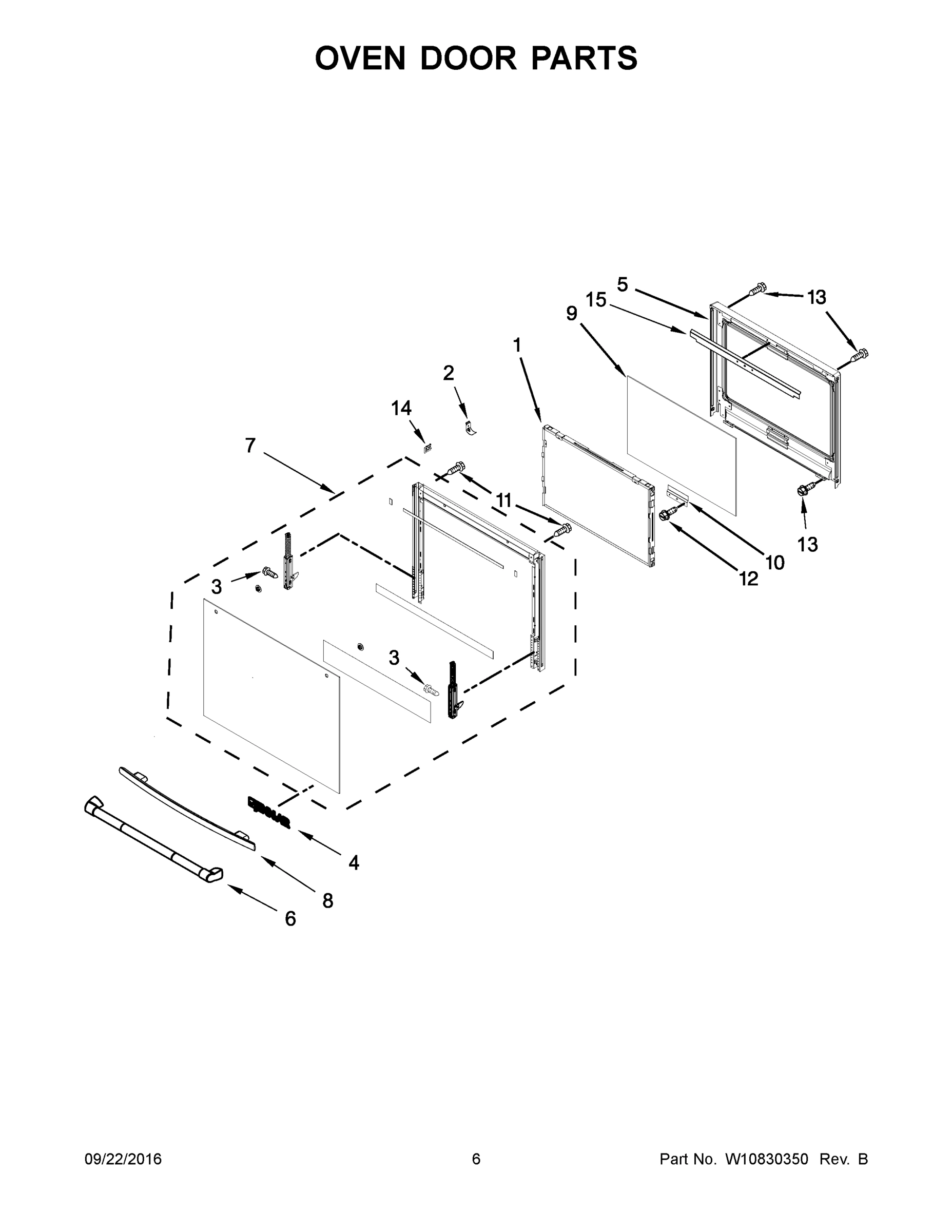

04 - OVEN DOOR PARTS

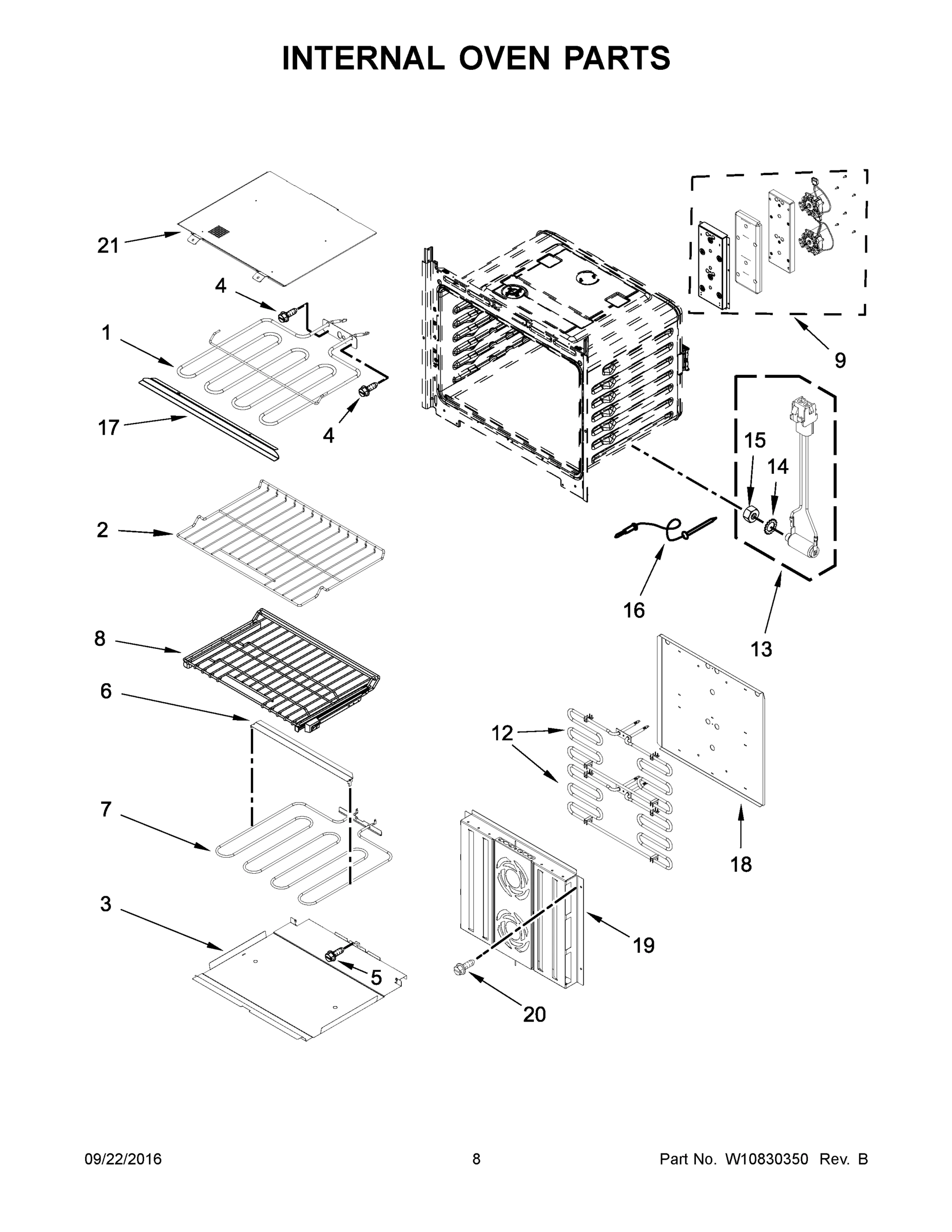

05 - INTERNAL OVEN PARTS

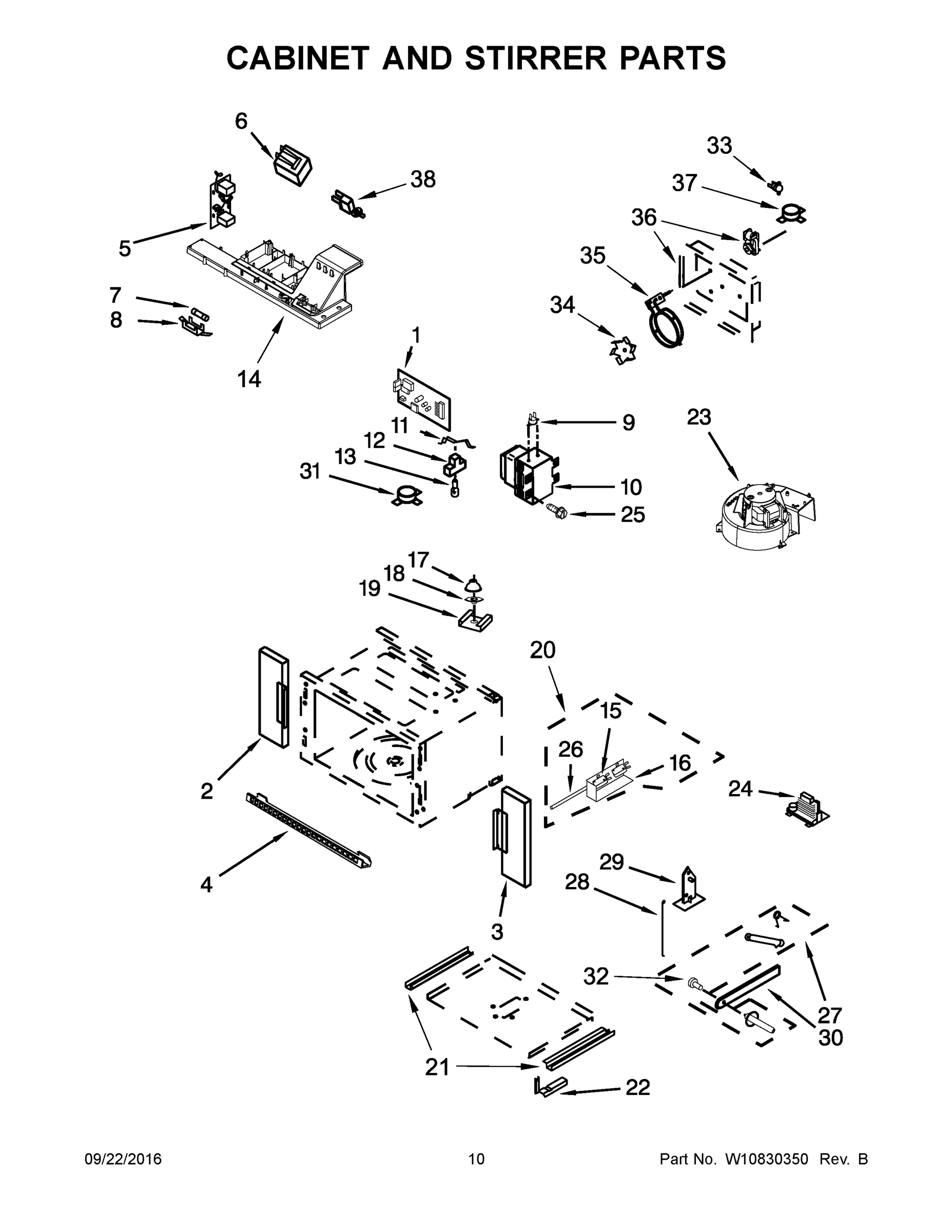

06 - CABINET AND STIRRER PARTS

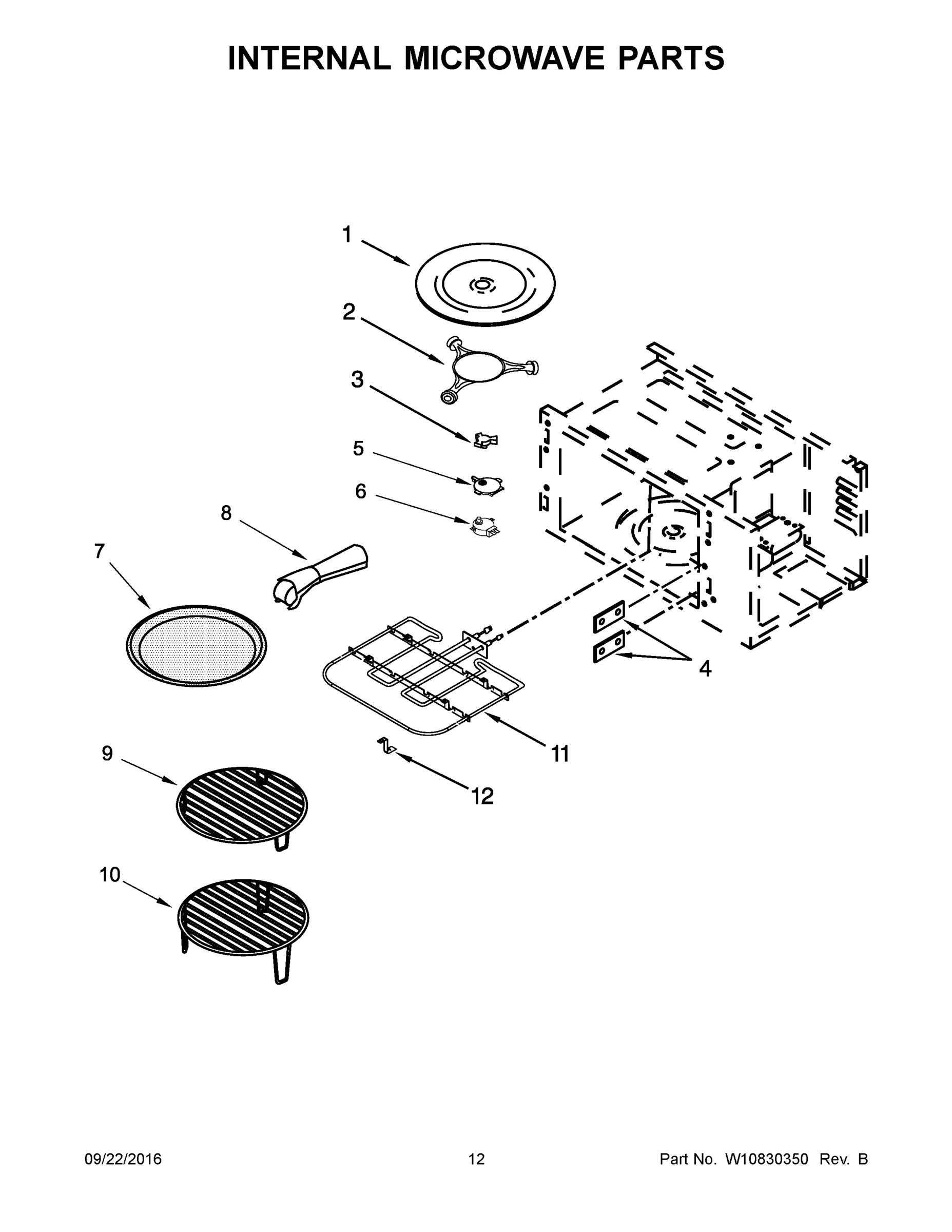

07 - INTERNAL MICROWAVE PARTS

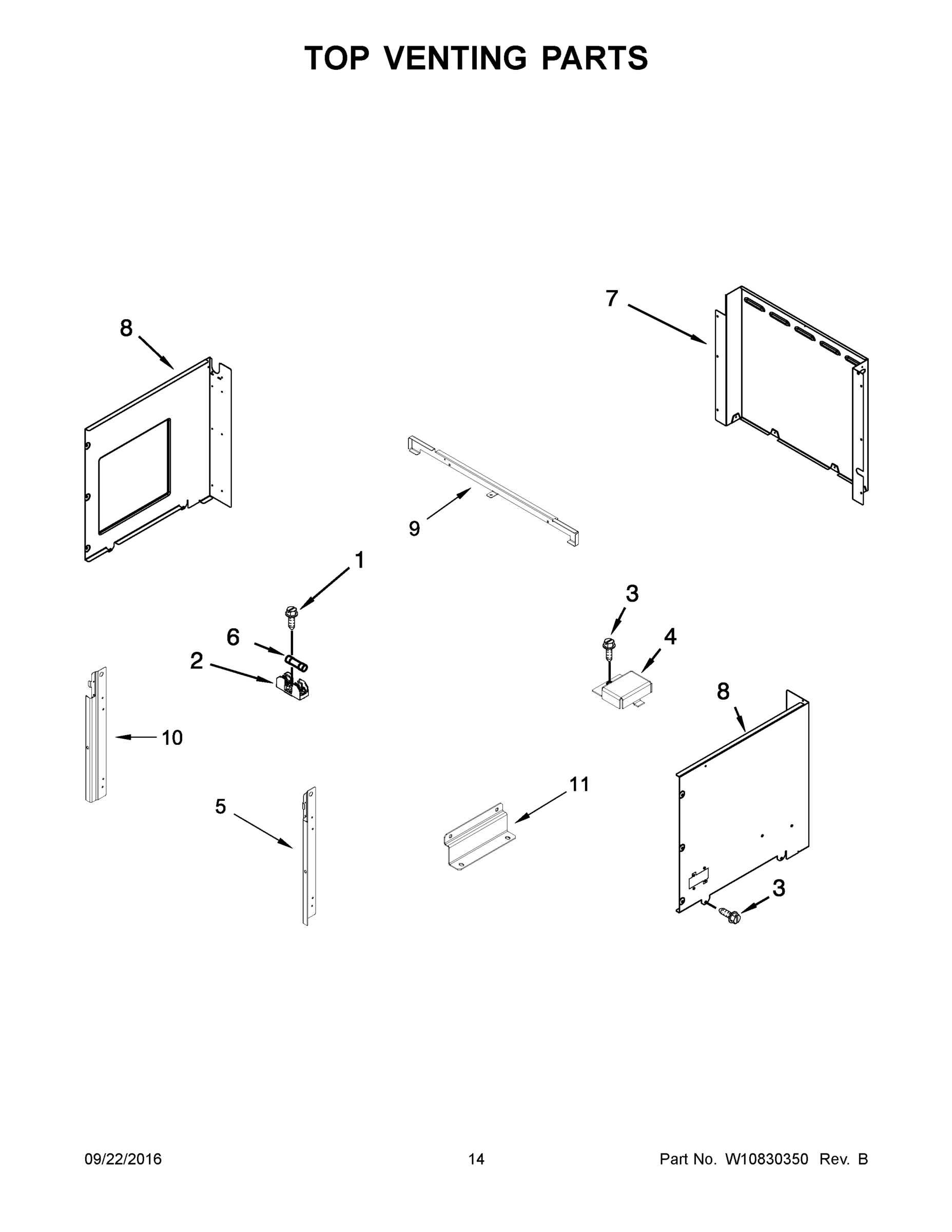

08 - TOP VENTING PARTS

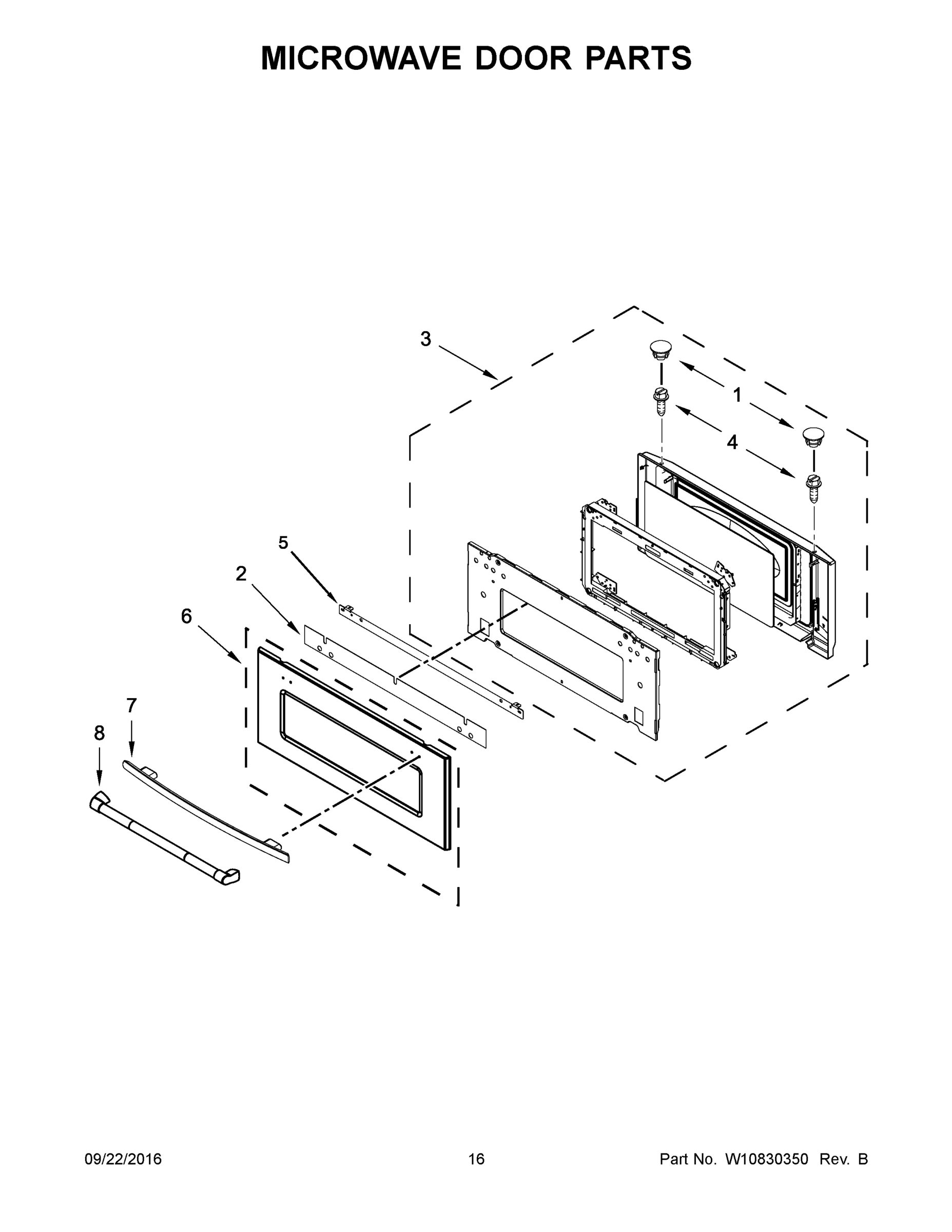

09 - MICROWAVE DOOR PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag JMW3430DS01 WALL OVEN, ELECTRIC, MICROWAVE COMBO, BUILT-IN
1
MAY W10754337 MAY W10754337 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10764078 MAY W10764078 Contact Us For Availability
1
MANAGER, MICROWAVE APPLIANCE MAY W10711277 Contact Us For Availability
1
MAY 461967721091 MAY 461967721091 Contact Us For Availability
1
MAY 7101P060-60 MAY 7101P060-60 Contact Us For Availability
1
MAY 8304588BL MAY 8304588BL Contact Us For Availability
1A
GUIDE, USE & CARE (MICROWAVE) MAY W10754339 Contact Us For Availability
1B
INSTRUCTIONS, INSTALLATION MAY W10768184 Contact Us For Availability
1C
INSTRUCTIONS, INSTALLATION (ENGLISH/FRENCH) MAY W10075750 Contact Us For Availability
1D
MAY W10767738 MAY W10767738 Contact Us For Availability
2
MAY W10568405 MAY W10568405 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10554526 MAY W10554526 Contact Us For Availability
2
MAY 461967017491 MAY 461967017491 Contact Us For Availability
2
MAY W10367316 MAY W10367316 Contact Us For Availability
2
MAY 4454949 MAY 4454949 Contact Us For Availability
2
FOAM, DOOR HANDLE MAY W10359769 Contact Us For Availability
3
MANAGER, APPLIANCE MAY W10635086 Contact Us For Availability
3
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
3
MAY W10616802 MAY W10616802 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
3
MAY 461967017481 MAY 461967017481 Contact Us For Availability
3
MAY W10545578 MAY W10545578 Contact Us For Availability
3
MAY W10687342 MAY W10687342 Contact Us For Availability
4
MAY W10618105 MAY W10618105 Contact Us For Availability
4
MAY 8285593 MAY 8285593 Contact Us For Availability
4
MAY W10618102 MAY W10618102 Contact Us For Availability
4
BADGE (BLACK) MAY W10190724 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
4
MAY 461968973241 MAY 461968973241 Contact Us For Availability
4
MAY 461967451001 MAY 461967451001 Contact Us For Availability
4
MAY 7101P338-60 MAY 7101P338-60 Contact Us For Availability
4A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
4B
BADGE (STAINLESS (PRO-STYLE MODELS)) MAY W10159578 Contact Us For Availability
5
BLOWER MAY W10669823 Contact Us For Availability
5
MAY W10618131 MAY W10618131 Contact Us For Availability
5
MAY W10709147 MAY W10709147 Contact Us For Availability
5
MAY W10692851 MAY W10692851 Contact Us For Availability
5
MAY 461967753742 MAY 461967753742 Contact Us For Availability
5
RAIL, SIDE (RIGHT) MAY W10710309 Contact Us For Availability
5
BRACKET, BALANCING DOOR MAY W10407600 Contact Us For Availability
6
MAY W10489172 MAY W10489172 Contact Us For Availability
6
MAY W10813743 MAY W10813743 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
6
MAY 461967848621 MAY 461967848621 Contact Us For Availability
6
MAY 461967848971 MAY 461967848971 Contact Us For Availability
6
MAY W10017410 MAY W10017410 Contact Us For Availability
6
MAY W10527390 MAY W10527390 Contact Us For Availability
6A
MAY W10457801 MAY W10457801 Contact Us For Availability
7
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10519866 Contact Us For Availability
7
MAY W10649196 MAY W10649196 Contact Us For Availability
7
ASSEMBLY, HANDLE (BLACK) MAY W10550998 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
7
MAY 241908600053 MAY 241908600053 Contact Us For Availability
7
MAY 461968977491 MAY 461968977491 Contact Us For Availability
7
MAY W10519707 MAY W10519707 Contact Us For Availability
7A
MAY W10649195 MAY W10649195 Contact Us For Availability
7A
ASSEMBLY, HANDLE (STAINLESS) MAY W10551013 Contact Us For Availability
8
SUPPORT, BASE (RIGHT) MAY W10283021 Contact Us For Availability
8
ASSEMBLY, HANDLE (STAINLESS (PRO-STYLE MODELS MAY W10483386 Contact Us For Availability
8
MAY W10840297 MAY W10840297 Contact Us For Availability
8
BLOCK, FUSE MAY 4375231 Contact Us For Availability
8
MAY 461968929542 MAY 461968929542 Contact Us For Availability
8
MAY W10655466 MAY W10655466 Contact Us For Availability
8A
MAY W10655468 MAY W10655468 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY W10641572 MAY W10641572 Contact Us For Availability
9
GLASS, INNER MAY W10618107 Contact Us For Availability
9
MAY W10853996 MAY W10853996 Contact Us For Availability
9
MAY 461967846741 MAY 461967846741 Contact Us For Availability
9
RACK, LOW CONVECTION MAY W10748279 Contact Us For Availability
9
MAY W10283022 MAY W10283022 Contact Us For Availability
10
MAY W10655463 MAY W10655463 Contact Us For Availability
10
VENT, CENTER 30" MAY W10495154 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10213746 MAY W10213746 Contact Us For Availability
10
MAY 461967847321 MAY 461967847321 Contact Us For Availability
10
MAY W10748280 MAY W10748280 Contact Us For Availability
10
RAIL, SIDE (LEFT) MAY W10710302 Contact Us For Availability
10A
MAY W10655462 MAY W10655462 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY W10739089 MAY W10739089 Contact Us For Availability
11
MAY W10480830 MAY W10480830 Contact Us For Availability
11
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
11
MAY W10465869 MAY W10465869 Contact Us For Availability
11
MAY W10387651 MAY W10387651 Contact Us For Availability
11
MAY W10283024 MAY W10283024 Contact Us For Availability
12
MAY W10655465 MAY W10655465 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10854021 MAY W10854021 Contact Us For Availability
12
MAY W10490593 MAY W10490593 Contact Us For Availability
12
MAY 461967753871 MAY 461967753871 Contact Us For Availability
13
CHASSIS, COVER TOP FRONT 30" MAY W10318158 Contact Us For Availability
13
SIDE, CHASSIS (RIGHT) MAY W10318190 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
MAY W10696226 MAY W10696226 Contact Us For Availability
13
MAY W10795595 MAY W10795595 Contact Us For Availability
14
MAY W10588732 MAY W10588732 Contact Us For Availability
14
MAY W10282992 MAY W10282992 Contact Us For Availability
14
MAY W10653954 MAY W10653954 Contact Us For Availability
14
MAY 9755547 MAY 9755547 Contact Us For Availability
14
MAY 461967754821 MAY 461967754821 Contact Us For Availability
15
CHASSIS, COMBO SIDE MAY W10655467 Contact Us For Availability
15
LINER, OVEN (NOT SERVICEABLE) MAY N/P Contact Us For Availability
15
MAY W10669415 MAY W10669415 Contact Us For Availability
15
MAY 9755546 MAY 9755546 Contact Us For Availability
15
MAY W10330566 MAY W10330566 Contact Us For Availability
16
MAY W10524558 MAY W10524558 Contact Us For Availability
16
MAY W10622170 MAY W10622170 Contact Us For Availability
16
MAY 9755542 MAY 9755542 Contact Us For Availability
16
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
16A
MAY W10713558 MAY W10713558 Contact Us For Availability
17
MAY W10323725 MAY W10323725 Contact Us For Availability
17
MAY W10472384 MAY W10472384 Contact Us For Availability
17
MAY W10588737 MAY W10588737 Contact Us For Availability
17
MAY 423107022541 MAY 423107022541 Contact Us For Availability
18
MAY W10444132 MAY W10444132 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
18
MAY W10853277 MAY W10853277 Contact Us For Availability
18
MAY 423107720491 MAY 423107720491 Contact Us For Availability
19
MAY W10575307 MAY W10575307 Contact Us For Availability
19
MAY W10834867 MAY W10834867 Contact Us For Availability
19
MAY W10559988 MAY W10559988 Contact Us For Availability
19
MAY 461967010591 MAY 461967010591 Contact Us For Availability
20
MAY W10710545 MAY W10710545 Contact Us For Availability
20
MAY W10351275 MAY W10351275 Contact Us For Availability
20
MAY W10739592 MAY W10739592 Contact Us For Availability
20
MAY W10371813 MAY W10371813 Contact Us For Availability
20A
MAY W10327374 MAY W10327374 Contact Us For Availability
21
MAY W10668510 MAY W10668510 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
21
SHIELD, BROIL ELEMENT MAY W10318164 Contact Us For Availability
21
MAY 461967008461 MAY 461967008461 Contact Us For Availability
22
MAY W10566973 MAY W10566973 Contact Us For Availability
22
SUPPORT, BASE (LEFT) MAY W10283020 Contact Us For Availability
22
MAY 461968979601 MAY 461968979601 Contact Us For Availability
23
MAY W10524350 MAY W10524350 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
23
MAY 461968969271 MAY 461968969271 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
24
MAY W10468206 MAY W10468206 Contact Us For Availability
25
MAY W10351278 MAY W10351278 Contact Us For Availability
25
MAY W10130890 MAY W10130890 Contact Us For Availability
26
MAY W10472386 MAY W10472386 Contact Us For Availability
26
MAY W10120235 MAY W10120235 Contact Us For Availability
27
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
28
MAY W10616809 MAY W10616809 Contact Us For Availability
28
MAY 461967570351 MAY 461967570351 Contact Us For Availability
29
MAY W10681156 MAY W10681156 Contact Us For Availability
29
MAY 461967750494 MAY 461967750494 Contact Us For Availability
30
MAY W10618106 MAY W10618106 Contact Us For Availability
30
MAY 461967750483 MAY 461967750483 Contact Us For Availability
31
MAY W10519703 MAY W10519703 Contact Us For Availability
31
MAY W10460457 MAY W10460457 Contact Us For Availability
32
MAY W10344483 MAY W10344483 Contact Us For Availability
32
MAY 461967510191 MAY 461967510191 Contact Us For Availability
32A
MAY W10344482 MAY W10344482 Contact Us For Availability
33
ASSEMBLY, LIGHT MAY W10661201 Contact Us For Availability
33
MAY 423107845441 MAY 423107845441 Contact Us For Availability
34
MAY W10169757 MAY W10169757 Contact Us For Availability
34
MAY 461967001792 MAY 461967001792 Contact Us For Availability
35
MAY W10169756 MAY W10169756 Contact Us For Availability
35
MAY 461967848711 MAY 461967848711 Contact Us For Availability
36
MAY W10725427 MAY W10725427 Contact Us For Availability
36
MAY 461967848251 MAY 461967848251 Contact Us For Availability
37
MAY 241960100002 MAY 241960100002 Contact Us For Availability
38
MAY 461967842541 MAY 461967842541 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
MAY W10389372 MAY W10389372 Contact Us For Availability
NI
STRAP, GROUND MAY W10392129 Contact Us For Availability
NI
MAY W10406103 MAY W10406103 Contact Us For Availability
NI
MAY W10523786 MAY W10523786 Contact Us For Availability
NI
MAY W10523917 MAY W10523917 Contact Us For Availability
NI
MAY W10571361 MAY W10571361 Contact Us For Availability
NI
MAY W10775068 MAY W10775068 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
MAY W10566640 MAY W10566640 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE\) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
MAY 8205262RB MAY 8205262RB Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
