Model Maytag JMW3430DP03 WALL OVEN, MICRO COMBO, 30 INCH – Common Parts & Diagrams

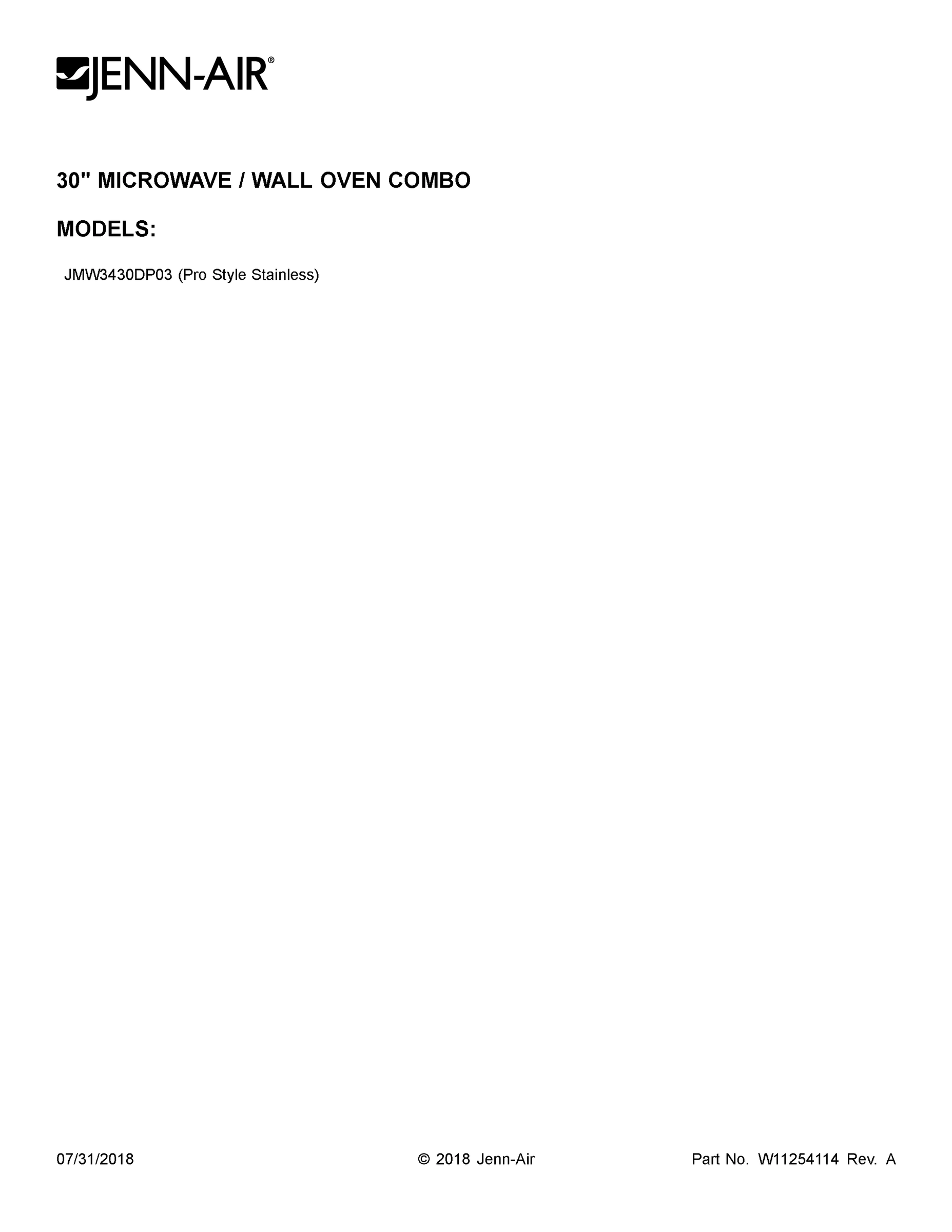

01 - COVER SHEET

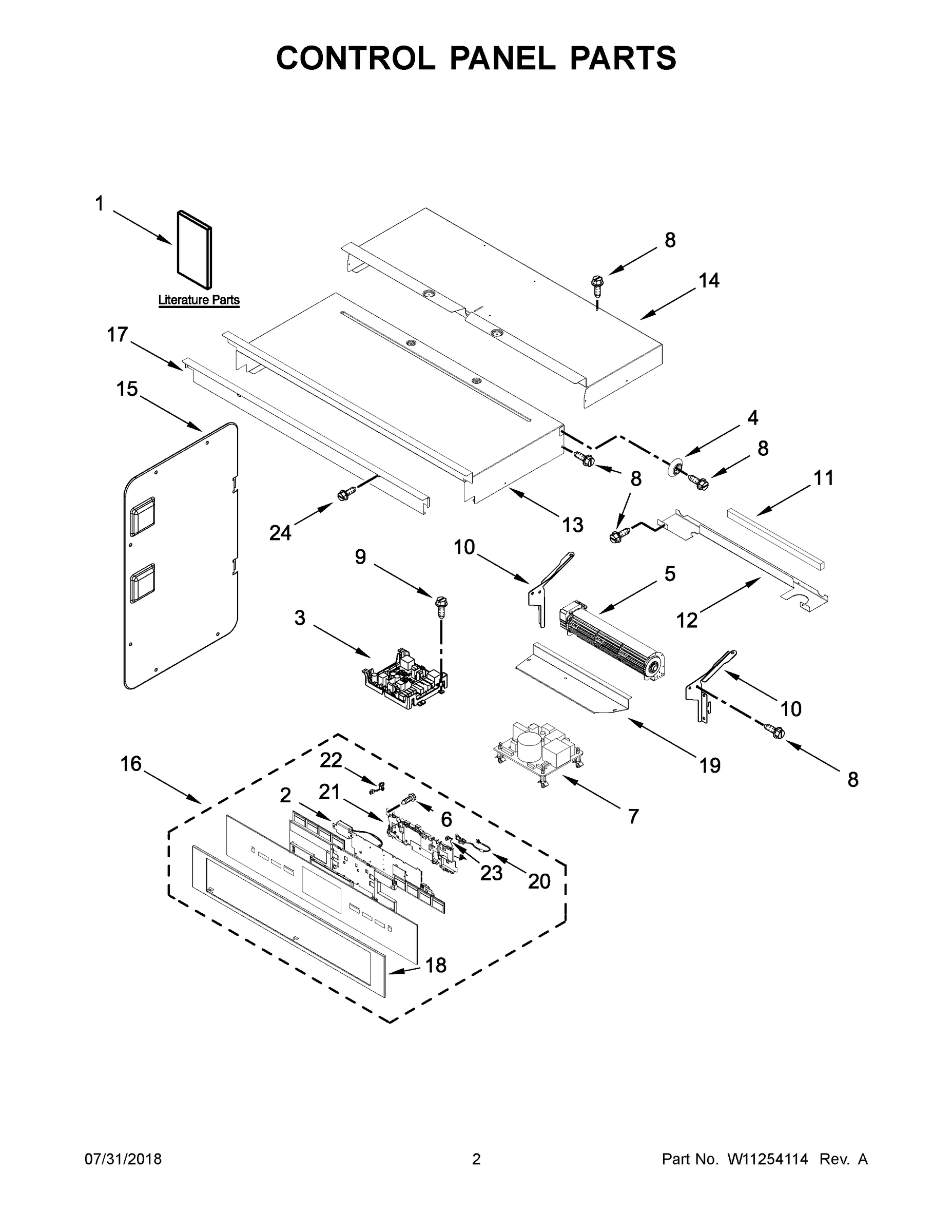

02 - CONTROL PANEL PARTS

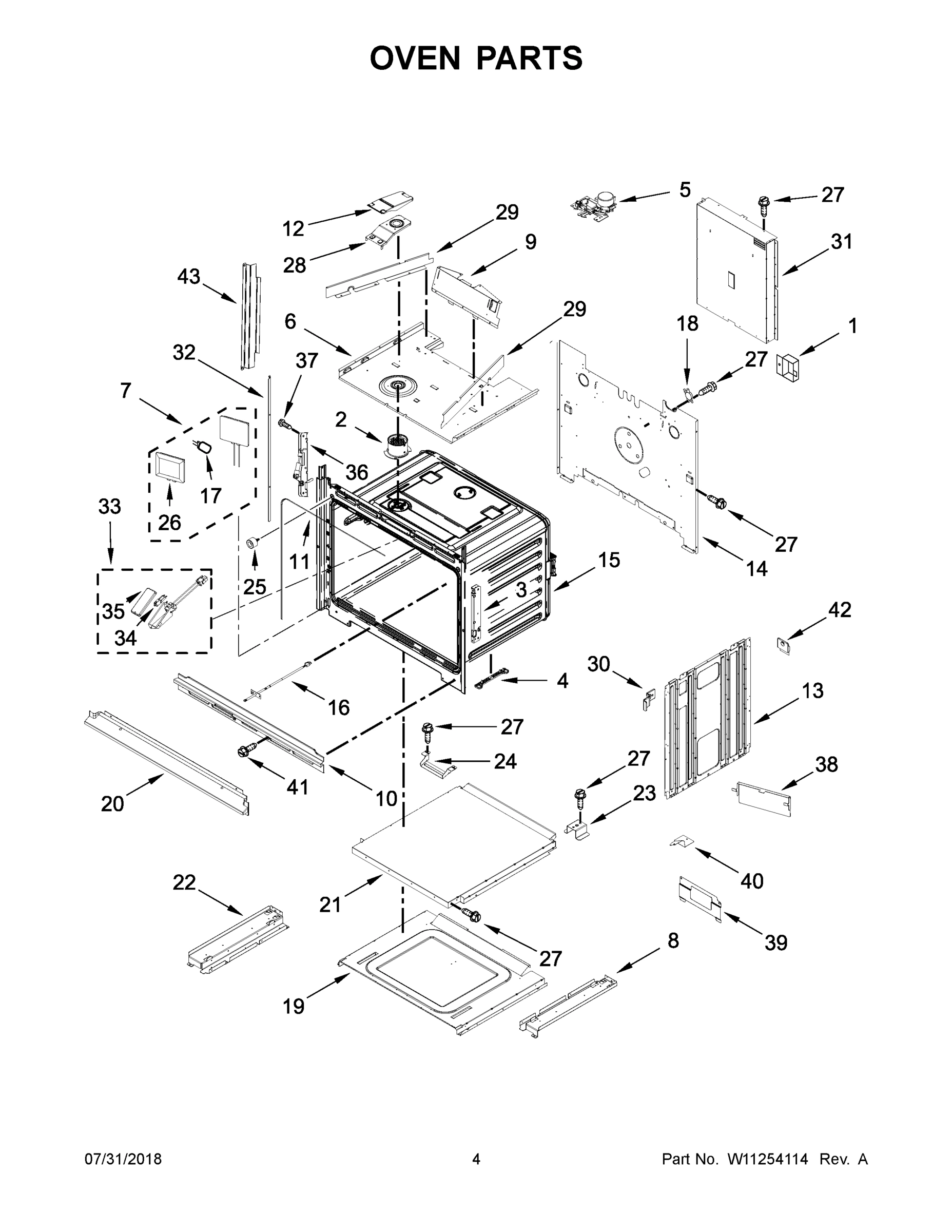

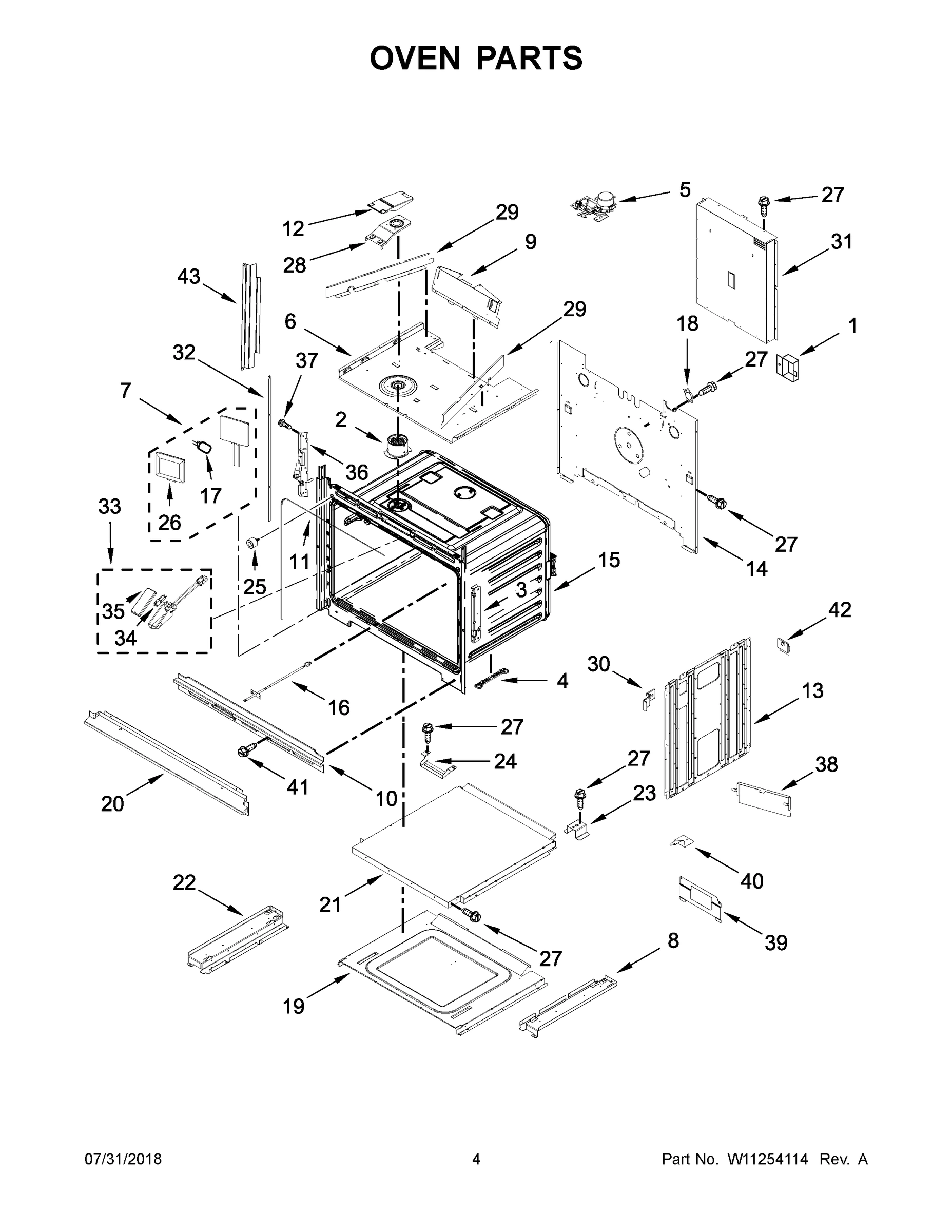

03 - OVEN PARTS

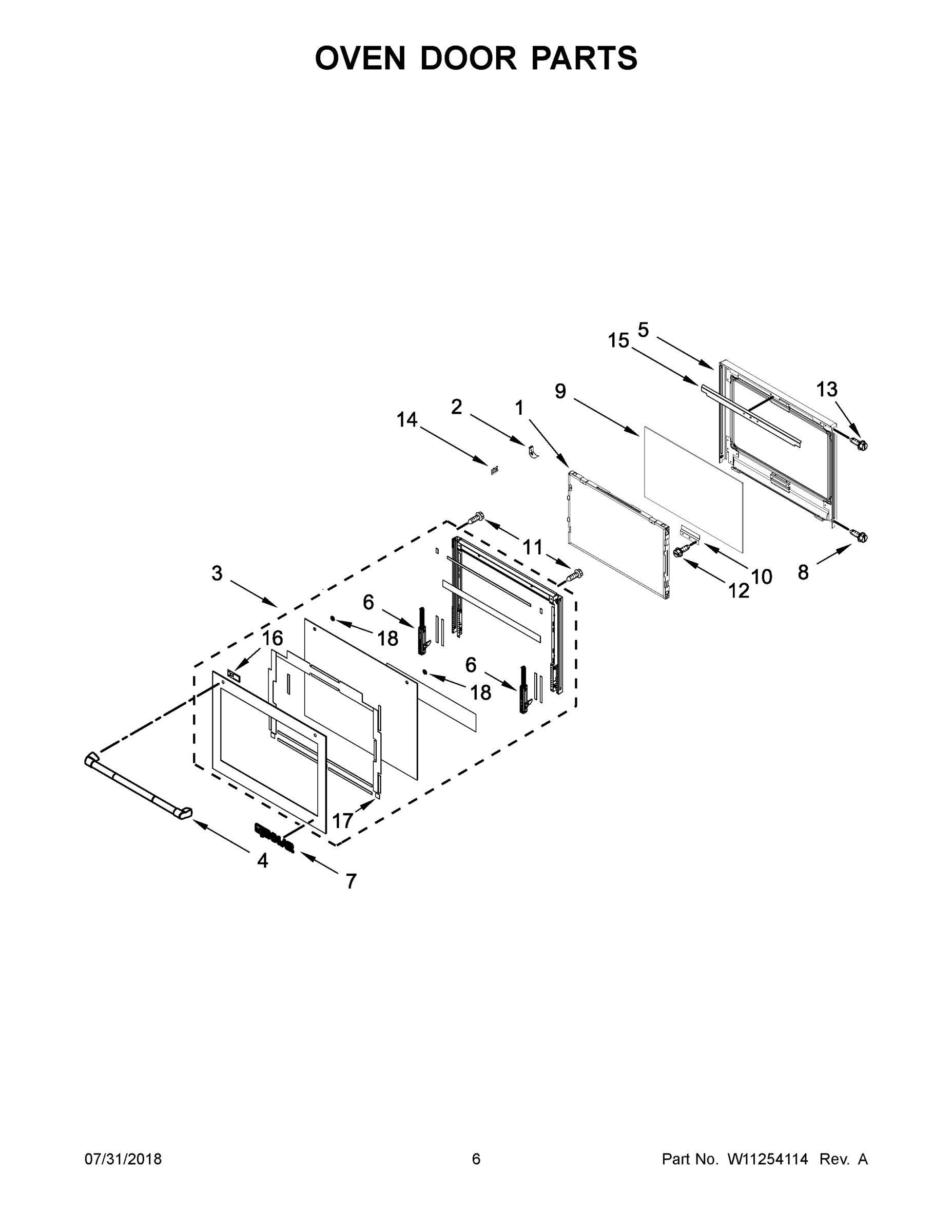

04 - OVEN DOOR PARTS

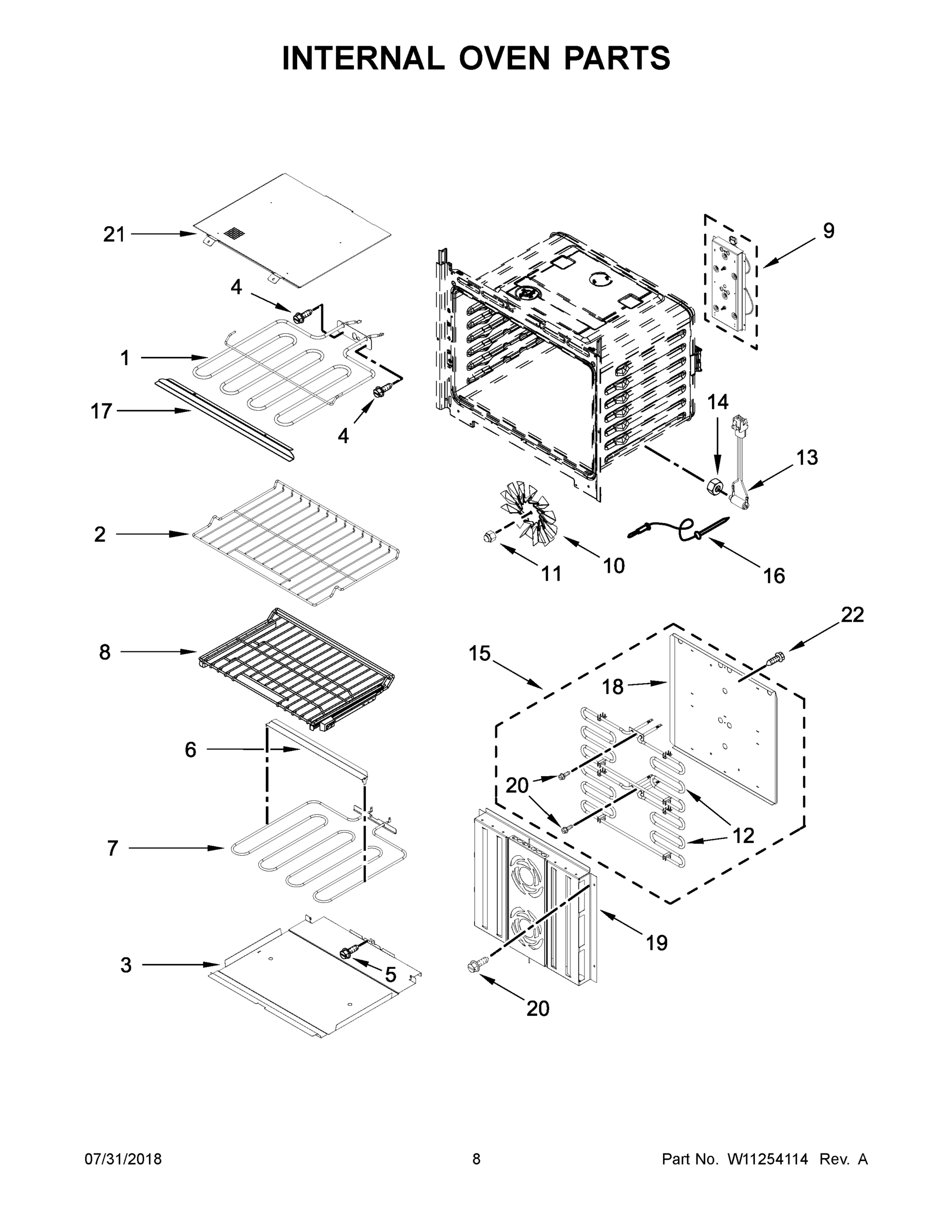

05 - INTERNAL OVEN PARTS

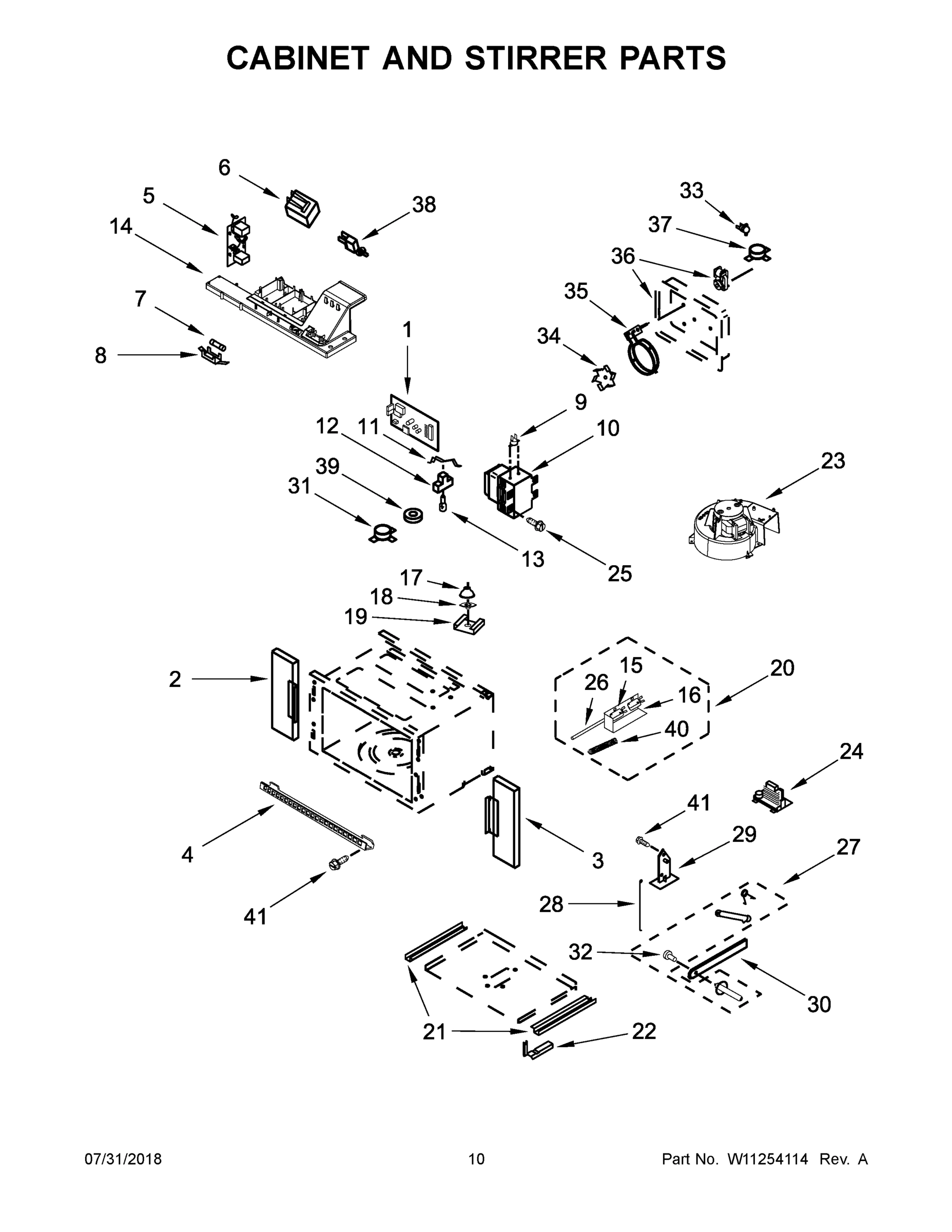

06 - CABINET AND STIRRER PARTS

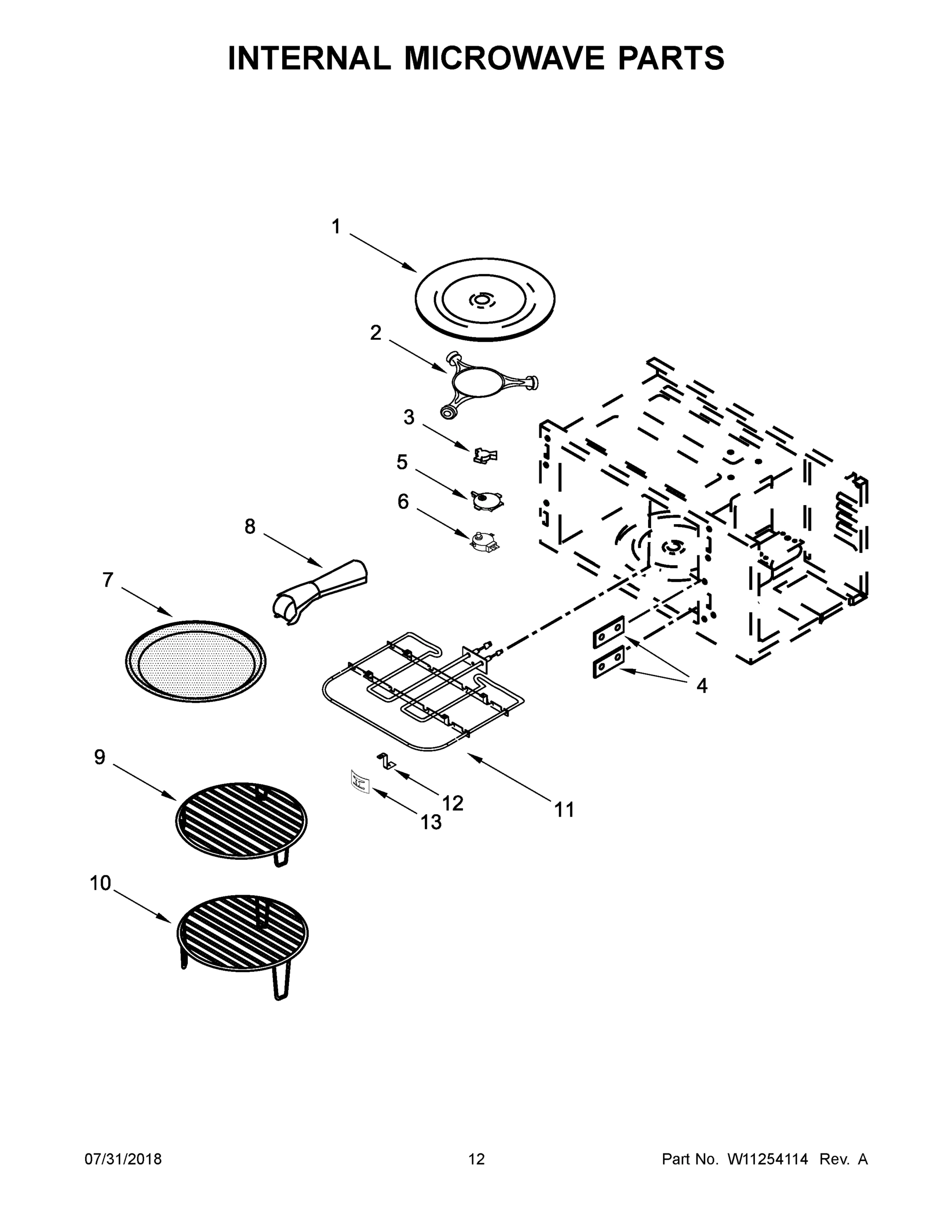

07 - INTERNAL MICROWAVE PARTS

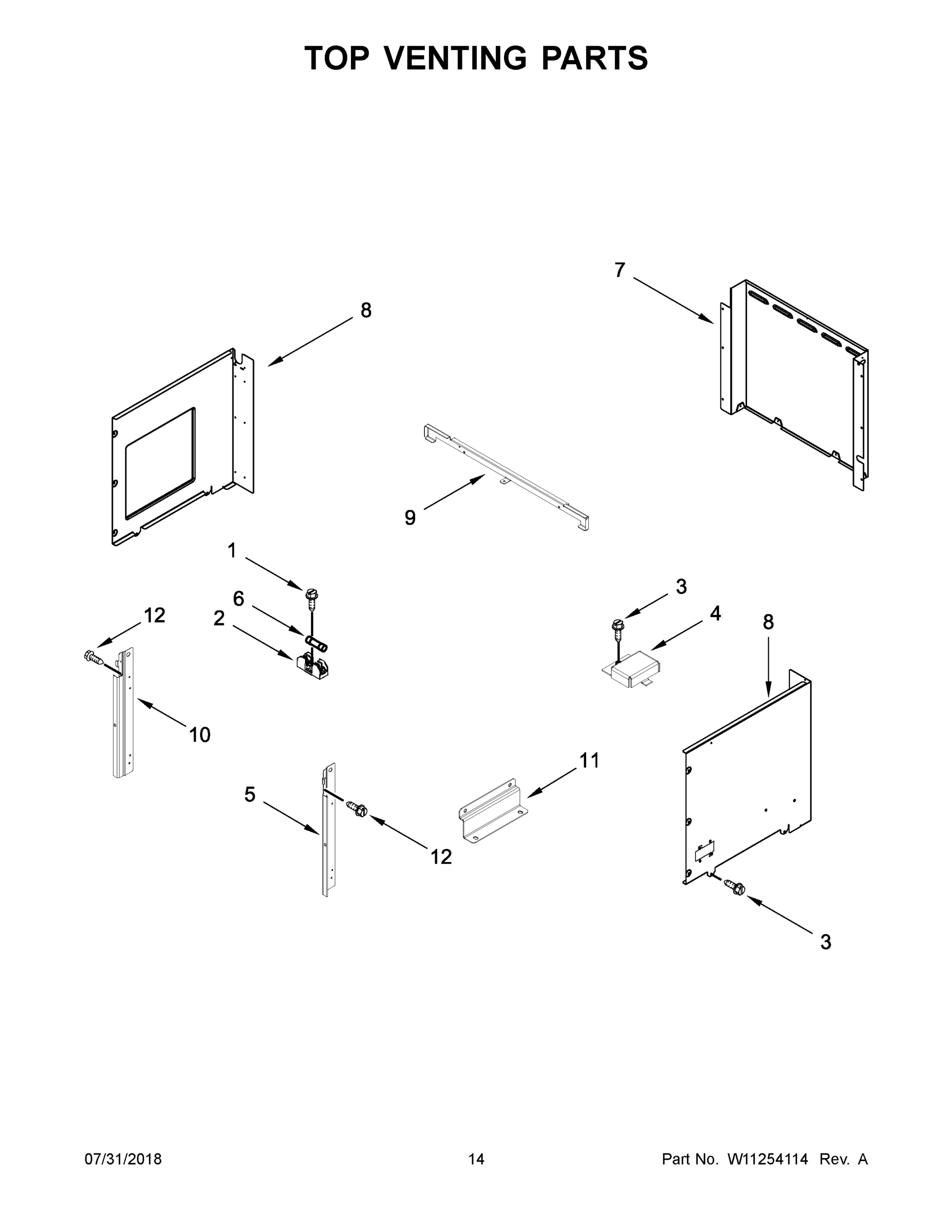

08 - TOP VENTING PARTS

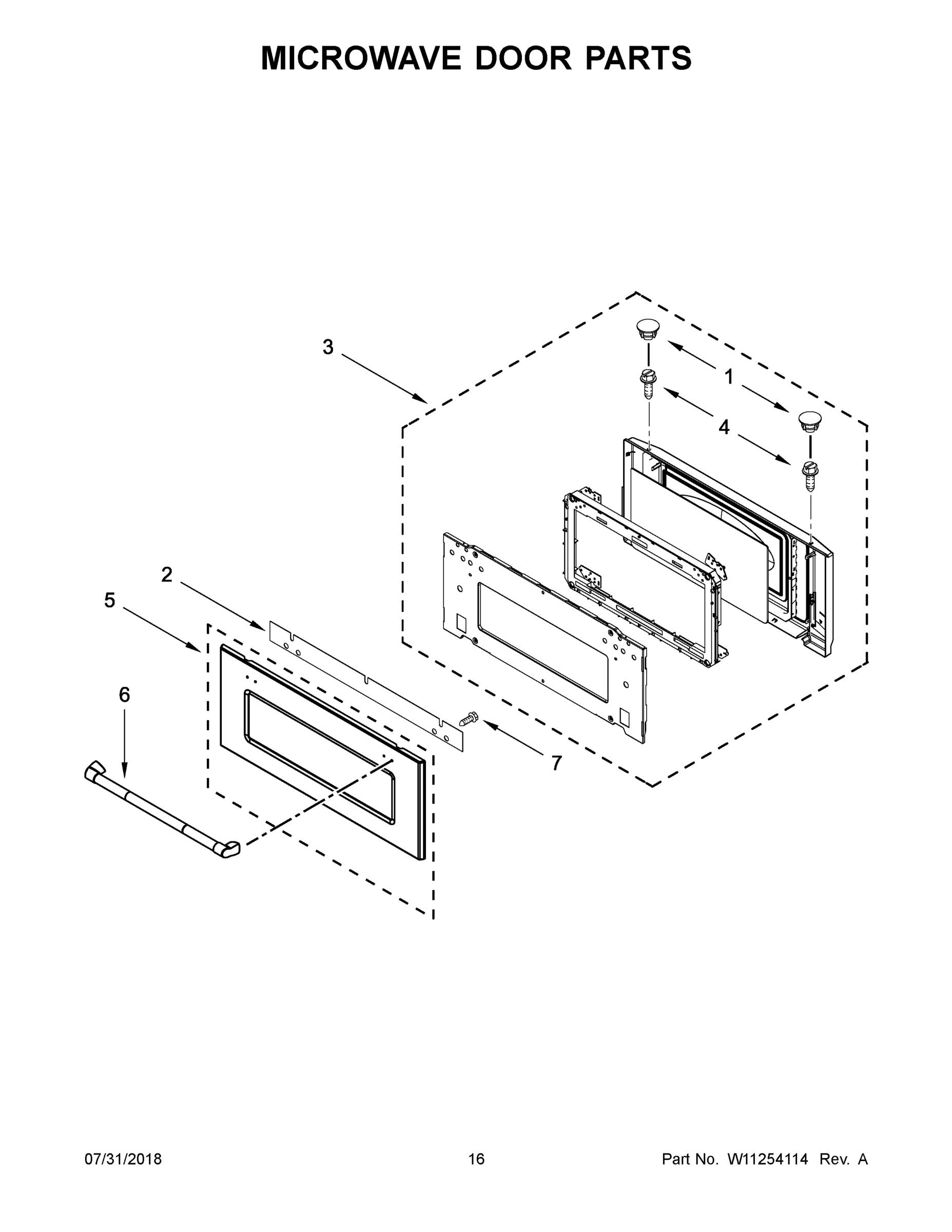

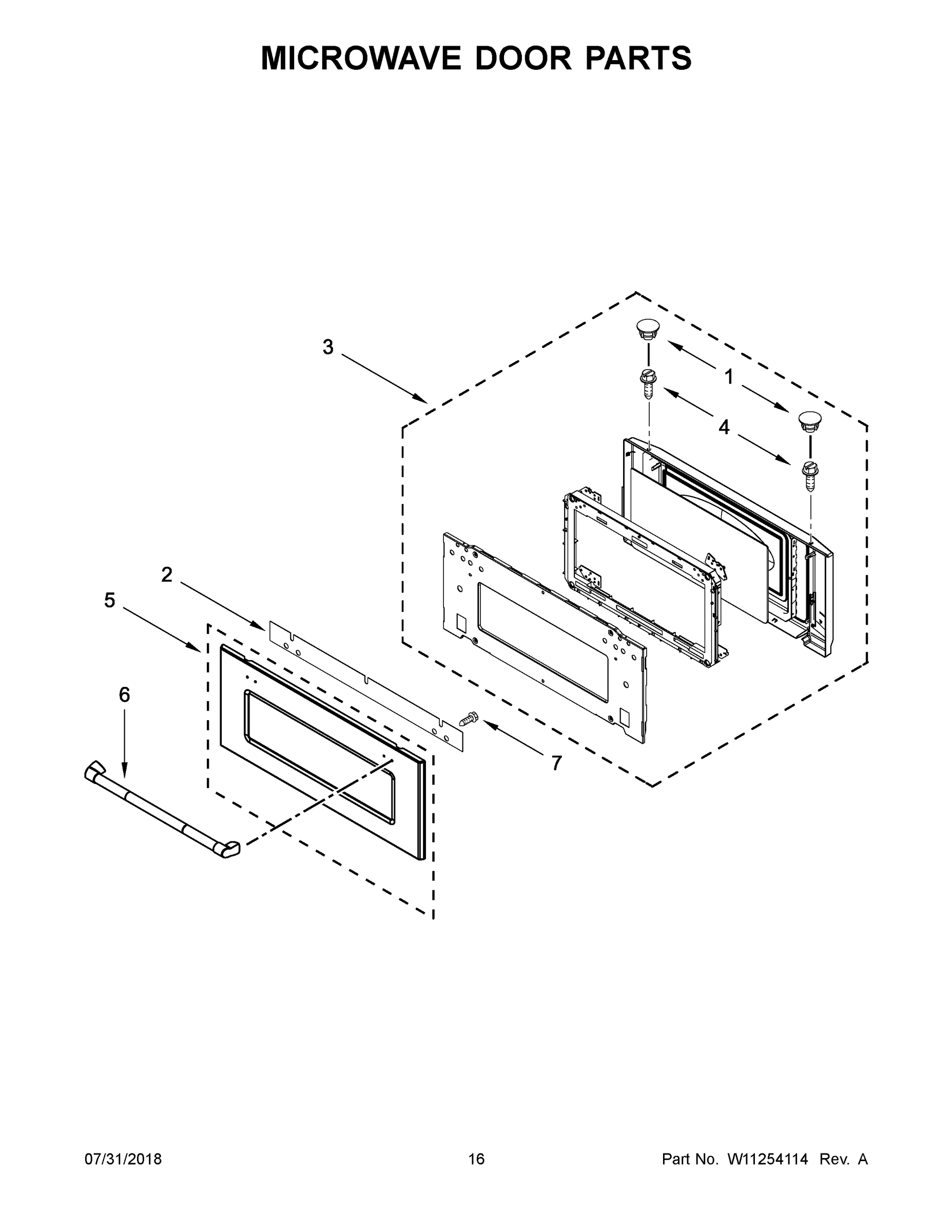

09 - MICROWAVE DOOR PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JMW3430DP03 WALL OVEN, MICRO COMBO, 30 INCH
1
GUIDE, USE & CARE MAY W10754337 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK MAY W10347596 Contact Us For Availability
1
ELEMENT, BROIL MAY W10764078 Contact Us For Availability
1
MANAGER, MICROWAVE APPLIANCE MAY W10711277 Contact Us For Availability
1
TURNTABLE MAY 461967721091 Contact Us For Availability
1
SCREW MAY 7101P060-60 Contact Us For Availability
1
CAP, SCREW MAY 8304588BL Contact Us For Availability
1A
GUIDE, USE & CARE (MICROWAVE) MAY W10754339 Contact Us For Availability
1B
INSTRUCTIONS, INSTALLATION MAY W10768184 Contact Us For Availability
1C
SHEET, TECH (ENGLISH) MAY W10767738 Contact Us For Availability
1D
SHEET, TECH (FRENCH) MAY W10798780 Contact Us For Availability
1E
GUIDE, WIFI CONNECTIVITY MAY W10787928 Contact Us For Availability
2
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
2
TUBE, VENT MAY W11085298 Contact Us For Availability
2
SPRING, DOOR GLASS FIXATION MAY W10284285 Contact Us For Availability
2
RACK, OVEN MAY W10554526 Contact Us For Availability
2
TRIM, SIDE (LEFT) MAY 461967017491 Contact Us For Availability
2
RING, TURNTABLE MAY W10367316 Contact Us For Availability
2
HOLDER, FUSE MAY 4454949 Contact Us For Availability
2
FOAM, DOOR HANDLE MAY W10359769 Contact Us For Availability
3
MANAGER, APPLIANCE MAY W10635086 Contact Us For Availability
3
SCREW MAY 7101P426-60 Contact Us For Availability
3
RECEIVER, HINGE MAY W10616802 Contact Us For Availability
3
ASSEMBLY, DOOR (STAINLESS) MAY W11110938 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
3
TRIM, SIDE (RIGHT) MAY 461967017481 Contact Us For Availability
3
DRIVE, TURNTABLE MAY W10545578 Contact Us For Availability
3
ASSEMBLY, INNER DOOR MAY W10687342 Contact Us For Availability
4
SPACER, LATERAL MAY W10618105 Contact Us For Availability
4
SCREW MAY 7101P434-60 Contact Us For Availability
4
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
VENT, TOP MICROWAVE MAY 461968973241 Contact Us For Availability
4
PLATE, COVER MAY 461967451001 Contact Us For Availability
4
SCREW MAY 7101P338-60 Contact Us For Availability
5
BLOWER, DUAL SPEED MAY W11200130 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
ASSEMBLY, LINER MAY W10709147 Contact Us For Availability
5
FILTER, NOISE MAY W10692851 Contact Us For Availability
5
ADAPTER, TURNTABLE MOTOR MAY 461967753742 Contact Us For Availability
5
RAIL, SIDE (RIGHT) MAY W10710309 Contact Us For Availability
5
ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10457801 Contact Us For Availability
6
SCREW MAY W10489172 Contact Us For Availability
6
HINGE, DOOR (NOT SERVICEABLE) MAY N/P Contact Us For Availability
6
TOP, CHASSIS MAY W10904158 Contact Us For Availability
6
ASSEMBLY, HANDLE (STAINLESS) MAY W10483386 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
6
TRANSFORMER, LIGHT (20V) MAY 461967848621 Contact Us For Availability
6
MOTOR, TURNTABLE MAY 461967848971 Contact Us For Availability
6
FUSE, TIME DELAY MAY W10017410 Contact Us For Availability
7
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W11198684 Contact Us For Availability
7
BADGE (STAINLESS) MAY W10159578 Contact Us For Availability
7
SCREW MAY W10530626 Contact Us For Availability
7
ELEMENT, BAKE MAY W10546517 Contact Us For Availability
7
FUSE MAY 241908600053 Contact Us For Availability
7
PLATE, CRISP MAY 461968977491 Contact Us For Availability
7
COVER, BACK DUCT MAY W10519707 Contact Us For Availability
8
SUPPORT, BASE (RIGHT) MAY W10283021 Contact Us For Availability
8
SCREW (BLACK) MAY 7101P635-60 Contact Us For Availability
8
RACK, SLIDING MAY W10840297 Contact Us For Availability
8
BLOCK, FUSE MAY 4375231 Contact Us For Availability
8
HANDLE, PAN MAY 461968929542 Contact Us For Availability
8
CHASSIS, COMBO SIDE (LEFT) MAY W10655466 Contact Us For Availability
8A
CHASSIS, COMBO SIDE (RIGHT) MAY W10655468 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10904163 Contact Us For Availability
9
GLASS, INNER MAY W10678524 Contact Us For Availability
9
ASSEMBLY, CONVECTION MOTOR MAY W11200176 Contact Us For Availability
9
THERMOSTAT, MAGNETRON MAY 461967846741 Contact Us For Availability
9
RACK, LOW CONVECTION MAY W10748279 Contact Us For Availability
9
SUPPORT, CROSSBAR MAY W10283022 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10
VENT, CENTER 30" MAY W10495154 Contact Us For Availability
10
BRACKET, GLASS MAY W10284297 Contact Us For Availability
10
BLADE, CONVECTION FAN MAY W10213746 Contact Us For Availability
10
MAGNETRON MAY 461967847321 Contact Us For Availability
10
RACK, HIGH CONVECTION MAY W10748280 Contact Us For Availability
10
RAIL, SIDE (LEFT) MAY W10710302 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
11
GASKET MAY W10739089 Contact Us For Availability
11
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
11
SPRING, LAMP MAY W10465869 Contact Us For Availability
11
ELEMENT, GRILL MAY W10387651 Contact Us For Availability
11
SIDE, BRACKET MAY W10283024 Contact Us For Availability
11A
NUT, ACORN (RH) MAY W10213749 Contact Us For Availability
12
CHASSIS, BACK DIVIDER MAY W10655465 Contact Us For Availability
12
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
ELEMENT, CONVECTION MAY W10663735 Contact Us For Availability
12
HOLDER, LAMP MAY W10490593 Contact Us For Availability
12
SUPPORT, ELEMENT MAY 461967753871 Contact Us For Availability
13
CHASSIS, COVER TOP FRONT 30" MAY W10318158 Contact Us For Availability
13
SIDE, CHASSIS (LEFT) MAY W10663556 Contact Us For Availability
13
SCREW WITH WASHER MAY W10284411 Contact Us For Availability
13
JACK, MEAT PROBE MAY W10696226 Contact Us For Availability
13
LAMP, HALOGEN MAY W10795595 Contact Us For Availability
13
SUPPORT, SPRING LOCK GRILL MAY 252262898008 Contact Us For Availability
13A
SIDE, CHASSIS (RIGHT) MAY W10318190 Contact Us For Availability
14
CHASSIS, COVER TOP BACK 30" MAY W10588732 Contact Us For Availability
14
CLIP, SPRING METAL MAY W10653954 Contact Us For Availability
14
NUT, LOCKING MAY W11033111 Contact Us For Availability
14
DUCT, MAGNETRON MAY 461967754821 Contact Us For Availability
15
CHASSIS, COMBO SIDE MAY W10655467 Contact Us For Availability
15
SHIELD, DOOR LINER MAY W10669415 Contact Us For Availability
15
ASSEMBLY, CONVECTION ELEMENT MAY W10854021 Contact Us For Availability
15
SWITCH MAY W10330566 Contact Us For Availability
16
MAY W11102209 MAY W11102209 Contact Us For Availability
16
PROBE, SENSOR MAY W10622170 Contact Us For Availability
16
SPACER, HANDLE MAY W10650497 Contact Us For Availability
16
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
16
HOLDER, SWITCH MAY 8205683 Contact Us For Availability
17
COVER, 30" COMPLIMENT MAY W10444127 Contact Us For Availability
17
BULB, LIGHT MAY W10472384 Contact Us For Availability
17
SPACER, VENT MAY W10517428 Contact Us For Availability
17
SHIELD, BROIL FRONT MAY W10588737 Contact Us For Availability
17
REFLECTOR MAY 423107022541 Contact Us For Availability
18
SKIN, CONTROL PANEL (STAINLESS) MAY W10444132 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
18
WASHER, DOOR MAY W10319024 Contact Us For Availability
18
SHIELD, CONVECTION MAY W10853277 Contact Us For Availability
18
LENS, LAMP MAY 423107720491 Contact Us For Availability
19
COVER, COMBO BLOWER MAY W10681157 Contact Us For Availability
19
BASE, CHASSIS MAY W10834867 Contact Us For Availability
19
ASSEMBLY, BAFFLE MAY W10559988 Contact Us For Availability
19
CLIP, SPRING MAY 461967010591 Contact Us For Availability
20
JUMPER HARNESS, POWER SUPPLY MAY W10575307 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10327374 Contact Us For Availability
20
SCREW MAY W10236129 Contact Us For Availability
20
HARNESS, INTERLOCK MAY W10720308 Contact Us For Availability
21
HOUSING MAY W10668510 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
21
SHIELD, BROIL ELEMENT MAY W10911205 Contact Us For Availability
21
SUPPORT, BOTTOM MAY 461967008461 Contact Us For Availability
22
HARNESS, KEYPAD (LEFT TO CENTER) MAY W10566973 Contact Us For Availability
22
SUPPORT, BASE (LEFT) MAY W10283020 Contact Us For Availability
22
SCREW MAY W10739592 Contact Us For Availability
22
HINGE, DOOR MAY 461968979601 Contact Us For Availability
23

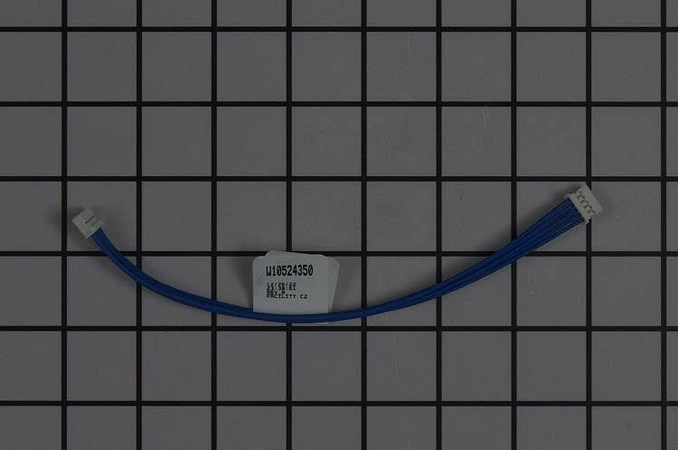

HARNESS, KEYPAD (RIGHT TO CENTER) MAY W10524350 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
23
ASSEMBLY, COOLING FAN MAY 461968969271 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
24
INVERTER MAY W10468206 Contact Us For Availability
25
BUMPER & SCREW MAY W10351278 Contact Us For Availability
25
SCREW MAY 461967825971 Contact Us For Availability
26
LENS, LIGHT MAY W10472386 Contact Us For Availability
26
ROD, RELEASE MAY W10120235 Contact Us For Availability
27
ASSEMBLY, SLIDING ARM MAY W10128850 Contact Us For Availability
28
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
28
SPRING, TORSION MAY 461967570351 Contact Us For Availability
29
DEFLECTOR, CHASSIS MAY W10681156 Contact Us For Availability
29
SUPPORT MAY 461967750494 Contact Us For Availability
30
SPACERS, FRONT MAY W10834501 Contact Us For Availability
30
ARM, SLIDING MAY 461967750483 Contact Us For Availability
31
COVER, BACK DUCT MAY W10519703 Contact Us For Availability
31
SENSOR, HUMIDITY MAY W10460457 Contact Us For Availability
32
TRIM, SIDE (BLACK (LEFT)) MAY W10344483 Contact Us For Availability
32
BUSHING MAY 461967510191 Contact Us For Availability
32A
TRIM, SIDE (BLACK (RIGHT)) MAY W10344482 Contact Us For Availability
33
ASSEMBLY, LIGHT MAY W11223933 Contact Us For Availability
33
SENSOR, CONVECTION MAY 423107845441 Contact Us For Availability
34
BULB, LIGHT MAY W10169757 Contact Us For Availability
34
FAN, CONVECTION MAY 461967001792 Contact Us For Availability
35
LENS, LIGHT MAY W10169756 Contact Us For Availability
35
HEATER, CONVECTION ELEMENT MAY 461967848711 Contact Us For Availability
36
RECEIVER, SLOW CLOSE HINGE MAY W11045086 Contact Us For Availability
36
MOTOR, CONVECTION FAN MAY 461967848251 Contact Us For Availability
37
SCREW MAY W10254050 Contact Us For Availability
37
SENSOR, TERMPERATURE MAY 241960100002 Contact Us For Availability
38
SHIELD, INNER MAY W10753663 Contact Us For Availability
38
THERMOACTUATOR MAY 461967842541 Contact Us For Availability
39
SHIELD, OUTER MAY W10846765 Contact Us For Availability
39
SEALING, LAMP MAY W10769147 Contact Us For Availability
40
SHIELD. BOTTOM (LEFT) MAY W10832249 Contact Us For Availability
40
SPRING, RELEASE ROD MAY 423107570871 Contact Us For Availability
40A
SHIELD. BOTTOM (RIGHT) MAY W10832250 Contact Us For Availability
41
SCREW MAY 7101P427-60 Contact Us For Availability
41
SCREW MAY 461967825321 Contact Us For Availability
42
SPACER, CENTER MAY W10834286 Contact Us For Availability
43
SHIELD, FRONT FRAME HEAT MAY W10791505 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
TIE, CABLE MAY 4454842 Contact Us For Availability
NI
HARNESS, SIGNAL MAY W10523786 Contact Us For Availability
NI
HARNESS, FAN & TURNTABLE MAY W10874059 Contact Us For Availability
NI
HARNESS, INVERTER MAY W10874060 Contact Us For Availability
NI
HARNESS, CABLE TREE ASSEMBLY MAY W10889134 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W11132989 Contact Us For Availability
NI
HARNESS, COMMUNICATION MAY W11171471 Contact Us For Availability
NI
HARNESS, MAIN MAY W11171472 Contact Us For Availability
NI
STRAP, GROUND MAY W11226264 Contact Us For Availability
NI
MAY W11233537 MAY W11233537 Contact Us For Availability
NI
ASSEMBLY, ANTENNA & HOUSING MAY W11234542 Contact Us For Availability
NI
INSULATION, CONTROL KNOB MAY W10464568 Contact Us For Availability
NI
INSULATION, WRAP MAY W10520715 Contact Us For Availability
NI
INSULATION, CAVITY MAY W10566640 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) MAY 261900 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, STEAMER, MICROWAVE MAY 8205262RB Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 830864 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
× ![]()
