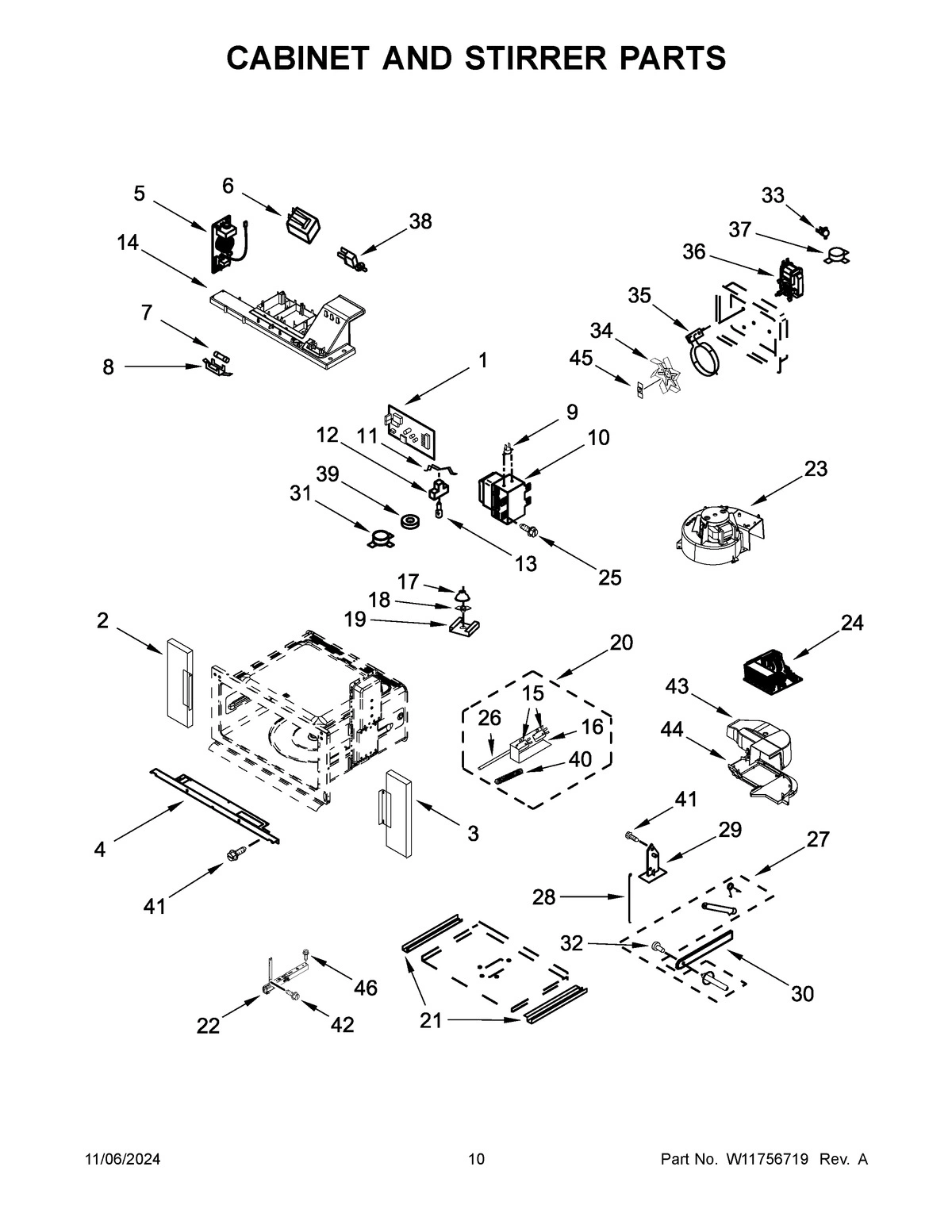

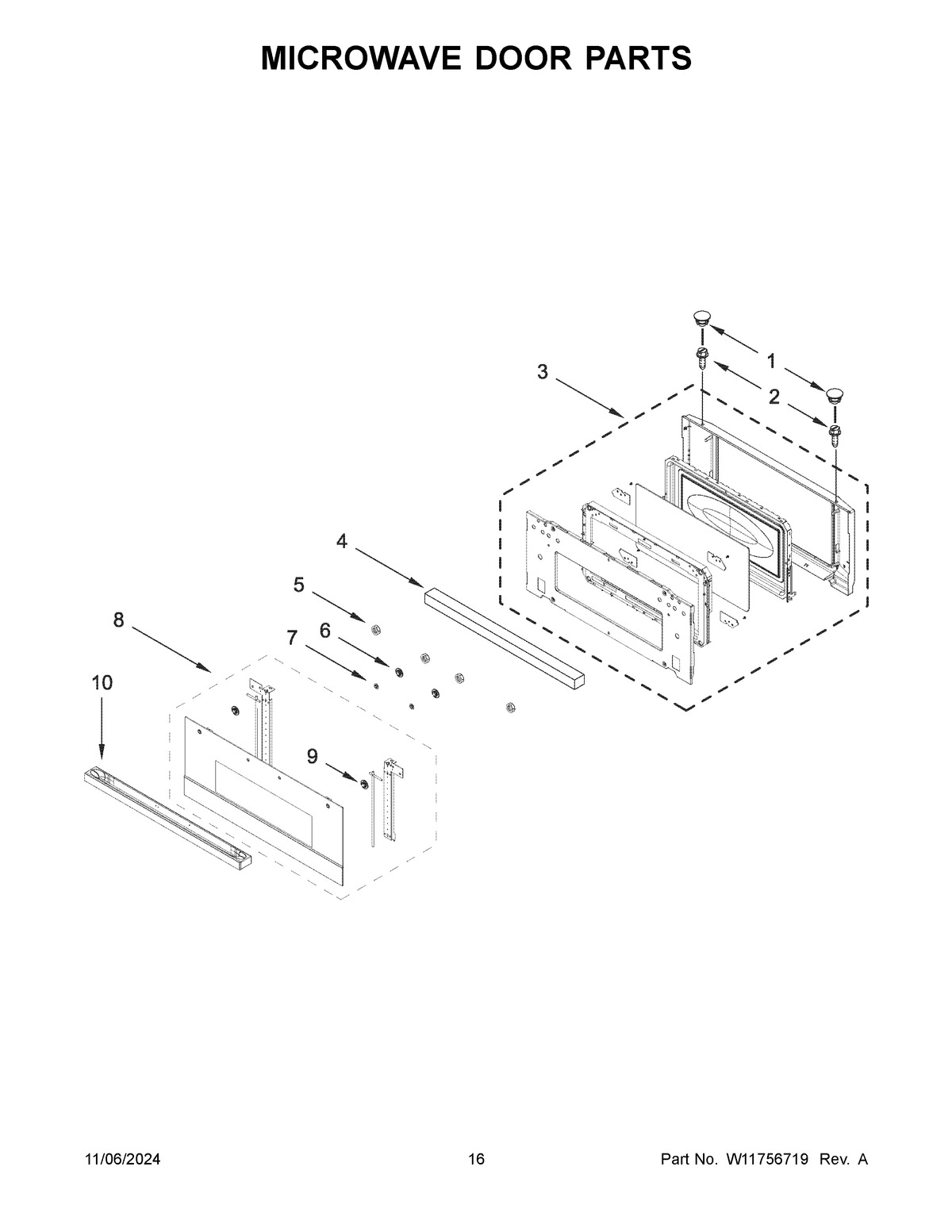

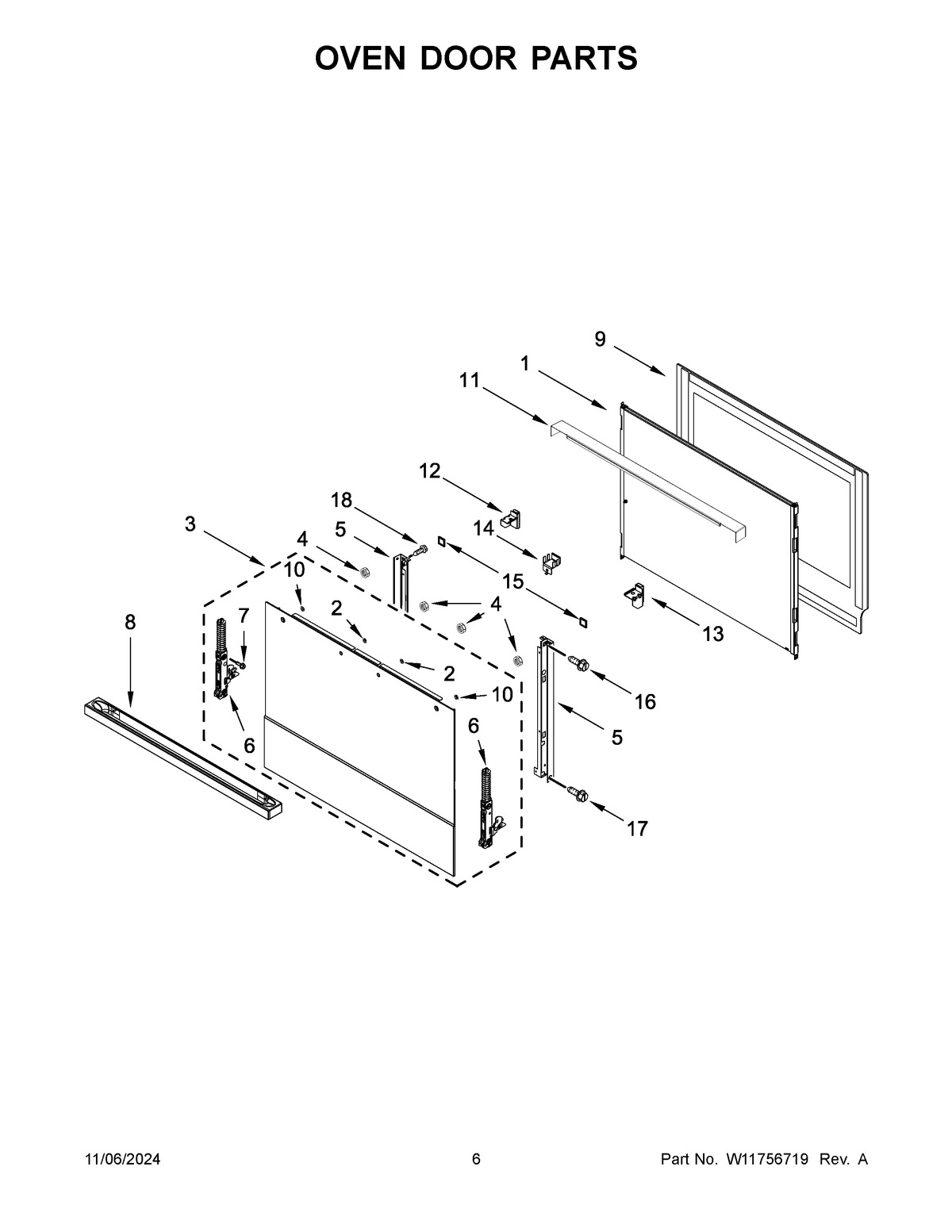

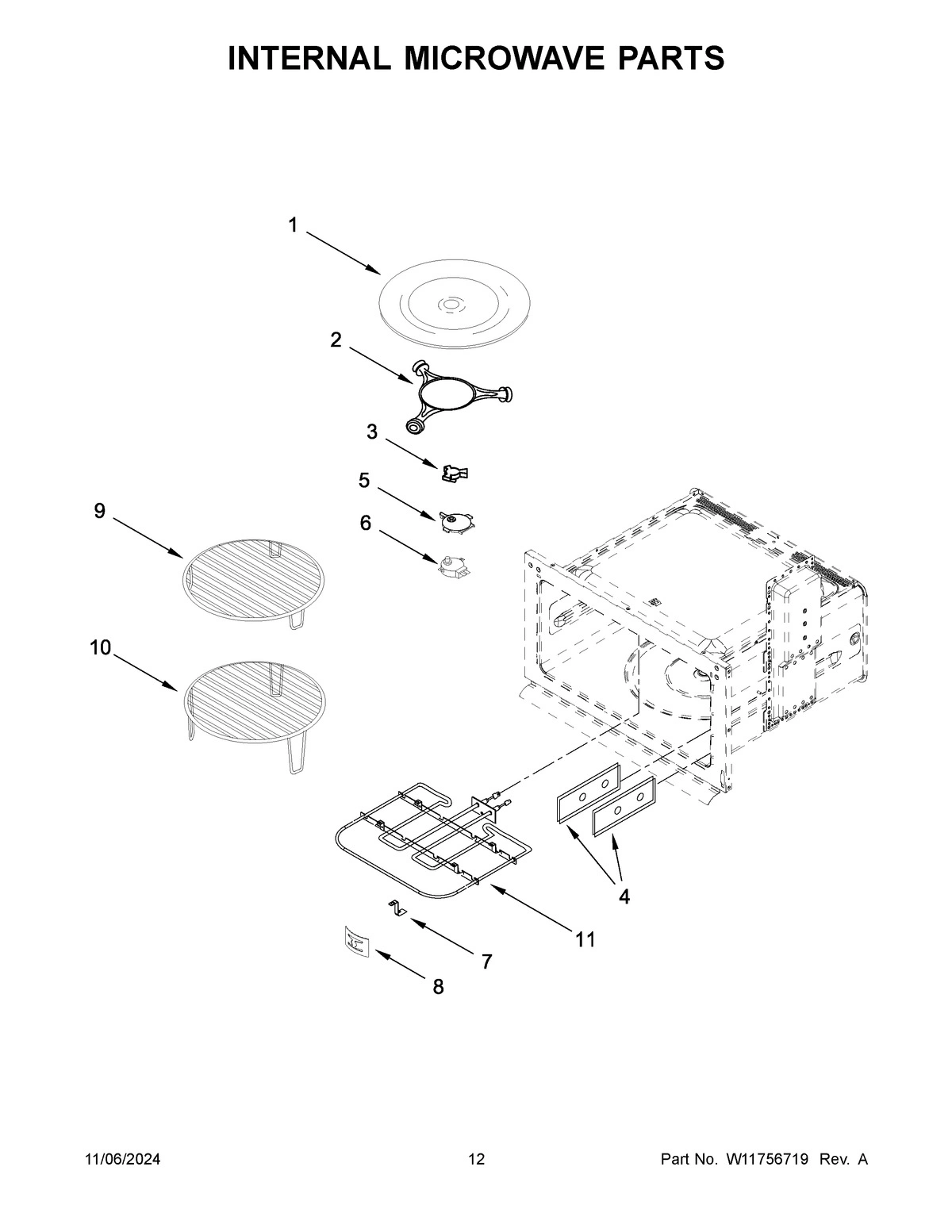

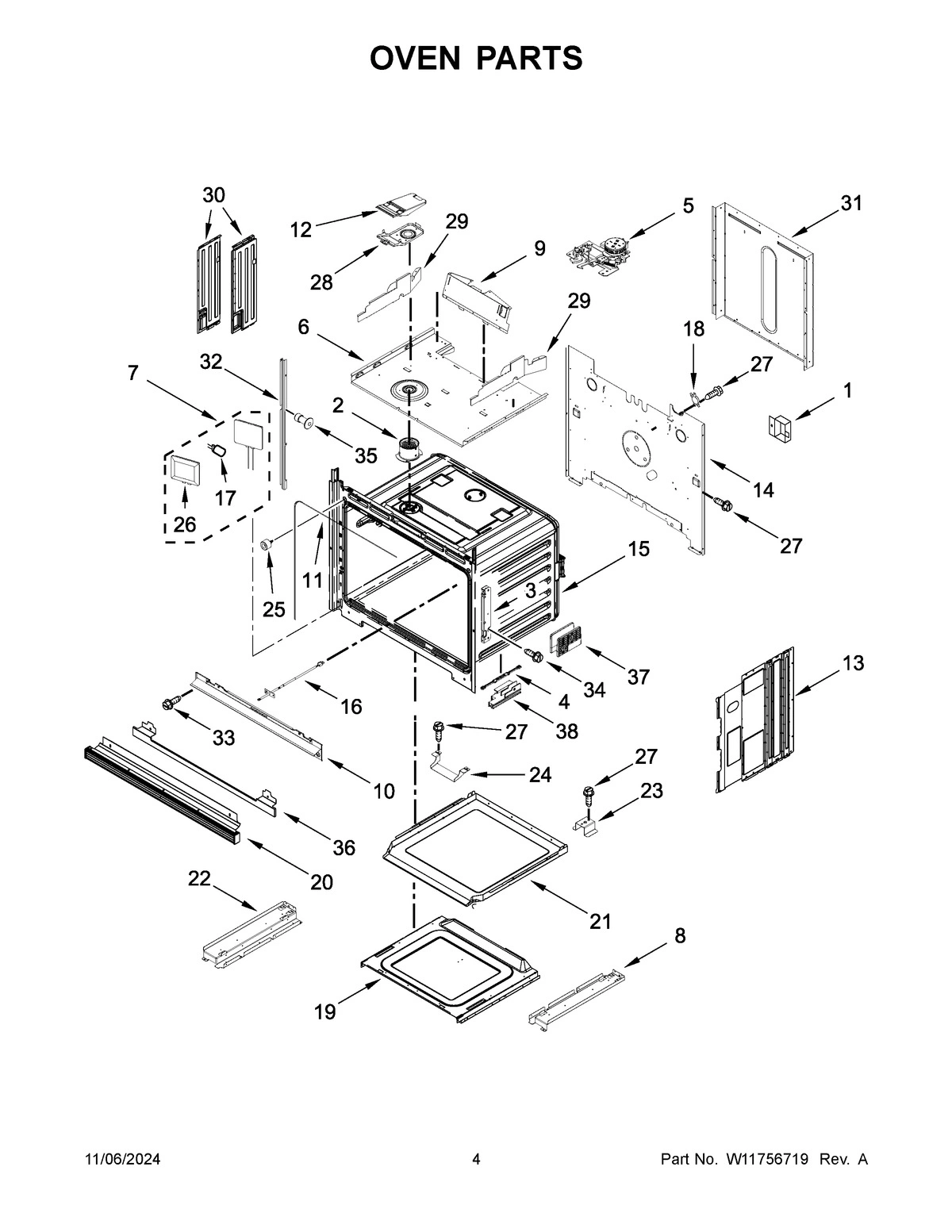

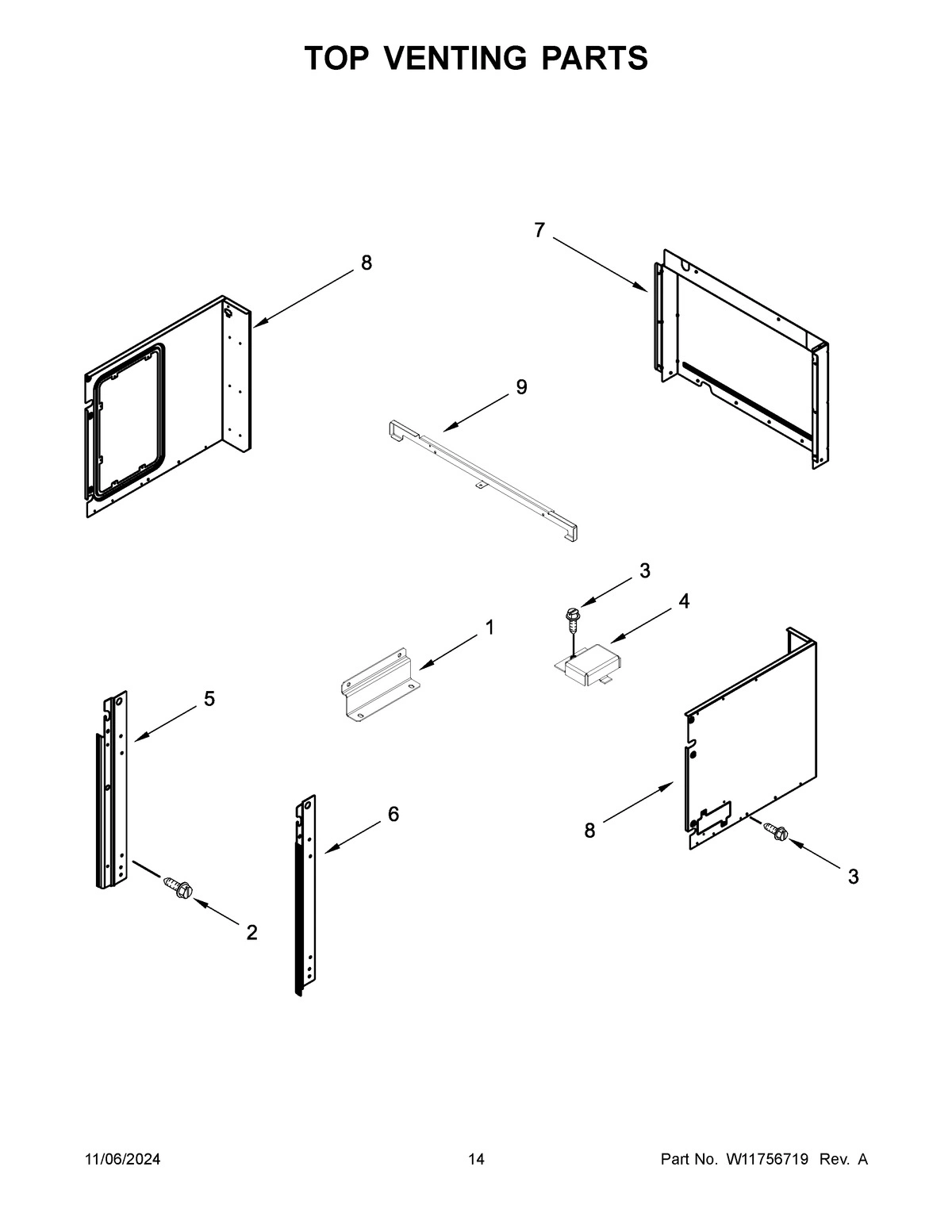

Model Whirlpool JMW2427LM03 WALL OVEN, ELECTRIC, MICRO COMBO – Common Parts &amp; Diagrams

1

W11325784 Whirlpool Microwave Electronic Cont In Stock WPL W11325784 $122.13

1

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $54.92

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $44.43

1

AIR DIVIDER ASSEMBLY WPL ARIC3DFFAB98105D2137AD531C9C75F3956 Contact Us For Availability

1

SIDE, BRACKET WPL W10283025 Contact Us For Availability

2

461967017511 Whirlpool Microwave Trim Backorder WPL 461967017511 $19.58

2

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $37.66

2

W11123146 Whirlpool Speaker Backorder WPL W11123146 $29.81

2

RACK, 27 IN OVEN WPL W11242909 Contact Us For Availability

2

SCREW (BLACK) WPL 7101P63360 Contact Us For Availability

2

SCREW WPL 7101P33860 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11044584 Whirlpool Microwave Trim In Stock WPL W11044584 $19.58

3

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $12.65

3

W11639552 Whirlpool Microwave Door Backorder WPL W11639552 $273.17

3

DOOR ASSEMBLY (INCLUDES HINGES) (BLACK GLASS WPL W11304054 Contact Us For Availability

3

SCREW WPL 7101P42660 Contact Us For Availability

4

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

4

W10359769 Whirlpool Microwave Door Gasket In Stock WPL W10359769 $8.18

4

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $32.79

4

SCREW WPL 7101P43460 Contact Us For Availability

4

VENT, TOP WPL W11334717 Contact Us For Availability

5

W11578573 Whirlpool Filter Backorder WPL W11578573 $39.09

5

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

5

W11602632 Whirlpool Nut Assembly Backorder WPL W11602632 $9.59

5

W11627410 Whirlpool Mounting Rail Backorder WPL W11627410 $20.33

5

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $8.20

5A

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $63.73

6

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

6

W11394209 Whirlpool Door Hinge Backorder WPL W11394209 $54.90

6

W11627411 Whirlpool Mounting Rail Backorder WPL W11627411 $20.33

6

WASHER WPL W11501149 Contact Us For Availability

6A

W11394210 Whirlpool Door Hinge Backorder WPL W11394210 $54.90

7

W11171004 Whirlpool Rear Cover Backorder WPL W11171004 $49.54

7

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $5.87

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

7

SPACER, HANDLE WPL W11132942 Contact Us For Availability

8

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

8

W11256306 Whirlpool Rack Backorder WPL W11256306 $211.34

8

W11724411 Whirlpool Support In Stock WPL W11724411 $21.74

8

SIDE, COMBO CHASSIS (LEFT) WPL W11171909 Contact Us For Availability

8

ASSEMBLY, OUTER DOOR (BLACK GLASS WITH STAINL WPL W11301024 Contact Us For Availability

8A

SIDE, COMBO CHASSIS (RIGHT) WPL W11244451 Contact Us For Availability

9

W10283023 Whirlpool Support Backorder WPL W10283023 $26.21

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11175831 Whirlpool Microwave Rack In Stock WPL W11175831 $15.23

9

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $55.75

9

W11602631 Whirlpool Door Glass Backorder WPL W11602631 $304.53

9

CONVECT MOTOR ASSEMBLY WPL W11244895 Contact Us For Availability

W10748280 Whirlpool Microwave Rack Backorder WPL W10748280 $42.80

W11411895 Whirlpool Door Handle Backorder WPL W11411895 $654.40

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $55.82

W11578959 Whirlpool Magnetron In Stock WPL W11578959 $70.43

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

WPW10387651 Whirlpool Microwave Element Backorder WPL WPW10387651 $152.39

TOP VENT TRIM ASSEMBLY WPL W11671365 Contact Us For Availability

12

W10521808 Whirlpool Baffle Convect Backorder WPL W10521808 $115.82

12

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $23.30

12

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $27.05

13

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.03

13

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $39.11

13

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $23.30

14

461967754821 Whirlpool Microwave Magnetic Duc Backorder WPL 461967754821 $35.98

14

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

14

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $4.61

15

W10211972 Whirlpool Microwave Switch Backorder WPL W10211972 $28.44

15

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

15

BAFFLE, BOW TIE WPL W11192519 Contact Us For Availability

16

W11214928 Whirlpool Microwave Interlock In Stock WPL W11214928 $12.66

16

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

16

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

Backorder WPL W10588737 $39.82

W10668510 Whirlpool Housing Backorder WPL W10668510 $40.48

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

W10443110 Whirlpool Screw Backorder WPL W10443110 $5.38

W10566973 Whirlpool Wire Harness Backorder WPL W10566973 $29.96

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

W11678579 Whirlpool Element Backorder WPL W11678579 $41.94

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

19

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

19

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

W10575307 Whirlpool Wire Harness Backorder WPL W10575307 $69.34

W11369893 Whirlpool Heat Deflector Backorder WPL W11369893 $41.07

W11578578 Whirlpool Microwave Wire Harness In Stock WPL W11578578 $62.54

SCREW WPL W10739592 Contact Us For Availability

21

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $46.67

21

W11598121 Whirlpool Top-Cabnt Backorder WPL W11598121 $28.38

22

W10283020 Whirlpool Support Backorder WPL W10283020 $26.90

22

COVER, CONVECT PLATE WPL W11235449 Contact Us For Availability

22

HINGE, DOOR WPL W11681073 Contact Us For Availability

23

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $74.14

23

SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability

23

PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability

24

W11578579 Whirlpool Inverter In Stock WPL W11578579 $99.63

24

SPACER, BOTTOM CHASSIS DUCT WPL W11135125 Contact Us For Availability

24

INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability

25

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

25

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

26

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.30

26

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

27

SCREW WPL 7101P426 Contact Us For Availability

28

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

28

BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability

29

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

29

DEFLECTOR, CHASSIS (LEFT) WPL W11186391 Contact Us For Availability

29A

DEFLECTOR, CHASSIS (RIGHT) WPL W11186398 Contact Us For Availability

30

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $26.15

30

W11607070 Whirlpool Arm Backorder WPL W11607070 $10.23

30A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $26.15

31

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $49.54

31

W11699906 Whirlpool Sensor In Stock WPL W11699906 $50.29

32

W11235457 Whirlpool Trim Backorder WPL W11235457 $29.54

32

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $42.71

32A

W11235458 Whirlpool Trim Backorder WPL W11235458 $29.54

33

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

33

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

34

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

34

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

35

WPW10493735 Whirlpool Microwave Heater Backorder WPL WPW10493735 $44.91

35

RIVET (BLACK) WPL W11696855 Contact Us For Availability

36

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $36.14

36

W11712432 Whirlpool Trim Assembly Backorder WPL W11712432 $31.40

37

W11208292 Whirlpool Microwave Sensor In Stock WPL W11208292 $59.10

37

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

38

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

38

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

38A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

39

W10769147 Whirlpool Microwave Foam Seal Backorder WPL W10769147 $14.44

40

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

41

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

42

W11690594 Whirlpool Screw Backorder WPL W11690594 $8.11

43

HOUSING, UPPER INVERTER WPL W11591019 Contact Us For Availability

44

HOUSING, LOWER INVERTER WPL W11591018 Contact Us For Availability

46

461967825601 Whirlpool Screw Backorder WPL 461967825601 $9.13

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W11369891 Whirlpool Heat Deflector Backorder WPL W11369891 $41.07

W11570326 Whirlpool Trim Backorder WPL W11570326 $99.55

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

INSULATION (NOT ILLUSTRATED) WPL ARIC3896A09BBAECADB12C59FB914B3A715 Contact Us For Availability

INSULATION, WRAP WPL W11244474 Contact Us For Availability

INSULATION, BACK WPL W11244475 Contact Us For Availability
