Model Maytag JMV8208CS1 MICROWAVE HOOD, 2.0 CUBIC FOOT – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

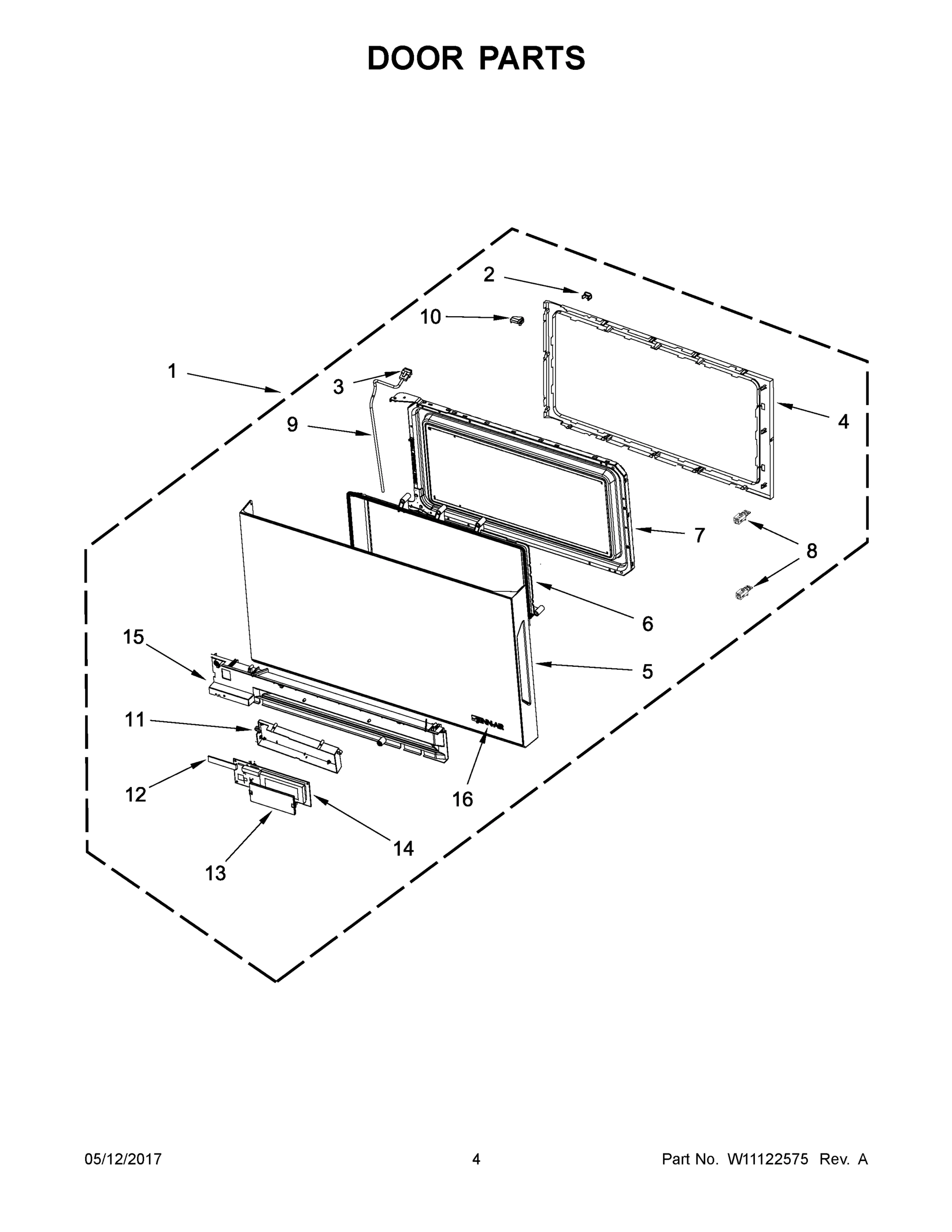

03 - DOOR PARTS

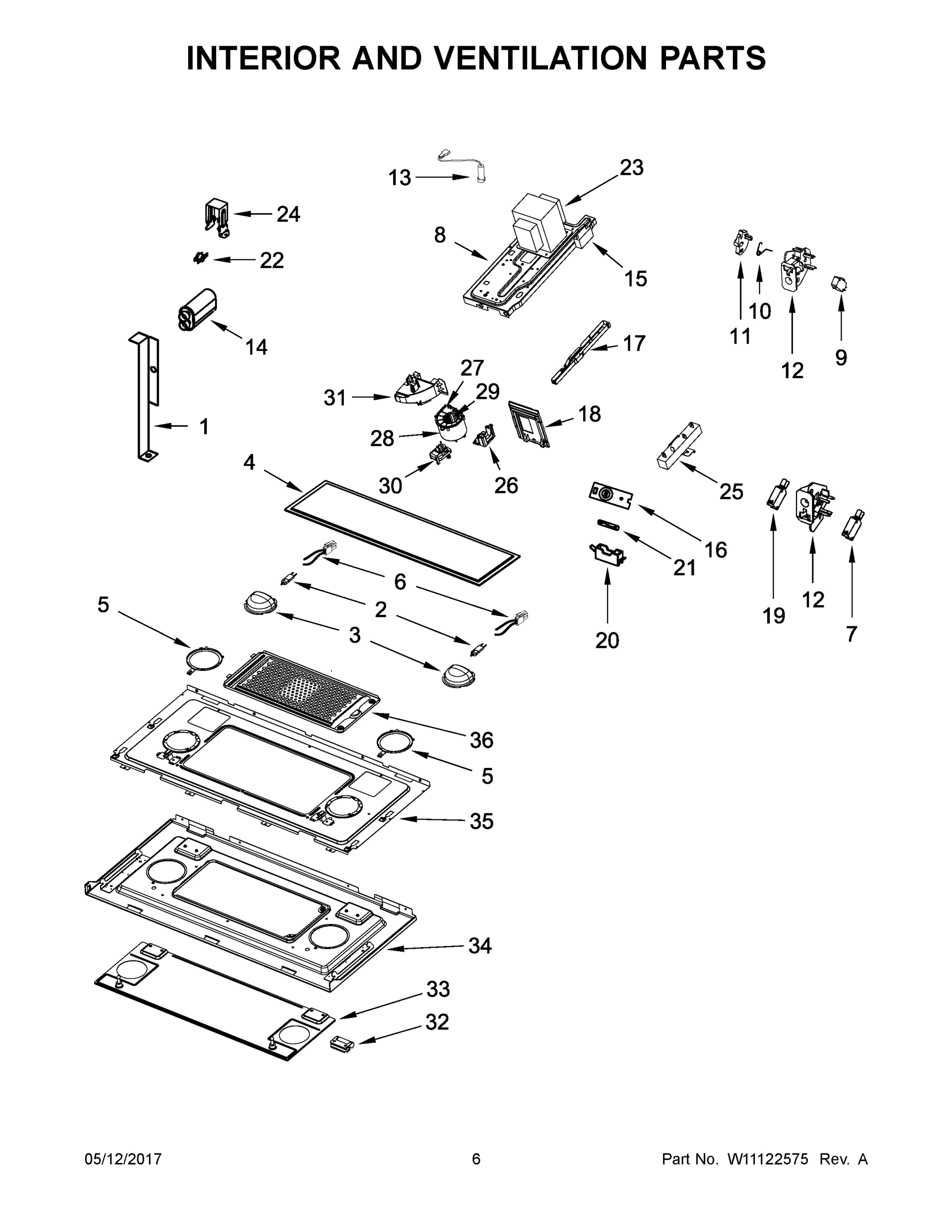

04 - INTERIOR AND VENTILATION PARTS

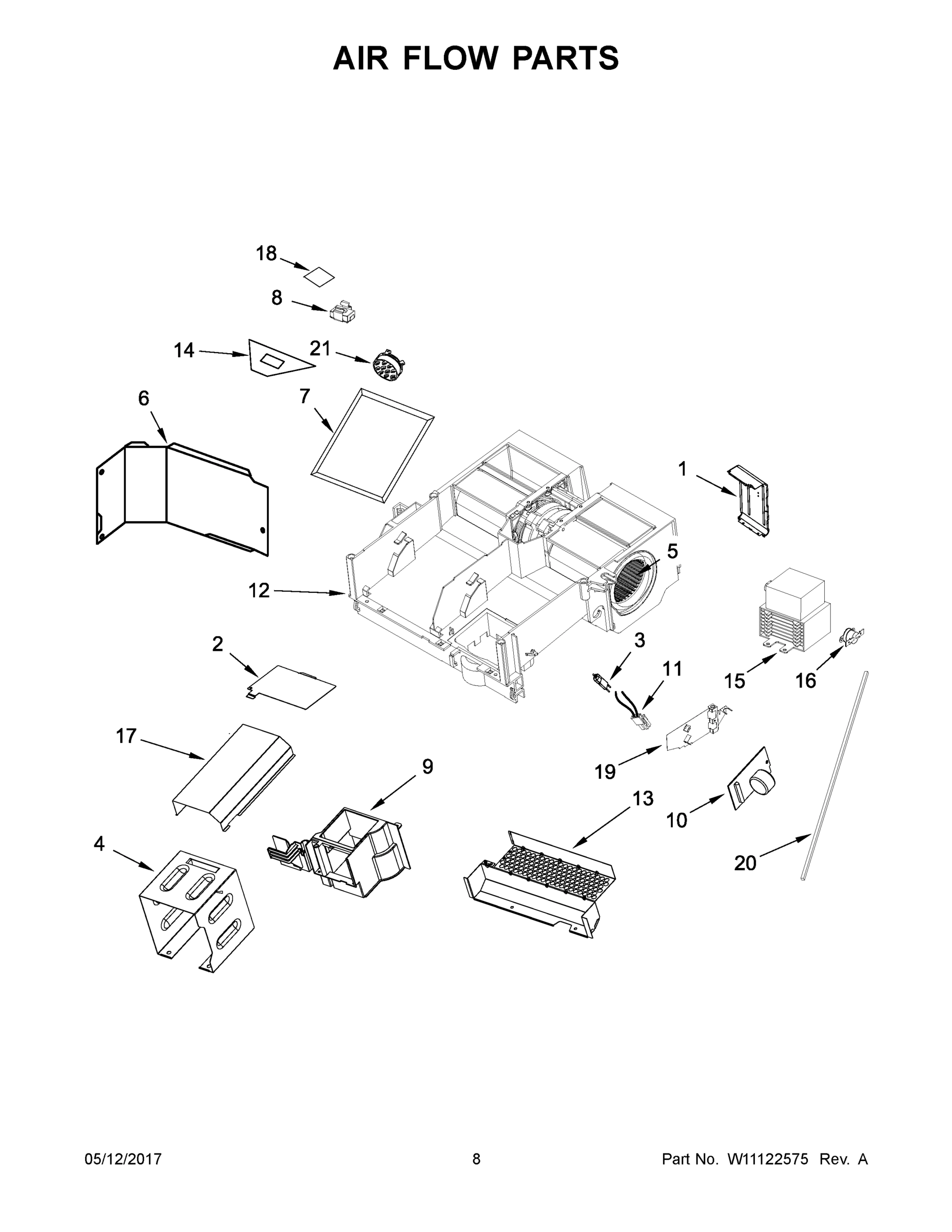

05 - AIR FLOW PARTS

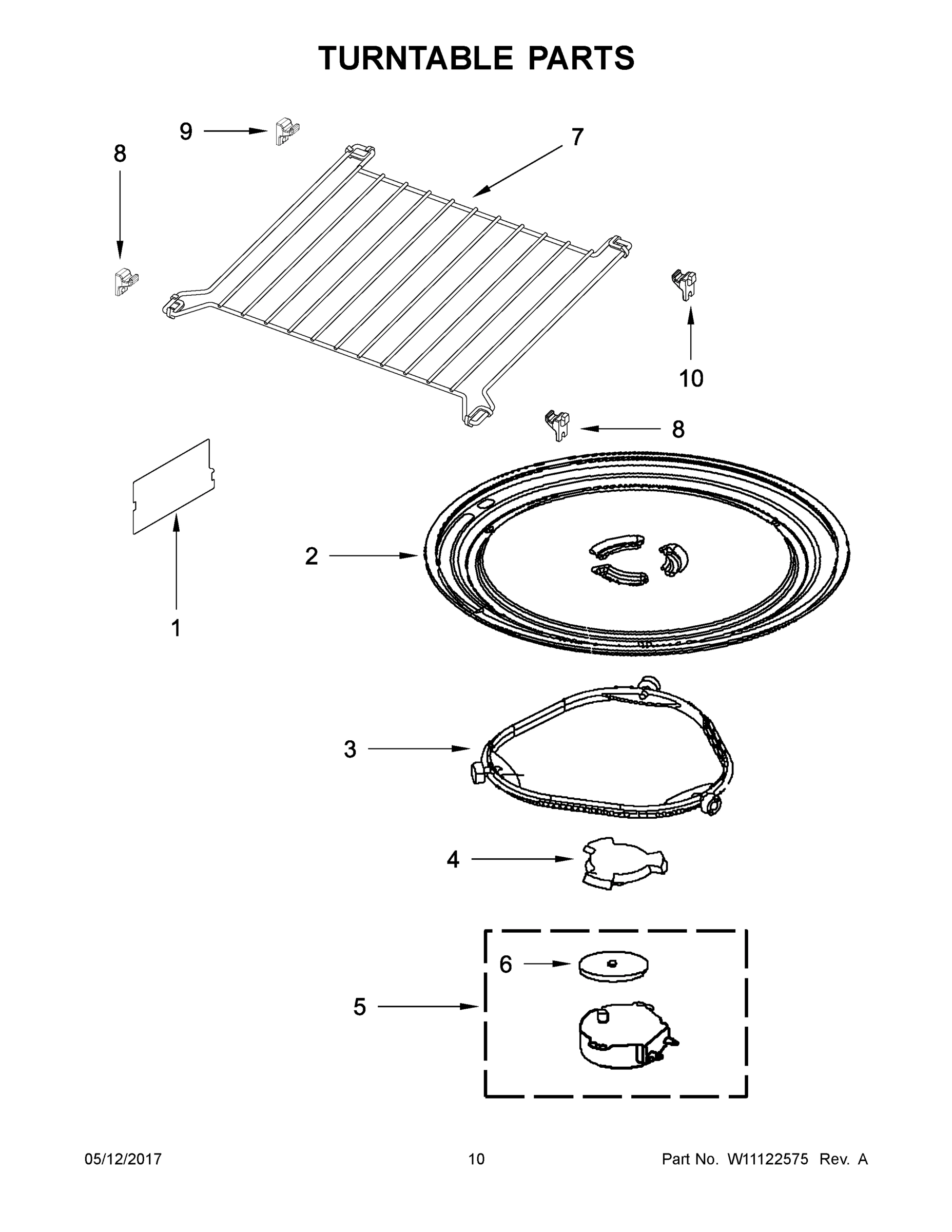

06 - TURNTABLE PARTS

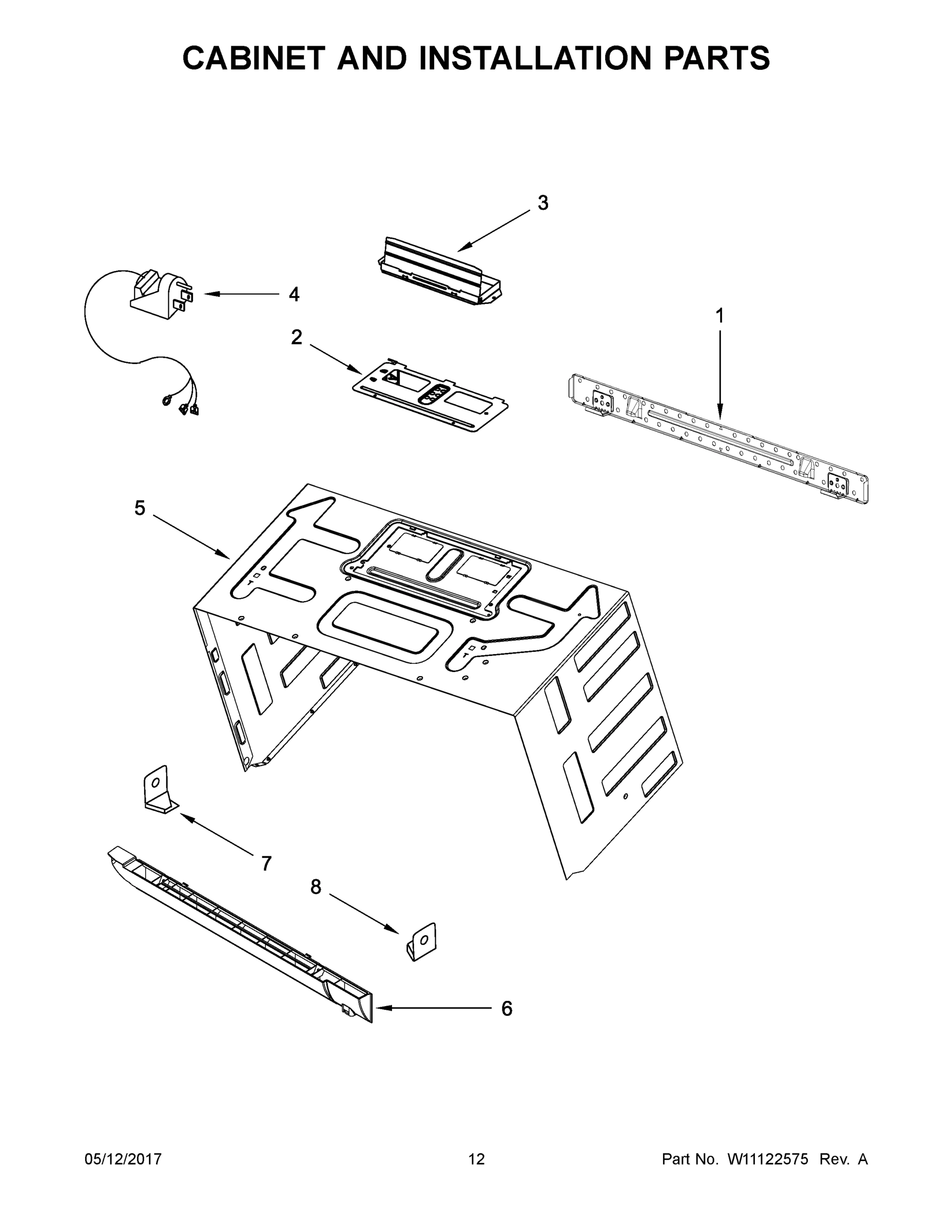

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag JMV8208CS1 MICROWAVE HOOD, 2.0 CUBIC FOOT
1
MAY W10856316 MAY W10856316 Contact Us For Availability
1
DOOR, COMPLETE (BLACK) MAY W10666249 Contact Us For Availability
1
BRACKET, TOP CAVITY MAY W10540715 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10631697 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10533497 Contact Us For Availability
1
PLATE, MOUNTING MAY W10440498 Contact Us For Availability
1A
USE & CARE GUIDE MAY W10619035 Contact Us For Availability
1A
DOOR, COMPLETE (STAINLESS) MAY W10666250 Contact Us For Availability
1B
QUICK REFERENCE GUIDE MAY W10619037 Contact Us For Availability
1C
TECH SHEET MAY W10619042 Contact Us For Availability
2
BACKGROUND, CONTROL MAY W10540727 Contact Us For Availability
2
COVER, SCREW MAY W10542546 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
TURNTABLE MAY W10531726 Contact Us For Availability
2
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
3
SEAL, CONTROL MAY W10540721 Contact Us For Availability
3
HOLDER, DOOR CABLE MAY W10770972 Contact Us For Availability
3
LAMP, HALOGEN MAY W10709921 Contact Us For Availability
3
SHADE, LAMP MAY W10574986 Contact Us For Availability
3
RING, TURNTABLE MAY W10679311 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MAY W10686548 MAY W10686548 Contact Us For Availability
4
FRAME, INNER MAY W10540764 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
HOUSING, DAMPER MAY W10556824 Contact Us For Availability
4
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
5
PANEL, RELAY BOTTOM MAY W10570583 Contact Us For Availability
5
DOOR, OUTER (BLACK) MAY W10594294 Contact Us For Availability
5
ASSEMBLY, LAMP GLASS MAY W10666614 Contact Us For Availability
5
MOTOR, FAN MAY W10726505 Contact Us For Availability
5
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
5
CASE, OUTER (BLACK) MAY W10571408 Contact Us For Availability
5A
DOOR, OUTER (STAINLESS) MAY W10594301 Contact Us For Availability
6
PANEL, RELAY TOP MAY W10478245 Contact Us For Availability
6
PLATE, STEAM PROTECTION MAY W10478652 Contact Us For Availability
6
PLATE, AIR DEFLECTOR MAY W10889794 Contact Us For Availability
6
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
6
GRILLE, VENT (BLACK) MAY W10701699 Contact Us For Availability
7
ASSEMBLY, DOOR METAL MAY W10666248 Contact Us For Availability
7
MICROSWITCH V15T16-CC200/NC MAY W10269458 Contact Us For Availability
7
FILTER, CHARCOAL MAY 8206230 Contact Us For Availability
7
RACK, MICROWAVE MAY W10637159 Contact Us For Availability
7
VENT HOLDER, LEFT (BLACK) MAY W10703285 Contact Us For Availability
8
HOOKS, DOOR MAY W10740455 Contact Us For Availability
8
CHASSIS MAY W10631826 Contact Us For Availability
8
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
8
HOOK, MICROWAVE (LEFT FRONT & RIGHT FRONT) MAY W10740485 Contact Us For Availability
8
VENT HOLDER (RIGHT) (BLACK) MAY W10703283 Contact Us For Availability
9
WIRE, DOOR CONTROL CABLE MAY W10658871 Contact Us For Availability
9
MICROSWITCH V15T16-CP200/NO MAY W10269460 Contact Us For Availability
9
MAY W10892380 MAY W10892380 Contact Us For Availability
9
HOOK, MICROWAVE (LEFT REAR) MAY W10749119 Contact Us For Availability
10
STOPPER, DOOR MAY W10643976 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
BOARD, FILTER MAY W10531156 Contact Us For Availability
10
HOOK, MICROWAVE (RIGHT REAR) MAY W10749120 Contact Us For Availability
11
HOLDER, UI MAY W10770970 Contact Us For Availability
11
WIRE, CAVITY LAMP MAY W10657044 Contact Us For Availability
11
PLATE, CAM MAY W10156811 Contact Us For Availability
12
CABLE, SENSOR MAY W10509362 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
BASEPLATE, AIR GUIDE MAY W10892373 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
LENS MAY W10540731 Contact Us For Availability
13
DIODE, HIGH VOLTAGE MAY W10575765 Contact Us For Availability
13
SHIELD, FINGER (INCLUDES SEAL) MAY W10629803 Contact Us For Availability
14
CONTROL, UI MAY W10568426 Contact Us For Availability
14
CAPACITOR, HIGH VOLTAGE MAY W10561770 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
15
COVER, UI MAY W10478222 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10605897 Contact Us For Availability
15
MAGNETRON MAY W10754514 Contact Us For Availability
16
BADGE (BLACK) MAY W10190724 Contact Us For Availability
16
THERMISTOR PCBA MAY W10536989 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10840013 Contact Us For Availability
16A
BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
17
BRACKET, CAVITY MAY W10540718 Contact Us For Availability
17
OUTLET, CAVITY (BACK) MAY W10533111 Contact Us For Availability
18
DEFLECTOR, AIR MAY W10533481 Contact Us For Availability
18
GLASS, LAMP MAY W10531724 Contact Us For Availability
19
MICROSWITCH V15T16-CZ200/NC/NO MAY W10269457 Contact Us For Availability
19
COVER, DUCT (RIGHT) MAY W10869222 Contact Us For Availability
20
HOLDER, FUSE MAY W10245194 Contact Us For Availability
20
SEAL, FOAM MAY W10571180 Contact Us For Availability
21
FUSE MAY W10138793 Contact Us For Availability
21
SENSOR, HUMIDITY MAY W10557536 Contact Us For Availability
22
THERMOSTAT MAY W10598693 Contact Us For Availability
23
TRANSFORMER, HIGH VOLTAGE MAY W10772112 Contact Us For Availability
24
BRACKET, CAPACITOR MAY W10633730 Contact Us For Availability
25
RESISTOR, CEMENT MAY W10568805 Contact Us For Availability
26
HOLDER, NTC MAY W10533480 Contact Us For Availability
27
COVER, COOLING FAN MAY W10533502 Contact Us For Availability
28
HOUSING, COOLING FAN MAY W10533501 Contact Us For Availability
29
WHEEL, COOLING FAN MAY W10533503 Contact Us For Availability
30
MOTOR, COOLING MAY W10536556 Contact Us For Availability
31
MAGNETRON, AIR GUIDE MAY W10631700 Contact Us For Availability
32
PLATE, BOTTOM MAY W10574978 Contact Us For Availability
33
GLASS, BOTTOM PLATE (BLACK) MAY W10614213 Contact Us For Availability
33A
GLASS, BOTTOM PLATE (STAINLESS) MAY W10614211 Contact Us For Availability
34
PLATE, OUTER BOTTOM MAY W10614222 Contact Us For Availability
35
PLATE, INNER BOTTOM MAY W10614209 Contact Us For Availability
36
BRACKET, FILTER MAY W10614204 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, WIRE, DOOR CONTROL CABLE MAY W10508741 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W10666251 Contact Us For Availability
NI
ACCESSORIES, PLATE, DOOR BAFFLE (HEAT REFLECT MAY W10737014 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MAY W10877901 MAY W10877901 Contact Us For Availability
× ![]()
