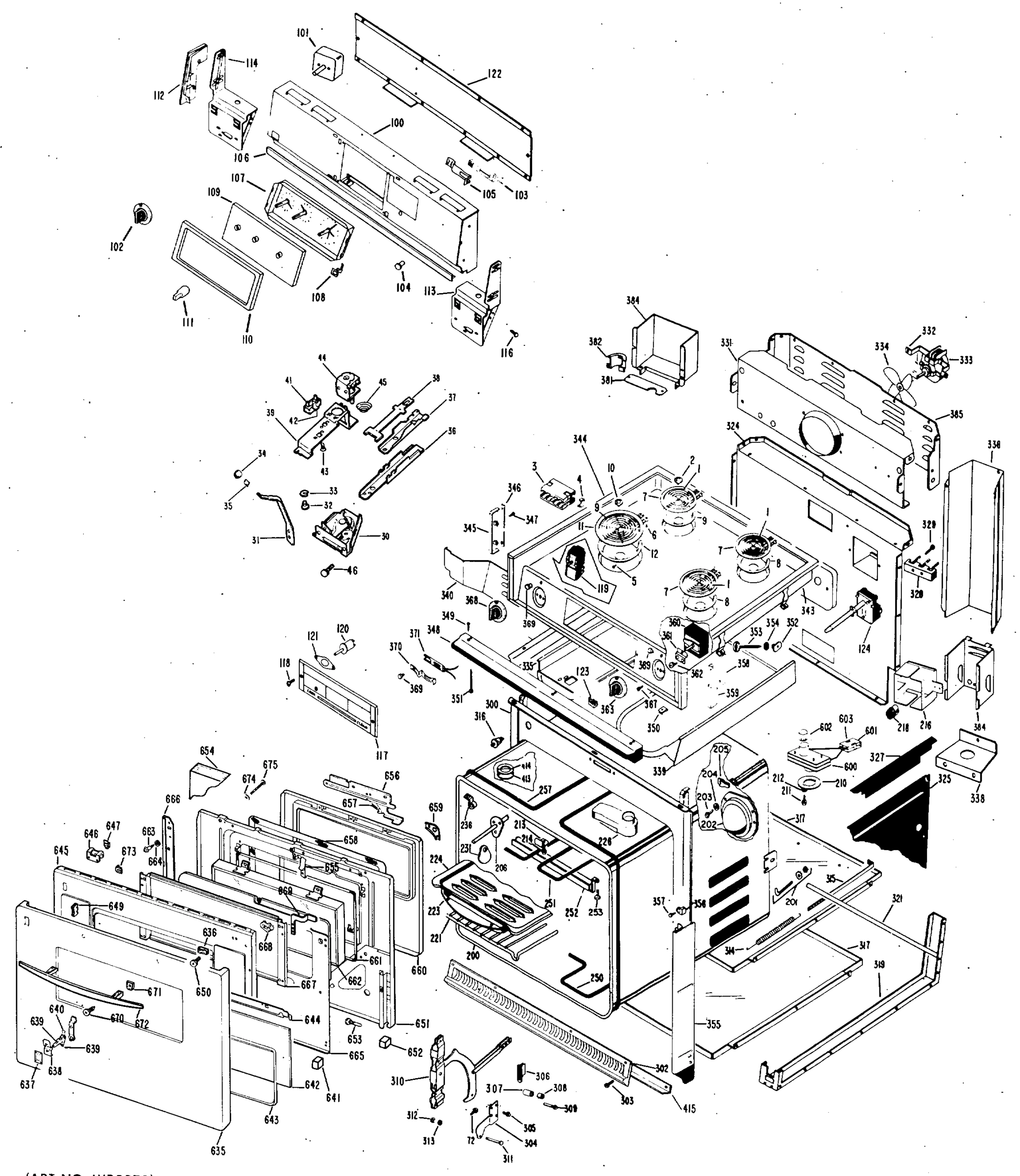

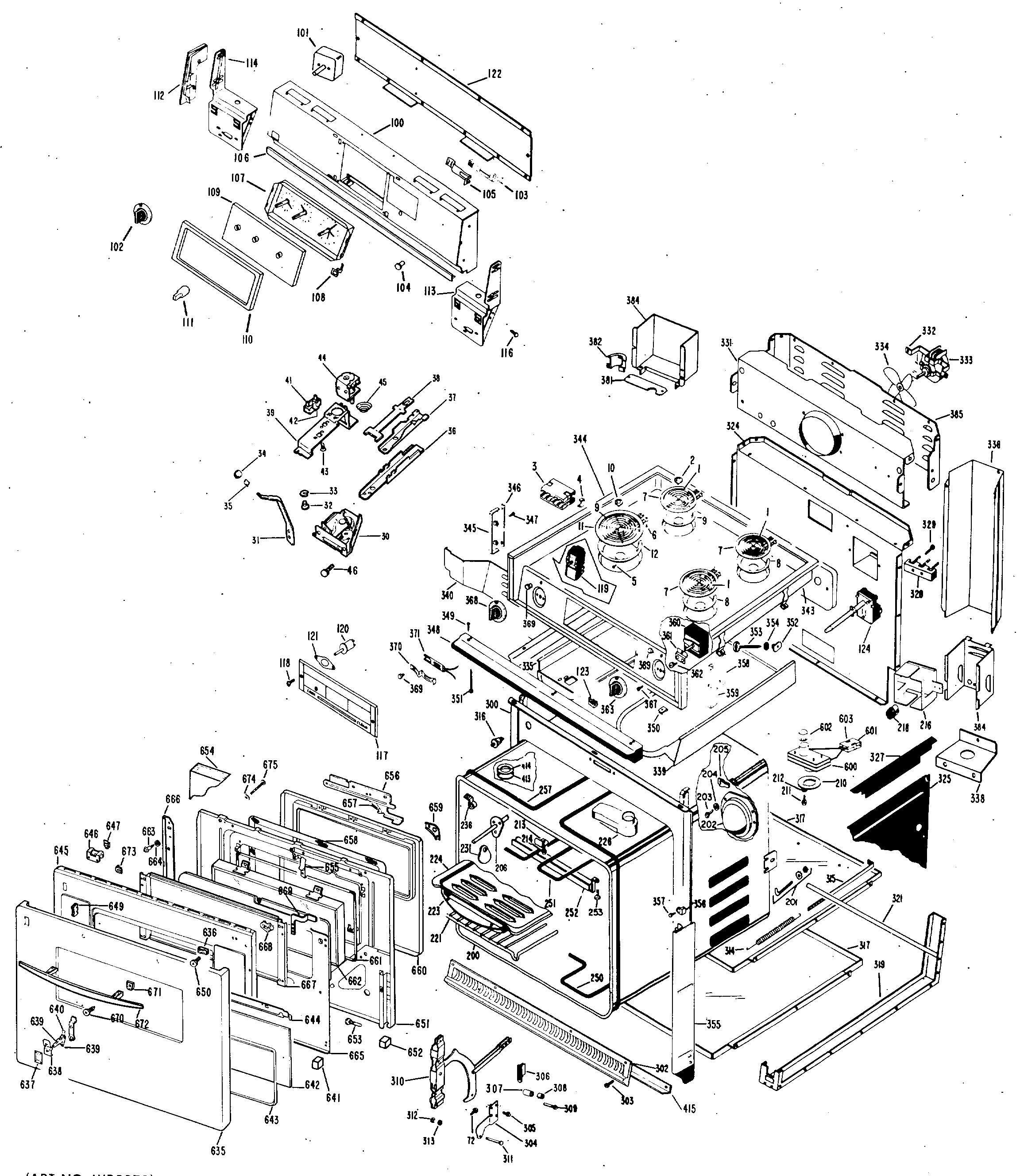

Model GE JMP26*07 – Common Parts & Diagrams
Common parts from model GE JMP26*07
3
TERM BLOCK SINGLE COIL GEN WB02X2398 Contact Us For Availability
4
3 IN 1 INSULATOR CLIP GEN WB02X0574 Contact Us For Availability
5
SCREW (HEX) GEN WB01X0549 Contact Us For Availability
10
GEN WB32X0051 GEN WB32X0051 Contact Us For Availability
11
GEN WB31X5014 GEN WB31X5014 Contact Us For Availability
12
CLIP LEAD GEN WB02X0995 Contact Us For Availability
30
LATCH GEN WB14X5035 Contact Us For Availability
30
GEN WZ04X0362 GEN WZ04X0362 Contact Us For Availability
31
SCREW WASHER ASM GEN WB01X0438 Contact Us For Availability
31
GEN WB15X0097 GEN WB15X0097 Contact Us For Availability
32
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
33
RETAINER RING GEN WB02X1800 Contact Us For Availability
34
KNOB LATCH GEN WB03X0322 Contact Us For Availability
35
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
36
GEN WB02X3157 GEN WB02X3157 Contact Us For Availability
37
GEN WB02X3158 GEN WB02X3158 Contact Us For Availability
38
GEN WB02X3159 GEN WB02X3159 Contact Us For Availability
39
PLATE MOUNTING GEN WB02X7301 Contact Us For Availability
41
GEN WB24X0183 GEN WB24X0183 Contact Us For Availability
42
GEN WB02X3161 GEN WB02X3161 Contact Us For Availability
43
SCREW MT. SWITCH GEN WB01X0561 Contact Us For Availability
44
GEN WB24X0197 GEN WB24X0197 Contact Us For Availability
45
SPRING-PLUNGER GEN WB09X0148 Contact Us For Availability
100
GEN WB61X0213 GEN WB61X0213 Contact Us For Availability
101
SCR 8-32 M PHR 3/16 S GEN WZ02X0528 Contact Us For Availability
102
GEN WB03X0464 GEN WB03X0464 Contact Us For Availability
103
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
103
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
105
CLIP LAMP GEN WB02X1185 Contact Us For Availability
106
GEN WB01X5371 GEN WB01X5371 Contact Us For Availability
106
GEN WB07X1138 GEN WB07X1138 Contact Us For Availability
107
GEN WB19X0147 GEN WB19X0147 Contact Us For Availability
108
GEN WB02X3325 GEN WB02X3325 Contact Us For Availability
109
GEN WB36X5321 GEN WB36X5321 Contact Us For Availability
110
GEN WB07X5607 GEN WB07X5607 Contact Us For Availability
111
GEN WB03X0459 GEN WB03X0459 Contact Us For Availability
112
GEN WB07X1130 GEN WB07X1130 Contact Us For Availability
112
GEN WB07X1131 GEN WB07X1131 Contact Us For Availability
112
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
112
GEN WZ05X0187 GEN WZ05X0187 Contact Us For Availability
113
GEN WB02X3326 GEN WB02X3326 Contact Us For Availability
114
GEN WB01X0408 GEN WB01X0408 Contact Us For Availability
114
GEN WB02X3327 GEN WB02X3327 Contact Us For Availability
114
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
115
GEN WB07X0626 GEN WB07X0626 Contact Us For Availability
117
GEN WB07X1072 GEN WB07X1072 Contact Us For Availability
118
GEN WZ04X0237 GEN WZ04X0237 Contact Us For Availability
119
GEN WB01X0306 GEN WB01X0306 Contact Us For Availability
119
SCR 8/32 TF FLR 5/16 S GEN WB01X0521 Contact Us For Availability
119
GEN WB02X1132 GEN WB02X1132 Contact Us For Availability
119
GEN WB02X3178 GEN WB02X3178 Contact Us For Availability
119
GEN WB02X3179 GEN WB02X3179 Contact Us For Availability
119
GEN WB02X5545 GEN WB02X5545 Contact Us For Availability
119
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
120
SWITCH, LATCH RELEASE GEN WB24X0108 Contact Us For Availability
121
GEN WB02X2051 GEN WB02X2051 Contact Us For Availability
121
BARRIER SWITCH GEN WB02X2114 Contact Us For Availability
122
GEN WB59X0171 GEN WB59X0171 Contact Us For Availability
123
GEN WB24X0199 GEN WB24X0199 Contact Us For Availability
124
GEN WB24X0175 GEN WB24X0175 Contact Us For Availability
200
PLUG BUTTON GEN WB02X1125 Contact Us For Availability
200
GEN WB02X2115 GEN WB02X2115 Contact Us For Availability
200
CLIP CAPILLARY TUBE OVEN GEN WB02X3471 Contact Us For Availability
200
OVEN LINER (06-07) GEN WB53X0234 Contact Us For Availability
200
GEN WB53X0252 GEN WB53X0252 Contact Us For Availability
201
LOCKWASHER GEN WB09X0088 Contact Us For Availability
203
GEN WZ04X0292 GEN WZ04X0292 Contact Us For Availability
205
SPEEDNUT GEN WB02X1659 Contact Us For Availability
206
GASKET-TLS GEN WB02X3163 Contact Us For Availability
206
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
210
GASKET ELIM. BTM. GEN WB02X1815 Contact Us For Availability
213
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
216
GEN WB02X3466 GEN WB02X3466 Contact Us For Availability
218
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
221
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
224
GEN WB48X5052 GEN WB48X5052 Contact Us For Availability
225
GEN WB56X0650 GEN WB56X0650 Contact Us For Availability
226
GEN WB38X0066 GEN WB38X0066 Contact Us For Availability
231
GEN WB02X3230 GEN WB02X3230 Contact Us For Availability
233
GEN WB24X0134 GEN WB24X0134 Contact Us For Availability
234
COVER VENT GEN WB02 Contact Us For Availability
× ![]()
