Model Whirlpool JLAIC5052 ICE CUBE MAKER – Common Parts & Diagrams

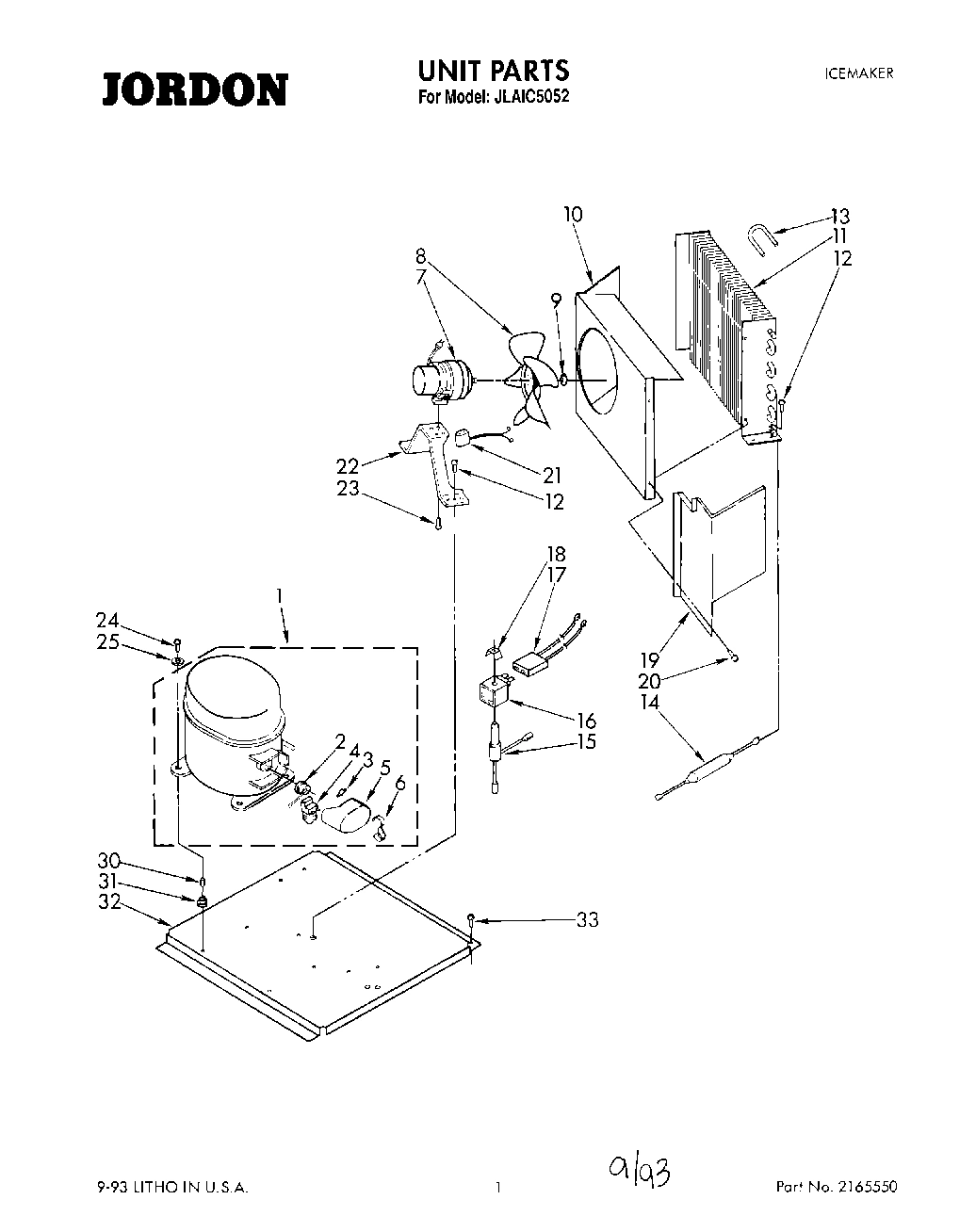

01 - UNIT, LITERATURE

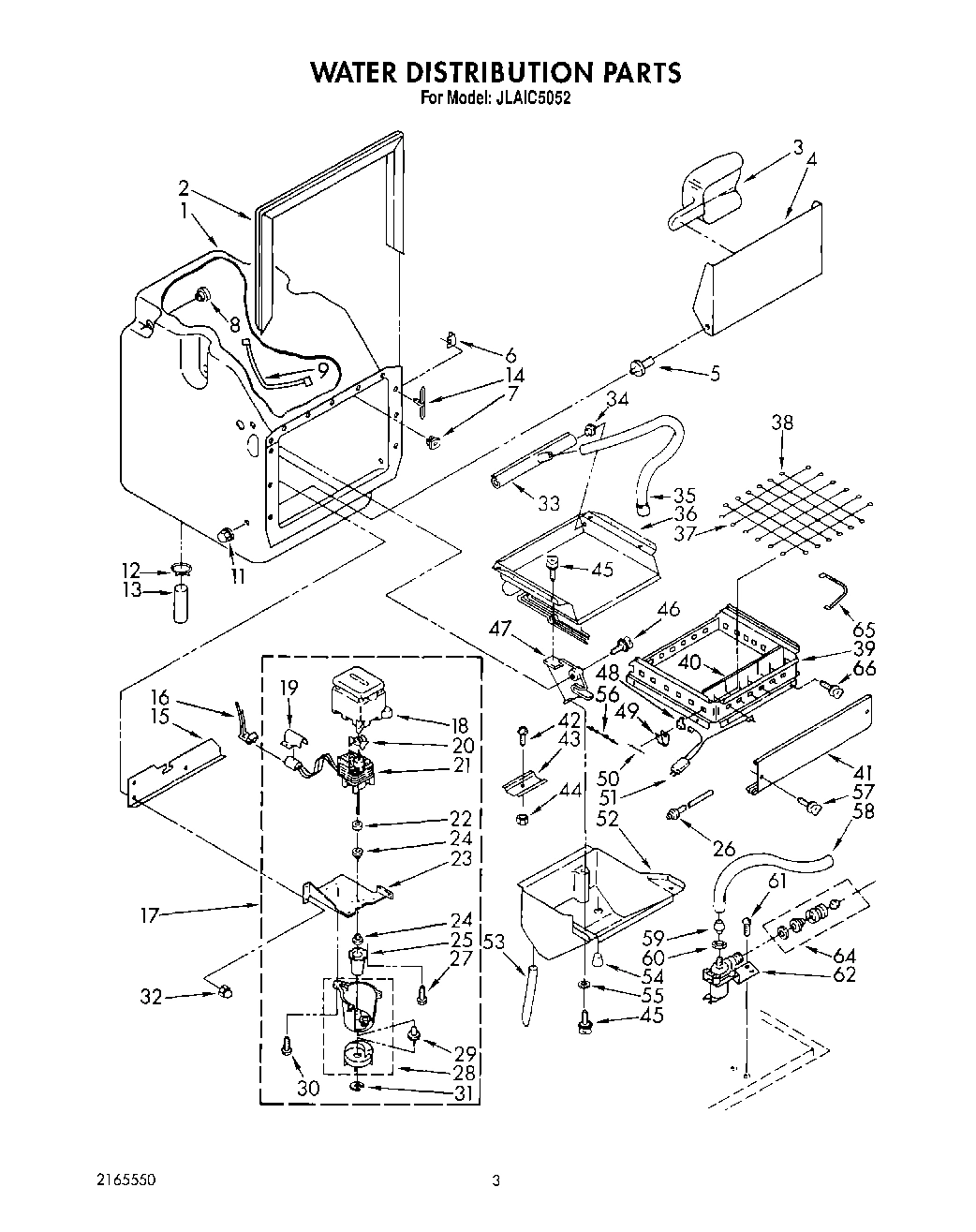

02 - WATER DISTRIBUTION
03 - CABINET AND FRONT
04 - OPTIONAL PARTS
05 - DRAIN PUMP
Common parts from model Whirlpool JLAIC5052 ICE CUBE MAKER
1
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
1
Liner (Includes No.s 5, 6, 7, 11, 14) WPL 756350 Contact Us For Availability
1
WPL 756643 WPL 756643 Contact Us For Availability
1
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
1
WPL 758913 WPL 758913 Contact Us For Availability
2
Gasket, Liner WPL 758921 Contact Us For Availability
2
WPL 978865 WPL 978865 Contact Us For Availability
3
Screw, No.10-32 x 3/8 WPL 680811 Contact Us For Availability
3
WPL 10875 WPL 10875 Contact Us For Availability
3
WPL 242820 WPL 242820 Contact Us For Availability
3
WPL 242825 WPL 242825 Contact Us For Availability
3
WPL 242826 WPL 242826 Contact Us For Availability
3
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
3
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
3
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
3
WPL 770966 WPL 770966 Contact Us For Availability
4
Door, Bin WPL 756330 Contact Us For Availability
4
Support, Cabinet Front WPL 758652 Contact Us For Availability
4
WPL 813684 WPL 813684 Contact Us For Availability
4
WPL 758915 WPL 758915 Contact Us For Availability
5
Stud, Bin Door Mtg. (2) WPL 758220 Contact Us For Availability
5
Grommet, Mtg (2) WPL 596807 Contact Us For Availability
5
Panel, Grille Front WPL 758720 Contact Us For Availability
6
Washer, Clip WPL 758492 Contact Us For Availability
7
Panel, Rear Escutcheon WPL 756664 Contact Us For Availability
7
WPL 486713 WPL 486713 Contact Us For Availability
8
Thermostat, Ice-Control WPL 759308 Contact Us For Availability
8
Nut, Well (3) WPL 596715 Contact Us For Availability
8
WPL 799833 WPL 799833 Contact Us For Availability
8
WPL 596572 WPL 596572 Contact Us For Availability
9
Thermostat, Well, Assy. WPL 593183 Contact Us For Availability
9
Switch, Rotary WPL 593139 Contact Us For Availability
9
Paint, Spray (Leveler, Enamel) WPL 206925 Contact Us For Availability
9
WPL 758918 WPL 758918 Contact Us For Availability
10
Panel, Control WPL 756341 Contact Us For Availability
10
Grid, Cutter (1-1/4`` - Cubes (Complete Assem WPL 758469 Contact Us For Availability
10
Grid, Cutter (3/4`` - Cubes) WPL 758470 Contact Us For Availability
11
Nut, Hex 1/4 (2) WPL 681542 Contact Us For Availability
11
WPL 758919 WPL 758919 Contact Us For Availability
12
WPL 702354 WPL 702354 Contact Us For Availability
12
Pump, Condensate Drain (Complete Kit) WPL 758840 Contact Us For Availability
13
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
13
WPL 756298 WPL 756298 Contact Us For Availability
13
Hose, 5/8 x 4`` (Connector To Air Gap) WPL 593577 Contact Us For Availability
13
WPL 593178 WPL 593178 Contact Us For Availability
14
Clamp, Hose (2) WPL 596023 Contact Us For Availability
14
Clip, Liner (12) WPL 596812 Contact Us For Availability
14
WPL 593555 WPL 593555 Contact Us For Availability
15
Valve, Solenoid Coil WPL 598086 Contact Us For Availability
15
WPL 585853 WPL 585853 Contact Us For Availability
15
WPL 756880 WPL 756880 Contact Us For Availability
15
Hose, 1/2 I.D. x 12`` (Bin To Pump) WPL 593369 Contact Us For Availability
16
WPL 587970 WPL 587970 Contact Us For Availability
16
Harness, Wiring (Water Pump) WPL 569434 Contact Us For Availability
16
Harness, Wiring (Cutter Grid) WPL 757464 Contact Us For Availability
16
WPL 588490 WPL 588490 Contact Us For Availability
17
Harness, Wiring (Solenoid Coil) WPL 587971 Contact Us For Availability
17
Washer, Latch WPL 681245 Contact Us For Availability
17
WPL 755364 WPL 755364 Contact Us For Availability
17
WPL 755340 WPL 755340 Contact Us For Availability
17
WPL 755371 WPL 755371 Contact Us For Availability
17
WPL 756870 WPL 756870 Contact Us For Availability
17
Panel, Door (Toast & Platinum) WPL 758740 Contact Us For Availability
18
Retainer, Solenoid Coil WPL 564234 Contact Us For Availability
18
WPL 583155 WPL 583155 Contact Us For Availability
18
Latch, Door WPL 759007 Contact Us For Availability
19
Deflector, Air WPL 758811 Contact Us For Availability
19
Sheild, Wiring WPL 756124 Contact Us For Availability
19
WPL 487246 WPL 487246 Contact Us For Availability
20
Thermostat, Ice-Bin WPL 759309 Contact Us For Availability
20
WPL 587096 WPL 587096 Contact Us For Availability
21
Harness, Wiring (Fan Motor) WPL 585219 Contact Us For Availability
21
WPL 1127834 WPL 1127834 Contact Us For Availability
21
WPL 681613 WPL 681613 Contact Us For Availability
22
Bracket, Fan Motor WPL 560817 Contact Us For Availability
22
WPL 583424 WPL 583424 Contact Us For Availability
22
WPL 758414 WPL 758414 Contact Us For Availability
23
WPL 489199 WPL 489199 Contact Us For Availability
23
WPL 756122 WPL 756122 Contact Us For Availability
24
Screw, 5/16-18 x 1 1/4`` WPL 680233 Contact Us For Availability
24
WPL 596016 WPL 596016 Contact Us For Availability
24
Screw, 8-32 x 3/8 WPL 681036 Contact Us For Availability
25
Washer, Flat (4) WPL 595230 Contact Us For Availability
25
WPL 593229 WPL 593229 Contact Us For Availability
25
Screw, 10 x 1/2 WPL 681419 Contact Us For Availability
26
WPL 759213 WPL 759213 Contact Us For Availability
26
WPL 593810 WPL 593810 Contact Us For Availability
28
WPL 583518 WPL 583518 Contact Us For Availability
28
Insul/Bottom Foam WPL 756891 Contact Us For Availability
29
WPL 583426 WPL 583426 Contact Us For Availability
29
Handle, Door WPL 756662 Contact Us For Availability
30
WPL 585564 WPL 585564 Contact Us For Availability
30
WPL 681391 WPL 681391 Contact Us For Availability
30
WPL 758838 WPL 758838 Contact Us For Availability
31
WPL 596355 WPL 596355 Contact Us For Availability
31
WPL 681301 WPL 681301 Contact Us For Availability
31
Rail, Door (Right Side) WPL 593184 Contact Us For Availability
31
Rail, Door (Left Side) WPL 593185 Contact Us For Availability
32
WPL 758810 WPL 758810 Contact Us For Availability
32
Nut (3) WPL 681770 Contact Us For Availability
32
Screw, No.8-32 1/2 (6) WPL 681459 Contact Us For Availability
33
WPL 585813 WPL 585813 Contact Us For Availability
33
WPL 755675 WPL 755675 Contact Us For Availability
33
WPL 755676 WPL 755676 Contact Us For Availability
34
Plug, WPL 758597 Contact Us For Availability
34
WPL 593104 WPL 593104 Contact Us For Availability
35
Hose, Dispenser WPL 585856 Contact Us For Availability
35
WPL 758655 WPL 758655 Contact Us For Availability
36
WPL 758028 WPL 758028 Contact Us For Availability
36
Trim, Door WPL 755677 Contact Us For Availability
37
Wire, Cutter (Includes 5 Wires) WPL 587503 Contact Us For Availability
37
Screw, No.8-32 x 1/2 WPL 681196 Contact Us For Availability
38
Wire, Cutter (Includes 6 Wires) WPL 587504 Contact Us For Availability
38
WPL 758754 WPL 758754 Contact Us For Availability
39
Frame, Grid (Only Available As An Assembly, S WPL 759201 Contact Us For Availability
40
WPL 564069 WPL 564069 Contact Us For Availability
40
Gasket, Door WPL 758169 Contact Us For Availability
41
WPL 593171 WPL 593171 Contact Us For Availability
41
WPL 593192 WPL 593192 Contact Us For Availability
42
WPL 596037 WPL 596037 Contact Us For Availability
43
WPL 587662 WPL 587662 Contact Us For Availability
44
Nut, 10-32 WPL 681676 Contact Us For Availability
46
Screw, Thumb 10-32 x 1`` WPL 681611 Contact Us For Availability
47
Bracket, Grid (2) WPL 756564 Contact Us For Availability
47
Panel, Grille Front WPL 758769 Contact Us For Availability
48
Insulator, Grid Wires (22) WPL 598277 Contact Us For Availability
49
Clip, Grid Wires (11) WPL 759197 Contact Us For Availability
50
Pin, Grid Wires (4) WPL 587112 Contact Us For Availability
50
Retainer, Wire (2) WPL 758844 Contact Us For Availability
51
WPL 587638 WPL 587638 Contact Us For Availability
51
WPL 758564 WPL 758564 Contact Us For Availability
52
Pan, Water WPL 756659 Contact Us For Availability
52
Trim, Sides (2) WPL 758713 Contact Us For Availability
53
WPL 759109 WPL 759109 Contact Us For Availability
53
Trim, Top And Bottom (2) WPL 758716 Contact Us For Availability
54
WPL 759043 WPL 759043 Contact Us For Availability
54
Panel, Support (2) WPL 758718 Contact Us For Availability
56
Pin, Grid (5) WPL 587424 Contact Us For Availability
56
Panel, Filler WPL 758770 Contact Us For Availability
57
Screw, Thumb 10-32 x 3/4 (2) WPL 681534 Contact Us For Availability
57
WPL 758771 WPL 758771 Contact Us For Availability
61
Screw, 1/4-20 x 1/2 WPL 681305 Contact Us For Availability
62
Valve, Water WPL 759296 Contact Us For Availability
64
Adapter, Hose WPL 533238 Contact Us For Availability
65
Lead, Grid Connection WPL 587106 Contact Us For Availability
66
Screw, Thumb 10-32 x 5/8 WPL 680930 Contact Us For Availability
× ![]()
