Model GE JKP27BD1BB – Common Parts & Diagrams

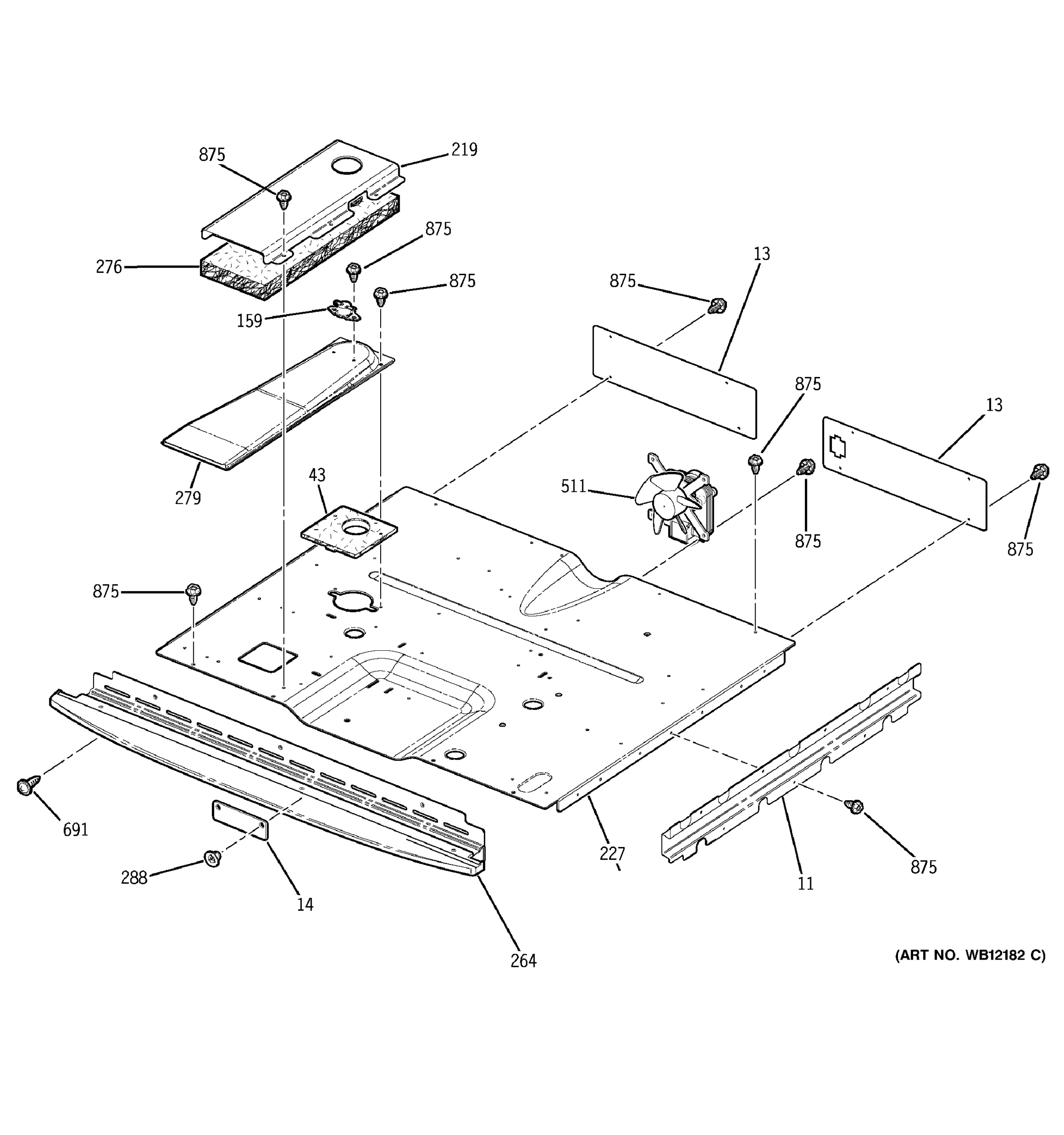

CENTER SPACER

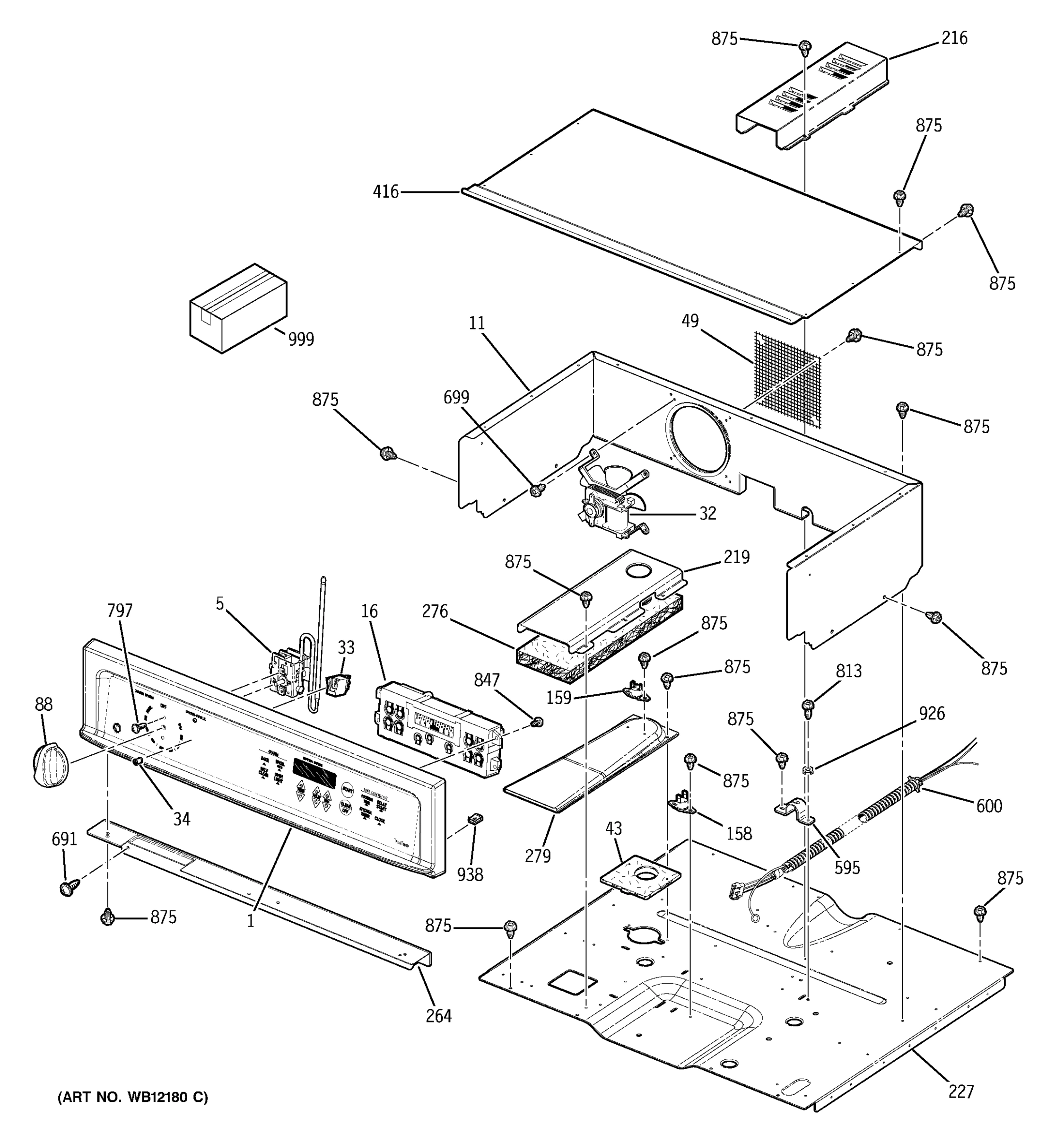

CONTROL PANEL

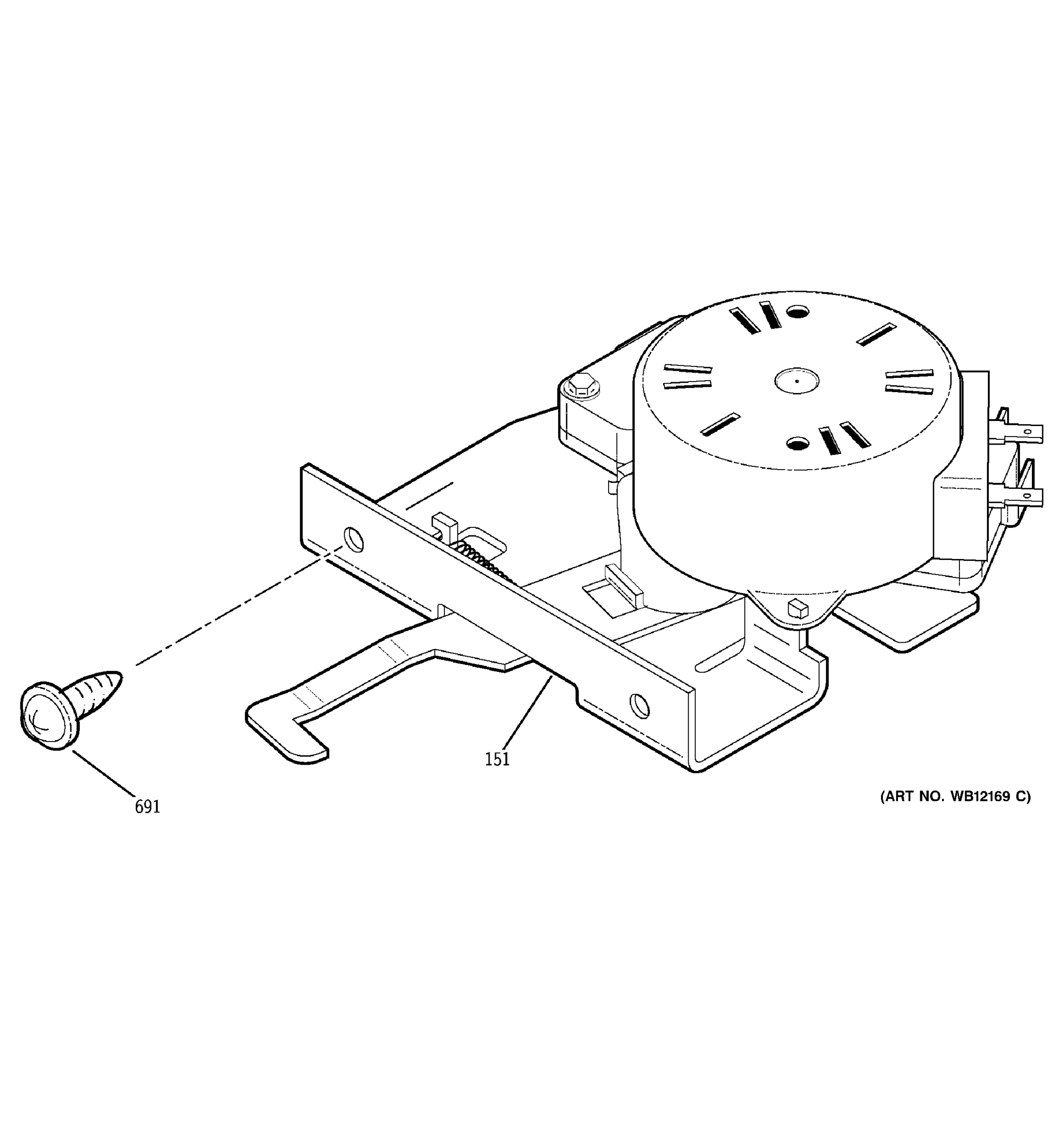

DOOR LOCK

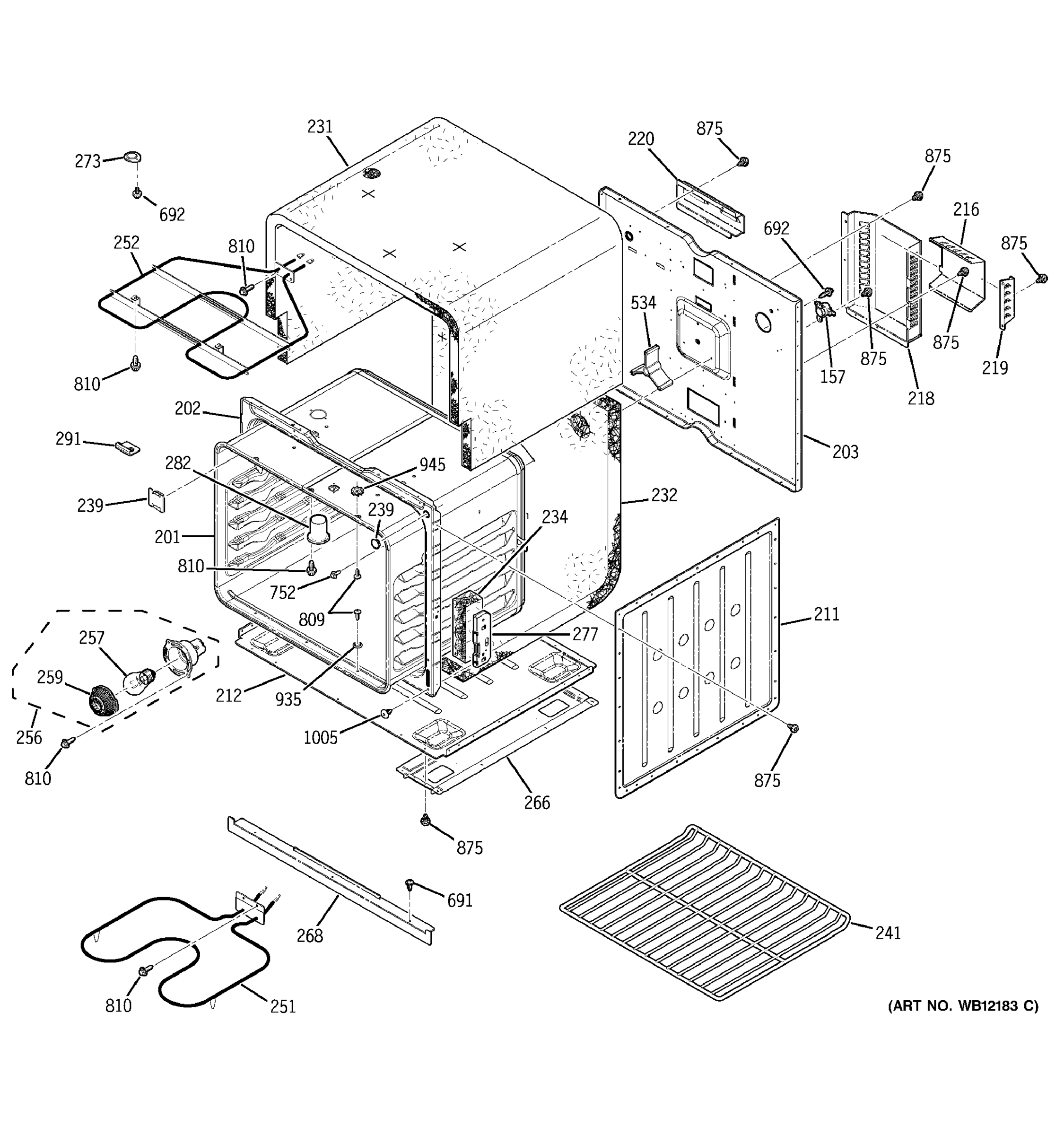

LOWER BODY

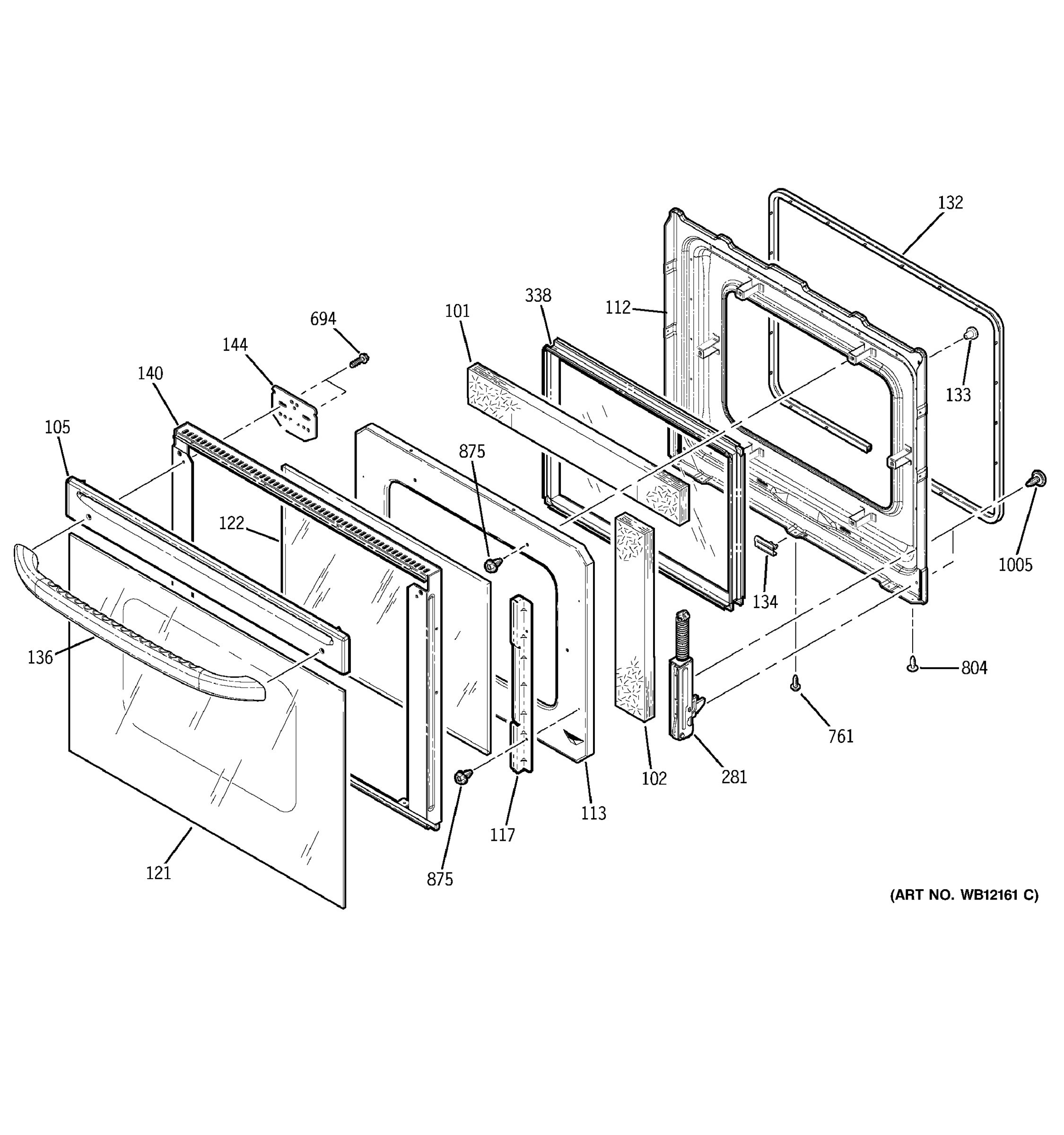

LOWER DOOR

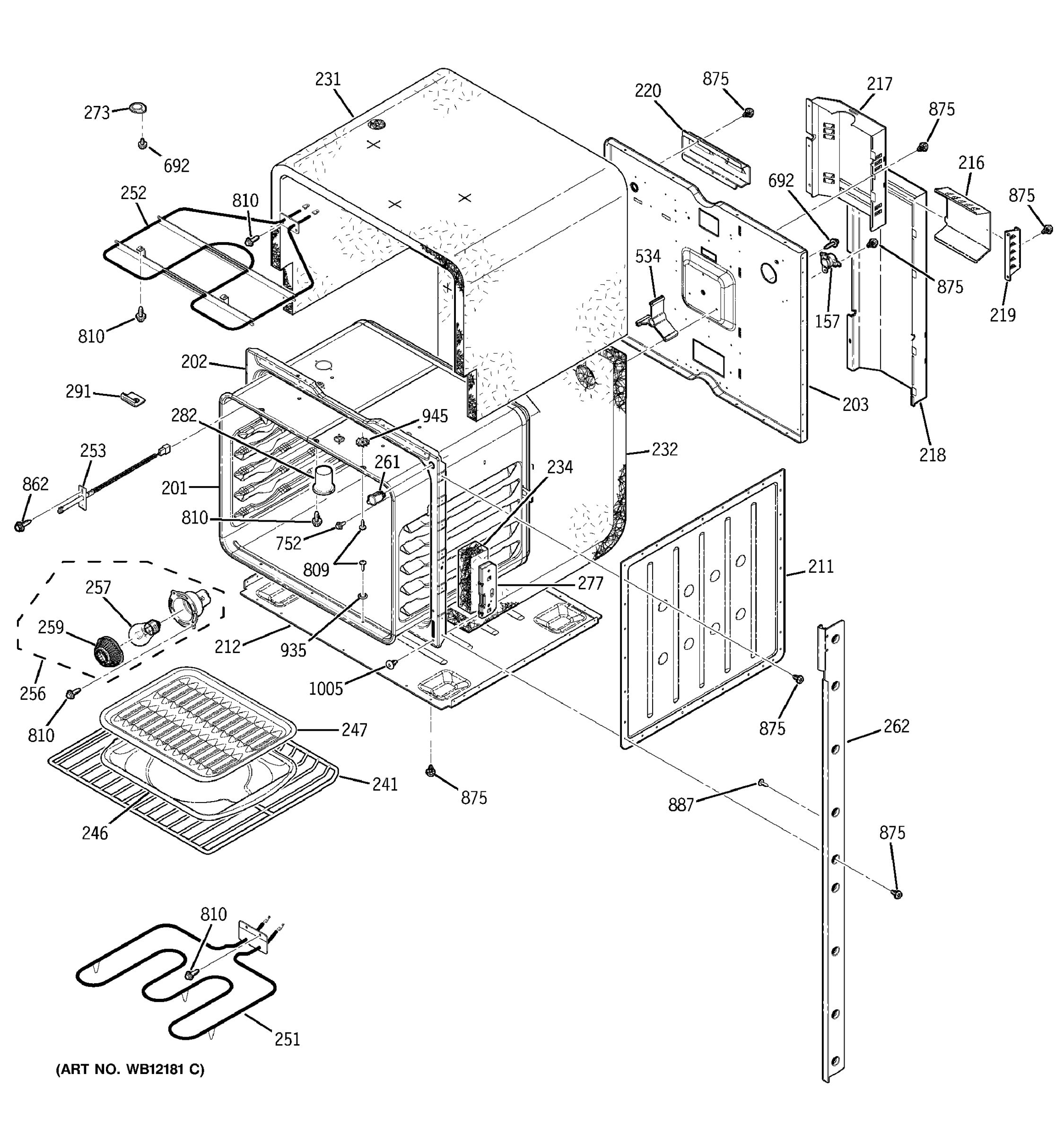

UPPER BODY

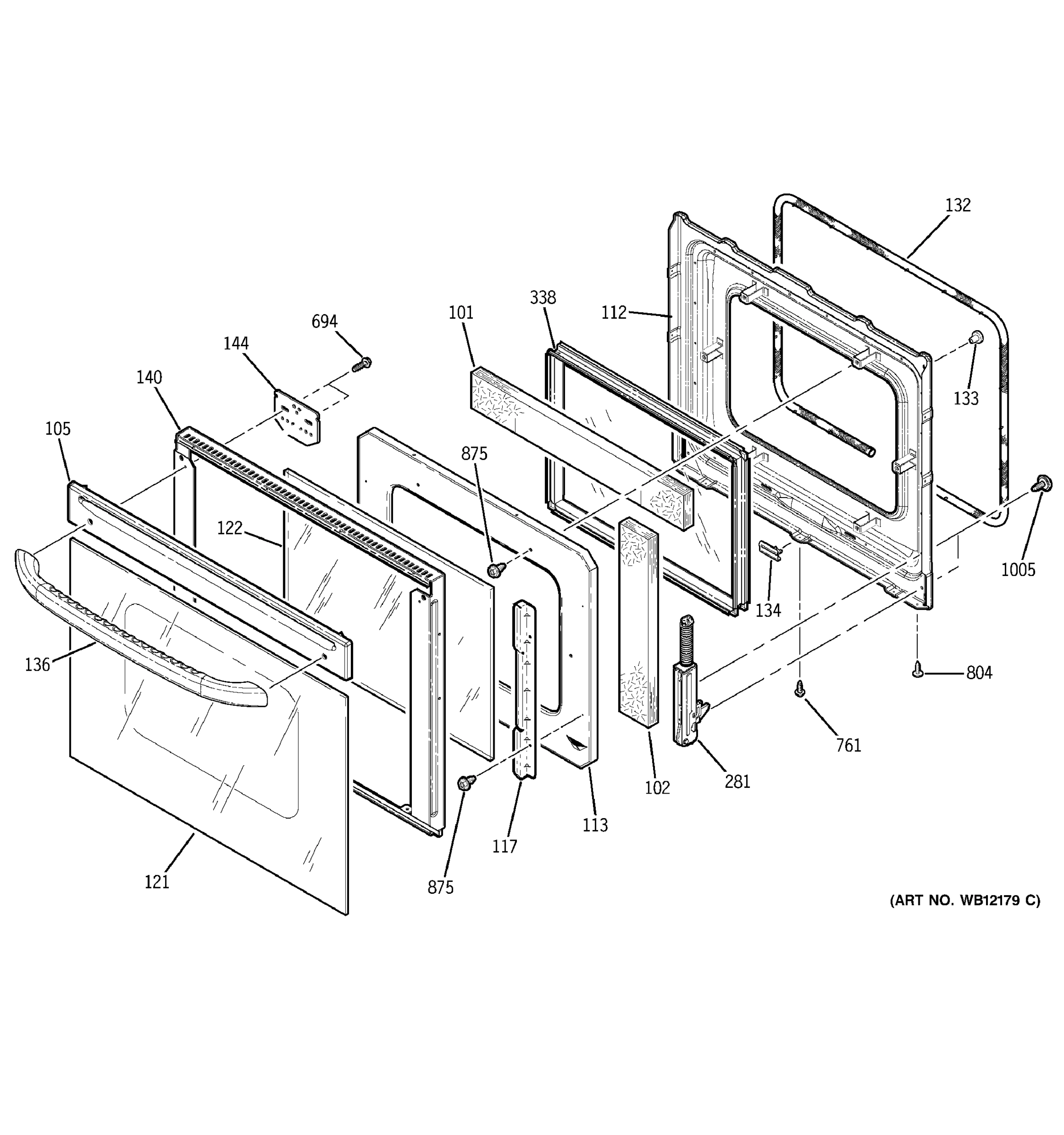

UPPER DOOR
Common parts from model GE JKP27BD1BB
1
GEN WB36T10494 GEN WB36T10494 Contact Us For Availability
5
GEN WB20T10003 GEN WB20T10003 Contact Us For Availability
16
GEN WB27T10348 GEN WB27T10348 Contact Us For Availability
88
GEN WB03T10057 GEN WB03T10057 Contact Us For Availability
101
GEN WB35T10062 GEN WB35T10062 Contact Us For Availability
105
GEN WB07T10245 GEN WB07T10245 Contact Us For Availability
112
GEN WB55T10085 GEN WB55T10085 Contact Us For Availability
112
GEN WB55T10088 GEN WB55T10088 Contact Us For Availability
121
GEN WB55T10091 GEN WB55T10091 Contact Us For Availability
122
GEN WB57T10185 GEN WB57T10185 Contact Us For Availability
132
GEN WB04T10020 GEN WB04T10020 Contact Us For Availability
136
OV DR HANDLE GEN WB15T10045 Contact Us For Availability
140
GEN WB55T10084 GEN WB55T10084 Contact Us For Availability
151
GEN WB30T10069 GEN WB30T10069 Contact Us For Availability
158
GEN WB24T10064 GEN WB24T10064 Contact Us For Availability
159
GEN WB24T10059 GEN WB24T10059 Contact Us For Availability
201
GEN WB63T10086 GEN WB63T10086 Contact Us For Availability
202
GEN WB63T10072 GEN WB63T10072 Contact Us For Availability
203
GEN WB63T10081 GEN WB63T10081 Contact Us For Availability
211
GEN WB63T10074 GEN WB63T10074 Contact Us For Availability
216
GEN WB34K5216 GEN WB34K5216 Contact Us For Availability
216
GEN WB34T10044 GEN WB34T10044 Contact Us For Availability
217
GEN WB34T10039 GEN WB34T10039 Contact Us For Availability
218
GEN WB34T10040 GEN WB34T10040 Contact Us For Availability
218
GEN WB34T10047 GEN WB34T10047 Contact Us For Availability
219
GEN WB34T10041 GEN WB34T10041 Contact Us For Availability
219
GEN WB34T10042 GEN WB34T10042 Contact Us For Availability
220
GEN WB34T10038 GEN WB34T10038 Contact Us For Availability
231
GEN WB35T10064 GEN WB35T10064 Contact Us For Availability
232
GEN WB35T10063 GEN WB35T10063 Contact Us For Availability
234
GEN WB10T10016 GEN WB10T10016 Contact Us For Availability
239
GEN WB02X9587 GEN WB02X9587 Contact Us For Availability
251
GEN WB44T10032 GEN WB44T10032 Contact Us For Availability
261
GEN WB24T10065 GEN WB24T10065 Contact Us For Availability
262
GEN WB07T10206 GEN WB07T10206 Contact Us For Availability
262
GEN WB07T10207 GEN WB07T10207 Contact Us For Availability
268
GEN WB07T10188 GEN WB07T10188 Contact Us For Availability
273
GEN WB02K5365 GEN WB02K5365 Contact Us For Availability
277
GEN WB10T10015 GEN WB10T10015 Contact Us For Availability
281
DOOR HINGE-LT- UPPER GEN WB10T10018 Contact Us For Availability
281
DOOR HINGE RT- LOWER GEN WB10T10013 Contact Us For Availability
281
DOOR HINGE LT-LOWER GEN WB10T10014 Contact Us For Availability
281
DOOR HINGE-RT - UPPER GEN WB10T10017 Contact Us For Availability
282
GEN WB28T10056 GEN WB28T10056 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
534
GEN WB26K5050 GEN WB26K5050 Contact Us For Availability
692
SCREW 8-18 AB HXW 3/4 GEN WZ04X0416 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
999
GEN 31-10483 GEN 31-10483 Contact Us For Availability
999
GEN 31-10514 GEN 31-10514 Contact Us For Availability
999
GEN 31-13892 GEN 31-13892 Contact Us For Availability
999
GEN 49-80083 GEN 49-80083 Contact Us For Availability
× ![]()
