Model GE JK3800DH1WW Electric Range – Common Parts & Diagrams
DOOR PARTS
CONTROL PARTS

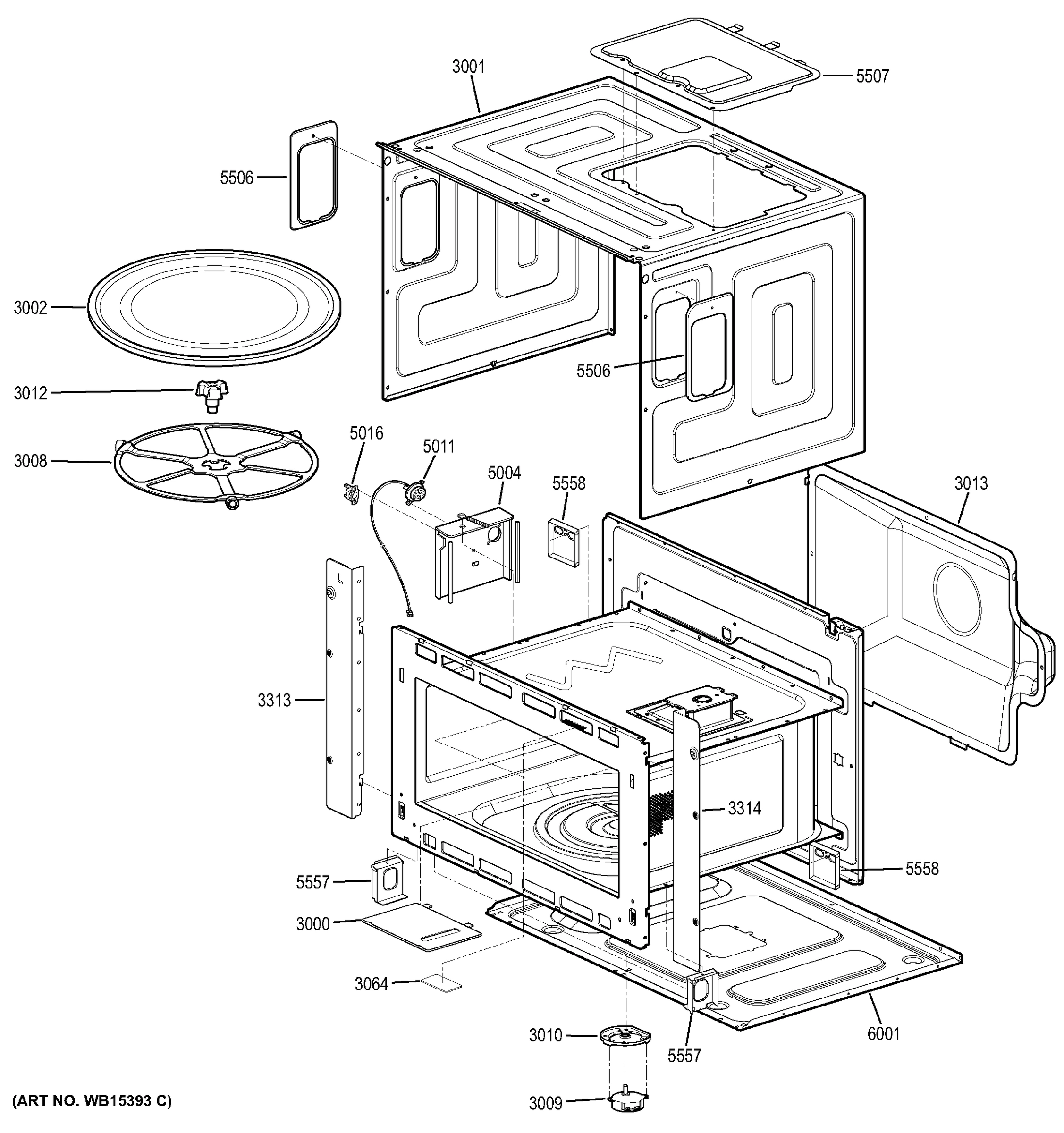

OVEN CAVITY PARTS

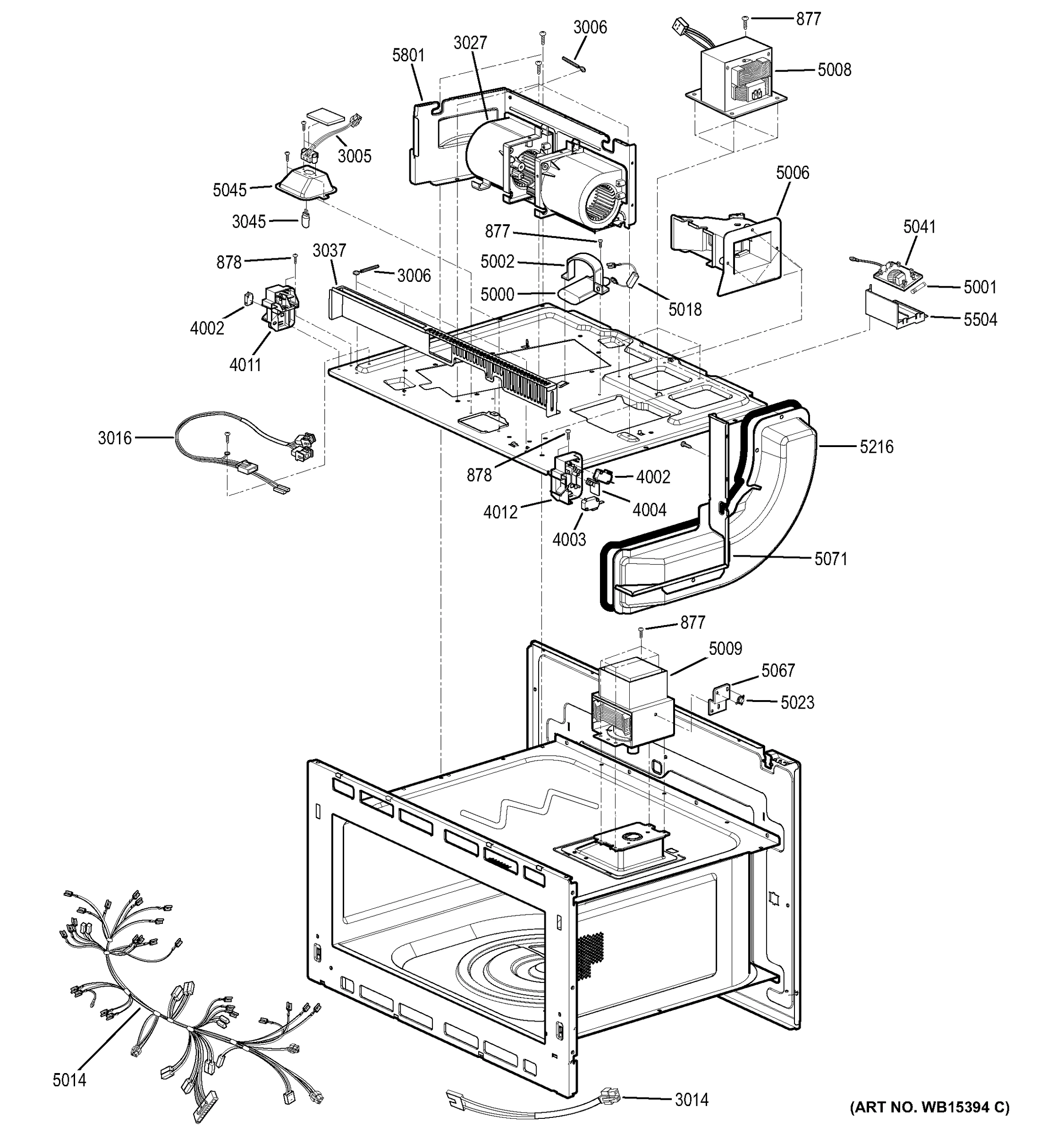

INSULATOR PARTS

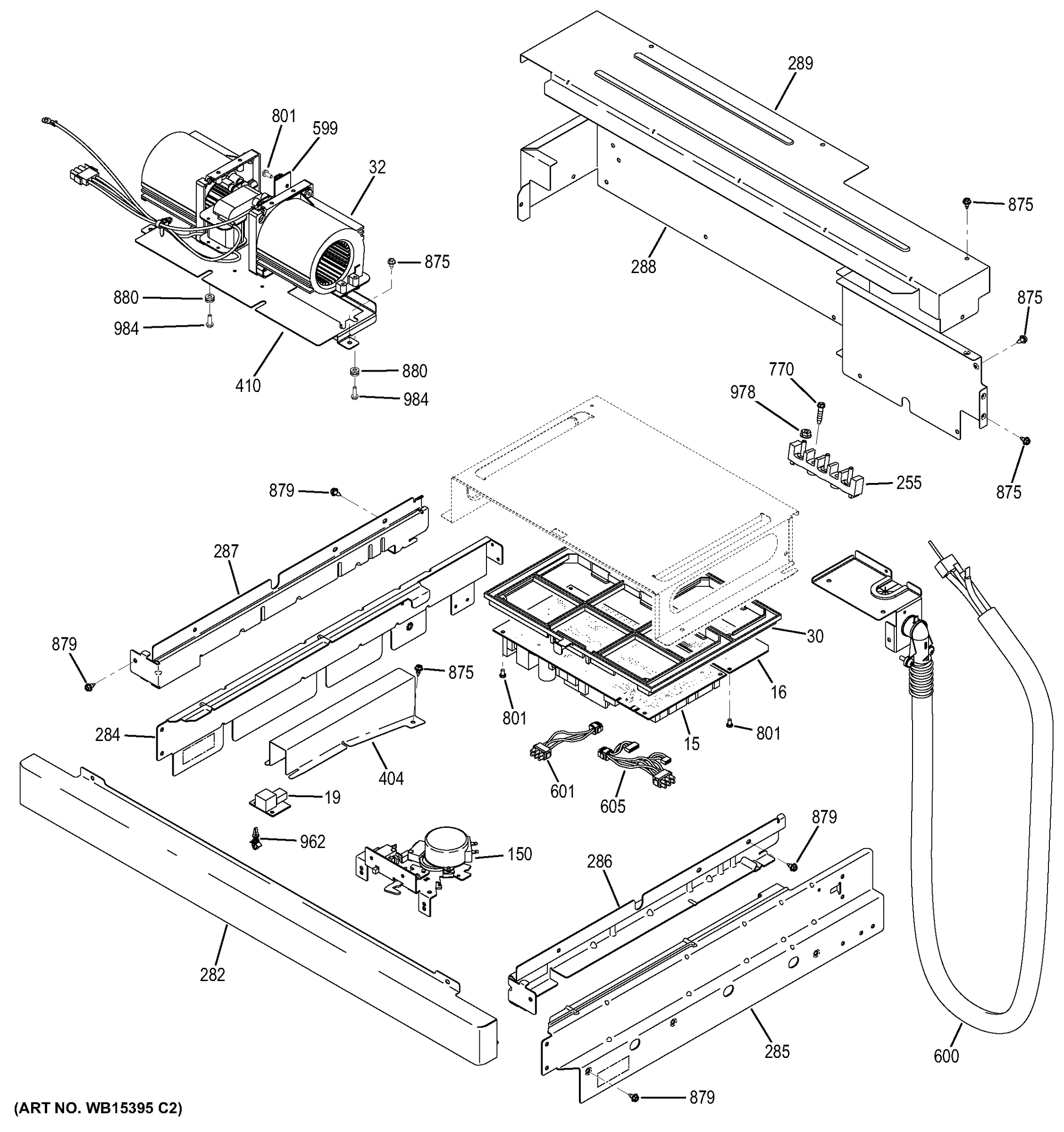

PEDESTAL

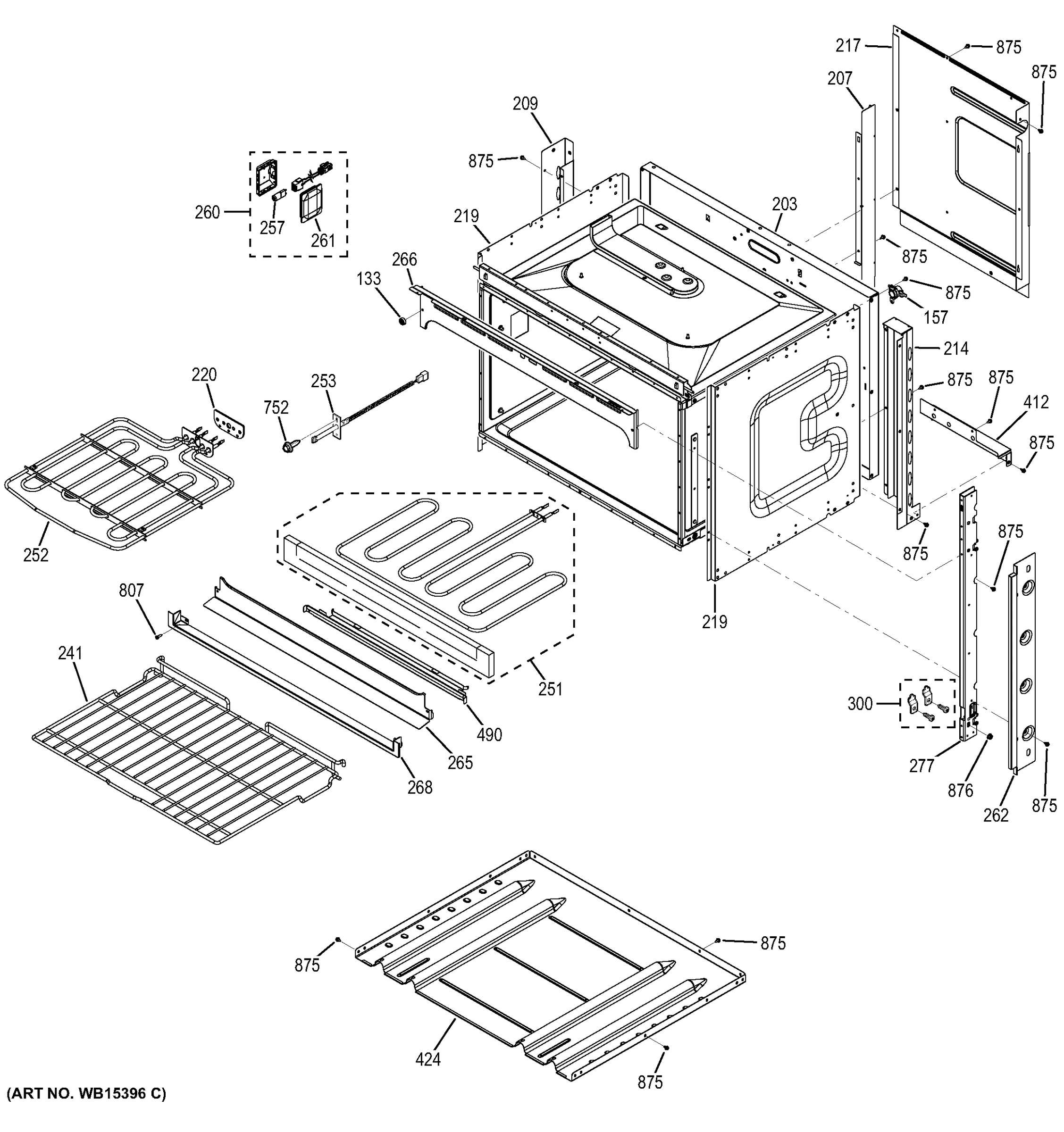

BODY PARTS

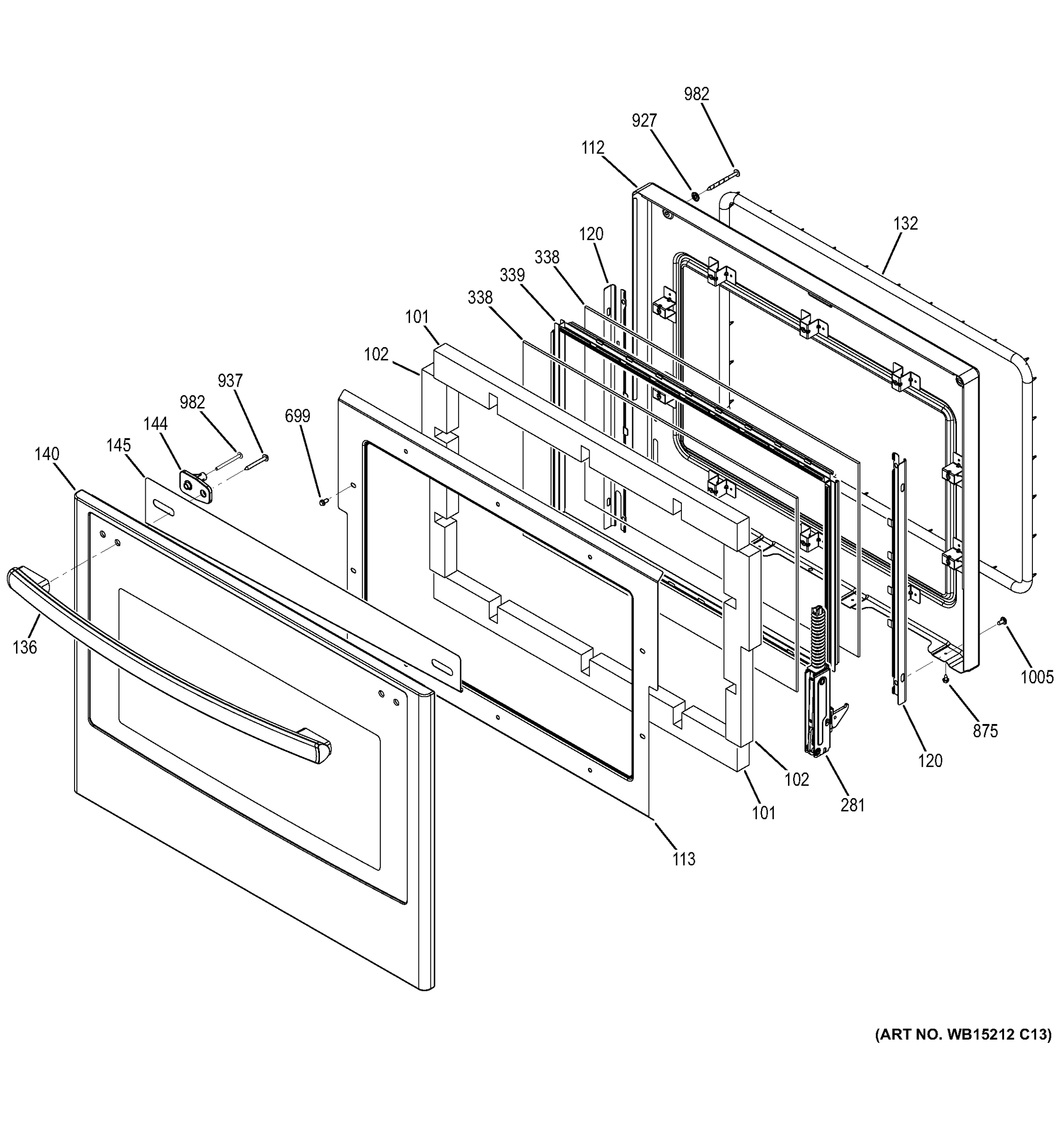

DOOR
Common parts from model GE JK3800DH1WW Electric Range
19
BOARD RJ45 CONNECTOR GEN WB27X21904 Contact Us For Availability
30
FRAME BOARD RELAY GEN WB02X21902 Contact Us For Availability
102
INSULATION DR SIDE GEN WB35X21672 Contact Us For Availability
113
RETAINER INSLN OVEN DOOR GEN WB34T10152 Contact Us For Availability
133
BUMPER DOOR GEN WB03T10341 Contact Us For Availability
136
HANDLE WHITE GEN WB15T10211 Contact Us For Availability
144
SUPPORT HANDLE GEN WB02T10603 Contact Us For Availability
145
DEFLECTOR OVEN DOOR 27 GEN WB34T10143 Contact Us For Availability
209
CHANNEL REAR LT GEN WB34X21910 Contact Us For Availability
260
LAMP HALOGEN ASM GEN WB25X20199 Contact Us For Availability
261
LENS OVEN LIGHT GEN WB34T10145 Contact Us For Availability
265
TRIM VENT LOWER BLACK GEN WB07T10807 Contact Us For Availability
266
TRIM VENT UPR GEN WB07X21911 Contact Us For Availability
277
BRACE VERT SIDE (LT) GEN WB07X21906 Contact Us For Availability
281
HINGE DOOR LT GEN WB10X21677 Contact Us For Availability
281
HINGE DOOR RT GEN WB10X21678 Contact Us For Availability
338
GLASS OVEN WINDOW GEN WB56T10350 Contact Us For Availability
339
SPACER OVEN WINDOW GEN WB37T10033 Contact Us For Availability
412
COVER LOWER RT AIR DUCT GEN WB34T10151 Contact Us For Availability
752
SCREW GEN WB01X21742 Contact Us For Availability
876
LOCK NUT GEN WB01T10127 Contact Us For Availability
878
SCREW GEN WB01X10121 Contact Us For Availability
937
SCREW HANDLE SUPPORT GEN WB01T10135 Contact Us For Availability
962
STANDOFF PCB GEN WB02T10093 Contact Us For Availability
982
SCREW 10-16 2 1/2 IN T20 GEN WB01T10129 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
5018
DIODE-CABLE ASSY GEN WB27X10037 Contact Us For Availability
× ![]()
