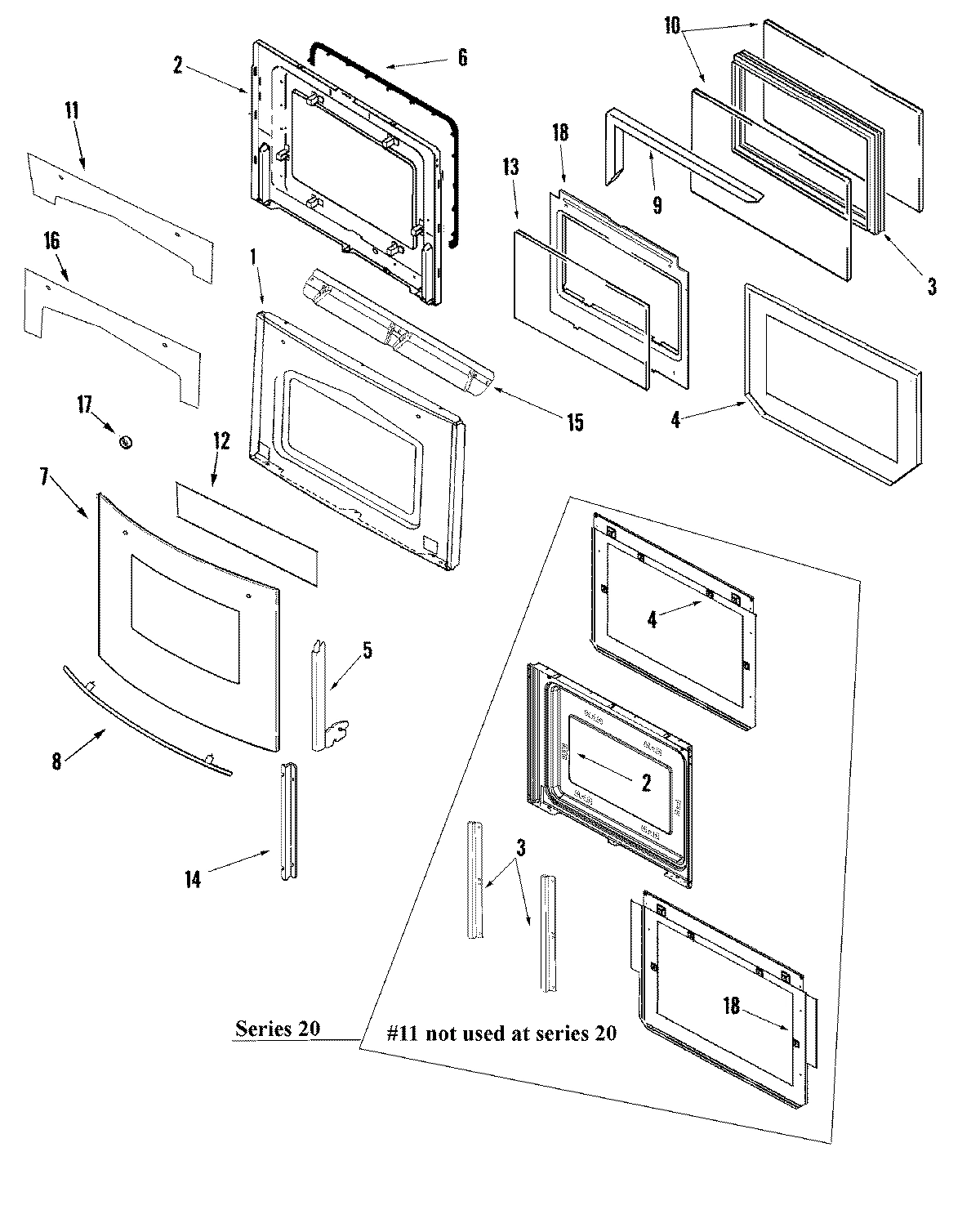

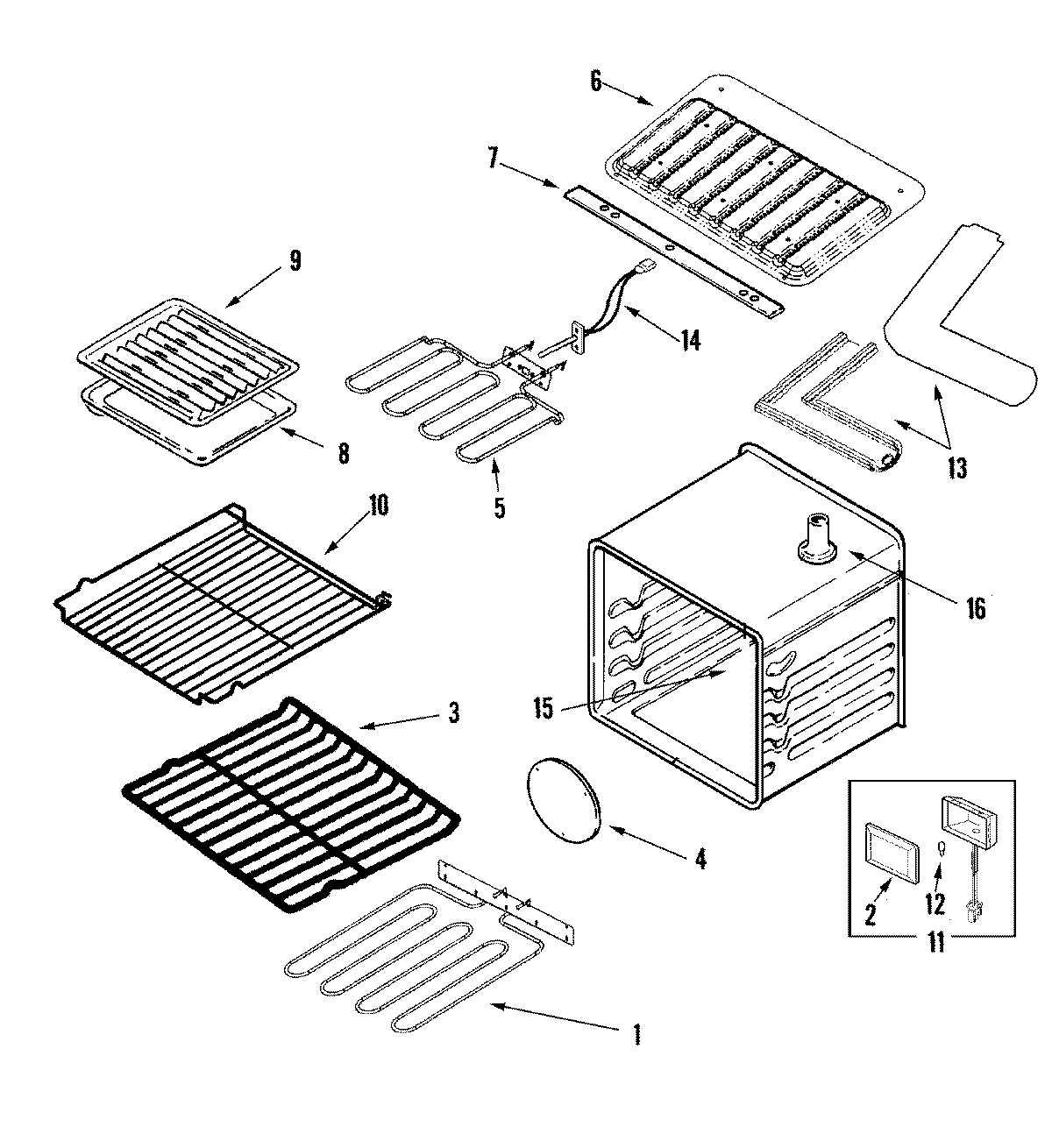

Model Whirlpool JJW8630DDB ELECTRIC WALL OVEN – Common Parts &amp; Diagrams

1

GLASS TOUCH ASSY. (BLK) WPL 74008439 Contact Us For Availability

1

FRAME ASSY. (BLK) WPL 74008412 Contact Us For Availability

1

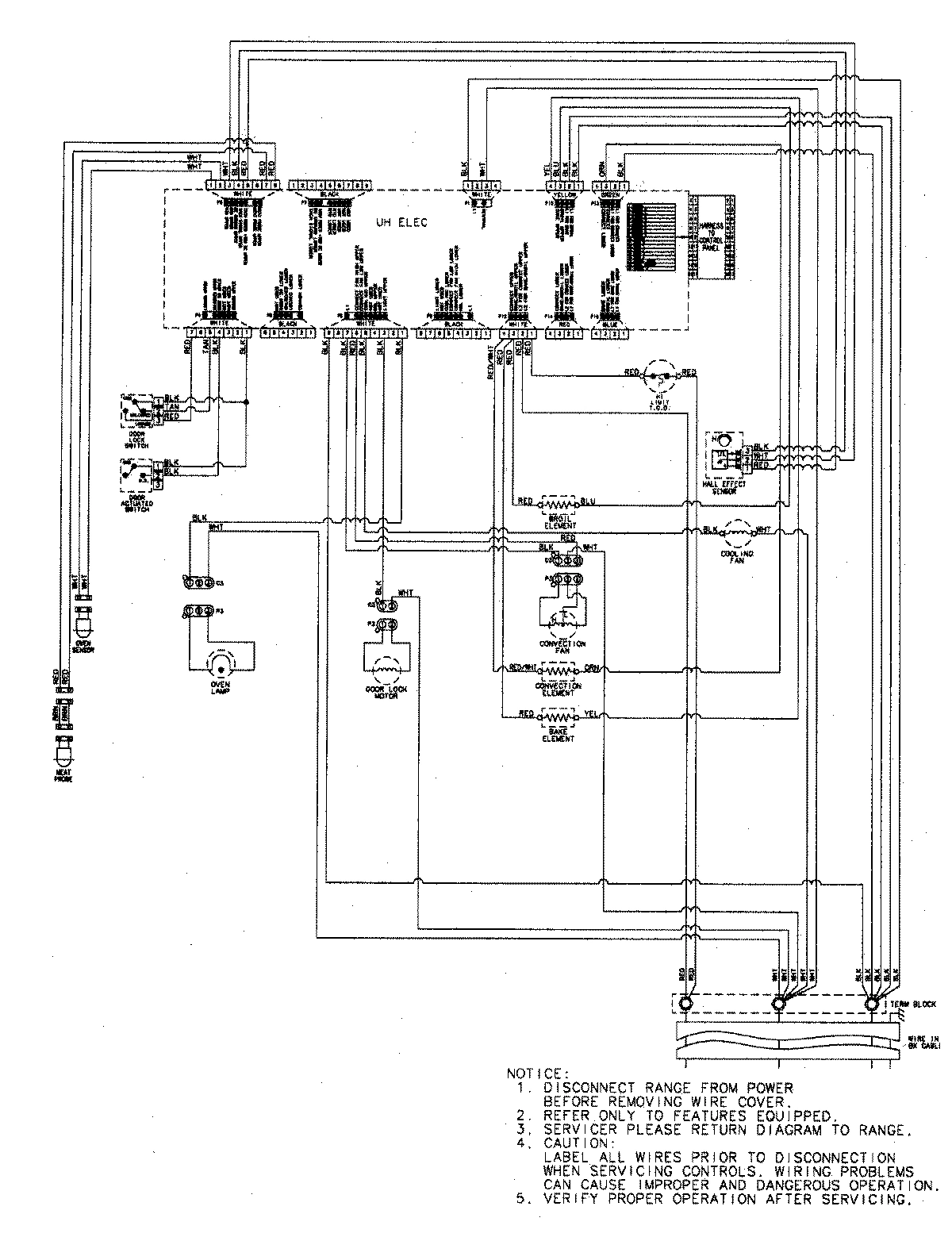

WIRING INFORMATION (FRC) WPL 15003283 Contact Us For Availability

1

WIRING INFORMATION (FRC) WPL 15003834 Contact Us For Availability

1

HARNESS, SENSOR WPL 74008436 Contact Us For Availability

2

WP74004607 Whirlpool Light Lens Backorder WPL WP74004607 $10.55

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

2

CONTROL, DOUBLE WPL 74008440 Contact Us For Availability

2

CONTROL, DBL NON-CONVECT WPL 74009715 Contact Us For Availability

2

CONTROL, DOUBLE WPL W101182906 Contact Us For Availability

2

CONTROL, DOUBLE WPL W10182906 Contact Us For Availability

2

LINER, OVEN DOOR WPL 74008413 Contact Us For Availability

2

LINER, OVEN DOOR WPL 74011462 Contact Us For Availability

2

HARNESS, MAIN WPL 74008435 Contact Us For Availability

2

HARNESS, MAIN (DBL) WPL 74011372 Contact Us For Availability

3

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

3

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $48.36

3

TRIM, CONTROL PANEL (BLK) WPL 74008401 Contact Us For Availability

3

FRAME, GLASS WPL 74003644 Contact Us For Availability

3

HARNESS, CONTROL PANEL TO PCB WPL 74008345 Contact Us For Availability

4

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.60

4

KIT, SIDE TRIM (DOUBLE) WPL 12002403 Contact Us For Availability

4

TRIM, SIDE (DOUBLE-BLK) WPL 74008438 Contact Us For Availability

4

SUPPORT, TOP CONTROL WPL 74008362 Contact Us For Availability

4

RETAINER, INSULATION WPL 74008414 Contact Us For Availability

4

RETAINER, INSULATION WPL 74011461 Contact Us For Availability

4

PLATE, NON-CONVECT WPL 71002903 Contact Us For Availability

4

HARNESS, LOWER LOCK WPL 74008434 Contact Us For Availability

5

WP74010283 Whirlpool Door Hinge In Stock WPL WP74010283 $55.27

5

WPW10184147 Whirlpool Broil Element Backorder WPL WPW10184147 $95.94

5

TRIM, BOTTOM (BLK) WPL 74008403 Contact Us For Availability

5

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

5

FRAME, CONTROL PANEL WPL 74008402 Contact Us For Availability

5

HINGE, DOOR WPL 74008415 Contact Us For Availability

5

ELEMENT, BROIL WPL 7406P50060 Contact Us For Availability

5

GUIDE, COOKING (TRILINGUAL) WPL 74007136 Contact Us For Availability

6

WPW10162386 Whirlpool Door Gasket In Stock WPL WPW10162386 $66.78

6

PANEL, SIDE WPL 74008381 Contact Us For Availability

6

PANEL, SIDE WPL 74011390 Contact Us For Availability

6

SIDE PANEL, CONTROL (LT) WPL 74008359 Contact Us For Availability

6

SIDE PANEL, CONTROL (RT) WPL 74008360 Contact Us For Availability

6

SHIELD, BROIL (30``) WPL 74008408 Contact Us For Availability

6

DVD, JENN AIR WALLOVEN GUIDE WPL 74008247 Contact Us For Availability

7

WP74008383 Whirlpool Tangential Fan In Stock WPL WP74008383 $118.86

7

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $86.20

7

GLASS, OUTER DOOR ASSY. (BLK) WPL 74008417 Contact Us For Availability

7

SCREW WPL 7101P34560 Contact Us For Availability

7

SUPPORT, BROIL ELEMENT WPL 74003563 Contact Us For Availability

7

MANUAL, USE & CARE WPL 74008424 Contact Us For Availability

7

MANUAL, USE & CARE WPL W10169642 Contact Us For Availability

8

WP74008625 Whirlpool Door Handle Backorder WPL WP74008625 $112.87

8

WP74011337 Whirlpool Bracket Backorder WPL WP74011337 $11.12

8

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

8

RECEPTACLE, HINGE WPL 74008377 Contact Us For Availability

8

PAN, BROIL WPL Y3401F02019 Contact Us For Availability

9

WPW10186996 Whirlpool Door Latch Backorder WPL WPW10186996 $206.50

9

RETAINER, INSULATION WPL 74008404 Contact Us For Availability

9

RETAINER, INSULATION (UPR) WPL 74008429 Contact Us For Availability

9

RETAINER, INSUL (REAR UPR 30) WPL 74011386 Contact Us For Availability

9

RETAINER, INSUL (REAR LWR 30) WPL 74011387 Contact Us For Availability

9

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $99.83

W10187048 Whirlpool Rear Cover Backorder WPL W10187048 $46.06

INSULATION, BACK WPL 74008405 Contact Us For Availability

PANEL, REAR CONTROL BOX WPL 2624F10051 Contact Us For Availability

RACK, OVEN (OFFSET) WPL 74008410 Contact Us For Availability

PANEL, BOTTOM (30``) WPL 74008406 Contact Us For Availability

TRANSFORMER (STEPDOWN) WPL 74005416 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

INSULATION, DOOR TOP WPL 74008422 Contact Us For Availability

HALOGEN LAMP ASSY WPL 74004521 Contact Us For Availability

HALOGEN LAMP ASSY. WPL 74009970 Contact Us For Availability

5700P829-60 Whirlpool Wire Harness Backorder WPL 5700P829-60 $240.86

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.53

GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability

INSULATION, (WRAP) WPL 74008407 Contact Us For Availability

3807F678-45 Whirlpool Mounting Bracket Backorder WPL 3807F678-45 $33.29

WPW10281322 Whirlpool Connector Backorder WPL WPW10281322 $3.80

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

CONNECTOR, CABLE WPL 7417P01760 Contact Us For Availability

GLASS, INNER (SCREENED) WPL Y74008423 Contact Us For Availability

VENT BOX ASSY. WPL 74008411 Contact Us For Availability

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.60

WP74008369 Whirlpool Oven Temperature Sensor In Stock WPL WP74008369 $81.66

CHANNEL, VENT (DOUBLE) WPL 74008446 Contact Us For Availability

CHANNEL, VENT WPL 74008450 Contact Us For Availability

BRACKET, CABLE WPL 74004712 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

74009408 Whirlpool Oven Button In Stock WPL 74009408 $4.79

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.60

CHANNEL, BOTTOM AIR WPL 74008352 Contact Us For Availability

TRIM, BOTTOM DOOR VENT (BLK) WPL 74008392 Contact Us For Availability

CLIP, OVEN WPL 71001170 Contact Us For Availability

OVEN WELD ASSY. WPL 74008281 Contact Us For Availability

TUBE, VENT (30) WPL 74009838 Contact Us For Availability

PAN, HIDDEN BAKE WPL 74008356 Contact Us For Availability

SCREW, SWITCH WPL 7101P33060 Contact Us For Availability

INSULATOR WPL 74008264 Contact Us For Availability

TUBE, VENT WPL 74008447 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.84

PANEL, TOP RETAINER WPL 2618F22551 Contact Us For Availability

PANEL, TOP RETAINER (LWR) 30`` WPL 74008427 Contact Us For Availability

PANEL, TOP RETAINER (LWR-30) WPL 74011384 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

RACK, SMART & EASY (30``) WPL 74009527 Contact Us For Availability

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $117.22

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $64.11

TRIM, CENTER (BLK) WPL 74008431 Contact Us For Availability

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

BAFFLE, DOOR WPL 74003648 Contact Us For Availability

19

SUPPORT, CENTER WPL 74008433 Contact Us For Availability

19

COVER, PLUNGER (DOOR LIGHT) WPL 74007586 Contact Us For Availability

20

COVER, MAIN BACK WPL 74008430 Contact Us For Availability

20

FAN, TANGENTIAL (LWR) WPL 74008437 Contact Us For Availability

21

BRACKET, COOLING FAN (LWR) WPL 74008432 Contact Us For Availability

22

COVER, VENT (DBL) WPL 74008444 Contact Us For Availability

23

BOX, VENT (DBL) WPL 74008445 Contact Us For Availability

NI

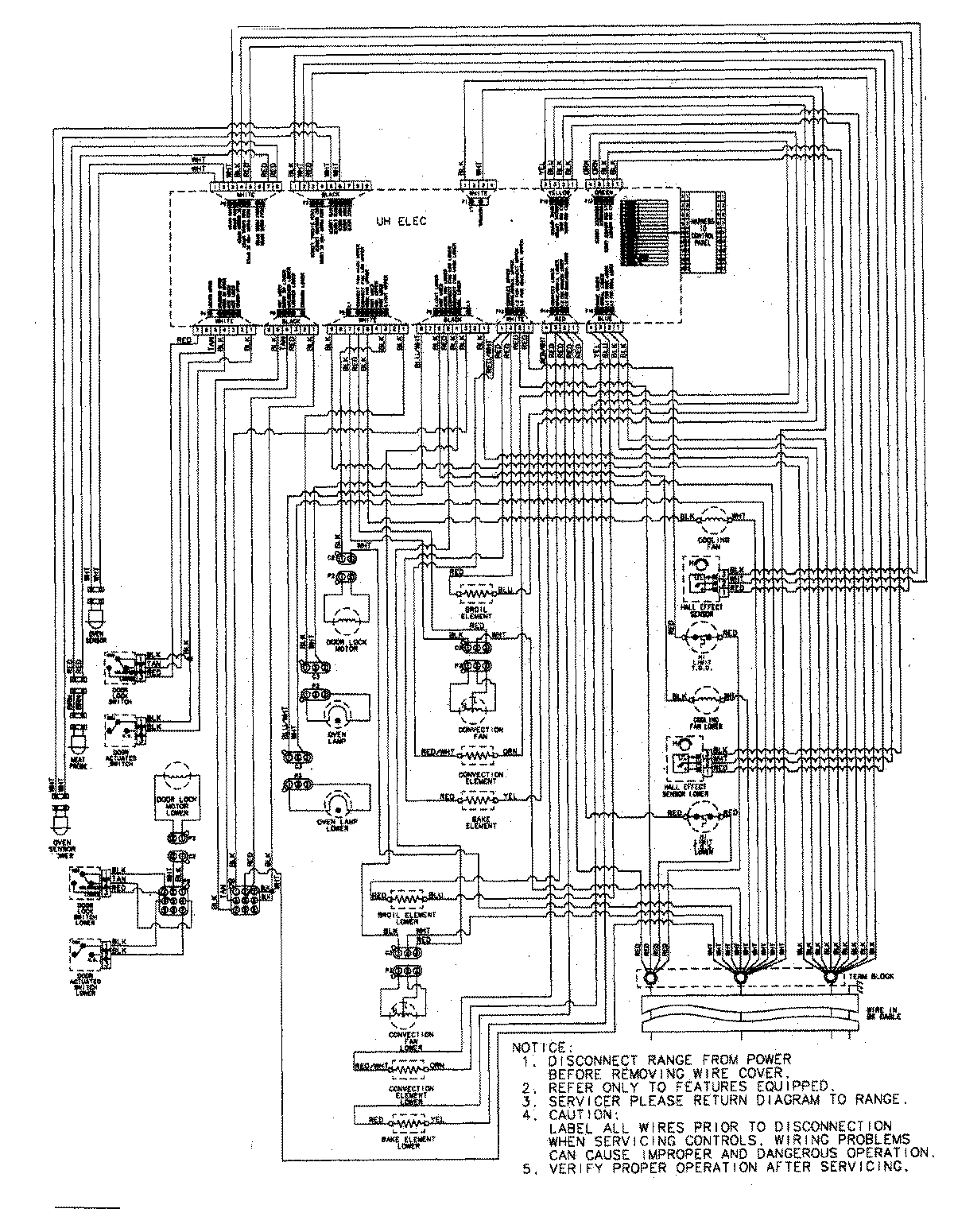

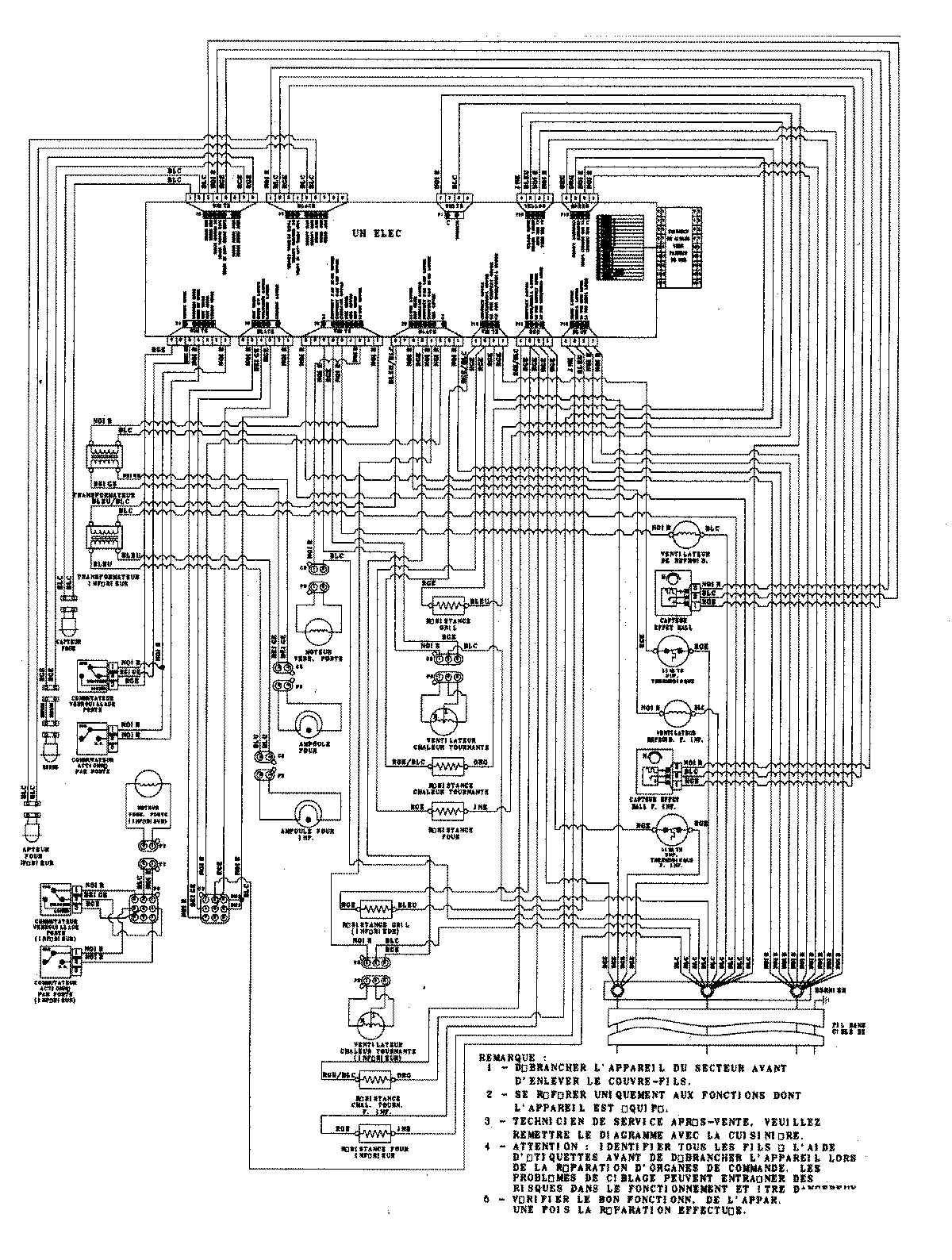

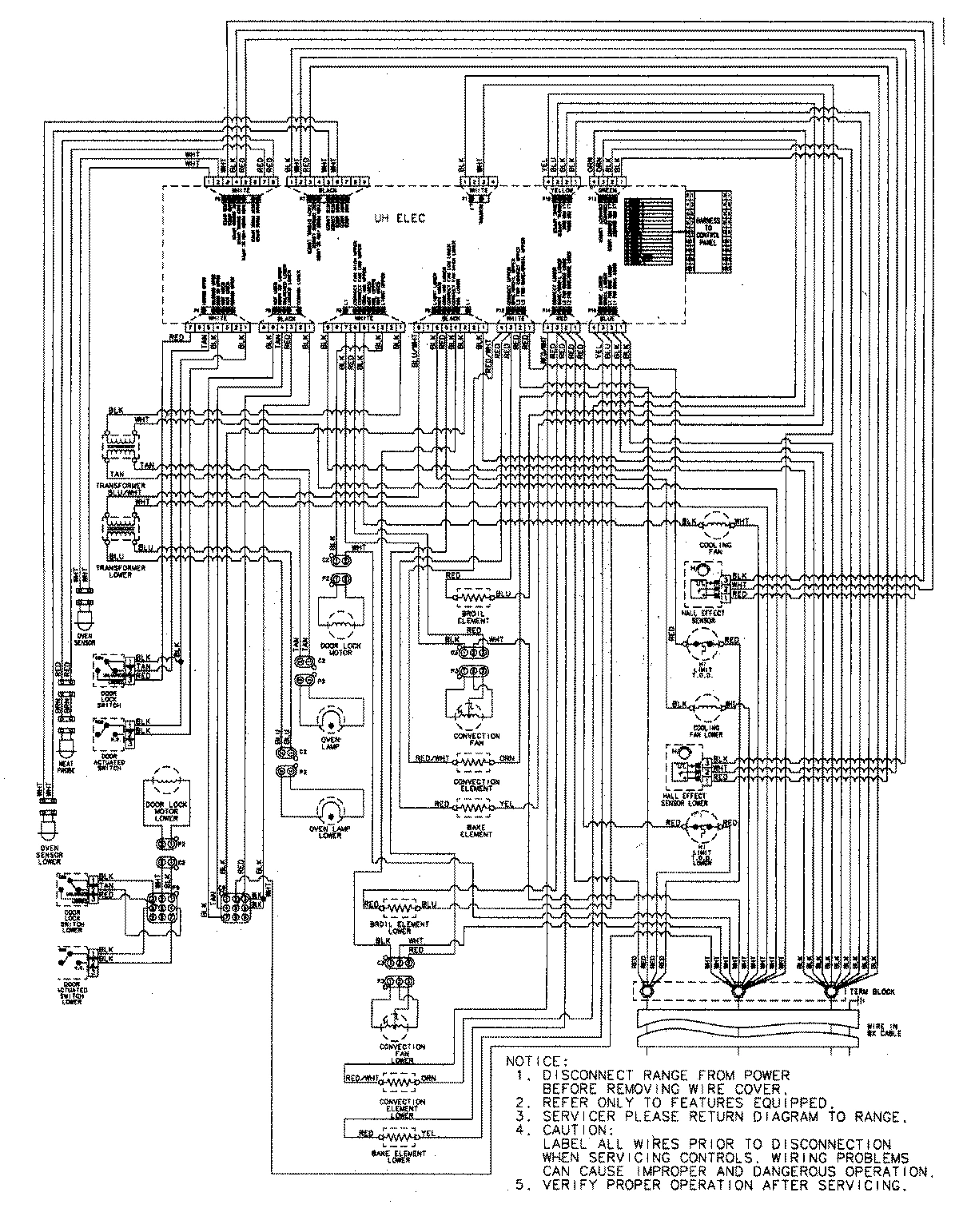

WIRING INFORMATION WPL 15003282 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003830 Contact Us For Availability
