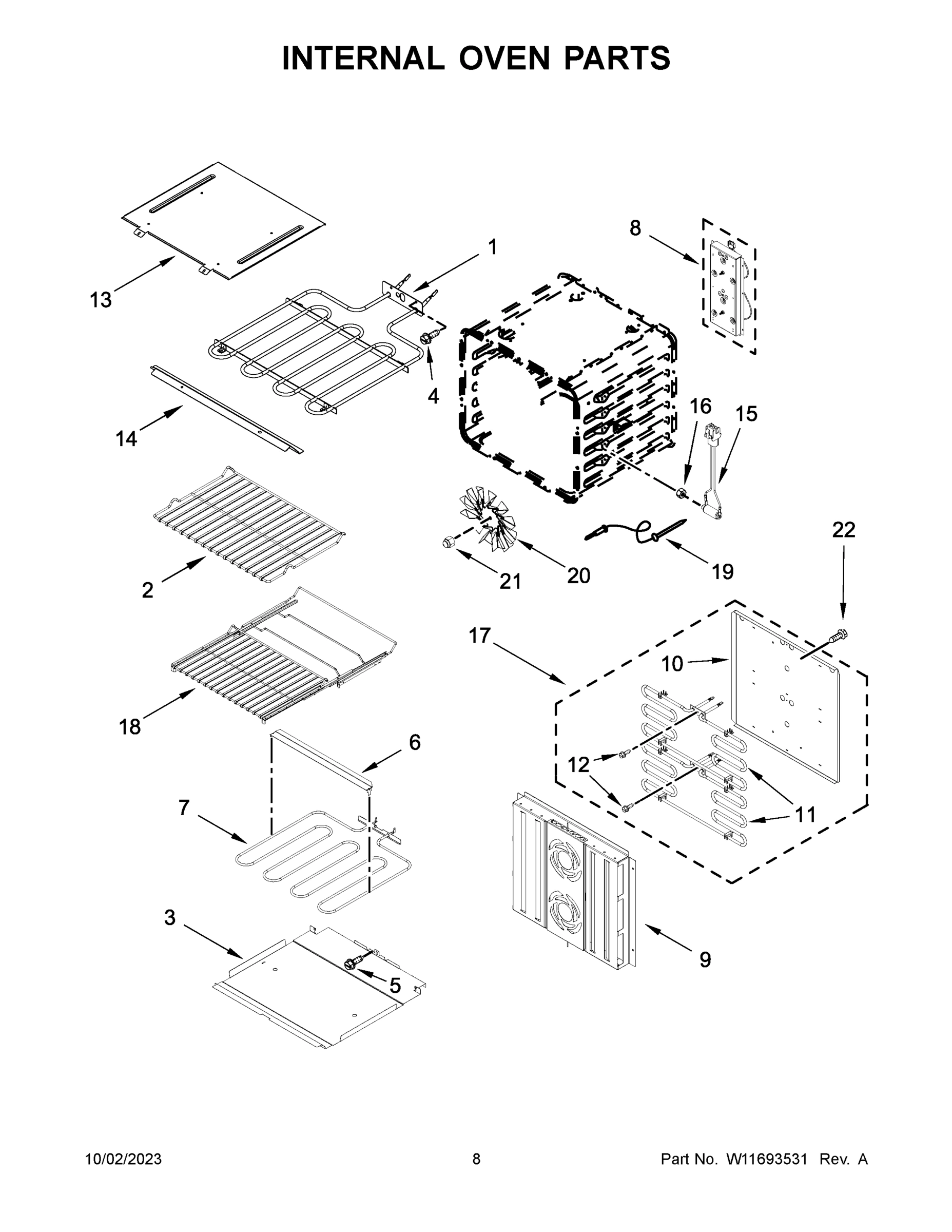

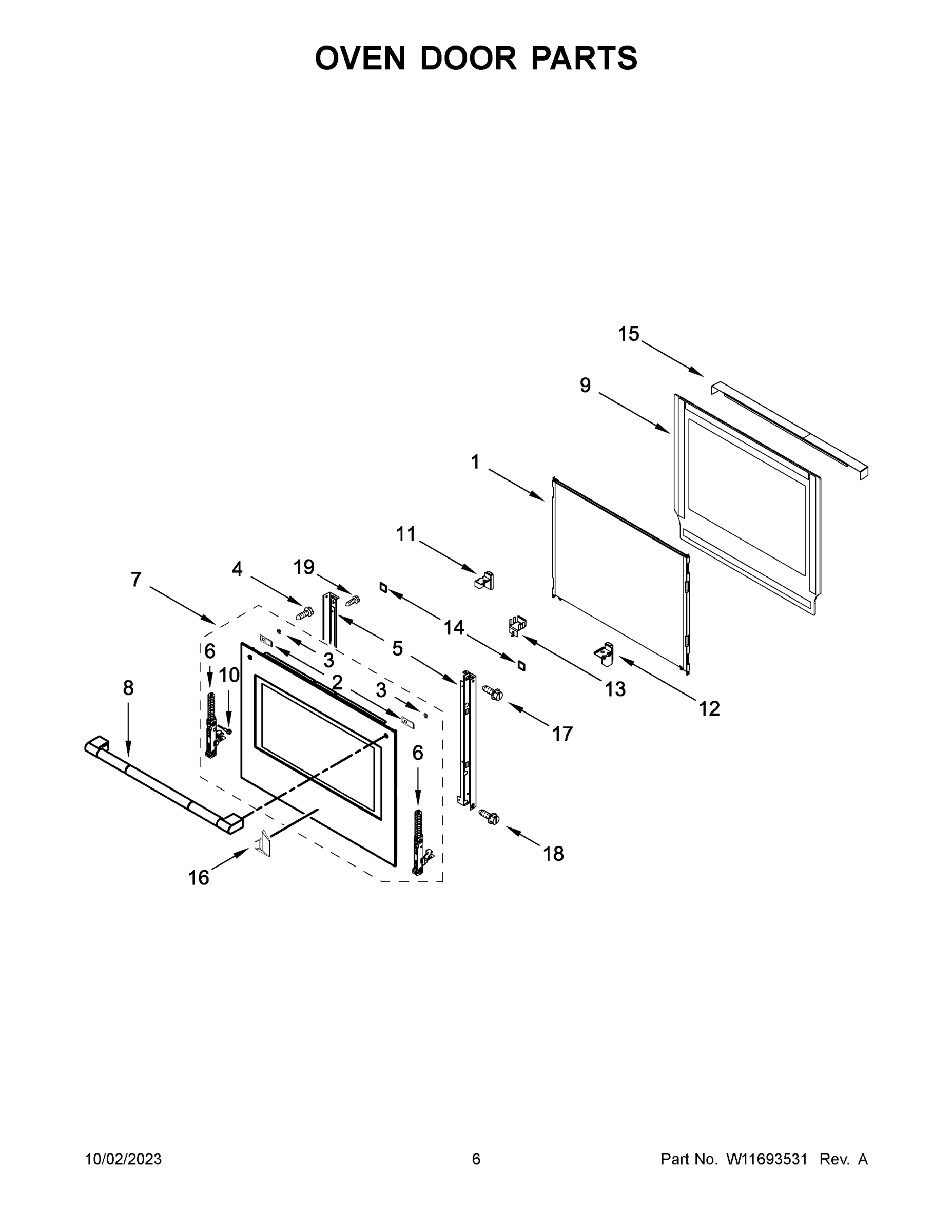

Model Whirlpool JJW3430LL01 WALL OVEN, ELECTRIC – Common Parts &amp; Diagrams

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $44.43

1

W11600213 Whirlpool Oven Door Glass Backorder WPL W11600213 $267.63

2

W10650497 Whirlpool Spacer Backorder WPL W10650497 $9.08

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.76

2

W11242906 Whirlpool Oven Rack Backorder WPL W11242906 $131.83

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

3

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $30.05

3A

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $30.05

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $6.24

4

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $9.59

4

SCREW WPL 7101P43460 Contact Us For Availability

5

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $28.95

5

SCREW WPL 7101P42660 Contact Us For Availability

5A

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W11111221 Whirlpool Oven Door Hinge Backorder WPL W11111221 $75.77

6

TOP, CHASSIS WPL W11168071 Contact Us For Availability

6A

W11111222 Whirlpool Oven Door Hinge Backorder WPL W11111222 $54.90

7

W11292252 Whirlpool Oven Light Backorder WPL W11292252 $35.81

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7

W11602609 Whirlpool Door Glass Assembly In Stock WPL W11602609 $570.17

8

W11255349 Whirlpool Fan Motor Backorder WPL W11255349 $214.98

8

W11342060 Whirlpool Door Handle Backorder WPL W11342060 $192.37

8

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11313747 Whirlpool Convention Baffle Backorder WPL W11313747 $76.07

9

W11602610 Whirlpool Oven Glass Door In Stock WPL W11602610 $221.60

10

W10853277 Whirlpool Shield Backorder WPL W10853277 $30.98

10

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

10

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

11

W10663735 Whirlpool Element Backorder WPL W10663735 $110.82

11

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $23.30

11

W11692454 Whirlpool Gasket Backorder WPL W11692454 $53.31

12

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $23.30

12

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

12

COVER, VENT EXHAUST WPL W11256424 Contact Us For Availability

13

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $43.17

13

TOP-CABNT Backorder WPL W11598121 $28.38

13

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $4.61

14

Backorder WPL W10588737 $39.82

14

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

14

BACK, CHASSIS (NOT SERVICED) WPL ARI6655B8C91FC6F816F7982F80F561FE0E Contact Us For Availability

15

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $39.11

15

W11705878 Whirlpool Vent Trim Backorder WPL W11705878 $138.54

15

LINER, OVEN (NOT SERVICEABLE) WPL ARI221486ECAEC93F8B8C6C8EF9CFFD9E68 Contact Us For Availability

16

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

16

W11320231 Whirlpool Dishwasher Nameplate Backorder WPL W11320231 $54.70

16

W11598120 Whirlpool Thermostat In Stock WPL W11598120 $14.26

W10566973 Whirlpool Wire Harness Backorder WPL W10566973 $29.96

W11098805 Whirlpool Element Backorder WPL W11098805 $121.29

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

18

W11256305 Whirlpool Oven Rack In Stock WPL W11256305 $214.86

18

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

W10443110 Whirlpool Screw Backorder WPL W10443110 $5.38

W11123146 Whirlpool Speaker Backorder WPL W11123146 $29.81

W11598115 Whirlpool Access Cover Backorder WPL W11598115 $46.67

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

20

W10668510 Whirlpool Housing Backorder WPL W10668510 $40.48

20

W11301887 Whirlpool Convection Fan Backorder WPL W11301887 $120.93

20

W11369889 Whirlpool Heat Deflector Backorder WPL W11369889 $46.67

21

W10575307 Whirlpool Wire Harness Backorder WPL W10575307 $69.34

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $46.67

21

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

21A

W10803140 Whirlpool Nut Backorder WPL W10803140 $8.20

22

W11598135 Whirlpool Trim In Stock WPL W11598135 $33.45

22

SCREW WPL W10739592 Contact Us For Availability

23

SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

25

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $26.15

25A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $26.15

26

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

28

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

29

W11235463 Whirlpool Mounting Rail Backorder WPL W11235463 $32.13

29A

W11235462 Whirlpool Mounting Rail Backorder WPL W11235462 $32.13

30

W11602623 Whirlpool Screw Backorder WPL W11602623 $9.59

31

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

32

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

33

BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability

34

W11325525 Whirlpool Oven Light Backorder WPL W11325525 $50.29

35

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $27.72

36

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $26.48

37

W11715951 Whirlpool Vent Trim Backorder WPL W11715951 $35.74

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10655464 Whirlpool Bracket Backorder WPL W10655464 $14.22

W11369884 Whirlpool Oven Heat Deflector Backorder WPL W11369884 $46.67

W11570325 Whirlpool Trim Backorder WPL W11570325 $106.80

W11699910 Whirlpool Wire Harness Backorder WPL W11699910 $11.79

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

INSULATION, WRAP WPL W11188284 Contact Us For Availability

INSULATION, TOP BACK WPL W11244449 Contact Us For Availability
