Model Maytag JJW3430DB01 WALL OVEN, ELECTRIC, BUILT-IN, SINGLE – Common Parts & Diagrams

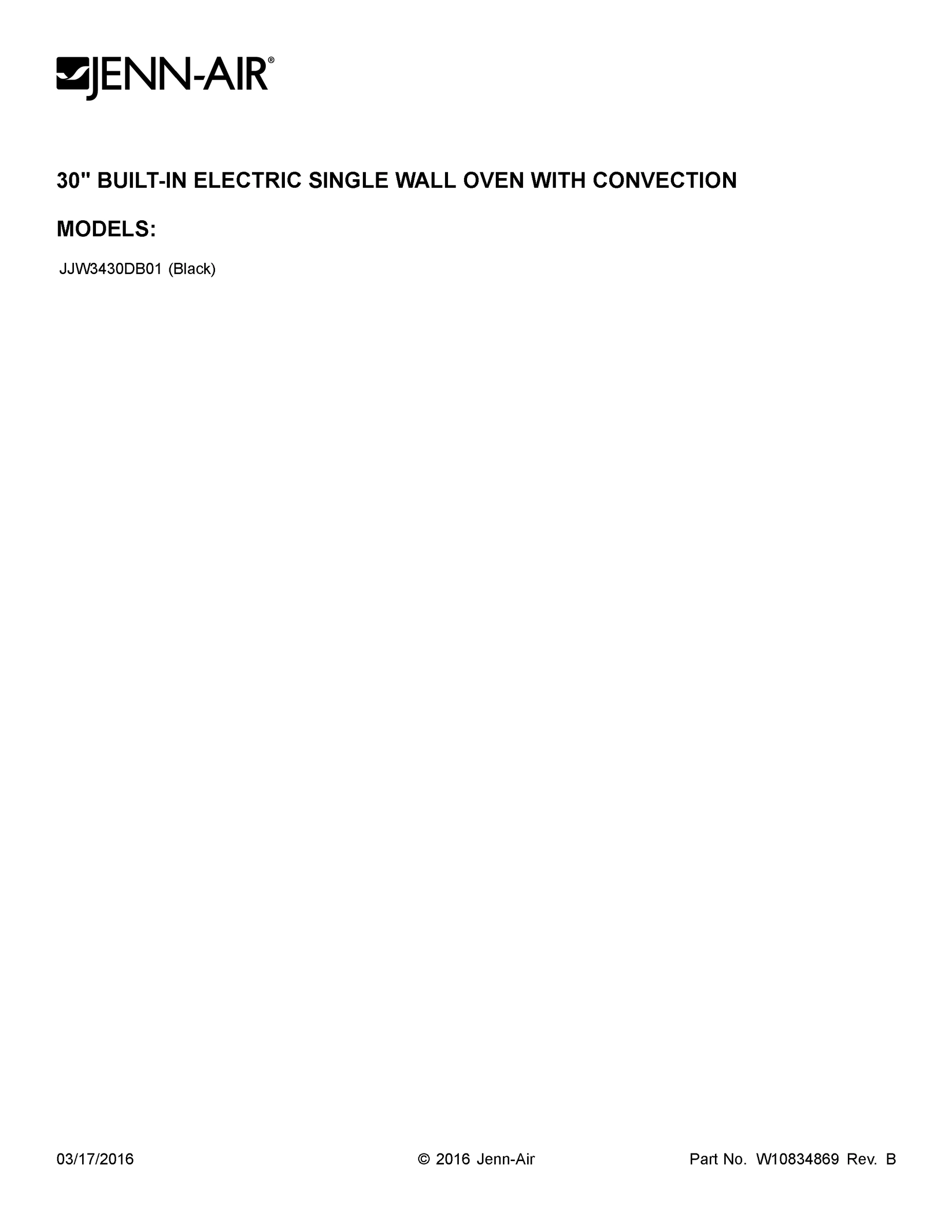

01 - COVER SHEET

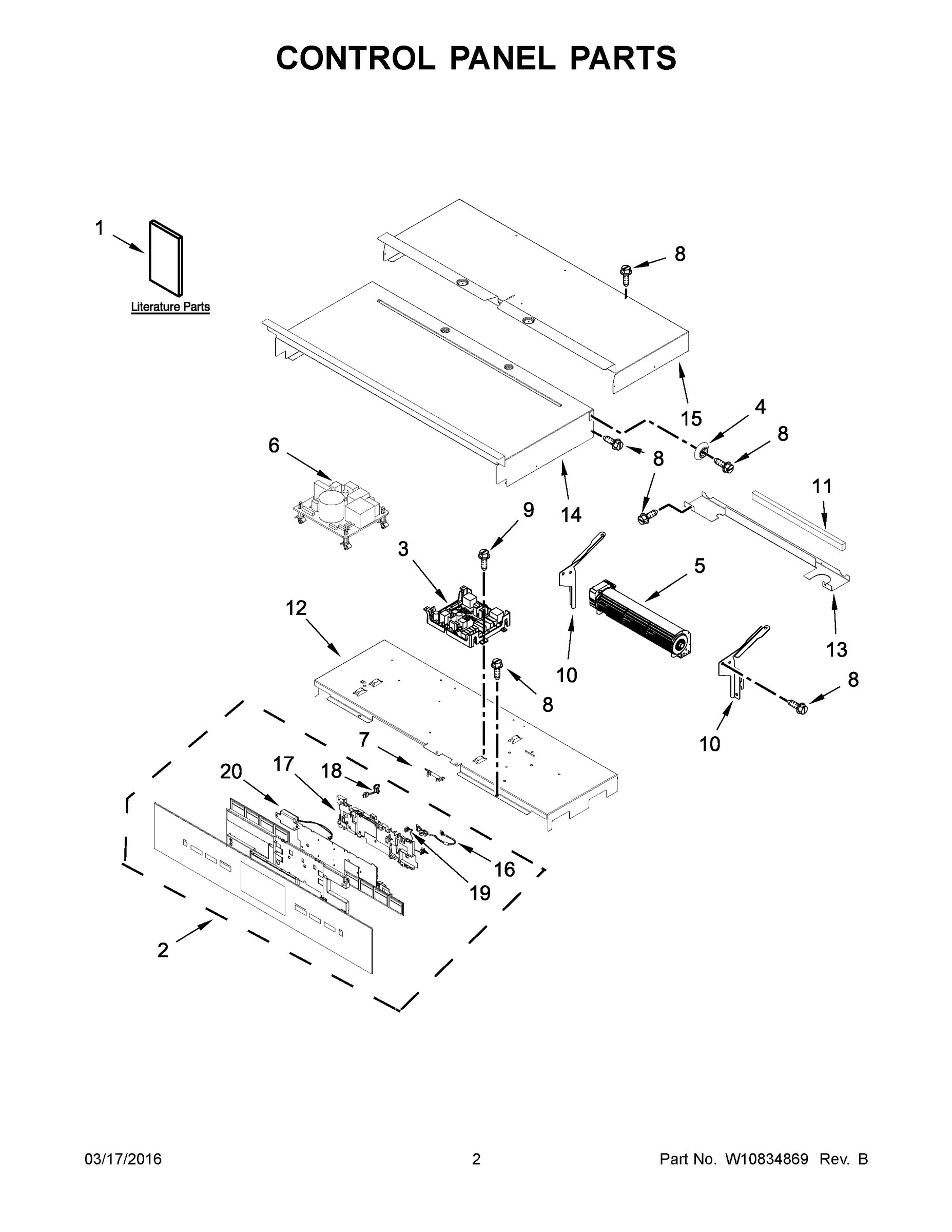

02 - CONTROL PANEL PARTS

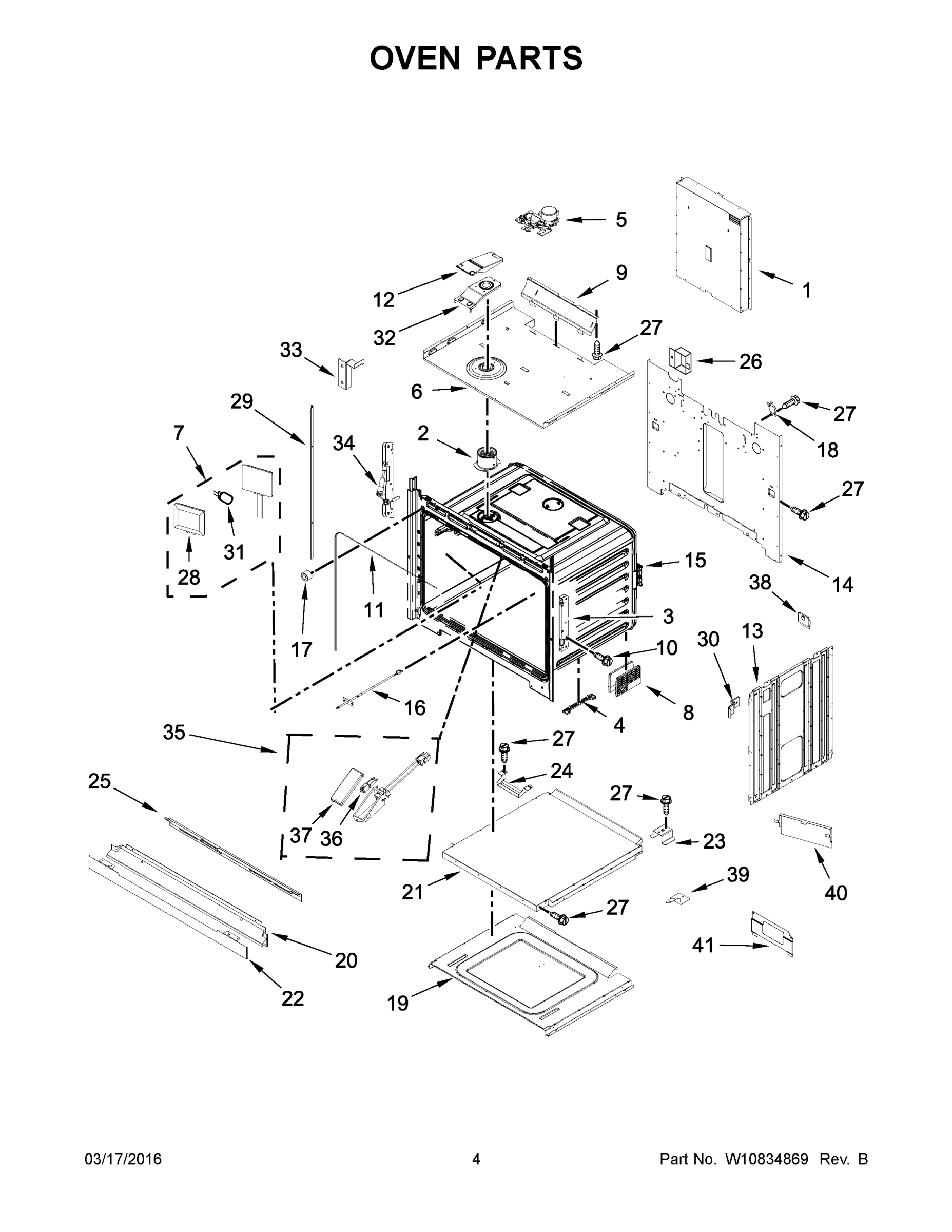

03 - OVEN PARTS

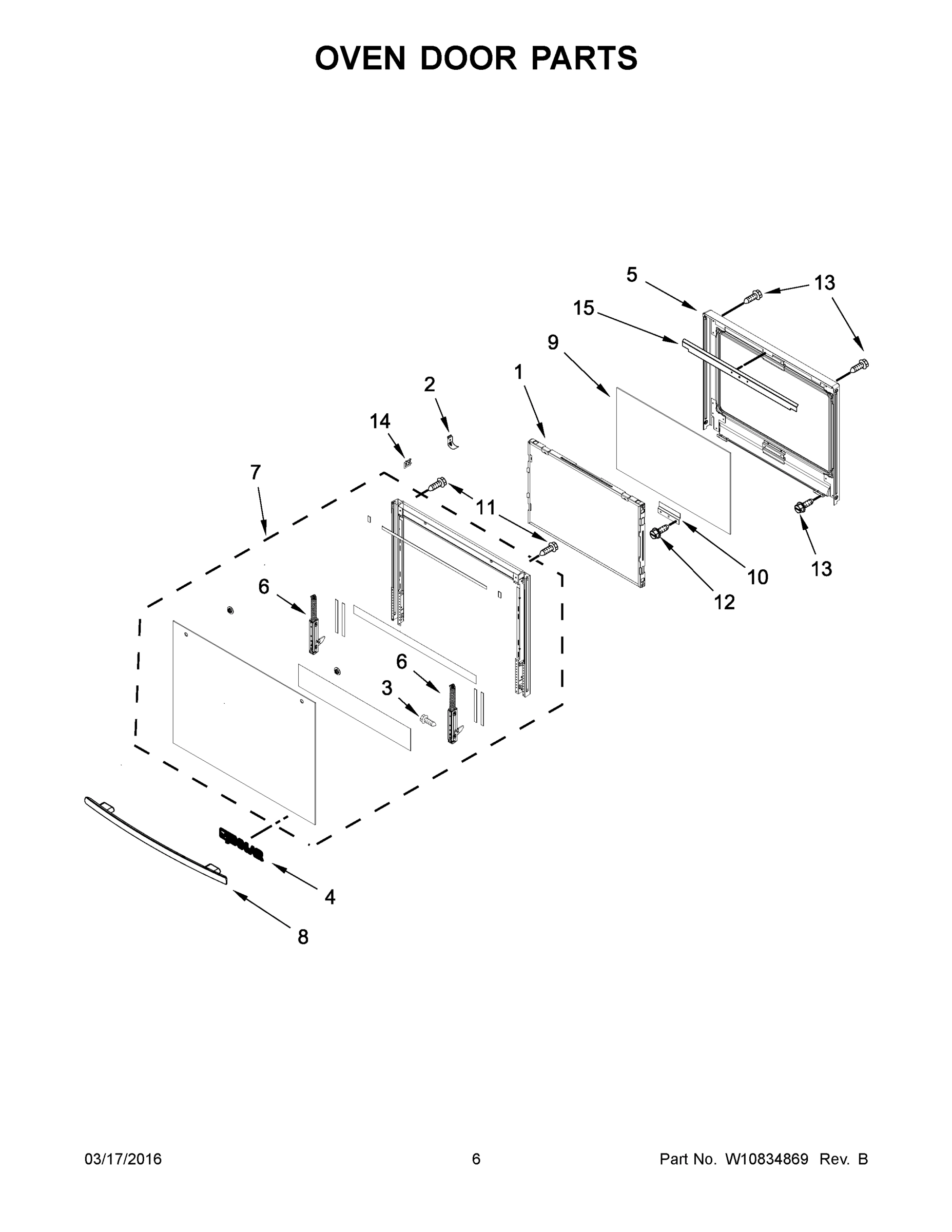

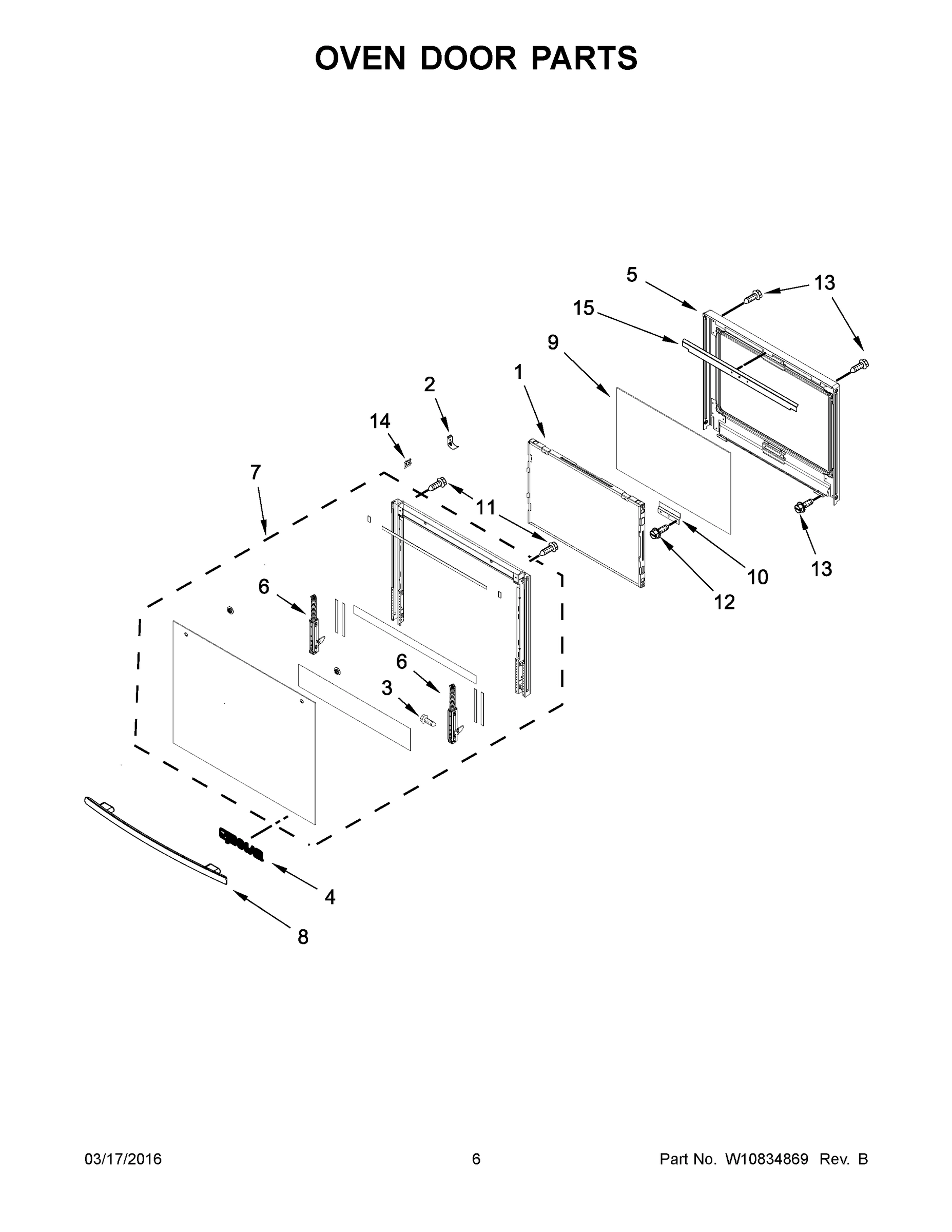

04 - OVEN DOOR PARTS

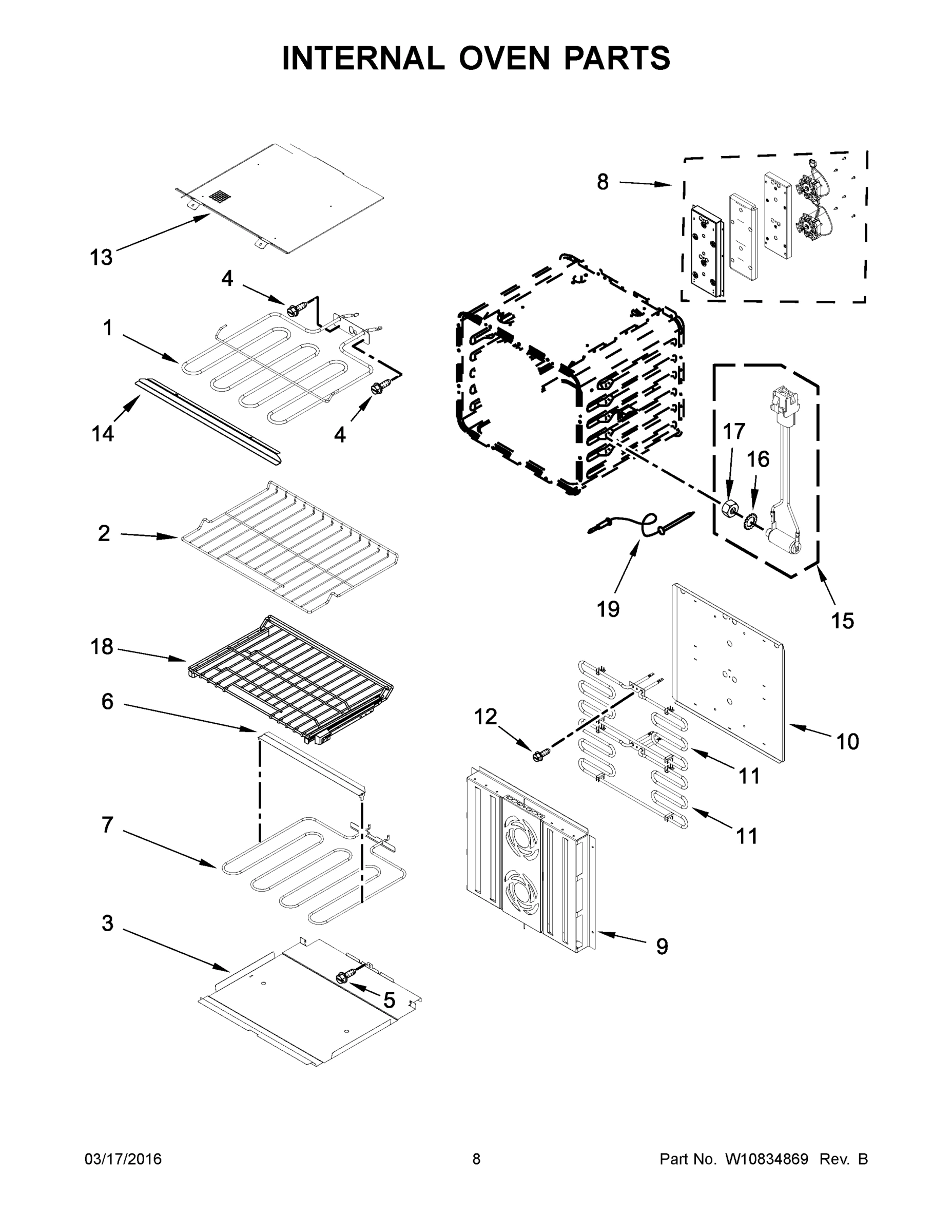

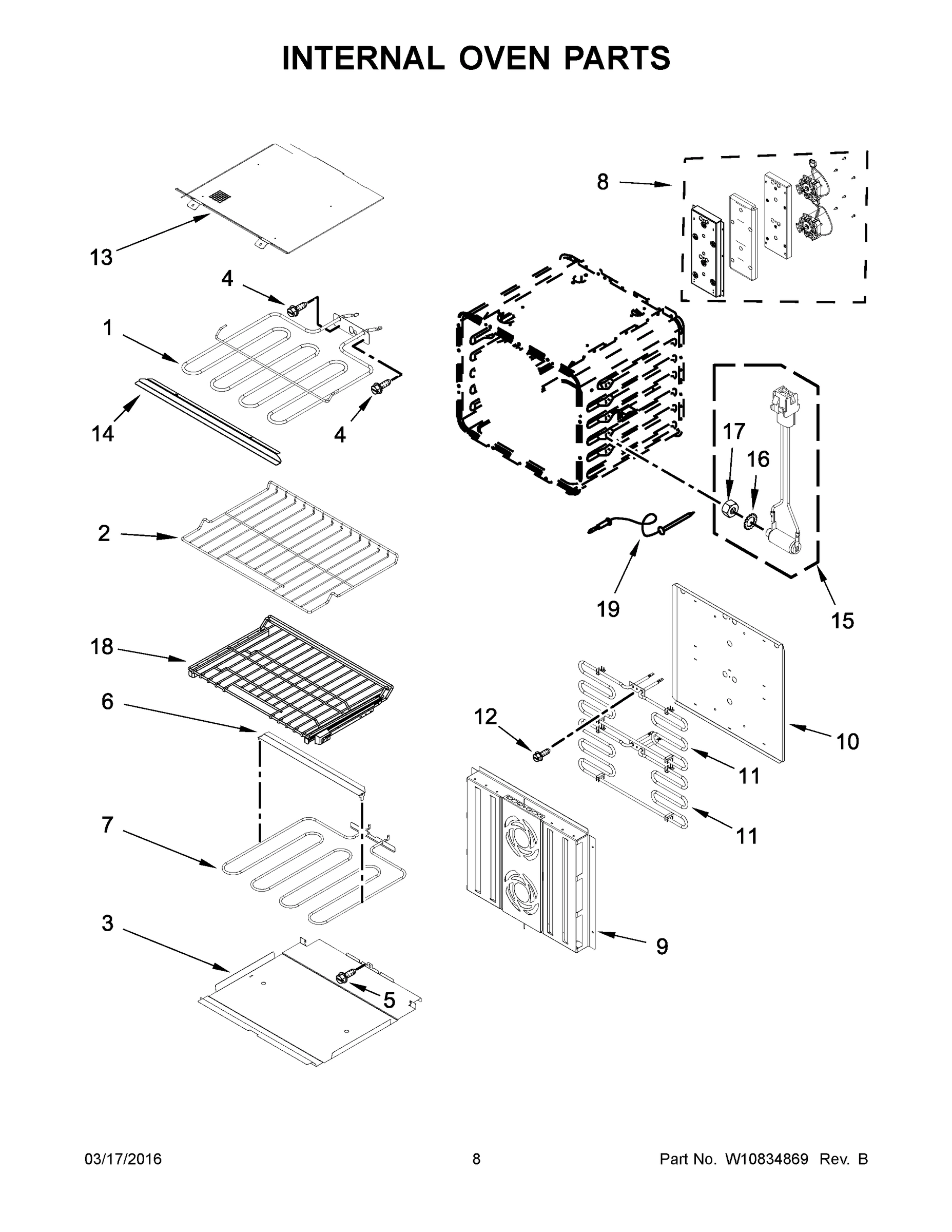

05 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag JJW3430DB01 WALL OVEN, ELECTRIC, BUILT-IN, SINGLE
1
MAY W10754337 MAY W10754337 Contact Us For Availability
1
MAY W10318196 MAY W10318196 Contact Us For Availability
1
MAY W10347596 MAY W10347596 Contact Us For Availability
1
MAY W10764078 MAY W10764078 Contact Us For Availability
1A
MAY W10790014 MAY W10790014 Contact Us For Availability
1B
MAY W10767737 MAY W10767737 Contact Us For Availability
2
MAY W10524555 MAY W10524555 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10554526 MAY W10554526 Contact Us For Availability
3
MANAGER, APPLIANCE MAY W10635086 Contact Us For Availability
3
MAY W10616802 MAY W10616802 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
4
MAY W10618105 MAY W10618105 Contact Us For Availability
4
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
4
MAY W10618102 MAY W10618102 Contact Us For Availability
4
BADGE (BLACK) MAY W10190724 Contact Us For Availability
5
BLOWER MAY W10669823 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
MAY W10709147 MAY W10709147 Contact Us For Availability
6
BOARD, POWER SUPPLY MAY W10260060 Contact Us For Availability
6
MAY W10813743 MAY W10813743 Contact Us For Availability
6
MAY W10725129 MAY W10725129 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
7
MAY W10782117 MAY W10782117 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10519866 Contact Us For Availability
7
MAY W10649196 MAY W10649196 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
8
MAY W10618101 MAY W10618101 Contact Us For Availability
8
ASSEMBLY, HANDLE (BLACK) MAY W10550998 Contact Us For Availability
8
MAY W10853996 MAY W10853996 Contact Us For Availability
9
MAY W10641572 MAY W10641572 Contact Us For Availability
9
MAY W10678524 MAY W10678524 Contact Us For Availability
9
MAY W10559988 MAY W10559988 Contact Us For Availability
10
MAY W10655463 MAY W10655463 Contact Us For Availability
10
MAY W10254050 MAY W10254050 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10853277 MAY W10853277 Contact Us For Availability
10A
MAY W10655462 MAY W10655462 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY W10739089 MAY W10739089 Contact Us For Availability
11
MAY W10480830 MAY W10480830 Contact Us For Availability
11
MAY W10663735 MAY W10663735 Contact Us For Availability
12
MAY W10694467 MAY W10694467 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10236129 MAY W10236129 Contact Us For Availability
13
MAY W10655465 MAY W10655465 Contact Us For Availability
13
MAY W10663556 MAY W10663556 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
SHIELD, BROIL ELEMENT MAY W10318164 Contact Us For Availability
13A
SIDE, CHASSIS (RIGHT) MAY W10318190 Contact Us For Availability
14
MAY W10444125 MAY W10444125 Contact Us For Availability
14
MAY W10282992 MAY W10282992 Contact Us For Availability
14
MAY W10653954 MAY W10653954 Contact Us For Availability
14
SHIELD, BROIL MAY W10588737 Contact Us For Availability
15
MAY W10667383 MAY W10667383 Contact Us For Availability
15
MAY W10669415 MAY W10669415 Contact Us For Availability
15
MAY W10696226 MAY W10696226 Contact Us For Availability
16
MAY W10575307 MAY W10575307 Contact Us For Availability
16
MAY W10622170 MAY W10622170 Contact Us For Availability
16
MAY 9755547 MAY 9755547 Contact Us For Availability
17
MAY W10668510 MAY W10668510 Contact Us For Availability
17
MAY W10351278 MAY W10351278 Contact Us For Availability
17
MAY 9755546 MAY 9755546 Contact Us For Availability
18
MAY W10566973 MAY W10566973 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
18
MAY W10840297 MAY W10840297 Contact Us For Availability
19
MAY W10524350 MAY W10524350 Contact Us For Availability
19
MAY W10834867 MAY W10834867 Contact Us For Availability
19
MAY 9755542 MAY 9755542 Contact Us For Availability
20
MAY W10568405 MAY W10568405 Contact Us For Availability
20
MAY W10351275 MAY W10351275 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
22
MAY W10351236 MAY W10351236 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
25
MAY W10283036 MAY W10283036 Contact Us For Availability
26
MAY 8285593 MAY 8285593 Contact Us For Availability
28
MAY W10472386 MAY W10472386 Contact Us For Availability
29
COVER, SIDE TRIM (BLACK (LEFT)) MAY W10344481 Contact Us For Availability
29A
COVER, SIDE TRIM (BLACK (RIGHT)) MAY W10344480 Contact Us For Availability
30
MAY W10834501 MAY W10834501 Contact Us For Availability
31
MAY W10472384 MAY W10472384 Contact Us For Availability
32
MAY W10616809 MAY W10616809 Contact Us For Availability
33
MAY W10737716 MAY W10737716 Contact Us For Availability
33A
MAY W10737715 MAY W10737715 Contact Us For Availability
34
MAY W10725427 MAY W10725427 Contact Us For Availability
35
MAY W10661201 MAY W10661201 Contact Us For Availability
36
MAY W10169757 MAY W10169757 Contact Us For Availability
37
MAY W10169756 MAY W10169756 Contact Us For Availability
38
MAY W10834286 MAY W10834286 Contact Us For Availability
39
MAY W10832249 MAY W10832249 Contact Us For Availability
39A
MAY W10832250 MAY W10832250 Contact Us For Availability
40
MAY W10753663 MAY W10753663 Contact Us For Availability
41
MAY W10811212 MAY W10811212 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY 4452400 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10487999 MAY W10487999 Contact Us For Availability
NI
MAY W10517751 MAY W10517751 Contact Us For Availability
NI
MAY W10562910 MAY W10562910 Contact Us For Availability
NI
MAY W10571360 MAY W10571360 Contact Us For Availability
NI
MAY W10655464 MAY W10655464 Contact Us For Availability
NI
MAY W10766153 MAY W10766153 Contact Us For Availability
NI
MAY W10775068 MAY W10775068 Contact Us For Availability
NI
MAY W10775486 MAY W10775486 Contact Us For Availability
NI
MAY W10520715 MAY W10520715 Contact Us For Availability
NI
MAY W10566640 MAY W10566640 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
