Model Maytag JJW2830IL01 WALL OVEN, ELECTRIC, DOUBLE, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

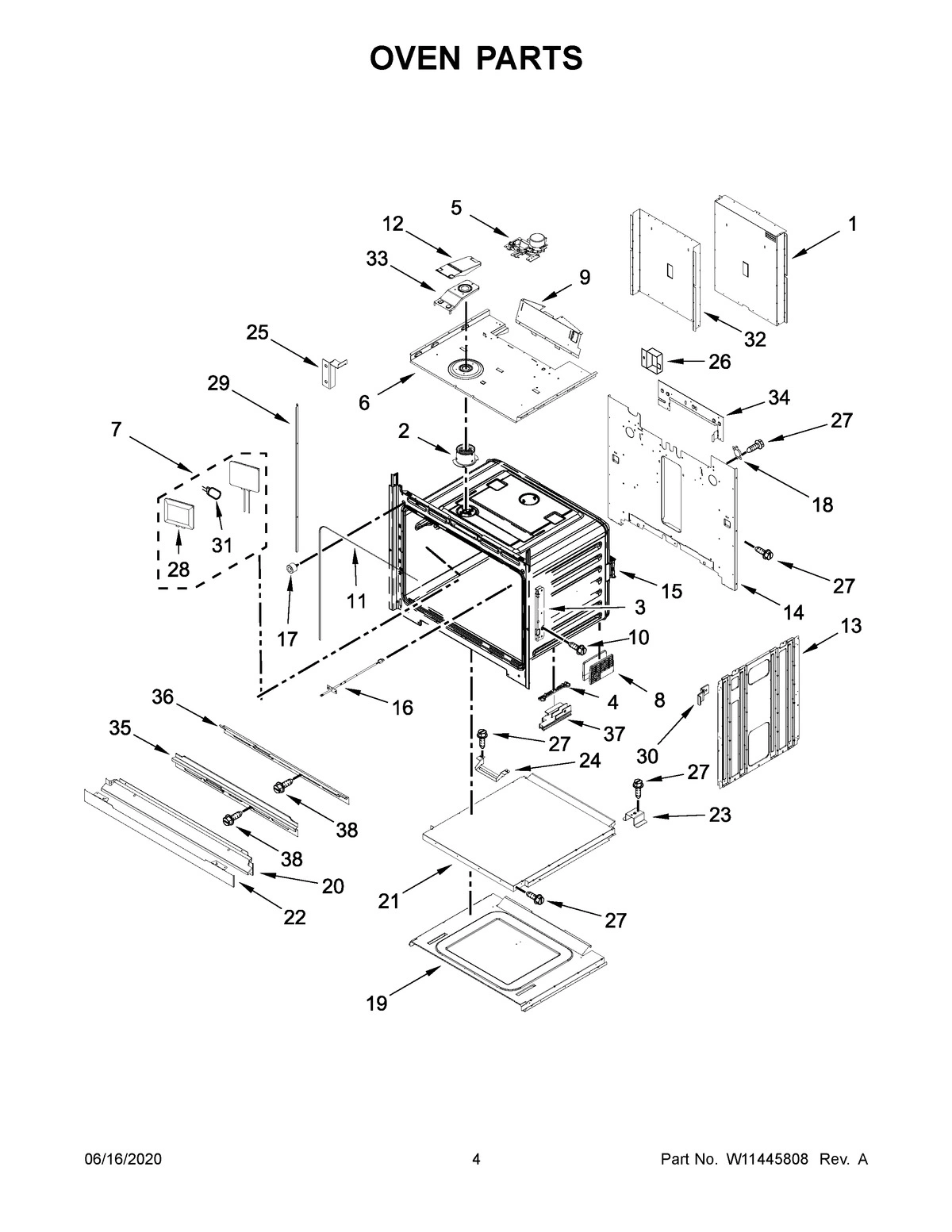

03 - OVEN PARTS

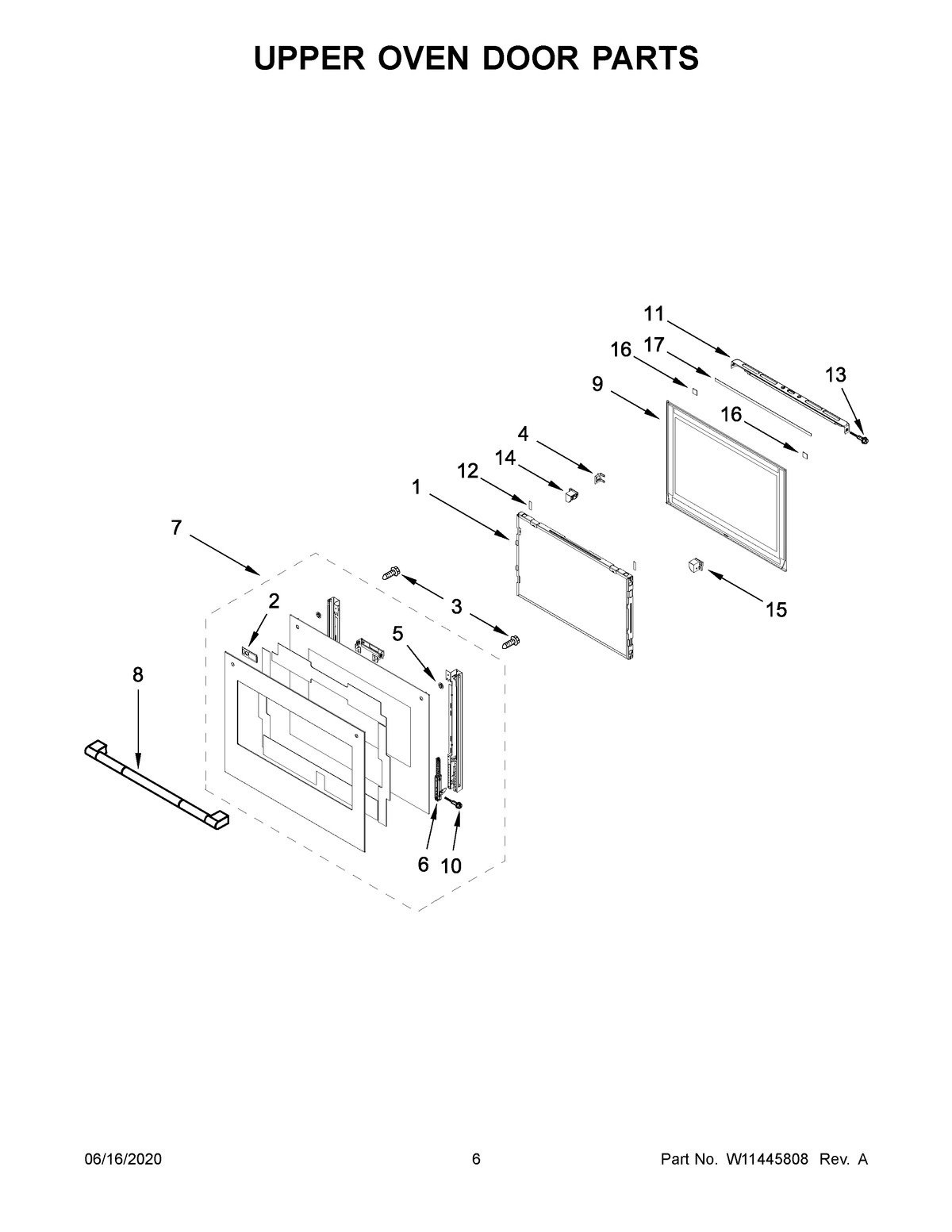

04 - UPPER OVEN DOOR PARTS

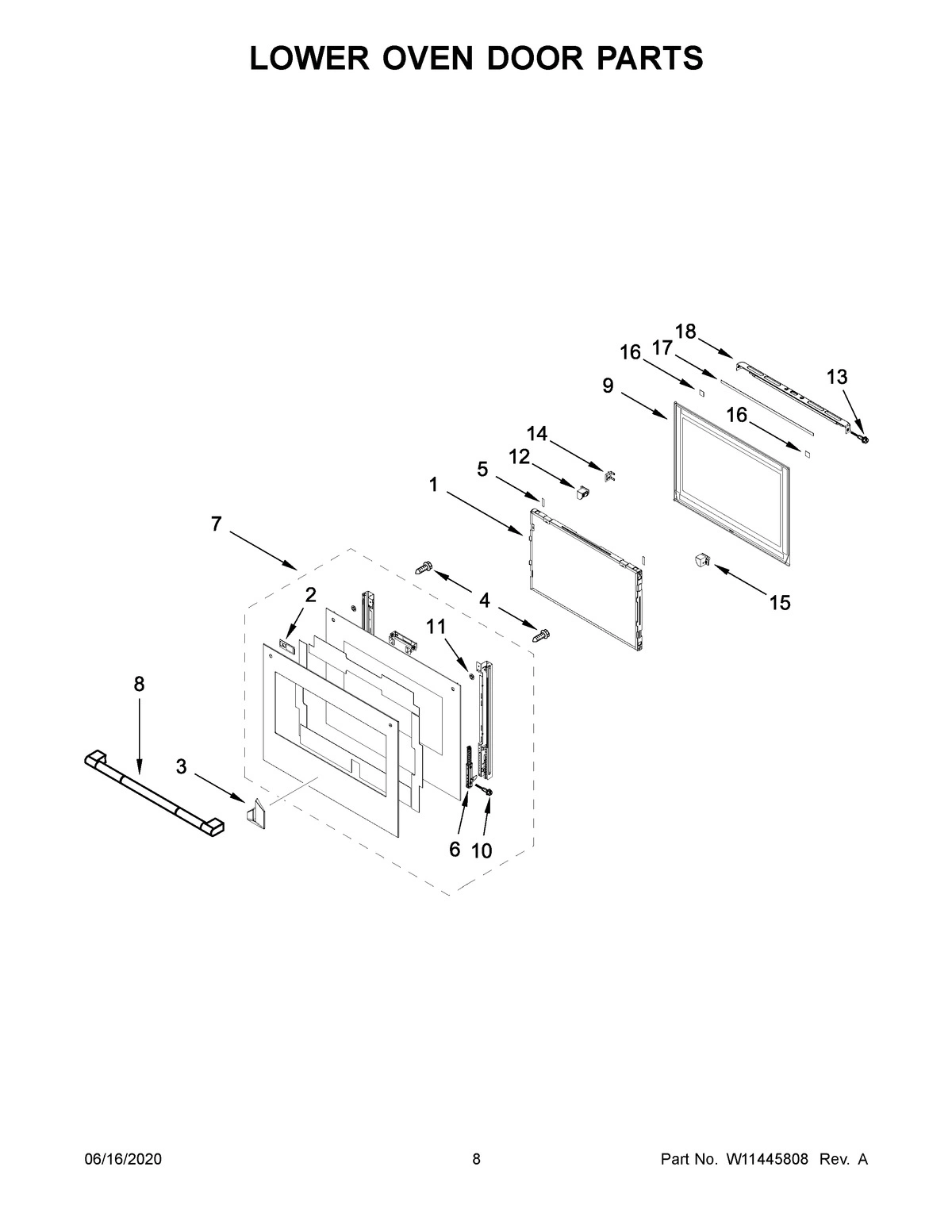

05 - LOWER OVEN DOOR PARTS

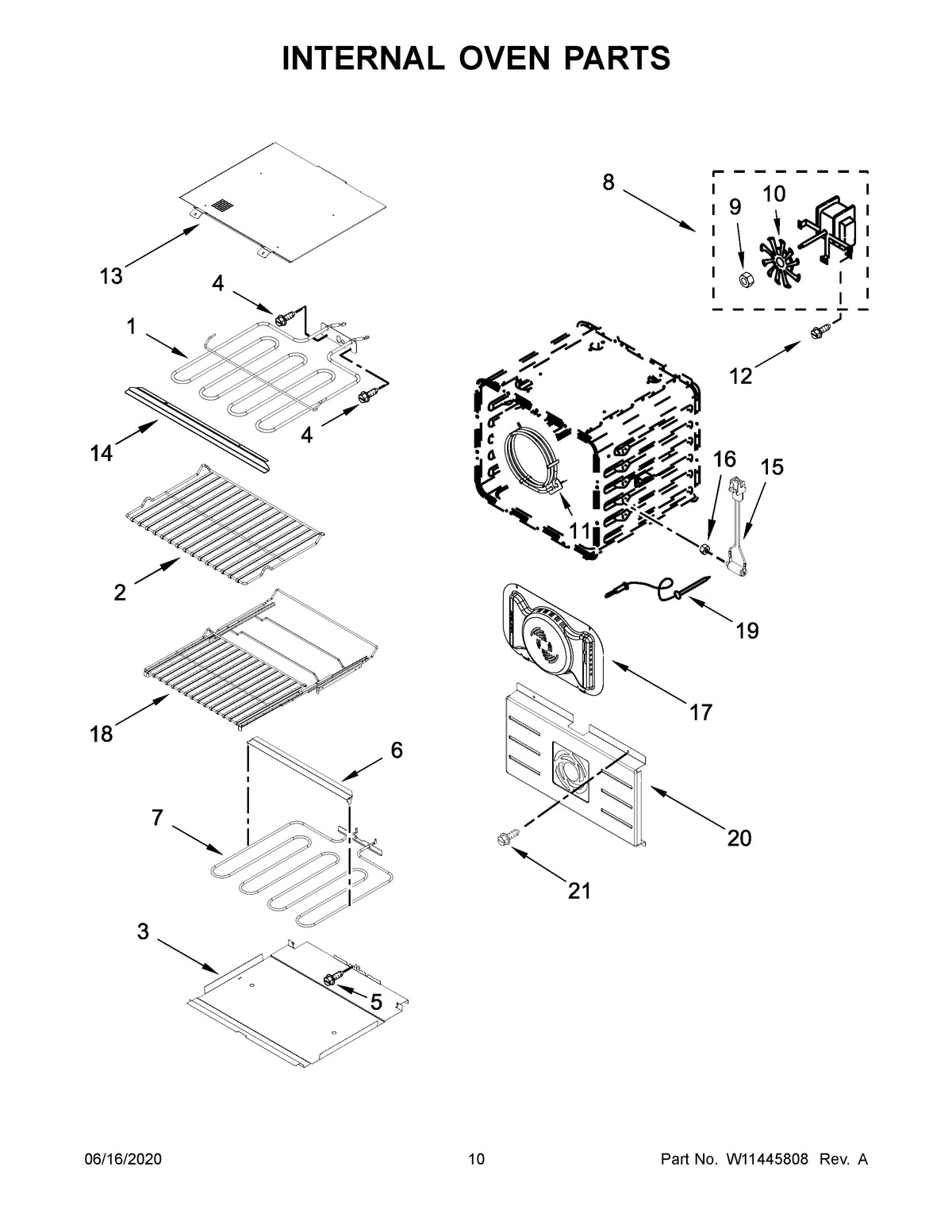

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JJW2830IL01 WALL OVEN, ELECTRIC, DOUBLE, 30 INCH
1
GUIDE, USE & CARE (OVEN) MAY W11235342 Contact Us For Availability
1
DUCT, CHASSIS BACK (UPPER) MAY W10318196 Contact Us For Availability
1
ASSEMBLY, WINDOW PACK MAY W11213479 Contact Us For Availability
1
ELEMENT, BROIL MAY W10764078 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W11235621 Contact Us For Availability
1B
DIAGRAM, WIRING MAY W11235301 Contact Us For Availability
1C
SHEET, TECH MAY W11284424 Contact Us For Availability
2
MAY W11428921 MAY W11428921 Contact Us For Availability
2
TUBE, VENT MAY W11085298 Contact Us For Availability
2
SPACER, HANDLE MAY W10650497 Contact Us For Availability
2
RACK, OVEN MAY W11242906 Contact Us For Availability
3
MAY W11249218 MAY W11249218 Contact Us For Availability
3
RECEIVER, HINGE MAY W11044775 Contact Us For Availability
3
NAMEPLATE (STAINLESS) MAY W11238657 Contact Us For Availability
3
TRAY, HIDDEN BAKE MAY W10318198 Contact Us For Availability
4
SCREW MAY W10489172 Contact Us For Availability
4
SPACER, BASE MAY W10618102 Contact Us For Availability
4
SCREW MAY W10480830 Contact Us For Availability
4
SCREW MAY 7101P434-60 Contact Us For Availability
5
BLOWER MAY W11200129 Contact Us For Availability
5
SCREW MAY 7101P426-60 Contact Us For Availability
5
LATCH, MOTORIZED MAY W10618131 Contact Us For Availability
5
SPACER MAY W10517440 Contact Us For Availability
6
BUMPER MAY W10351295 Contact Us For Availability
6
TOP, CHASSIS MAY W10904158 Contact Us For Availability
6
HINGE, DOOR MAY W11220345 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY MAY W10282957 Contact Us For Availability
7
SHIELD, CHASSIS TOP COVER MAY W11333473 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W11205574 Contact Us For Availability
7
ASSEMBLY, DOOR (STAINLESS) MAY W11213910 Contact Us For Availability
7
ELEMENT, BAKE MAY W11292248 Contact Us For Availability
8
FOOT, BASE MAY W10618101 Contact Us For Availability
8
ASSEMBLY, HANDLE (STAINLESS) MAY W11251202 Contact Us For Availability
8
FAN, CONVECTION MAY W10722667 Contact Us For Availability
9
SUPPORT, ELECTRONIC TRAY MAY W11236427 Contact Us For Availability
9
DEFLECTOR, BLOWER MAY W10904163 Contact Us For Availability
9
ASSEMBLY, GLASS CAVITY MAY W11220347 Contact Us For Availability
9
NUT, ACORN (LH) MAY W10631504 Contact Us For Availability
10
BRACKET, BLOWER (LEFT) MAY W10655463 Contact Us For Availability
10
SCREW MAY W10254050 Contact Us For Availability
10
SCREW MAY 3196183 Contact Us For Availability
10
BLADE, FAN MAY W10631503 Contact Us For Availability
10A
BRACKET, BLOWER (RIGHT) MAY W10655462 Contact Us For Availability
11
BLOCK, FOAM MAY 4451758 Contact Us For Availability
11
GASKET MAY W10739089 Contact Us For Availability
11
WASHER, DOOR MAY W10319024 Contact Us For Availability
11
ELEMENT, CONVECTION MAY W10546519 Contact Us For Availability
12
TRAY, ELECTRONIC MAY W11333584 Contact Us For Availability
12
COVER, VENT EXHAUST MAY W10616810 Contact Us For Availability
12
BRACKET, DOOR (LEFT) MAY W10581831 Contact Us For Availability
12
SCREW MAY W10720084 Contact Us For Availability
13
CHASSIS, BACK DIVIDER MAY W10655465 Contact Us For Availability
13
SIDE, CHASSIS MAY W10318190 Contact Us For Availability
13
SCREW WITH WASHER MAY W10284411 Contact Us For Availability
13
SHIELD, BROIL ELEMENT MAY W10911205 Contact Us For Availability
14
CHASSIS, COVER TOP FRONT 30" MAY W11333978 Contact Us For Availability
14
BACK, CHASSIS MAY W10904160 Contact Us For Availability
14
CLIP, SPRING MAY W10549747 Contact Us For Availability
14
SHIELD, BROIL FRONT MAY W10588738 Contact Us For Availability
15
CHASSIS, COVER TOP BACK 30" MAY W10694465 Contact Us For Availability
15
BRACKET, DOOR (RIGHT) MAY W10581826 Contact Us For Availability
15
JACK, MEAT PROBE MAY W11252826 Contact Us For Availability
16
GASKET, RUBBER MAY W10728475 Contact Us For Availability
16
PROBE, SENSOR MAY W11208463 Contact Us For Availability
16
SPACER, VENT MAY W10517428 Contact Us For Availability
16
NUT, LOCKING MAY W11033111 Contact Us For Availability
17
HARNESS, KEYPAD (LEFT TO CENTER) MAY W10566973 Contact Us For Availability
17
BUMPER & SCREW MAY W10351278 Contact Us For Availability
17
PAD, VENT MAY W10489273 Contact Us For Availability
17
BAFFLE, BOW TIE MAY W11192519 Contact Us For Availability
18
HARNESS, KEYPAD (RIGHT TO CENTER) MAY W10524350 Contact Us For Availability
18
THERMOSTAT (TOD) MAY 4449751 Contact Us For Availability
18
VENT, TOP METAL MAY W11280091 Contact Us For Availability
18
RACK, SLIDING MAY W11256305 Contact Us For Availability
19
ASSEMBLY, SPEAKER MAY W10568405 Contact Us For Availability
19
BASE, CHASSIS MAY W11238787 Contact Us For Availability
19
PROBE, TEMPERATURE MAY 9755542 Contact Us For Availability
20
HOUSING MAY W10668510 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (STAINLESS) MAY W10327374 Contact Us For Availability
20
COVER, BAFFLE MAY W10521808 Contact Us For Availability
21
JUMPER HARNESS, POWER SUPPLY MAY W10575307 Contact Us For Availability
21
CHASSIS, BOTTOM DUCT MAY W10283008 Contact Us For Availability
21
SCREW MAY W10739592 Contact Us For Availability
22
TRIM, BOTTOM VENT (STAINLESS) MAY W10327377 Contact Us For Availability
23
SKIN, CONTROL PANEL (STAINLESS) MAY W11197498 Contact Us For Availability
23
SUPPORT, AIR CHANNEL MAY W10213759 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT MAY W10351308 Contact Us For Availability
25
BRACKET, SIDE COVER (LEFT) MAY W10863234 Contact Us For Availability
25A
BRACKET, SIDE COVER (RIGHT) MAY W10863233 Contact Us For Availability
26
COVER, CONNECTOR MAY 8285593 Contact Us For Availability
28
LENS, LIGHT MAY W10472386 Contact Us For Availability
29
COVER, SIDE TRIM (LEFT) MAY W10327369 Contact Us For Availability
29A
COVER, SIDE TRIM (RIGHT) MAY W10327368 Contact Us For Availability
30
SPACERS, FRONT MAY W10347649 Contact Us For Availability
31
BULB, LIGHT MAY W10472384 Contact Us For Availability
32
DUCT, CHASSIS BACK (LOWER) MAY W10542857 Contact Us For Availability
33
BASE, VENT EXHAUST MAY W10616809 Contact Us For Availability
34
BRACKET, U-SHAPE MAY W10904155 Contact Us For Availability
35
VENT, CENTER 30" MAY W10283040 Contact Us For Availability
36
VENT, TOP 30" MAY W10283036 Contact Us For Availability
37
FOOT, FRONT (LEFT) MAY W10618103 Contact Us For Availability
37A
FOOT, FRONT (RIGHT) MAY W10618104 Contact Us For Availability
38
SCREW MAY W11249635 Contact Us For Availability
NI
CLIP, HARNESS MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
BAG, HARDWARE MAY W10431304 Contact Us For Availability
NI
HARNESS, EOL MAY W10562910 Contact Us For Availability
NI
BRACKET, HARNESS MAY W10655464 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY W11132988 Contact Us For Availability
NI
HARNESS, SIGNAL MAY W11216658 Contact Us For Availability
NI
HARNESS, MAIN MAY W11216673 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W11219538 Contact Us For Availability
NI
JUMPER TOD MAY W11229447 Contact Us For Availability
NI
INSULATION, WRAP MAY W10520715 Contact Us For Availability
NI
INSULATION, CAVITY MAY W10917743 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
