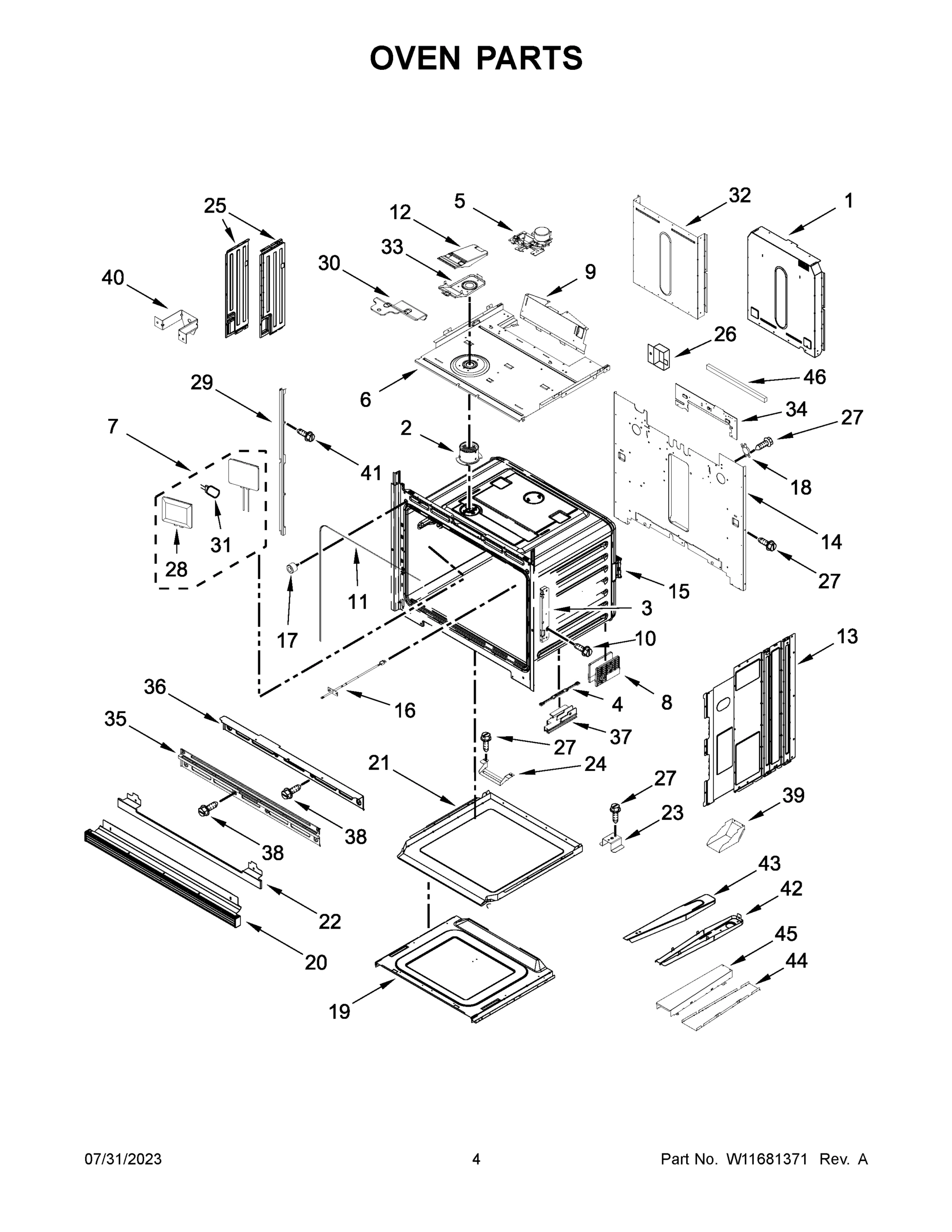

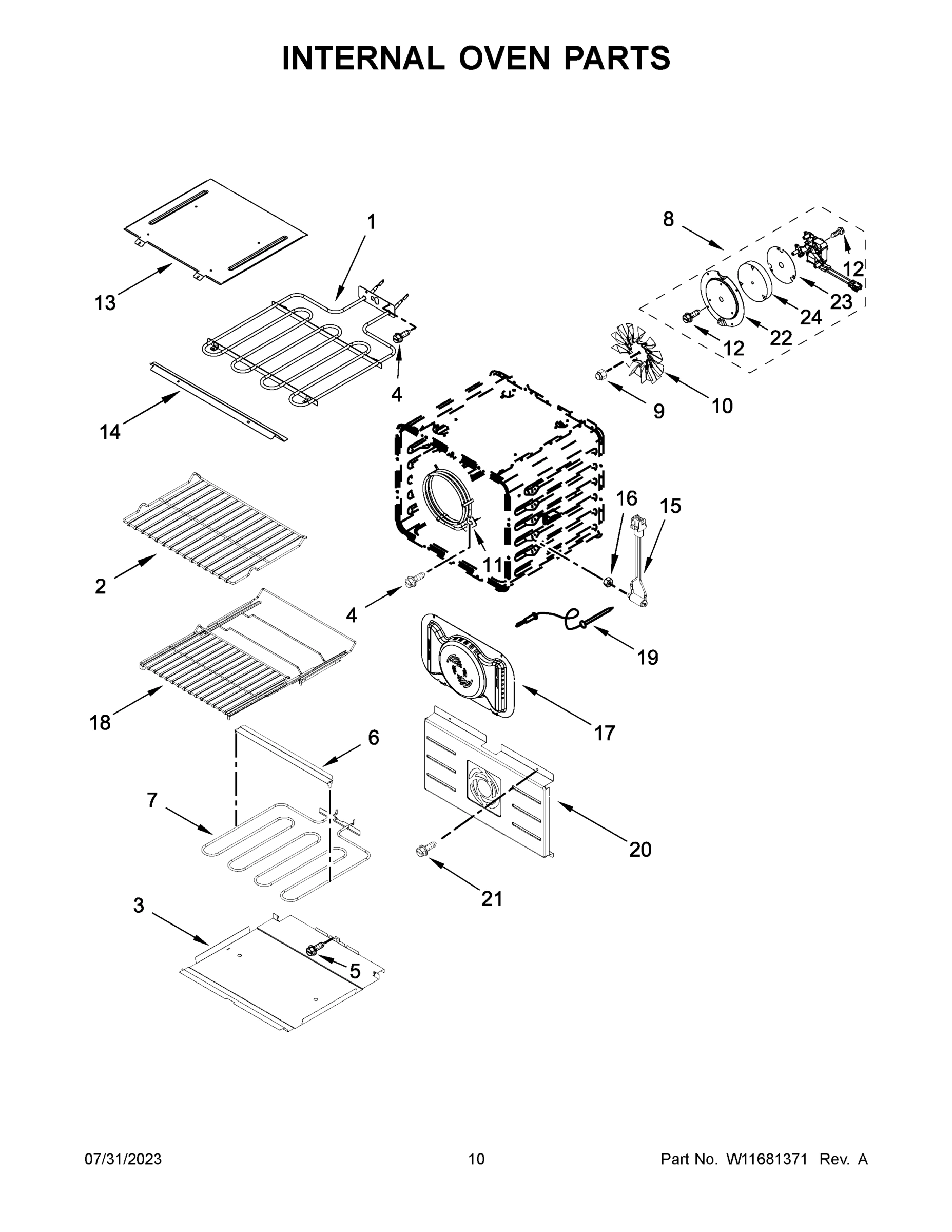

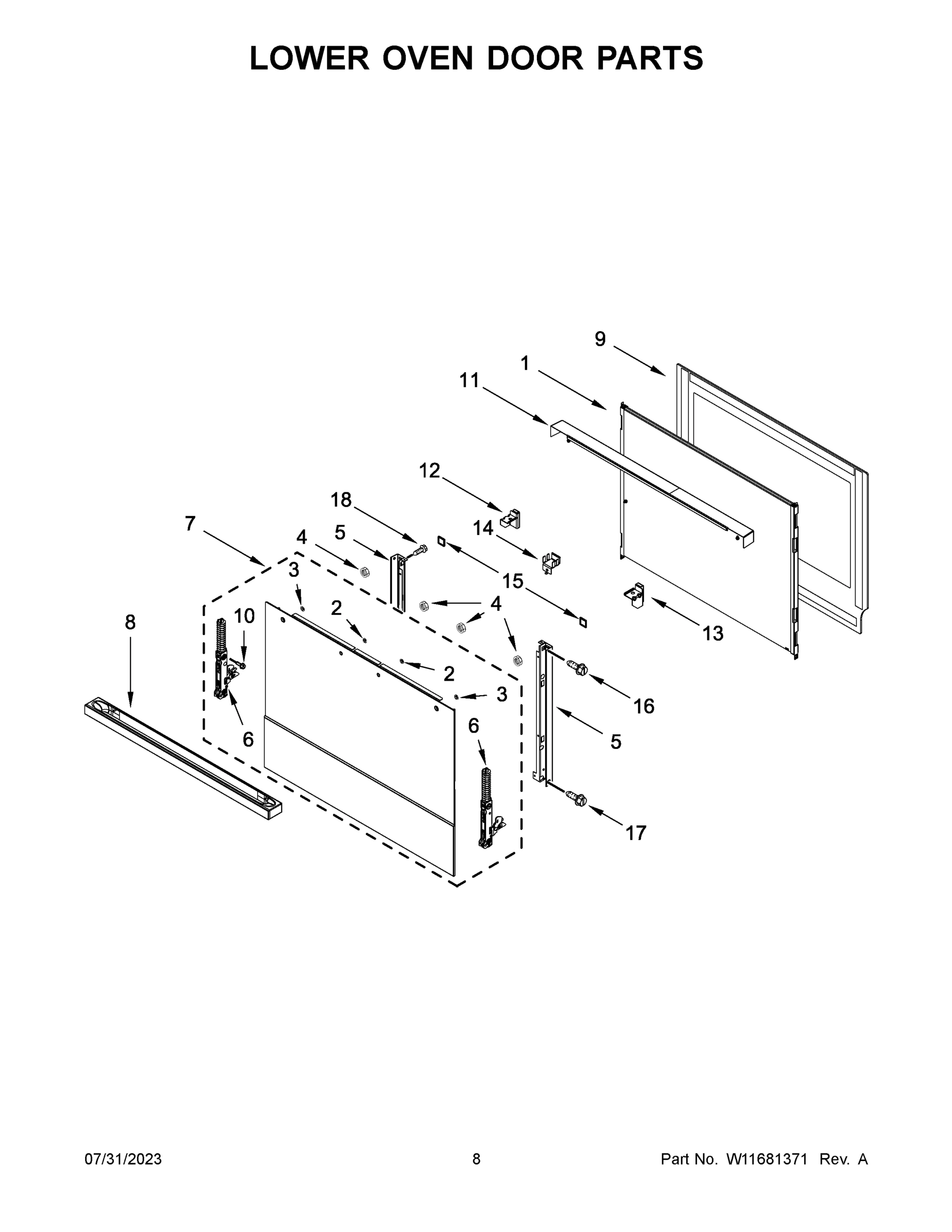

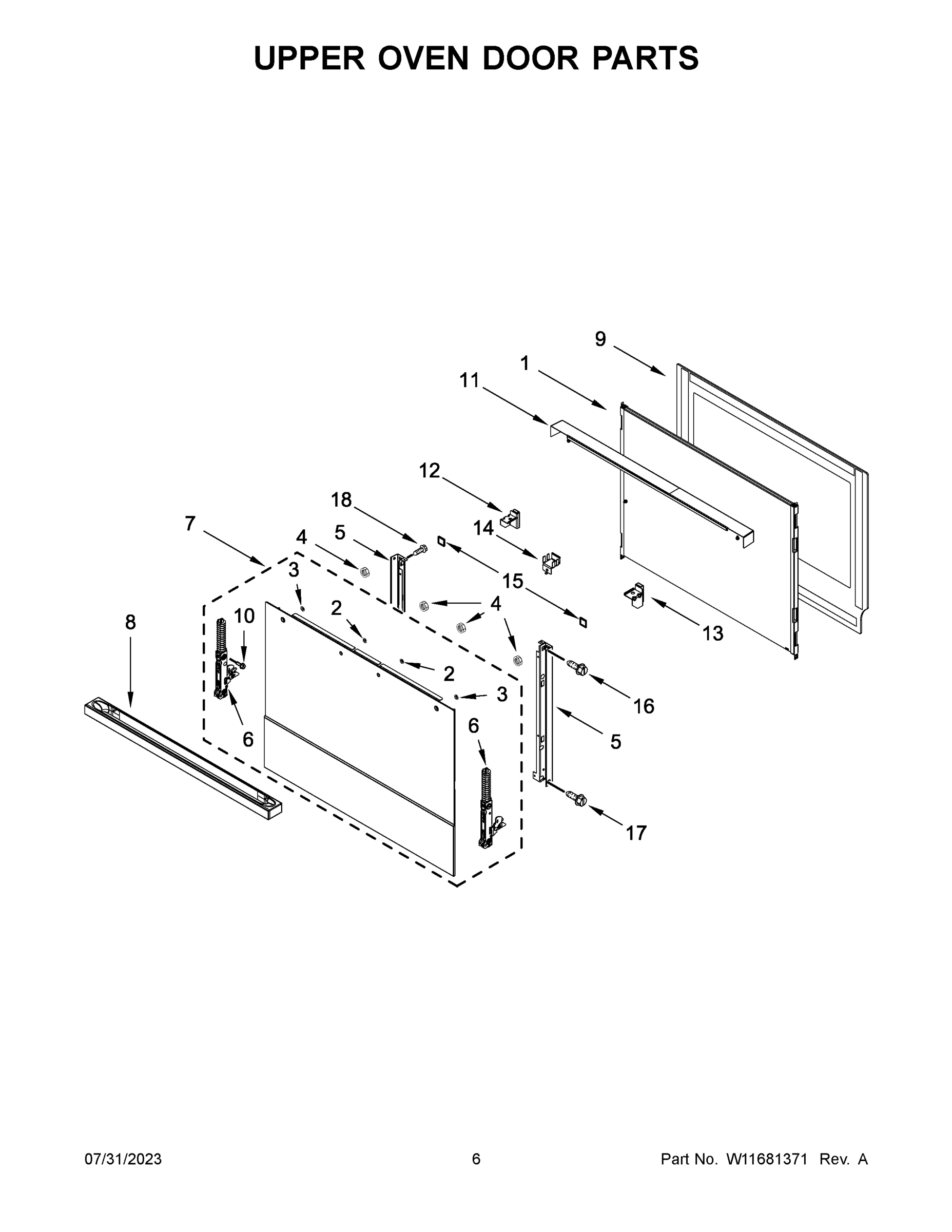

Model Whirlpool JJW2827LM01 WALL OVEN, ELECTRIC – Common Parts &amp; Diagrams

1

W11602513 Whirlpool Oven Door Glass Backorder WPL W11602513 $177.96

2

SPACER, HANDLE WPL W11132942 Contact Us For Availability

2

RACK, 27 IN OVEN WPL W11242909 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $69.50

3

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

3

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $31.55

3A

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $31.55

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $6.24

4

W11602632 Whirlpool Nut Assembly Backorder WPL W11602632 $9.59

4

SCREW WPL 7101P43460 Contact Us For Availability

5

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $28.95

5

SCREW WPL 7101P42660 Contact Us For Availability

5A

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $17.00

6

W10351295 Whirlpool Bumper Assembly Backorder WPL W10351295 $10.76

6

TOP-CABNT Backorder WPL W11244456 $41.83

6

W11394209 Whirlpool Door Hinge Backorder WPL W11394209 $57.65

6A

W11394210 Whirlpool Door Hinge Backorder WPL W11394210 $57.65

7

W11292252 Whirlpool Oven Light Backorder WPL W11292252 $35.81

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7

DOOR ASSEMBLY (INCLUDES HINGES) (BLACK GLASS WPL W11287489 Contact Us For Availability

7

DOOR ASSEMBLY (INCLUDES HINGES) (BLACK GLASS WPL W11304054 Contact Us For Availability

8

W11411895 Whirlpool Door Handle Backorder WPL W11411895 $654.40

8

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

8

CONVECT MOTOR ASSEMBLY WPL W11244895 Contact Us For Availability

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $64.16

9

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

9

W11602631 Whirlpool Door Glass Backorder WPL W11602631 $304.53

10

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $55.82

10

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

10

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

11

TRIM-VENT Backorder WPL W11597416 $179.26

11

W11608109 Whirlpool Gasket Backorder WPL W11608109 $41.19

11

W11678579 Whirlpool Element Backorder WPL W11678579 $44.05

12

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

12

COVR-EXHST Backorder WPL W11256424 $19.71

12

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $24.47

13

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $45.33

13

W11598121 Whirlpool Top-Cabnt Backorder WPL W11598121 $29.81

13

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $24.47

14

Backorder WPL W10588737 $41.82

14

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $4.61

14

BACK, CHASSIS (NOT SERVICED) WPL ARI6655B8C91FC6F816F7982F80F561FE0E Contact Us For Availability

15

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $41.07

15

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

15

LINER, OVEN (NOT SERVICEABLE) WPL ARI221486ECAEC93F8B8C6C8EF9CFFD9E68 Contact Us For Availability

16

W11231343 Whirlpool Lock Nut In Stock WPL W11231343 $9.59

16

W11598120 Whirlpool Thermostat In Stock WPL W11598120 $14.26

16

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

W10566973 Whirlpool Wire Harness Backorder WPL W10566973 $31.46

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

BAFFLE, BOW TIE WPL W11192519 Contact Us For Availability

18

W10443110 Whirlpool Screw Backorder WPL W10443110 $5.38

18

W11256306 Whirlpool Rack Backorder WPL W11256306 $211.34

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

19

W11123146 Whirlpool Speaker Backorder WPL W11123146 $31.29

19

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $58.23

19

BASE, CHASSIS WPL W11244454 Contact Us For Availability

20

W10521808 Whirlpool Baffle Convect Backorder WPL W10521808 $121.61

20

W10668510 Whirlpool Housing Backorder WPL W10668510 $42.51

20

W11369893 Whirlpool Heat Deflector Backorder WPL W11369893 $41.07

21

W10575307 Whirlpool Wire Harness Backorder WPL W10575307 $72.82

21

SCREW Backorder WPL W10739592 $6.28

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $49.01

22

W11712432 Whirlpool Trim Assembly In Stock WPL W11712432 $32.98

22

COVER, CONVECT PLATE WPL W11235449 Contact Us For Availability

23

SUPPORT Backorder WPL W11135135 $19.95

23

PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

24

INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability

25

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $27.45

25A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $27.45

26

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $33.75

28

WPW10519866 Whirlpool Light In Stock WPL WPW10519866 $61.34

29

W11235460 Whirlpool Mounting Rail In Stock WPL W11235460 $44.65

29A

W11235461 Whirlpool Rail Mounting In Stock WPL W11235461 $44.65

30

BRACKET, TOP FRONT WPL W11342780 Contact Us For Availability

31

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $52.36

32

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $52.01

33

TUBE-VENT Backorder WPL W11256423 $20.39

34

BRKT-SUPRT Backorder WPL W11186652 $24.47

35

W11235483 Whirlpool Exhaust Vent Backorder WPL W11235483 $64.54

36

W11334858 Whirlpool Vent Exhaust Backorder WPL W11334858 $52.26

37

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

37A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

38

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

39

DEFLECTOR, LOWER BACK EXHAUST WPL W11256432 Contact Us For Availability

40

HAT BRACKET, VENT WPL W11344645 Contact Us For Availability

41

W11602623 Whirlpool Screw Backorder WPL W11602623 $9.59

42

TUBE-VENT Backorder WPL W11256420 $20.39

43

COVER, TOP BACK EXHAUST WPL W11256421 Contact Us For Availability

44

BASE, LOWER BACK EXHAUST WPL W11256430 Contact Us For Availability

45

COVER, LOWER BACK EXHAUST WPL W11256431 Contact Us For Availability

46

FOAM, U-BRACKET WPL W11211345 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10655464 Whirlpool Bracket Backorder WPL W10655464 $14.22

W11369891 Whirlpool Heat Deflector Backorder WPL W11369891 $41.07

W11570326 Whirlpool Trim Backorder WPL W11570326 $99.55

W11699910 Whirlpool Wire Harness Backorder WPL W11699910 $11.79

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

INSULATION, WRAP WPL W11244474 Contact Us For Availability

INSULATION, BACK WPL W11244475 Contact Us For Availability
