Model Maytag JJW2827DB00 ELECTRIC OVEN – Common Parts & Diagrams

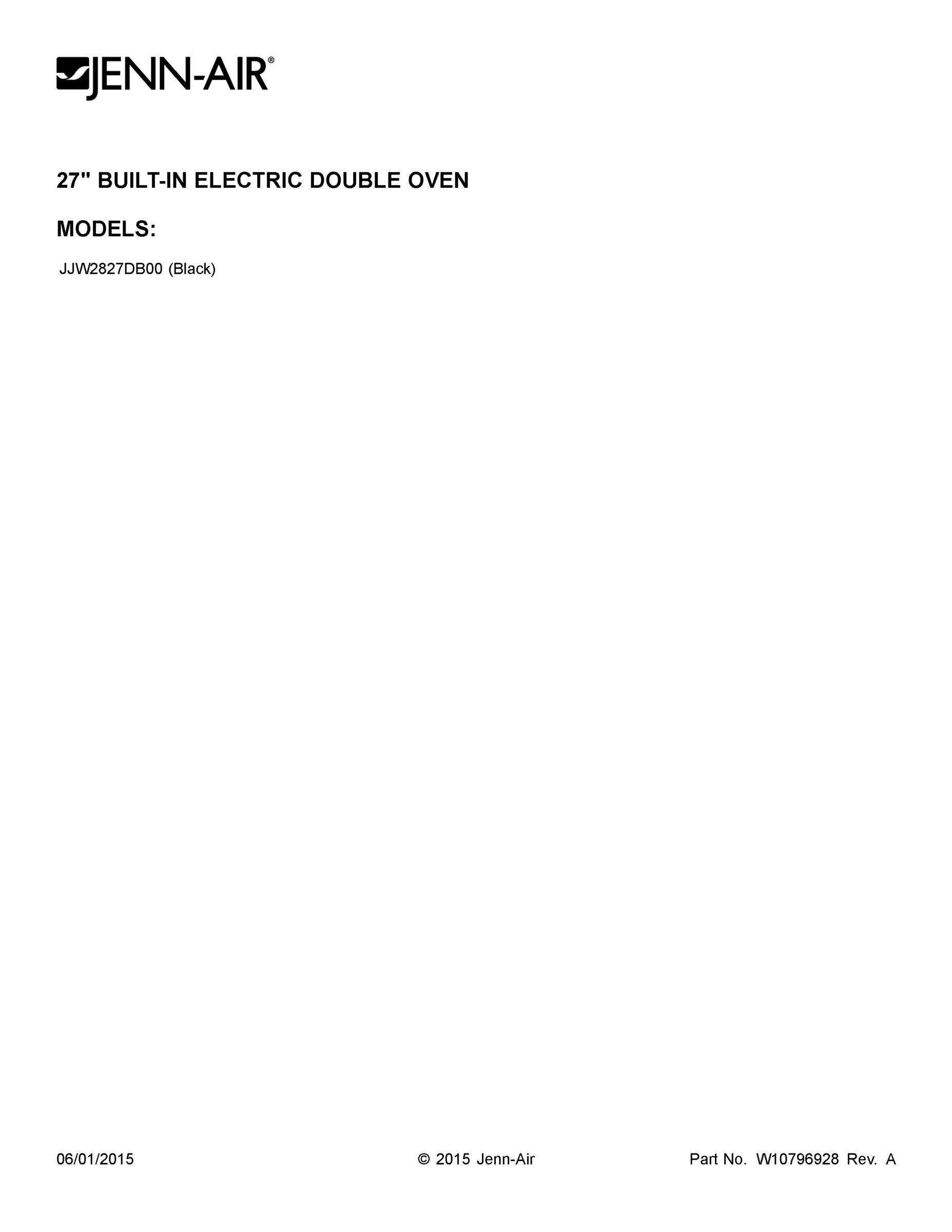

01 - COVER SHEET

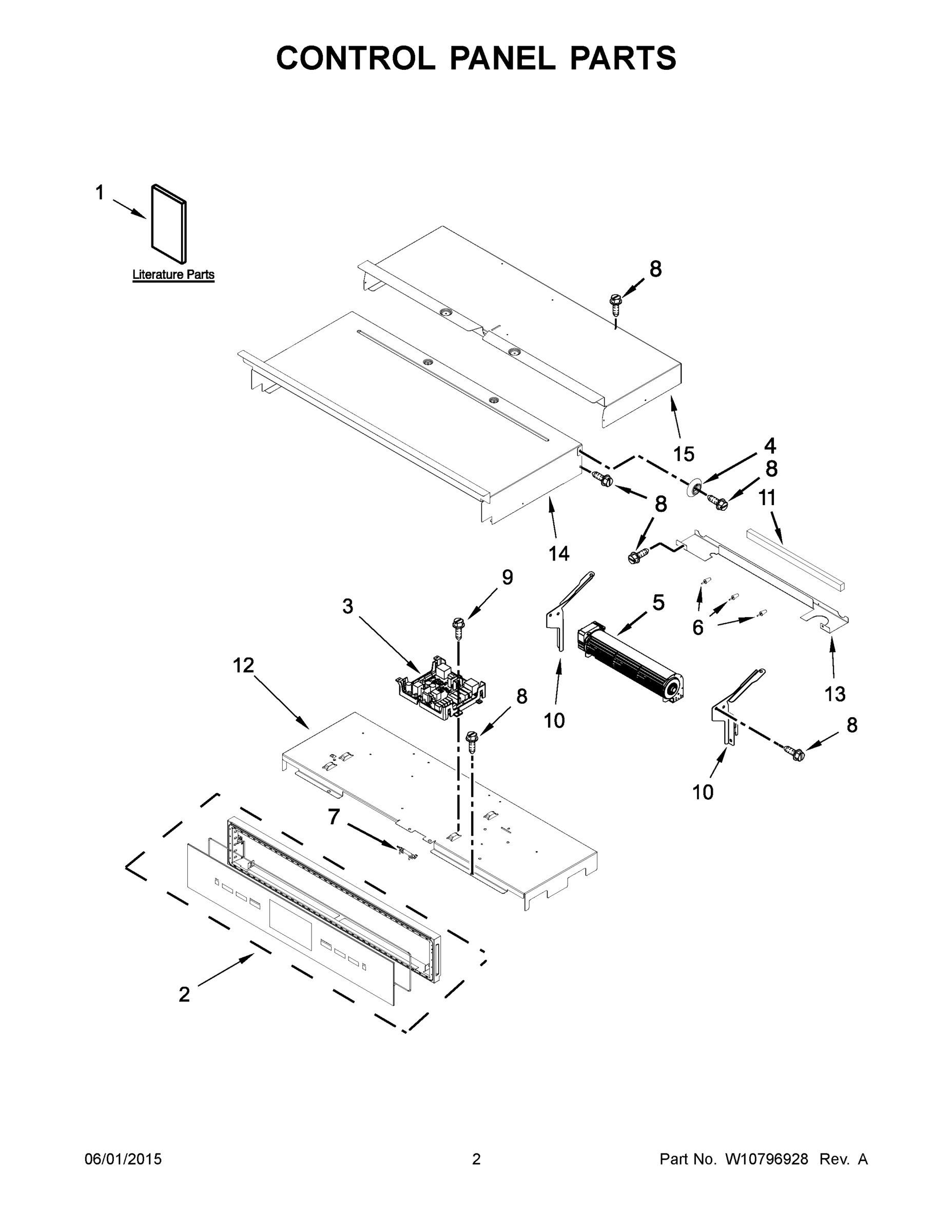

02 - CONTROL PANEL PARTS

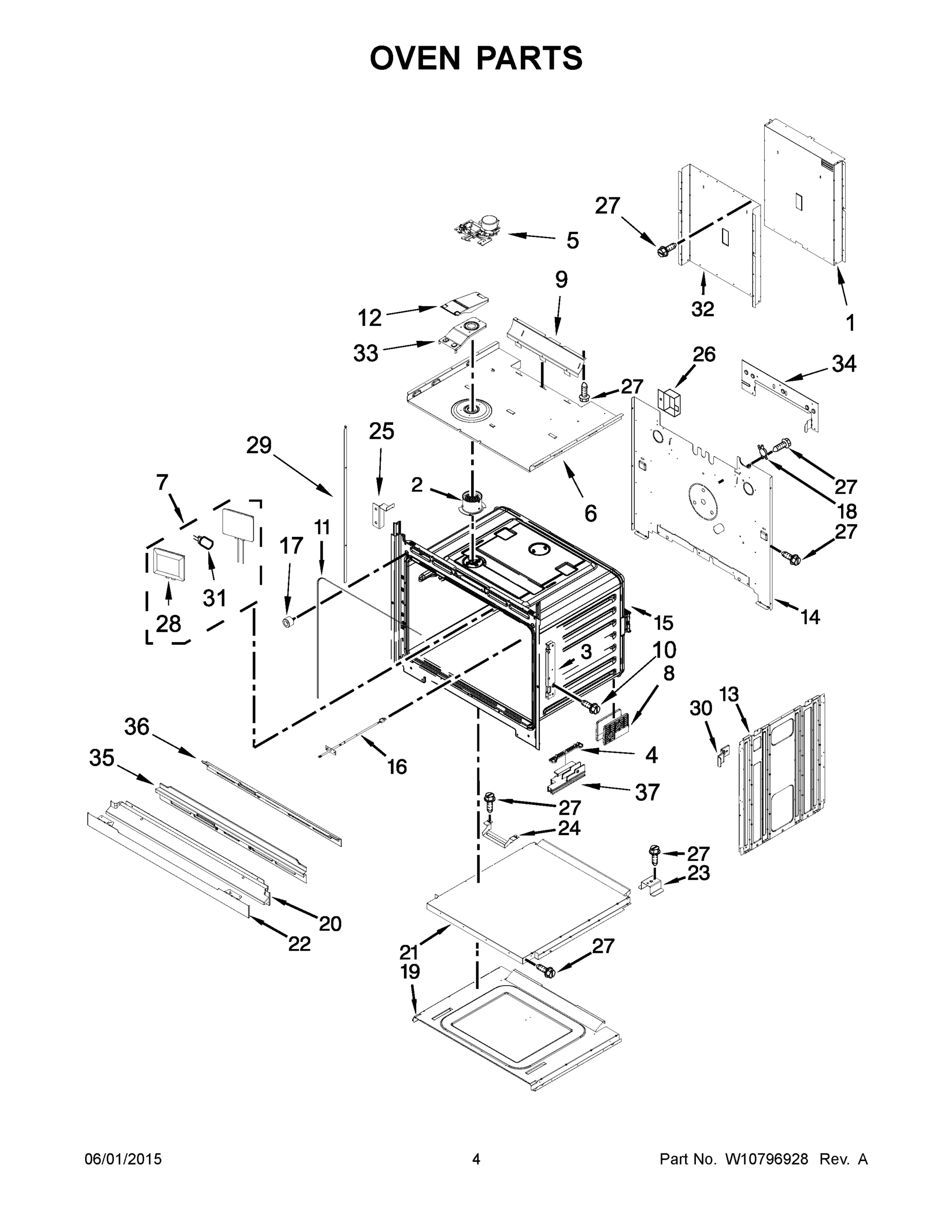

03 - OVEN PARTS

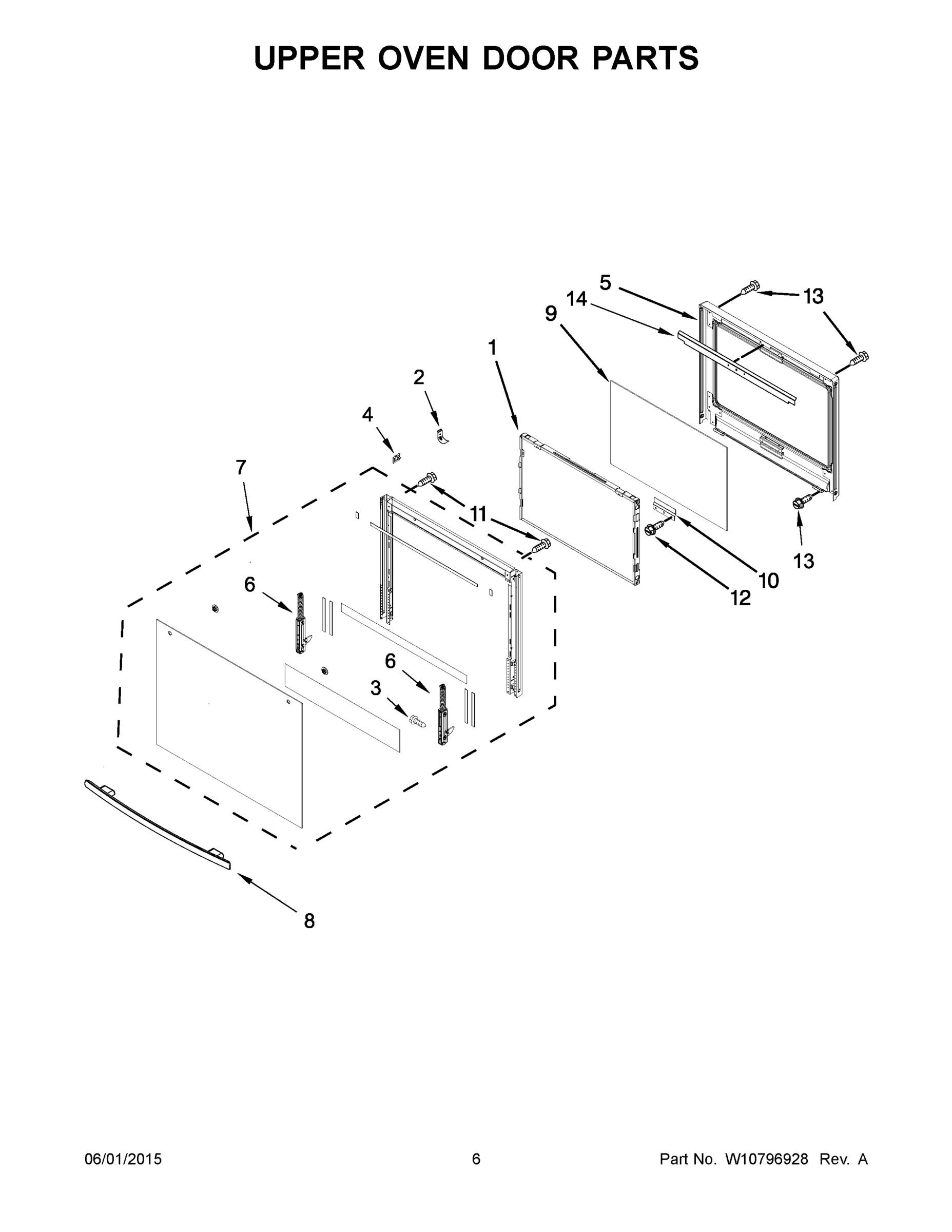

04 - UPPER OVEN DOOR PARTS

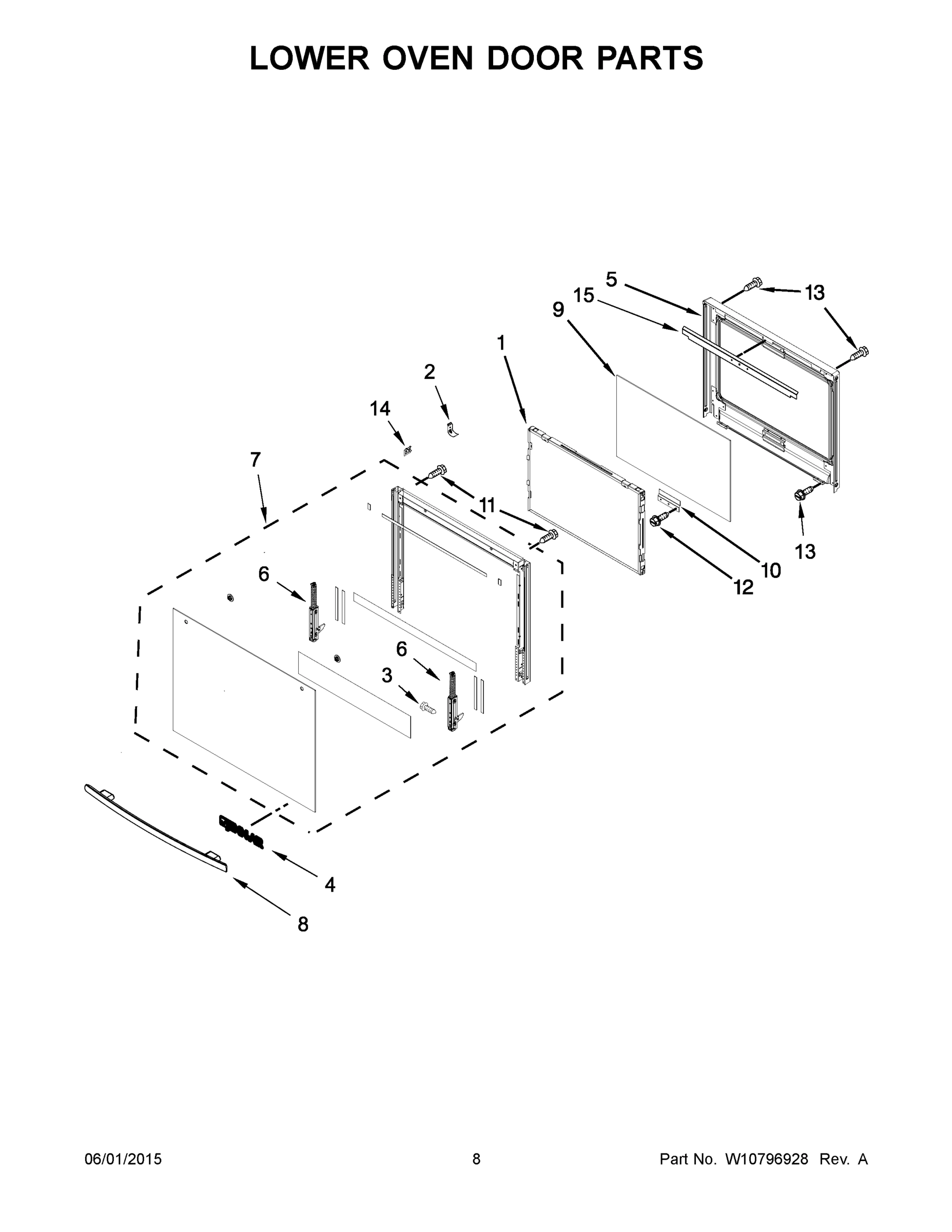

05 - LOWER OVEN DOOR PARTS

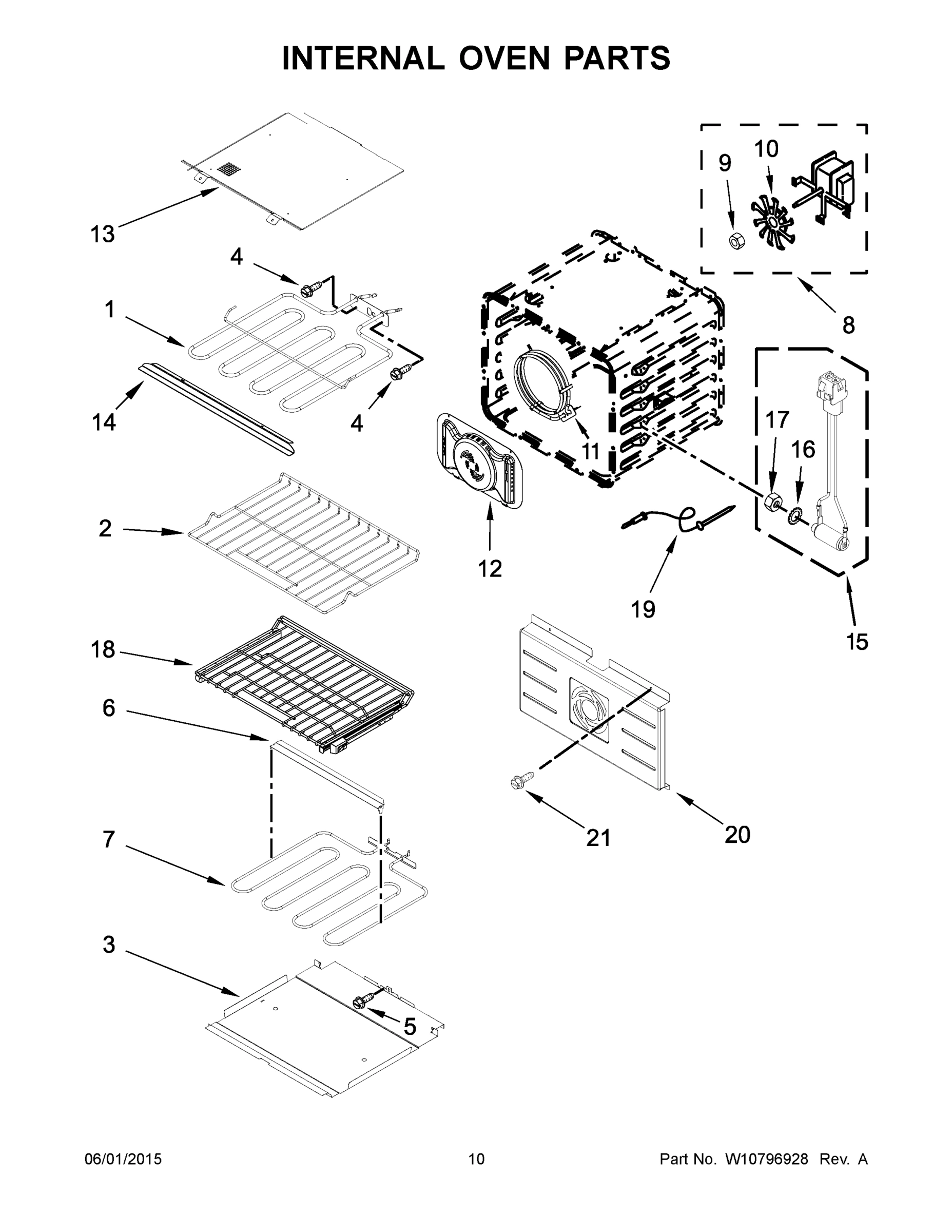

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag JJW2827DB00 ELECTRIC OVEN
1
MAY W10754335 MAY W10754335 Contact Us For Availability
1
DUCT, CHASSIS BACK (UPPER) MAY W10318196 Contact Us For Availability
1
MAY W10347597 MAY W10347597 Contact Us For Availability
1
MAY W10764078 MAY W10764078 Contact Us For Availability
1A
MAY W10768183 MAY W10768183 Contact Us For Availability
1B
MAY W10767734 MAY W10767734 Contact Us For Availability
2
MAY W10493252 MAY W10493252 Contact Us For Availability
2
MAY W10282946 MAY W10282946 Contact Us For Availability
2
MAY W10284285 MAY W10284285 Contact Us For Availability
2
MAY W10554529 MAY W10554529 Contact Us For Availability
3
MAY W10777215 MAY W10777215 Contact Us For Availability
3
MAY W10616802 MAY W10616802 Contact Us For Availability
3
MAY 3196183 MAY 3196183 Contact Us For Availability
3
MAY W10318198 MAY W10318198 Contact Us For Availability
4
MAY W10618105 MAY W10618105 Contact Us For Availability
4
MAY W10618102 MAY W10618102 Contact Us For Availability
4
BADGE (BLACK) MAY W10190724 Contact Us For Availability
4
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
5
BLOWER MAY W10669823 Contact Us For Availability
5
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
5
MAY W10314880 MAY W10314880 Contact Us For Availability
5
MAY W10320793 MAY W10320793 Contact Us For Availability
6
MAY W10351295 MAY W10351295 Contact Us For Availability
6
MAY W10730173 MAY W10730173 Contact Us For Availability
6
MAY W10639070 MAY W10639070 Contact Us For Availability
6
MAY W10282957 MAY W10282957 Contact Us For Availability
7
MAY W10782120 MAY W10782120 Contact Us For Availability
7
ASSEMBLY, OVEN LIGHT MAY W10519866 Contact Us For Availability
7
MAY W10647057 MAY W10647057 Contact Us For Availability
7
MAY W10546517 MAY W10546517 Contact Us For Availability
8
MAY W10618101 MAY W10618101 Contact Us For Availability
8
MAY W10687923 MAY W10687923 Contact Us For Availability
8
MAY W10722667 MAY W10722667 Contact Us For Availability
9
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
9
MAY W10641572 MAY W10641572 Contact Us For Availability
9
MAY W10284902 MAY W10284902 Contact Us For Availability
9
MAY W10631504 MAY W10631504 Contact Us For Availability
10
MAY W10655463 MAY W10655463 Contact Us For Availability
10
MAY W10254050 MAY W10254050 Contact Us For Availability
10
MAY W10284297 MAY W10284297 Contact Us For Availability
10
MAY W10631503 MAY W10631503 Contact Us For Availability
10A
MAY W10655462 MAY W10655462 Contact Us For Availability
11
MAY 4451758 MAY 4451758 Contact Us For Availability
11
MAY W10739090 MAY W10739090 Contact Us For Availability
11
MAY W10480830 MAY W10480830 Contact Us For Availability
11
MAY W10546519 MAY W10546519 Contact Us For Availability
12
MAY W10694467 MAY W10694467 Contact Us For Availability
12
MAY W10616810 MAY W10616810 Contact Us For Availability
12
MAY W10496637 MAY W10496637 Contact Us For Availability
13
MAY W10655465 MAY W10655465 Contact Us For Availability
13
MAY W10318190 MAY W10318190 Contact Us For Availability
13
SCREW (BLACK) MAY 7101P633-60 Contact Us For Availability
13
SHIELD, BROIL ELEMENT MAY W10318164 Contact Us For Availability
14
CHASSIS, COVER TOP (FRONT 27") MAY W10495259 Contact Us For Availability
14
MAY W10696136 MAY W10696136 Contact Us For Availability
14
MAY W10653954 MAY W10653954 Contact Us For Availability
14
MAY W10588738 MAY W10588738 Contact Us For Availability
15
CHASSIS, COVER TOP (BACK 27") MAY W10694466 Contact Us For Availability
15
MAY W10669415 MAY W10669415 Contact Us For Availability
15
MAY W10524044 MAY W10524044 Contact Us For Availability
16
MAY W10622170 MAY W10622170 Contact Us For Availability
16
MAY 9755547 MAY 9755547 Contact Us For Availability
17
MAY W10351278 MAY W10351278 Contact Us For Availability
17
MAY 9755546 MAY 9755546 Contact Us For Availability
18
MAY 4449751 MAY 4449751 Contact Us For Availability
18
MAY W10663549 MAY W10663549 Contact Us For Availability
19
MAY W10282901 MAY W10282901 Contact Us For Availability
19
MAY 9755542 MAY 9755542 Contact Us For Availability
20
MAY W10351276 MAY W10351276 Contact Us For Availability
20
MAY W10521808 MAY W10521808 Contact Us For Availability
21
MAY W10283008 MAY W10283008 Contact Us For Availability
21
MAY W10739592 MAY W10739592 Contact Us For Availability
22
MAY W10351237 MAY W10351237 Contact Us For Availability
23
MAY W10213759 MAY W10213759 Contact Us For Availability
24
MAY W10351308 MAY W10351308 Contact Us For Availability
25
MAY W10737716 MAY W10737716 Contact Us For Availability
25A
MAY W10737715 MAY W10737715 Contact Us For Availability
26
MAY 8285593 MAY 8285593 Contact Us For Availability
28
MAY W10472386 MAY W10472386 Contact Us For Availability
29
MAY W10327369 MAY W10327369 Contact Us For Availability
29A
MAY W10327368 MAY W10327368 Contact Us For Availability
30
MAY W10618106 MAY W10618106 Contact Us For Availability
31
MAY W10472384 MAY W10472384 Contact Us For Availability
32
DUCT, CHASSIS BACK (LOWER) MAY W10542857 Contact Us For Availability
33
MAY W10616809 MAY W10616809 Contact Us For Availability
34
MAY W10588736 MAY W10588736 Contact Us For Availability
35
VENT, CENTER 27" MAY W10283041 Contact Us For Availability
36
VENT, TOP 27" MAY W10283037 Contact Us For Availability
37
MAY W10618103 MAY W10618103 Contact Us For Availability
37A
MAY W10618104 MAY W10618104 Contact Us For Availability
NI
MAY 313438 MAY 313438 Contact Us For Availability
NI
CLAMP, CONDUIT MAY 4448664 Contact Us For Availability
NI
SCREW, GROUNDING MAY 4450800 Contact Us For Availability
NI
STRAP, LEAD GROUND MAY 4452400 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10522152 MAY W10522152 Contact Us For Availability
NI
MAY W10562910 MAY W10562910 Contact Us For Availability
NI
HARNESS, DOOR LATCH MAY W10573327 Contact Us For Availability
NI
MAY W10655464 MAY W10655464 Contact Us For Availability
NI
MAY W10667013 MAY W10667013 Contact Us For Availability
NI
INSULATION, BACK MAY W10282945 Contact Us For Availability
NI
MAY W10520716 MAY W10520716 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
ADHESIVE, SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
× ![]()
