Model Whirlpool JJW2430LM01 WALL OVEN, ELECTRIC – Common Parts & Diagrams
01 - COVER SHEET
02 - CONTROL PANEL PARTS

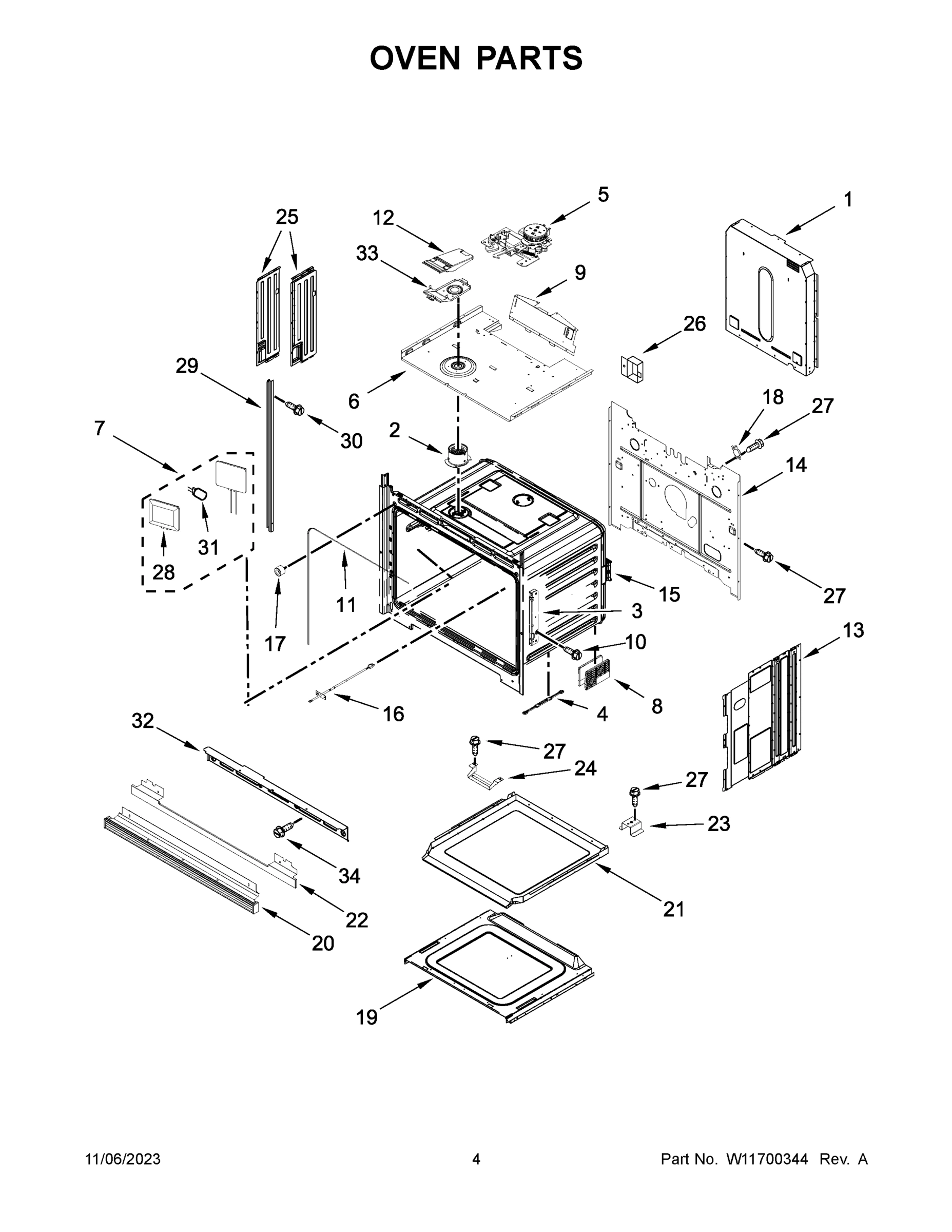

03 - OVEN PARTS

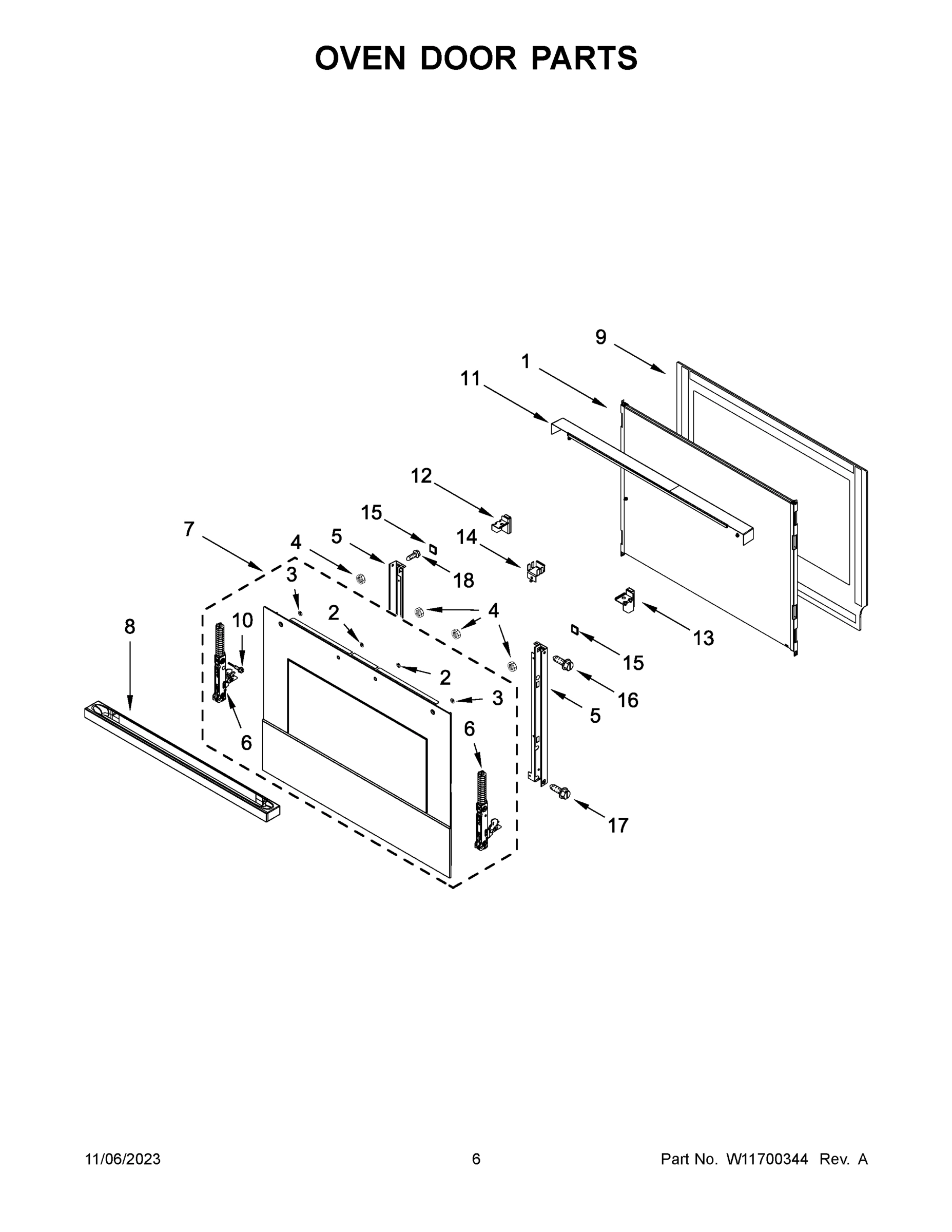

04 - OVEN DOOR PARTS

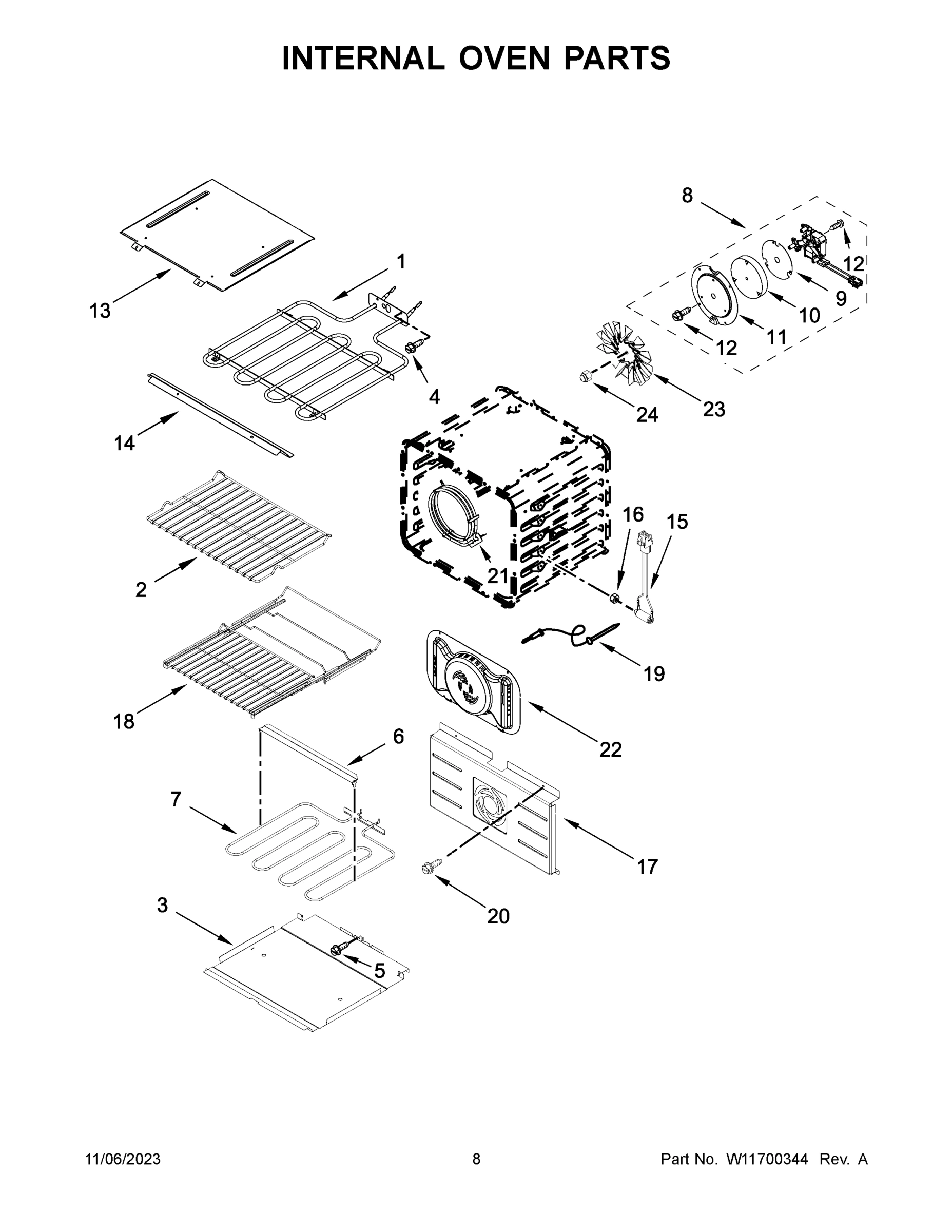

05 - INTERNAL OVEN PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool JJW2430LM01 WALL OVEN, ELECTRIC
1
DUCT, CHASSIS BACK (UPPER) WPL W11165250 Contact Us For Availability
2
RACK, OVEN WPL W11242906 Contact Us For Availability
2
SPACER, HANDLE WPL W11132942 Contact Us For Availability
4
SCREW WPL 7101P43460 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
6
TOP, CHASSIS WPL W11168071 Contact Us For Availability
6
HINGE, DOOR (LEFT) WPL W11100730 Contact Us For Availability
6A
HINGE, DOOR (RIGHT) WPL W11100731 Contact Us For Availability
8
ASSEMBLY, HANDLE (STAINLESS) WPL W11411894 Contact Us For Availability
8
CONVECT MOTOR ASSEMBLY WPL W11244895 Contact Us For Availability
9
DEFLECTOR, BLOWER WPL W10904163 Contact Us For Availability
9
PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability
10
INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability
11
COVER, CONVECT PLATE WPL W11235449 Contact Us For Availability
12
COVER, VENT EXHAUST WPL W11256424 Contact Us For Availability
13
SIDE, CHASSIS WPL W11165274 Contact Us For Availability
14
BACK, CHASSIS WPL W11223327 Contact Us For Availability
14
SHIELD, BROIL FRONT WPL W10588737 Contact Us For Availability
15
LINER, OVEN (NOT SERVICEABLE) WPL ARI221486ECAEC93F8B8C6C8EF9CFFD9E68 Contact Us For Availability
15
JACK, MEAT PROBE WPL W11252826 Contact Us For Availability
17
HARNESS, KEYPAD (LEFT TO CENTER) WPL W10566973 Contact Us For Availability
17
COVER, BAFFLE WPL W10521808 Contact Us For Availability
18
RACK, SLIDING WPL W11256305 Contact Us For Availability
18
SCREW WPL W10443110 Contact Us For Availability
20
HOUSING WPL W10668510 Contact Us For Availability
20
ASSEMBLY, BOTTOM VENT (BLACK) WPL W11369884 Contact Us For Availability
20
SCREW WPL W10739592 Contact Us For Availability
21
JUMPER HARNESS, POWER SUPPLY WPL W10575307 Contact Us For Availability
21
DUCT, BOTTOM CHASSIS WPL W11244446 Contact Us For Availability
22
BAFFLE, BOW TIE WPL W11192519 Contact Us For Availability
23
SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability
26
COVER, CONNECTOR WPL 8285593 Contact Us For Availability
29
COVER, SIDE TRIM (BLACK (LEFT)) WPL W11235463 Contact Us For Availability
29A
COVER, SIDE TRIM (BLACK (RIGHT)) WPL W11235462 Contact Us For Availability
33
BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability
NI
TOUCH-UP PAINT (WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) WPL 285006 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
BRACKET, HARNESS WPL W10655464 Contact Us For Availability
NI
HARNESS, MAIN WPL W11245662 Contact Us For Availability
NI
HARNESS, SIGNAL WPL W11249914 Contact Us For Availability
NI
BAG, HARDWARE WPL W11547720 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability
NI
INSULATION, WRAP WPL W11188284 Contact Us For Availability
NI
INSULATION, CAVITY WPL W11234758 Contact Us For Availability
NI
ACCESSORIES, ASSEMBLY, BOTTOM VENT (STAINLESS WPL W11369889 Contact Us For Availability
NI
ACCESSORIES, TRIM, TALL VENT (BLACK) WPL W11570325 Contact Us For Availability
× ![]()
