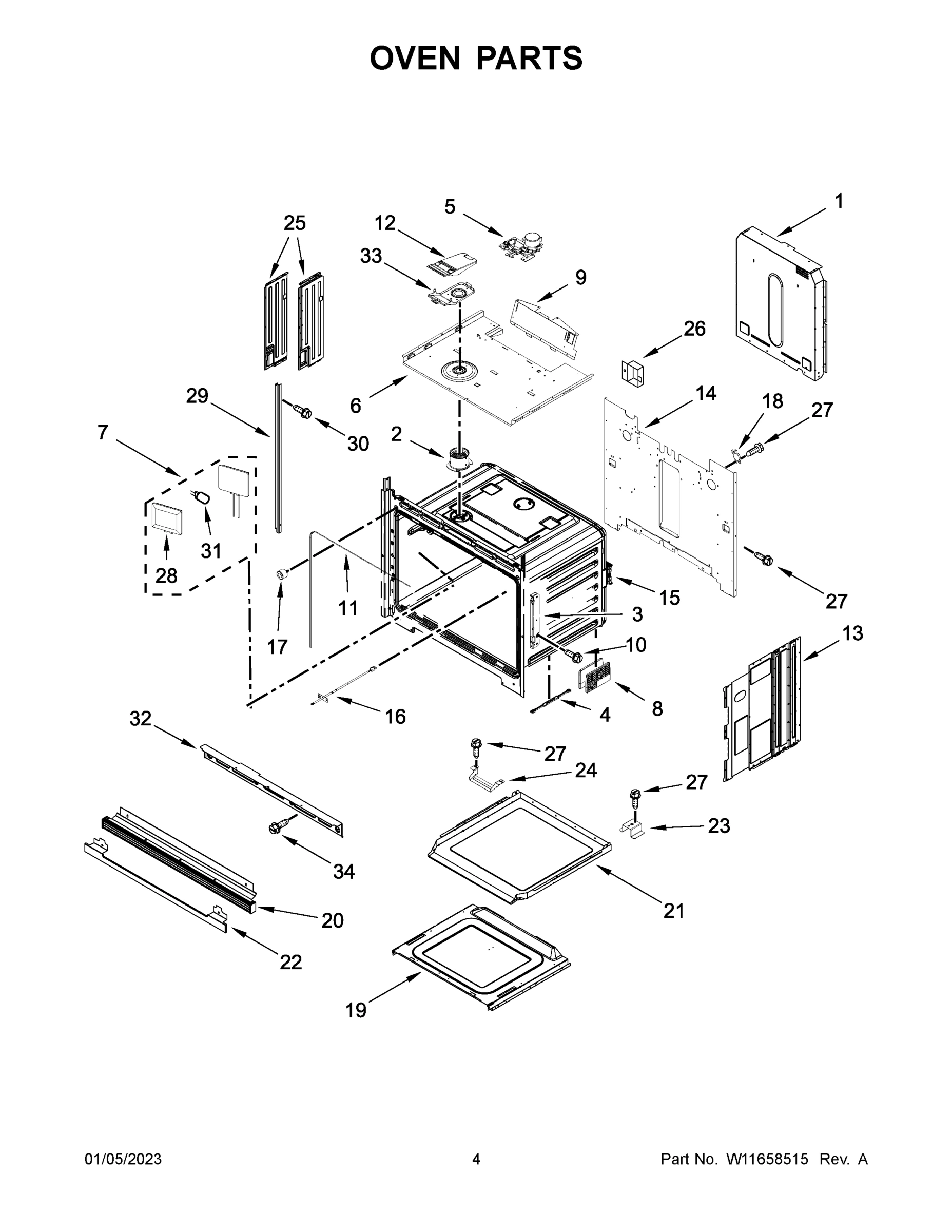

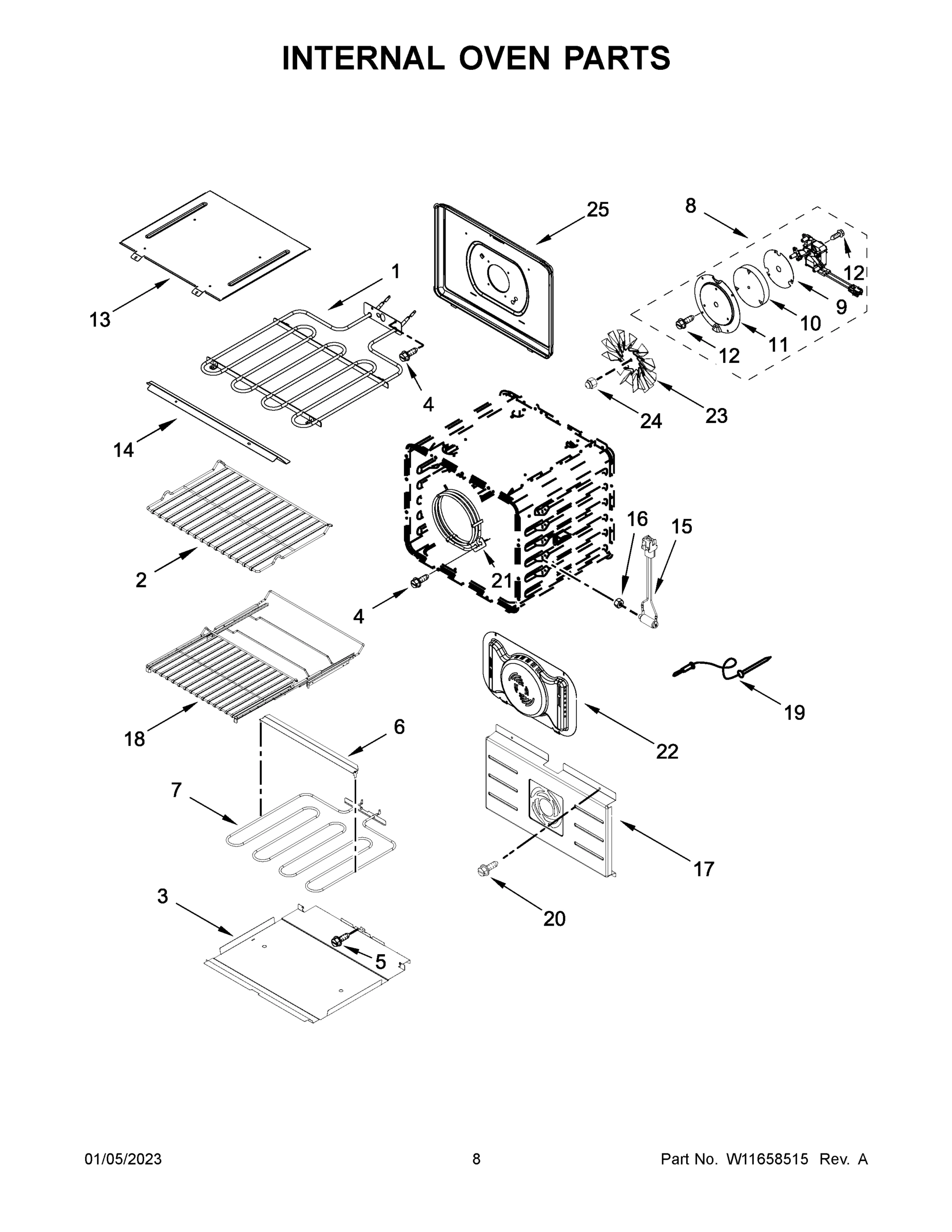

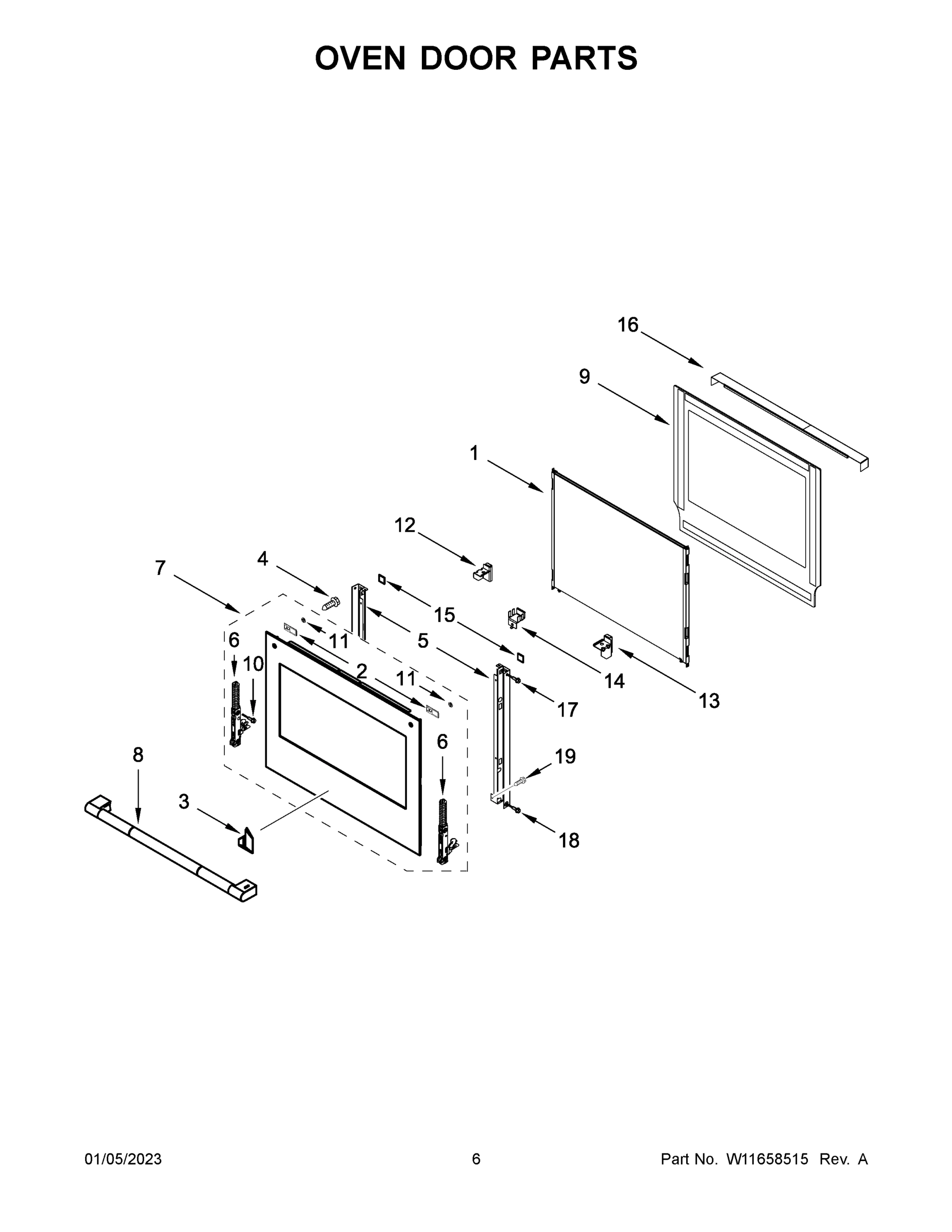

Model Whirlpool JJW2427LL01 WALL OVEN, ELECTRIC – Common Parts &amp; Diagrams

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $44.43

1

W11602513 Whirlpool Oven Door Glass Backorder WPL W11602513 $177.96

2

W10650497 Whirlpool Spacer Backorder WPL W10650497 $9.08

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.76

2

RACK, 27 IN OVEN WPL W11242909 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11320231 Whirlpool Dishwasher Nameplate Backorder WPL W11320231 $54.70

3

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $30.05

3A

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $30.05

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $6.24

4

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $9.59

4

SCREW WPL 7101P43460 Contact Us For Availability

5

W11598126 Whirlpool Support Bracket Backorder WPL W11598126 $14.20

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $28.95

5

SCREW WPL 7101P42660 Contact Us For Availability

5A

W11598127 Whirlpool Support Bracket Backorder WPL W11598127 $14.20

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W11394209 Whirlpool Door Hinge Backorder WPL W11394209 $54.90

6

TOP, CHASSIS WPL W11244456 Contact Us For Availability

6A

W11394210 Whirlpool Door Hinge Backorder WPL W11394210 $54.90

7

W11292252 Whirlpool Oven Light Backorder WPL W11292252 $35.81

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7

W11602615 Whirlpool Oven Door Glass In Stock WPL W11602615 $570.17

8

W11349396 Whirlpool Door Handle Backorder WPL W11349396 $184.66

8

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

8

CONVECT MOTOR ASSEMBLY WPL W11244895 Contact Us For Availability

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11602631 Whirlpool Door Glass Backorder WPL W11602631 $304.53

9

PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability

10

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

10

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

10

INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability

11

W11608109 Whirlpool Gasket Backorder WPL W11608109 $39.24

11

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

11

COVER, CONVECT PLATE WPL W11235449 Contact Us For Availability

12

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

12

W11598130 Whirlpool Oven Support Bracket Backorder WPL W11598130 $23.30

12

COVER, VENT EXHAUST WPL W11256424 Contact Us For Availability

13

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $43.17

13

TOP-CABNT Backorder WPL W11598121 $28.38

13

W11598128 Whirlpool Oven Support Bracket Backorder WPL W11598128 $23.30

14

Backorder WPL W10588737 $39.82

14

W11598131 Whirlpool Oven Clip In Stock WPL W11598131 $4.61

15

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $39.11

15

WPW10517428 Whirlpool Spacer Backorder WPL WPW10517428 $4.30

16

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

16

W11598120 Whirlpool Thermostat In Stock WPL W11598120 $14.26

16

TOP VENT TRIM ASSEMBLY WPL W11597416 Contact Us For Availability

W10521808 Whirlpool Baffle Convect Backorder WPL W10521808 $115.82

W10566973 Whirlpool Wire Harness Backorder WPL W10566973 $29.96

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

18

W11256306 Whirlpool Rack Backorder WPL W11256306 $211.34

18

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

W10443110 Whirlpool Screw Backorder WPL W10443110 $5.38

W11123146 Whirlpool Speaker Backorder WPL W11123146 $29.81

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

BASE, CHASSIS WPL W11244454 Contact Us For Availability

20

W10668510 Whirlpool Housing Backorder WPL W10668510 $40.48

20

W11369891 Whirlpool Heat Deflector Backorder WPL W11369891 $41.07

20

SCREW WPL W10739592 Contact Us For Availability

21

W10575307 Whirlpool Wire Harness Backorder WPL W10575307 $69.34

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $46.67

21

W11678579 Whirlpool Element Backorder WPL W11678579 $41.94

22

W11712432 Whirlpool Trim Assembly Backorder WPL W11712432 $31.40

22

BAFFLE, BOW TIE WPL W11192519 Contact Us For Availability

23

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $55.82

23

SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability

24

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

25

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $26.15

25

BACK, 27 IN CAVITY BAFFLE BOWTIE WPL W11198518 Contact Us For Availability

25A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $26.15

26

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

28

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

29

W11235463 Whirlpool Mounting Rail Backorder WPL W11235463 $32.13

29A

W11235462 Whirlpool Mounting Rail Backorder WPL W11235462 $32.13

30

W11602623 Whirlpool Screw Backorder WPL W11602623 $9.59

31

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

32

W11334858 Whirlpool Vent Exhaust Backorder WPL W11334858 $49.78

33

BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability

34

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10487999 Whirlpool Clip Backorder WPL W10487999 $7.65

W10655464 Whirlpool Bracket Backorder WPL W10655464 $14.22

W11249914 Whirlpool Wire Harness Backorder WPL W11249914 $84.73

W11369893 Whirlpool Heat Deflector Backorder WPL W11369893 $41.07

W11699910 Whirlpool Wire Harness Backorder WPL W11699910 $11.79

W11727826 Whirlpool Wire Harness Backorder WPL W11727826 $21.61

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

STRAP, LEAD GROUND WPL W11132988 Contact Us For Availability

HARNESS, MAIN WPL W11245662 Contact Us For Availability

BAG, HARDWARE WPL W11547720 Contact Us For Availability

INSULATION, WRAP WPL W11244474 Contact Us For Availability

INSULATION, BACK WPL W11244475 Contact Us For Availability
