Model Maytag JIM158XWRB0 ICE MAKER – Common Parts & Diagrams
01 - CABINET LINER AND DOOR PARTS
02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

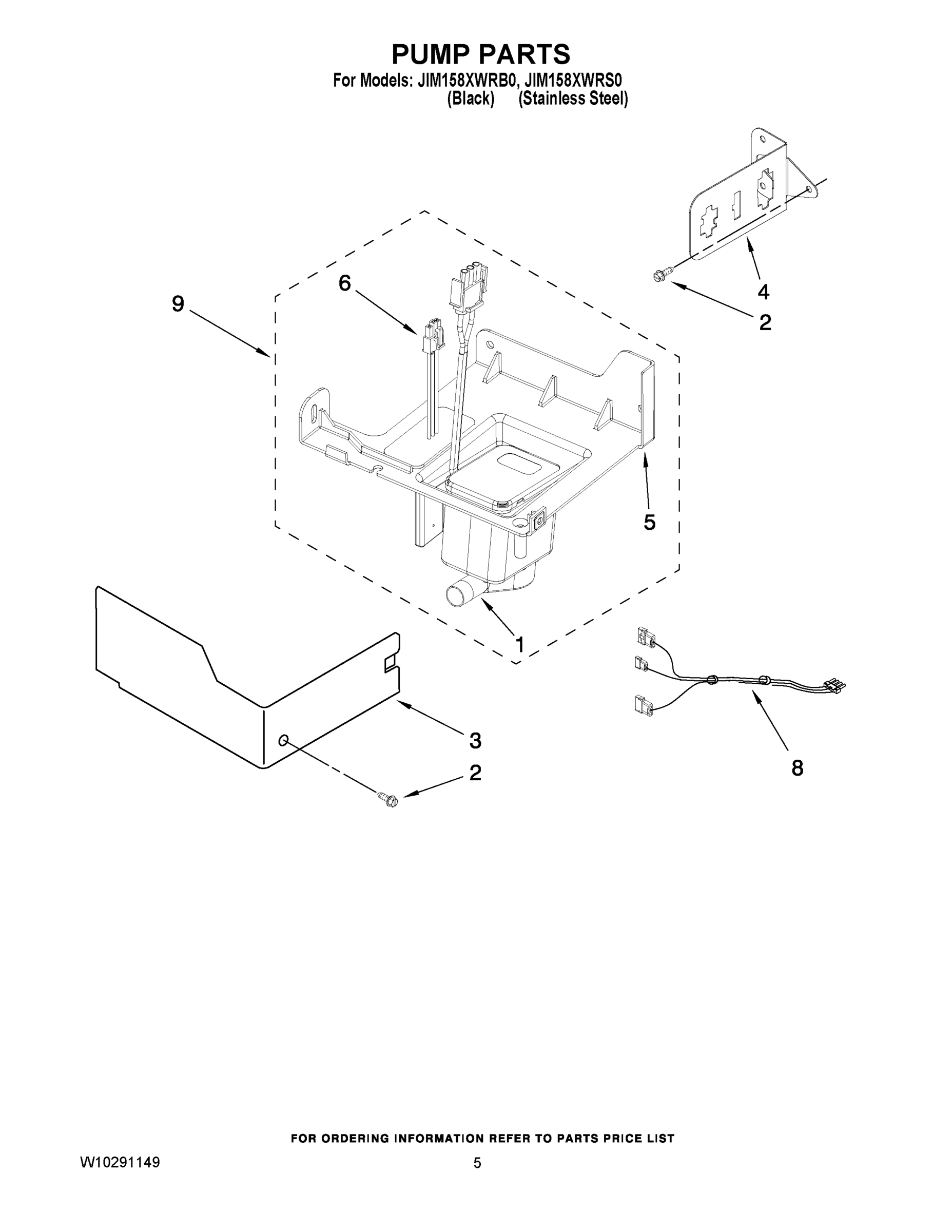

03 - PUMP PARTS

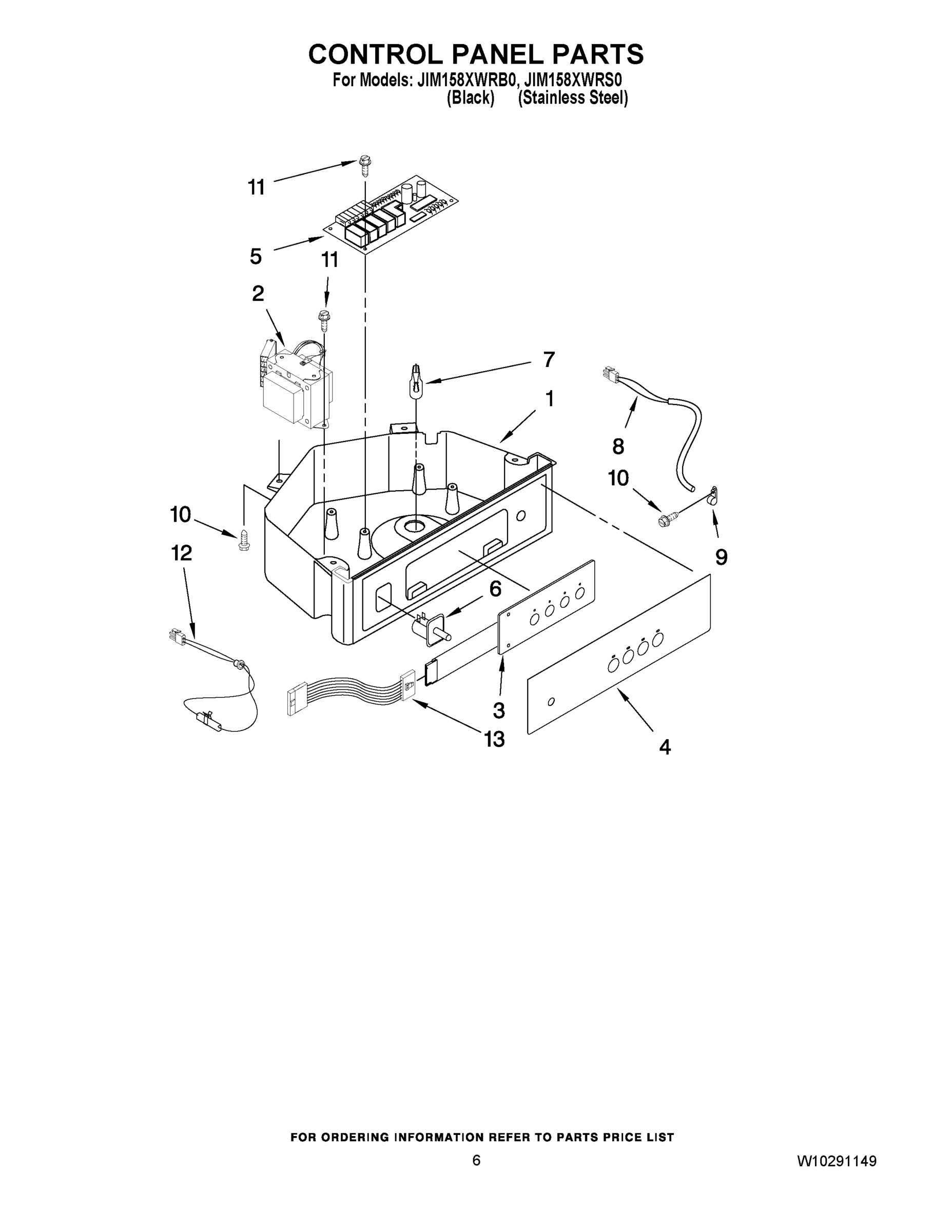

04 - CONTROL PANEL PARTS

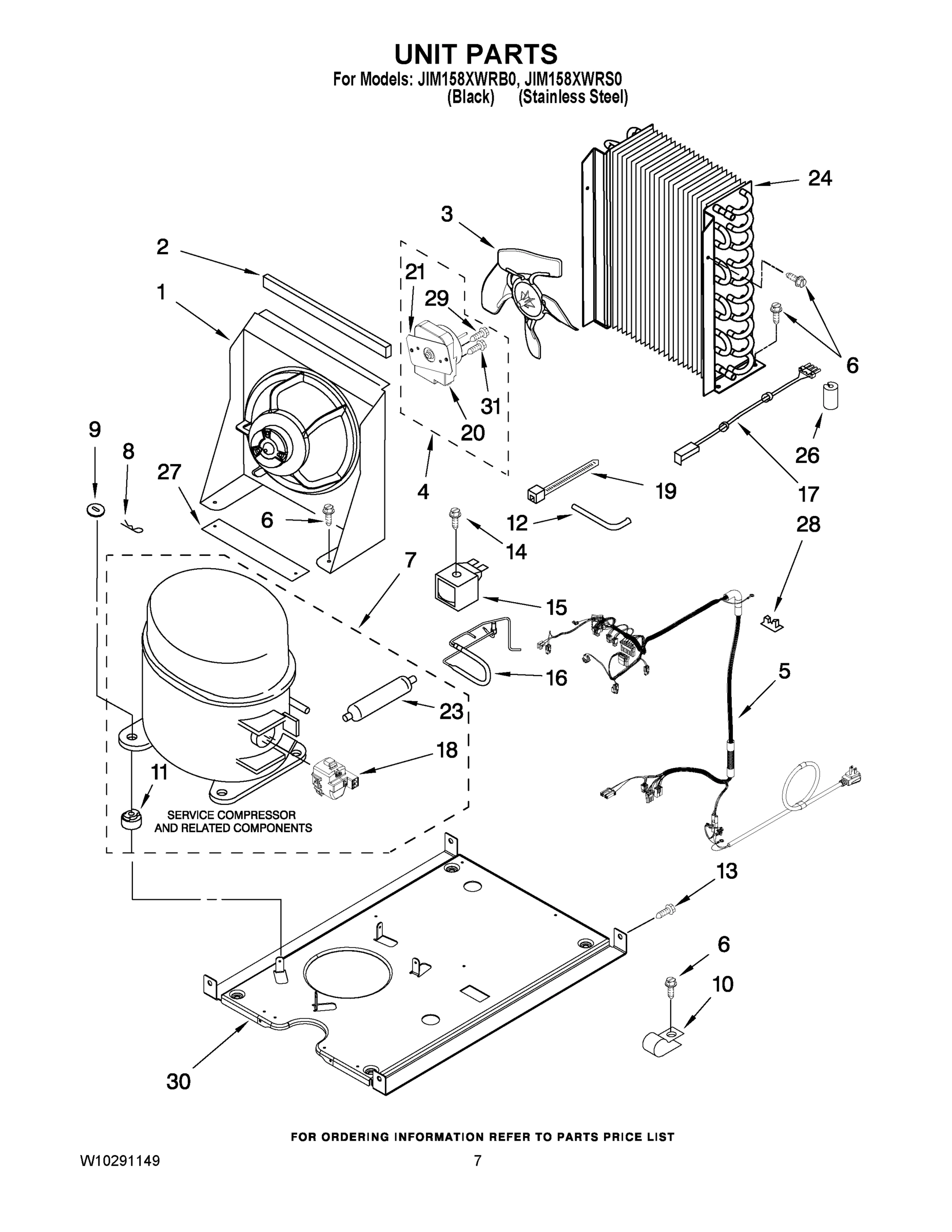

05 - UNIT PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JIM158XWRB0 ICE MAKER
1
MAY W10217947 MAY W10217947 Contact Us For Availability
1
MAY W10217917 MAY W10217917 Contact Us For Availability
1
Pump-Recirculating MAY 2313628 Contact Us For Availability
1
MAY 2185738 MAY 2185738 Contact Us For Availability
1
MAY 2185532 MAY 2185532 Contact Us For Availability
2
MAY 2217286 MAY 2217286 Contact Us For Availability
2
MAY 2310139 MAY 2310139 Contact Us For Availability
2
MAY 2185675 MAY 2185675 Contact Us For Availability
3
MAY 2185742 MAY 2185742 Contact Us For Availability
3
Screw MAY 488208 Contact Us For Availability
3
MAY 2185677 MAY 2185677 Contact Us For Availability
3
ASSEMBLY, SWITCH (ALSO ORDER No.4) MAY W10122017 Contact Us For Availability
3
MAY 2188935 MAY 2188935 Contact Us For Availability
4
MAY 2185678 MAY 2185678 Contact Us For Availability
4
MAY 2185523 MAY 2185523 Contact Us For Availability
4
MAY 2313844 MAY 2313844 Contact Us For Availability
4
MAY W10122775 MAY W10122775 Contact Us For Availability
4
MOTOR & MOUNTING PLATE ASSEMBLY (INCL 20,21,2 MAY 2315558 Contact Us For Availability
5
MAY 2217394 MAY 2217394 Contact Us For Availability
5
MAY W10218037 MAY W10218037 Contact Us For Availability
5
Bracket-Pump MAY 2313627 Contact Us For Availability
5
MAY W10141364 MAY W10141364 Contact Us For Availability
5
Wiring Harness, Complete Unit (Includes Power MAY W10209470 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
MAY 2313705 MAY 2313705 Contact Us For Availability
6
MAY 2313643 MAY 2313643 Contact Us For Availability
6
Switch, Plunger Grid/ Light MAY 2149705 Contact Us For Availability
6
Screw MAY 304392 Contact Us For Availability
7
Door MAY 2932803B Contact Us For Availability
7
Tube,Reservoir Pump MAY 2313851 Contact Us For Availability
7
Bulb MAY 745362 Contact Us For Availability
7
MAY W10136195 MAY W10136195 Contact Us For Availability
8
MAY 2185695 MAY 2185695 Contact Us For Availability
8
MAY 2172593 MAY 2172593 Contact Us For Availability
8
MAY 2310092 MAY 2310092 Contact Us For Availability
8
MAY 2313633 MAY 2313633 Contact Us For Availability
8
MAY A201435 MAY A201435 Contact Us For Availability
9
MAY 2217393 MAY 2217393 Contact Us For Availability
9
MAY 488660 MAY 488660 Contact Us For Availability
9
MAY 2313702 MAY 2313702 Contact Us For Availability
9
MAY 2185825 MAY 2185825 Contact Us For Availability
9
MAY A201441 MAY A201441 Contact Us For Availability
10
PLUG, HOLE MAY 2151652 Contact Us For Availability
10
Screw MAY 3400884 Contact Us For Availability
10
MAY 836667 MAY 836667 Contact Us For Availability
10
Clamp-Service Cord MAY 2185960 Contact Us For Availability
11
Clamp MAY 2208136 Contact Us For Availability
11
MAY 2208539 MAY 2208539 Contact Us For Availability
11
MAY 3400850 MAY 3400850 Contact Us For Availability
11
Grommet (4) (Production) MAY 2217318 Contact Us For Availability
11
MAY 4387558 MAY 4387558 Contact Us For Availability
12
MAY W10217912 MAY W10217912 Contact Us For Availability
12
MAY W10218020 MAY W10218020 Contact Us For Availability
12
MAY 489443 MAY 489443 Contact Us For Availability
12
Thermister, Evap. MAY 2313635 Contact Us For Availability
12
MAY 2208415 MAY 2208415 Contact Us For Availability
13
MAY 2217367 MAY 2217367 Contact Us For Availability
13
MAY 2185625 MAY 2185625 Contact Us For Availability
13
Wire Assy. Active Overlay Jumper MAY 2187585 Contact Us For Availability
13
MAY 489420 MAY 489420 Contact Us For Availability
14
MAY 489503 MAY 489503 Contact Us For Availability
14
MAY 2185626 MAY 2185626 Contact Us For Availability
14
MAY 489472 MAY 489472 Contact Us For Availability
15
MAY 2217294 MAY 2217294 Contact Us For Availability
15
MAY 2313890 MAY 2313890 Contact Us For Availability
15
MAY W10206473 MAY W10206473 Contact Us For Availability
16
MAY 2185640 MAY 2185640 Contact Us For Availability
16
MAY 2313604 MAY 2313604 Contact Us For Availability
16
HOT GAS VALVE MAY 759113 Contact Us For Availability
17
NAMEPLATE (STAINLESS STEEL) MAY W10190716 Contact Us For Availability
17
MAY 2313603 MAY 2313603 Contact Us For Availability
17
MAY 2187629 MAY 2187629 Contact Us For Availability
18
MAY 2185710 MAY 2185710 Contact Us For Availability
18
Bracket, Side Left and Right MAY 2313602 Contact Us For Availability
18
MAY W10136197 MAY W10136197 Contact Us For Availability
19
MAY 2185709 MAY 2185709 Contact Us For Availability
19
Strap MAY 2155774 Contact Us For Availability
19
MAY 2185681 MAY 2185681 Contact Us For Availability
20
MAY W10218052 MAY W10218052 Contact Us For Availability
20
MAY W10218053 MAY W10218053 Contact Us For Availability
20
MAY W10136146 MAY W10136146 Contact Us For Availability
20
MAY 2188891 MAY 2188891 Contact Us For Availability
21
Wire Assembly Valve MAY 2310169 Contact Us For Availability
21
BRACKET MAY 2301979 Contact Us For Availability
22
Screw MAY 3400886 Contact Us For Availability
22
MAY W10136199 MAY W10136199 Contact Us For Availability
23
Screw MAY 8281186 Contact Us For Availability
23
MAY 2313637 MAY 2313637 Contact Us For Availability
23
MAY 2319826 MAY 2319826 Contact Us For Availability
23
DRIER (SERVICE) MAY W10183199 Contact Us For Availability
24
Filler, Endcap (Left Side) MAY 2185655B Contact Us For Availability
24
Filler, Endcap (Right Side) MAY 2185656B Contact Us For Availability
24
MAY 2174754 MAY 2174754 Contact Us For Availability
24
MAY 2313624 MAY 2313624 Contact Us For Availability
25
MAY 2185756 MAY 2185756 Contact Us For Availability
25
MAY 2185570 MAY 2185570 Contact Us For Availability
26
MAY 2185691 MAY 2185691 Contact Us For Availability
26
MAY 8281228 MAY 8281228 Contact Us For Availability
26
GROMMET, COND (1) MAY 2319835 Contact Us For Availability
27
Grommet, Edge Guard (2) MAY 2185964 Contact Us For Availability
27
MAY 2324334 MAY 2324334 Contact Us For Availability
27
MAY 2217397 MAY 2217397 Contact Us For Availability
28
MAY 2185989 MAY 2185989 Contact Us For Availability
28
Clip-Wiring MAY 1115375 Contact Us For Availability
29
MAY 585158 MAY 585158 Contact Us For Availability
29
MAY 2185696 MAY 2185696 Contact Us For Availability
29
MAY 8281197 MAY 8281197 Contact Us For Availability
30
MAY 3400909 MAY 3400909 Contact Us For Availability
30
MAY 2217445 MAY 2217445 Contact Us For Availability
31
MAY 8281265 MAY 8281265 Contact Us For Availability
31
MAY 8281188 MAY 8281188 Contact Us For Availability
33
MAY 2185711 MAY 2185711 Contact Us For Availability
34
MAY 2185712 MAY 2185712 Contact Us For Availability
35
Screw, Ground MAY 489048 Contact Us For Availability
36
MAY W10136999 MAY W10136999 Contact Us For Availability
37
MAY 3400240 MAY 3400240 Contact Us For Availability
38
Screw MAY 348689 Contact Us For Availability
39
MAY 488500 MAY 488500 Contact Us For Availability
40
MAY 2185927 MAY 2185927 Contact Us For Availability
42
Leg, Leveler (4) MAY 3374849 Contact Us For Availability
44
Top MAY 2929700B Contact Us For Availability
45
MAY 2217336 MAY 2217336 Contact Us For Availability
46
MAY 2217293 MAY 2217293 Contact Us For Availability
47
Grill, Front MAY 2185571B Contact Us For Availability
48
MAY 489474 MAY 489474 Contact Us For Availability
NI
REFRIGERANT CHARGE (6.5 OZ. (R134A)) MAY N/P Contact Us For Availability
NI
Sealer, Gum (22 Pcs. 3/16`` x 7``) MAY 212643 Contact Us For Availability
NI
MAY 479976 MAY 479976 Contact Us For Availability
NI
Sealer, Cork (1/4 Pound) MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
Cement, Insulation (1 Oz.) MAY 797403 Contact Us For Availability
NI
Cleaner, Icemaker MAY 8171307 Contact Us For Availability
NI
MAY 8537055 MAY 8537055 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
× ![]()
