Model Maytag JIM158XBCX0 ICE MAKER – Common Parts & Diagrams
01 - CABINET LINER AND DOOR PARTS
02 - EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

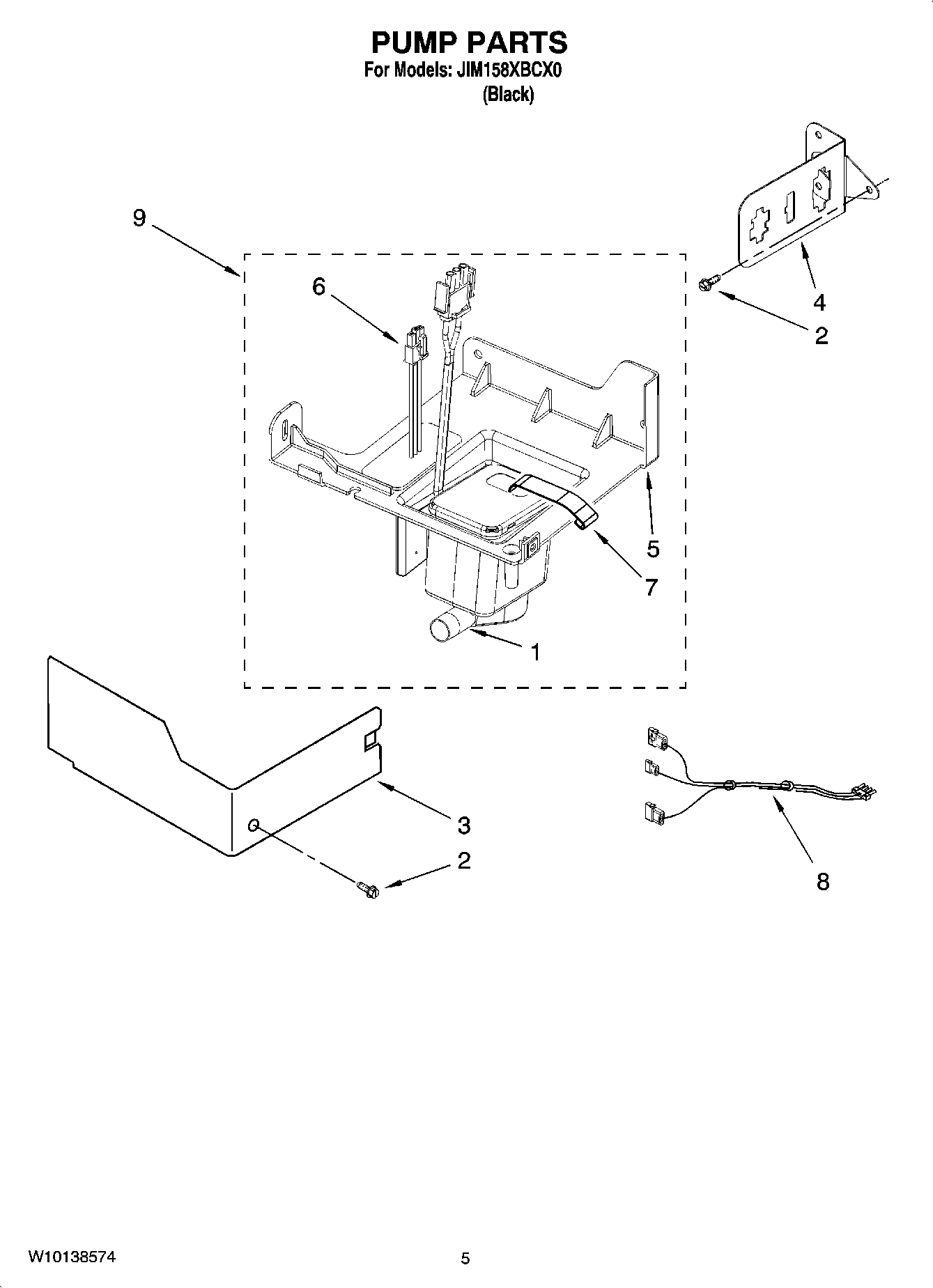

03 - PUMP PARTS

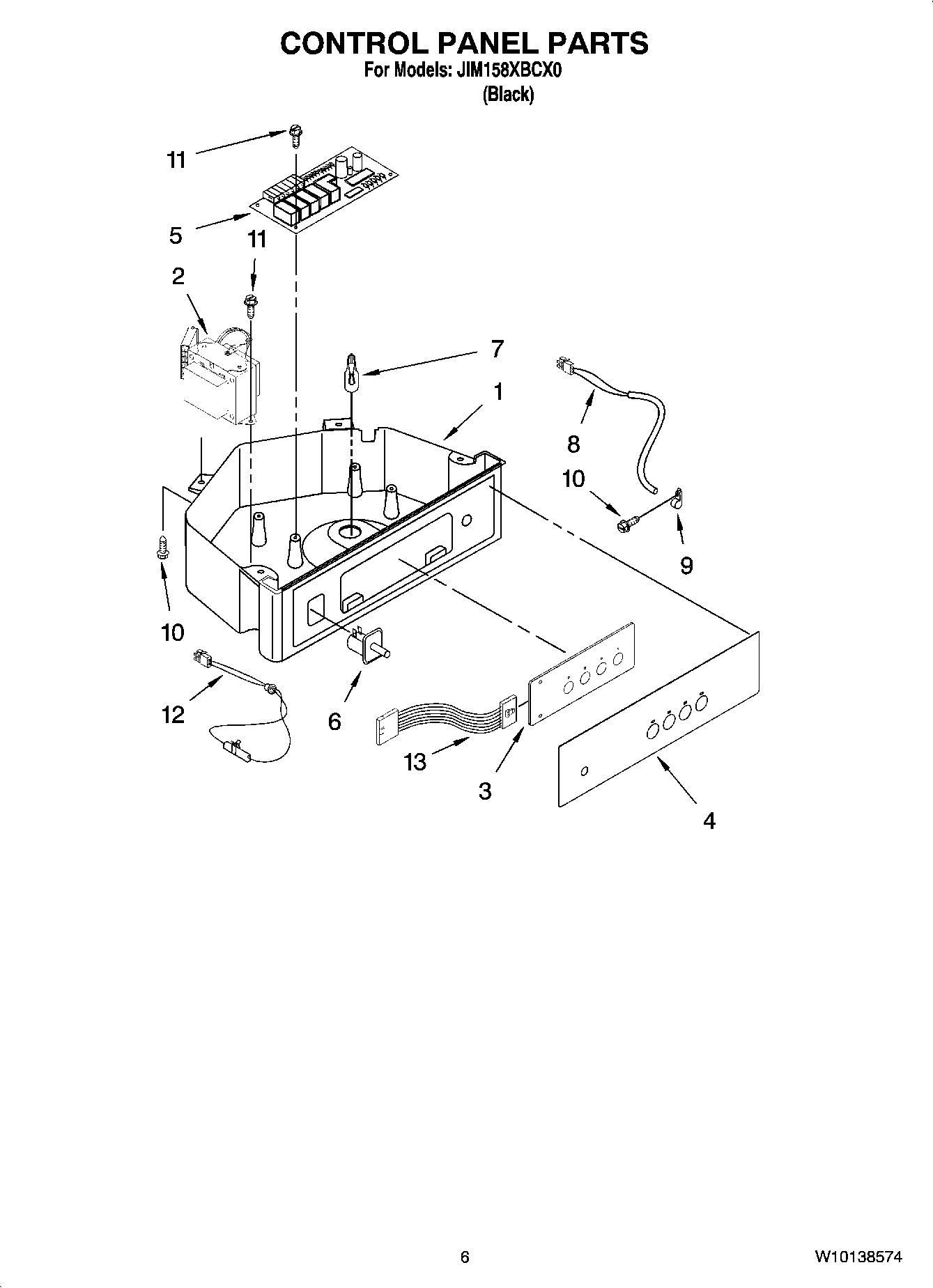

04 - CONTROL PANEL PARTS

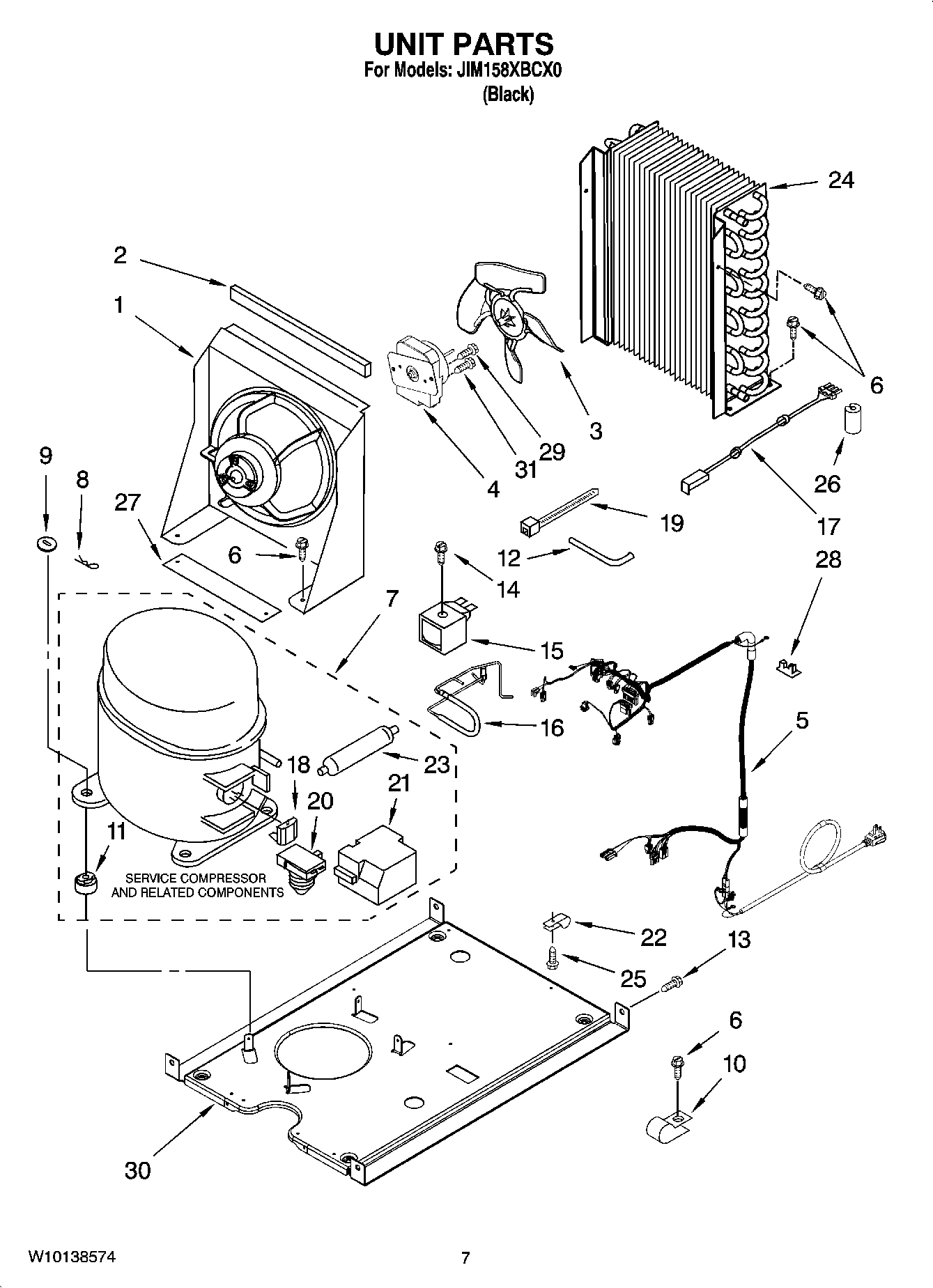

05 - UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JIM158XBCX0 ICE MAKER
1
MAY 2324311 MAY 2324311 Contact Us For Availability
1
MAY W10136129 MAY W10136129 Contact Us For Availability
1
MAY 2313741 MAY 2313741 Contact Us For Availability
1
Pump-Recirculating MAY 2313628 Contact Us For Availability
1
MAY 2185738 MAY 2185738 Contact Us For Availability
1
MAY 2185532 MAY 2185532 Contact Us For Availability
2
MAY 2217286 MAY 2217286 Contact Us For Availability
2
MAY 2310139 MAY 2310139 Contact Us For Availability
2
MAY 2185675 MAY 2185675 Contact Us For Availability
3
Screw MAY 488208 Contact Us For Availability
3
MAY 2185677 MAY 2185677 Contact Us For Availability
3
MAY 2188935 MAY 2188935 Contact Us For Availability
4
MAY 2185678 MAY 2185678 Contact Us For Availability
4
MAY 2185523 MAY 2185523 Contact Us For Availability
4
MAY 2313844 MAY 2313844 Contact Us For Availability
4
MAY 2315558 MAY 2315558 Contact Us For Availability
5
MAY 2217394 MAY 2217394 Contact Us For Availability
5
MAY 2217269 MAY 2217269 Contact Us For Availability
5
Bracket-Pump MAY 2313627 Contact Us For Availability
5
MAY 2310125 MAY 2310125 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
MAY 2313705 MAY 2313705 Contact Us For Availability
6
MAY 8190993 MAY 8190993 Contact Us For Availability
6
Screw MAY 304392 Contact Us For Availability
7
Tube,Reservoir Pump MAY 2313851 Contact Us For Availability
7
Clip-Retainer (1) MAY 2324307 Contact Us For Availability
7
Bulb MAY 745362 Contact Us For Availability
7
MAY 2313858 MAY 2313858 Contact Us For Availability
8
MAY 2172593 MAY 2172593 Contact Us For Availability
8
MAY 2310092 MAY 2310092 Contact Us For Availability
8
MAY 2313633 MAY 2313633 Contact Us For Availability
8
MAY A201435 MAY A201435 Contact Us For Availability
9
MOTOR-FAN MAY 8186676 Contact Us For Availability
9
MAY 488660 MAY 488660 Contact Us For Availability
9
MAY 2313702 MAY 2313702 Contact Us For Availability
9
MAY 2185825 MAY 2185825 Contact Us For Availability
9
MAY A201441 MAY A201441 Contact Us For Availability
10
MAY 836667 MAY 836667 Contact Us For Availability
10
Clamp-Service Cord MAY 2185960 Contact Us For Availability
11
MAY 2208539 MAY 2208539 Contact Us For Availability
11
Grommet (4) (Production) MAY 2217318 Contact Us For Availability
11
MAY 4387558 MAY 4387558 Contact Us For Availability
12
MAY 489443 MAY 489443 Contact Us For Availability
12
Thermister, MAY 2313635 Contact Us For Availability
12
MAY 2208415 MAY 2208415 Contact Us For Availability
13
MAY 489423 MAY 489423 Contact Us For Availability
13
MAY 2185625 MAY 2185625 Contact Us For Availability
13
Wire Assy. Active Overlay Jumper Ice Control MAY 2187585 Contact Us For Availability
14
MAY 489503 MAY 489503 Contact Us For Availability
14
MAY 2185626 MAY 2185626 Contact Us For Availability
14
MAY 489472 MAY 489472 Contact Us For Availability
15
MAY 2313890 MAY 2313890 Contact Us For Availability
15
MAY 759112 MAY 759112 Contact Us For Availability
16
MAY CH5824 MAY CH5824 Contact Us For Availability
16
MAY 2313806 MAY 2313806 Contact Us For Availability
17
MAY 2313603 MAY 2313603 Contact Us For Availability
17
MAY 2187629 MAY 2187629 Contact Us For Availability
18
MAY W10136166 MAY W10136166 Contact Us For Availability
18
Bracket, Side Left and Right MAY 2313602 Contact Us For Availability
18
Overload (Production) MAY 2217223 Contact Us For Availability
19
Tube, Discharge (Incl. Pre Cooler) MAY W10140197 Contact Us For Availability
19
MAY 2185681 MAY 2185681 Contact Us For Availability
20
MAY W10136146 MAY W10136146 Contact Us For Availability
20
Relay, Start (Production) MAY 2217224 Contact Us For Availability
20
Relay, Start (Service (Includes Overload)) MAY 4387938 Contact Us For Availability
21
Wire Assembly Valve MAY 2310169 Contact Us For Availability
21
Cover, Terminal (Production) MAY 2208371 Contact Us For Availability
21
Cover, Terminal (Service) MAY 4387731 Contact Us For Availability
22
MAY W10121991 MAY W10121991 Contact Us For Availability
23
CORD-POWER MAY W10549521 Contact Us For Availability
23
MAY 2313637 MAY 2313637 Contact Us For Availability
23
MAY 2319826 MAY 2319826 Contact Us For Availability
23
MAY 4387019 MAY 4387019 Contact Us For Availability
24
MAY 2174754 MAY 2174754 Contact Us For Availability
24
MAY 2313624 MAY 2313624 Contact Us For Availability
25
TRAY-COOK MAY 8205676 Contact Us For Availability
25
Screw MAY 3400884 Contact Us For Availability
25
MAY 12732416CQ MAY 12732416CQ Contact Us For Availability
26
MAY 2185691 MAY 2185691 Contact Us For Availability
26
MAY 8281228 MAY 8281228 Contact Us For Availability
26
GROMMET, COND (1) MAY 2319835 Contact Us For Availability
27
MAY 2324334 MAY 2324334 Contact Us For Availability
27
MAY 2217397 MAY 2217397 Contact Us For Availability
28
Clip-Wiring MAY 1115375 Contact Us For Availability
29
MAY 2185696 MAY 2185696 Contact Us For Availability
29
MAY 8281197 MAY 8281197 Contact Us For Availability
30
MAY 3400909 MAY 3400909 Contact Us For Availability
31
MAY 8281196 MAY 8281196 Contact Us For Availability
32
MAY W10205153 MAY W10205153 Contact Us For Availability
33
MAY W10136164 MAY W10136164 Contact Us For Availability
35
Screw, Ground MAY 489048 Contact Us For Availability
36
MAY W10136999 MAY W10136999 Contact Us For Availability
37
MAY 3400240 MAY 3400240 Contact Us For Availability
38
TRIM-DECOR MAY 8189823 Contact Us For Availability
40
MAY 387997 MAY 387997 Contact Us For Availability
42
Leg, Leveler (4) MAY 3374849 Contact Us For Availability
45
MAY 2185690 MAY 2185690 Contact Us For Availability
46
TRACK MAY 982321 Contact Us For Availability
49
KNOB MAY 8544936 Contact Us For Availability
NI
Sealer, Gum (22 Pcs. 3/16`` x 7``) MAY 212643 Contact Us For Availability
NI
MAY 479976 MAY 479976 Contact Us For Availability
NI
Sealer, Cork (1/4 Pound) MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
Cement, Insulation (1 Oz.) MAY 797403 Contact Us For Availability
NI
MAY 8537055 MAY 8537055 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
× ![]()
