Model GE JHP67G*V5 Range With Microwave Combo – Common Parts & Diagrams

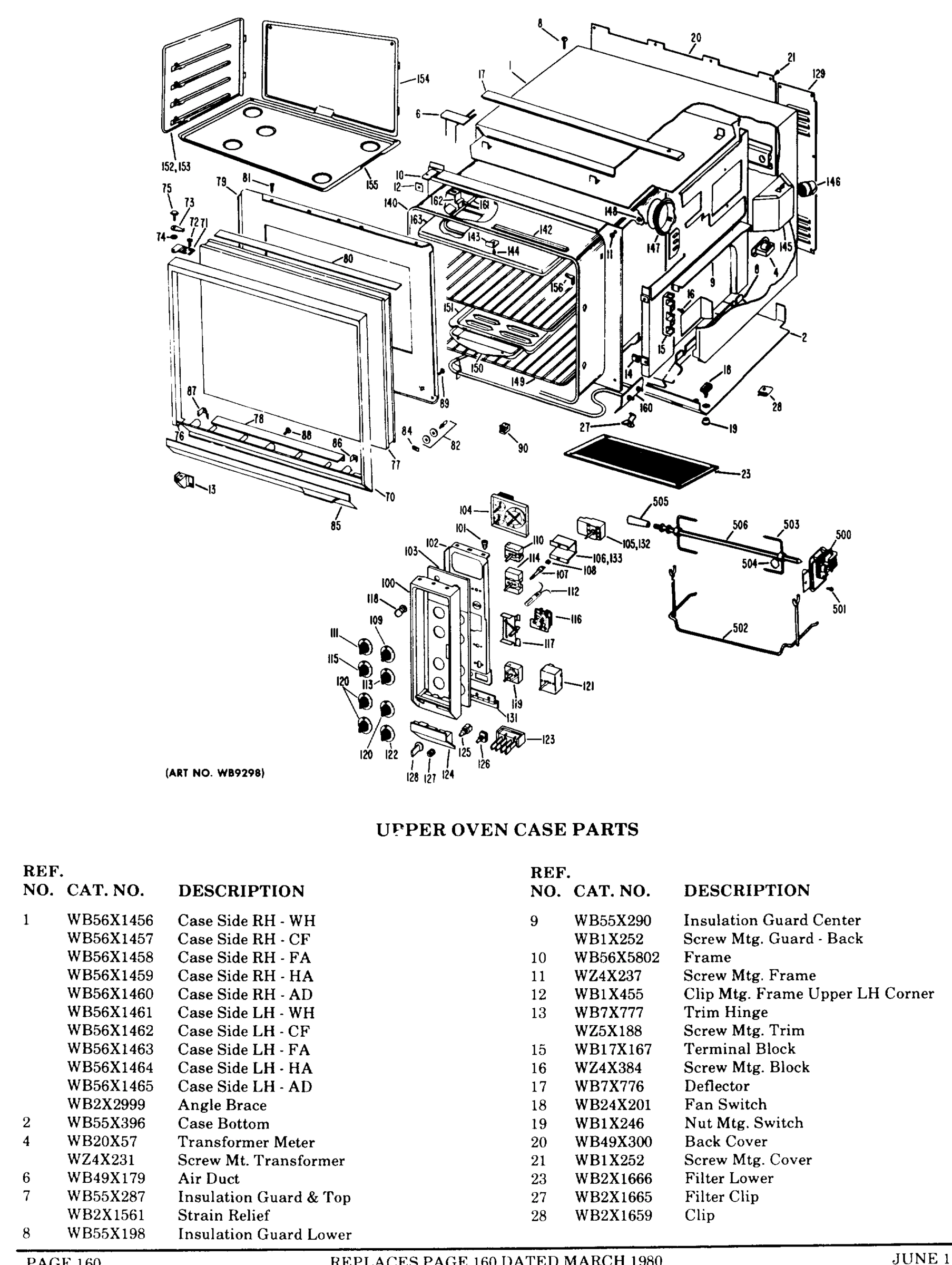

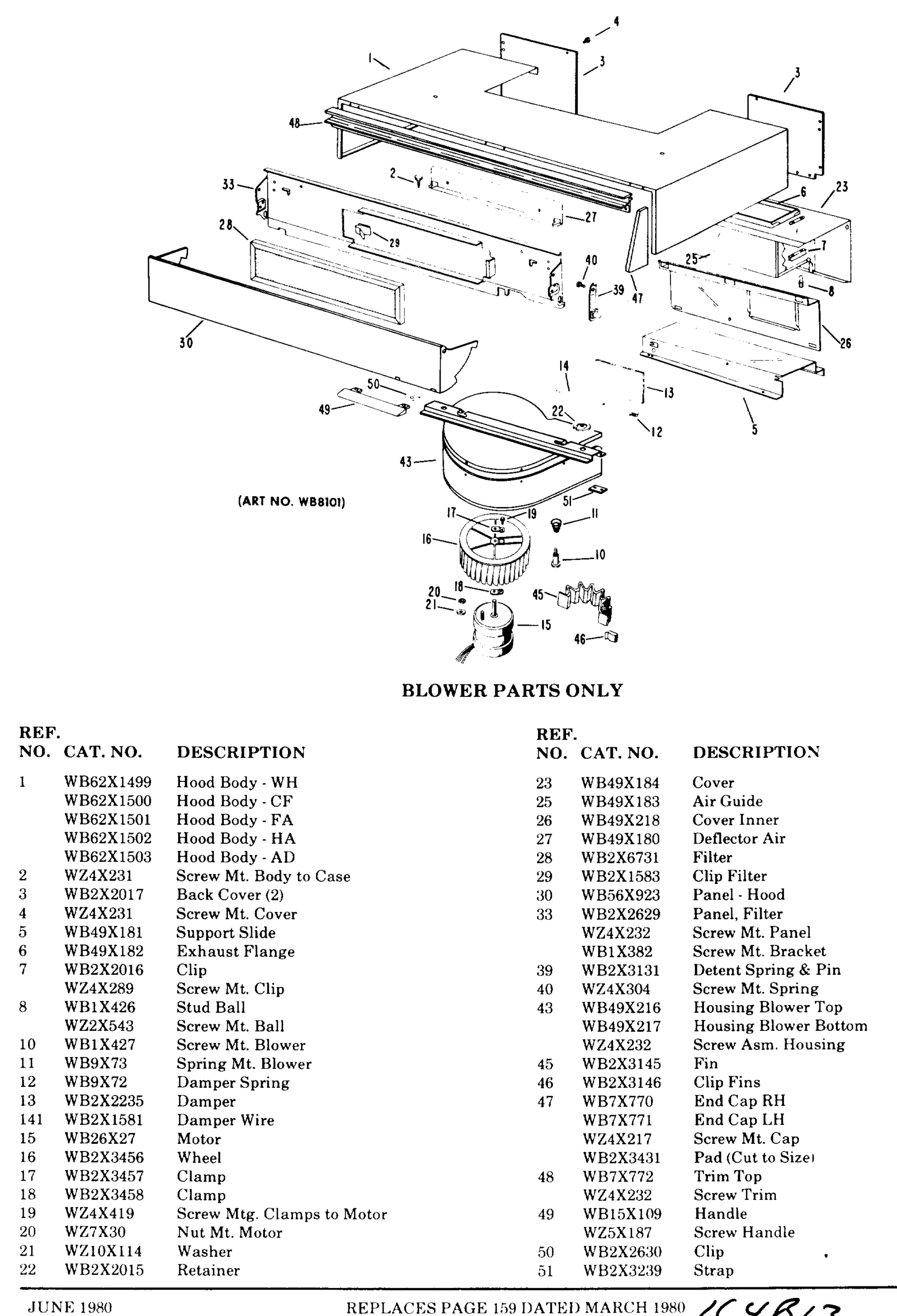

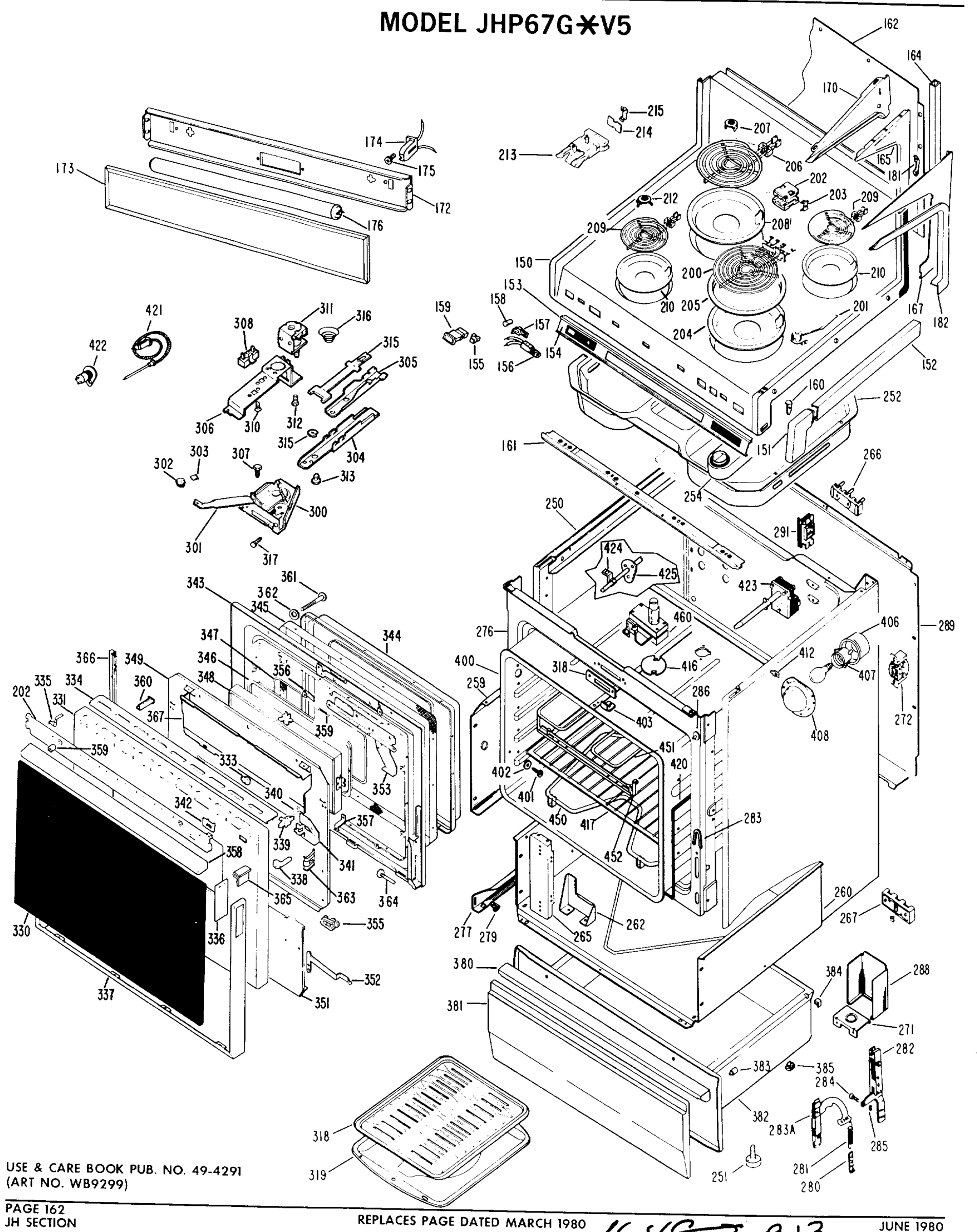

UPPER OVEN CASE PARTS
Common parts from model GE JHP67G*V5 Range With Microwave Combo
1
ANGLE BRACE GEN WB02X2999 Contact Us For Availability
1
CASE SIDE RH - WH GEN WB56X1456 Contact Us For Availability
1
CASE SIDE RH - CF GEN WB56X1457 Contact Us For Availability
1
GEN WB56X1458 GEN WB56X1458 Contact Us For Availability
1
GEN WB56X1459 GEN WB56X1459 Contact Us For Availability
1
GEN WB56X1460 GEN WB56X1460 Contact Us For Availability
1
GEN WB56X1461 GEN WB56X1461 Contact Us For Availability
1
GEN WB56X1462 GEN WB56X1462 Contact Us For Availability
1
GEN WB56X1463 GEN WB56X1463 Contact Us For Availability
1
GEN WB56X1464 GEN WB56X1464 Contact Us For Availability
1
GEN WB56X1465 GEN WB56X1465 Contact Us For Availability
2
CASE BOTTOM GEN WB55X0396 Contact Us For Availability
3
GEN WB02X2017 GEN WB02X2017 Contact Us For Availability
4
TRANSFORMER METER GEN WB20X0057 Contact Us For Availability
5
GEN WB49X0181 GEN WB49X0181 Contact Us For Availability
6
GEN WB49X0182 GEN WB49X0182 Contact Us For Availability
6
GEN WB49X0179 GEN WB49X0179 Contact Us For Availability
7
GEN WB02X2016 GEN WB02X2016 Contact Us For Availability
7
GEN WZ04X0289 GEN WZ04X0289 Contact Us For Availability
7
GEN WB02X1561 GEN WB02X1561 Contact Us For Availability
7
INSULATION GUARD & TOP GEN WB55X0287 Contact Us For Availability
8
GEN WB01X0426 GEN WB01X0426 Contact Us For Availability
8
GEN WZ02X0543 GEN WZ02X0543 Contact Us For Availability
8
INSULATION GUARD LOWER GEN WB55X0198 Contact Us For Availability
9
INSULATION GUARD CENTER GEN WB55X0290 Contact Us For Availability
10
GEN WB01X0427 GEN WB01X0427 Contact Us For Availability
10
FRAME GEN WB56X5802 Contact Us For Availability
11
GEN WB09X0073 GEN WB09X0073 Contact Us For Availability
12
GEN WB09X0072 GEN WB09X0072 Contact Us For Availability
12
CLIP MTG. FRAME UPPER LH GEN WB01X0455 Contact Us For Availability
13
GEN WB02X2235 GEN WB02X2235 Contact Us For Availability
13
GEN WB07X0777 GEN WB07X0777 Contact Us For Availability
13
SCREW MTG. TRIM GEN WZ05X0188 Contact Us For Availability
15
GEN WB26X0027 GEN WB26X0027 Contact Us For Availability
15
TERMINAL BLOCK GEN WB17X0167 Contact Us For Availability
16
GEN WB02X3456 GEN WB02X3456 Contact Us For Availability
16
SCREW MTG. BLOCK GEN WZ04X0384 Contact Us For Availability
17
GEN WB02X3457 GEN WB02X3457 Contact Us For Availability
17
GEN WB07X0776 GEN WB07X0776 Contact Us For Availability
18
GEN WB02X3458 GEN WB02X3458 Contact Us For Availability
18
FAN SWITCH GEN WB24X0201 Contact Us For Availability
19
GEN WZ04X0419 GEN WZ04X0419 Contact Us For Availability
19
NUT MTG. SWITCH GEN WB01X0246 Contact Us For Availability
20
GEN WZ07X0030 GEN WZ07X0030 Contact Us For Availability
20
BACK COVER GEN WB49X0300 Contact Us For Availability
21
GEN WZ10X0114 GEN WZ10X0114 Contact Us For Availability
22
GEN WB02X2015 GEN WB02X2015 Contact Us For Availability
23
GEN WB49X0184 GEN WB49X0184 Contact Us For Availability
23
FILTER LOWER GEN WB02X1666 Contact Us For Availability
25
GEN WB49X0183 GEN WB49X0183 Contact Us For Availability
26
GEN WB49X0218 GEN WB49X0218 Contact Us For Availability
27
GEN WB49X0180 GEN WB49X0180 Contact Us For Availability
27
GEN WB02X1665 GEN WB02X1665 Contact Us For Availability
28
GEN WB02X6731 GEN WB02X6731 Contact Us For Availability
28
GEN WB02X1659 GEN WB02X1659 Contact Us For Availability
29
GEN WB02X1583 GEN WB02X1583 Contact Us For Availability
30
GEN WB56X0923 GEN WB56X0923 Contact Us For Availability
33
GEN WB01X0382 GEN WB01X0382 Contact Us For Availability
33
GEN WB02X2629 GEN WB02X2629 Contact Us For Availability
39
GEN WB02X3131 GEN WB02X3131 Contact Us For Availability
43
GEN WB49X0216 GEN WB49X0216 Contact Us For Availability
43
GEN WB49X0217 GEN WB49X0217 Contact Us For Availability
45
GEN WB02X3145 GEN WB02X3145 Contact Us For Availability
46
GEN WB02X3146 GEN WB02X3146 Contact Us For Availability
47
GEN WB02X3431 GEN WB02X3431 Contact Us For Availability
47
GEN WB07X0770 GEN WB07X0770 Contact Us For Availability
47
GEN WB07X0771 GEN WB07X0771 Contact Us For Availability
47
GEN WZ04X0217 GEN WZ04X0217 Contact Us For Availability
48
GEN WB07X0772 GEN WB07X0772 Contact Us For Availability
49
GEN WB15X0109 GEN WB15X0109 Contact Us For Availability
50
GEN WB02X2630 GEN WB02X2630 Contact Us For Availability
51
GEN WB02X3239 GEN WB02X3239 Contact Us For Availability
70
FRAME-DOOR GEN WB07X0778 Contact Us For Availability
71
PLATE-HINGE GEN WB02X2654 Contact Us For Availability
72
SCREW MTG. PLATE GEN WB01X0425 Contact Us For Availability
73
FRICTION PLATE GEN WB02X2655 Contact Us For Availability
74
GEN WB01X0517 GEN WB01X0517 Contact Us For Availability
76
PIN GEN WB01X0459 Contact Us For Availability
77
WINDOW ASSEMBLY GEN WB36X0349 Contact Us For Availability
78
GEN WB02X2651 GEN WB02X2651 Contact Us For Availability
79
DOOR LANER GEN WB55X0289 Contact Us For Availability
80
GEN WB02X2823 GEN WB02X2823 Contact Us For Availability
81
SCREW GEN WZ04X0336 Contact Us For Availability
82
DOOR STRIKE PKG GEN WB01X5508 Contact Us For Availability
85
HANDLE GEN WB15X0111 Contact Us For Availability
86
GEN WB02X2652 GEN WB02X2652 Contact Us For Availability
87
GEN WB02X2653 GEN WB02X2653 Contact Us For Availability
89
SCREW GEN WZ05X0187 Contact Us For Availability
90
GEN WB02X1570 GEN WB02X1570 Contact Us For Availability
100
SCREW-TRIM TOP GEN WZ04X0237 Contact Us For Availability
100
TRIM-CONTROL GEN WB07X0779 Contact Us For Availability
101
NUT-EXPANSION GEN WB01X0519 Contact Us For Availability
102
GEN WB02X1422 GEN WB02X1422 Contact Us For Availability
102
BRACKET-INSTRUMENT GEN WB02X3197 Contact Us For Availability
103
GEN WB36X0511 GEN WB36X0511 Contact Us For Availability
104
GEN WB01X0540 GEN WB01X0540 Contact Us For Availability
104
GEN WB19X0123 GEN WB19X0123 Contact Us For Availability
105
SLEEVING GEN WB02X6274 Contact Us For Availability
105
THERMOSTAT GEN WB21X0177 Contact Us For Availability
106
BRACKET-THERMOSTAT-UPPER GEN WB02X2657 Contact Us For Availability
107
SHAFT EXTENSION-LOWER TH GEN WB02X3219 Contact Us For Availability
107
SHAFT-EXTENSION-UPPER TH GEN WB02X3464 Contact Us For Availability
108
CLIP-SPRING-BOTH GEN WB02X0190 Contact Us For Availability
109
KNOB-THERMOSTAT-UPPER GEN WB03X0495 Contact Us For Availability
110
SWITCH-UPPER OVEN GEN WB22X0035 Contact Us For Availability
111
KNOB-SWITCH UPPER GEN WB03X0494 Contact Us For Availability
113
KNOB-LOWER THERMOSTAT GEN WB03X0463 Contact Us For Availability
114
SWITCH-OVEN LOWER GEN WB22X5092 Contact Us For Availability
115
KNOB-SWITCH LOWER GEN WB03X0462 Contact Us For Availability
116
MEAT METER MOVEMENT GEN WB20X0052 Contact Us For Availability
117
FACE PLATE ASM. GEN WB07X0981 Contact Us For Availability
118
KNOB-METER & TIMER GEN WB03X5485 Contact Us For Availability
119
LAMP-SURFACE UNIT GEN WB02X1608 Contact Us For Availability
119
GEN WZ02X0528 GEN WZ02X0528 Contact Us For Availability
120
KNOB-SURFACE UNIT GEN WB03X0477 Contact Us For Availability
121
SCREW MT GEN WB01X0277 Contact Us For Availability
121
GEN WB21X0231 GEN WB21X0231 Contact Us For Availability
122
GEN WB03X0478 GEN WB03X0478 Contact Us For Availability
123
GEN WB23X0074 GEN WB23X0074 Contact Us For Availability
124
GEN WB07X0780 GEN WB07X0780 Contact Us For Availability
125
GEN WB24X5093 GEN WB24X5093 Contact Us For Availability
126
GEN WB01X0245 GEN WB01X0245 Contact Us For Availability
126
GEN WB24X0103 GEN WB24X0103 Contact Us For Availability
127
GEN WB09X0117 GEN WB09X0117 Contact Us For Availability
128
GEN WB02X2658 GEN WB02X2658 Contact Us For Availability
129
GEN WB49X0301 GEN WB49X0301 Contact Us For Availability
131
GEN WB14X0038 GEN WB14X0038 Contact Us For Availability
132
GEN WB01X0521 GEN WB01X0521 Contact Us For Availability
132
GEN WB24X0184 GEN WB24X0184 Contact Us For Availability
133
GEN WB02 GEN WB02 Contact Us For Availability
141
GEN WB02X1581 GEN WB02X1581 Contact Us For Availability
150
COOKTOP WH GEN WB62X5246 Contact Us For Availability
150
GEN WB62X5247 GEN WB62X5247 Contact Us For Availability
150
COOKTOP FA GEN WB62X5248 Contact Us For Availability
150
COOKTOP HA GEN WB62X5249 Contact Us For Availability
150
COOKTOP AD GEN WB62X5250 Contact Us For Availability
151
END CAP - RH GEN WB07X6676 Contact Us For Availability
151
END CAP - LH GEN WB07X6677 Contact Us For Availability
151
SCREW MTG. CAP GEN WZ05X0139 Contact Us For Availability
152
GEN WB07X1004 GEN WB07X1004 Contact Us For Availability
153
TRIM - FRONT GEN WB07X1010 Contact Us For Availability
154
GEN WB07X1075 GEN WB07X1075 Contact Us For Availability
154
GEN WZ04X0366 GEN WZ04X0366 Contact Us For Availability
155
CLIP MTG.-TRIM GEN WB02X3006 Contact Us For Availability
156
LAMP CLEAN GEN WB02X1609 Contact Us For Availability
157
CLIP LAMPS GEN WB02X1185 Contact Us For Availability
159
SWITCH - LATCH RELEASE GEN WB24X0174 Contact Us For Availability
160
CLIP MTG. TRIM GEN WB02X2988 Contact Us For Availability
161
GEN WB07X1100 GEN WB07X1100 Contact Us For Availability
161
SCREW MTG. DEFLECTOR GEN WZ06X0038 Contact Us For Availability
162
GEN WB49X5181 GEN WB49X5181 Contact Us For Availability
164
POST-RH GEN WB02X6619 Contact Us For Availability
164
POST-LH GEN WB02X6620 Contact Us For Availability
165
GEN WB02X6736 GEN WB02X6736 Contact Us For Availability
165
GEN WB02X6737 GEN WB02X6737 Contact Us For Availability
166
POST SPACER GEN WB02X3001 Contact Us For Availability
167
COVER - SUPPORT RH - WH GEN WB07X1169 Contact Us For Availability
167
COVER - SUPPORT RH - CF GEN WB07X1170 Contact Us For Availability
167
COVER - SUPPORT RH - FA GEN WB07X1171 Contact Us For Availability
167
COVER - SUPPORT RH - HA GEN WB07X1172 Contact Us For Availability
167
COVER - SUPPORT RH - AD GEN WB07X1173 Contact Us For Availability
167
COVER - SUPPORT LH - WH GEN WB07X1174 Contact Us For Availability
167
COVER - SUPPORT LH - CF GEN WB07X1175 Contact Us For Availability
167
COVER - SUPPORT LH - FA GEN WB07X1176 Contact Us For Availability
167
COVER - SUPPORT LH - HA GEN WB07X1177 Contact Us For Availability
167
COVER - SUPPORT LH - AD GEN WB07X1178 Contact Us For Availability
169
GEN WB49X0304 GEN WB49X0304 Contact Us For Availability
170
PANEL - CRYSTAL RH - WH GEN WB07X1179 Contact Us For Availability
170
GEN WB07X1180 GEN WB07X1180 Contact Us For Availability
170
GEN WB07X1181 GEN WB07X1181 Contact Us For Availability
170
PANEL - CRYSTAL RH - HA GEN WB07X1182 Contact Us For Availability
170
PANEL - CRYSTAL RH - AD GEN WB07X1183 Contact Us For Availability
170
PANEL - CRYSTAL LH - WH GEN WB07X1184 Contact Us For Availability
170
GEN WB07X1185 GEN WB07X1185 Contact Us For Availability
170
GEN WB07X1186 GEN WB07X1186 Contact Us For Availability
170
PANEL - CRYSTAL LH - HA GEN WB07X1187 Contact Us For Availability
170
PANEL - CRYSTAL LH - AD GEN WB07X1188 Contact Us For Availability
172
LAMP HOUSING GEN WB49X0347 Contact Us For Availability
173
CLIP - CRYSTAL GEN WB02X1667 Contact Us For Availability
173
CRYSTAL & TRIM GEN WB36X0435 Contact Us For Availability
174
SOCKET - LAMP GEN WB08X0164 Contact Us For Availability
175
SCREW MTG. SOCKET GEN WZ05X0184 Contact Us For Availability
176
GEN F20T12/CW GEN F20T12/CW Contact Us For Availability
176
SCREW MTG. CLAMP GEN WZ04X0221 Contact Us For Availability
181
SPRING - LATCH GEN WB09X0137 Contact Us For Availability
182
TRIM - RH GEN WB07X1005 Contact Us For Availability
182
TRIM - LH GEN WB07X1006 Contact Us For Availability
200
SURFACE UNIT 8" RF GEN WB30X0357 Contact Us For Availability
201
SENSOR GEN WB21X5207 Contact Us For Availability
201
SCREW MTG. SENSOR GEN WZ02X0529 Contact Us For Availability
202
TERMINAL BLOCK GEN WB02X2018 Contact Us For Availability
203
CLIP BLOCK GEN WB02X0574 Contact Us For Availability
204
UNIT PAN 8" RF GEN WB32X5036 Contact Us For Availability
205
TRIM RING GEN WB31X5012 Contact Us For Availability
207
GEN WB32X0051 GEN WB32X0051 Contact Us For Availability
209
GEN WB31X5010 No Longer Available
212
GEN WB01X5355 GEN WB01X5355 Contact Us For Availability
212
GEN WB32X0052 GEN WB32X0052 Contact Us For Availability
214
GEN WB02X6171 GEN WB02X6171 Contact Us For Availability
215
GEN WB02X0995 GEN WB02X0995 Contact Us For Availability
215
GEN WB02X6172 GEN WB02X6172 Contact Us For Availability
250
GEN WB02X1742 GEN WB02X1742 Contact Us For Availability
251
GEN WB01X5516 GEN WB01X5516 Contact Us For Availability
252
GEN WB49X5149 GEN WB49X5149 Contact Us For Availability
254
GEN WB38X5039 GEN WB38X5039 Contact Us For Availability
259
GEN WB49X5171 GEN WB49X5171 Contact Us For Availability
259
GEN WB49X5172 GEN WB49X5172 Contact Us For Availability
260
GEN WB49X5132 GEN WB49X5132 Contact Us For Availability
262
GEN WB02X6187 GEN WB02X6187 Contact Us For Availability
265
GEN WB49X5095 GEN WB49X5095 Contact Us For Availability
267
GEN WB02X0646 GEN WB02X0646 Contact Us For Availability
267
GEN WB17 GEN WB17 Contact Us For Availability
314
RETAINER RING GEN WB02X1800 Contact Us For Availability
332
GEN WB07X5623 GEN WB07X5623 Contact Us For Availability
354
GEN WB09X0128 GEN WB09X0128 Contact Us For Availability
500
GEN WB02X1944 GEN WB02X1944 Contact Us For Availability
500
GEN WB26X0032 GEN WB26X0032 Contact Us For Availability
501
GEN WZ06X0092 GEN WZ06X0092 Contact Us For Availability
502
SPIT SUPPORT GEN WB48X0062 Contact Us For Availability
503
SKEWER ASM GEN WB02X1167 Contact Us For Availability
504
SCREW THUMB GEN WB01X0272 Contact Us For Availability
505
HANDLE SPIT GEN WB15X0080 Contact Us For Availability
506
BLADE SPIT GEN WB02X1529 Contact Us For Availability
× ![]()
