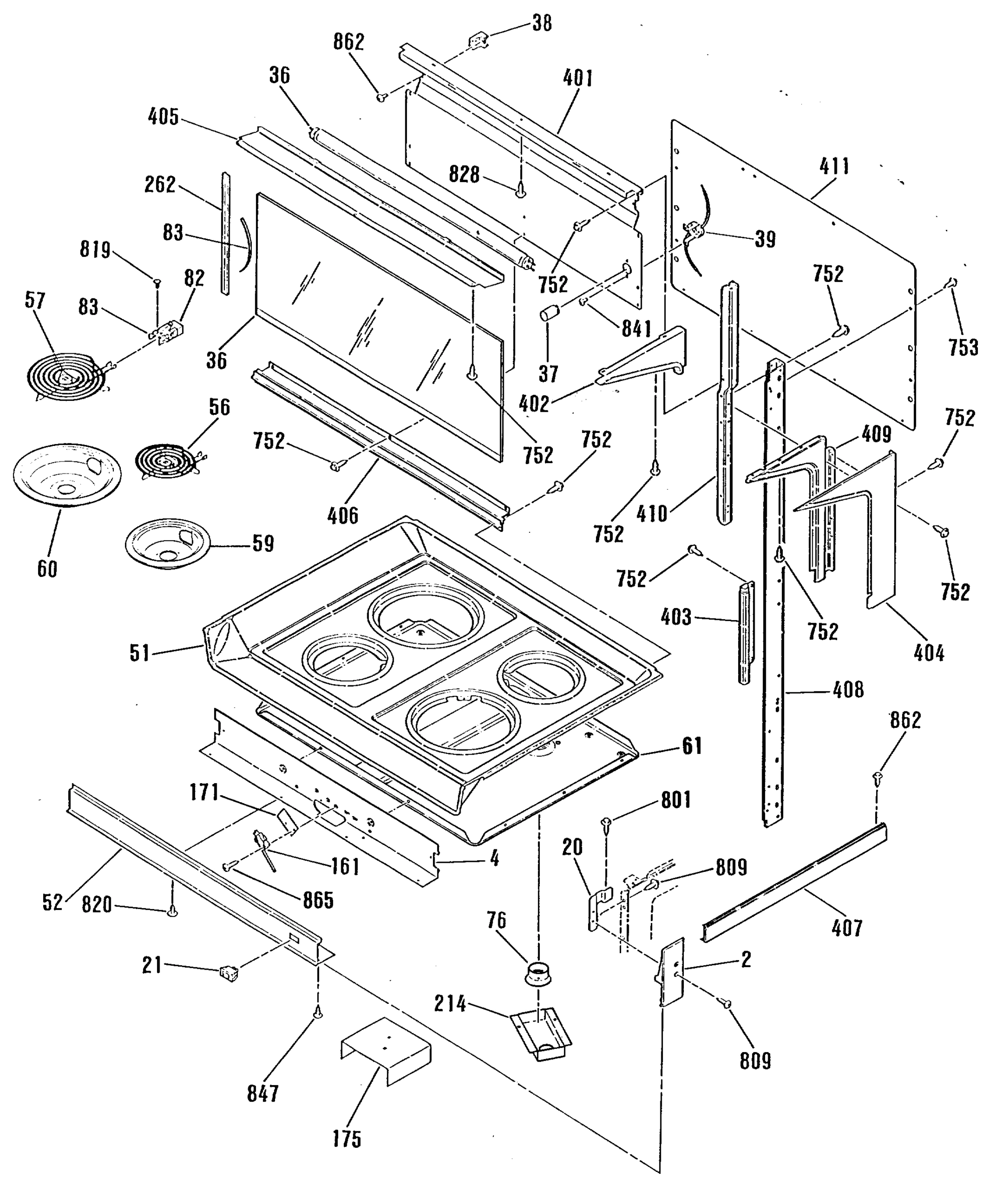

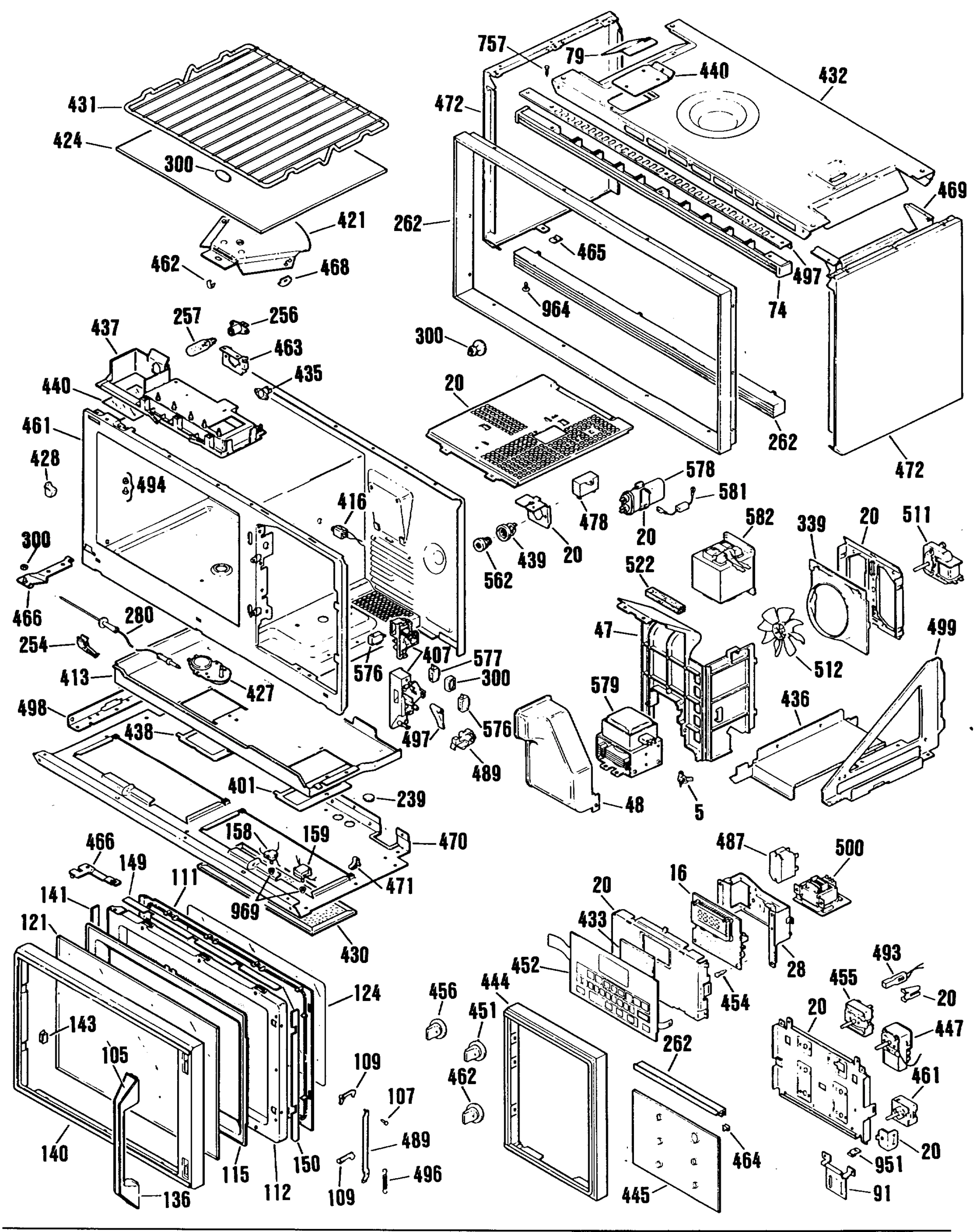

Model GE JHP62GN3WH – Common Parts & Diagrams
0
1
2
3
4
Common parts from model GE JHP62GN3WH
20
BULB HOLDER BRACKET-M/W GEN WB02X7751 Contact Us For Availability
20
BRACKET-M/W GEN WB02X7754 Contact Us For Availability
20
MOUNTING BRACKET GEN WB02X7777 Contact Us For Availability
20
GEN WB02K5105 GEN WB02K5105 Contact Us For Availability
20
GEN WB02K5106 GEN WB02K5106 Contact Us For Availability
20
MT END CAP BRACKET-LT GEN WB02K5108 Contact Us For Availability
20
SURFACE LIGHT BRACKET GEN WB02X6239 Contact Us For Availability
20
HV CAPACITOR BRACKET-M/W GEN WB02X7731 Contact Us For Availability
20
FAN MOTOR BRACKET-M/W GEN WB02X7733 Contact Us For Availability
21
GEN WB24X0415 GEN WB24X0415 Contact Us For Availability
28
BRACKET-M/W GEN WB02X7755 Contact Us For Availability
37
GEN WB02X9390 GEN WB02X9390 Contact Us For Availability
38
GEN WB08X0291 GEN WB08X0291 Contact Us For Availability
39
GEN WB08K5009 GEN WB08K5009 Contact Us For Availability
47
AIR GUIDE-M/W GEN WB02X7724 Contact Us For Availability
48
AIR GUIDE-M/W GEN WB02X7635 Contact Us For Availability
52
GEN WB36K5100 GEN WB36K5100 Contact Us For Availability
74
GEN WB07X7005 GEN WB07X7005 Contact Us For Availability
76
GEN WB38K5046 GEN WB38K5046 Contact Us For Availability
91
CONTORL PAANEL HINGE GEN WB02X7729 Contact Us For Availability
102
GEN WB35K5082 GEN WB35K5082 Contact Us For Availability
105
TRIM HANDLE-M/W GEN WB07X6900 Contact Us For Availability
107
PIN KEY LEVER-M/W GEN WB02X7559 Contact Us For Availability
109
DOOR KEY PACKAGE-M/W GEN WB10X5185 Contact Us For Availability
111
FRAME INNER-M/W GEN WB55X5286 Contact Us For Availability
112
LINER & CHOKE ASM.-M/W GEN WB55X5285 Contact Us For Availability
113
GEN WB02M0056 GEN WB02M0056 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
115
GEN WB55X5287 GEN WB55X5287 Contact Us For Availability
116
GEN WB02X9178 GEN WB02X9178 Contact Us For Availability
124
FILM-LINER & CHOKE ASM. GEN WB02X7647 Contact Us For Availability
136
DOOR HANDLE-M/W GEN WB15X5163 Contact Us For Availability
140
DOOR TRIM-M/W GEN WB07X7011 Contact Us For Availability
140
OV DR FRAME W/OVERLAY GEN WB56K5027 Contact Us For Availability
141
DOOR SASH RUBBER GEN WB02X7857 Contact Us For Availability
143
GEN WB02M0046 GEN WB02M0046 Contact Us For Availability
143
GEN WB02X7735 GEN WB02X7735 Contact Us For Availability
149
FERRITE-TOP/BOTTOM GEN WB02X7643 Contact Us For Availability
150
FERRITE SIDE-M/W GEN WB02X0642 Contact Us For Availability
151
GEN WB10X0268 GEN WB10X0268 Contact Us For Availability
159
GEN WB24K5023 GEN WB24K5023 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
171
GEN WB35K5083 GEN WB35K5083 Contact Us For Availability
192
LOCK KNOB GEN WB03X0782 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
202
FRONT FRAME GEN WB63K5073 Contact Us For Availability
212
INSULATION BTTM RETAINER GEN WB02M0068 Contact Us For Availability
231
INSULATION-TOP & SIDES GEN WB02X9631 Contact Us For Availability
232
INSULATION OV BTM & BACK GEN WB02X9144 Contact Us For Availability
254
HOLDER PROBE-M/W GEN WB02X7660 Contact Us For Availability
256
OV LAMP SOCKET-M/W GEN WB08X5096 Contact Us For Availability
257
LAMP-OVEN-M/W GEN WB02X7560 Contact Us For Availability
262
CRYSTAL TRIM GEN WB07X6951 Contact Us For Availability
262
MICROWAVE DOOR TRIM GEN WB07X6952 Contact Us For Availability
269
SERVICE RANGE MTG PLATE GEN WB02X9427 Contact Us For Availability
273
GEN WB02X7300 GEN WB02X7300 Contact Us For Availability
280
MEAT PROBE-M/W GEN WB20X5054 Contact Us For Availability
286
PV DR SPRING GEN WB09M0004 Contact Us For Availability
292
GEN WB02X9146 GEN WB02X9146 Contact Us For Availability
293
GEN WB02X9148 GEN WB02X9148 Contact Us For Availability
296
GEN WB01X5516 GEN WB01X5516 Contact Us For Availability
300
SPACER-HINGE-M/W GEN WB02X7103 Contact Us For Availability
300
RACK SPACER-M/W GEN WB02X7510 Contact Us For Availability
300
SWITCH SPACER-M/W GEN WB02X7552 Contact Us For Availability
300
SPACER-M/W GEN WB02X7770 Contact Us For Availability
339
GEN WB02X7728 GEN WB02X7728 Contact Us For Availability
401
GEN WB36K5081 GEN WB36K5081 Contact Us For Availability
401
MAGNETRON COVER-M/W GEN WB49X5387 Contact Us For Availability
402
SUPPORT UP COVER-RT-WHT GEN WB36K5077 Contact Us For Availability
402
SUPPORT UP COVER-LT-WHT GEN WB36K5079 Contact Us For Availability
407
DOOR HOOK UPPER-M/W GEN WB10X5165 Contact Us For Availability
407
DOOR HOOK LOWEW-M/W GEN WB10X5174 Contact Us For Availability
410
GEN WB02K5112 GEN WB02K5112 Contact Us For Availability
413
END CAP-RT GEN WB07X6791 Contact Us For Availability
413
END CAP-LT GEN WB07X6792 Contact Us For Availability
413
BASE-M/W GEN WB49X5382 Contact Us For Availability
414
PLENUM GEN WB49X5470 Contact Us For Availability
415
BLOWER ASM GEN WB26X5089 Contact Us For Availability
416
HOUSING COVER GEN WB02X7900 Contact Us For Availability
416
RECEPTACLE PROBE-M/W GEN WB20X5053 Contact Us For Availability
417
GEN WB38K5025 GEN WB38K5025 Contact Us For Availability
418
GEN WB02X7764 GEN WB02X7764 Contact Us For Availability
419
HOOD PANEL HANDLE GEN WB15X5138 Contact Us For Availability
420
GEN WB02X2017 GEN WB02X2017 Contact Us For Availability
421
ANTENNAASM-M/W GEN WB02X7626 Contact Us For Availability
421
HOOD TRIM GEN WB07X6793 Contact Us For Availability
422
GEN WB02X7216 GEN WB02X7216 Contact Us For Availability
423
GREASE FILTER GEN WB02X7758 Contact Us For Availability
424
GEN WB02X1583 GEN WB02X1583 Contact Us For Availability
424
OVEN SHELF-M/W GEN WB48X5084 Contact Us For Availability
427
MOTOR, STIRRER-M/W GEN WB26X5080 Contact Us For Availability
428
RACK SUPPORT-M/W GEN WB02X7640 Contact Us For Availability
428
GEN WB02X7765 GEN WB02X7765 Contact Us For Availability
430
GEN WB02X1666 GEN WB02X1666 Contact Us For Availability
431
OVEN RACK-M/W GEN WB48X5088 Contact Us For Availability
432
TOP CASE GEN WB56X6077 Contact Us For Availability
433
CRYSTAL-M/W GEN WB36X5605 Contact Us For Availability
435
THERMAL CUTOUT-M/W GEN WB27X5381 Contact Us For Availability
437
EXHAUST GUIDE-M/W GEN WB02X7727 Contact Us For Availability
438
ACCESS COVER-M/W GEN WB02X7723 Contact Us For Availability
439
FUSTAT RECEPTACLE-M/W GEN WB08X5097 Contact Us For Availability
440
LAMP SHIELD-M/W GEN WB02X7730 Contact Us For Availability
451
FILTER CLIP GEN WB02X6734 Contact Us For Availability
452
KEY PANEL ASM-M/W GEN WB27X5412 Contact Us For Availability
454
HOLDER-M/W GEN WB02X7769 Contact Us For Availability
455
GEN WB22X5103 GEN WB22X5103 Contact Us For Availability
456
KNOB THERMOSTAT GEN WB03X5760 Contact Us For Availability
461
CAVITY & FR GEN WB53X5130 Contact Us For Availability
462
GEN WB02X7625 GEN WB02X7625 Contact Us For Availability
462
GEN WB03X5762 GEN WB03X5762 Contact Us For Availability
463
GEN WB02X7753 GEN WB02X7753 Contact Us For Availability
464
GEN WB02X6654 GEN WB02X6654 Contact Us For Availability
465
GEN WB02X6653 GEN WB02X6653 Contact Us For Availability
466
GEN WB10X5179 GEN WB10X5179 Contact Us For Availability
466
GEN WB10X5184 GEN WB10X5184 Contact Us For Availability
468
GEN WB02X7624 GEN WB02X7624 Contact Us For Availability
469
GEN WB49X5292 GEN WB49X5292 Contact Us For Availability
471
GEN WB02X1665 GEN WB02X1665 Contact Us For Availability
487
GEN WB27X5405 GEN WB27X5405 Contact Us For Availability
489
GEN WB10X5186 GEN WB10X5186 Contact Us For Availability
493
GEN WB18K5155 GEN WB18K5155 Contact Us For Availability
494
CLIP MTG EXHAUST GUIDE GEN WB02X7544 Contact Us For Availability
495
MOUNTING BRACKET GEN WB02X3461 Contact Us For Availability
496
GEN WB09X5099 GEN WB09X5099 Contact Us For Availability
496
SPRING DOOR KEY-M/W GEN WB09X5112 Contact Us For Availability
497
GEN WB02X7234 GEN WB02X7234 Contact Us For Availability
497
GEN WB02X7628 GEN WB02X7628 Contact Us For Availability
498
GEN WB02X7230 GEN WB02X7230 Contact Us For Availability
499
GEN WB02X7231 GEN WB02X7231 Contact Us For Availability
511
GEN WB26X5082 GEN WB26X5082 Contact Us For Availability
512
GEN WB02X4114 GEN WB02X4114 Contact Us For Availability
522
GEN WB02X7734 GEN WB02X7734 Contact Us For Availability
576
GEN WB24X0352 GEN WB24X0352 Contact Us For Availability
577
GEN WB24X0353 GEN WB24X0353 Contact Us For Availability
582
GEN WB27 GEN WB27 Contact Us For Availability
753
GEN WB01K5052 GEN WB01K5052 Contact Us For Availability
755
GEN WZ04X0237 GEN WZ04X0237 Contact Us For Availability
811
GEN WB01X1172 GEN WB01X1172 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
841
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
865
GEN WB01X1423 GEN WB01X1423 Contact Us For Availability
941
GEN WB01X1399 GEN WB01X1399 Contact Us For Availability
954
THERMOSTAT BULB RET CLIP GEN WB02X9105 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
995
GEN WB01M0040 GEN WB01M0040 Contact Us For Availability
999
GEN 31-13082 GEN 31-13082 Contact Us For Availability
× ![]()
