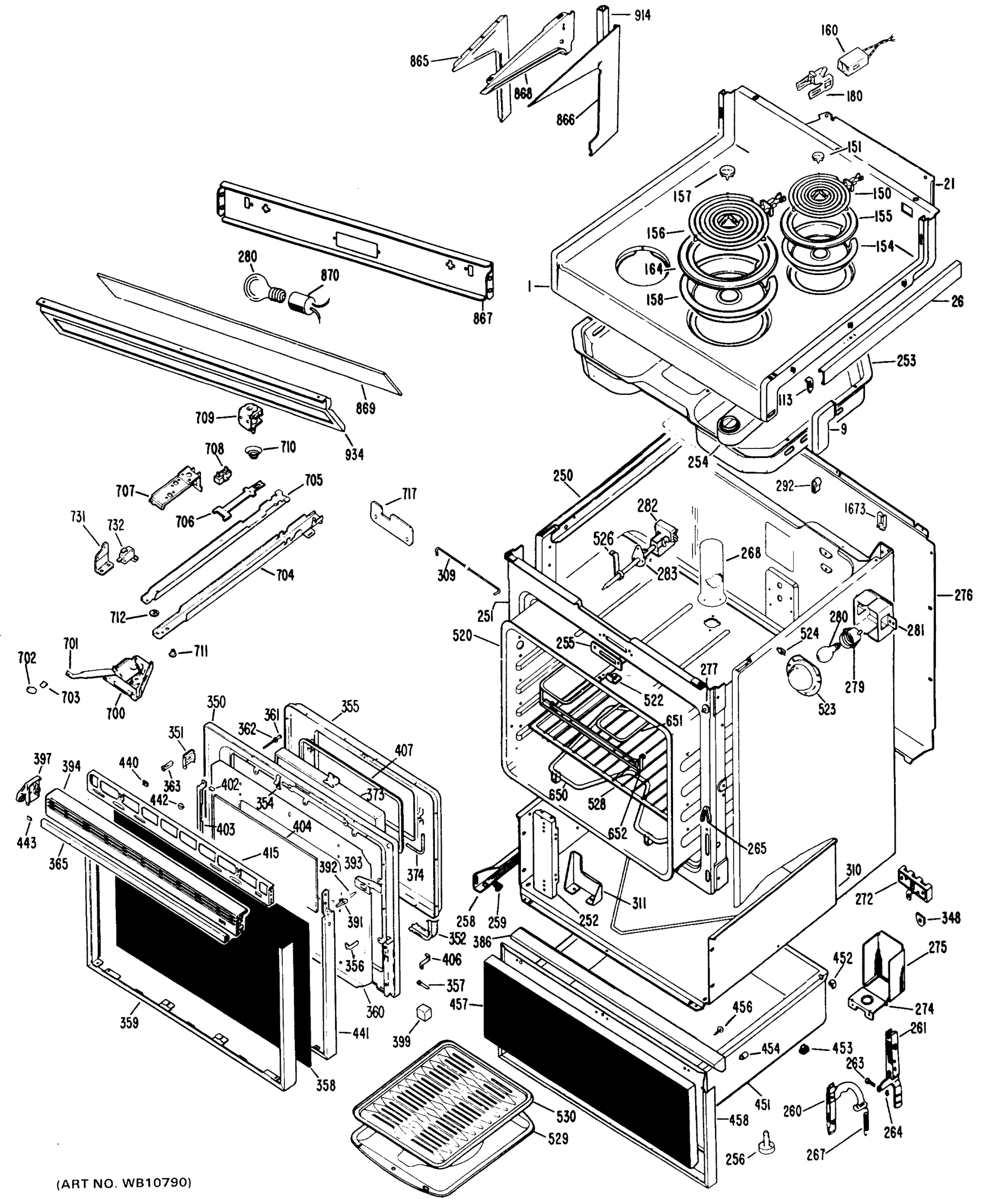

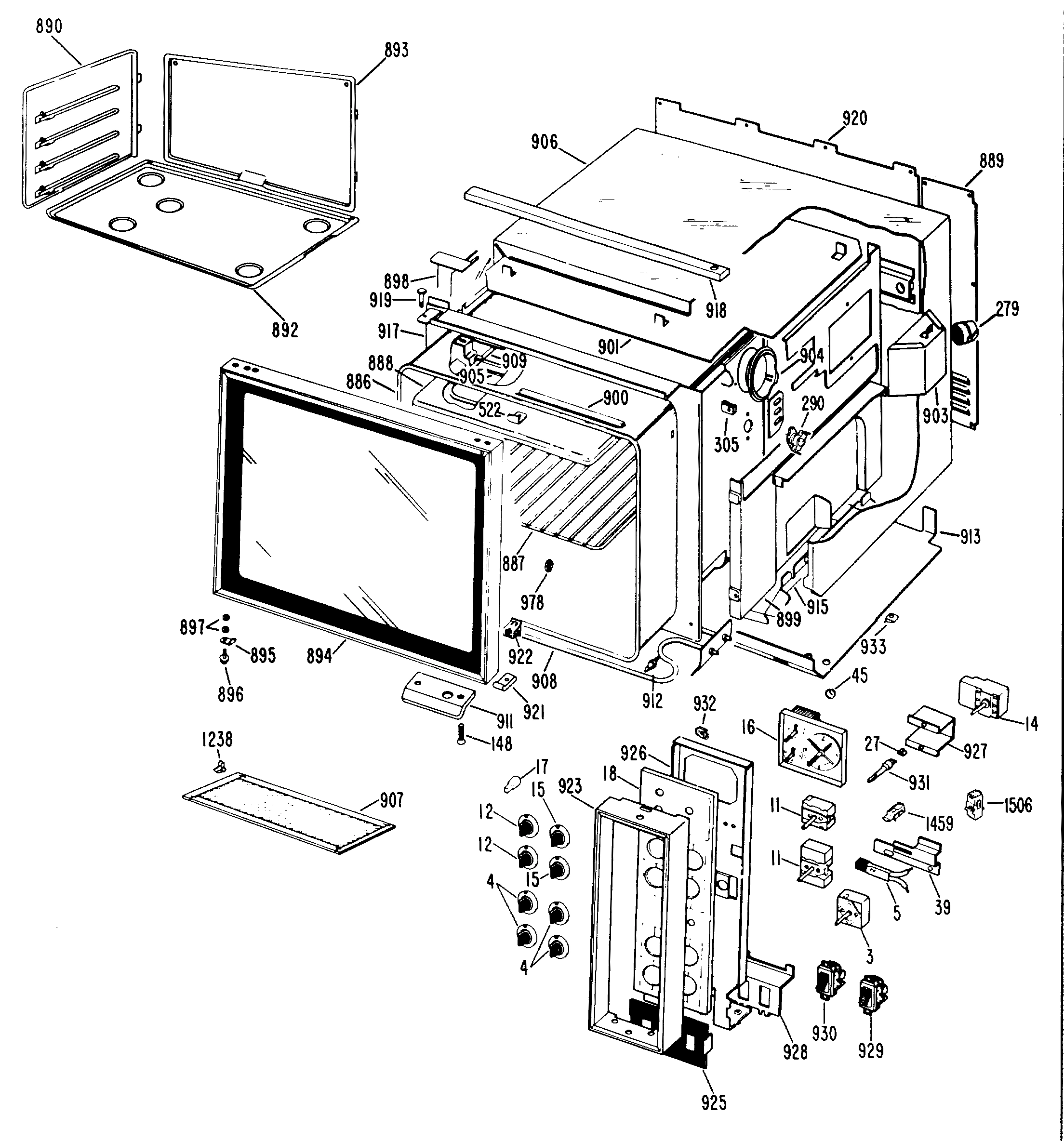

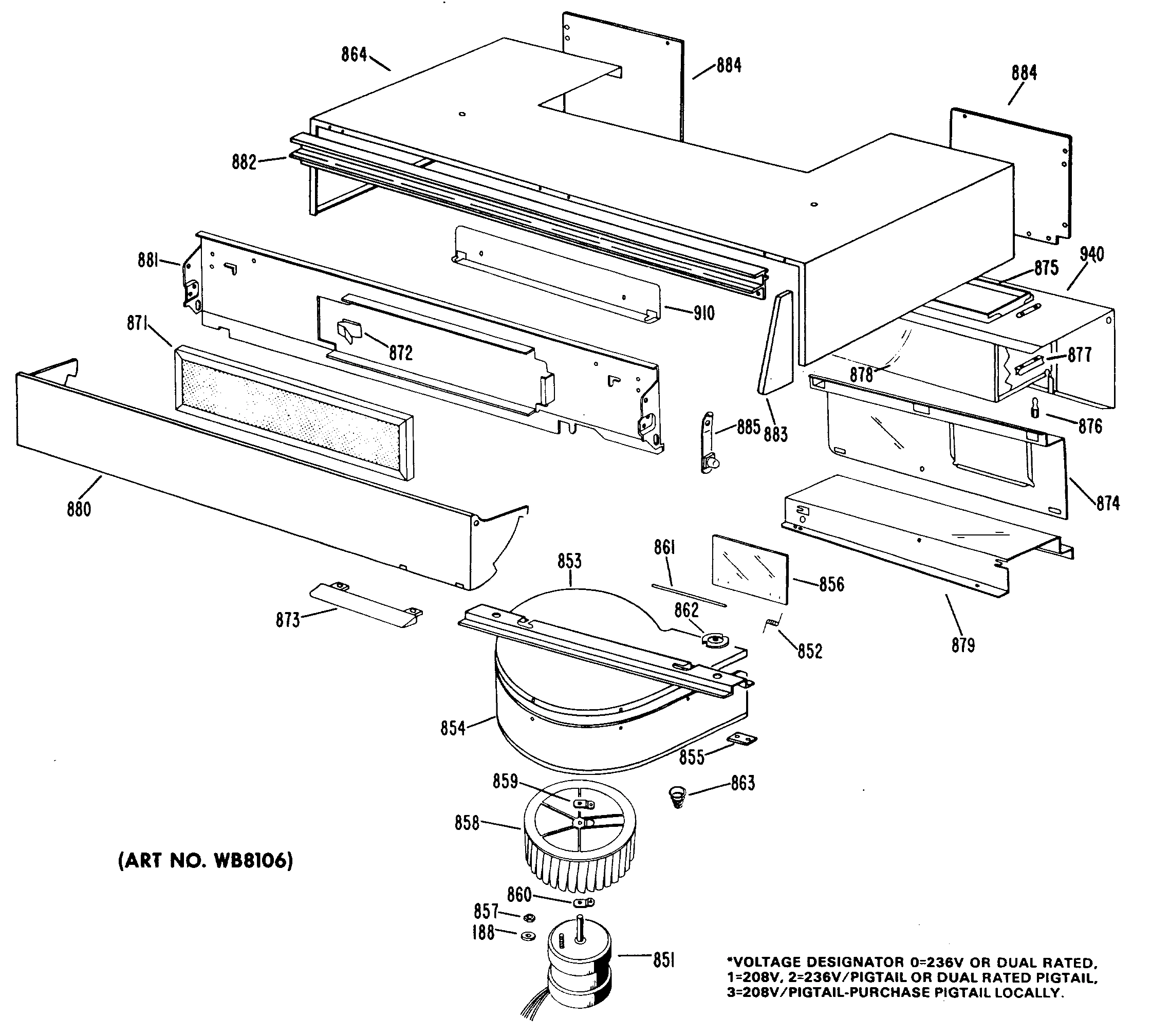

Model GE JHP56G*J3 Range With Microwave Combo – Common Parts & Diagrams
Common parts from model GE JHP56G*J3 Range With Microwave Combo
1
COOKTOP WH GEN WB62X1504 Contact Us For Availability
1
COOKTOP HA GEN WB62X1507 Contact Us For Availability
1
COOKTOP AD GEN WB62X1508 Contact Us For Availability
4
GEN WB03X5677 GEN WB03X5677 Contact Us For Availability
5
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
5
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
9
GEN WB07X6676 GEN WB07X6676 Contact Us For Availability
9
GEN WB07X6677 GEN WB07X6677 Contact Us For Availability
11
SWITCH, OVEN GEN WB22X0079 Contact Us For Availability
11
GEN WB22X5103 GEN WB22X5103 Contact Us For Availability
12
GEN WB03X5678 GEN WB03X5678 Contact Us For Availability
12
GEN WB03X5683 GEN WB03X5683 Contact Us For Availability
14
GEN WB02X6274 GEN WB02X6274 Contact Us For Availability
14
THERMOSTAT UPPER OVEN GEN WB21X5208 Contact Us For Availability
14
GEN WB24X0184 GEN WB24X0184 Contact Us For Availability
15
GEN WB03X5685 GEN WB03X5685 Contact Us For Availability
15
GEN WB03X5686 GEN WB03X5686 Contact Us For Availability
16
GEN WB19X0123 GEN WB19X0123 Contact Us For Availability
17
GEN WB03X0459 GEN WB03X0459 Contact Us For Availability
18
GEN WB02X3232 GEN WB02X3232 Contact Us For Availability
18
GEN WB02X6240 GEN WB02X6240 Contact Us For Availability
18
GEN WB36X5612 GEN WB36X5612 Contact Us For Availability
21
COVER BACK GEN WB49X5181 Contact Us For Availability
26
TRIM COOKTOP RH GEN WB07X1012 Contact Us For Availability
26
TRIM COOKTOP LH GEN WB07X1013 Contact Us For Availability
27
GEN WB02X2900 GEN WB02X2900 Contact Us For Availability
39
BRACKET LAMP GEN WB02X3243 Contact Us For Availability
45
NUT GEN WB01X0540 Contact Us For Availability
113
CLIP TRIM GEN WB02X2988 Contact Us For Availability
148
GEN WZ04X0237 GEN WZ04X0237 Contact Us For Availability
151
GEN WB32X0052 GEN WB32X0052 Contact Us For Availability
154
GEN WB32X5051 GEN WB32X5051 Contact Us For Availability
157
GEN WB32X0051 GEN WB32X0051 Contact Us For Availability
164
GEN WB31X5012 GEN WB31X5012 Contact Us For Availability
250
GEN WB02X3229 GEN WB02X3229 Contact Us For Availability
251
GEN WB56X6054 GEN WB56X6054 Contact Us For Availability
252
GEN WB02X6768 GEN WB02X6768 Contact Us For Availability
253
GEN WB49X5389 GEN WB49X5389 Contact Us For Availability
254
BODY VENT GEN WB38X5039 Contact Us For Availability
255
GEN WB07X0552 GEN WB07X0552 Contact Us For Availability
256
GEN WB01X5516 GEN WB01X5516 Contact Us For Availability
258
GUIDE DRAWER LH GEN WB39X5010 Contact Us For Availability
258
GUIDE DRAWER RH GEN WB39X5011 Contact Us For Availability
259
SLIDE GUIDE GEN WB02X0831 Contact Us For Availability
260
HINGE LEVER ASM RH & LH GEN WB10X5092 Contact Us For Availability
261
GEN WB10X5090 GEN WB10X5090 Contact Us For Availability
261
GEN WB10X5091 GEN WB10X5091 Contact Us For Availability
263
PIN HINGE GEN WB02X6195 Contact Us For Availability
264
PIN HINGE RETAINER GEN WB02X1082 Contact Us For Availability
265
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
267
SPRING DOOR GEN WB09X5073 Contact Us For Availability
268
GEN WB29X5012 GEN WB29X5012 Contact Us For Availability
274
BRACKET KNOCKOUT GEN WB02X6191 Contact Us For Availability
275
GEN WB02X6655 GEN WB02X6655 Contact Us For Availability
276
GEN WB49X5161 GEN WB49X5161 Contact Us For Availability
277
SWITCH, OVEN LIGHT GEN WB24X0105 Contact Us For Availability
279
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
281
GEN WB02X3466 GEN WB02X3466 Contact Us For Availability
282
CLAMP HARNESS GEN WB02X6215 Contact Us For Availability
282
GEN WB24X5138 GEN WB24X5138 Contact Us For Availability
283
GEN WB02X3163 GEN WB02X3163 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
290
GEN WB24X5239 GEN WB24X5239 Contact Us For Availability
292
GEN WB01X0386 GEN WB01X0386 Contact Us For Availability
305
GEN WB02X6653 GEN WB02X6653 Contact Us For Availability
309
GEN WB02X7742 GEN WB02X7742 Contact Us For Availability
310
GEN WB49X5156 GEN WB49X5156 Contact Us For Availability
311
GEN WB02X6187 GEN WB02X6187 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
350
INSULATION DOOR GEN WB02X6546 Contact Us For Availability
350
GEN WB55X5310 GEN WB55X5310 Contact Us For Availability
351
SPACER DOOR GEN WB02X6270 Contact Us For Availability
354
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
355
GEN WB55X5311 GEN WB55X5311 Contact Us For Availability
356
GEN WB02X6574 GEN WB02X6574 Contact Us For Availability
358
GEN WB36X5560 GEN WB36X5560 Contact Us For Availability
359
GEN WB07X6892 GEN WB07X6892 Contact Us For Availability
360
GEN WB55X5218 GEN WB55X5218 Contact Us For Availability
361
GEN WB01X5735 GEN WB01X5735 Contact Us For Availability
363
GEN WB02X7616 GEN WB02X7616 Contact Us For Availability
373
WINDOW GEN WB36X5244 Contact Us For Availability
374
GASKET FIBERGLASS GEN WB02X3048 Contact Us For Availability
386
HANDLE DRAWER GEN WB15X5124 Contact Us For Availability
391
GEN WB02X3052 GEN WB02X3052 Contact Us For Availability
392
CAM LINK GEN WB02X5217 Contact Us For Availability
393
GEN WB09X5083 GEN WB09X5083 Contact Us For Availability
394
GEN WB07X6889 GEN WB07X6889 Contact Us For Availability
397
GEN WB07X6887 GEN WB07X6887 Contact Us For Availability
397
GEN WB07X6888 GEN WB07X6888 Contact Us For Availability
397
GEN WZ04X0384 GEN WZ04X0384 Contact Us For Availability
399
GEN WB02X3285 GEN WB02X3285 Contact Us For Availability
402
GEN WB01X0591 GEN WB01X0591 Contact Us For Availability
403
GEN WB02X7188 GEN WB02X7188 Contact Us For Availability
404
GEN WB36X5477 GEN WB36X5477 Contact Us For Availability
406
BRACKET DOOR GEN WB02X6238 Contact Us For Availability
407
GEN WB07X6913 GEN WB07X6913 Contact Us For Availability
415
GEN WB02X7608 GEN WB02X7608 Contact Us For Availability
441
GEN WB02X7609 GEN WB02X7609 Contact Us For Availability
441
GEN WB02X7610 GEN WB02X7610 Contact Us For Availability
442
GEN WB01X5733 GEN WB01X5733 Contact Us For Availability
443
GEN WB01X5734 GEN WB01X5734 Contact Us For Availability
451
GEN WB02X6740 GEN WB02X6740 Contact Us For Availability
451
DRAWER ASM GEN WB58X5005 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
SLIDE BOTTOM GEN WB02X0841 Contact Us For Availability
454
GEN WB02X6208 GEN WB02X6208 Contact Us For Availability
457
GEN WB56X5799 GEN WB56X5799 Contact Us For Availability
458
GEN WB07X5659 GEN WB07X5659 Contact Us For Availability
520
GEN WB02X6496 GEN WB02X6496 Contact Us For Availability
520
GEN WB02X3471 GEN WB02X3471 Contact Us For Availability
520
GEN WB53X5108 GEN WB53X5108 Contact Us For Availability
522
CLIP TRIM GEN WB02X6209 Contact Us For Availability
526
GEN WB02X GEN WB02X Contact Us For Availability
701
GEN WB15X5133 GEN WB15X5133 Contact Us For Availability
706
PAWL LOCKING GEN WB02X7708 Contact Us For Availability
763
CLIP FILTER GEN WB02X1665 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
788
GEN WB17X5064 GEN WB17X5064 Contact Us For Availability
827
ANGLE BRACE GEN WB02X2999 Contact Us For Availability
828
SCREW GEN WZ04X0367 Contact Us For Availability
829
CLIP SPRING GEN WB02X0190 Contact Us For Availability
851
GEN WB26X0027 GEN WB26X0027 Contact Us For Availability
852
GEN WB09X0072 GEN WB09X0072 Contact Us For Availability
853
GEN WB49X0216 GEN WB49X0216 Contact Us For Availability
854
GEN WB49X0217 GEN WB49X0217 Contact Us For Availability
855
GEN WB02X3239 GEN WB02X3239 Contact Us For Availability
856
GEN WB02X2235 GEN WB02X2235 Contact Us For Availability
858
GEN WB02X3456 GEN WB02X3456 Contact Us For Availability
859
GEN WB02X3457 GEN WB02X3457 Contact Us For Availability
860
GEN WB02X3458 GEN WB02X3458 Contact Us For Availability
861
GEN WB02X1581 GEN WB02X1581 Contact Us For Availability
862
GEN WB02X2015 GEN WB02X2015 Contact Us For Availability
863
GEN WB09X0073 GEN WB09X0073 Contact Us For Availability
864
GEN WB62X1499 GEN WB62X1499 Contact Us For Availability
864
GEN WB62X1502 GEN WB62X1502 Contact Us For Availability
864
GEN WB62X1503 GEN WB62X1503 Contact Us For Availability
871
GEN WB02X6731 GEN WB02X6731 Contact Us For Availability
872
CLIP HOOD FILTER GEN WB02X1583 Contact Us For Availability
873
HANDLE HOOD PANEL GEN WB15X0109 Contact Us For Availability
874
GEN WB49X0218 GEN WB49X0218 Contact Us For Availability
875
GEN WB49X0182 GEN WB49X0182 Contact Us For Availability
876
GEN WB01X0426 GEN WB01X0426 Contact Us For Availability
877
GEN WB02X2016 GEN WB02X2016 Contact Us For Availability
878
GEN WB49X0183 GEN WB49X0183 Contact Us For Availability
879
GEN WB49X0181 GEN WB49X0181 Contact Us For Availability
880
PANEL HOOD GEN WB56X0923 Contact Us For Availability
881
GEN WB02X2629 GEN WB02X2629 Contact Us For Availability
882
GEN WB07X0772 GEN WB07X0772 Contact Us For Availability
883
GEN WB02X3432 GEN WB02X3432 Contact Us For Availability
883
END CAP RH GEN WB07X0770 Contact Us For Availability
883
END CAP LH GEN WB07X0771 Contact Us For Availability
884
COVER BACK GEN WB02X2017 Contact Us For Availability
885
SPRING & PIN ASM GEN WB02X3131 Contact Us For Availability
886
GEN WB02X1511 GEN WB02X1511 Contact Us For Availability
886
GEN WB53X5109 GEN WB53X5109 Contact Us For Availability
887
RACK OVEN GEN WB48X0090 Contact Us For Availability
888
REFLECTOR BROIL GEN WB49X0139 Contact Us For Availability
889
COVER INSTRUMENT GEN WB49X0301 Contact Us For Availability
890
GEN WB56X6056 GEN WB56X6056 Contact Us For Availability
890
GEN WB56X6057 GEN WB56X6057 Contact Us For Availability
892
GEN WB56X6058 GEN WB56X6058 Contact Us For Availability
893
GEN WB56X6059 GEN WB56X6059 Contact Us For Availability
894
GEN WB56X6024 GEN WB56X6024 Contact Us For Availability
895
PLATE FRICTION GEN WB02X1658 Contact Us For Availability
897
WASHER GEN WB01X0401 Contact Us For Availability
898
DUCT AIR GEN WB49X0179 Contact Us For Availability
899
INSULATION GUARD GEN WB55X0290 Contact Us For Availability
900
GASKET SILICONE UP OVEN GEN WB02X2957 Contact Us For Availability
901
GEN WB02X1561 GEN WB02X1561 Contact Us For Availability
901
GUARD TOP INSULATION GEN WB55X0287 Contact Us For Availability
903
SHIELD OVEN LAMP GEN WB02X1520 Contact Us For Availability
904
GLASS OVEN LAMP GEN WB36X0126 Contact Us For Availability
905
SUPPORT BROIL GEN WB02X1509 Contact Us For Availability
906
CASE SIDE RH WH GEN WB56X1456 Contact Us For Availability
906
CASE SIDE RH HA GEN WB56X1459 Contact Us For Availability
906
CASE SIDE RH AD GEN WB56X1460 Contact Us For Availability
906
CASE SIDE LH WH GEN WB56X1461 Contact Us For Availability
906
CASE SIDE LH HA GEN WB56X1464 Contact Us For Availability
906
CASE SIDE LH AD GEN WB56X1465 Contact Us For Availability
907
GEN WB02X1666 GEN WB02X1666 Contact Us For Availability
909
BROIL UNIT UPPER OVEN GEN WB44X0139 Contact Us For Availability
910
GEN WB49X0180 GEN WB49X0180 Contact Us For Availability
911
GEN WB15X0126 GEN WB15X0126 Contact Us For Availability
912
STRIKE ASM DOOR GEN WB01X5508 Contact Us For Availability
913
BOTTOM CASE GEN WB55X0421 Contact Us For Availability
915
GUARD INSULATION LOWER GEN WB55X0198 Contact Us For Availability
917
FRAME ASM GEN WB56X5768 Contact Us For Availability
918
GEN WB07X0776 GEN WB07X0776 Contact Us For Availability
919
PIN HINGE GEN WB01X0529 Contact Us For Availability
920
COVER BACK GEN WB49X0300 Contact Us For Availability
921
GEN WB02X2785 GEN WB02X2785 Contact Us For Availability
922
CATCH SPRING GEN WB02X1570 Contact Us For Availability
923
GEN WB07X1223 GEN WB07X1223 Contact Us For Availability
925
TRIM SWITCH GEN WB07X0985 Contact Us For Availability
926
BRACKET INSTRUMENT GEN WB02X3196 Contact Us For Availability
927
BRACKET THERMO UPPER GEN WB02X2657 Contact Us For Availability
927
GEN WB02X6455 GEN WB02X6455 Contact Us For Availability
928
BRACKET SWITCH GEN WB02X2996 Contact Us For Availability
929
SWITCH, LAMPS GEN WB24X0177 Contact Us For Availability
930
SWITCH, FAN GEN WB24X0178 Contact Us For Availability
931
EXT SHAFT UPPER THERMO GEN WB02X2470 Contact Us For Availability
931
EXT SHAFT LOWER THERMO GEN WB02X3219 Contact Us For Availability
932
SPEEDNUT GEN WB01X0358 Contact Us For Availability
933
CLIP GEN WB02X1667 Contact Us For Availability
940
GEN WB49X0184 GEN WB49X0184 Contact Us For Availability
978
GEN WB02X1126 GEN WB02X1126 Contact Us For Availability
32767
GEN 31-0423 GEN 31-0423 Contact Us For Availability
32767
GEN 31-0476 GEN 31-0476 Contact Us For Availability
32767
GEN 31-0550 GEN 31-0550 Contact Us For Availability
32767
GEN 49-4782 GEN 49-4782 Contact Us For Availability
32767
SCREW & WASHER ASM GEN WB01X0438 Contact Us For Availability
32767
SPEEDNUT GEN WB01X0528 Contact Us For Availability
32767
GEN WB01X5471 GEN WB01X5471 Contact Us For Availability
32767
GEN WB01X5497 GEN WB01X5497 Contact Us For Availability
32767
GEN WB01X5520 GEN WB01X5520 Contact Us For Availability
32767
GEN WB01X5550 GEN WB01X5550 Contact Us For Availability
32767
GEN WB01X5552 GEN WB01X5552 Contact Us For Availability
32767
PAD GEN WB02X1222 Contact Us For Availability
32767
GEN WB02X1579 GEN WB02X1579 Contact Us For Availability
32767
GEN WB02X1662 GEN WB02X1662 Contact Us For Availability
32767
GEN WB02X1677 GEN WB02X1677 Contact Us For Availability
32767
GEN WB02X2107 GEN WB02X2107 Contact Us For Availability
32767
GEN WB02X3152 GEN WB02X3152 Contact Us For Availability
32767
GEN WB02X3238 GEN WB02X3238 Contact Us For Availability
32767
GEN WB02X6659 GEN WB02X6659 Contact Us For Availability
32767
GEN WB62X5324 GEN WB62X5324 Contact Us For Availability
32767
GEN WB62X5325 GEN WB62X5325 Contact Us For Availability
32767
GEN WZ02X0529 GEN WZ02X0529 Contact Us For Availability
32767
GEN WZ02X0546 GEN WZ02X0546 Contact Us For Availability
32767
GEN WZ04X0217 GEN WZ04X0217 Contact Us For Availability
32767
GEN WZ04X0255 GEN WZ04X0255 Contact Us For Availability
32767
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
32767
GEN WZ04X0289 GEN WZ04X0289 Contact Us For Availability
32767
GEN WZ04X0336 GEN WZ04X0336 Contact Us For Availability
32767
SCR 10-16 B SL 1-1/8 S GEN WZ04X0348 Contact Us For Availability
32767
SCR 8-18X5/8 GEN WZ04X0361 Contact Us For Availability
32767
GEN WZ04X0396 GEN WZ04X0396 Contact Us For Availability
32767
GEN WZ04X0397 GEN WZ04X0397 Contact Us For Availability
32767
GEN WZ04X0413 GEN WZ04X0413 Contact Us For Availability
32767
GEN WZ04X0419 GEN WZ04X0419 Contact Us For Availability
32767
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
32767
SCR 4-40 D HXW 5/8 S GEN WZ05X0124 Contact Us For Availability
32767
GEN WZ06X0038 GEN WZ06X0038 Contact Us For Availability
32767
SCR 8-18 B HXW 3/8 S GEN WZ06X0082 Contact Us For Availability
32767
GEN WZ07X0030 GEN WZ07X0030 Contact Us For Availability
32767
GEN WZ10X0016 GEN WZ10X0016 Contact Us For Availability
× ![]()
