Model GE JHP56*VA Range With Microwave Combo – Common Parts & Diagrams

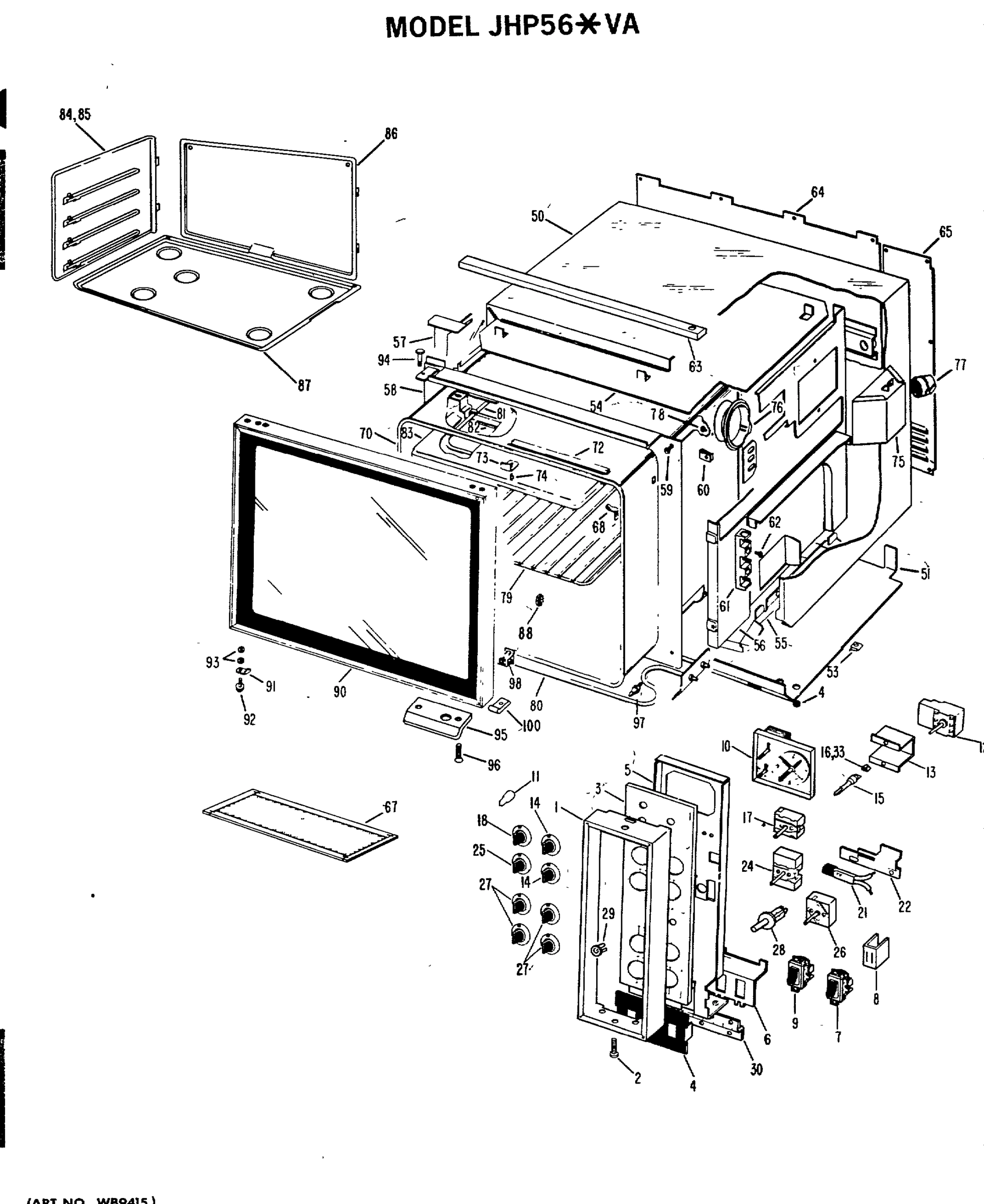

CONTROL PARTS

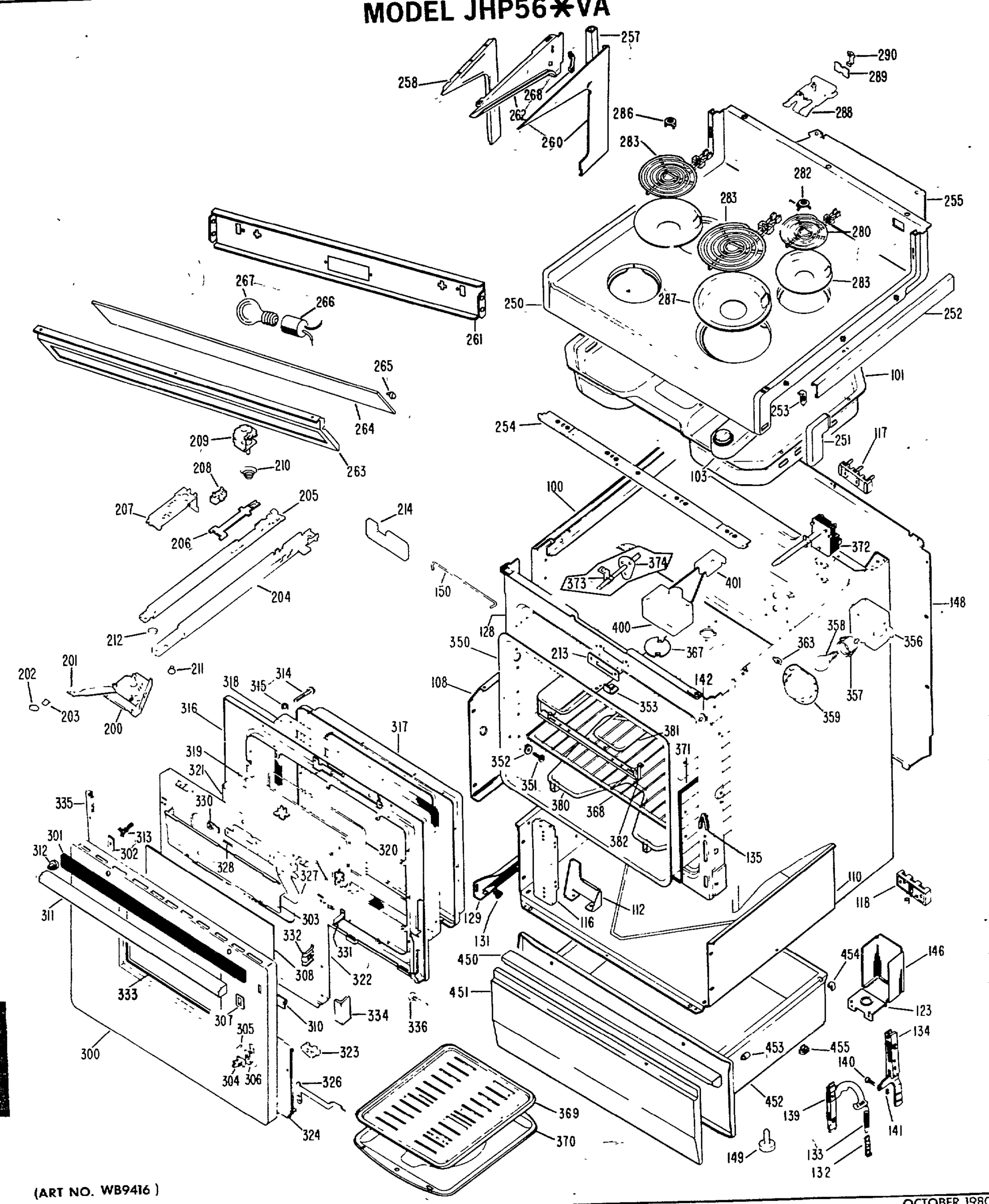

OVEN DOOR PARTS - UPPER
Common parts from model GE JHP56*VA Range With Microwave Combo
1
SPEEDNUT GEN WB01X0358 Contact Us For Availability
1
CONTROL TRIM GEN WB07X1223 Contact Us For Availability
3
WB36X5488 GEN WB36X5369 Contact Us For Availability
4
SWITCH TRIM GEN WB07X0985 Contact Us For Availability
5
INSTRUMENT BRACKET GEN WB02X3196 Contact Us For Availability
6
SWITCH BRACKET GEN WB02X2996 Contact Us For Availability
7
SWITCH, LAMPS GEN WB24X0177 Contact Us For Availability
8
GEN WB02X3008 GEN WB02X3008 Contact Us For Availability
9
SWITCH, FAN GEN WB24X0178 Contact Us For Availability
10
NUT GEN WB01X0540 Contact Us For Availability
10
GEN WB19X0123 GEN WB19X0123 Contact Us For Availability
11
GEN WB03X0459 GEN WB03X0459 Contact Us For Availability
12
THERMOSTAT, OVEN L.O. GEN WB21X0177 Contact Us For Availability
13
THERMOSTAT BRACKET-UPP GEN WB02X2657 Contact Us For Availability
14
GEN WB03X0470 GEN WB03X0470 Contact Us For Availability
15
SHAFT EXTENSION-UPPER OV GEN WB02X2470 Contact Us For Availability
15
SHAFT EXTENSION-LOWER OV GEN WB02X3219 Contact Us For Availability
17
SWITCH, OVEN GEN WB22X0079 Contact Us For Availability
18
GEN WB03X0469 GEN WB03X0469 Contact Us For Availability
22
LAMP BRACKET GEN WB02X3243 Contact Us For Availability
23
GEN WB03X0466 GEN WB03X0466 Contact Us For Availability
24
SWITCH, OVEN GEN WB22X5093 Contact Us For Availability
25
LAMP, INDICATOR GEN WB02X1609 Contact Us For Availability
25
GEN WB03X0465 GEN WB03X0465 Contact Us For Availability
26
SCR 8-32 M PHR 3/16 S GEN WZ02X0528 Contact Us For Availability
27
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
27
GEN WB03X0464 GEN WB03X0464 Contact Us For Availability
28
SWITCH, LATCH RELEASE GEN WB24X0108 Contact Us For Availability
29
GEN WB02X6497 GEN WB02X6497 Contact Us For Availability
30
GEN WB14X0039 GEN WB14X0039 Contact Us For Availability
32
SCREW MTG. BRACKET GEN WZ06X0116 Contact Us For Availability
32
GEN WB02X6274 GEN WB02X6274 Contact Us For Availability
32
THERMOSTAT BRACKET-LOWER GEN WB02X6455 Contact Us For Availability
32
GEN WB24X0184 GEN WB24X0184 Contact Us For Availability
33
SPACER-UPPER GEN WB02X2900 Contact Us For Availability
50
ANGLE BRACE GEN WB02X2999 Contact Us For Availability
50
CASE SIDE-RT WHITE GEN WB56X1456 Contact Us For Availability
50
CASE SIDE RH CF GEN WB56X1457 Contact Us For Availability
50
CASE SIDE RH FA GEN WB56X1458 Contact Us For Availability
50
CASE SIDE RH HA GEN WB56X1459 Contact Us For Availability
50
CASE SIDE-RT-ALMOND GEN WB56X1460 Contact Us For Availability
50
CASE SIDE-LT WHITE GEN WB56X1461 Contact Us For Availability
50
CASE SIDE LH CF GEN WB56X1462 Contact Us For Availability
50
CASE SIDE LH FA GEN WB56X1463 Contact Us For Availability
50
CASE SIDE LH HA GEN WB56X1464 Contact Us For Availability
50
CASE SIDE-LT-ALMOND GEN WB56X1465 Contact Us For Availability
51
CASE BOTTOM GEN WB55X0421 Contact Us For Availability
53
SPEEDNUT GEN WB02X1659 Contact Us For Availability
54
GEN WB02X1561 GEN WB02X1561 Contact Us For Availability
54
GUARD TOP INSULATION GEN WB55X0287 Contact Us For Availability
55
INSULATION GUARD-LOWER GEN WB55X0198 Contact Us For Availability
57
GEN WB49X0179 GEN WB49X0179 Contact Us For Availability
58
FRONT FRAME GEN WB56X5768 Contact Us For Availability
59
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
60
SPEEDNUT GEN WB01X0365 Contact Us For Availability
62
SCREW GEN WZ04X0344 Contact Us For Availability
63
SPEEDNUT GEN WB01X0528 Contact Us For Availability
63
GEN WB07X0776 GEN WB07X0776 Contact Us For Availability
64
COVER BACK GEN WB49X0300 Contact Us For Availability
65
INSTRUMENT COVER GEN WB49X0301 Contact Us For Availability
67
GEN WB02X1665 GEN WB02X1665 Contact Us For Availability
67
GEN WB02X1666 GEN WB02X1666 Contact Us For Availability
68
CLIP CAP TUBE GEN WB02X0596 Contact Us For Availability
70
GEN WB02X1511 GEN WB02X1511 Contact Us For Availability
70
GEN WB53X5078 GEN WB53X5078 Contact Us For Availability
72
GASKET SILICONE UP OVEN GEN WB02X2957 Contact Us For Availability
73
TRIM CLIP GEN WB02X6209 Contact Us For Availability
75
OV LAMP SHIELD GEN WB02X1520 Contact Us For Availability
76
OV LAMP LENS GEN WB36X0126 Contact Us For Availability
77
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
79
GEN WB48X0090 GEN WB48X0090 Contact Us For Availability
81
GEN WB44X0139 GEN WB44X0139 Contact Us For Availability
82
GEN WB02X1509 GEN WB02X1509 Contact Us For Availability
83
GEN WB49X0139 GEN WB49X0139 Contact Us For Availability
84
GEN WB56X1046 GEN WB56X1046 Contact Us For Availability
85
GEN WB56X1282 GEN WB56X1282 Contact Us For Availability
86
GEN WB56 GEN WB56 Contact Us For Availability
100
SCREW, MTG. GUIDE GEN WB01X0488 Contact Us For Availability
100
CLAMP - WIRING GEN WB02X1742 Contact Us For Availability
100
GUIDE, DOOR GEN WB02X2785 Contact Us For Availability
100
BARRIER - BAKE UNIT OPENING GEN WB02X3229 Contact Us For Availability
101
PAD - COOKTOP BOX GEN WB02X3238 Contact Us For Availability
101
BOX - COOKTOP GEN WB49X5149 Contact Us For Availability
103
GEN WB38X5039 GEN WB38X5039 Contact Us For Availability
108
GUARD UPPER - RH GEN WB49X5221 Contact Us For Availability
108
GUARD UPPER - LH GEN WB49X5222 Contact Us For Availability
110
GEN WB49X5156 GEN WB49X5156 Contact Us For Availability
112
GEN WB02X6187 GEN WB02X6187 Contact Us For Availability
116
PANEL - FILLER GEN WB02X6768 Contact Us For Availability
117
TERMINAL BLOCK - DISTR. GEN WB17X0167 Contact Us For Availability
117
SCREW MTG. BLOCK GEN WZ04X0384 Contact Us For Availability
118
PLATE GROUND GEN WB02X0646 Contact Us For Availability
118
SCREW MTG. TERM. BLOCK GEN WZ04X0348 Contact Us For Availability
123
GEN WB02X6191 GEN WB02X6191 Contact Us For Availability
128
GEN WB02X3240 GEN WB02X3240 Contact Us For Availability
128
FRONT FRAME GEN WB56X5861 Contact Us For Availability
129
DRAWER GUIDE - LH GEN WB39X5010 Contact Us For Availability
131
SLIDE - GUIDE GEN WB02X0831 Contact Us For Availability
132
HOOK - DOOR SPRING GEN WB02X2506 Contact Us For Availability
133
SPRING - DOOR GEN WB09X5076 Contact Us For Availability
134
SCREW MTG. SUPPORT TOP GEN WB01X5471 Contact Us For Availability
134
SCREW MTG. SUPPORT BOTTOM GEN WB01X5497 Contact Us For Availability
134
SUPPORT HINGE - RH GEN WB10X5090 Contact Us For Availability
134
SUPPORT HINGE - LH GEN WB10X5091 Contact Us For Availability
135
GEN WB02X6342 GEN WB02X6342 Contact Us For Availability
139
HINGE LEVER ASM. RH & LH GEN WB10X5092 Contact Us For Availability
140
HINGE PIN GEN WB02X6195 Contact Us For Availability
141
RETAINING RING GEN WB02X1082 Contact Us For Availability
142
GEN WB02X6196 GEN WB02X6196 Contact Us For Availability
142
SWITCH OVEN LIGHT GEN WB24X0105 Contact Us For Availability
146
GEN WB02X6655 GEN WB02X6655 Contact Us For Availability
148
COVER - BACK GEN WB49X5161 Contact Us For Availability
149
GEN WB01X5516 GEN WB01X5516 Contact Us For Availability
150
HOOK GEN WB02X6767 Contact Us For Availability
200
GEN WB14X0036 GEN WB14X0036 Contact Us For Availability
200
SCREW MTG. LATCH GEN WZ02X0546 Contact Us For Availability
201
GEN WB15X0142 GEN WB15X0142 Contact Us For Availability
202
GEN WB03X0322 GEN WB03X0322 Contact Us For Availability
203
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
204
CHANNEL - LATCH GEN WB02X3174 Contact Us For Availability
205
GEN WB02X3175 GEN WB02X3175 Contact Us For Availability
206
PAWL LOCKING GEN WB02X3159 Contact Us For Availability
207
PLATE - MOUNTING GEN WB02X3176 Contact Us For Availability
207
SCREW CHANNEL TO LATCH GEN WZ04X0362 Contact Us For Availability
207
SCREW MT. PLATE GEN WZ04X0396 Contact Us For Availability
208
GEN WB02X6912 GEN WB02X6912 Contact Us For Availability
208
SWITCH LATCH GEN WB24X0183 Contact Us For Availability
208
SCREW MT. SWITCH GEN WZ04X0397 Contact Us For Availability
209
SCREW MT. COIL GEN WB01X0438 Contact Us For Availability
209
SOLENOID COIL GEN WB24X0197 Contact Us For Availability
210
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
211
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
212
GEN WB02X1800 GEN WB02X1800 Contact Us For Availability
212
GEN WB02X3147 GEN WB02X3147 Contact Us For Availability
213
TRIM GEN WB07X0552 Contact Us For Availability
214
SCREW LATCH REAR GEN WZ04X0394 Contact Us For Availability
214
GEN WB02X6911 GEN WB02X6911 Contact Us For Availability
214
LOCKWASHER, LATCH REAR GEN WZ10X0114 Contact Us For Availability
250
GEN WB62X1504 GEN WB62X1504 Contact Us For Availability
250
GEN WB62X1505 GEN WB62X1505 Contact Us For Availability
250
GEN WB62X1506 GEN WB62X1506 Contact Us For Availability
250
GEN WB62X1507 GEN WB62X1507 Contact Us For Availability
250
GEN WB62X1508 GEN WB62X1508 Contact Us For Availability
251
END CAP - RH GEN WB07X6676 Contact Us For Availability
251
END CAP - LH GEN WB07X6677 Contact Us For Availability
251
SCR GEN WZ05X0139 Contact Us For Availability
252
GEN WB07X1012 GEN WB07X1012 Contact Us For Availability
252
GEN WB07X1013 GEN WB07X1013 Contact Us For Availability
253
GEN WB02X2988 GEN WB02X2988 Contact Us For Availability
254
GEN WB07X1100 GEN WB07X1100 Contact Us For Availability
254
GEN WZ06X0038 GEN WZ06X0038 Contact Us For Availability
255
GEN WB49X5181 GEN WB49X5181 Contact Us For Availability
257
GEN WB02X6619 GEN WB02X6619 Contact Us For Availability
257
GEN WB02X6620 GEN WB02X6620 Contact Us For Availability
258
GEN WB02X6736 GEN WB02X6736 Contact Us For Availability
258
GEN WB02X6737 GEN WB02X6737 Contact Us For Availability
260
GEN WB07X1169 GEN WB07X1169 Contact Us For Availability
260
GEN WB07X1170 GEN WB07X1170 Contact Us For Availability
260
GEN WB07X1171 GEN WB07X1171 Contact Us For Availability
260
GEN WB07 GEN WB07 Contact Us For Availability
× ![]()
