Model Maytag JGW8130ADB GAS WALL OVEN – Common Parts & Diagrams
01 - BODY
02 - CONTROL PANEL

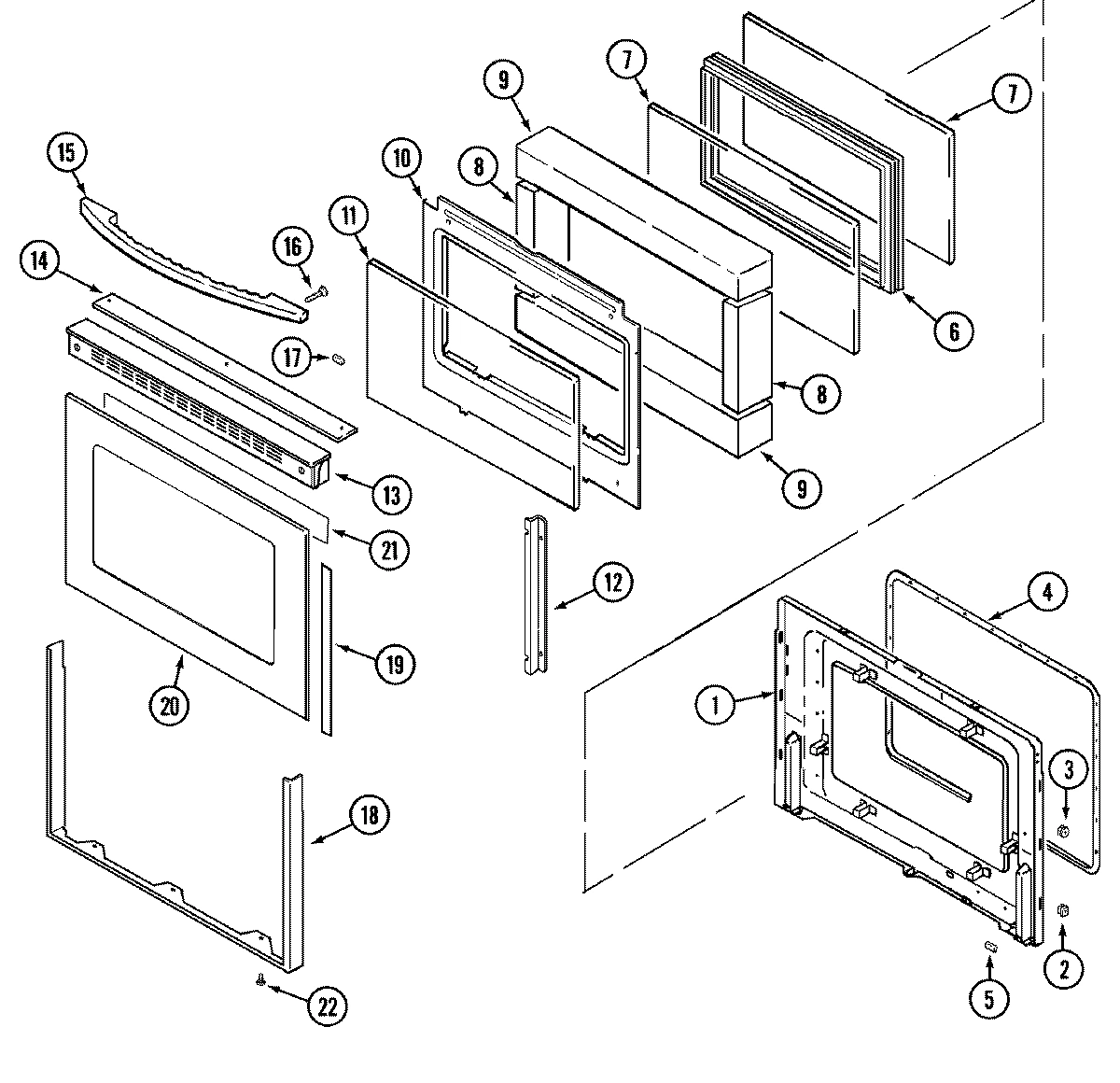

03 - DOOR

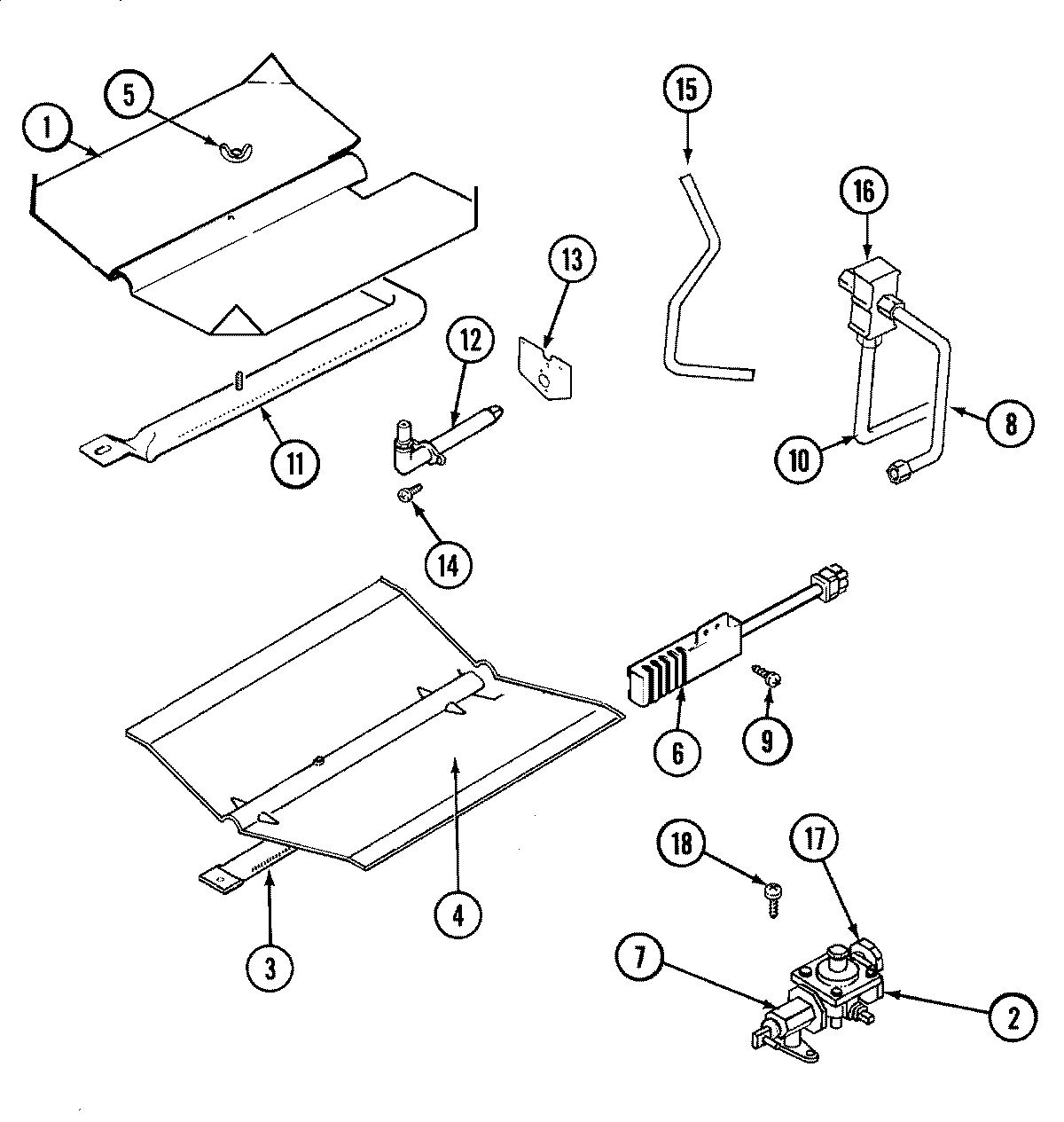

04 - GAS CONTROLS

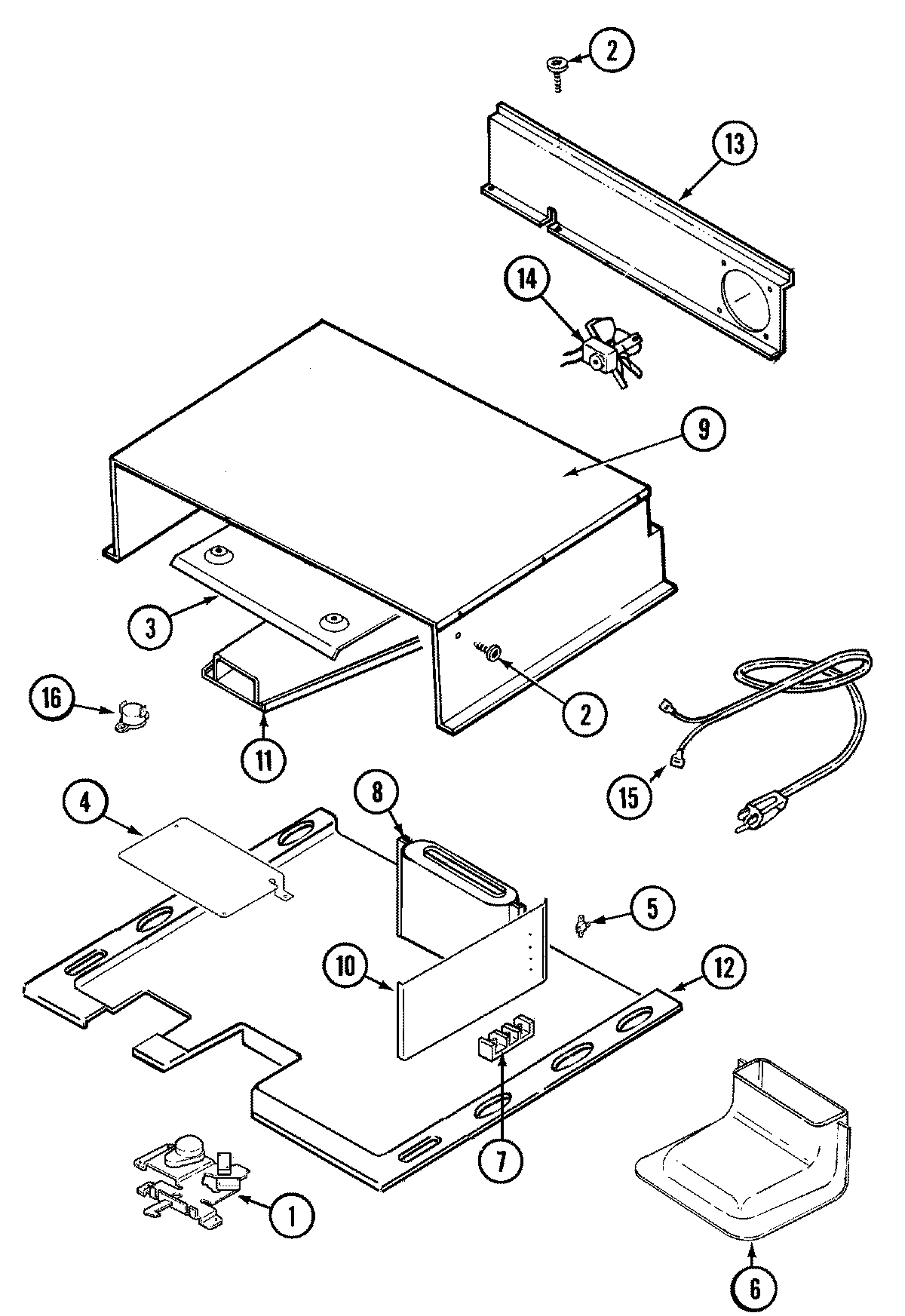

05 - INTERNAL CONTROLS

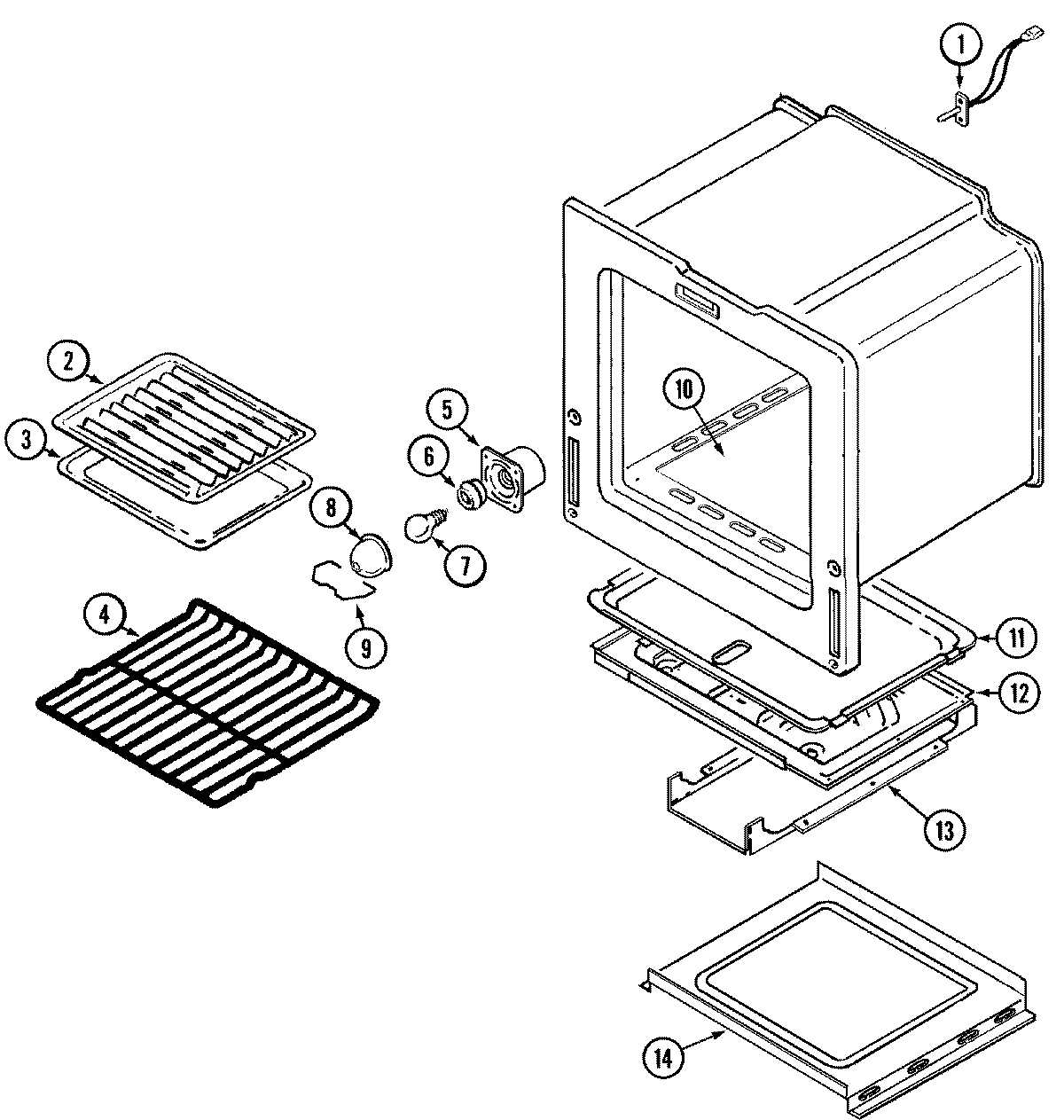

06 - OVEN/BASE

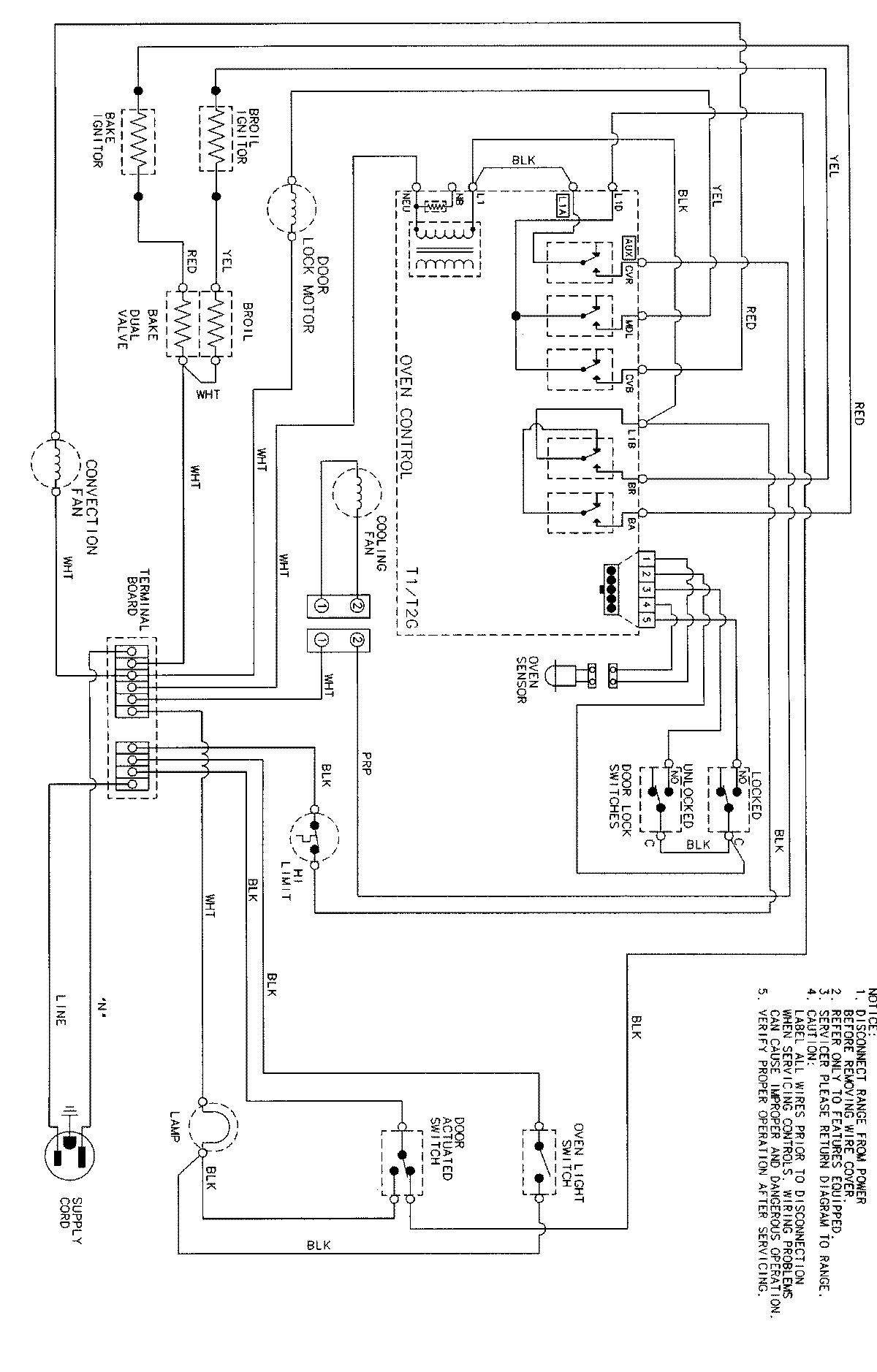

07 - WIRING INFORMATION

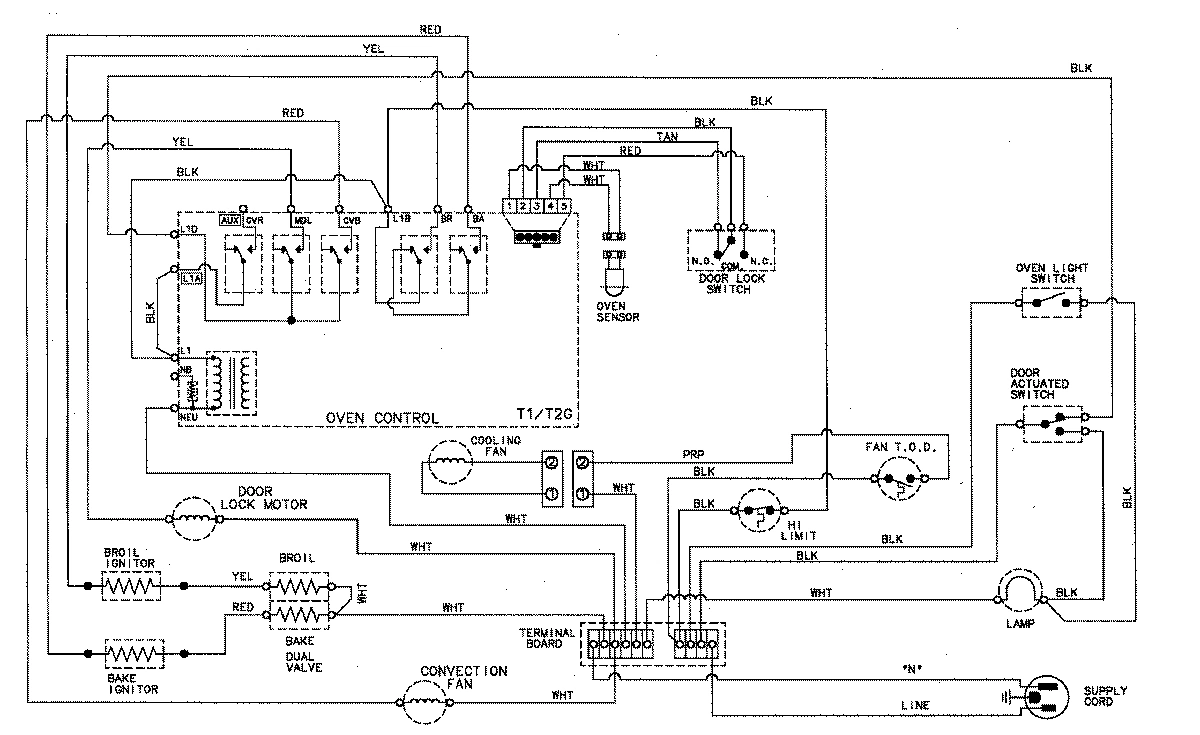

08 - WIRING INFORMATION
Common parts from model Maytag JGW8130ADB GAS WALL OVEN
1
MAY 74005575 MAY 74005575 Contact Us For Availability
1
MAY 71003494 MAY 71003494 Contact Us For Availability
1
MAY 74003642 MAY 74003642 Contact Us For Availability
1
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
1
MAY 74009231 MAY 74009231 Contact Us For Availability
1
MAY 74003559 MAY 74003559 Contact Us For Availability
1
MAY 74003560 MAY 74003560 Contact Us For Availability
1
MAY 74003413 MAY 74003413 Contact Us For Availability
2
MAY 71003495 MAY 71003495 Contact Us For Availability
2
MAY 74003643 MAY 74003643 Contact Us For Availability
2
MAY 3801F290-51 MAY 3801F290-51 Contact Us For Availability
2
MAY 71003638 MAY 71003638 Contact Us For Availability
2
MAY 7510P047-60 MAY 7510P047-60 Contact Us For Availability
2
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
3
MAY 7403P102-60 MAY 7403P102-60 Contact Us For Availability
3
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
3
NUT, SNAP (ROUND-BLK) MAY 74001574 Contact Us For Availability
3
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
3
MAY 71003008 MAY 71003008 Contact Us For Availability
3
MAY 3604F166-45 MAY 3604F166-45 Contact Us For Availability
3
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
4
SCREW (8ABX1/2``-BLK) MAY 790448 Contact Us For Availability
4
MAY 74004123 MAY 74004123 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
4
MAY 74003561 MAY 74003561 Contact Us For Availability
5
MAY 71003305 MAY 71003305 Contact Us For Availability
5
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
5
NUT, WING MAY 7103P030-60 Contact Us For Availability
5
MAY 7403P249-60 MAY 7403P249-60 Contact Us For Availability
5
MAY 74003388 MAY 74003388 Contact Us For Availability
6
MAY 74003387 MAY 74003387 Contact Us For Availability
6
MAY 74004133 MAY 74004133 Contact Us For Availability
6
MAY 74004134 MAY 74004134 Contact Us For Availability
6
MAY 74004135 MAY 74004135 Contact Us For Availability
6
MAY 74004136 MAY 74004136 Contact Us For Availability
6
MAY 71003496 MAY 71003496 Contact Us For Availability
6
FRAME, GLASS MAY 74003644 Contact Us For Availability
6
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
6
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
6
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
6
MAY 4006W117-45 MAY 4006W117-45 Contact Us For Availability
7
BAFFLE, OVEN FRONT MAY 74001219 Contact Us For Availability
7
MAY 71003497 MAY 71003497 Contact Us For Availability
7
MAY 7501P041-60 MAY 7501P041-60 Contact Us For Availability
7
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
8
MAY 4005F354-70 MAY 4005F354-70 Contact Us For Availability
8
MAY 4005F354-71 MAY 4005F354-71 Contact Us For Availability
8
MAY 71003498 MAY 71003498 Contact Us For Availability
8
MAY 74003646 MAY 74003646 Contact Us For Availability
8
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
8
MAY 74004138 MAY 74004138 Contact Us For Availability
8
MAY 74006346 MAY 74006346 Contact Us For Availability
8
MAY 4006D128-45 MAY 4006D128-45 Contact Us For Availability
8
MAY 74003389 MAY 74003389 Contact Us For Availability
9
MAY 74004130 MAY 74004130 Contact Us For Availability
9
MAY 74004131 MAY 74004131 Contact Us For Availability
9
INSULATION, OVEN DOOR MAY 74003647 Contact Us For Availability
9
MAY 4005F402-51 MAY 4005F402-51 Contact Us For Availability
9
MAY 74003391 MAY 74003391 Contact Us For Availability
10
MAY 12001323 MAY 12001323 Contact Us For Availability
10
MAY 74002109 MAY 74002109 Contact Us For Availability
10
MAY 74003648 MAY 74003648 Contact Us For Availability
10
MAY 74004137 MAY 74004137 Contact Us For Availability
10
MAY 74004127 MAY 74004127 Contact Us For Availability
10
MAY 5504A003-19 MAY 5504A003-19 Contact Us For Availability
11
MAY 74003036 MAY 74003036 Contact Us For Availability
11
MAY 71003499 MAY 71003499 Contact Us For Availability
11
MAY 74004141 MAY 74004141 Contact Us For Availability
11
MAY 74005475 MAY 74005475 Contact Us For Availability
11
GLASS, DOOR MAY 74003649 Contact Us For Availability
11
MAY 74004076 MAY 74004076 Contact Us For Availability
11
MAY 4006D101-45 MAY 4006D101-45 Contact Us For Availability
11
MAY 74004128 MAY 74004128 Contact Us For Availability
11
MAY 74001651 MAY 74001651 Contact Us For Availability
12
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
12
MAY 16009722 MAY 16009722 Contact Us For Availability
12
MAY 74003650 MAY 74003650 Contact Us For Availability
12
MAY 74006347 MAY 74006347 Contact Us For Availability
12
MAY 7507P067-60 MAY 7507P067-60 Contact Us For Availability
12
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
12
MAY 74004094 MAY 74004094 Contact Us For Availability
12
MAY 74004296 MAY 74004296 Contact Us For Availability
13
MAY 74004307 MAY 74004307 Contact Us For Availability
13
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
13
MAY 4001F083-51 MAY 4001F083-51 Contact Us For Availability
13
MAY 3807F429-51 MAY 3807F429-51 Contact Us For Availability
14
MAY 74001631 MAY 74001631 Contact Us For Availability
14
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
14
MAY 74001742 MAY 74001742 Contact Us For Availability
15
ROD, DOOR LIGHT SWITCH MAY 74003562 Contact Us For Availability
15
MAY 71003204 MAY 71003204 Contact Us For Availability
15
MAY 1555258K MAY 1555258K Contact Us For Availability
15
MAY 74004139 MAY 74004139 Contact Us For Availability
15
MAY 74006348 MAY 74006348 Contact Us For Availability
15
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
16
MAY 74006345 MAY 74006345 Contact Us For Availability
16
MAY 74001627 MAY 74001627 Contact Us For Availability
16
MAY 74001802 MAY 74001802 Contact Us For Availability
16
MAY 74001521 MAY 74001521 Contact Us For Availability
16
MAY 71003639 MAY 71003639 Contact Us For Availability
16
MAY 7501P116-60 MAY 7501P116-60 Contact Us For Availability
16
MAY 74004098 MAY 74004098 Contact Us For Availability
17
MAY 74001872 MAY 74001872 Contact Us For Availability
17
MAY 1555251 MAY 1555251 Contact Us For Availability
17
MAY 74004120 MAY 74004120 Contact Us For Availability
17
MAY 74009957 MAY 74009957 Contact Us For Availability
18
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
18
MAY 74004324 MAY 74004324 Contact Us For Availability
18
MAY 74004841 MAY 74004841 Contact Us For Availability
18
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
19
MAY 74003660 MAY 74003660 Contact Us For Availability
20
MAY 74003662 MAY 74003662 Contact Us For Availability
20
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
21
TAPE, FOIL 29`` X 2`` MAY 74003664 Contact Us For Availability
NI
MAY 15002559 MAY 15002559 Contact Us For Availability
NI
MAY 15002794 MAY 15002794 Contact Us For Availability
× ![]()
