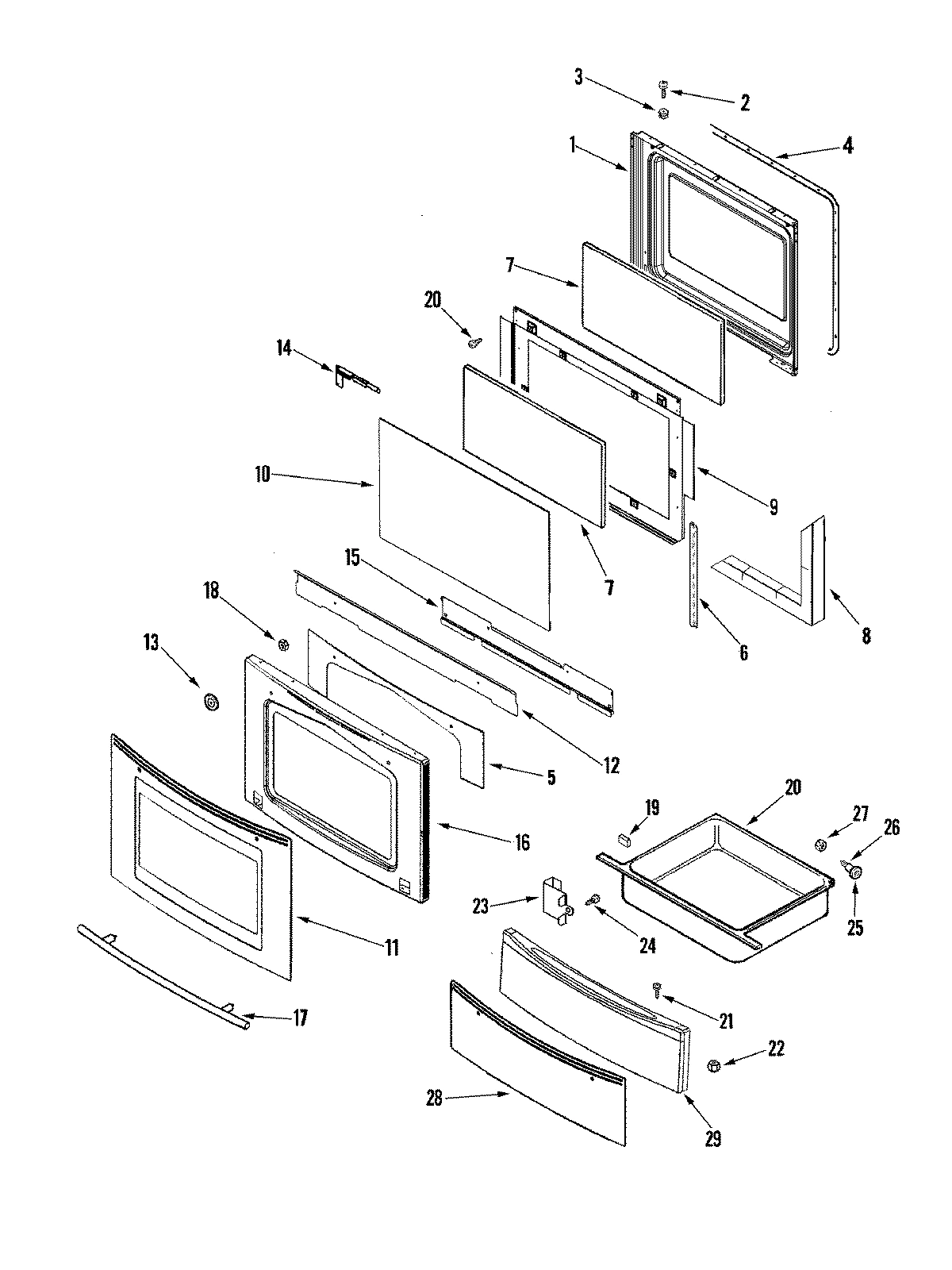

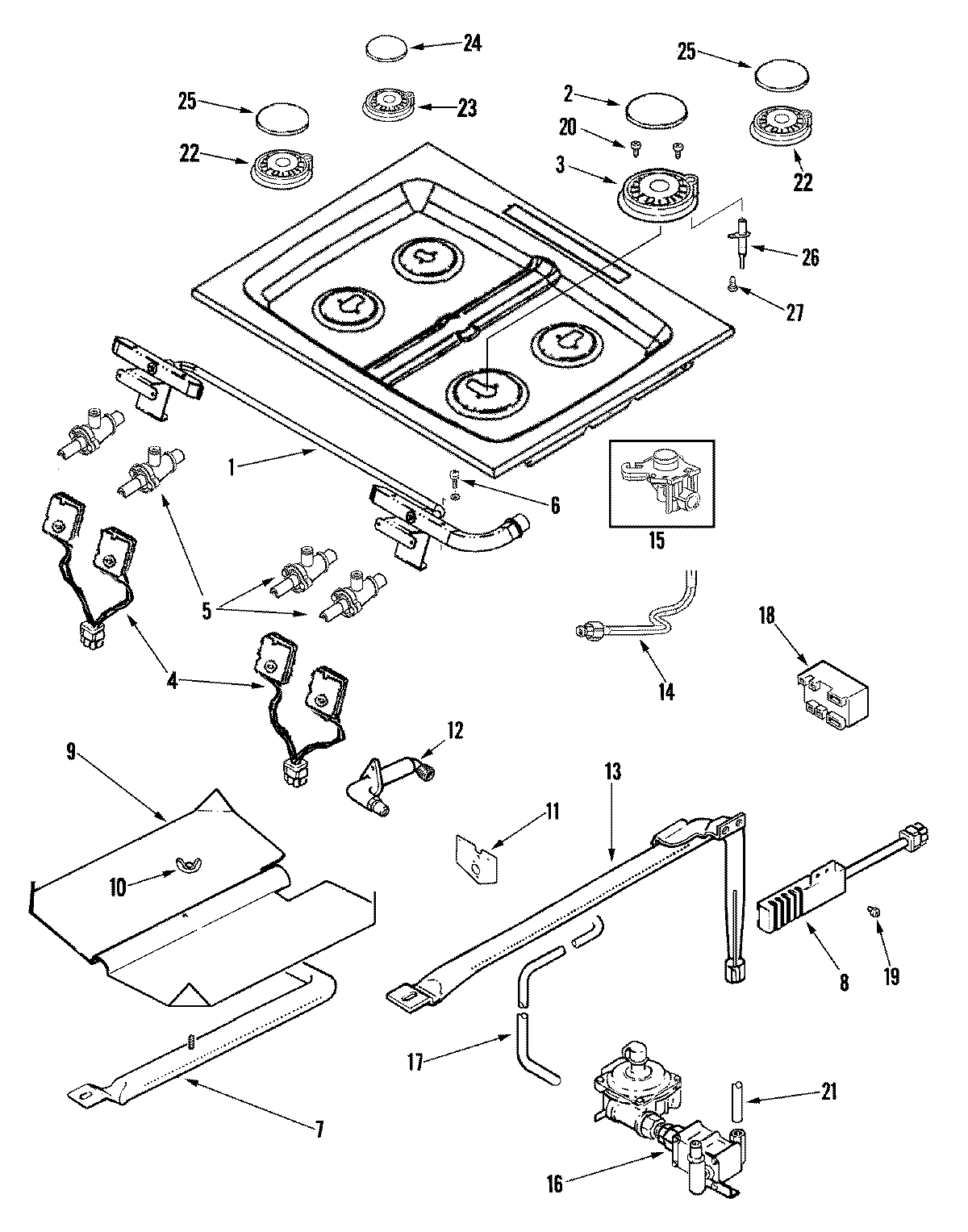

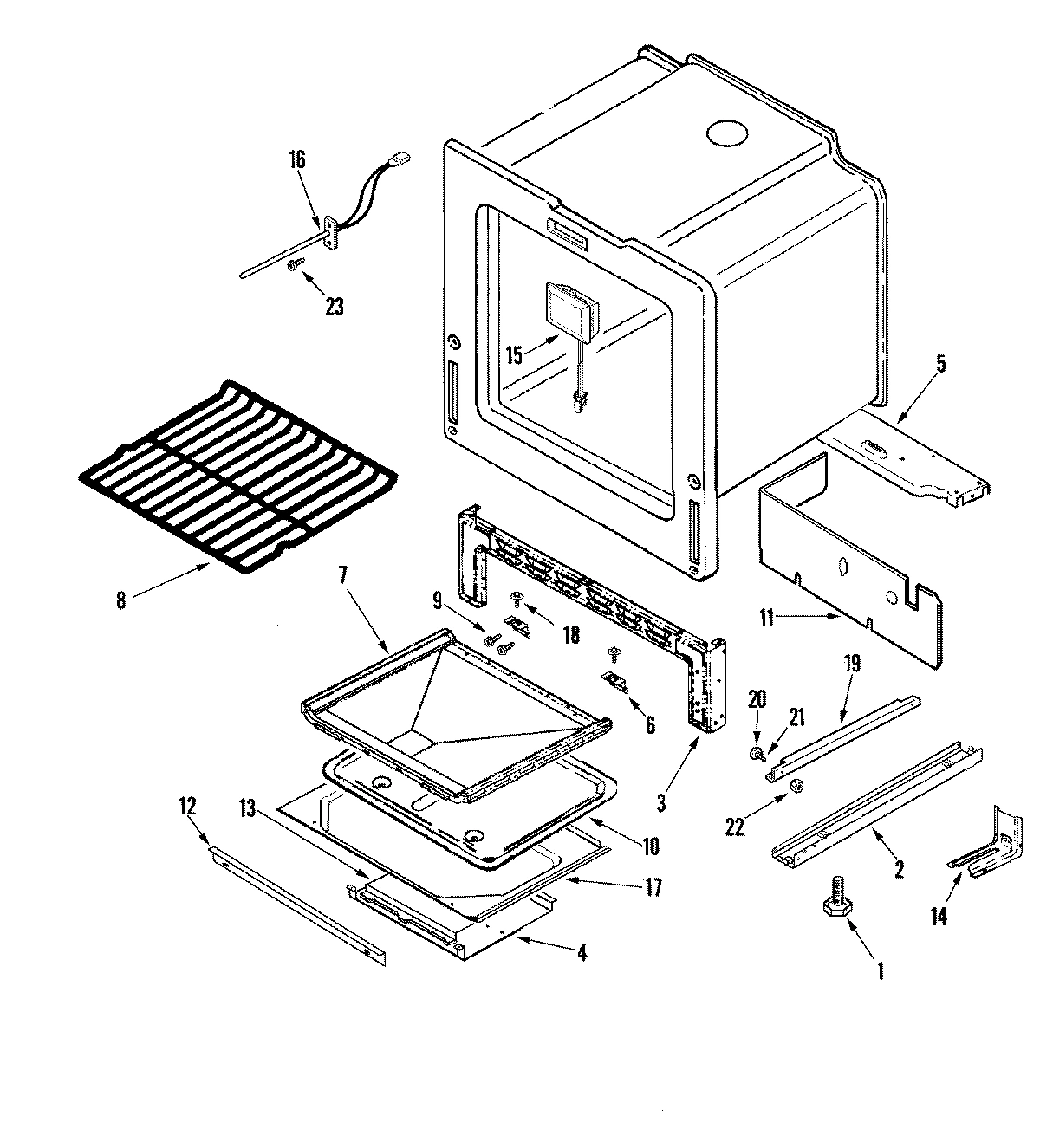

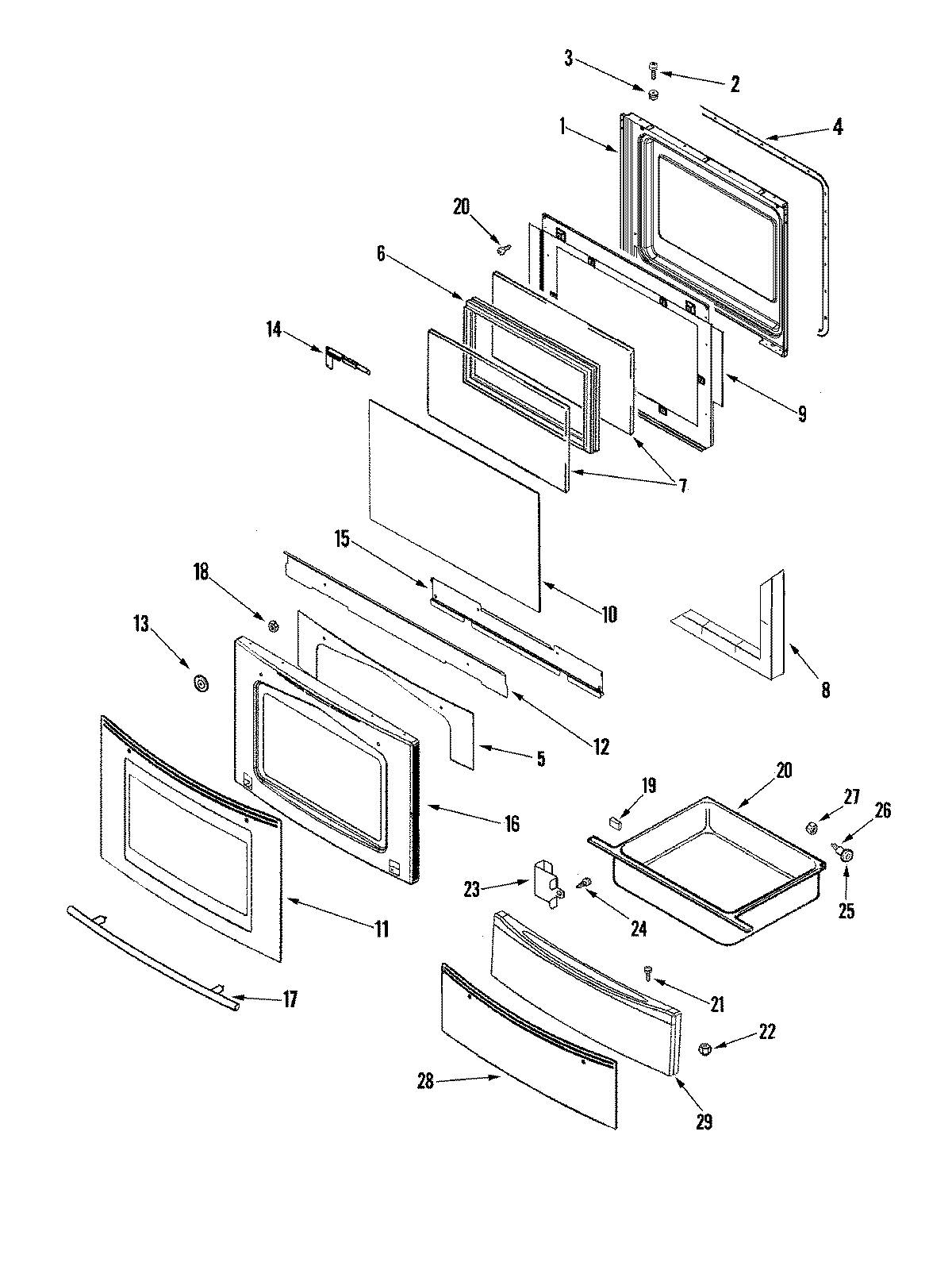

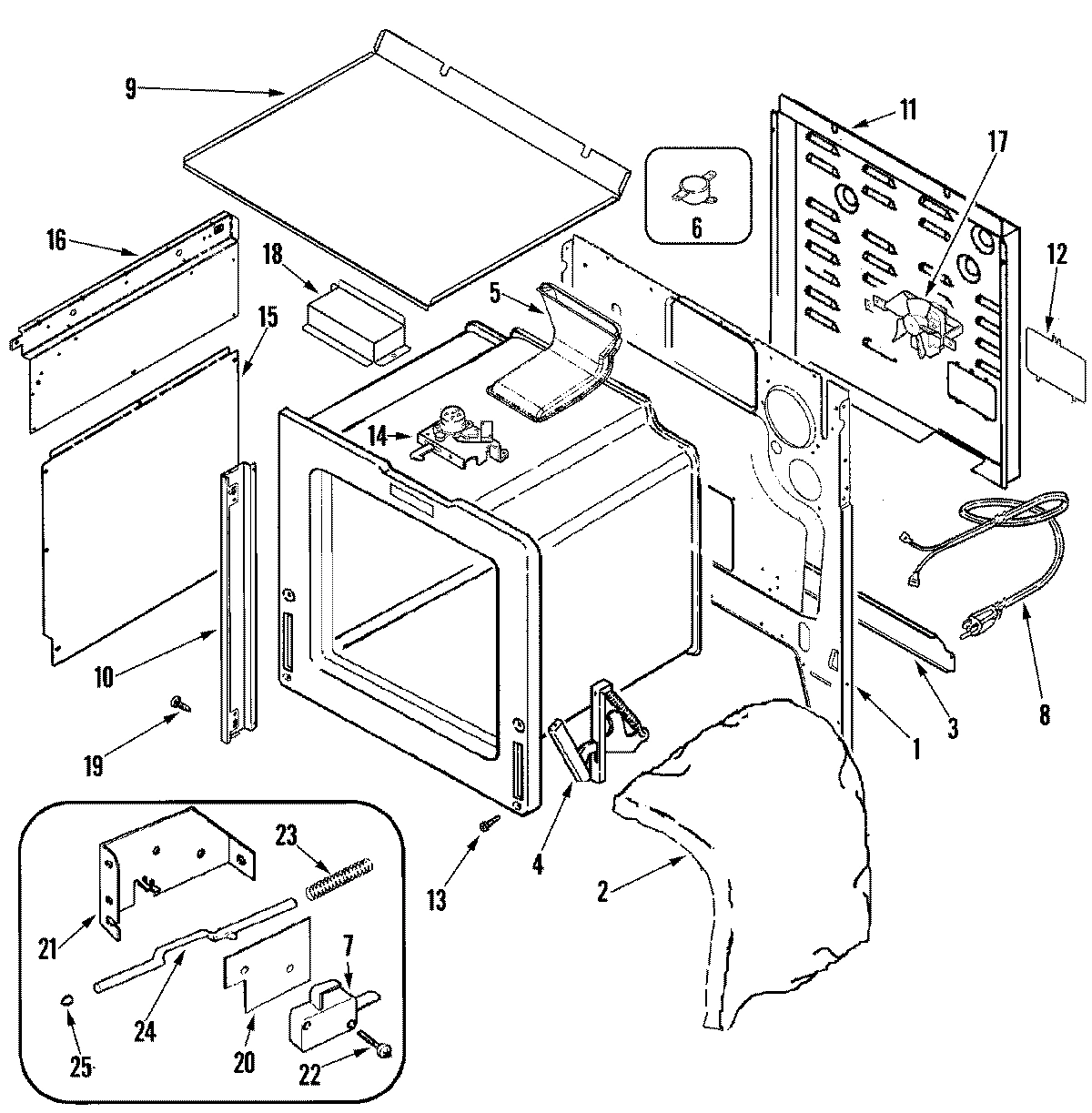

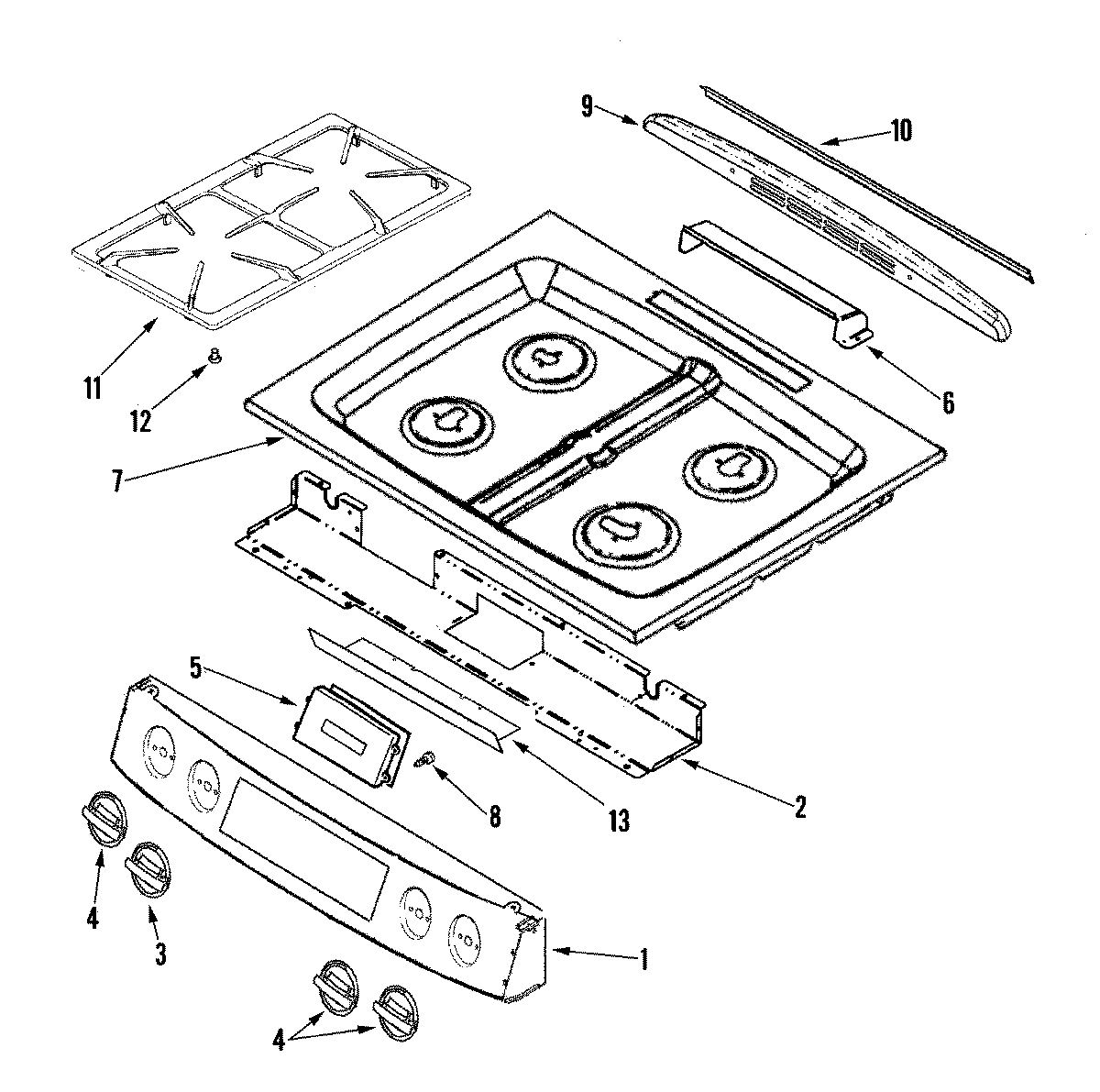

Model Whirlpool JGS8750BDS GAS RANGE – Common Parts &amp; Diagrams

1

WP74010805 Whirlpool Screw Backorder WPL WP74010805 $3.76

1

BACK, MAIN WPL 74011465 Contact Us For Availability

1

MANUAL, USE & CARE WPL 8113P52360 Contact Us For Availability

1

MANUAL USE & CARE WPL 8113P75960 Contact Us For Availability

1

CONTROL PANEL/SWITCH ASY (STL) WPL 74011709 Contact Us For Availability

1

LINING, DOOR WPL 74011456 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $45.94

2

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $2.68

2

INSULATION, WRAPPER WPL 74010987 Contact Us For Availability

2

HARNESS, MAIN WPL 74011562 Contact Us For Availability

2

SUPPORT, CONTROL PANEL WPL 74011761 Contact Us For Availability

2

CAP, BURNER (EX-LRG/BLK) WPL 74007750 Contact Us For Availability

3

74007736 Whirlpool Gas Range Cooktop Burner A In Stock WPL 74007736 $55.44

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.65

3

WP74011664 Whirlpool Burner Knob Backorder WPL WP74011664 $42.11

3

EXTENSION, MAIN BACK WPL 74010815 Contact Us For Availability

3

HARNESS, SENSOR WPL 74011499 Contact Us For Availability

3

PEDESTAL, FRONT WPL 74010882 Contact Us For Availability

4

74011475 Whirlpool Range Oven Door Hinge Asse In Stock WPL 74011475 $56.57

4

W10173471 Whirlpool Wire Harness Backorder WPL W10173471 $14.23

4

WP74011647 Whirlpool HAR Switch Backorder WPL WP74011647 $84.49

4

WP74011648 Whirlpool Harsh Switch Backorder WPL WP74011648 $83.13

4

WP74011666 Whirlpool Burner Knob In Stock WPL WP74011666 $18.31

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

4

SHIELD, WARMING DRAWER WPL 74006591 Contact Us For Availability

5

12002270 Whirlpool Valve Kit and Screw 16K Backorder WPL 12002270 $120.76

5

VENT WPL 74010959 Contact Us For Availability

5

KIT, LP ORIFICE WPL 74011053 Contact Us For Availability

5

CONTROL WPL 74011720 Contact Us For Availability

5

INSULATION, DOOR WPL 74011509 Contact Us For Availability

5

SUPPORT, VALVE REGULATOR WPL 74007129 Contact Us For Availability

5

VALVE, 5K (MUELLER) WPL 74009451 Contact Us For Availability

5

VALVE, 9K (MUELLER) WPL 74009452 Contact Us For Availability

6

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

6

7450P030-60 Whirlpool Limit Switch Backorder WPL 7450P030-60 $39.43

6

BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability

6

SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability

6

SCREW WPL 74009416 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $96.11

7

MK71FILLS Whirlpool Filler Kit Backorder WPL MK71FILLS $44.19

7

WP2205F054-19 Whirlpool Range Bottom Backorder WPL WP2205F054-19 $387.12

7

WP7450P108-60 Whirlpool Lite Switch Backorder WPL WP7450P108-60 $62.74

7

TOP ASY (STL) WPL 74011700 Contact Us For Availability

7

BURNER, BROIL WPL 74004076 Contact Us For Availability

8

74007498 Whirlpool Range Flat Igniter In Stock WPL 74007498 $35.10

8

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $2.55

8

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.57

8

CORD, POWER WPL 74004295 Contact Us For Availability

8

KIT, SIDE PANEL (CHR) WPL UXA1100AAS Contact Us For Availability

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $114.68

9

BOTTOM, BURNER BOX WPL 74011857 Contact Us For Availability

9

COVER, VENT (BLK) WPL 74011826 Contact Us For Availability

9

BAFFLE, BROIL BURNER WPL 74009231 Contact Us For Availability

GASKET WPL 7201P06160 Contact Us For Availability

GLASS, DOOR (INNER/COATED) WPL 74010231 Contact Us For Availability

PAN, BAKE BURNER WPL 74004465 Contact Us For Availability

NUT, WING WPL 7103P03060 Contact Us For Availability

GRATE (BLK) WPL 74011706 Contact Us For Availability

GLASS ASY, DOOR (STL) WPL 74011542 Contact Us For Availability

COVER, VALVE/REGULATOR WPL 74005465 Contact Us For Availability

PLATE, BROIL FITTING WPL 74004307 Contact Us For Availability

W10841140 Whirlpool Dishwasher Adhesive In Stock WPL W10841140 $8.16

W10919249 Whirlpool Burner Grate Foot In Stock WPL W10919249 $5.05

WP74010901 Whirlpool Broil Fitting Assembly Backorder WPL WP74010901 $33.28

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

SHIELD, DOOR WPL 74011049 Contact Us For Availability

BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability

WASHER, HANDLE WPL 74009194 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

INSULATOR, SHIELD WPL 74011825 Contact Us For Availability

SHIELD, HEAT POUCH WPL 74006574 Contact Us For Availability

SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability

BURNER, BAKE WPL 74003960 Contact Us For Availability

74010819 Whirlpool Latch Assembly Backorder WPL 74010819 $158.50

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.20

RETAINER, GLASS (RT) WPL 74011463 Contact Us For Availability

RETAINER, GLASS (LT) WPL 74011797 Contact Us For Availability

TUBING, BURNER (RF) WPL 74011653 Contact Us For Availability

TUBING, BURNER (RR) WPL 74011703 Contact Us For Availability

TUBING, BURNER (LR) WPL 74011704 Contact Us For Availability

TUBING, BURNER (LF) WPL 74011705 Contact Us For Availability

74009553 Whirlpool Orifice Holder In Stock WPL 74009553 $43.92

WP7527P002-60 Whirlpool Orifice Holder In Stock WPL WP7527P002-60 $33.07

WP7527P004-60 Whirlpool Orifice Holder Backorder WPL WP7527P004-60 $41.35

LIGHT ASY, HAL0GEN WPL 74011220 Contact Us For Availability

SHEILD, LOWER SIDE WPL 74010905 Contact Us For Availability

RETAINER, GLASS (LWR) WPL 74011464 Contact Us For Availability

12001655 Whirlpool Oven Sensor In Stock WPL 12001655 $19.87

W10130932 Whirlpool Regulator Valve Backorder WPL W10130932 $183.81

PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability

FRAME, DOOR (BLK) WPL 74011507 Contact Us For Availability

WP74008625 Whirlpool Door Handle Backorder WPL WP74008625 $110.43

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $138.66

RETAINER, BOTTOM INSULATION WPL 74009480 Contact Us For Availability

INSULATION, OVEN BOTTOM WPL 74010986 Contact Us For Availability

TUBING (3/8``) WPL 74004408 Contact Us For Availability

WP3400029 Whirlpool Dishwasher Nut In Stock WPL WP3400029 $3.70

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

WPW10475147 Whirlpool Spark Module In Stock WPL WPW10475147 $154.61

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

19

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.28

19

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

19

SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

DRAWER, STORAGE WPL 74008333 Contact Us For Availability

INSULATOR WPL 74008264 Contact Us For Availability

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.55

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability

TUBING, SUPPLY WPL 74011658 Contact Us For Availability

22

74007735 Whirlpool Burner Assembly In Stock WPL 74007735 $63.64

22

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

22

SCREW----NA WPL 22002368 Contact Us For Availability

74007734 Whirlpool Burner Assembly In Stock WPL 74007734 $53.44

SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability

BRACKET, DRAWER WPL 74010896 Contact Us For Availability

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

24

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

24

WP8284669 Whirlpool Burner Cap Backorder WPL WP8284669 $38.38

24

ROD, DOOR LIGHT SWITCH WPL 74003562 Contact Us For Availability

25

BUMPER, ROD WPL 74001631 Contact Us For Availability

25

CAP, BURNER (MED-BLK) WPL 74007749 Contact Us For Availability

26

WP74009336 Whirlpool Oven Top Igniter In Stock WPL WP74009336 $14.95

27

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

27

NUT WPL 7103P08260 Contact Us For Availability

28

WPW10297248 Whirlpool Drawer Panel Backorder WPL WPW10297248 $153.85

28

SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability

29

WP2416F086-70 Whirlpool Panel Assembly Backorder WPL WP2416F086-70 $92.53

NI

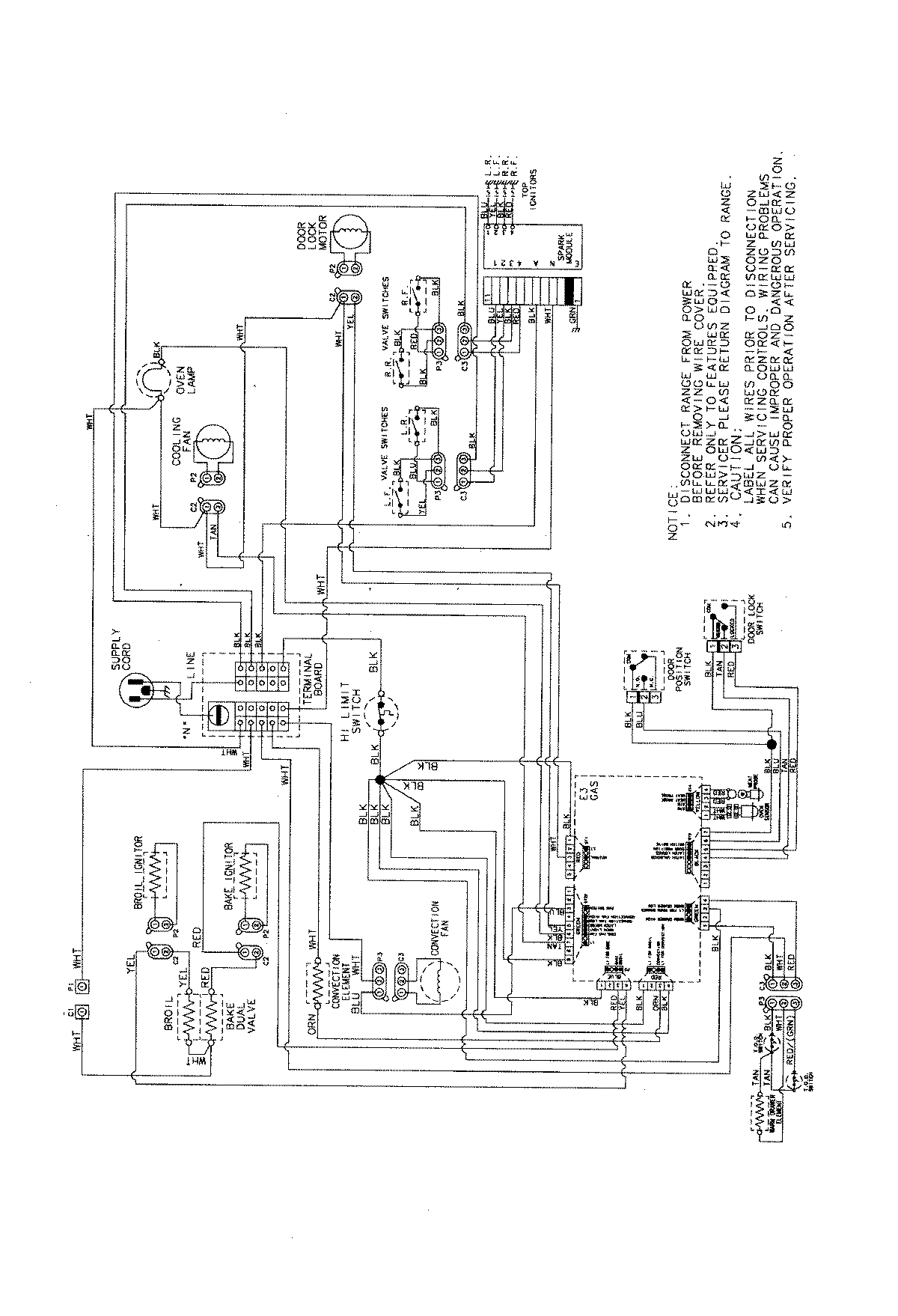

WIRING INFORMATION WPL 15003888 Contact Us For Availability
