Model Whirlpool JGS1450FS1 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH – Common Parts & Diagrams

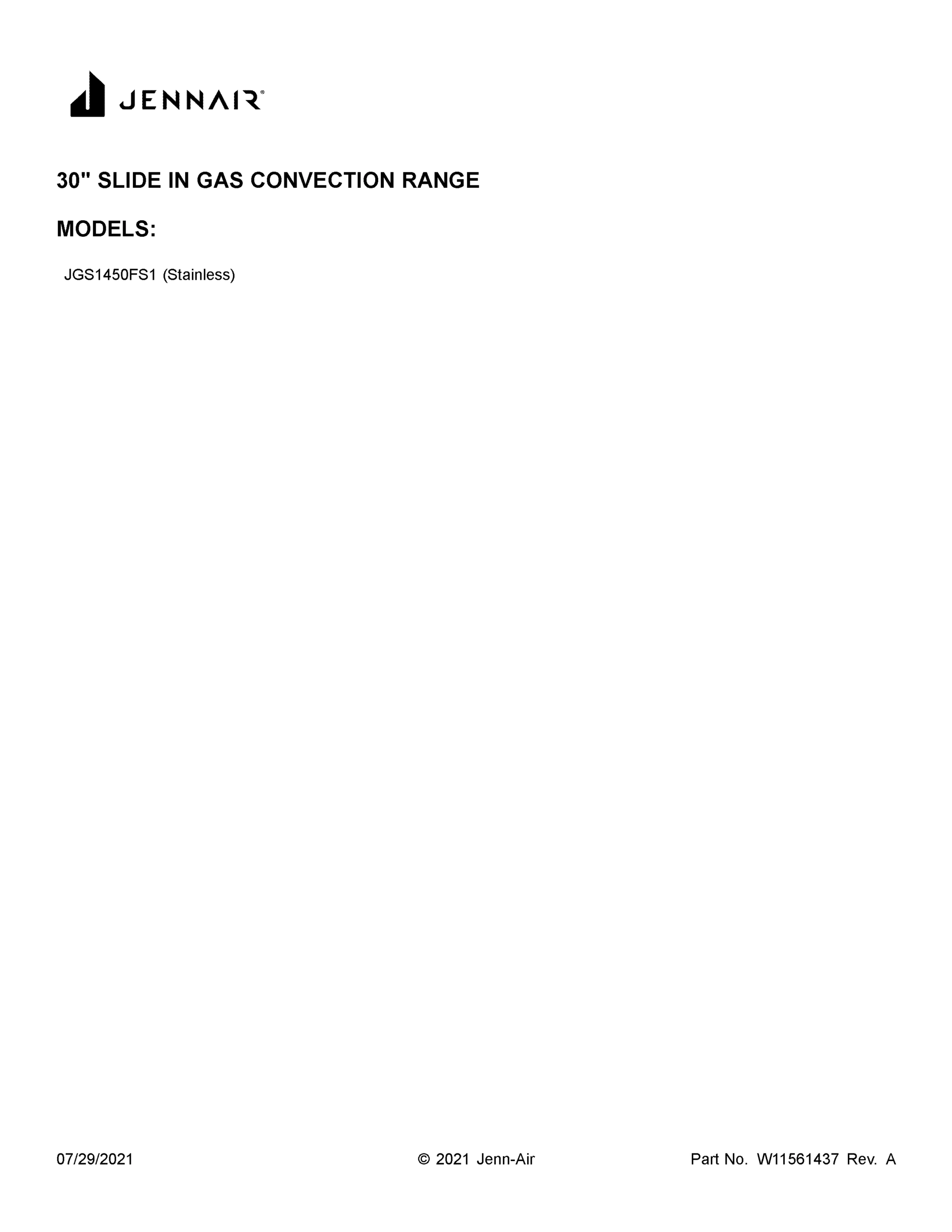

01 - COVER SHEET

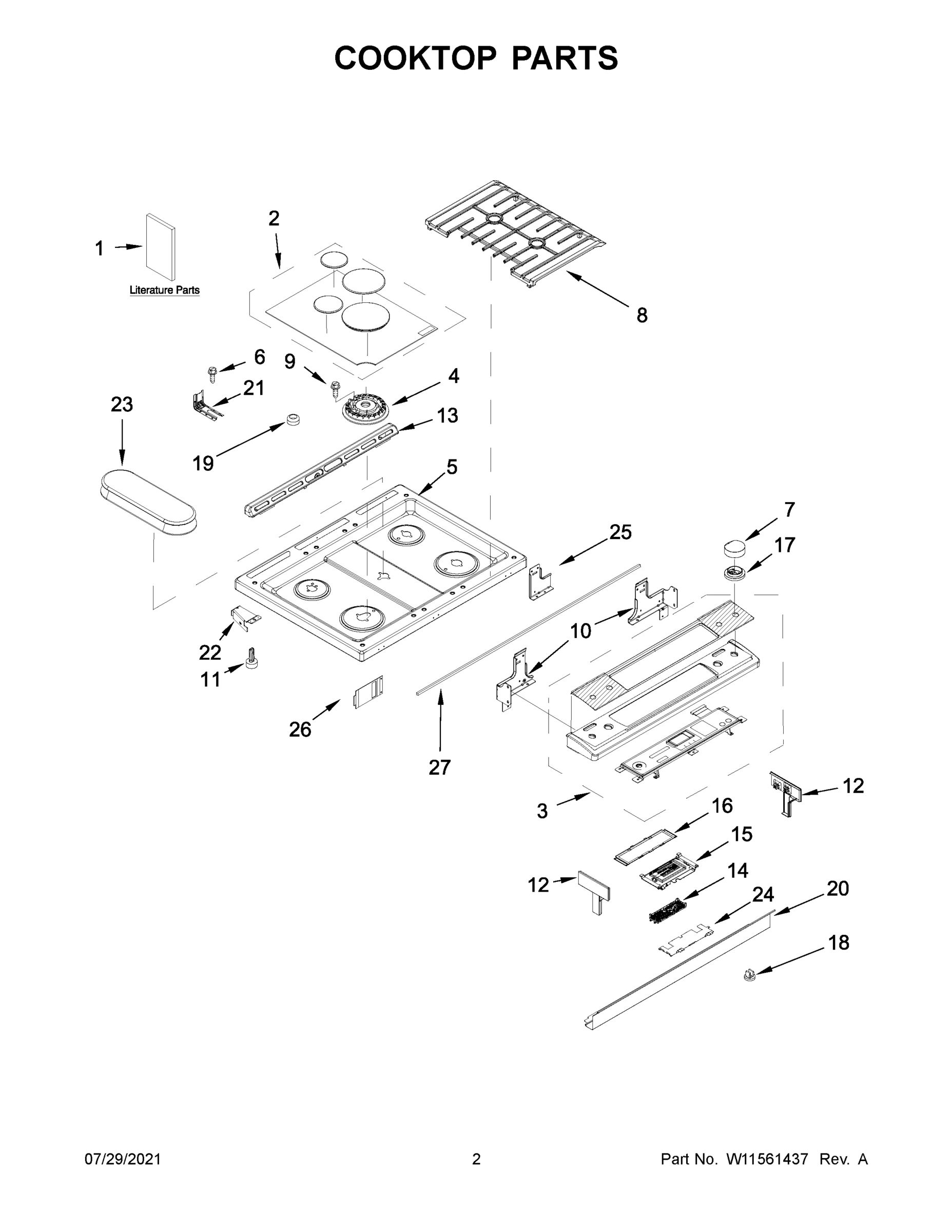

02 - COOKTOP PARTS

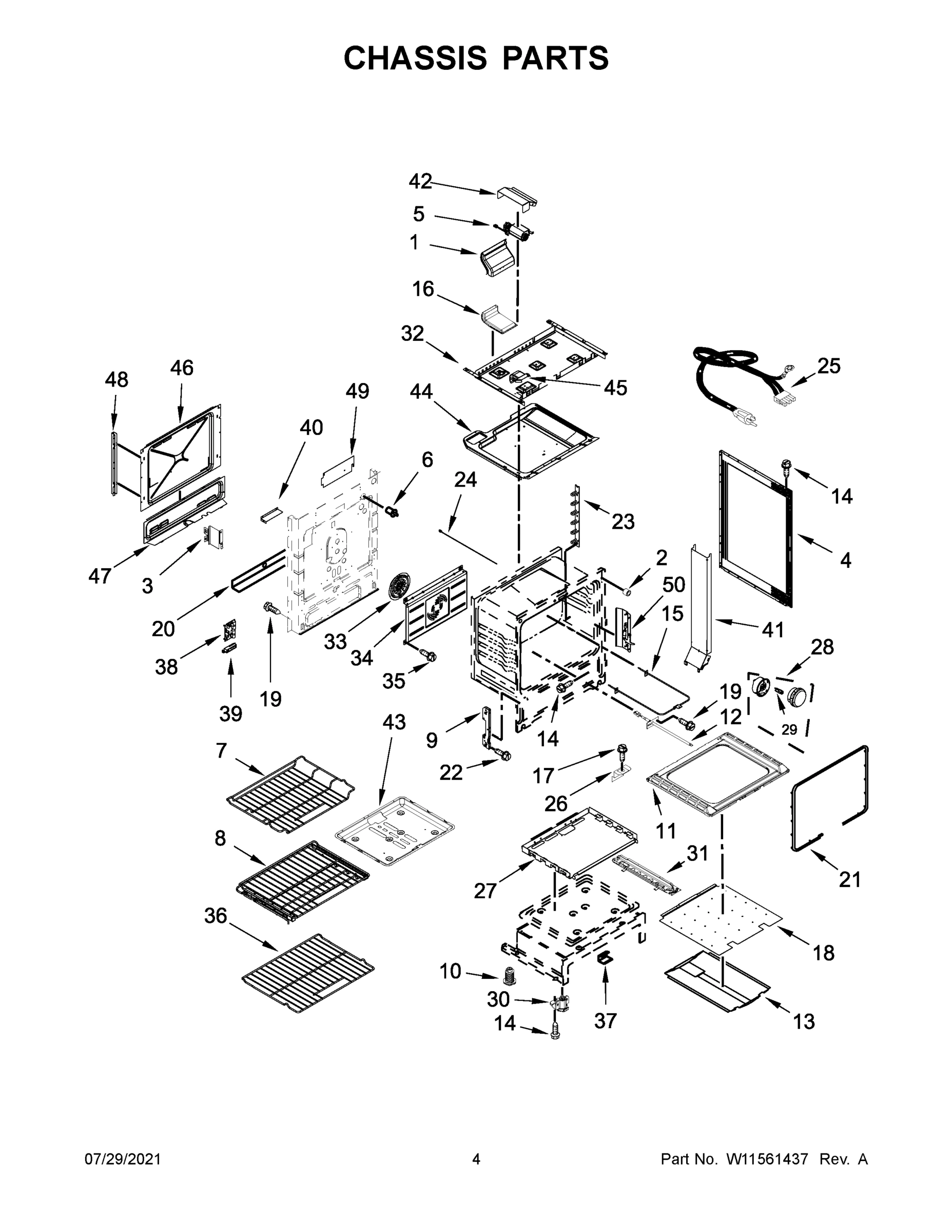

03 - CHASSIS PARTS

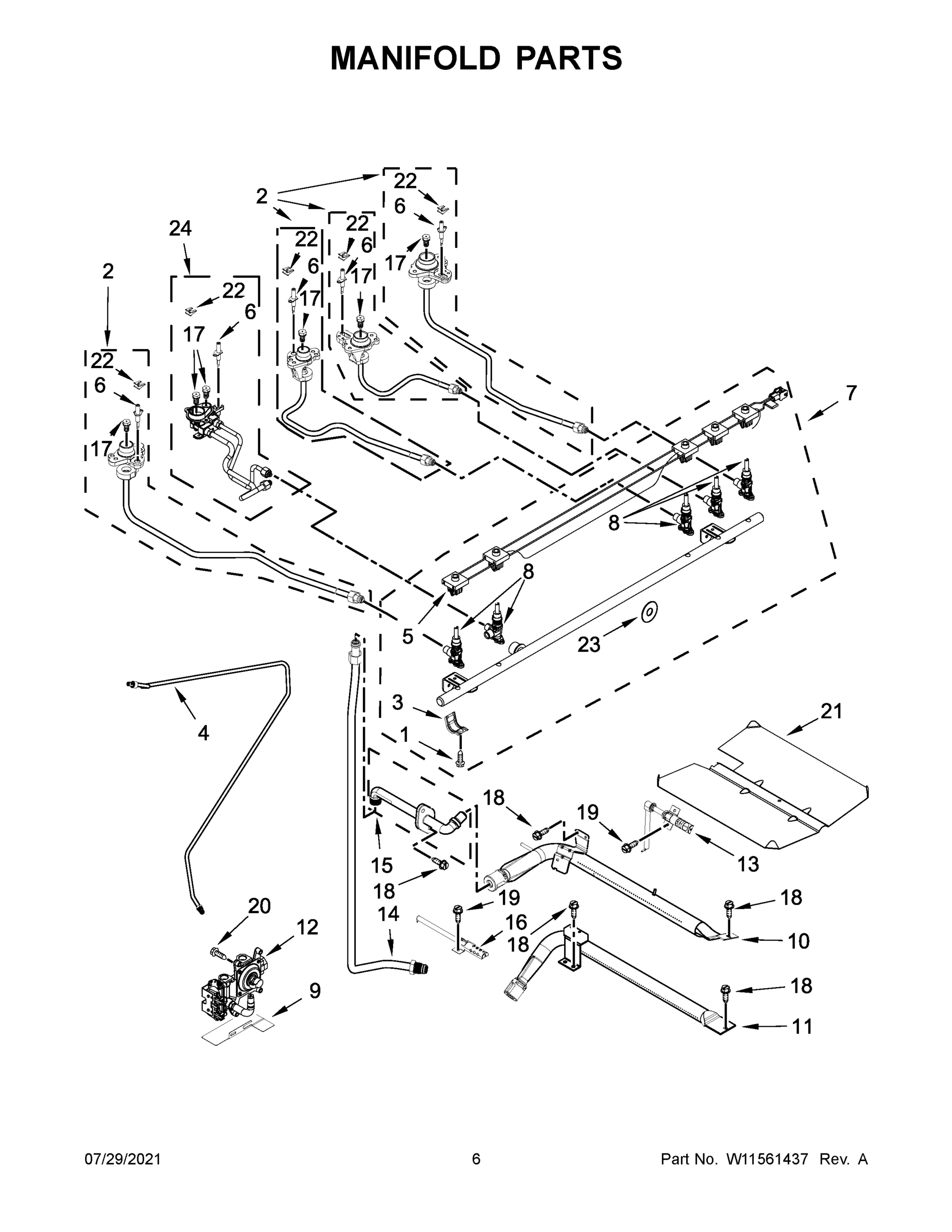

04 - MANIFOLD PARTS

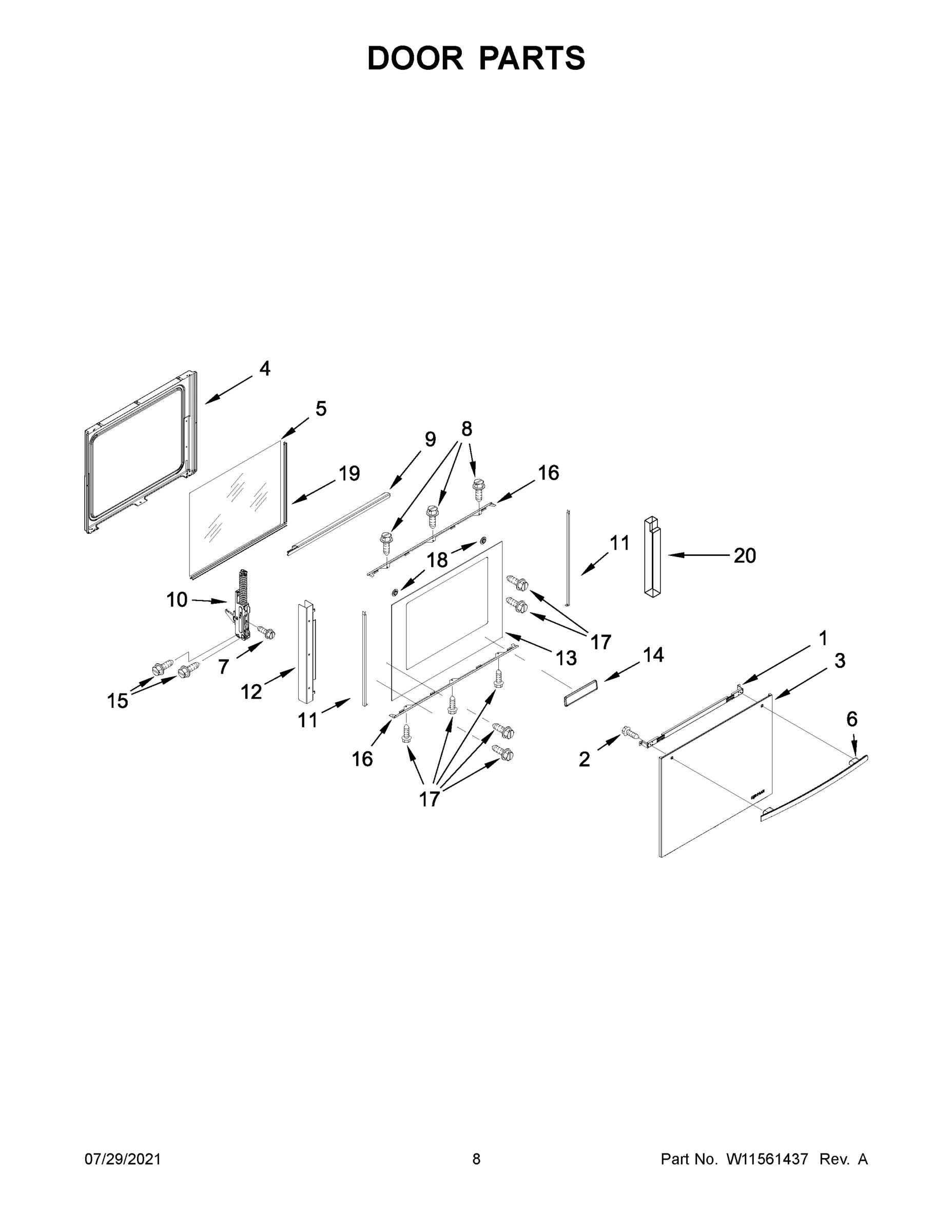

05 - DOOR PARTS

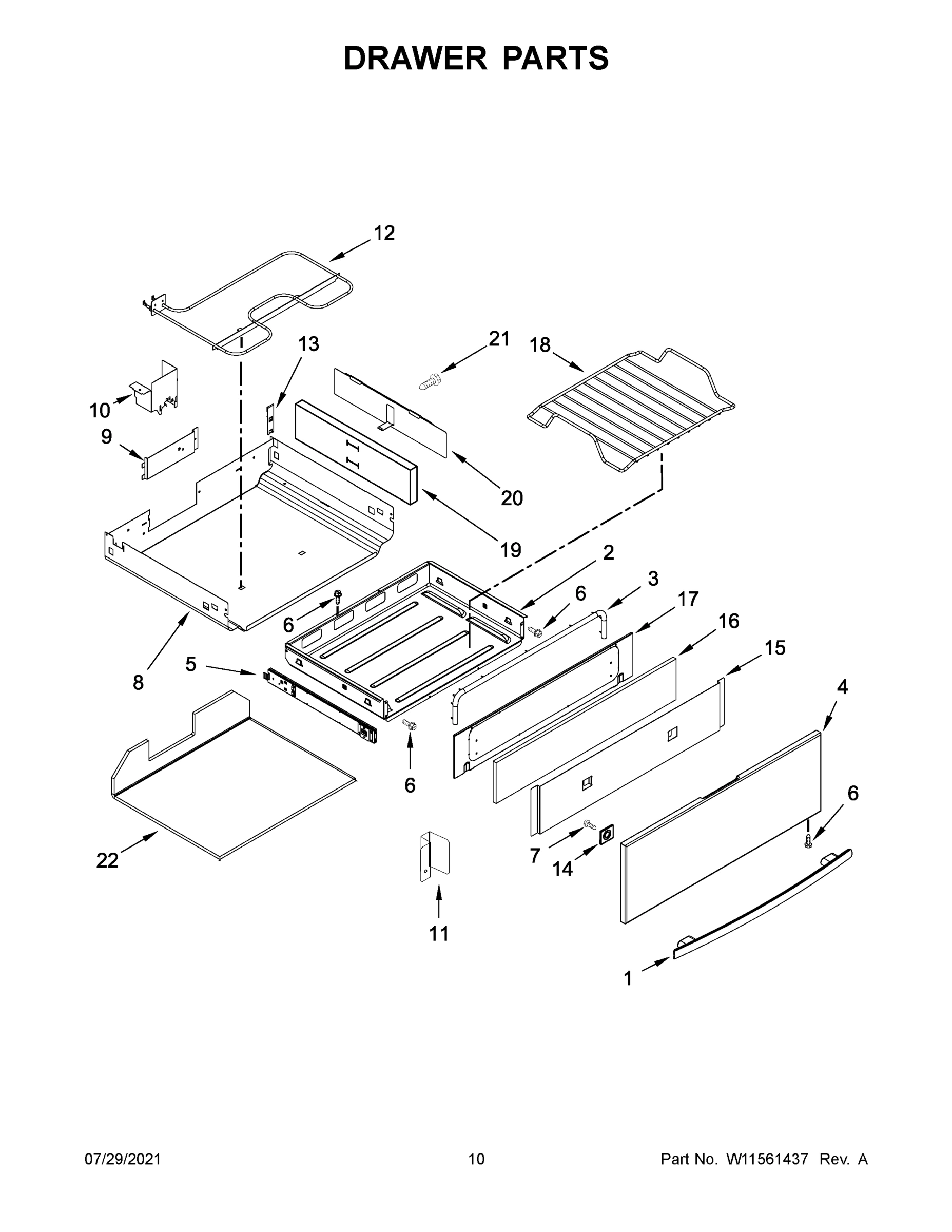

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool JGS1450FS1 RANGE/OVEN, GAS, SLIDE-IN, 30 INCH
1
BRACKET, GLASS UPPER HANDLE WPL W10541911 Contact Us For Availability
2
ASSEMBLY, ORIFICE (15K) (RIGHT FRONT) WPL W10552131 Contact Us For Availability
2A
ASSEMBLY, ORIFICE (9.2K) (RIGHT REAR) WPL W10552130 Contact Us For Availability
2C
ASSEMBLY, ORIFICE (8K) (CENTER) WPL W10552137 Contact Us For Availability
3
SEAL, DRAWER WPL W10550987 Contact Us For Availability
3
BRACKET, OVEN SUPPORT WPL W10273002 Contact Us For Availability
4
PANEL, DRAWER FRONT (STAINLESS) WPL W10541958 Contact Us For Availability
4
TUBE, GAS SUPPLY WPL W10432252 Contact Us For Availability
4A
SPREADER, FLAME (RIGHT REAR) WPL W10556377 Contact Us For Availability
4B
SPREADER, FLAME (LEFT REAR) WPL W10556379 Contact Us For Availability
4C
SPREADER, FLAME (LEFT FRONT) WPL W10556380 Contact Us For Availability
5
HARNESS, SPARK SWITCH WPL W10468433 Contact Us For Availability
8
ENCLOSURE, WARMING WPL W10634260 Contact Us For Availability
8B
VALVE, GAS (LEFT REAR) WPL W10831589 Contact Us For Availability
8C
VALVE, GAS (DUAL) (LEFT FRONT) WPL W10566038 Contact Us For Availability
9
HINGE, RECEIVER WPL W10634238 Contact Us For Availability
9
BRACKET, AEGIS WPL W10224921 Contact Us For Availability
10
SUPPORT, COOKTOP (LEFT) WPL W10289170 Contact Us For Availability
10A
SUPPORT, COOKTOP (RIGHT) WPL W10289169 Contact Us For Availability
12
ELEMENT, BAKE WPL W10541944 Contact Us For Availability
12
ENDCAP (STAINLESS (LEFT)) WPL W10557751 Contact Us For Availability
12A
ENDCAP (STAINLESS (RIGHT)) WPL W10557754 Contact Us For Availability
13
TRIM, VENT (STAINLESS) WPL W10577782 Contact Us For Availability
14
TUBE, BROIL SUPPLY (BROILER FITTING TO VALVE) WPL W10306050 Contact Us For Availability
15
FITTING, BROIL BURNER WPL W10583216 Contact Us For Availability
15
ELEMENT, BROIL ASSIST WPL W10552502 Contact Us For Availability
15
INSULATION, DRAWER FRONT WPL W10551018 Contact Us For Availability
16
RAIL, HORIZONTAL SUPPORT WPL W10813140 Contact Us For Availability
17
PANEL, FRONT INNER WPL W10541947 Contact Us For Availability
17C
ORIFICE (19K) (LEFT FRONT) WPL W10566082 Contact Us For Availability
17D
ORIFICE (8K) (CENTER) WPL W10657947 Contact Us For Availability
18
DIFFUSER, FLAME WPL W10323077 Contact Us For Availability
18
RACK, BAKE DRAWER WPL W10602493 Contact Us For Availability
20
RETAINER, SIDE INSULATION WPL W10550985 Contact Us For Availability
20
PANEL, LOWER CONSOLE (STAINLESS) WPL W10565662 Contact Us For Availability
20
BRACE, MAIN BACK WPL W10435470 Contact Us For Availability
22
BRACE, CORNER (LEFT) WPL W10162253 Contact Us For Availability
22A
BRACE, CORNER (RIGHT) WPL W10162252 Contact Us For Availability
23
SPREADER, FLAME (FISH) WPL W10556376 Contact Us For Availability
23
SEAL, SWITCH SHAFT WPL W10140571 Contact Us For Availability
23
RACK, LADDER WPL W10603482 Contact Us For Availability
24
BRACKET, CONTROL WPL W10558372 Contact Us For Availability
24
ASSEMBLY, ORIFICE (19K) WPL W10552135 Contact Us For Availability
25
CORD, POWER WPL W10889764 Contact Us For Availability
25
BRACKET, CONSOLE (CENTER) WPL W10598048 Contact Us For Availability
26
SUPPORT, OVEN BOTTOM WPL W10035900 Contact Us For Availability
27
SHIELD, BAKE WPL W10541959 Contact Us For Availability
32
BURNER, BOX GAS WPL W10558276 Contact Us For Availability
37
CLIP, PANEL WPL W10137382 Contact Us For Availability
41
DUCT, COOLING WPL W10162254 Contact Us For Availability
43
PAN, BAKE WPL W11379356 Contact Us For Availability
44
BOX, BURNER SI WPL W10289168 Contact Us For Availability
46
COVER, BACK WPL W11379354 Contact Us For Availability
47
COVER, WIRE WPL W10162249 Contact Us For Availability
48
CHANNEL, REAR WPL W10162241 Contact Us For Availability
50
RECEIVER, SLOW CLOSE HINGE WPL W10605411 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP WPL W10355051 Contact Us For Availability
NI
WPL W10675028 WPL W10675028 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANERS AND POLISHES, KIT, WPL 31605 Contact Us For Availability
NI
GRIDDLE WPL W10432544 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING WPL W10355049 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
NI
WPL WA906B WPL WA906B Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP WPL 31463A Contact Us For Availability
NI
ACCES WPL W10675026 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN AND ROASTI WPL W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINL WPL W10655450 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, GRILL WPL W10432545 Contact Us For Availability
NI
WPL W10675027 WPL W10675027 Contact Us For Availability
NI
WPL W10731887 WPL W10731887 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING WPL W10391473 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN WPL 31617A Contact Us For Availability
NI
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE WPL W10275756 Contact Us For Availability
NI
HARNESS, BAKE/WARM DRAWER WPL W10580265 Contact Us For Availability
NI
WPL W10731886 WPL W10731886 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK) WPL W10655449 Contact Us For Availability
NI
WIRE, GROUND WPL W10580229 Contact Us For Availability
NI
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE) WPL W10655448 Contact Us For Availability
NI
WPL W10731885 WPL W10731885 Contact Us For Availability
× ![]()
