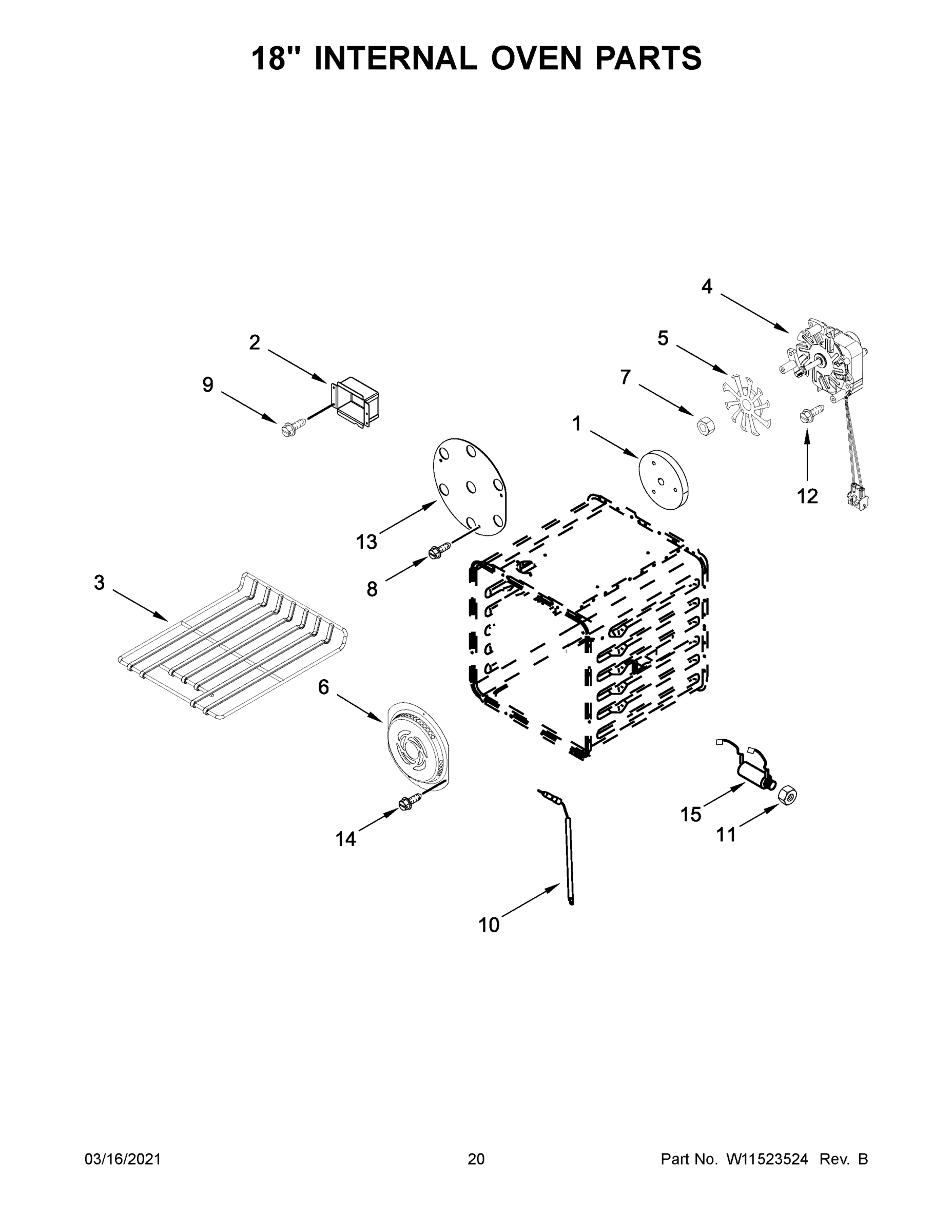

Model Whirlpool JGRP748HL01 RANGE/OVEN, GAS, PROFESSIONAL-STYLE, 48 INCH – Common Parts &amp; Diagrams

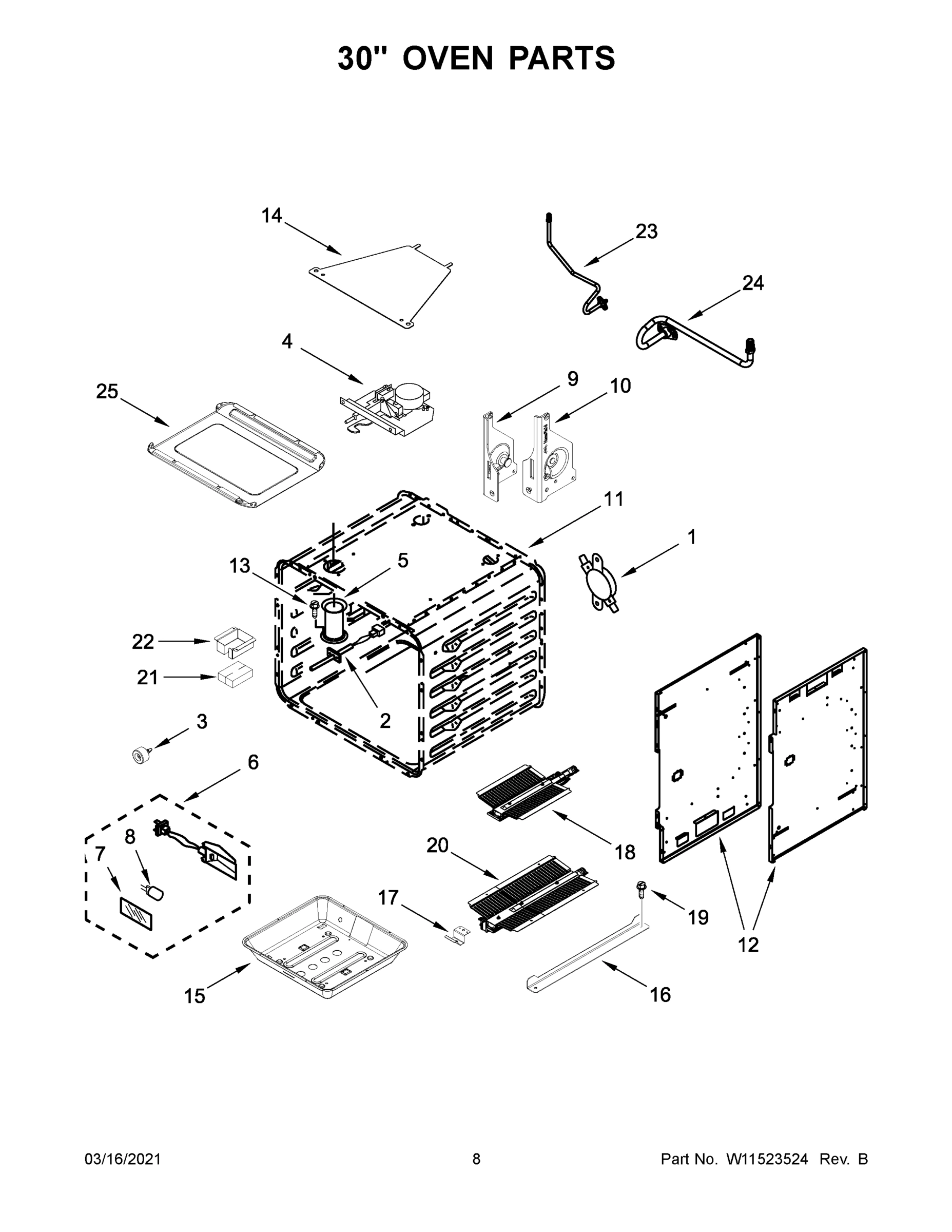

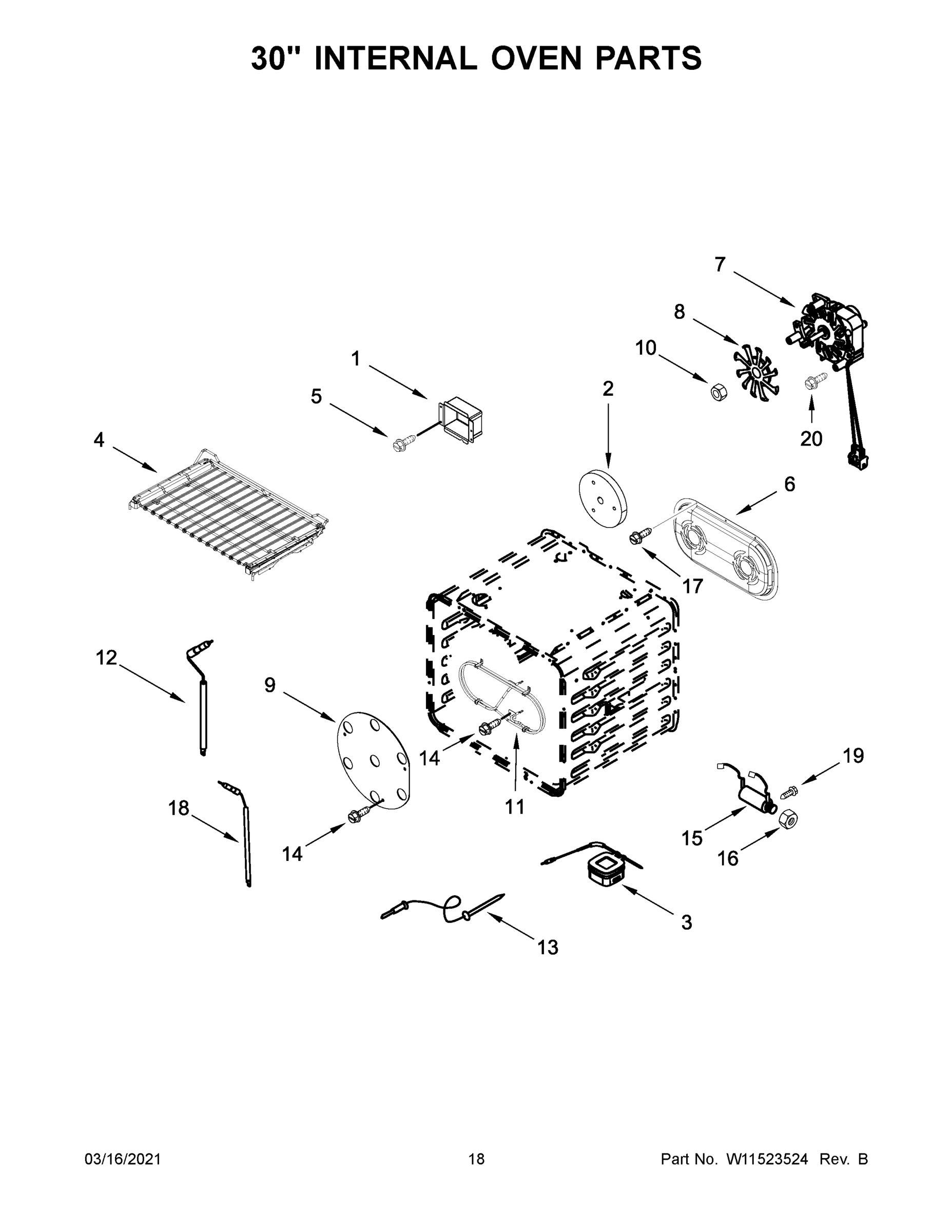

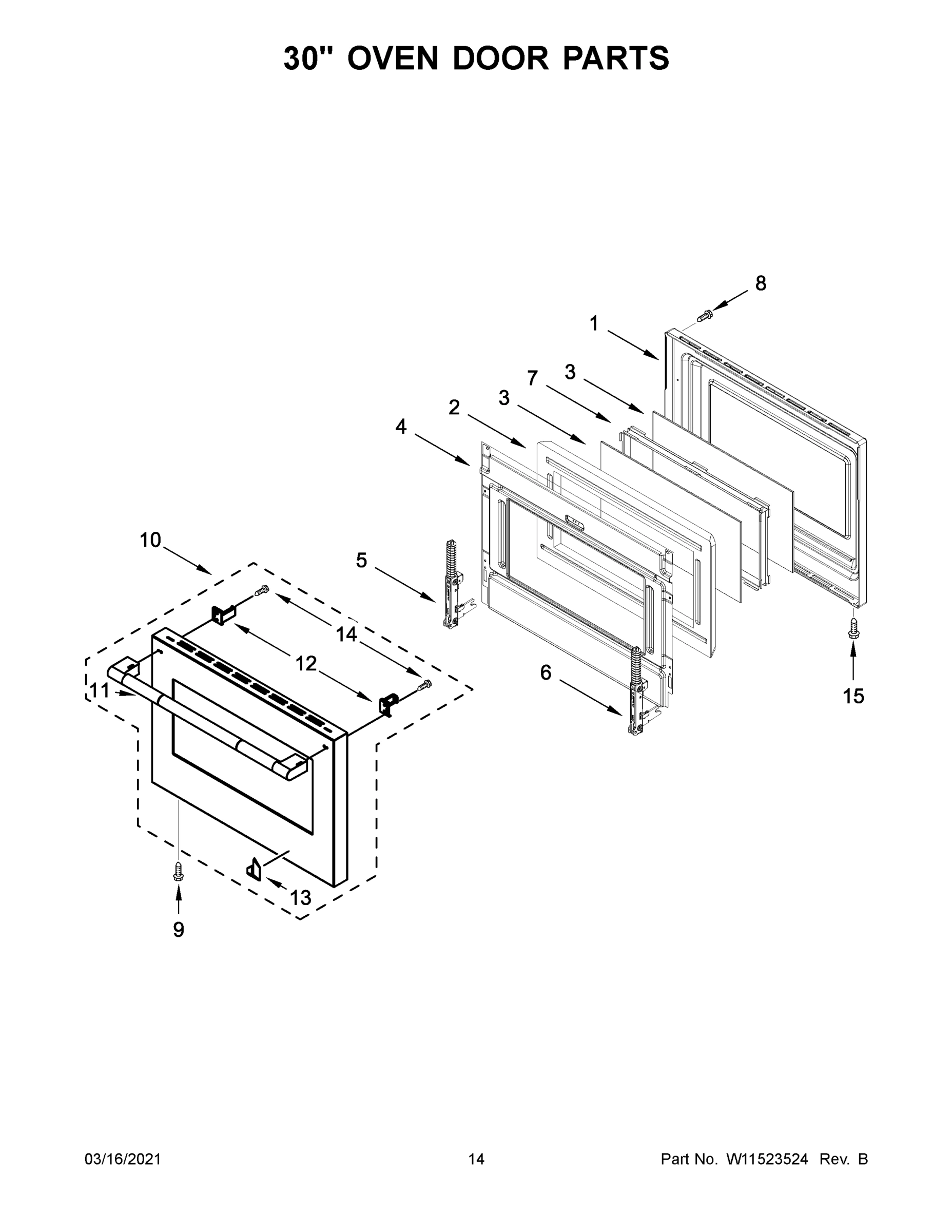

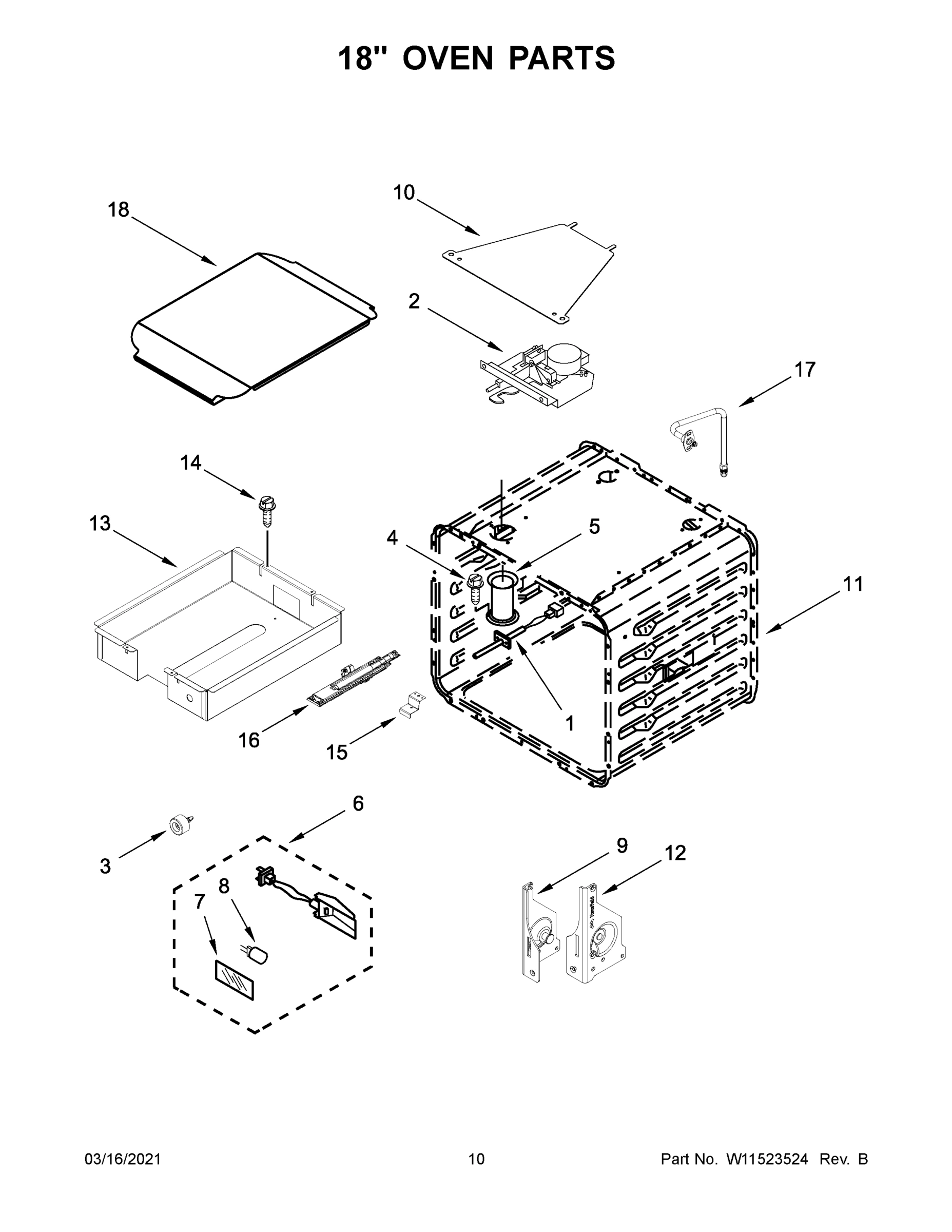

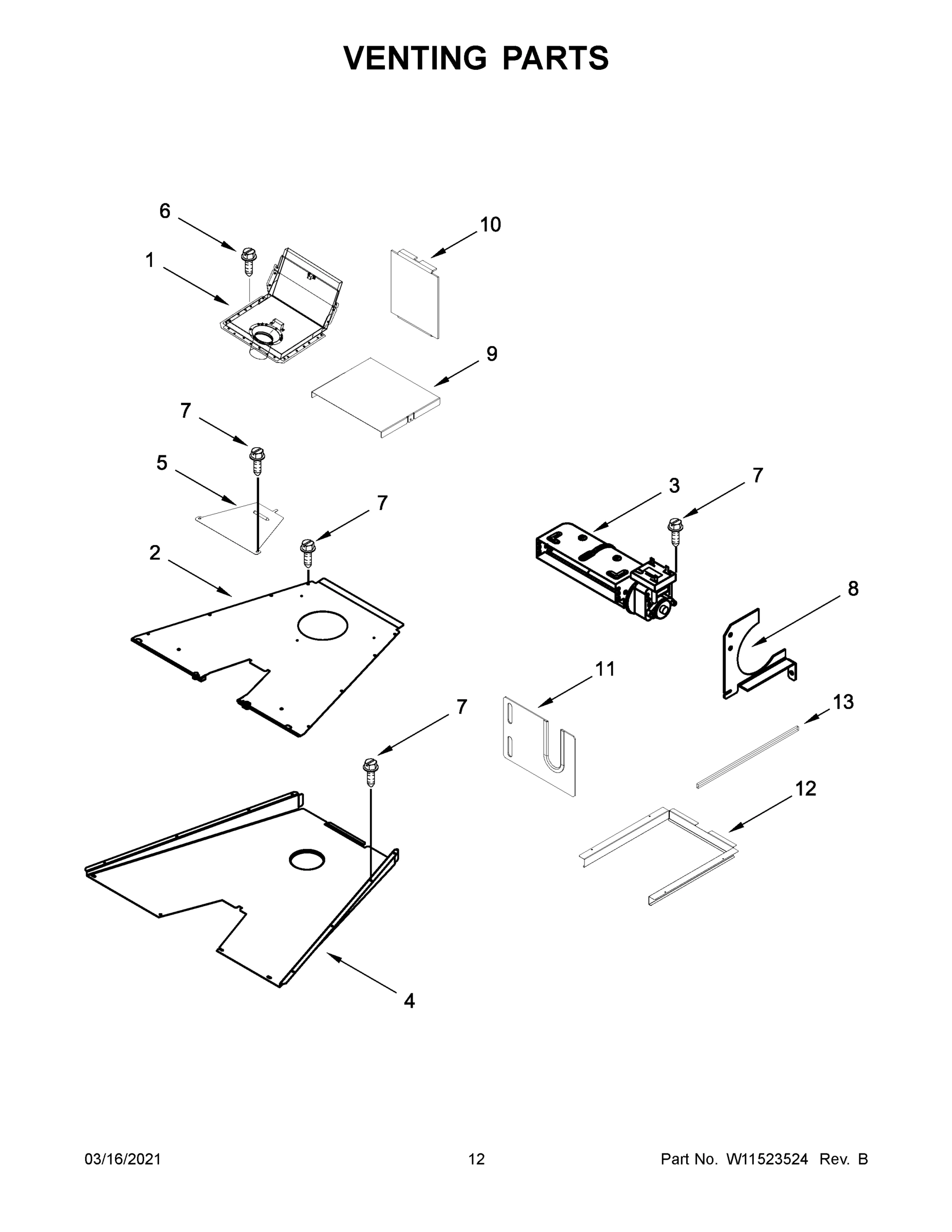

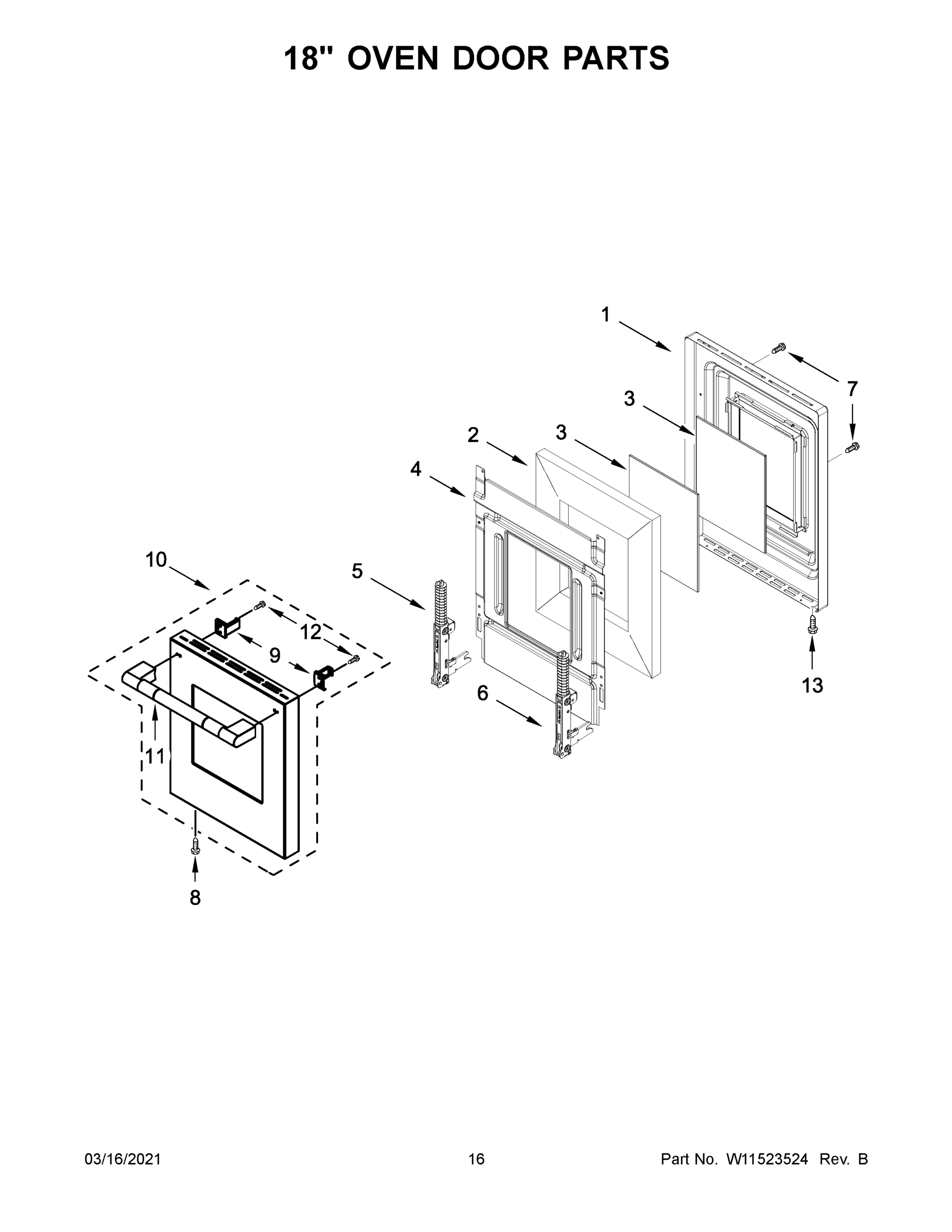

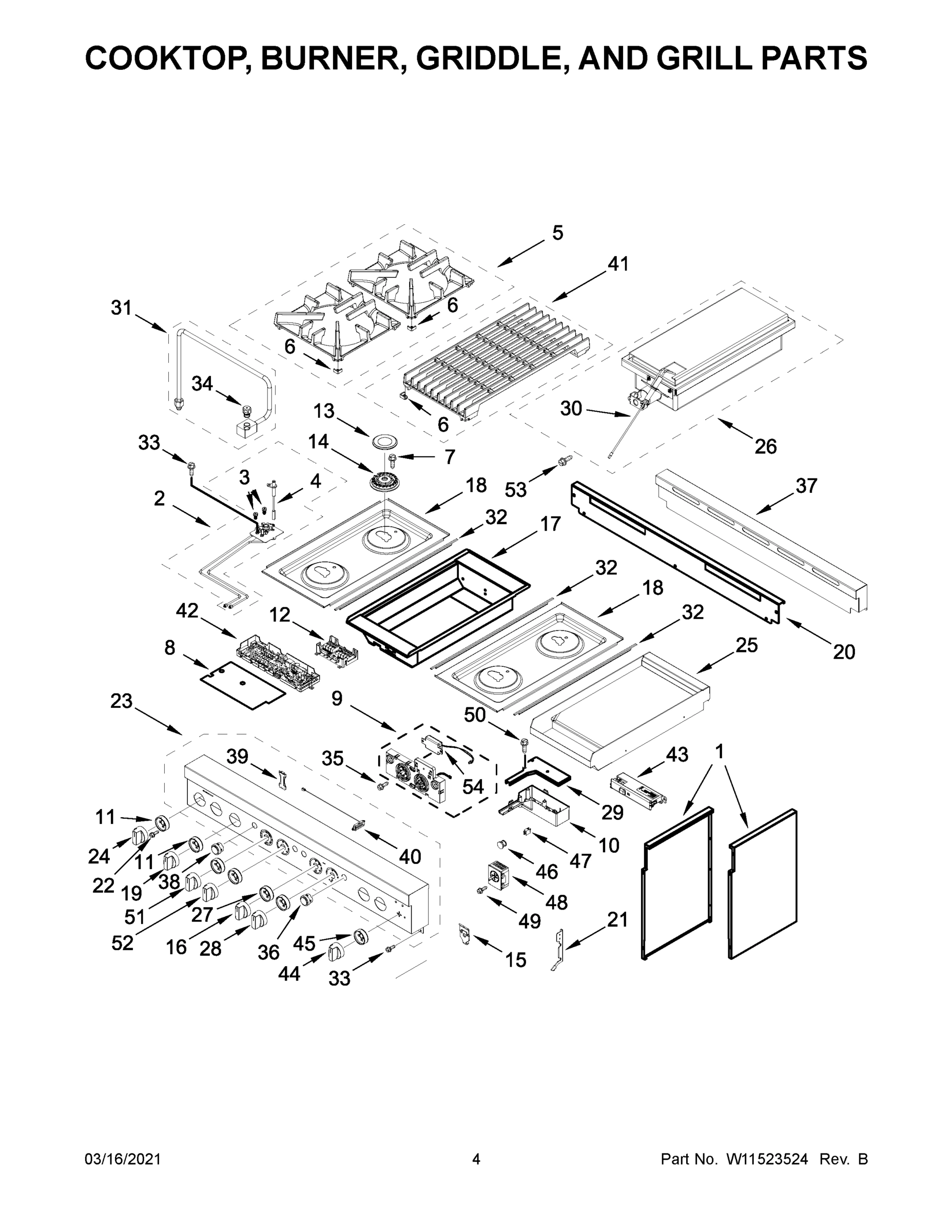

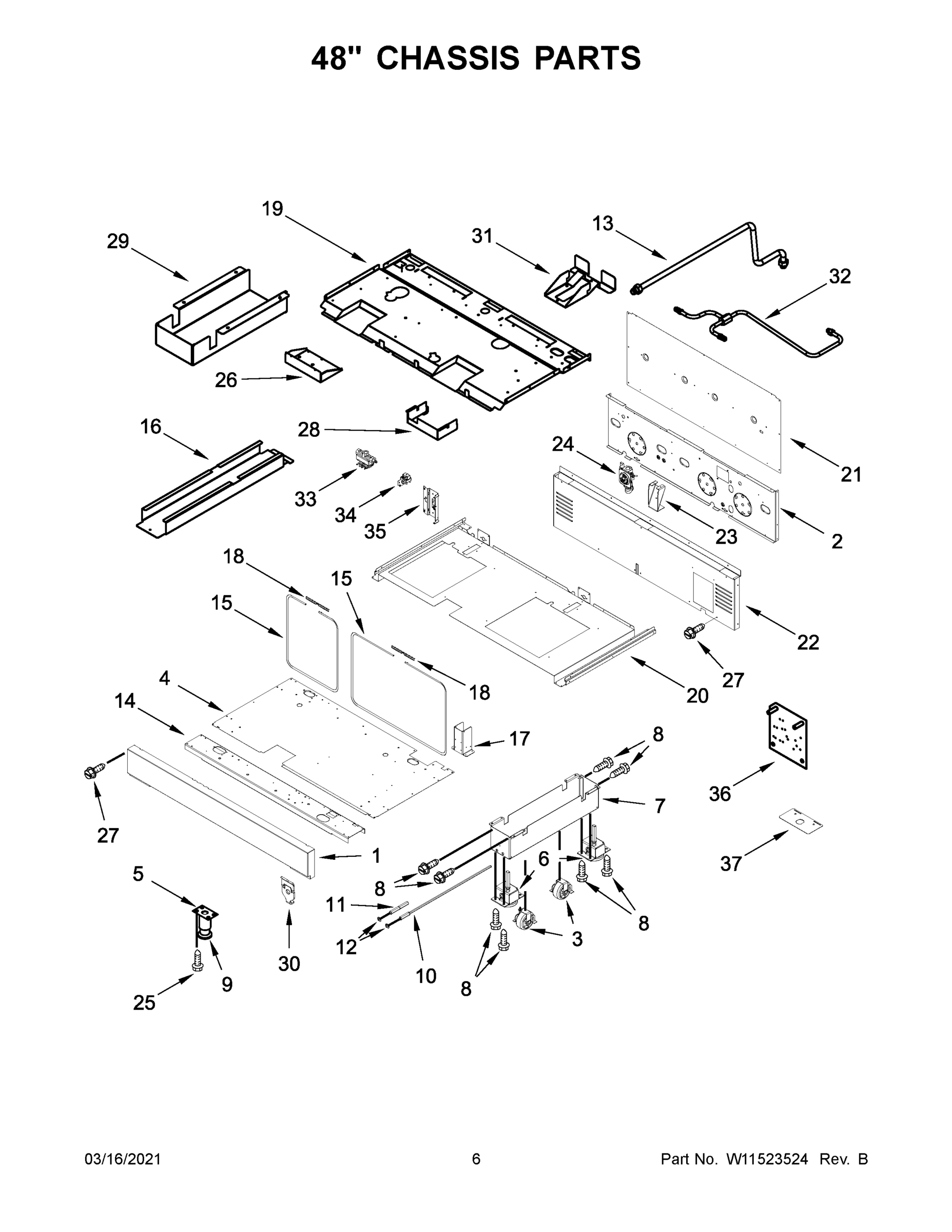

1

W11317946 Whirlpool Cover Plate Backorder WPL W11317946 $181.76

1

W11318335 Whirlpool Glass Frame Backorder WPL W11318335 $122.09

1

W11318831 Whirlpool Glass Frame Backorder WPL W11318831 $122.09

1

WP4450249 Whirlpool Thermostat Backorder WPL WP4450249 $81.97

1A

VENT, CHIMNEY BOX (18 IN) WPL W11476247 Contact Us For Availability

2

W10308051 Whirlpool Burner Box Backorder WPL W10308051 $137.68

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

2

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $116.09

2

PANEL-VENT Backorder WPL W11105221 $78.77

2

W11688507 Whirlpool Insulation In Stock WPL W11688507 $9.10

2

BACK, CHASSIS WPL W11324987 Contact Us For Availability

2

INSULATION, DOOR (30 IN) WPL W11413190 Contact Us For Availability

2

INSULATION, DOOR WPL W10884821 Contact Us For Availability

2A

VENT, COOLING TOP (18 IN) WPL W11113379 Contact Us For Availability

3

W11111351 Whirlpool Range Rack Backorder WPL W11111351 $80.87

3

W11248652 Whirlpool Blower In Stock WPL W11248652 $120.33

3

W11317951 Whirlpool Glass Door Backorder WPL W11317951 $60.54

3

W11318341 Whirlpool Meat Probe Backorder WPL W11318341 $107.66

3

W11318823 Whirlpool Door Glass Backorder WPL W11318823 $60.54

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $17.40

3

WPW10351278 Whirlpool Bumper Backorder WPL WPW10351278 $3.70

3D

W10892429 Whirlpool Orifice Spud Backorder WPL W10892429 $39.25

4

W10794440 Whirlpool Fan Motor Backorder WPL W10794440 $146.74

4

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

4

W11320536 Whirlpool Duct Backorder WPL W11320536 $122.73

4

W11563568 Whirlpool Range Rack Backorder WPL W11563568 $229.59

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $8.44

4

VENT, COOLING BOTTOM (30 IN) WPL W11091676 Contact Us For Availability

4

RETAINER, GLASS WPL W11194821 Contact Us For Availability

4

RETAINER, GLASS WPL W11194818 Contact Us For Availability

4A

W11238756 Whirlpool Surface Igniter Backorder WPL W11238756 $24.63

4A

VENT, COOLING BOTTOM (18 IN) WPL W11113377 Contact Us For Availability

5

W11320150 Whirlpool Convection Fan In Stock WPL W11320150 $120.93

5

W11643630 Whirlpool Door Hinge Backorder WPL W11643630 $79.55

5

W11643896 Whirlpool Appliance Door Hinge In Stock WPL W11643896 $74.14

5

WP9759118 Whirlpool Mounting Plate Backorder WPL WP9759118 $31.49

5

TUBE, VENT WPL W10145743 Contact Us For Availability

5

PLATE, COOLING LATCH WPL W11109518 Contact Us For Availability

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $46.17

6

W11232487 Whirlpool Convection Baffle Backorder WPL W11232487 $79.88

6

W11233684 Whirlpool Range Light Assembly Backorder WPL W11233684 $36.75

6

BAFFL-CONV Backorder WPL W11368180 $137.34

6

W11643898 Whirlpool Door Hinge Backorder WPL W11643898 $48.57

6

W11643900 Whirlpool Door Hinge In Stock WPL W11643900 $48.57

6

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.80

7

W10794042 Whirlpool Nut Backorder WPL W10794042 $5.29

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $79.35

7

W11712404 Whirlpool Screw Backorder WPL W11712404 $8.11

7

WPW10272594 Whirlpool Window Frame Backorder WPL WPW10272594 $69.70

7

SCREW WPL 7101P42660 Contact Us For Availability

8

W10162096 Whirlpool Screw Backorder WPL W10162096 $9.59

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $29.94

8

BRACKET, BLOWER MOUNT WPL W11047754 Contact Us For Availability

9

RETAINER Backorder WPL W10246086 $27.52

9

WP9759117 Whirlpool Leveling Foot Backorder WPL WP9759117 $63.64

9

RECEIVER, HINGE (LEFT) WPL W11096294 Contact Us For Availability

9

SCREW WPL 7101P43460 Contact Us For Availability

9

BRACKET, HANDLE WPL W11197830 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $43.57

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $27.52

INSULATION Backorder WPL W10246087 $43.77

W11315557 Whirlpool Door Glass Backorder WPL W11315557 $611.42

W11315559 Whirlpool Door Glass Backorder WPL W11315559 $425.46

W11355922 Whirlpool Surface Igniter In Stock WPL W11355922 $23.46

W10115793 Whirlpool Shaft Backorder WPL W10115793 $33.69

W11033310 Whirlpool Heating Element Backorder WPL W11033310 $62.66

W11231343 Whirlpool Lock Nut In Stock WPL W11231343 $9.59

W11317501 Whirlpool Door Handle Backorder WPL W11317501 $219.15

COVER, CHANNEL WPL W11106956 Contact Us For Availability

HANDLE, DOOR WPL W11102824 Contact Us For Availability

489504 Whirlpool Range Ring Backorder WPL 489504 $4.85

DUCT-AIR Backorder WPL W10145363 $51.39

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

W11320145 Whirlpool Cabinet Panel Backorder WPL W11320145 $124.37

W11355920 Whirlpool Surface Igniter Backorder WPL W11355920 $23.46

WPW10276043 Whirlpool Screw Backorder WPL WPW10276043 $2.51

RECEIVER, HINGE (RIGHT) WPL W11096293 Contact Us For Availability

12A

CHASSIS, SIDE (RIGHT) WPL W11102296 Contact Us For Availability

12A

DUCT, PRIMARY AIR (18 IN) WPL W10145364 Contact Us For Availability

W10261523 Whirlpool Plate Backorder WPL W10261523 $27.12

W11175143 Whirlpool Gasket In Stock WPL W11175143 $9.68

W11193480 Whirlpool Screw In Stock WPL W11193480 $9.59

W11317500 Whirlpool Nameplate Backorder WPL W11317500 $60.73

W11364214 Whirlpool Gas Tubing Backorder WPL W11364214 $39.86

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

SUPPORT, BAKE PAN WPL W10145651 Contact Us For Availability

14

SCREW Backorder WPL W10739592 $6.28

14

SUPPORT Backorder WPL W11369238 $66.48

14

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $64.26

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

WPW10145744 Whirlpool Support Backorder WPL WPW10145744 $75.75

BRACKET, BAKE BURNER (18 IN CAVITY) WPL W10308041 Contact Us For Availability

15A

W11115326 Whirlpool Gasket Backorder WPL W11115326 $111.80

16

W10317437 Whirlpool Support Assembly Backorder WPL W10317437 $10.25

16

W10878505 Whirlpool Range Burner Backorder WPL W10878505 $83.33

16

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $61.68

W10115819 Whirlpool Brace Backorder WPL W10115819 $27.52

W10145706 Whirlpool Gas Tubing Assembly Backorder WPL W10145706 $76.06

W10308040 Whirlpool Pan Bracket Backorder WPL W10308040 $27.52

ASSEMBLY, GRILL BOX WPL W11174429 Contact Us For Availability

W11316696 Whirlpool Cooktop Backorder WPL W11316696 $171.65

W11362015 Whirlpool Retainer Backorder WPL W11362015 $60.35

W11504377 Whirlpool Broiler Pan Backorder WPL W11504377 $73.59

W11643161 Whirlpool Range Burner Backorder WPL W11643161 $67.01

18A

W11316697 Whirlpool Range Cooktop Backorder WPL W11316697 $171.65

19

W11620700 Whirlpool Knob Backorder WPL W11620700 $75.35

19

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

19

TOP, CHASSIS WPL W11324984 Contact Us For Availability

20

W10323252 Whirlpool Trim Top Backorder WPL W10323252 $81.32

20

W11661180 Whirlpool Burner Broiler Backorder WPL W11661180 $63.21

20

CHASSIS, BOTTOM WPL W11040800 Contact Us For Availability

21

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $27.52

21

PANEL, BACK TOP WPL W11103335 Contact Us For Availability

21

INSULATION, BROIL COVER WPL W10311009 Contact Us For Availability

21A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $27.52

22

W10310985 Whirlpool Access Cover Backorder WPL W10310985 $27.52

22

W11509770 Whirlpool Screw In Stock WPL W11509770 $10.41

22

PANEL, BACK BOTTOM WPL W11034123 Contact Us For Availability

23

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $41.34

23

W11355244 Whirlpool Gas Tubing Backorder WPL W11355244 $66.79

23

W11444450 Whirlpool Control Panel In Stock WPL W11444450 $522.49

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $189.27

W11193822 Whirlpool Regulator Backorder WPL W11193822 $111.93

W11355919 Whirlpool Range Gas Tubing Backorder WPL W11355919 $66.79

W11574368 Whirlpool Knob Backorder WPL W11574368 $58.61

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $9.13

25

W11661576 Whirlpool Range Bottom Pan Backorder WPL W11661576 $59.55

26

W11328568 Whirlpool Burner Grille Backorder WPL W11328568 $407.48

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

W11317499 Whirlpool Knob Bezel In Stock WPL W11317499 $55.11

28

COVER-CNTL Backorder WPL W11369237 $55.78

28

W11574369 Whirlpool Range Knob Backorder WPL W11574369 $75.35

29

WPL W11205794 WPL W11205794 Contact Us For Availability

29

CHANNEL, WIRE WPL W11368831 Contact Us For Availability

30

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $4.61

30

WPL W11174598 WPL W11174598 Contact Us For Availability

31

W11190223 Whirlpool Bracket Assembly Backorder WPL W11190223 $41.34

31

WPL W11419278 WPL W11419278 Contact Us For Availability

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $57.11

32

W11355235 Whirlpool Gas Tubing Backorder WPL W11355235 $66.79

33

W11239228 Whirlpool Gas Valve Backorder WPL W11239228 $121.52

34

W10311268 Whirlpool Gas Valve Backorder WPL W10311268 $151.62

34

WPL W11419282 WPL W11419282 Contact Us For Availability

35

W10145362 Whirlpool Control Bracket Backorder WPL W10145362 $30.25

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.91

36

W11319196 Whirlpool Push Button Backorder WPL W11319196 $9.94

36

WPW10511278 Whirlpool Spark Module In Stock WPL WPW10511278 $108.08

37

W10115855 Whirlpool Support Bracket Backorder WPL W10115855 $27.52

37

W11516014 Whirlpool Trim Top Backorder WPL W11516014 $177.61

38

W11318857 Whirlpool Push Button Backorder WPL W11318857 $9.30

39

WPL W10896369 WPL W10896369 Contact Us For Availability

40

W11318855 Whirlpool Antenna Backorder WPL W11318855 $113.37

41

W11515378 Whirlpool Grille Grate Backorder WPL W11515378 $235.73

42

W11355232-includeCORE Whirlpool W11355232 Ran Backorder WPL W11355232-includeCORE $237.68

43

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $75.33

44

WPL W10884943 WPL W10884943 Contact Us For Availability

45

W11317495 Whirlpool Knob Bezel Backorder WPL W11317495 $54.30

46

W10294500 Whirlpool Light Lens Backorder WPL W10294500 $4.85

47

W10116114 Whirlpool Indicator Light Backorder WPL W10116114 $33.25

48

W11318834 Whirlpool Infinite Heat Switch Backorder WPL W11318834 $116.16

49

WPL 7101P30960 WPL 7101P30960 Contact Us For Availability

50

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

51

W11591511 Whirlpool Knob Backorder WPL W11591511 $75.35

52

W11620695 Whirlpool Knob Backorder WPL W11620695 $75.35

53

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

54

W11123146 Whirlpool Speaker Backorder WPL W11123146 $31.29

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $26.90

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $484.00

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $74.77

W11200305 Whirlpool Wire Harness Backorder WPL W11200305 $203.47

W11316873 Whirlpool Knob Bezel Backorder WPL W11316873 $54.30

W11323012 Whirlpool Burner Cap Backorder WPL W11323012 $99.57

W11323014 Whirlpool Range Burner Cap Backorder WPL W11323014 $332.64

W11323015 Whirlpool Range Burner Cap Backorder WPL W11323015 $90.57

W11323024 Whirlpool Range Knob Bezel Backorder WPL W11323024 $54.30

W11323061 Whirlpool Knob Bezel Backorder WPL W11323061 $54.30

W11323062 Whirlpool Range Bezel Knob Backorder WPL W11323062 $201.60

BEZEL-KNOB Backorder WPL W11323067 $54.30

W11323068 Whirlpool Knob Bezel Backorder WPL W11323068 $201.60

W11428599 Whirlpool Conversion Kit In Stock WPL W11428599 $20.04

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $19.47

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $3.70

ACCESSORIES, CLEANER, COOKTOP WPL 31464 Contact Us For Availability

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

INSULATION, WRAP (30 IN) WPL W10282810 Contact Us For Availability

INSULATION, BACK, (30 IN) WPL W10299350 Contact Us For Availability

INSULATION, BOTTOM WPL W10299354 Contact Us For Availability

INSULATION, WRAP, 18 IN WPL W10282820 Contact Us For Availability

INSULATION, BACK, 18 IN WPL W10299353 Contact Us For Availability

INSULATION, BOTTOM WPL W10299355 Contact Us For Availability

ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability

ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability

ACCESSORIES, KIT, HIGH ALTITUDE WPL W11238043 Contact Us For Availability
