Model Whirlpool JGD8348CDP GAS COOK-TOP – Common Parts & Diagrams

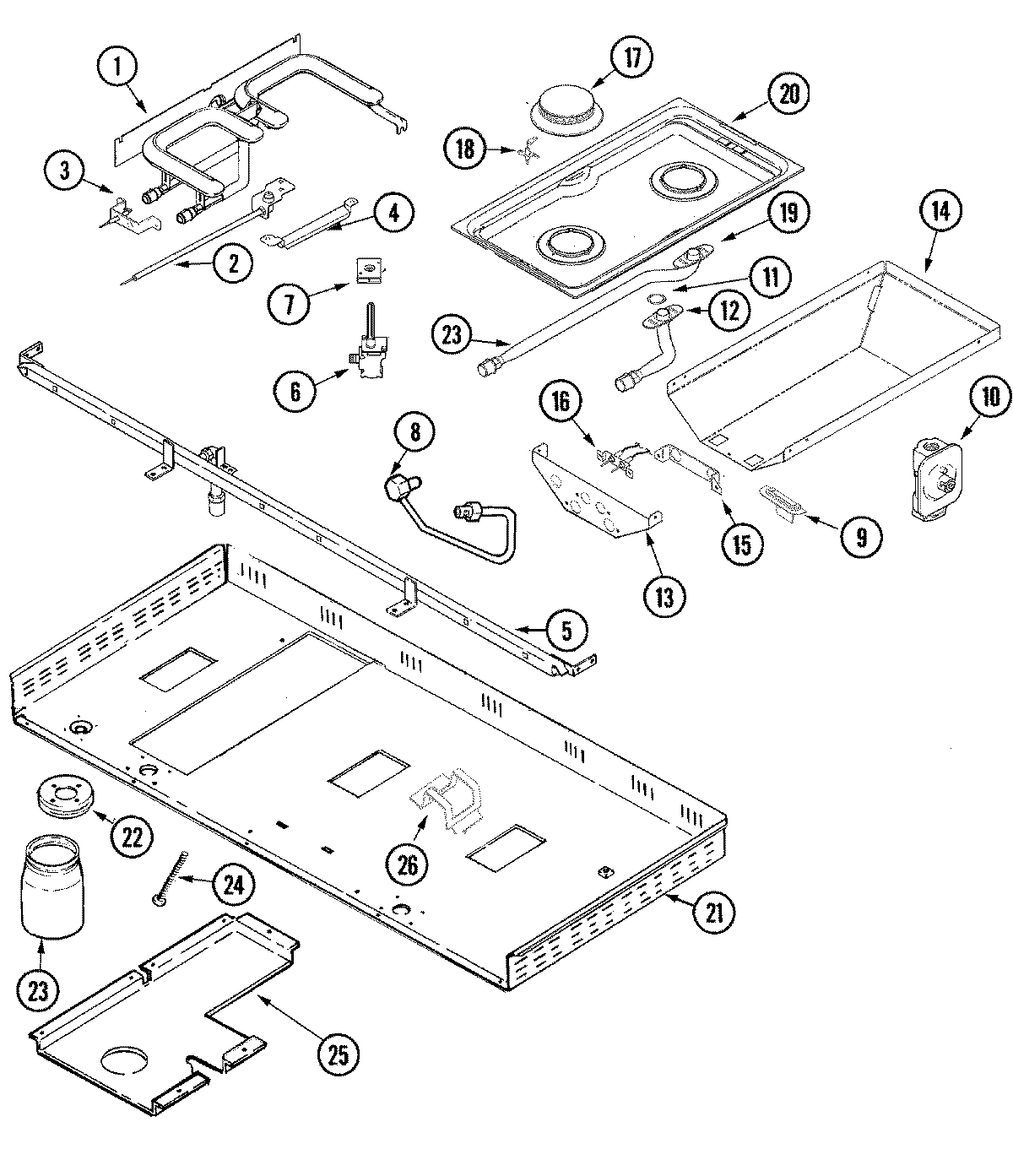

03 - GAS CONTROLS & BURNER BOX

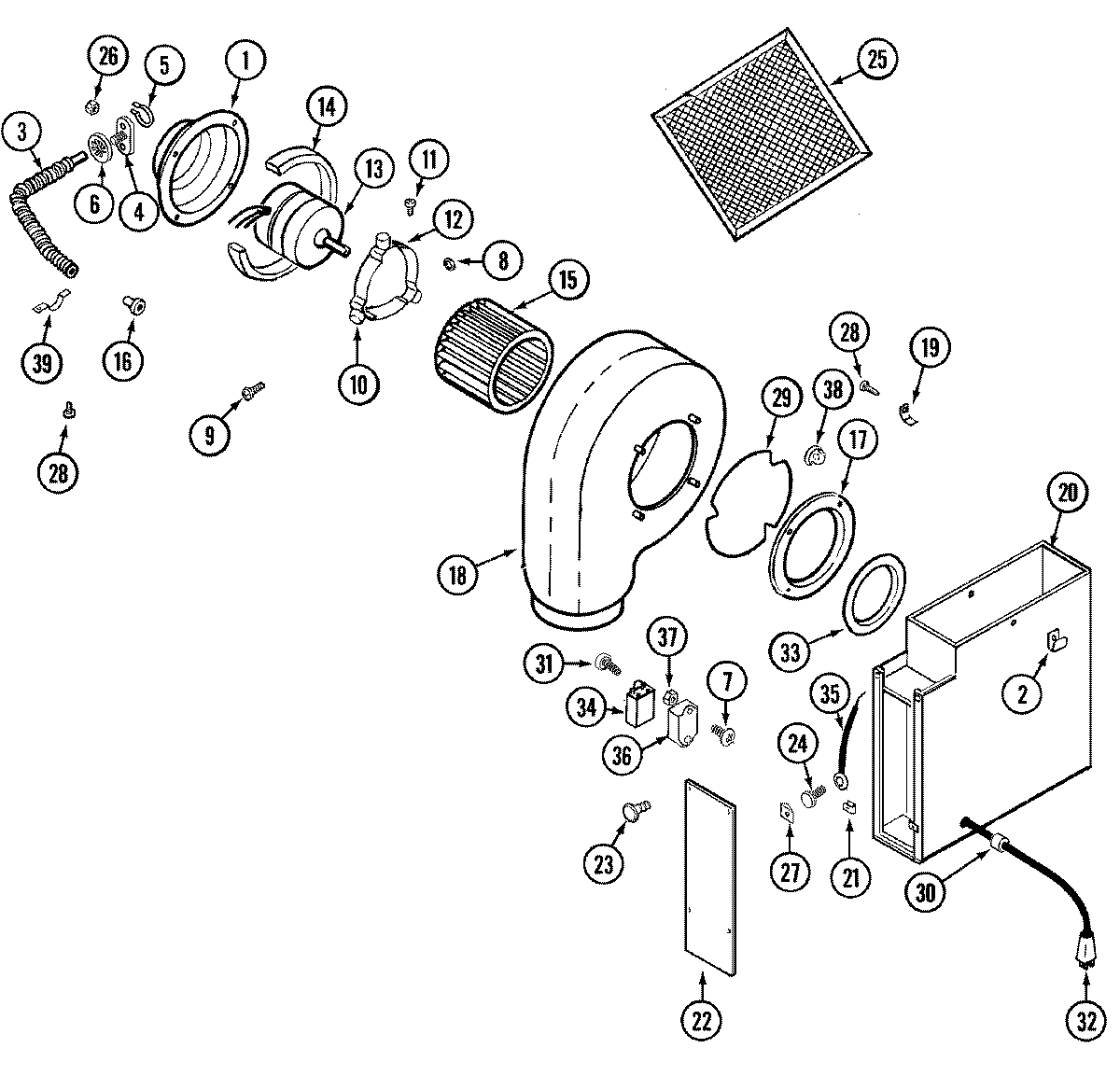

01 - BLOWER ASSEMBLY-PLENUM
02 - CONTROL PANEL & TOP ASSEMBLY
04 - SUPPLEMENTAL INFORMATION
05 - WIRING INFORMATION
Common parts from model Whirlpool JGD8348CDP GAS COOK-TOP
1
COVER, MOTOR WPL Y704968 Contact Us For Availability
1
TOP (STL) WPL 74007002 Contact Us For Availability
1
MANUAL, USE & CARE WPL 74006541 Contact Us For Availability
2
GRATE, GRILL WPL 71003267 Contact Us For Availability
2
CLIP, J WPL Y704423 Contact Us For Availability
2
KIT, LP CONVERSION WPL 74007009 Contact Us For Availability
3
INSULATOR, CARTRIDGE WPL 74006104 Contact Us For Availability
3
CONDUIT, METAL WPL Y705155 Contact Us For Availability
3
INSULATOR, CERAMIC BLOCK WPL 74005866 Contact Us For Availability
3
INSULATOR, SPARK WPL 74009011 Contact Us For Availability
3
ORIFICE (LP/.031) WPL 74006134 Contact Us For Availability
3
ORIFICE (LP/.037) WPL Y04100743 Contact Us For Availability
3
ORIFICE (LP/.033) WPL Y04100744 Contact Us For Availability
4
CONNECTOR WPL Y705154 Contact Us For Availability
4
GRILL, AIR (BLK) WPL 71003023 Contact Us For Availability
5
CLAMP, CABLE WPL 715780 Contact Us For Availability
5
CLIP, RETAINER WPL Y700503 Contact Us For Availability
6
VALVE, GAS (LT) WPL Y04100187 Contact Us For Availability
6
PAN, GRILL (LT) WPL 74006090 Contact Us For Availability
7
SWITCH, SPARK (DOUBLE) WPL 74007004 Contact Us For Availability
7
SCREW WPL Y707150 Contact Us For Availability
7
CLIP, TERMINAL BLOCK WPL 74006093 Contact Us For Availability
8
TUBE, BURNER WPL 74007005 Contact Us For Availability
8
NUT WPL 707161 Contact Us For Availability
8
KIT, GRILL PAN SWITCH WPL 12002536 Contact Us For Availability
8
INSULATOR, SWITCH WPL 74006095 Contact Us For Availability
9
GUARD, CORNER WPL 74006934 Contact Us For Availability
9
SCREW WPL Y707402 Contact Us For Availability
10
PAN, GRILL (RT) WPL 74006089 Contact Us For Availability
11
SEAL, PAN WPL Y704979 Contact Us For Availability
12
RECEPTACLE W/HARNESS WPL 74006153 Contact Us For Availability
12
BAND, MOTOR WPL Y707393 Contact Us For Availability
13
COVER, CARTRIDGE WPL 74006935 Contact Us For Availability
13
BLOWER MOTOR W/CAGE WPL 74005785 Contact Us For Availability
14
SCREW WPL 7101P34960 Contact Us For Availability
14
HOUSING, CARTRIDGE WPL 74005888 Contact Us For Availability
14
FOAM, URETHANE WPL Y715957 Contact Us For Availability
15
BRACKET, VENTURI ALIGNMENT WPL 74005889 Contact Us For Availability
15
PANEL, LOWER CONTROL----NLA WPL 74007000 Contact Us For Availability
15
PANEL, CONTROL WPL 74009661 Contact Us For Availability
16
BUSHING WPL 712311 Contact Us For Availability
16
NAMEPLATE (STL) WPL 74006889 Contact Us For Availability
17
RING, INLET WPL Y704758 Contact Us For Availability
17
BEZEL, KNOB (FAN SWITCH_ WPL 74009632 Contact Us For Availability
17
BEZEL, KNOB WPL 74009664 Contact Us For Availability
18
GUARD, BLOWER WPL 71001534 Contact Us For Availability
18
SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability
18
KNOB, FAN SWITCH WPL 74009663 Contact Us For Availability
19
RETAINER, FILTER WPL Y707688 Contact Us For Availability
20
PLENUM WELD ASSEMBLY WPL 74006610 Contact Us For Availability
20
ESCUTCHEON WPL 71001052 Contact Us For Availability
20
BRACKET, FILLER WPL 71001053 Contact Us For Availability
20
TUBE, VENT (LWR) WPL 71001123 Contact Us For Availability
21
BOTTOM, BURNER BOX WPL 74009659 Contact Us For Availability
21
CLIP WPL 705463 Contact Us For Availability
21
BRACKET, CONTROL PANEL WPL 74007008 Contact Us For Availability
22
LID, JAR WPL Y707870 Contact Us For Availability
22
COVER, PLENUM ACCESS WPL 74006609 Contact Us For Availability
25
BAFFLE, BOTTOM (LT) WPL 704527 Contact Us For Availability
26
BRACKET, ORIFICE HOLDER WPL 71003147 Contact Us For Availability
27
CLIP, TINNERMAN WPL 701958 Contact Us For Availability
30
RELIEF, STRAIN WPL Y04100254 Contact Us For Availability
33
RING, RESTRICTOR WPL Y704761 Contact Us For Availability
34
NUT, ACORN WPL 74005786 Contact Us For Availability
35
WIRE, GROUND WPL 74006139 Contact Us For Availability
36
BRACKET, PLENUM (FRT) WPL 71001536 Contact Us For Availability
36
MODULE, SPARK (2+0) WPL 74004282 Contact Us For Availability
36
WIRE, GROUND (MODULE/GROUND) WPL 74006140 Contact Us For Availability
38
LOCKNUT CAP, W/NYLON INSERT WPL 702889 Contact Us For Availability
38
WASHER (1``) WPL 74001521 Contact Us For Availability
39
CLIP, COVER (J-TYPE) WPL 74005812 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002933 Contact Us For Availability
× ![]()
